Zonybox Digital TV Decoder for Cuba

Zonybox Caja decodificadora de TV Digital para Cuba is a compact DTMB receiver that decodes Cuba's terrestrial broadcasts and plays media from USB with HDMI output for modern TVs.

This compact Zonybox set-top box is engineered to receive Cuba's terrestrial television formats — analog and digital — and to present them on contemporary displays. It accepts DTMB-modulated signals across VHF/UHF bands, offers automatic channel scans, and doubles as a USB 2.0 multimedia player so you can view photos, video, and audio from external drives. Built with broad codec support and multiple output options, it brings legacy and HD content to a single living-room device.

How does this box receive Cuban TV signals and which standards does it support?

The Zonybox decodes DTMB modulation used for Chinese-origin digital broadcasts and is compatible with Cuba’s mix of standard and high-definition transmissions. It can tune both VHF and UHF ranges and automatically searches for available channels to simplify setup.

• Modulation: DTMB for digital terrestrial broadcasts;
• Frequency range: 474–858 MHz covering UHF and VHF bands;
• Channel bandwidth: 8 MHz band plan common in regional transmissions;
• Auto-scan function finds and stores available channels quickly.

What picture and audio formats will it play on my TV?

Zonybox outputs a wide selection of resolutions, from legacy SD to HD modes, and decodes common video and audio codecs so content plays smoothly on modern screens. The unit supports both PAL and NTSC modular decoding to handle diverse broadcast and media sources.

• Video resolutions: 720×576 (PAL), 720×480 (NTSC), 720p, 480i/p, 576i, 1080i/1080p;
• Video codecs: MPEG-2, H.264, AVS, AVS+ for broad compatibility;
• Audio decoding: MPEG-1 Layer I & II and MPEG-2 for broadcast sound;
• Image formats from USB: JPEG, GIF, BMP for slideshows on the TV.

How do I connect and play files from USB or connect to my HDTV?

Connections are straightforward: plug your HDMI cable into the TV for the best picture quality, or use composite outputs if you have an older set. Insert a USB 2.0 flash drive to browse and play supported multimedia files using the on-screen menu and remote control.

• Primary output: HDMI for high-definition televisions;
• Legacy outputs: LR/Video (RCA) and coaxial cable input for older sets;

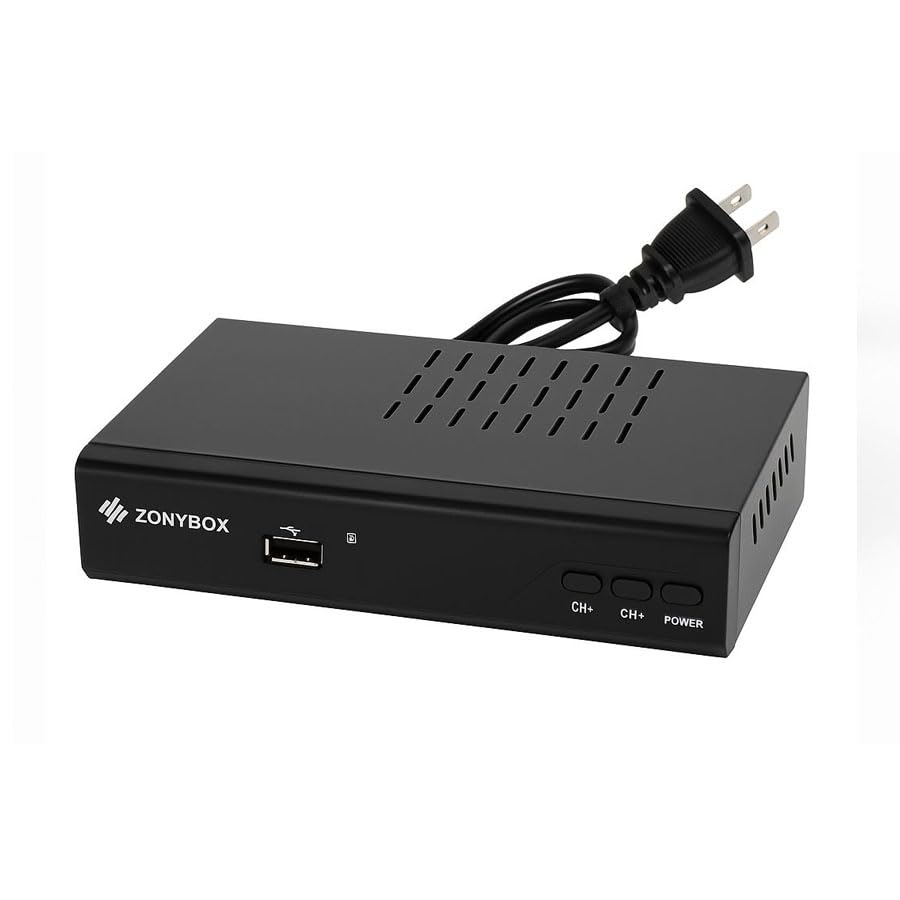

• USB 2.0 port for direct playback of video, audio, and images;

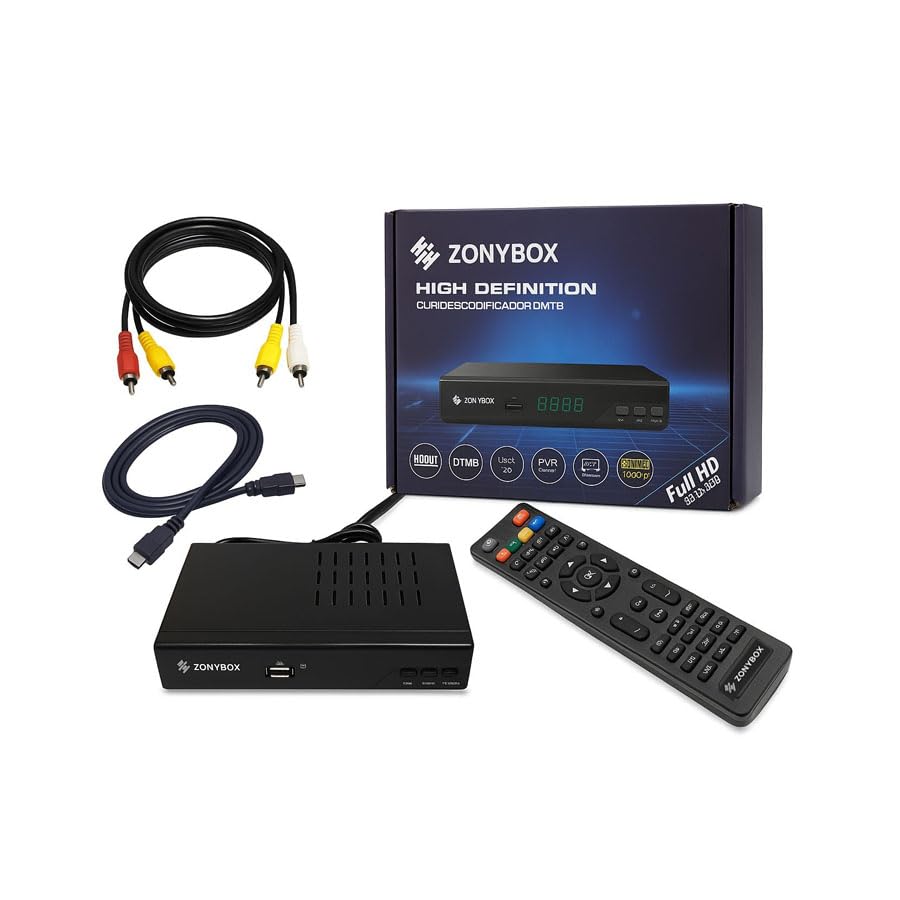

• Simple remote-control navigation and on-screen program guide where supported.

What power and physical specs should I expect?

The receiver is designed for worldwide voltage ranges, so it plugs into standard household outlets without a separate transformer in most locations. Its compact footprint makes it easy to place in entertainment centers alongside other AV gear.

• Power: 100–240V, 50/60 Hz compatible with common mains standards;

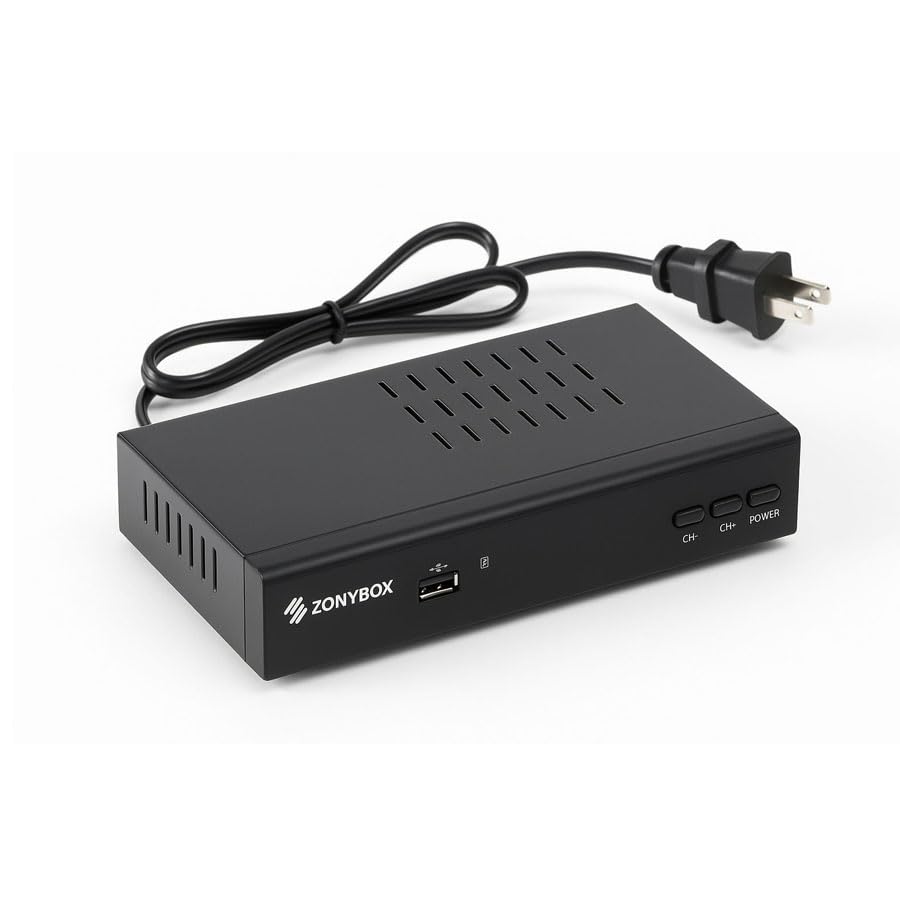

• Interfaces: coaxial antenna input, HDMI, composite audio/video, USB 2.0;
• Audio output modes: right/left/stereo for compatible speaker setups;
• Lightweight, shelf-friendly enclosure suitable for living rooms.

Who is this for: This Zonybox decoder suits homeowners, renters, and travelers in Cuba or users receiving Cuban terrestrial broadcasts who want a single box to handle both current digital channels and multimedia playback. It’s ideal for people with mixed TV sets — from older CRTs to modern HDTVs — who need reliable channel reception, automatic scanning, and easy USB media access without complex installations.
