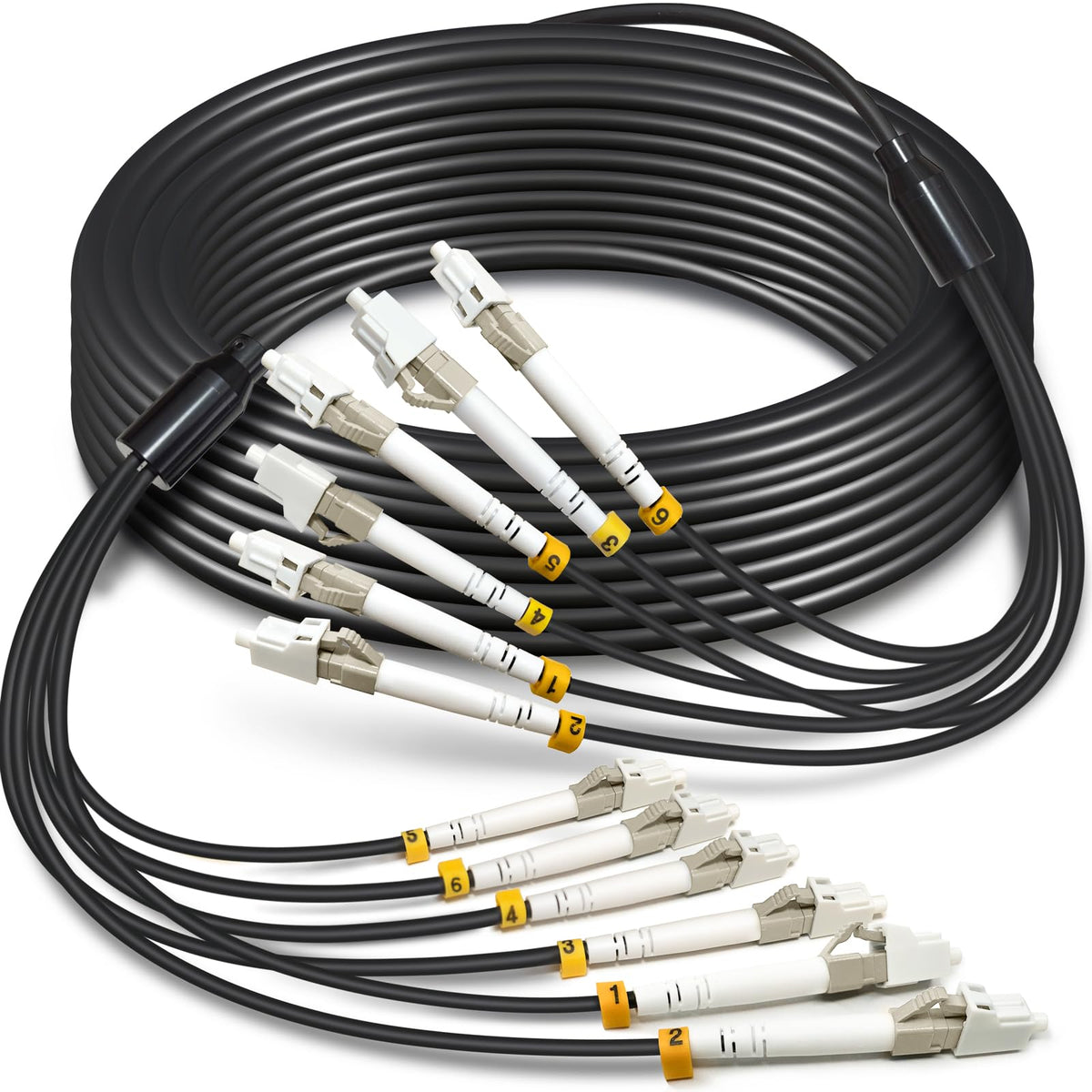

YUTIANHOME OM3 6-Core 10Gb LC-LC Armored Fiber Cable 5m

YUTIANHOME 5-meter 6-core OM3 armored LC-to-LC fiber patch cable is a rugged, pre-terminated multimode link built for outdoor and industrial installations that require 10Gb data transmission and rodent-resistant protection.

This pre-terminated LC-LC fiber jumper combines OM3 multimode performance (50/125 µm) with a TPU outer jacket and steel armor to withstand harsh environments. It’s engineered for direct-burial and conduit runs, offering a plug-and-play solution for sites that need a compact 6-fiber trunk with strong tensile, crush and environmental resistance.

How does this cable survive outdoor and industrial conditions?

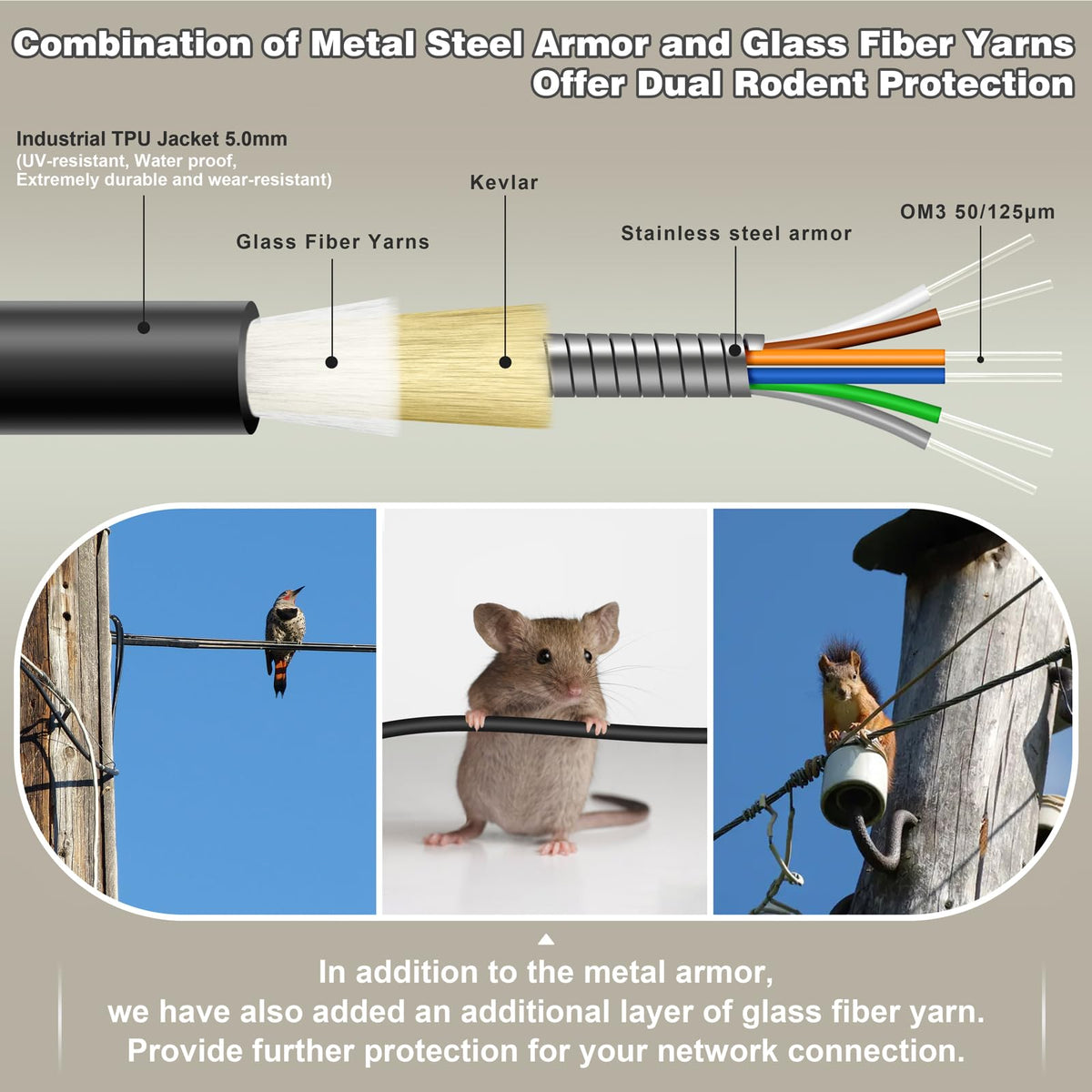

The cable uses a thermoplastic polyurethane (TPU) jacket plus a steel armor layer and glass-fiber yarns, creating multiple layers of mechanical protection. TPU gives abrasion, UV, and temperature resistance, while the armor defends against rodents and physical impact.

• TPU jacket for abrasion, UV, and temperature resistance
• Steel armor plus glass fiber yarns for mechanical protection
• Rated tensile strength up to 600 N and crush resistance to 3000 N

What network speeds and fiber specs does this support?

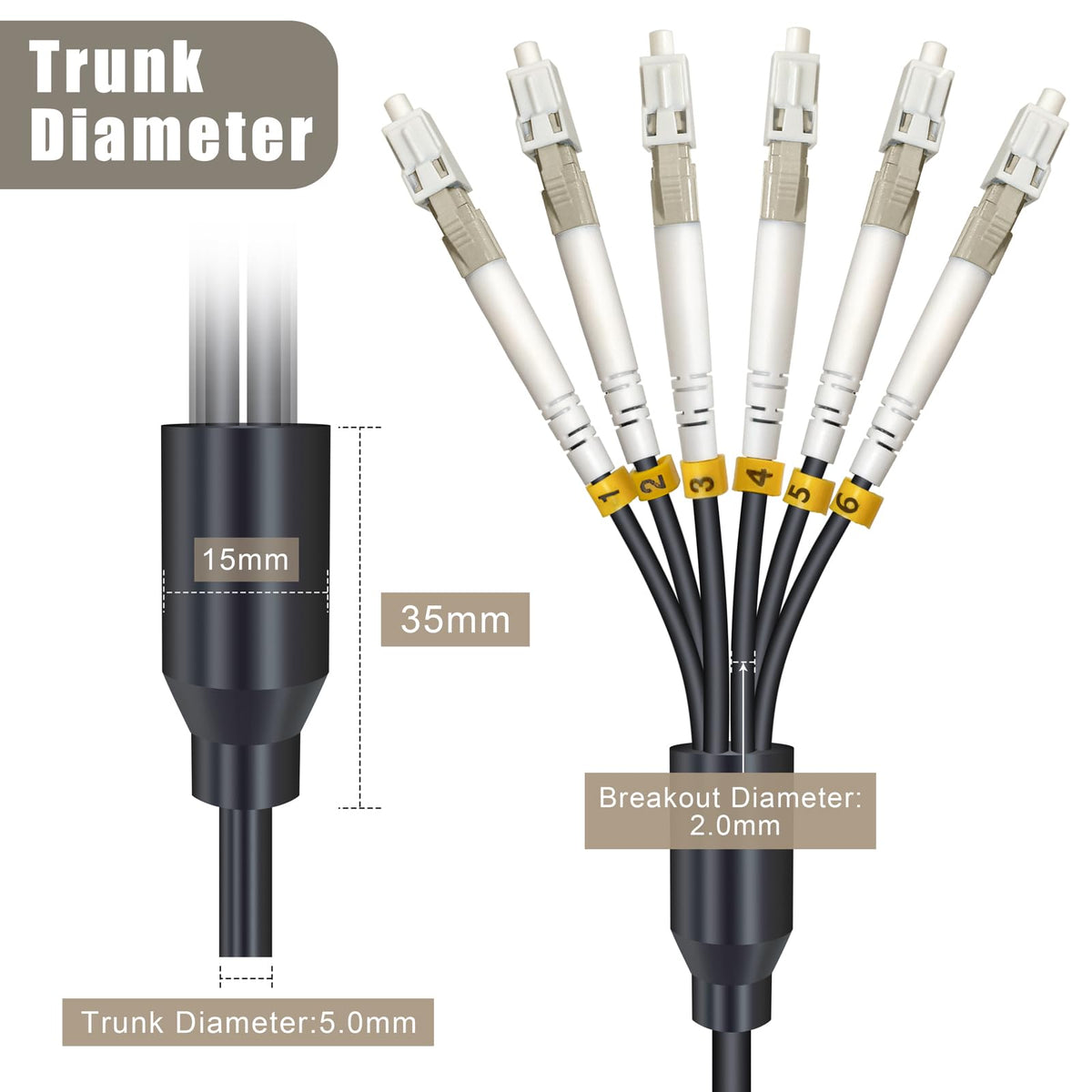

This is an OM3 multimode assembly using 50/125 µm fiber cores with LC connectors on both ends, suitable for 10 Gigabit Ethernet over typical OM3 distances. The six strands let you run multiple duplex links or tie into multi-channel equipment without splicing on site.

• OM3 multimode fiber (50/125 µm) for 10Gb applications

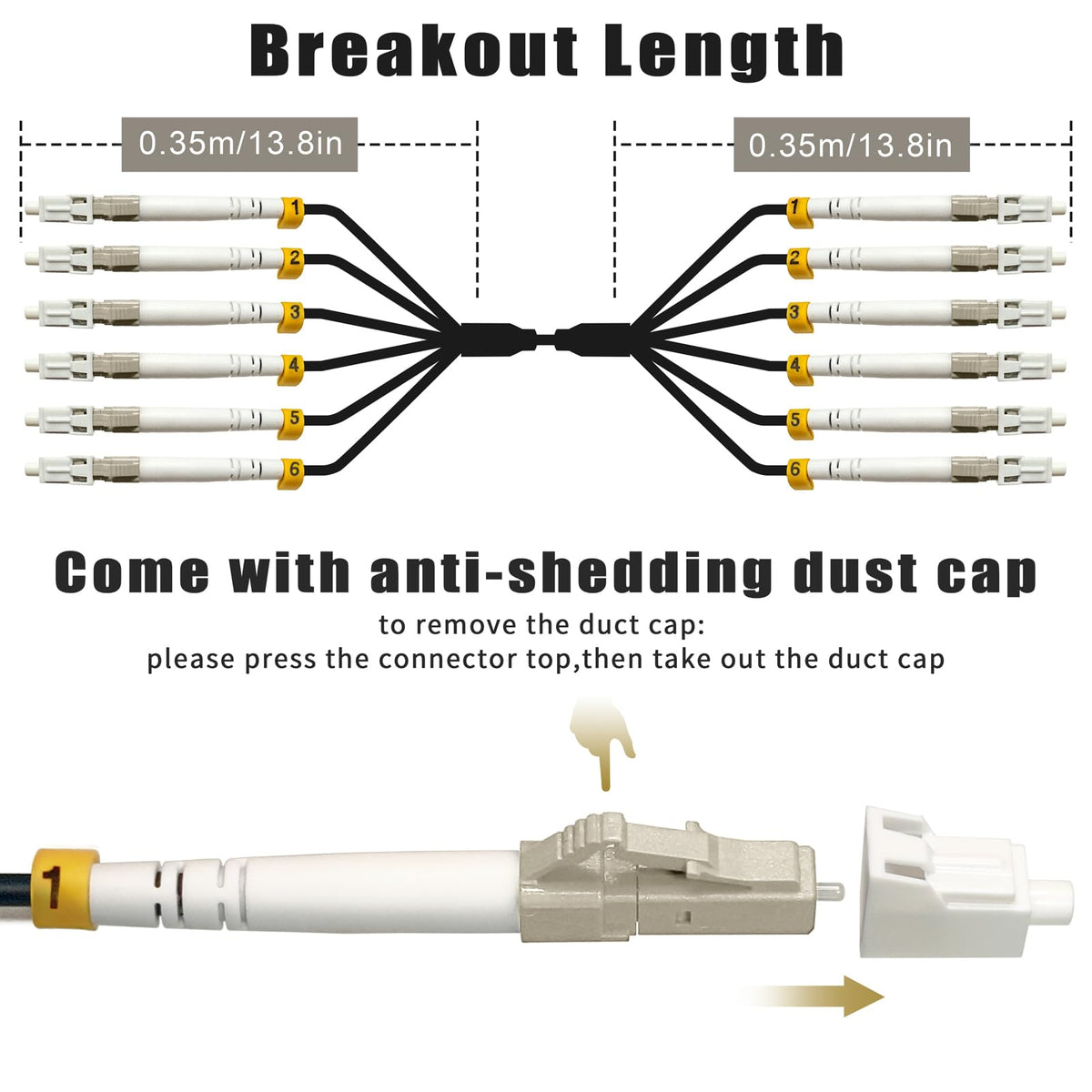

• LC-to-LC connectors pre-terminated for immediate use
• Six fibers arranged for flexible duplex or multi-channel routing

How easy is installation and what mounting options exist?

The cable arrives factory-terminated with LC connectors, so installation is simplified to routing and plugging into LC ports or patch panels. Because of the rugged construction, it can be installed overhead, in conduits, or buried directly without additional armoring in many cases.

• Pre-terminated LC-LC for plug-and-play deployment

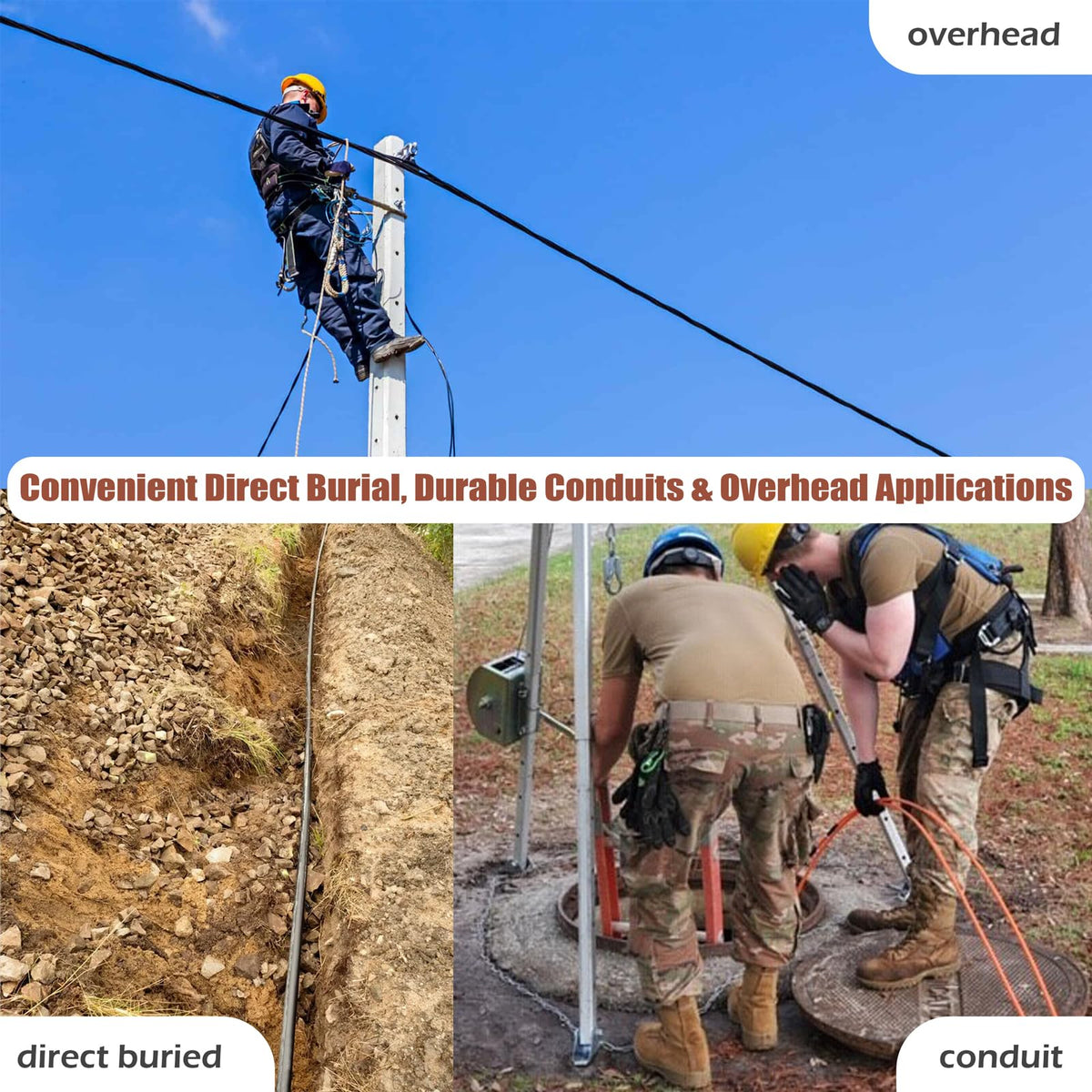

• Suitable for direct burial, conduit runs, or aerial installs
• Compact 5-meter length ideal for short trunking and cross-connects

What mechanical and environmental ratings should I expect?

Designed for demanding sites, the cable withstands high pull forces, significant compressive loads, and a wide temperature range thanks to TPU and armored construction. It’s intended to reduce service interruptions from animals, abrasion, moisture, and crushing hazards.

• Maximum tensile strength: 600 N
• Maximum crush resistance: 3000 N
• UV, water, abrasion, and bending resistant jacket

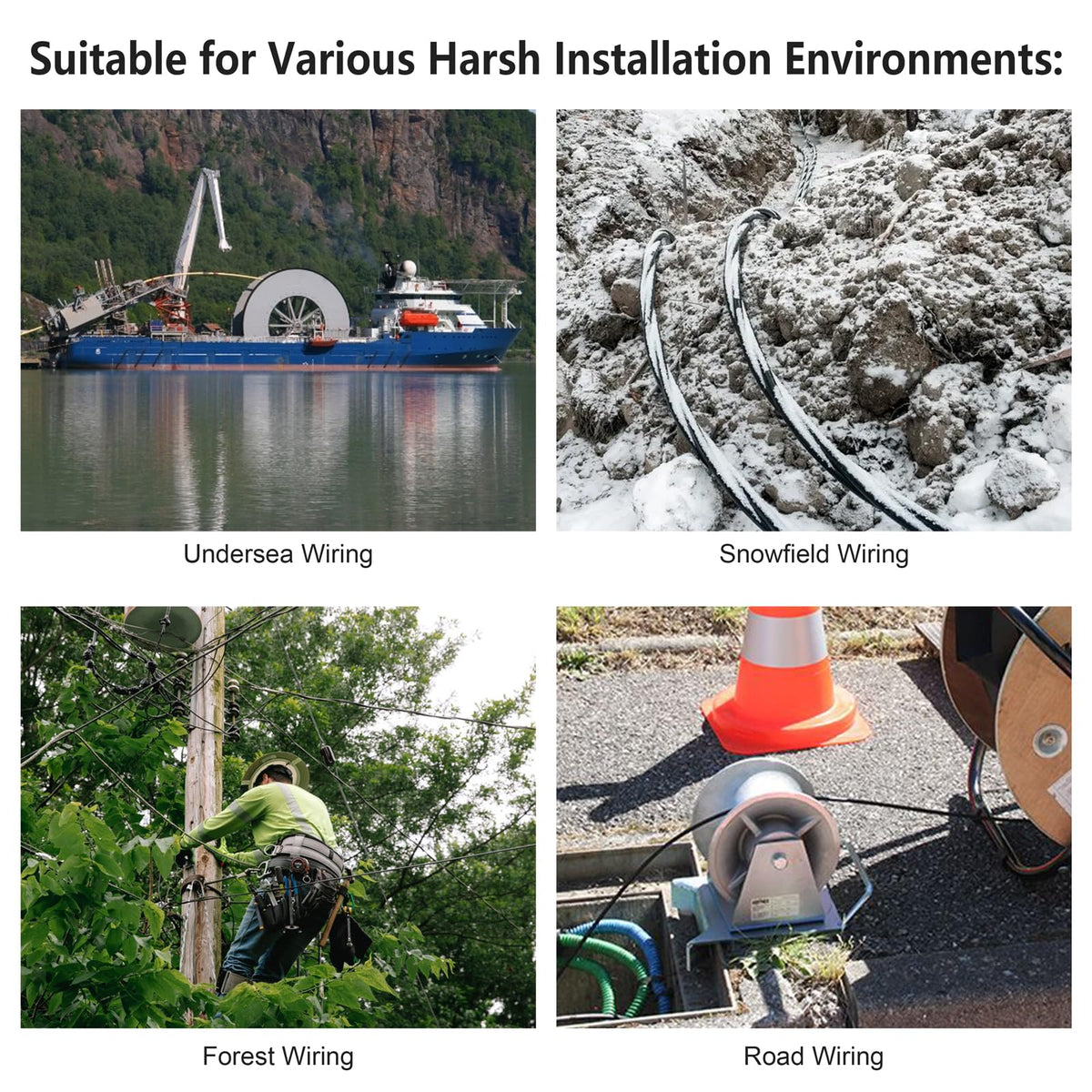

Who is this for: Technicians and network integrators installing outdoor or industrial multimode links who need a short, durable, pre-terminated solution. Ideal for campuses, industrial plants, construction sites, roadway or snowfield deployments, and any environment where mechanical abuse, moisture or pests could threaten ordinary fiber cable.
