XMSJSIY PowerCon Female to Y Spade 20A 0.5m

XMSJSIY PowerCon female panel-mount to Y spade plug cable is a 3-pin, lockable 20A/250V extension designed to connect PowerCon chassis sockets to fork (spade) terminals reliably in stage, audio, and industrial setups.

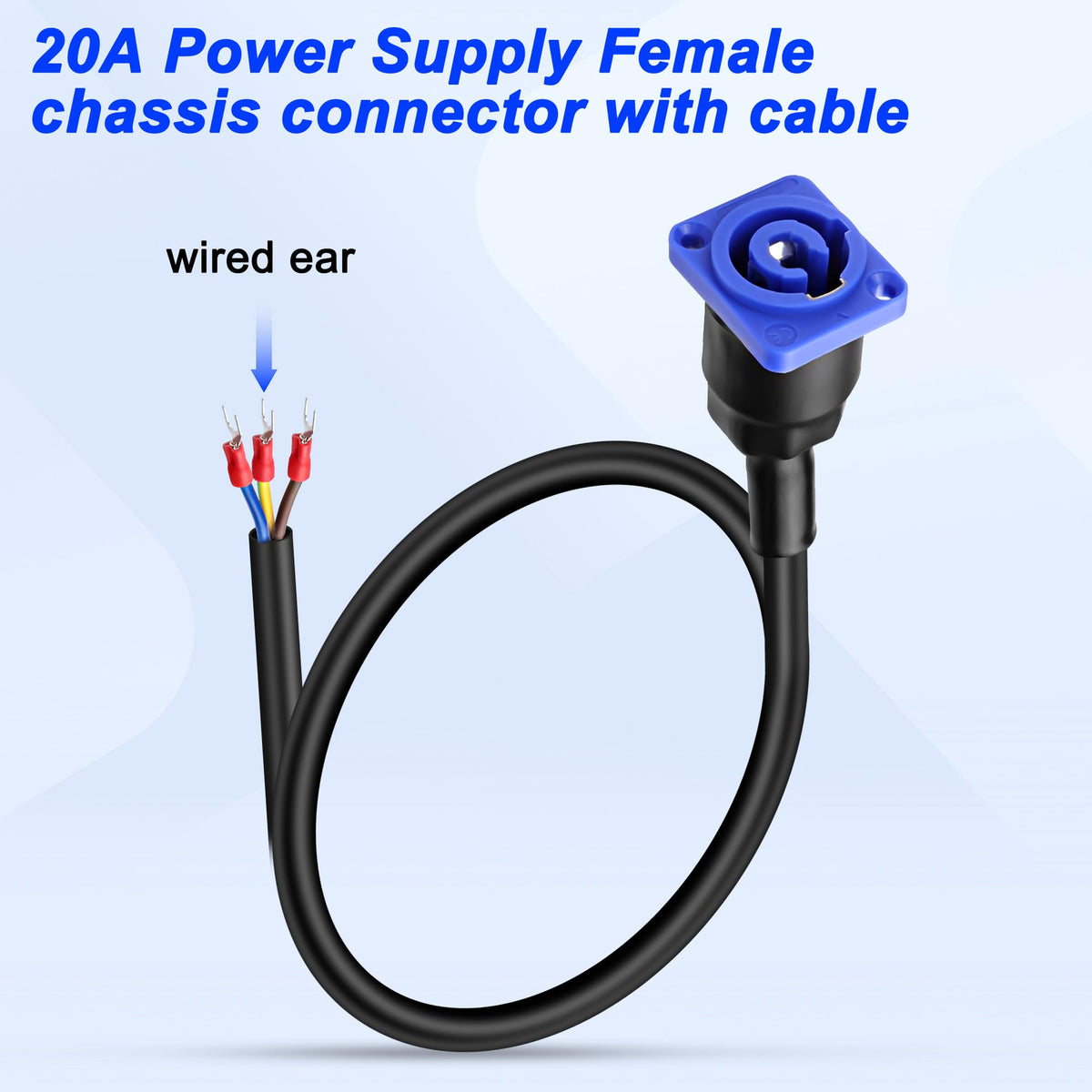

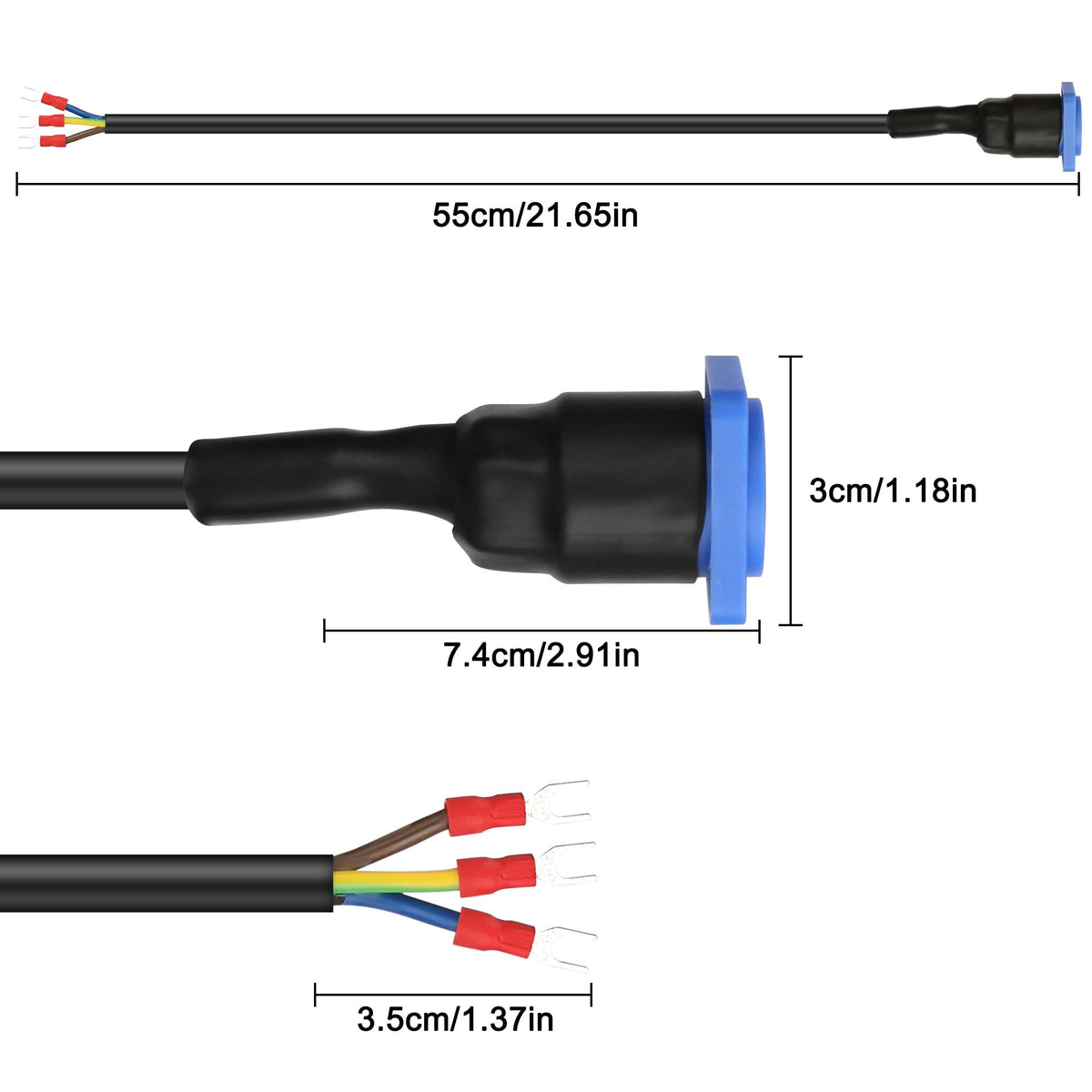

This short, heavy-duty 0.5 m (1.6 ft) cord converts a PowerCon input panel socket into three fork spade terminals, letting you hook the cable into terminal blocks, LED fixtures, amplifiers, or control panels without rewiring the device. Built with a latching PowerCon female inlet, a flexible PVC jacket, and oxygen-free 16 AWG conductors, the cable balances secure locking with low-resistance performance and weather resistance when mated.

How does this cable lock and stay secure during use?

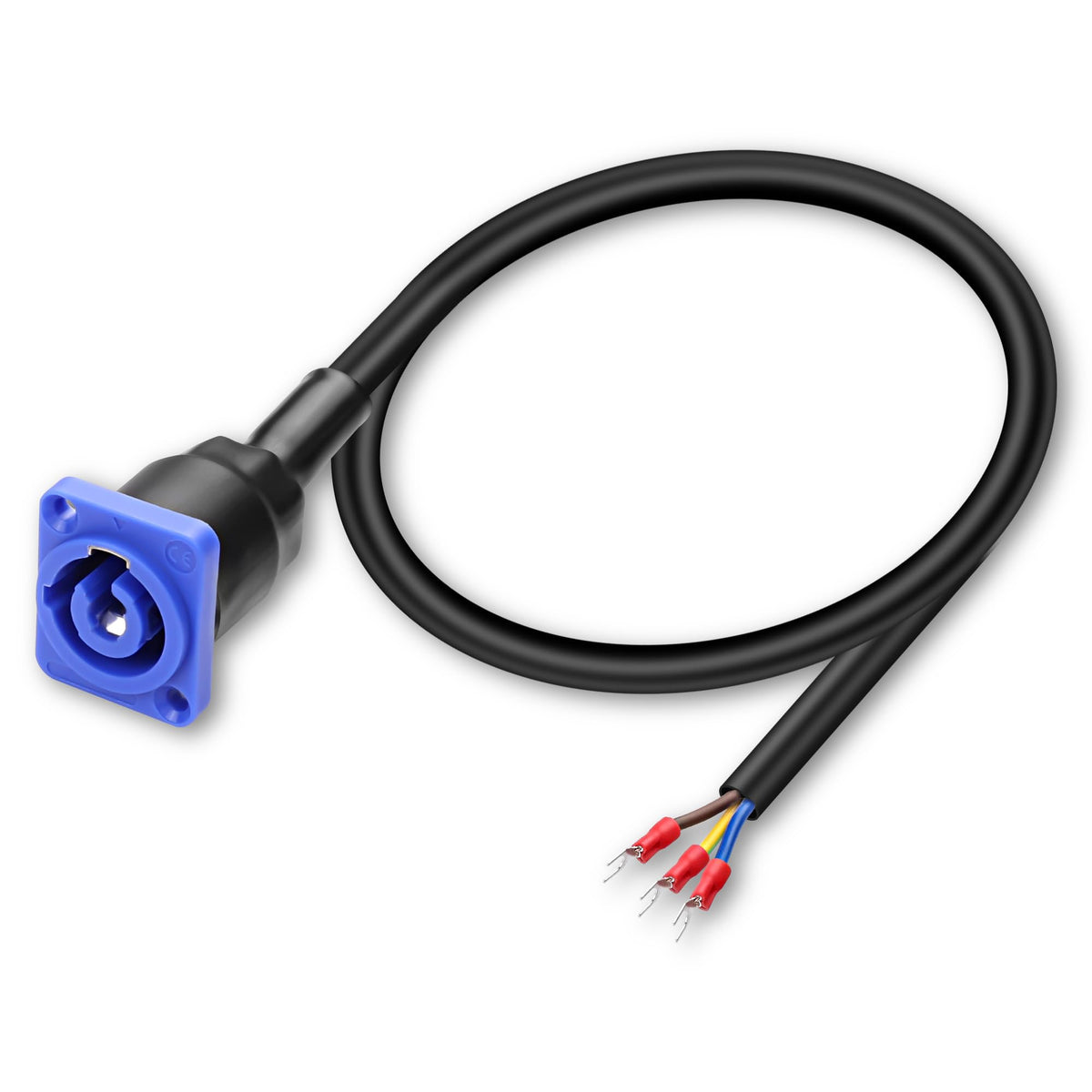

The PowerCon female uses a twist-lock mechanism that latches into compatible PowerCon male plugs for a vibration-resistant connection. The design prevents accidental disconnects on stage or in touring rigs while still allowing quick plug-in and release when needed.

• Twist-to-lock PowerCon female inlet for secure mating
• Durable engineering-plastic housing for repeated use
• IP65-rated dust and splash resistance when connected

What conductor and jacket specs ensure safe power delivery?

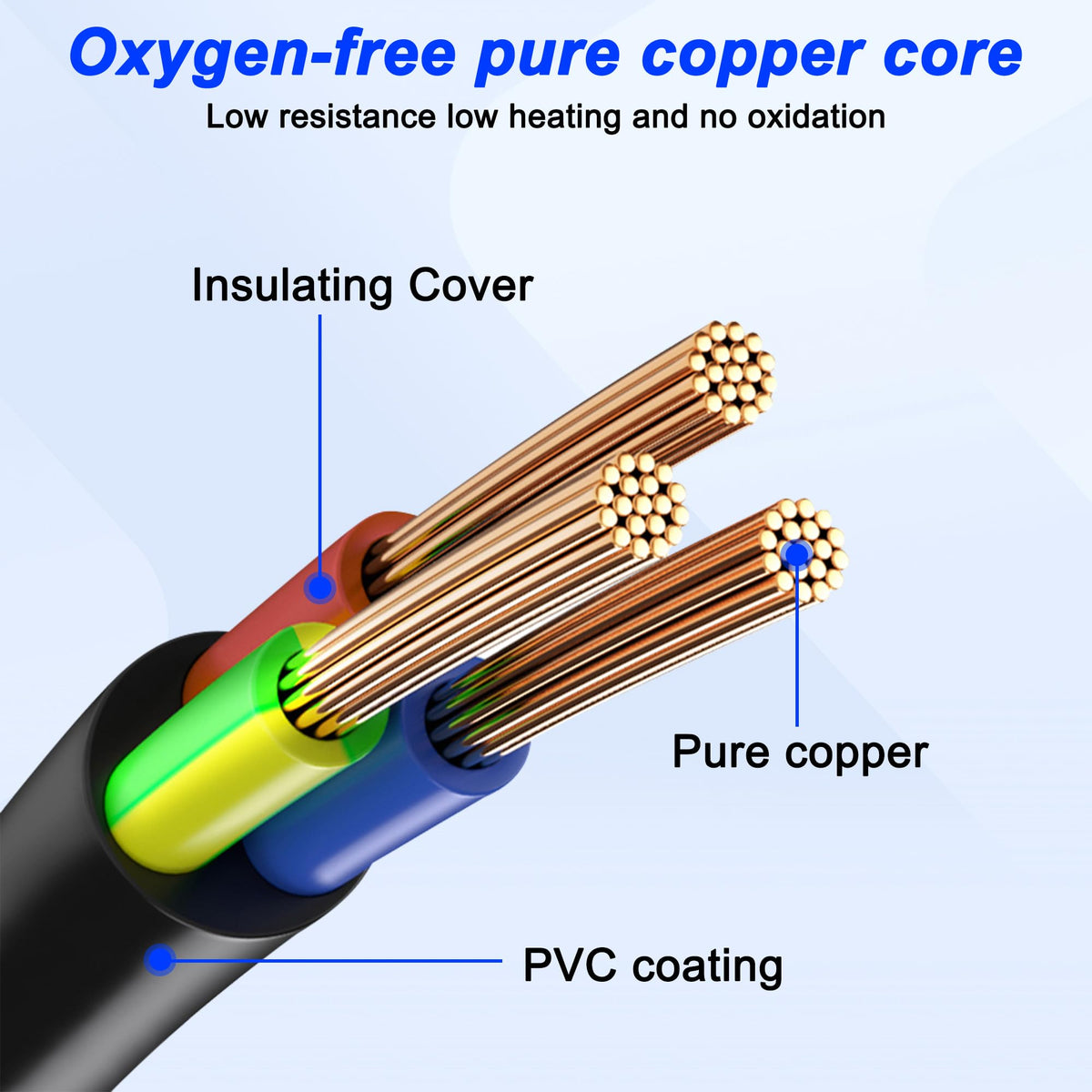

Inside the jacket are 16 AWG oxygen-free copper conductors that provide low electrical resistance and reduce heat under load. The outer PVC sheath gives flexibility for routing and resilience against abrasion, while molded joints reinforce strain relief.

• 16 AWG oxygen-free copper cores for efficient current flow
• Flexible PVC outer jacket for easy handling and durability
• Reinforced molded joints reduce stress at connection points

Will the Y spade (fork) plugs fit my terminal block or fixture?

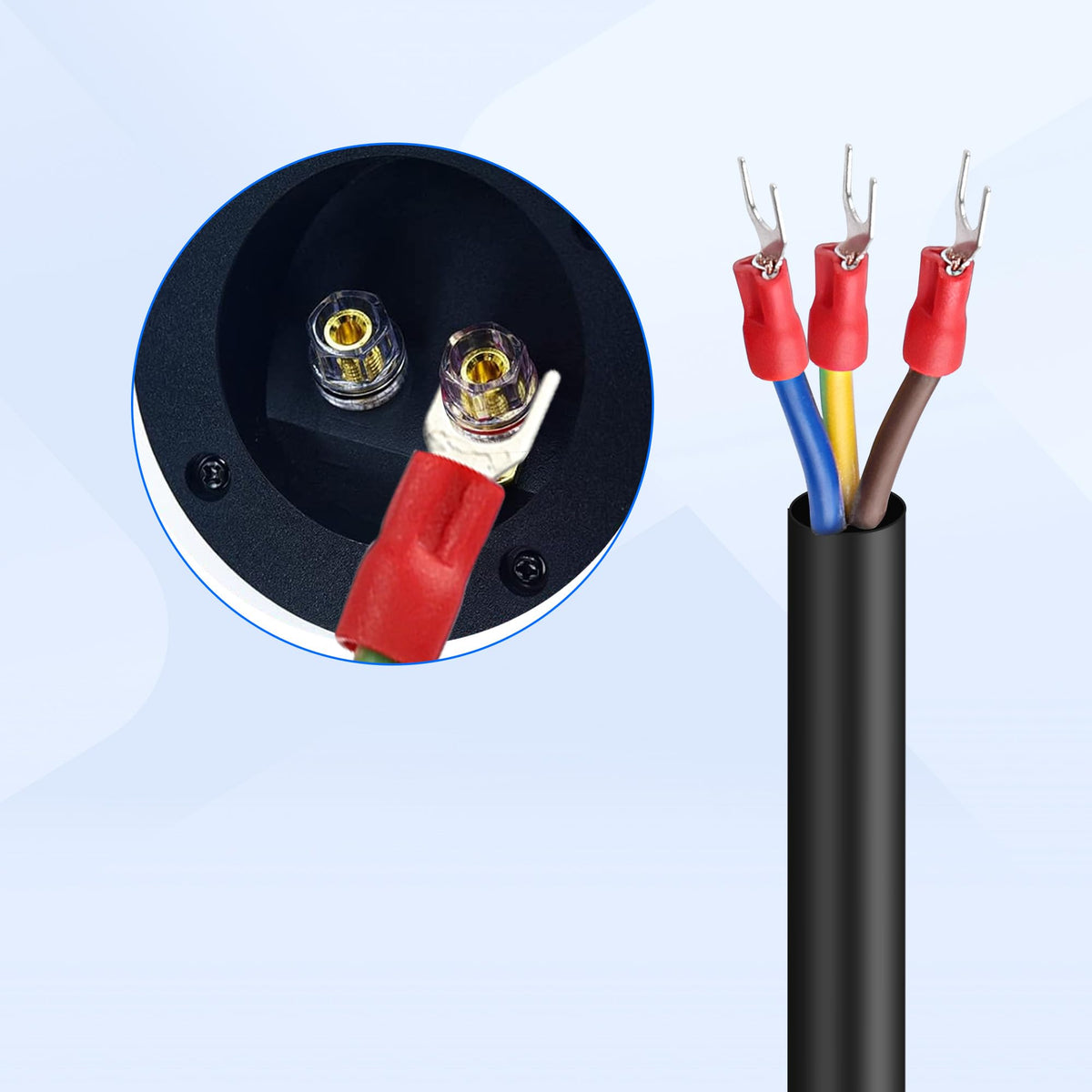

The fork-spade connectors have a 7 mm (0.27 in) opening designed to fit most screw-terminal blocks and industrial clamp terminals. Each spade is soldered and upgraded to hold firmly, delivering a stable, low-resistance contact for lighting and audio equipment.

• 7 mm spade opening compatible with common terminal screws
• Soldered construction for mechanical and electrical integrity
• Fork shape enables quick installation under screw clamps

Where is this cable typically used and how easy is installation?

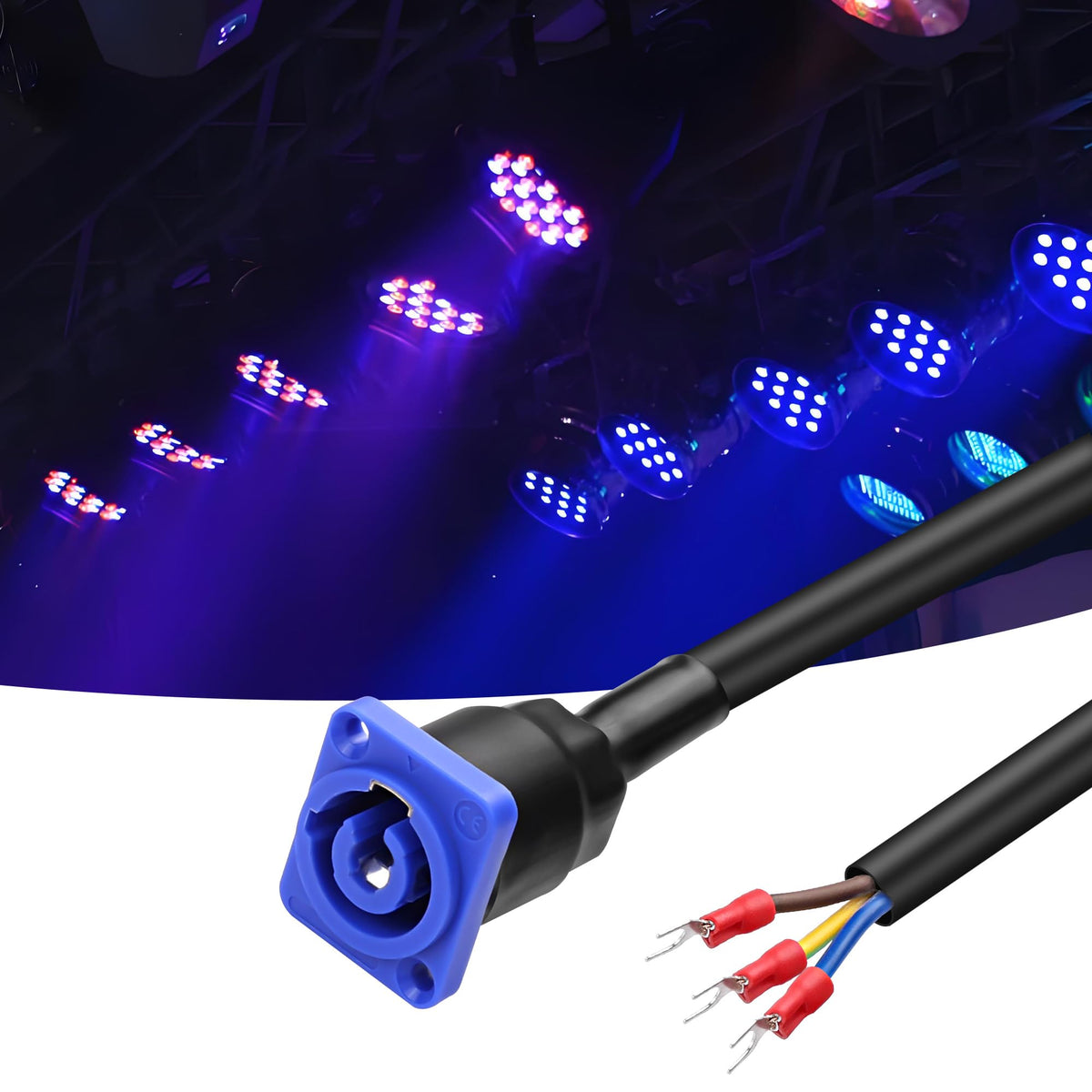

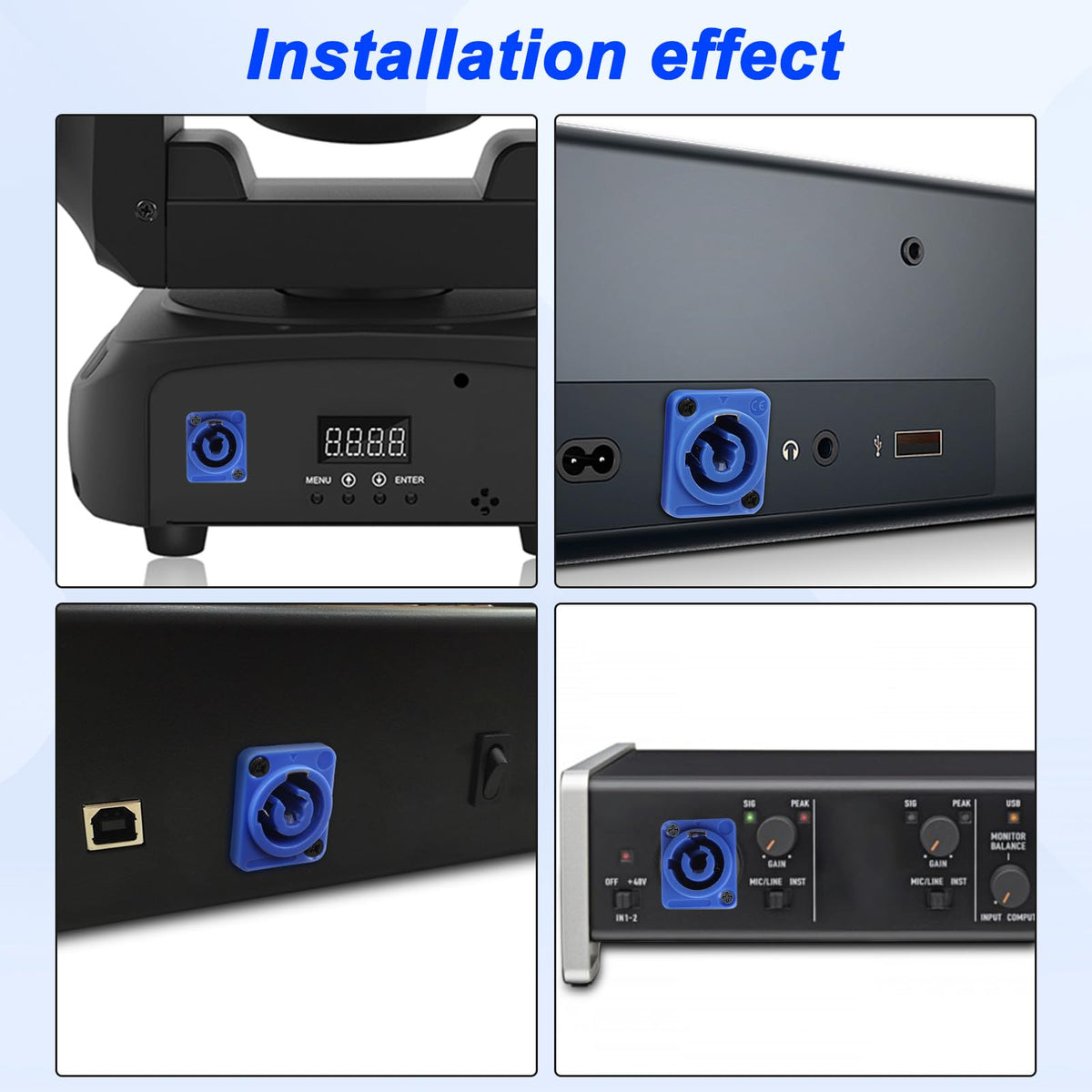

This adapter cable is tailored for environments where a PowerCon inlet must feed terminal-block-equipped equipment — for example, stage lighting fixtures, LED screens, amplifiers, speakers, and industrial controllers. Installation is straightforward: mount the PowerCon inlet to a chassis panel, connect spade terminals under screws, and the lockable inlet provides repeatable plug-and-play operation.

• Common in stage lighting, AV racks, LED drivers, and amplifiers
• Fits chassis-mount or recessed wall mounting for neat installs
• Screws and simple wiring make it quick to set up

Who is this for: Technicians, AV installers, tour riggers, and maintenance engineers who need a compact, lockable PowerCon-to-spade adapter for short runs will find this cable useful. It’s especially handy when converting or adapting equipment with terminal blocks to accept a standard PowerCon power feed without permanent rewiring. Choose this XMSJSIY adapter when you want a secure, low-resistance, weather-tolerant connection for professional lighting, audio, and industrial power applications.
