Vonets 2.4GHz WiFi Bridge Repeater Router VAP11S

The VONETS VAP11S is an industrial-grade 2.4GHz WiFi bridge/repeater/router that converts between Ethernet and wireless networks to extend or connect wired devices like DVRs, IP cameras, PLCs and other network equipment.

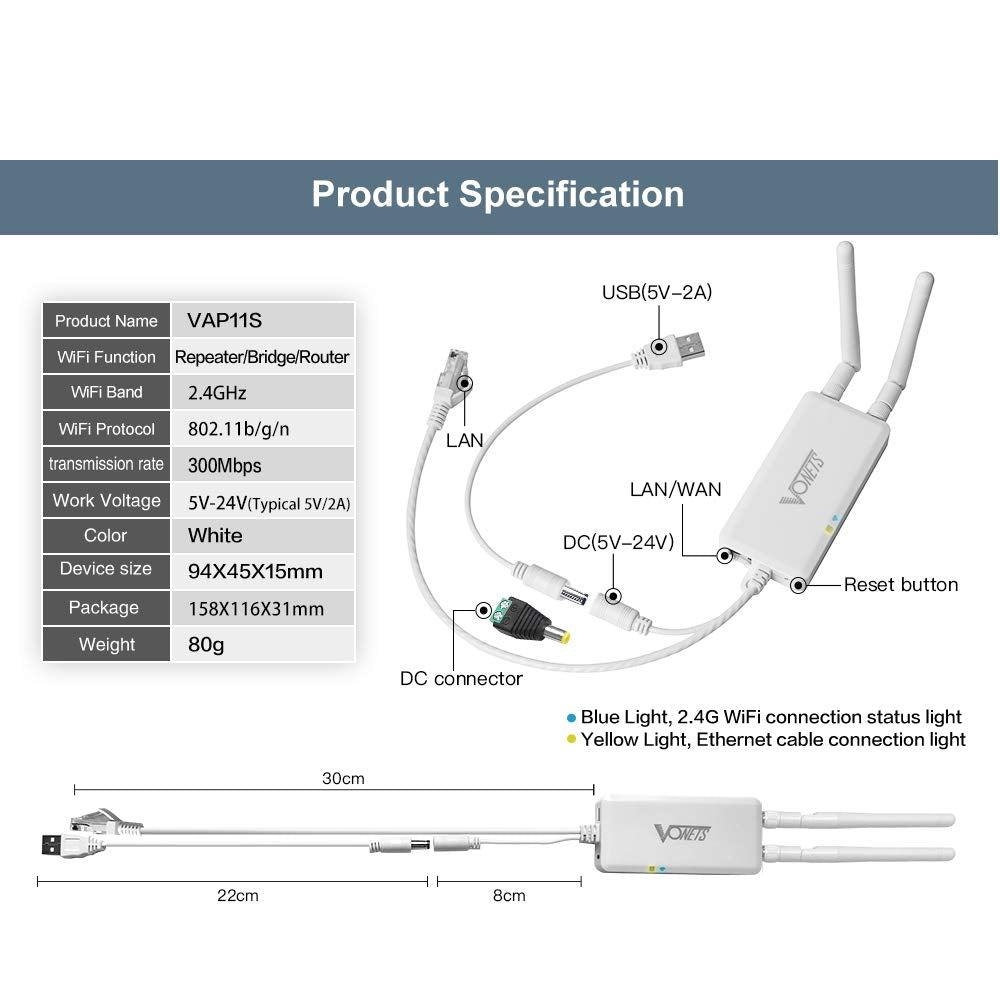

Designed for demanding environments where wired devices need reliable wireless access, this compact unit supports multiple operation modes (bridge, router, repeater), two 10/100 Mbps RJ45 ports, and flexible power via USB or DC. With support for 802.11 b/g/n and external antennas, it provides a practical way to bring network connectivity to equipment that lacks native WiFi.

How does the VAP11S connect wired devices to a wireless network?

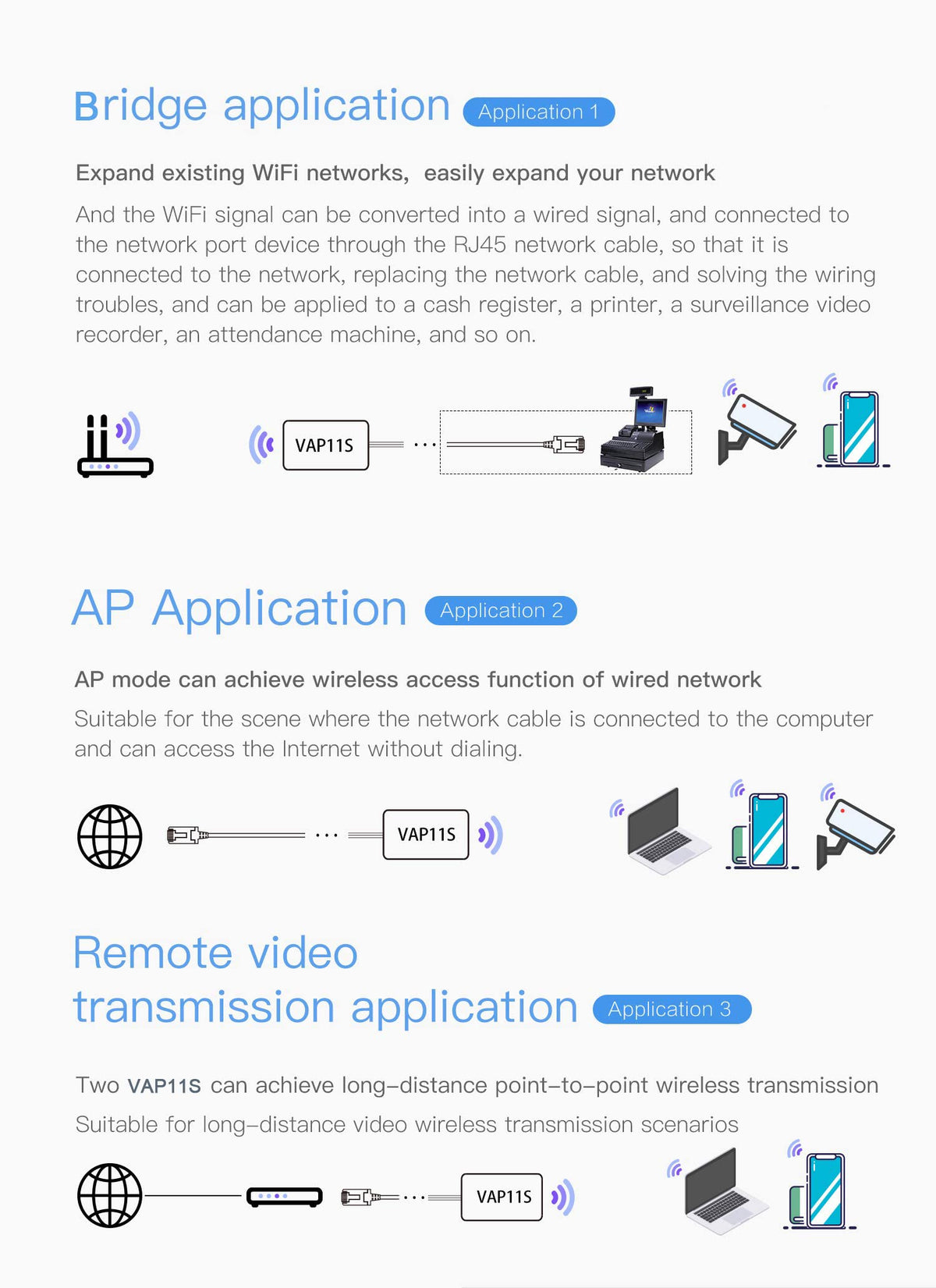

The device can operate as a WiFi-to-Ethernet bridge to give a wired device wireless access, or as an Ethernet-to-WiFi access point to share a wired connection over WiFi. Configuration options let you choose IP-layer or transparent MAC-layer forwarding for different network topologies.

• Two adaptive 10/100 Mbps RJ45 ports (one fixed, one on a short cable) for direct device connections
• Supports WiFi rates up to 300 Mbps (802.11 b/g/n)

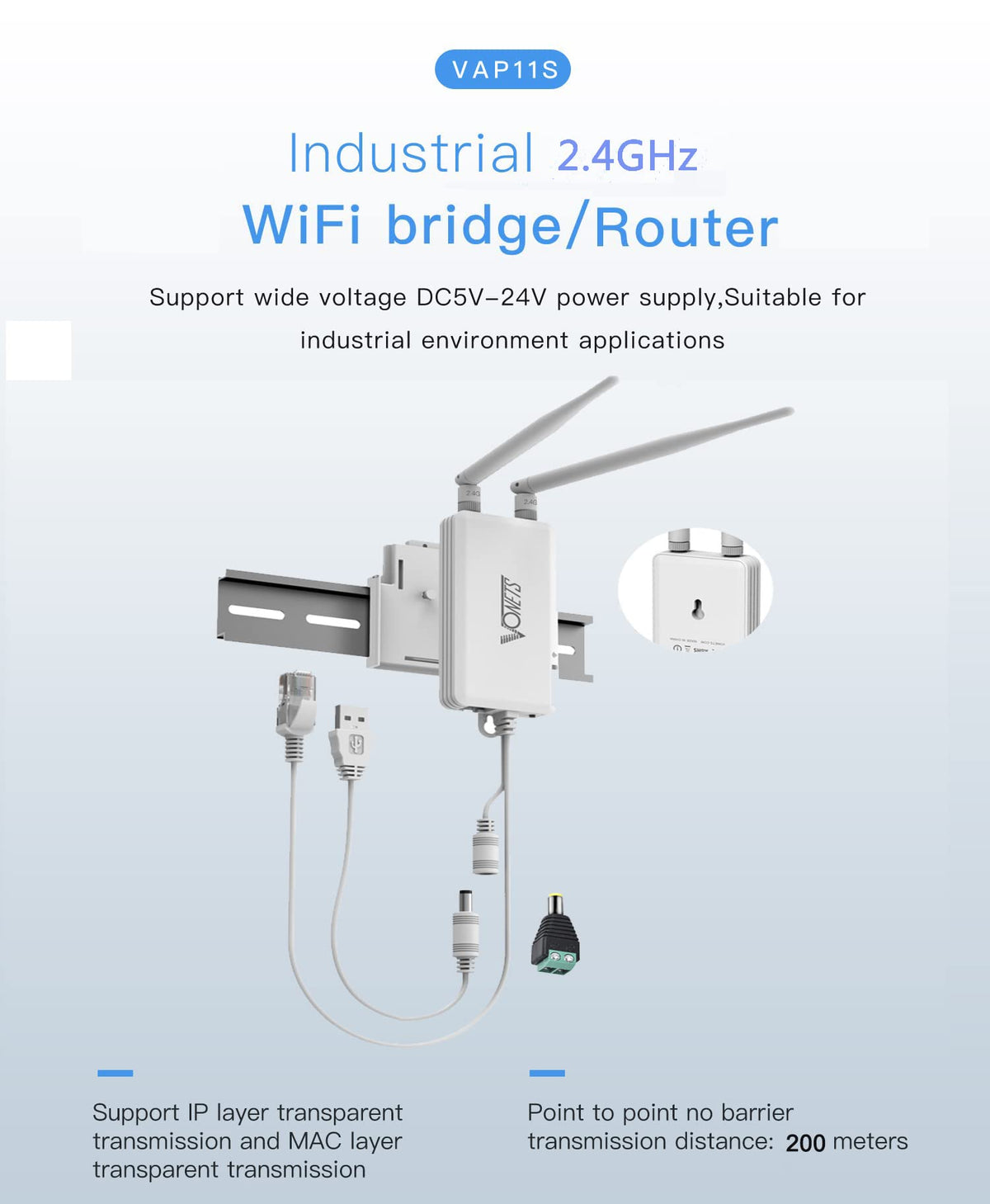

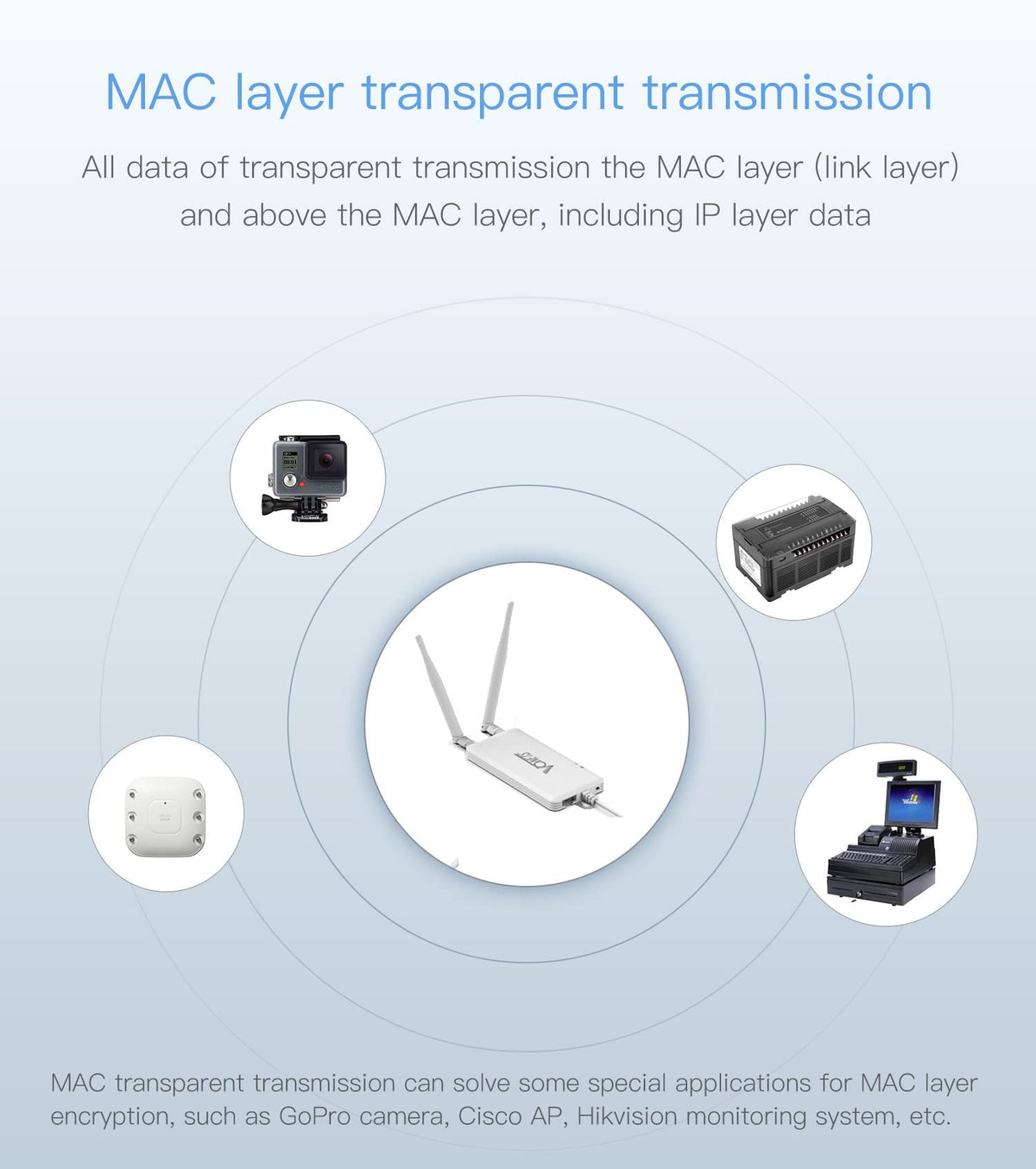

• Bridge modes: IP-layer or MAC-layer transparent transmission
• Router mode with WAN/LAN exchange and WiFi WAN uplink support

What range and performance can I expect for cameras and DVRs?

With 19dBm or optional 23dBm transmit power and two external antennas, the VAP11S offers extended reach compared with typical consumer dongles. Line-of-sight range can reach up to roughly 200 meters for small data transfers; stable video streams typically achieve 50–100 meters depending on interference and obstacles.

• Selectable Tx power for stronger signals where allowed
• Two external antennas to improve link stability and throughput
• Designed to support video transmission, surveillance cameras, and DVRs
• Useful in industrial and IoT deployments with moderate distances

How is the VAP11S powered and mounted in industrial settings?

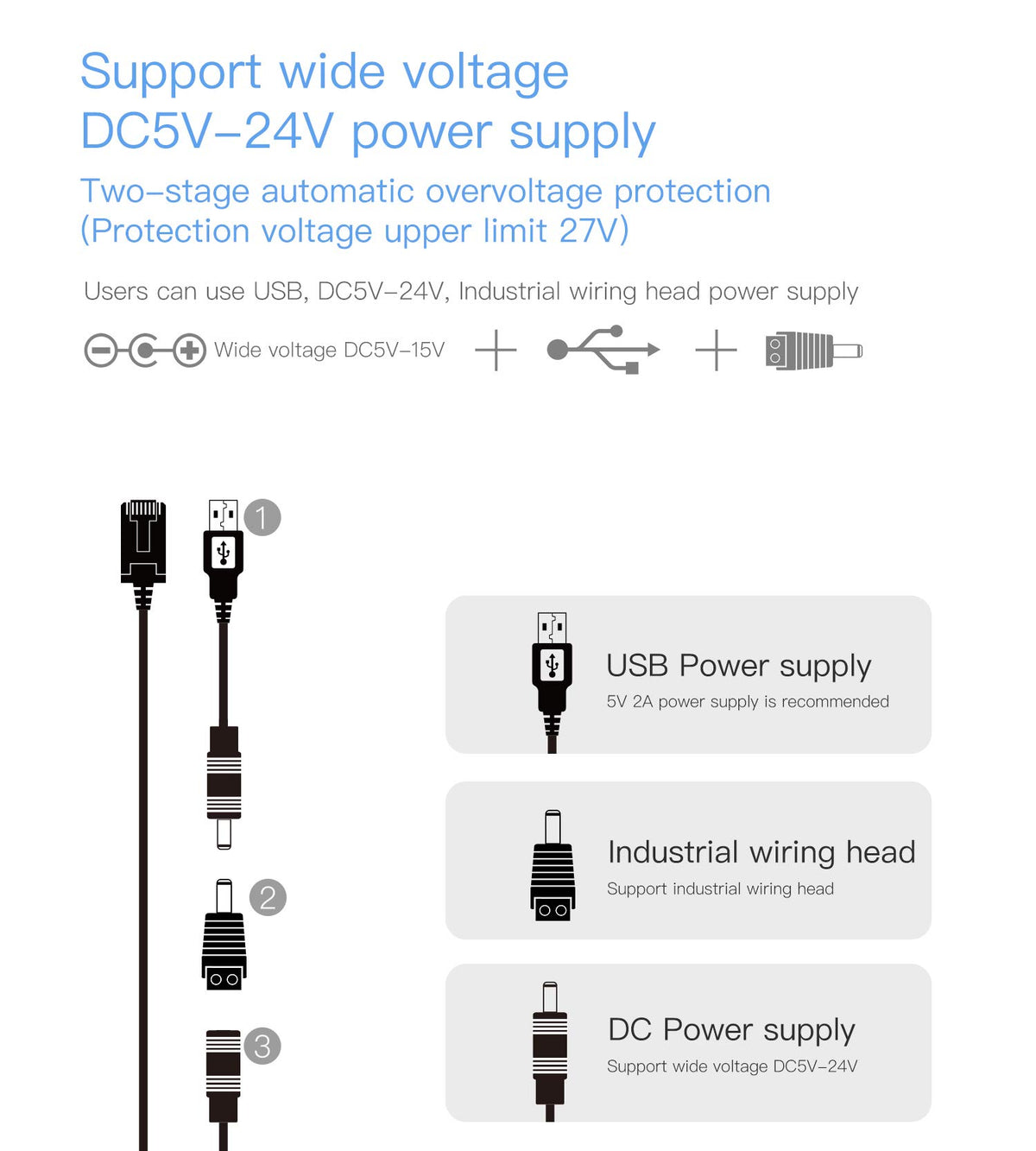

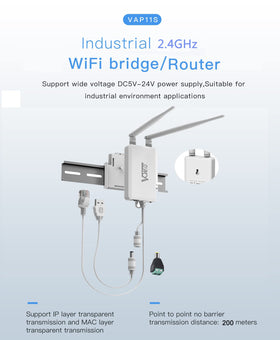

The unit accepts a wide DC input range (5V–24V) and can also be powered via USB, giving flexibility for different installations. It includes overvoltage protection, an industrial-grade DC connector, and a fixing kit to secure the device in cabinets, poles or equipment racks.

• Supports USB or DC power (typical 5V/2A; protection up to 27V)
• Two-stage automatic overvoltage protection for safer operation

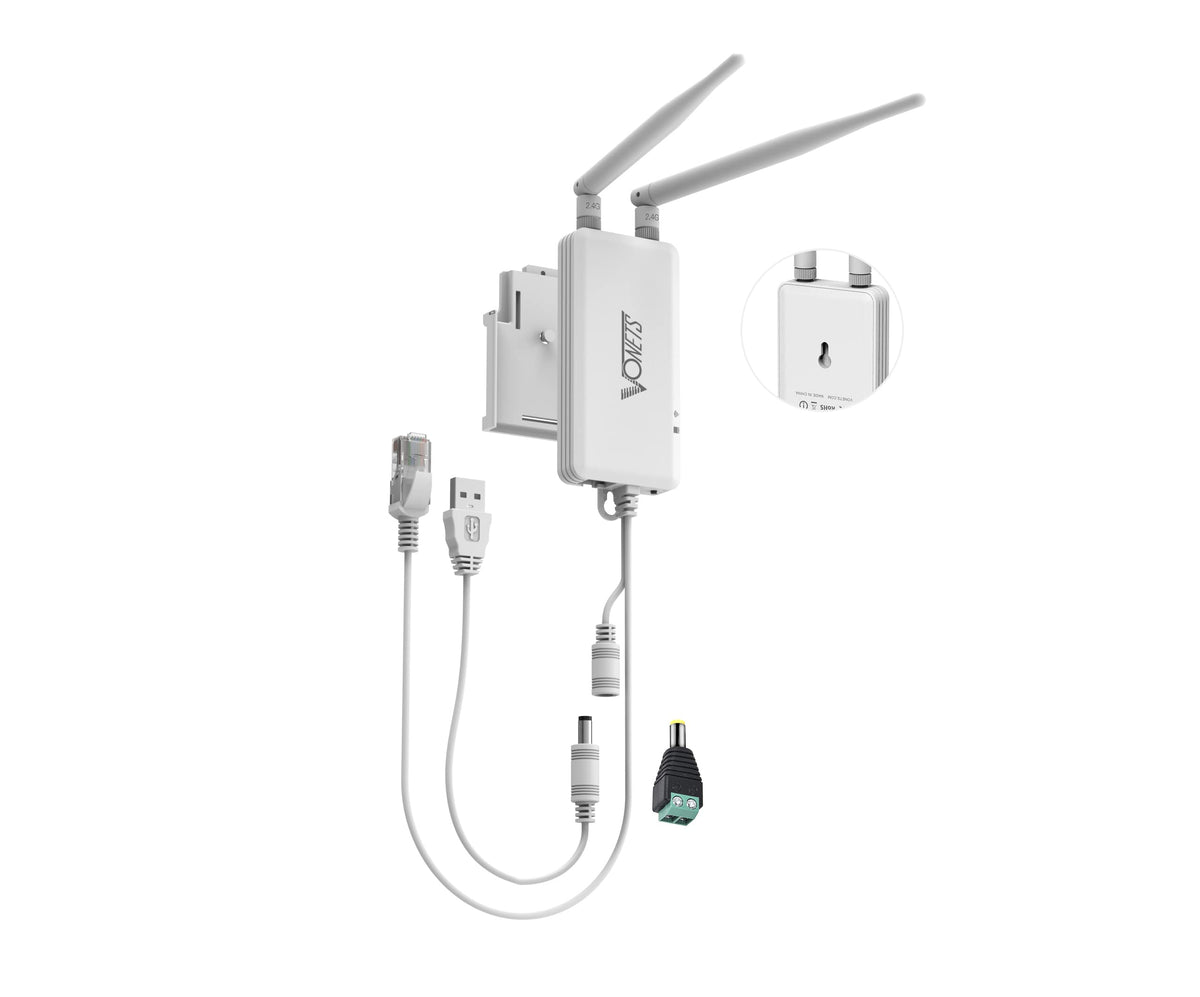

• Industrial DC connector and fixing kit included for secure mounting
• Compact form factor suited for constrained spaces and field installs

What features help the VAP11S manage multiple WiFi hotspots?

The VAP11S can remember and automatically match up to 100 hotspots, using either full-match authentication or SSID/password matching. It reports signal strength, supports hotspot reconnection and motion-detect matching to maintain continuous connectivity for roaming equipment.

• Memory hotspot storage for up to 100 networks
• Two matching methods: full authentication or SSID/password
• Automatic reconnection and SSA signal strength reporting
• Motion-detection matching for dynamic network conditions

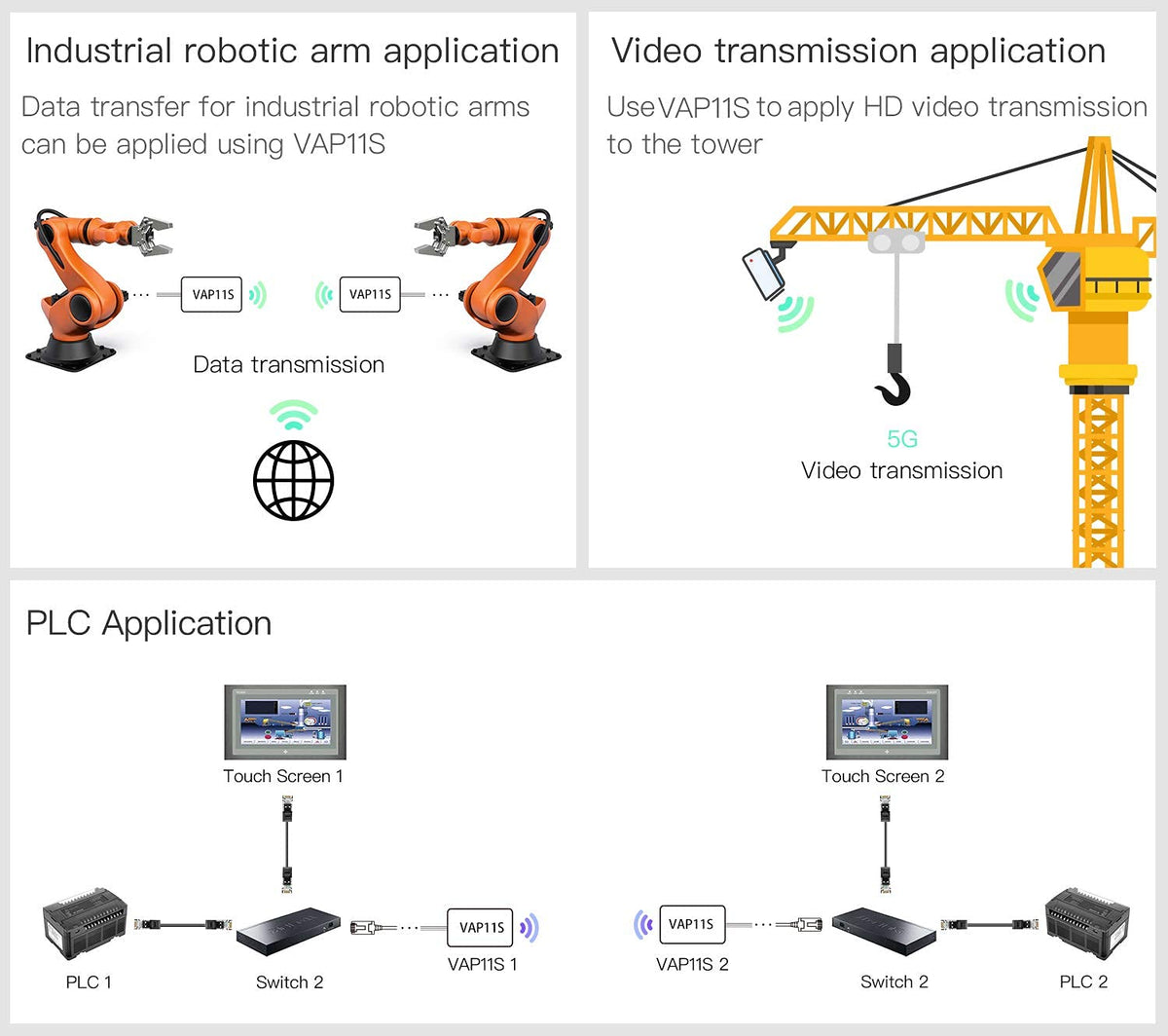

Who is this for: the VONETS VAP11S is intended for technicians, installers and integrators who need a rugged, flexible way to add wireless connectivity to wired equipment — CCTV systems, industrial controllers, IoT sensors, printers and other devices that require stable network access where running Ethernet cabling is impractical. It suits small-to-medium surveillance, remote monitoring and industrial automation projects where reliable bridging, repeater functionality and flexible power options are required.
