uxcell IR Emitter Extension Cable 3.5mm 4.9ft (5-Pack)

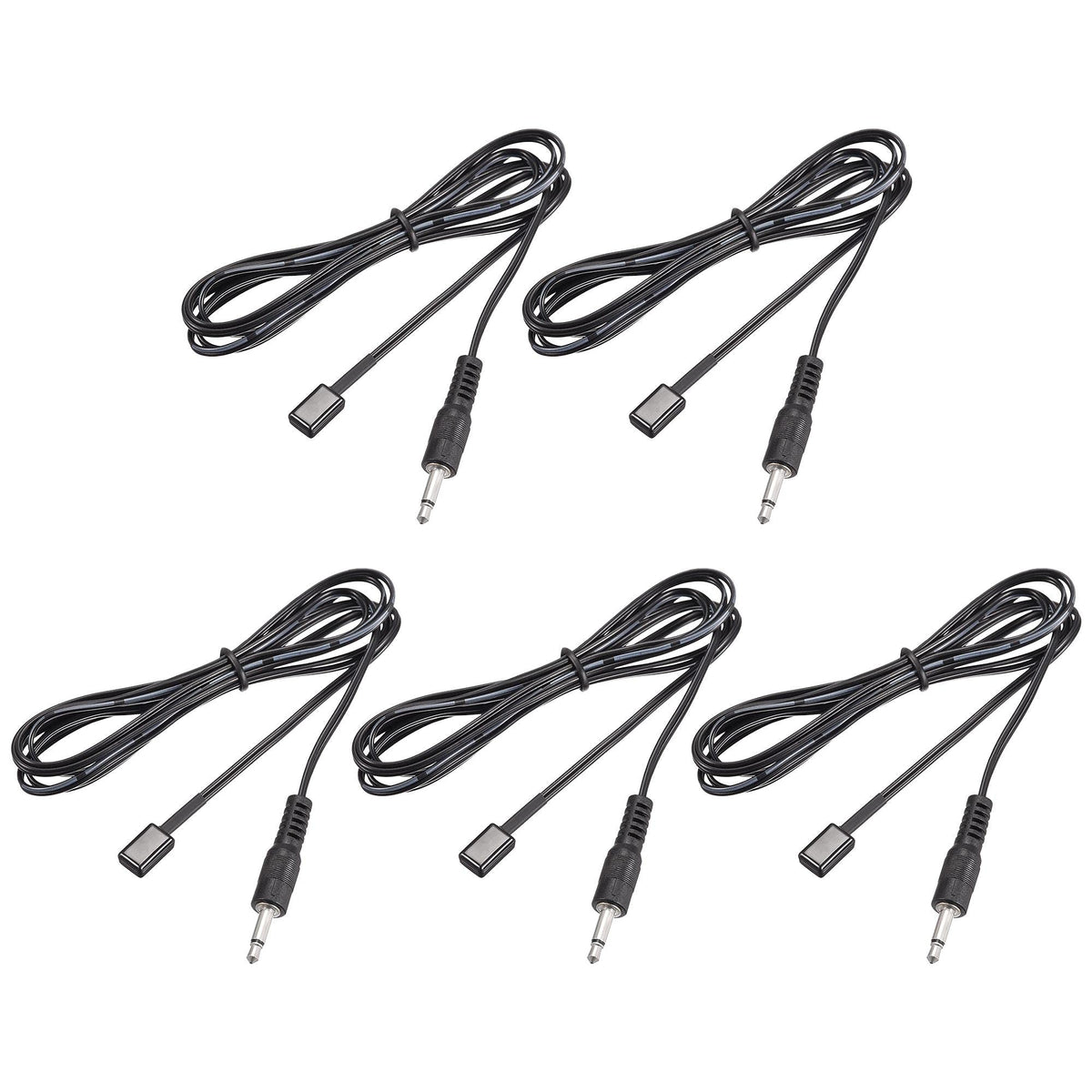

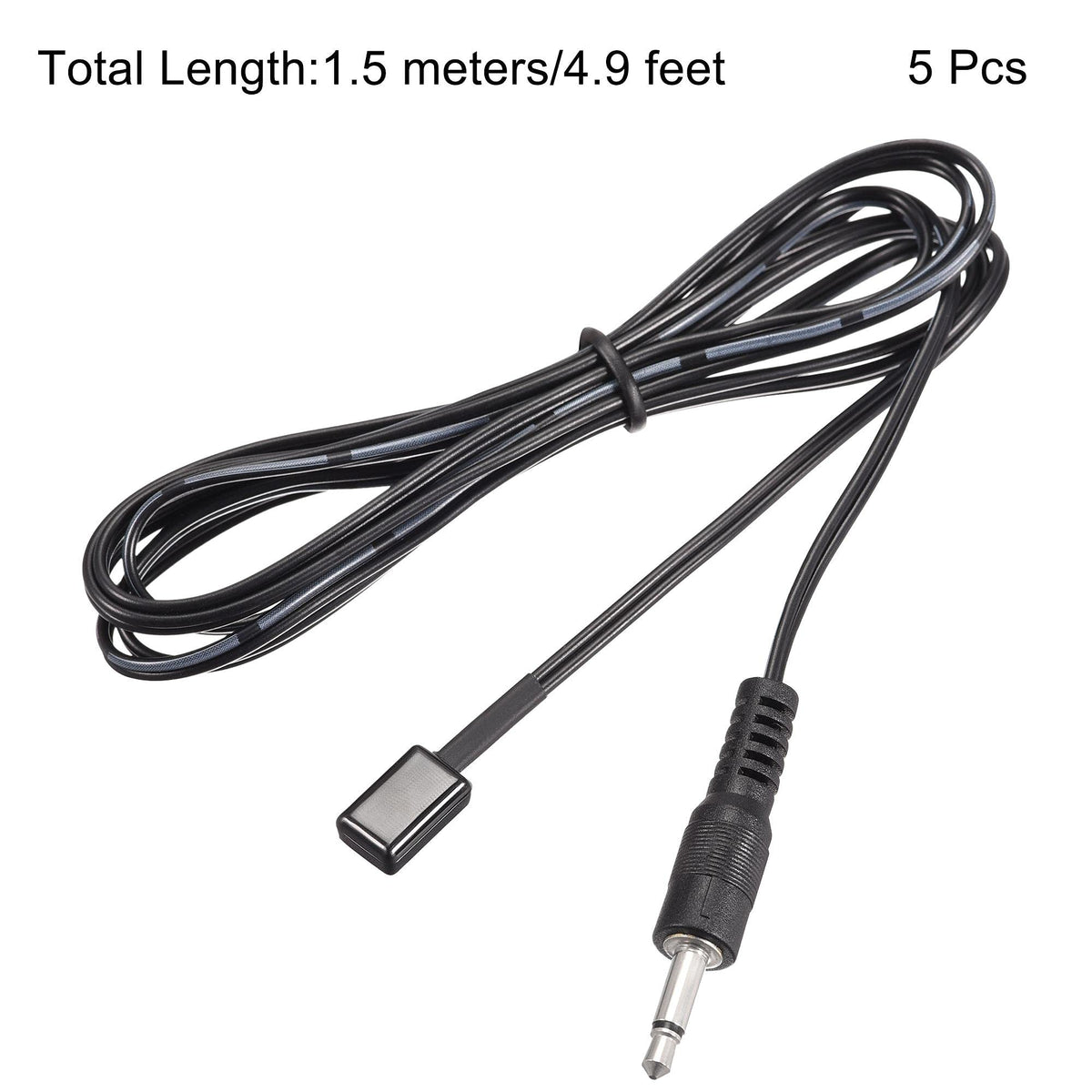

uxcell IR Infrared Emitter Extension Cable is a 1.5 m (4.9 ft) 3.5 mm jack wired emitter that relays remote signals to devices with an IR receiver, sold as a pack of five for multi-device control.

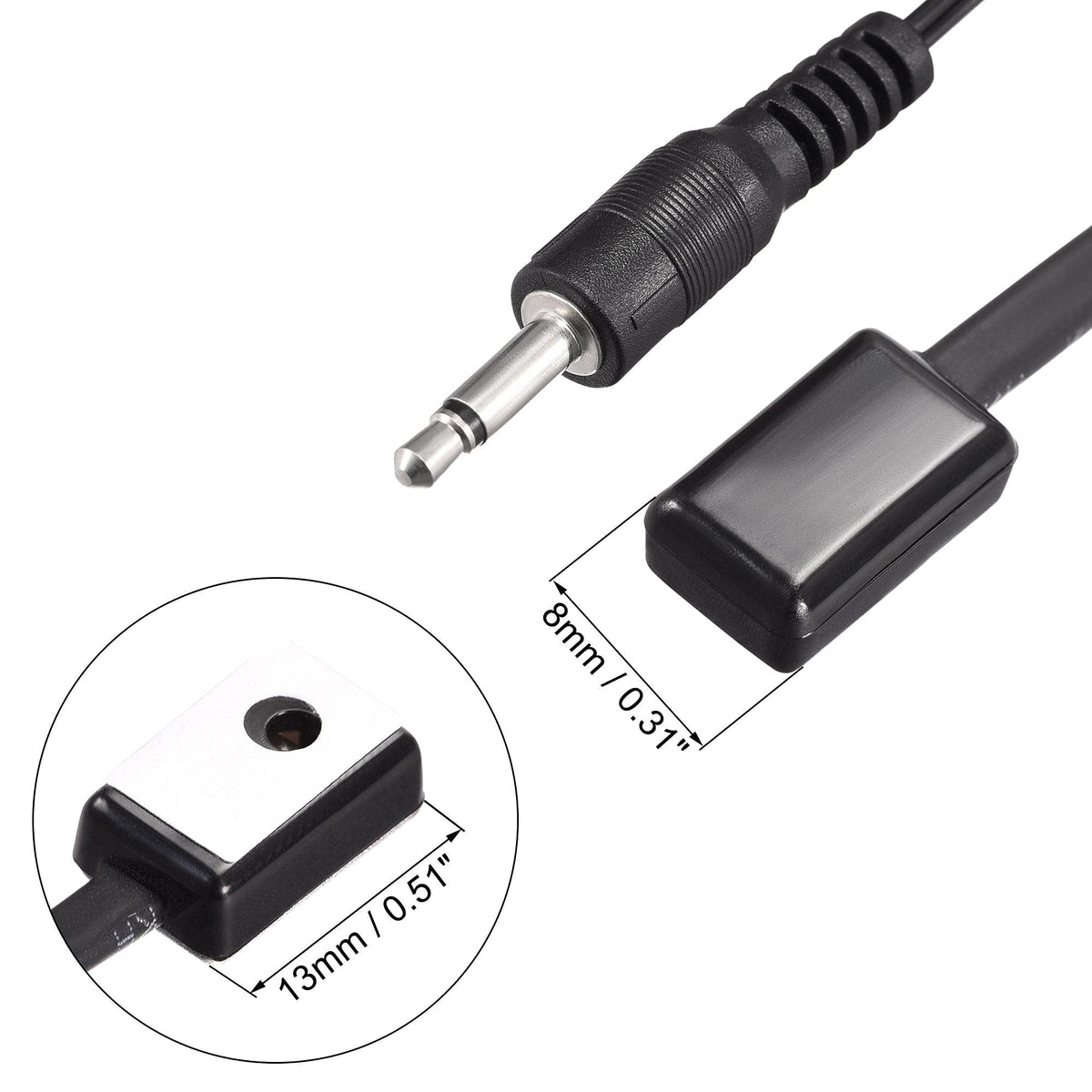

This compact IR emitter extension is built to extend and target infrared commands from IR forwarding systems, repeaters, or centralized controllers to equipment tucked away in cabinets or out-of-sight locations. With a +/-45° emission angle and low current draw, the 13 x 8 x 5 mm emitter head is designed to sit neatly against a device’s IR window and maintain reliable remote responsiveness without drawing excess power.

How do I install the uxcell IR emitter extension cable?

Installation is straightforward: plug the 3.5 mm jack into the IR output on your IR sender or repeater, then affix the small emitter head over the controlled device’s IR receiver window. Proper placement—directly over the receiver—ensures best signal pickup and avoids false negatives.

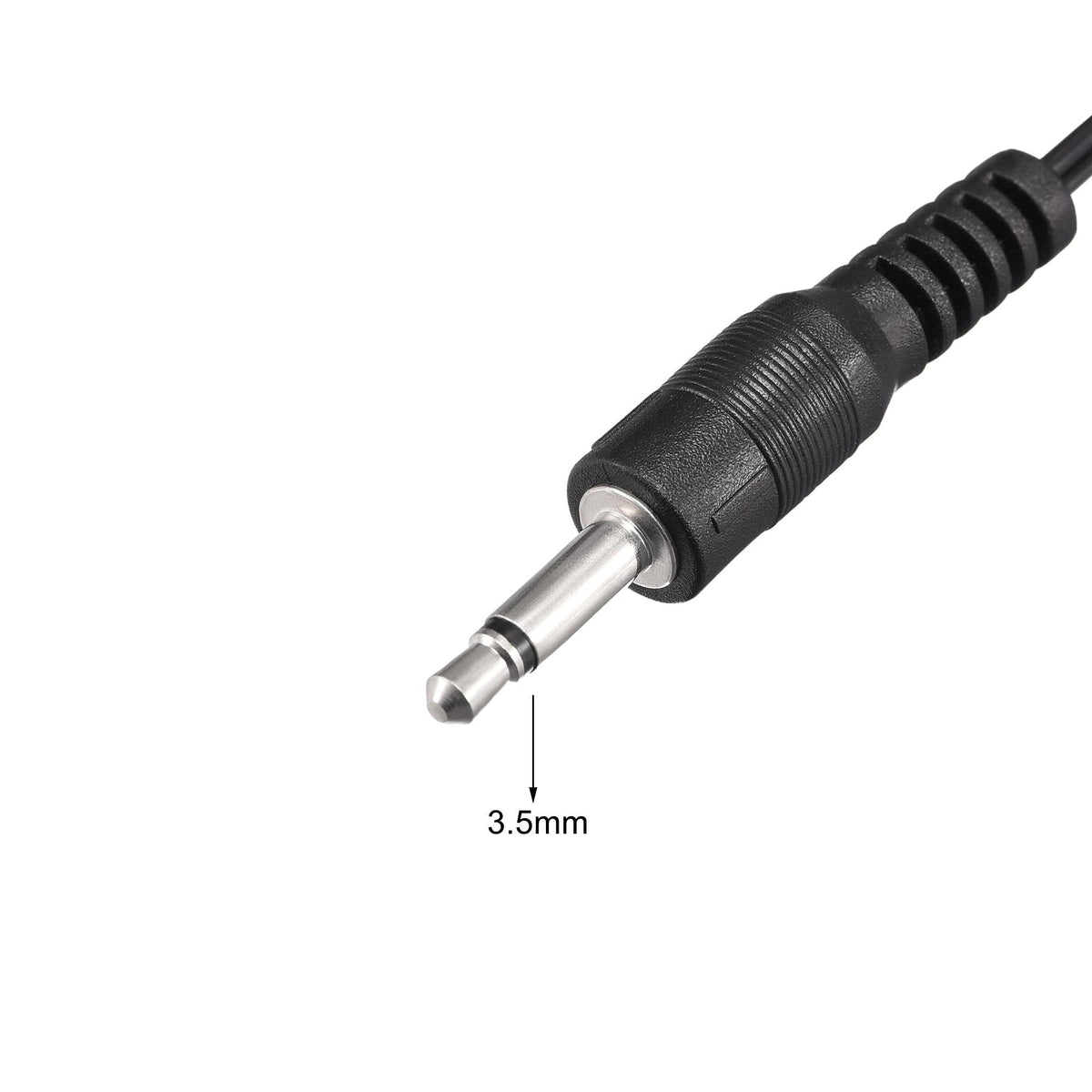

• Insert the 3.5 mm jack into the IR OUT / IR EMITTER port on your forwarding device.
• Locate the device’s IR receiver (dark red/translucent panel) and align the emitter head over it.

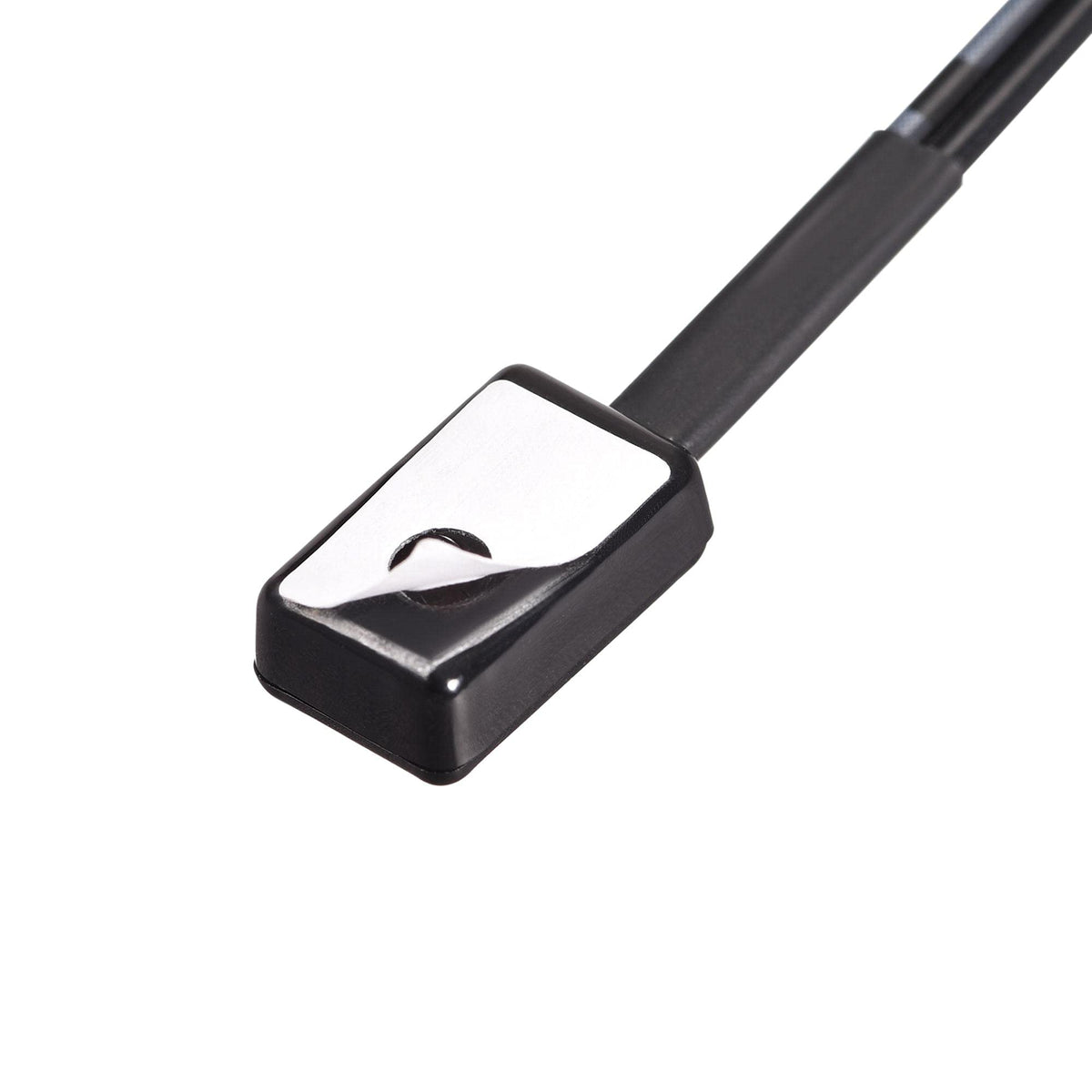

• Stick the emitter head to the side of the receiver tube; avoid covering it with tape or thick material.
• Test remote functions and adjust head position slightly if sensitivity is low.

Which devices and remotes are compatible with this IR emitter cable?

The uxcell emitter works with standard consumer IR systems and repeaters that accept a 3.5 mm IR emitter plug and transmit at typical carrier frequencies. It is compatible with many audio/video components, set-top boxes, AV receivers, and centralized control systems that use 38–56 kHz infrared signals.

• Accepts 3.5 mm IR emitter jack from IR extenders or repeaters.
• Compatible with remotes and devices in the 38–56 kHz carrier range.
• Useful for concealed AV equipment behind cabinets or inside racks.
• Small head size fits into tight locations and adheres to panels.

What performance and placement tips improve reliability?

Because the emitter produces a focused beam within a ±45° angle, accurate alignment and minimal obstruction are key for consistent operation. Use the included adhesive placement carefully: the emitter must contact the receiver area without covering the receiver tube itself, and avoid placing heavy opaque tape over the head.

• Align the emitter directly over the IR receiver window for best sensitivity.
• Keep emitter head unobstructed — do not fully cover the receiver tube.
• For stacked components, place one emitter per device to avoid signal bleed.
• Low current consumption allows long runtime from most IR forwarding units.

Who is this for: This five-pack of uxcell IR emitter extension cables is aimed at installers, home theater enthusiasts, AV technicians, and anyone running multiple concealed electronics who needs reliable remote control forwarding. It’s particularly useful when you want to control devices hidden in cabinets, racks, or separate rooms using a single IR repeater or centralized control system.
