UMLIFE LM2596HV Adjustable Buck Converter Module 4-Pack

Compact, adjustable DC step‑down regulator kit: four UMLIFE LM2596HV buck converter boards that accept AC 5–30V or DC 5–50V input and produce a trimmed DC output from about 3.3V up to 33V for powering electronics and prototypes.

These four identical voltage regulator modules provide a space‑efficient way to convert higher AC or DC voltages to stable lower DC voltages. Each board uses the LM2596HV high‑voltage switching regulator, a multi‑turn potentiometer for precise output setting, and standard screw terminals for quick wiring. They are useful for hobby electronics, bench test setups, LED drivers, battery charging adjustments, and embedded power supplies that require a reliable, adjustable step‑down solution.

How do I set the output voltage safely?

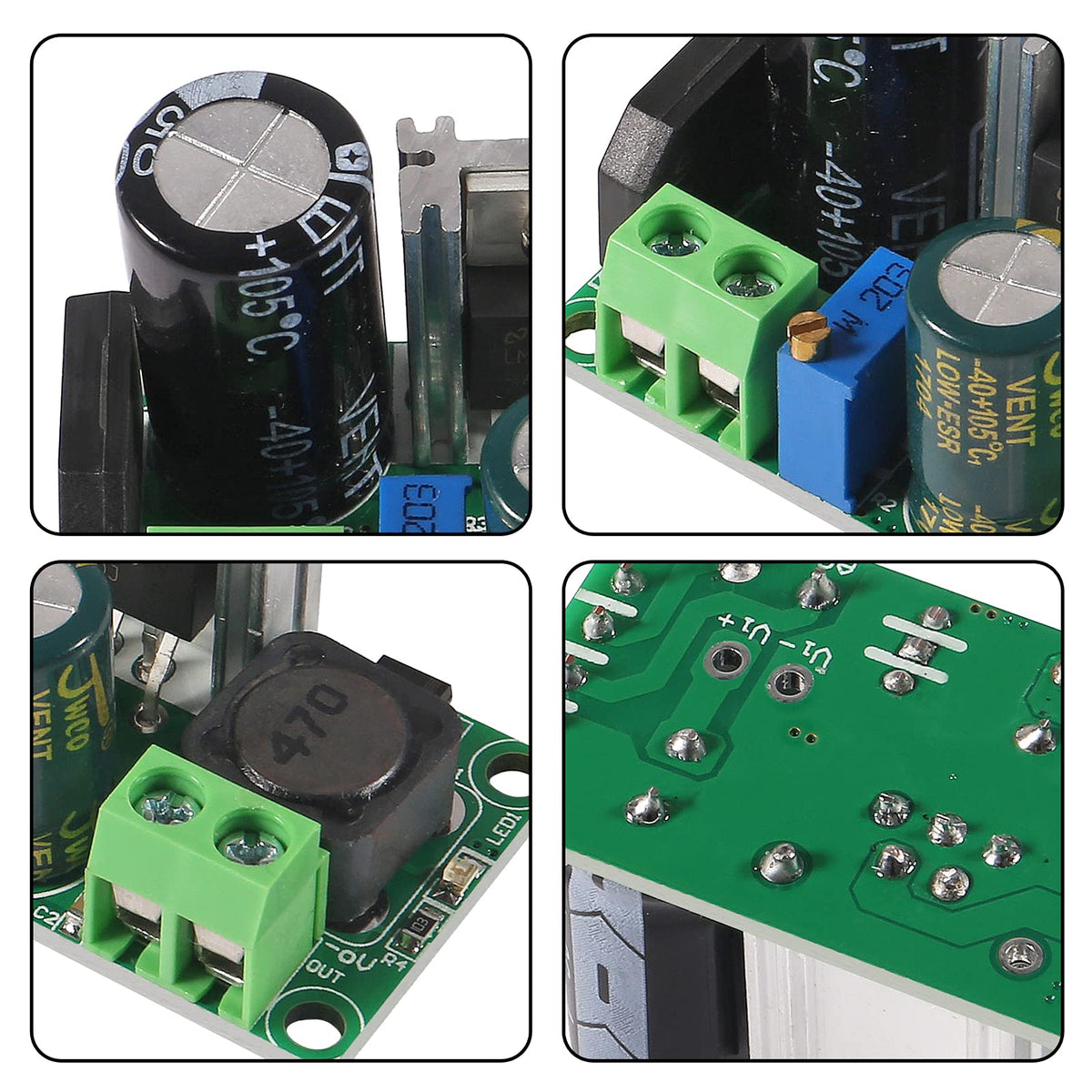

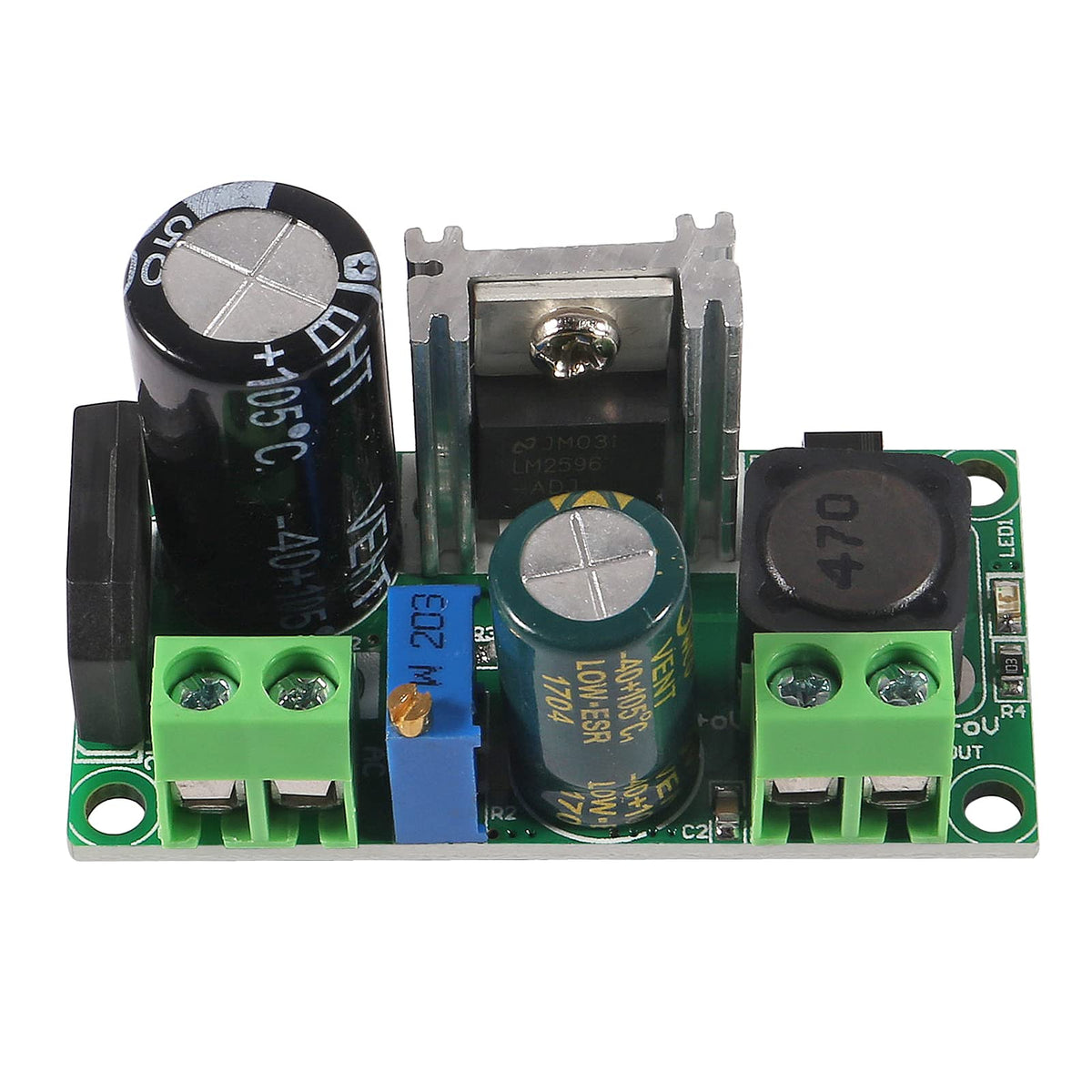

Adjust the multi‑turn potentiometer while monitoring the module's output with a reliable multimeter. Make changes with the module unpowered from the load first, or with a low‑current test load attached; then test under expected load conditions to confirm stability.

• Connect input first (observe polarity for DC and correct wiring for AC).
• Measure output with a multimeter before connecting sensitive devices.
• Turn the adjustment screw slowly until voltage reaches the target.
• Recheck voltage under operating load and secure wiring.

What are the input and output limits and real‑world performance?

Each UMLIFE module accepts AC inputs roughly from 5V to 30V and DC inputs up to around 50V, limited by onboard capacitor voltage ratings. The regulated DC output range covers about 3.3V up to roughly 33V; the switching chip is rated for high input voltages and can deliver multi‑amp currents with adequate cooling.

• Input range: AC ≈5–30V, DC ≈5–50V (respect polarity for DC).
• Output adjustable: approximately 3.3V–33V depending on input.
• Typical current capability: designed for up to 2–3A; use a heatsink for sustained higher loads.
• Regulator type: LM2596HV switching buck for efficient conversion.

How should I mount, cool, and wire the modules for reliable operation?

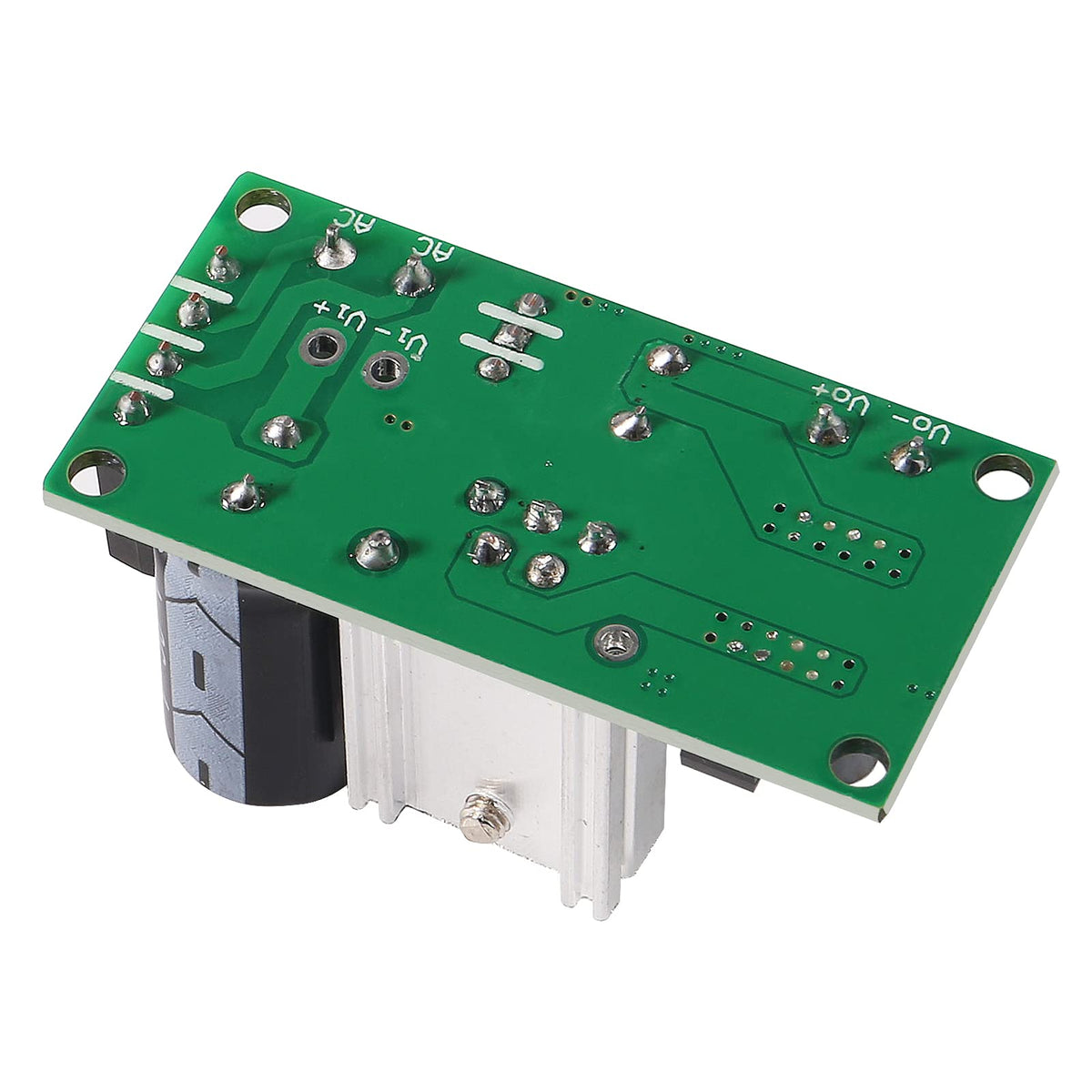

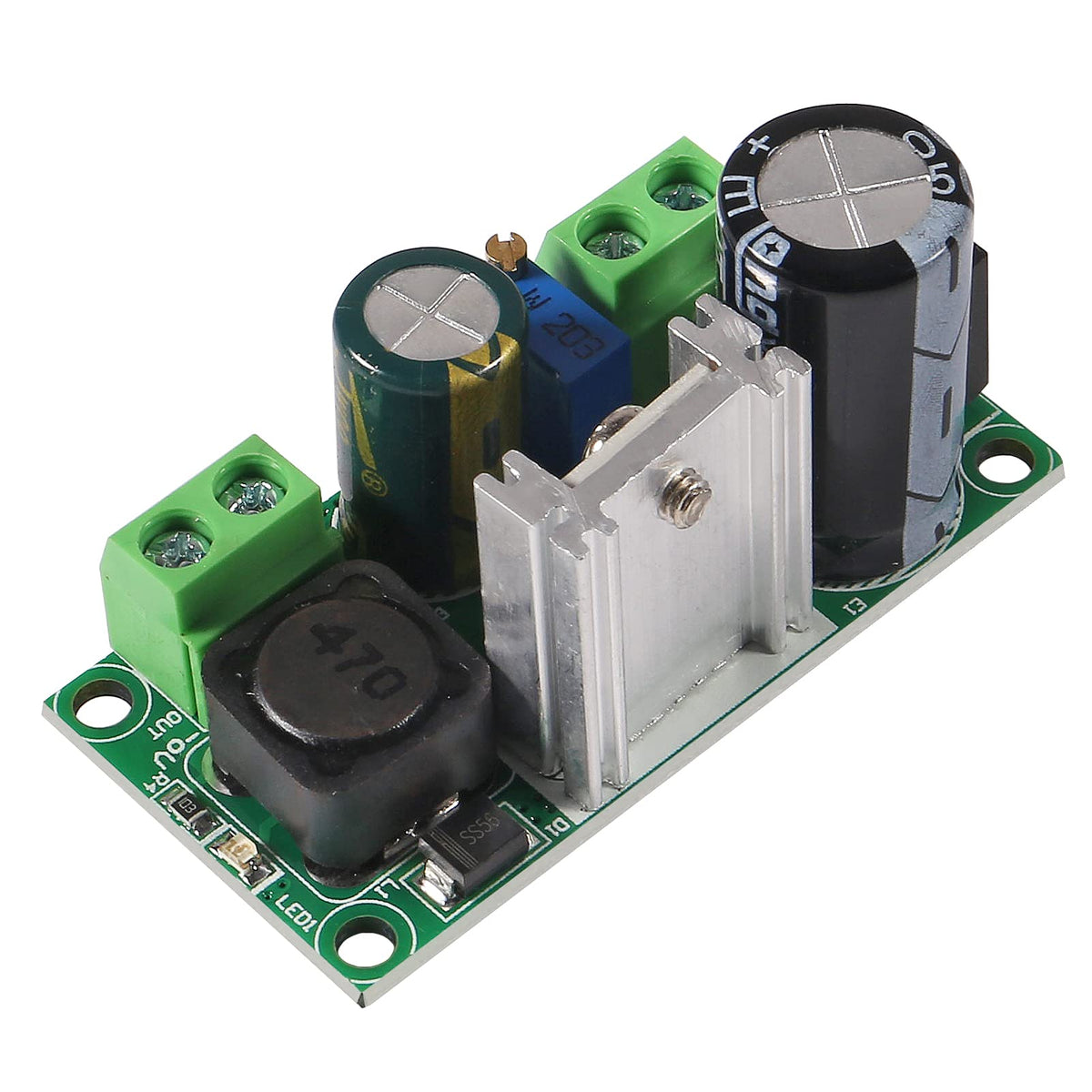

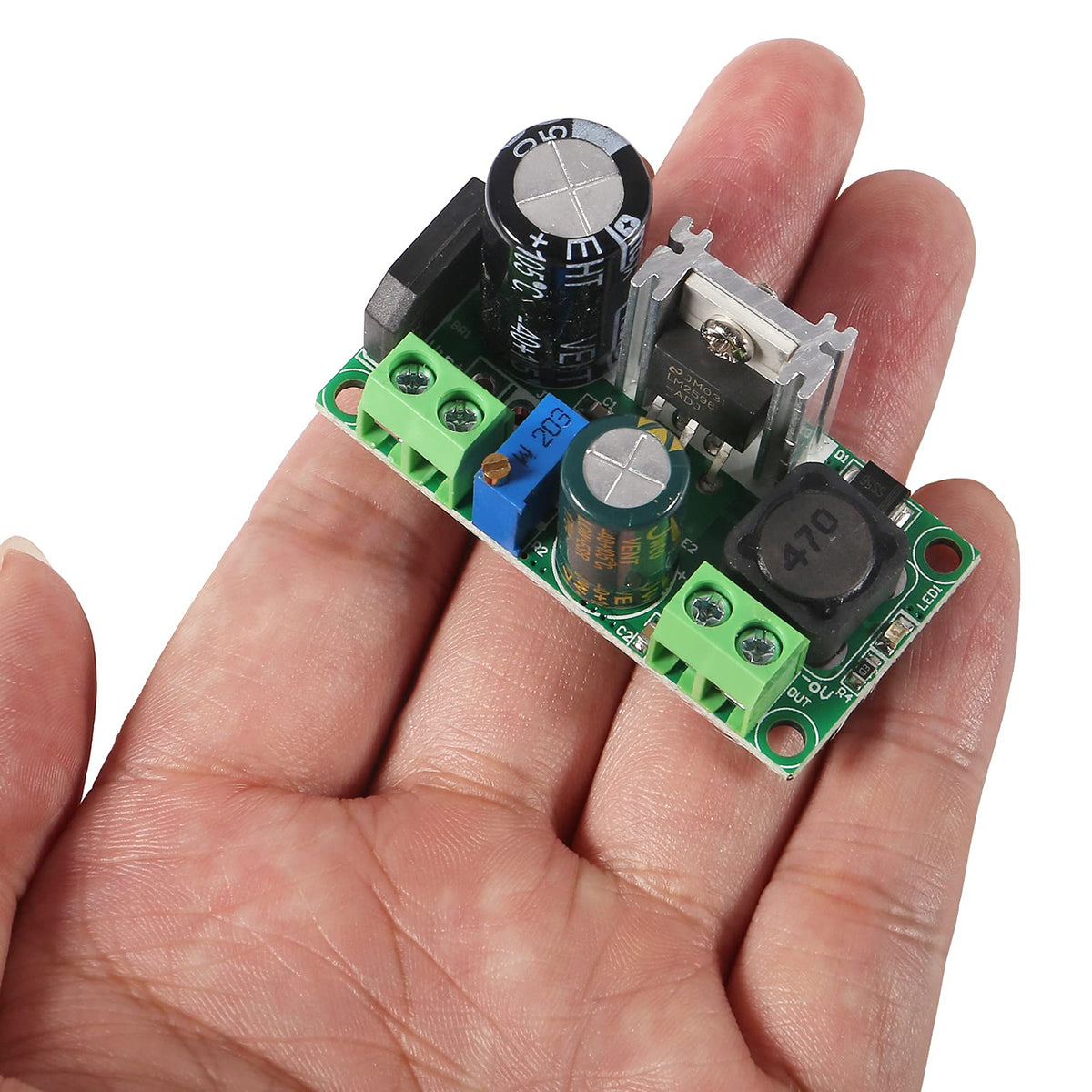

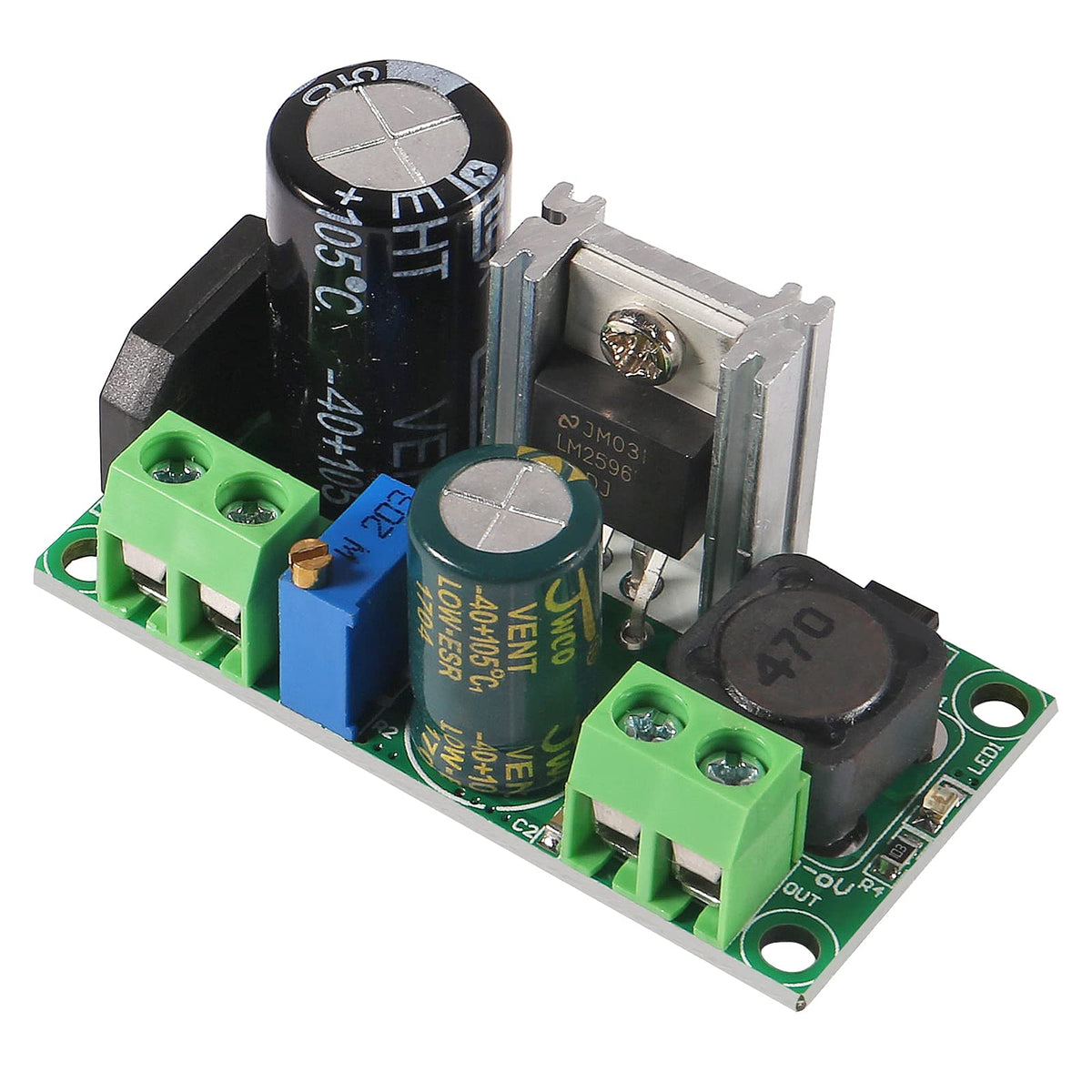

Provide good airflow and attach an external heatsink if you plan to draw near‑maximum current. Use thick wires for input and output, secure screw‑terminal connections, and observe polarity to prevent damage—especially with DC input sources.

• Mount to a nonconductive surface; allow space for airflow around the coil and regulator.
• Add a small aluminum heatsink and/or fan for long high‑current runs.
• Use decoupling capacitors on outputs when powering sensitive electronics.
• Keep input and output wiring separated to reduce noise and interference.

How can I use these four modules together in projects?

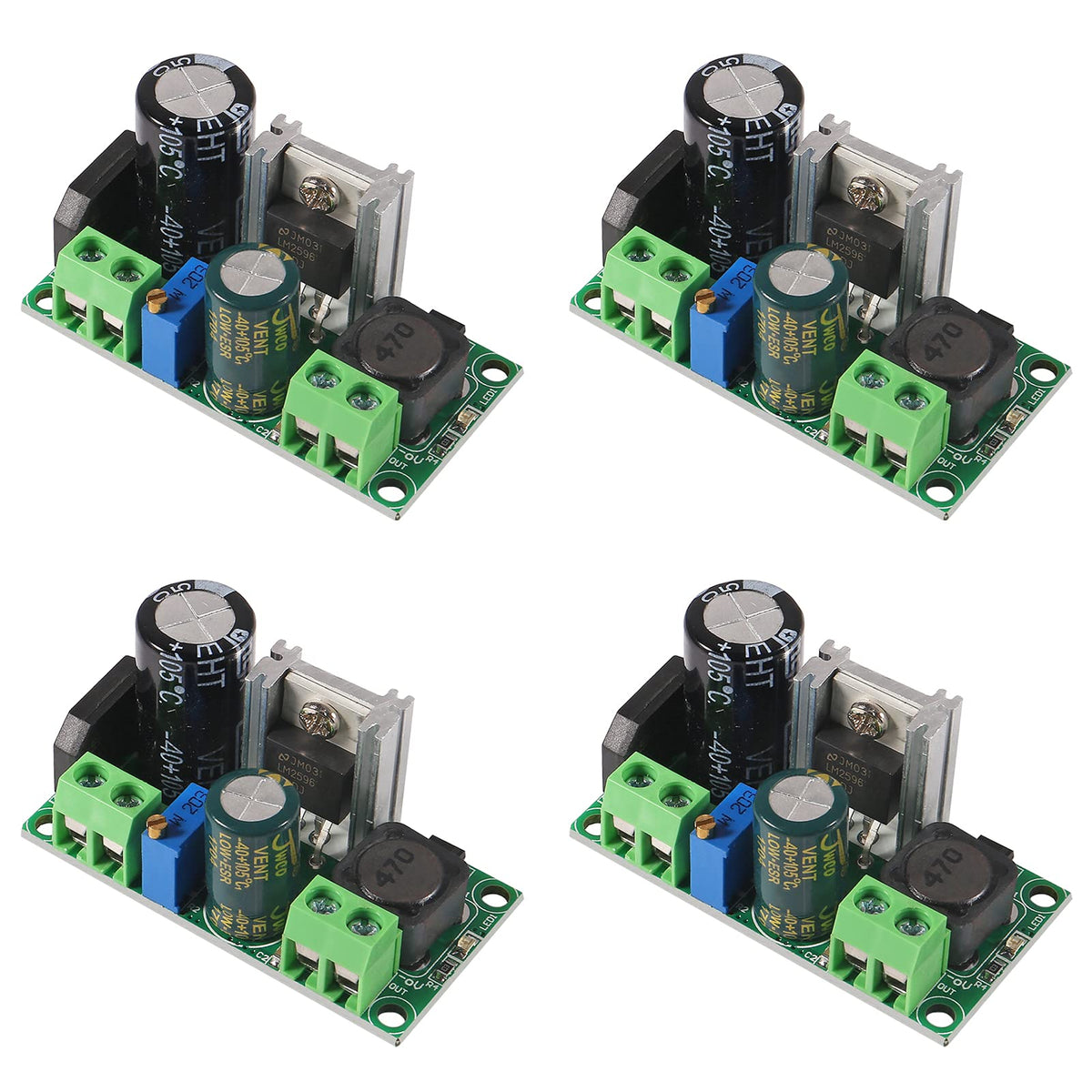

With four identical boards you can power multiple subsystems from a common higher‑voltage source, create independent adjustable rails for sensors, logic, LEDs, or motors, or keep spare modules for fast replacement. Each module is adjustable independently, so mix voltages as required for multi‑voltage projects.

• Run separate rails for 5V logic, 12V relays, and 24V actuators from one supply.
• Use one module as a configurable bench supply and others for dedicated circuits.
• Parallel outputs only with current‑sharing consideration and matching; series not recommended.
• Include fuses or current limiting per module when isolating loads.

Who this is for: makers, electronics hobbyists, repair technicians, and anyone building multi‑voltage systems who needs a compact set of adjustable buck regulators. This 4‑pack gives flexibility for prototyping, repairing equipment, or creating multiple regulated rails without buying individual modules. Keep sensible cooling and safe wiring practices in mind—these modules simplify stepping down higher AC or DC voltages to the precise DC levels your projects require.
