UGREEN Revodock Pro USB-C Docking Station 11-in-1 Dual 4K

UGREEN Revodock Pro is an 11-in-1 USB-C docking station that expands a laptop into a multi-monitor, high-speed connectivity workstation with DP 1.4 (4K@120Hz), HDMI 2.0 (4K@60Hz), dual 10Gbps USB-C, 100W PD and gigabit Ethernet.

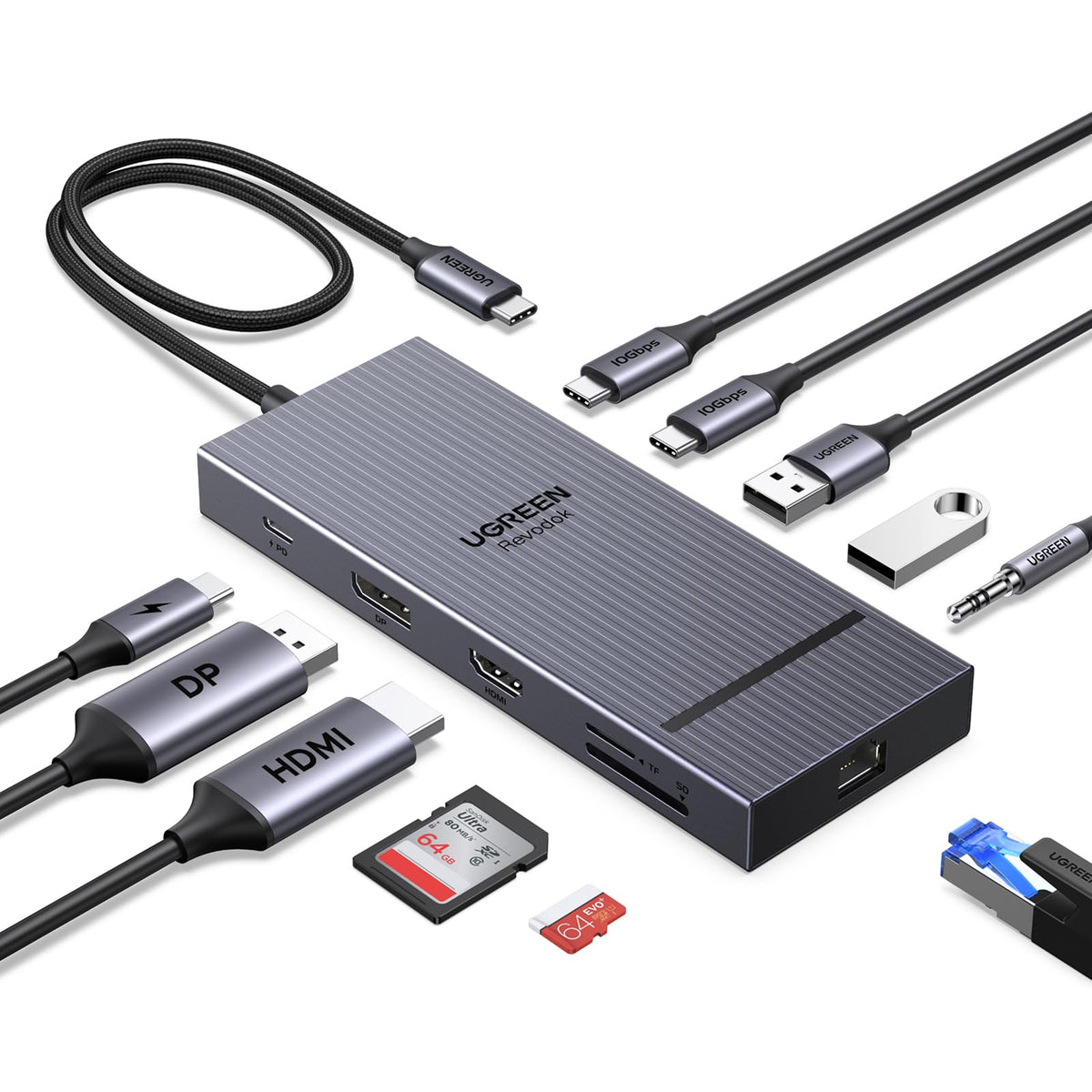

This compact aluminum docking station is built for power users who need crisp multi-monitor output, fast file transfers and a reliable wired network while working from a desk or portable setup. It combines DisplayPort 1.4 and HDMI 2.0 video outputs, two true 10Gbps USB-C ports, SD/TF card readers, dual USB-A ports, 3.5mm audio and a 100W Power Delivery pass-through in a thermally optimized housing designed for sustained loads.

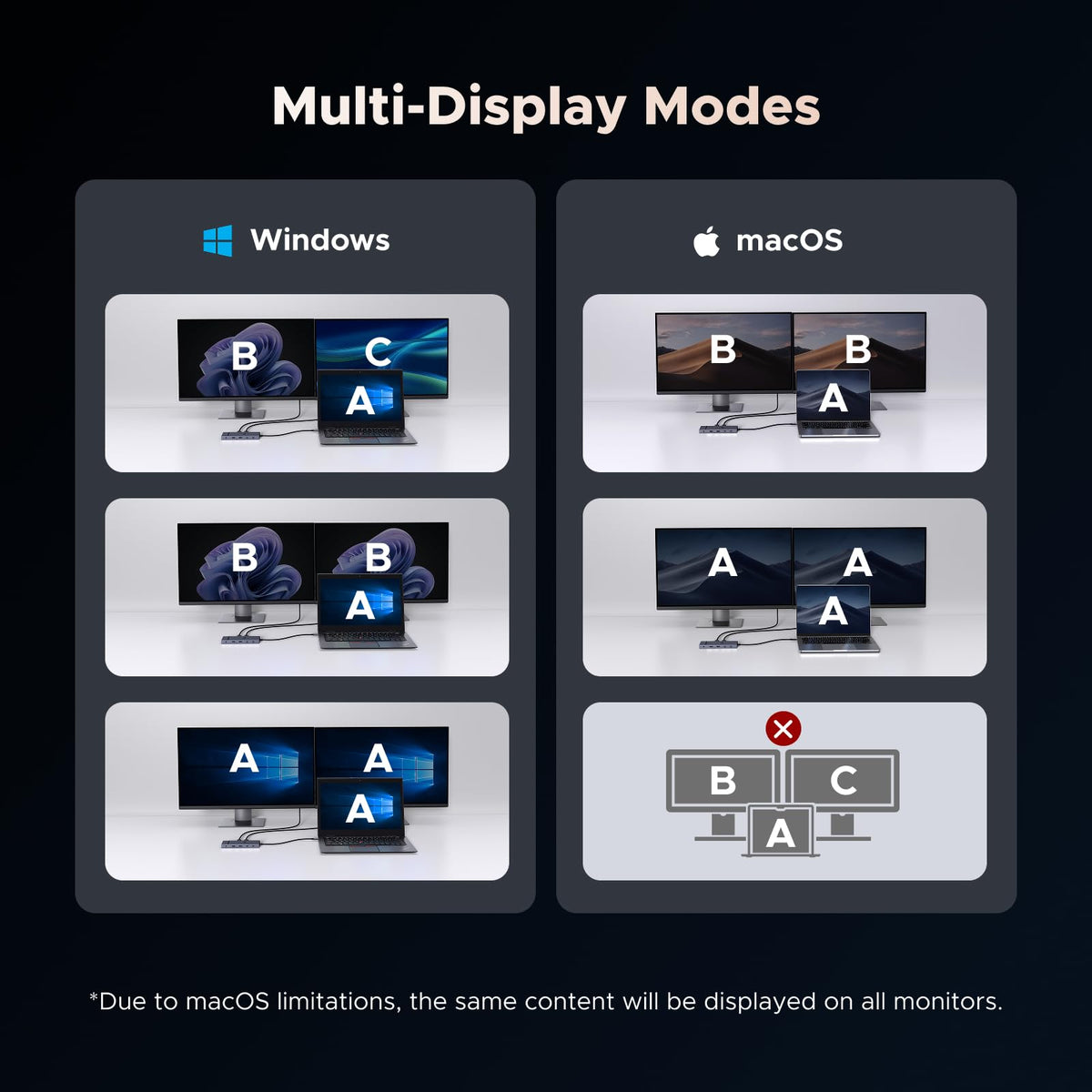

How does this dock support multiple high-refresh displays?

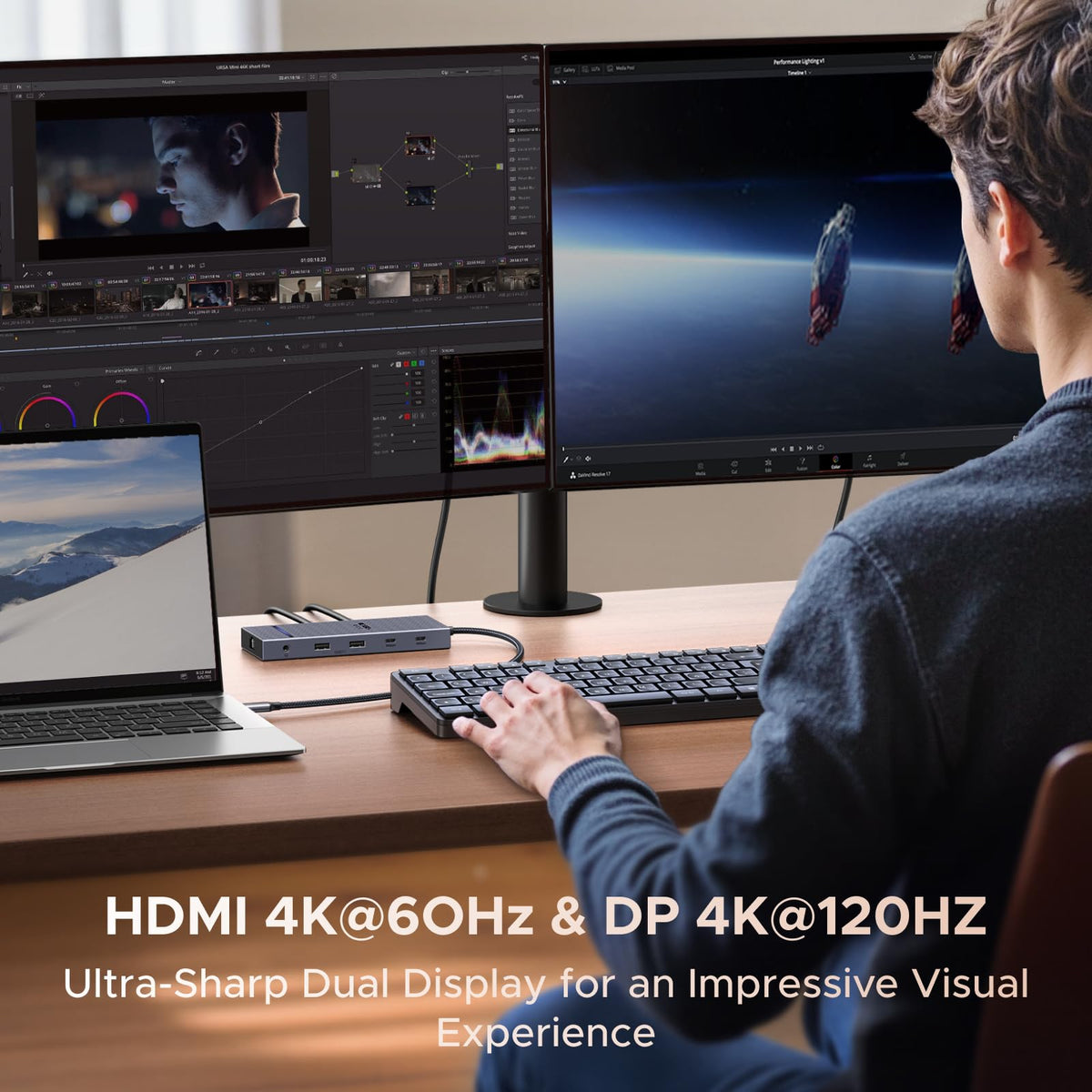

The Revodock Pro uses DP 1.4 and HDMI 2.0 to simultaneously drive two external screens at different peak refresh rates—DP can push 4K at 120Hz while HDMI provides 4K at 60Hz. Windows systems can also run triple independent displays using MST (laptop screen + DP + HDMI), while Macs support dual external displays in extended desktop mode (SST limits apply).

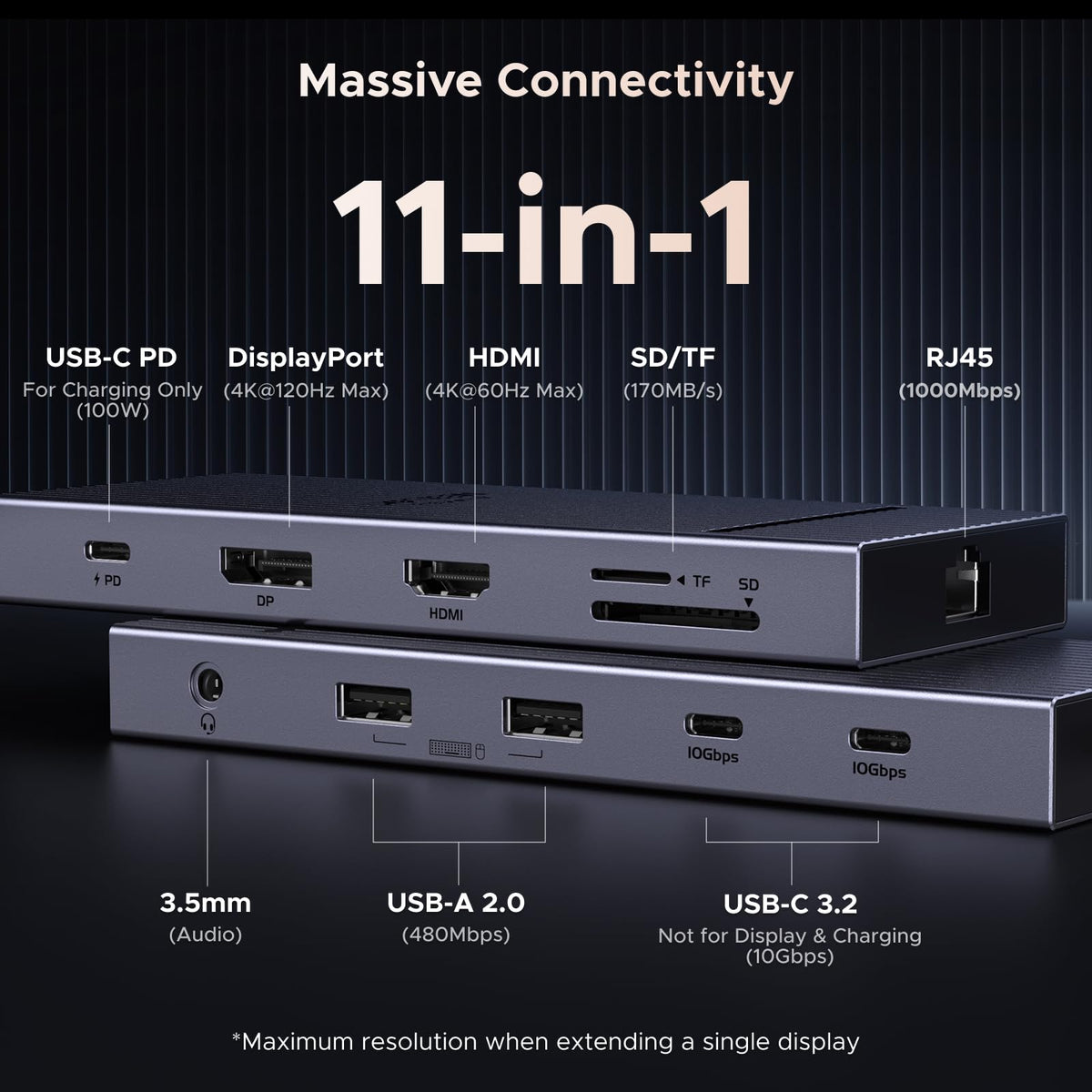

• Dual external outputs: DP 1.4 (4K@120Hz) + HDMI 2.0 (4K@60Hz)
• Windows MST for triple independent screens
• Mac SST dual-extended displays up to 4K@60Hz
• Supports ultrawide 3440x1440@180Hz with DSC and high bandwidth

What speeds and power can I expect from the USB and PD ports?

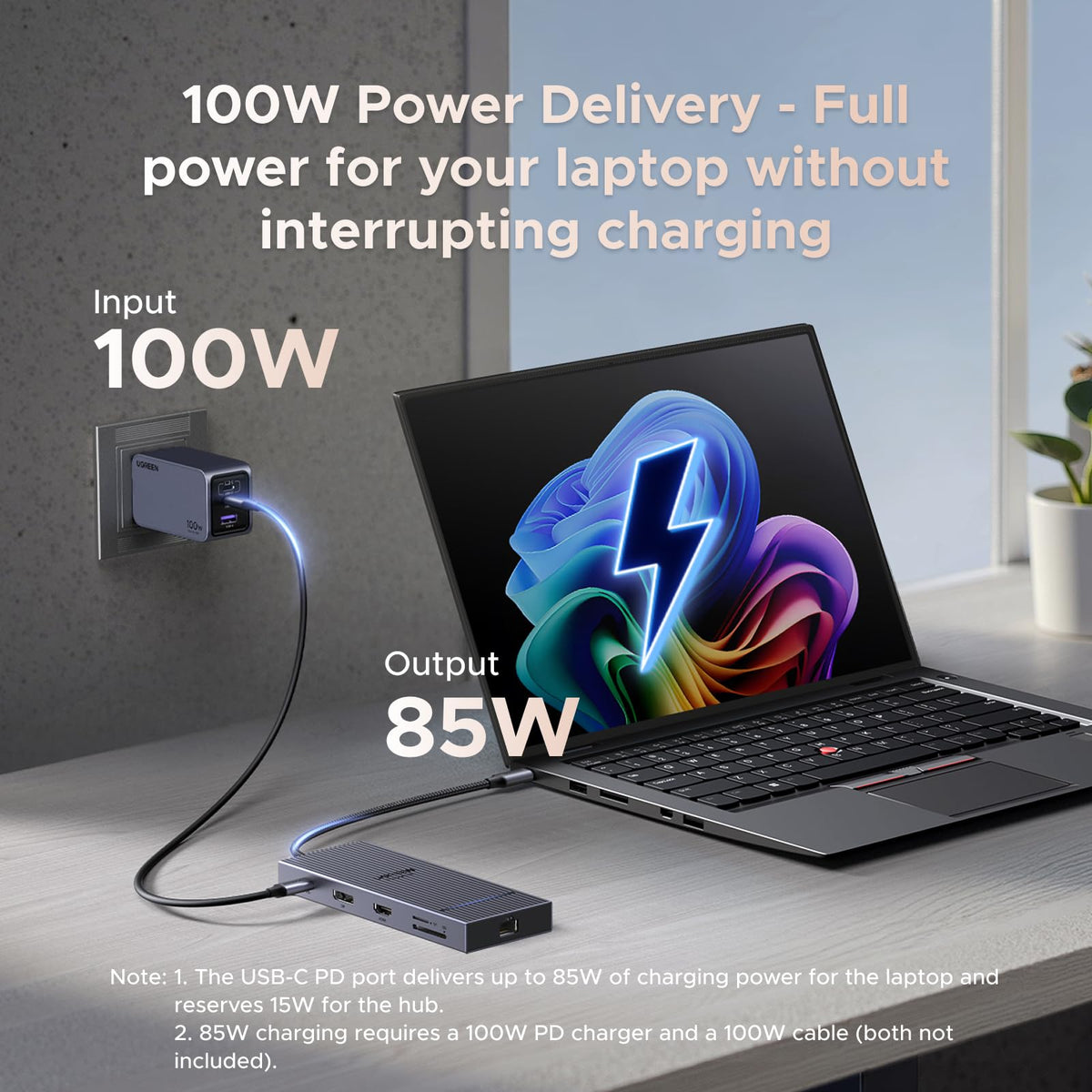

This dock features two USB-C ports rated at 10Gbps for simultaneous high-bandwidth devices like NVMe drives and 4K webcams. The built-in PD controller negotiates up to 100W input and dynamically reserves power for ports while delivering around 85W to charge most 15–16-inch laptops continuously.

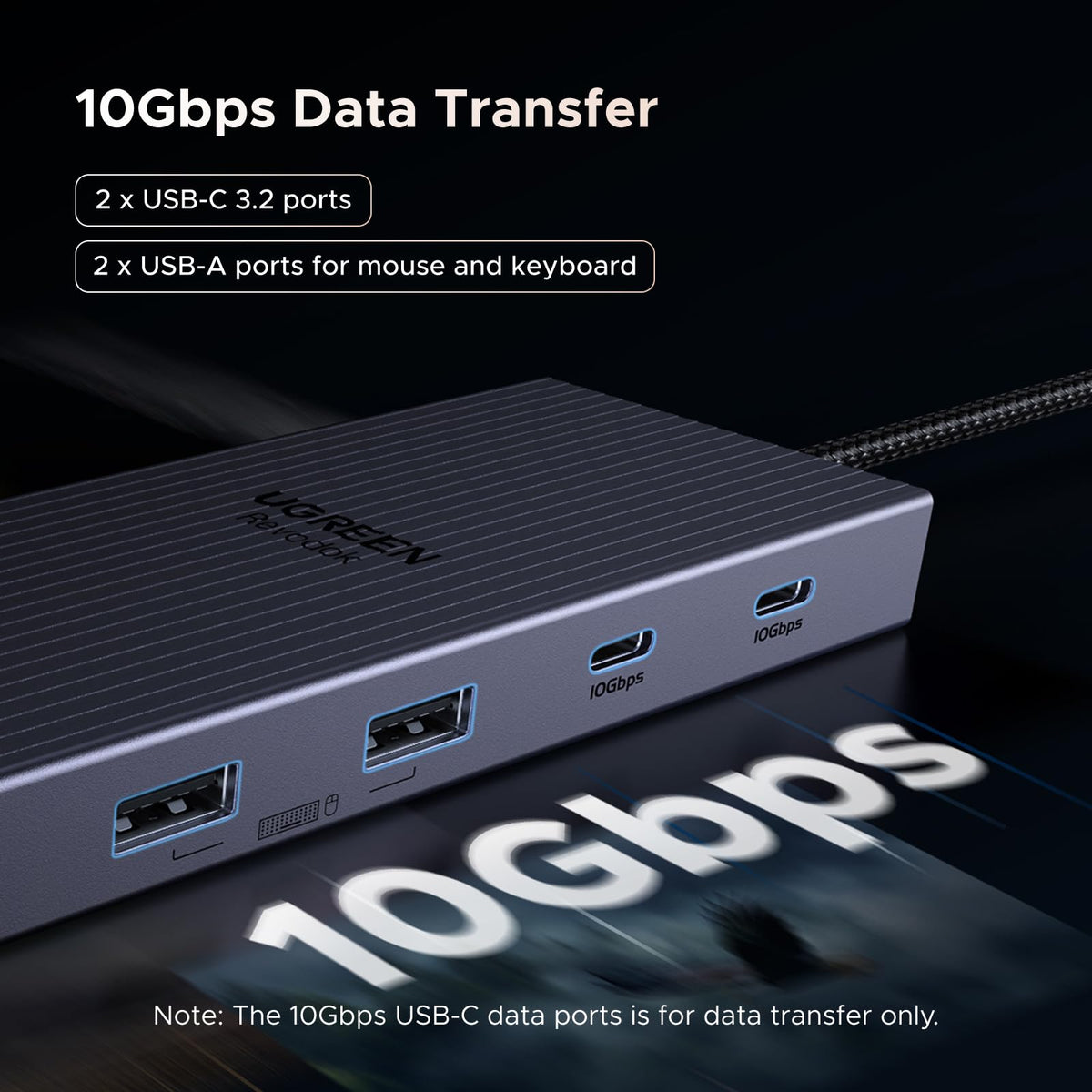

• Two USB-C 10Gbps ports for fast storage and capture devices
• Dual USB-A 2.0 ports for legacy peripherals
• FL7102 PD chip managing dynamic 100W input and ~85W laptop out
• Supports concurrent device charging and data transfers without throttling

Is the dock reliable for professional media, audio and network use?

Yes — card readers and audio are engineered for pro workflows: SD/TF slots reach ~104MB/s read speeds for quick photo and video offloads, while the 3.5mm jack supports 24-bit/192kHz audio for high-resolution monitoring. Gigabit Ethernet keeps latency low for trading, streaming or large file uploads.

• SD/TF reader speeds up to 104MB/s for rapid media transfers
• Hi-Res 3.5mm audio output: 24-bit/192kHz for clarity

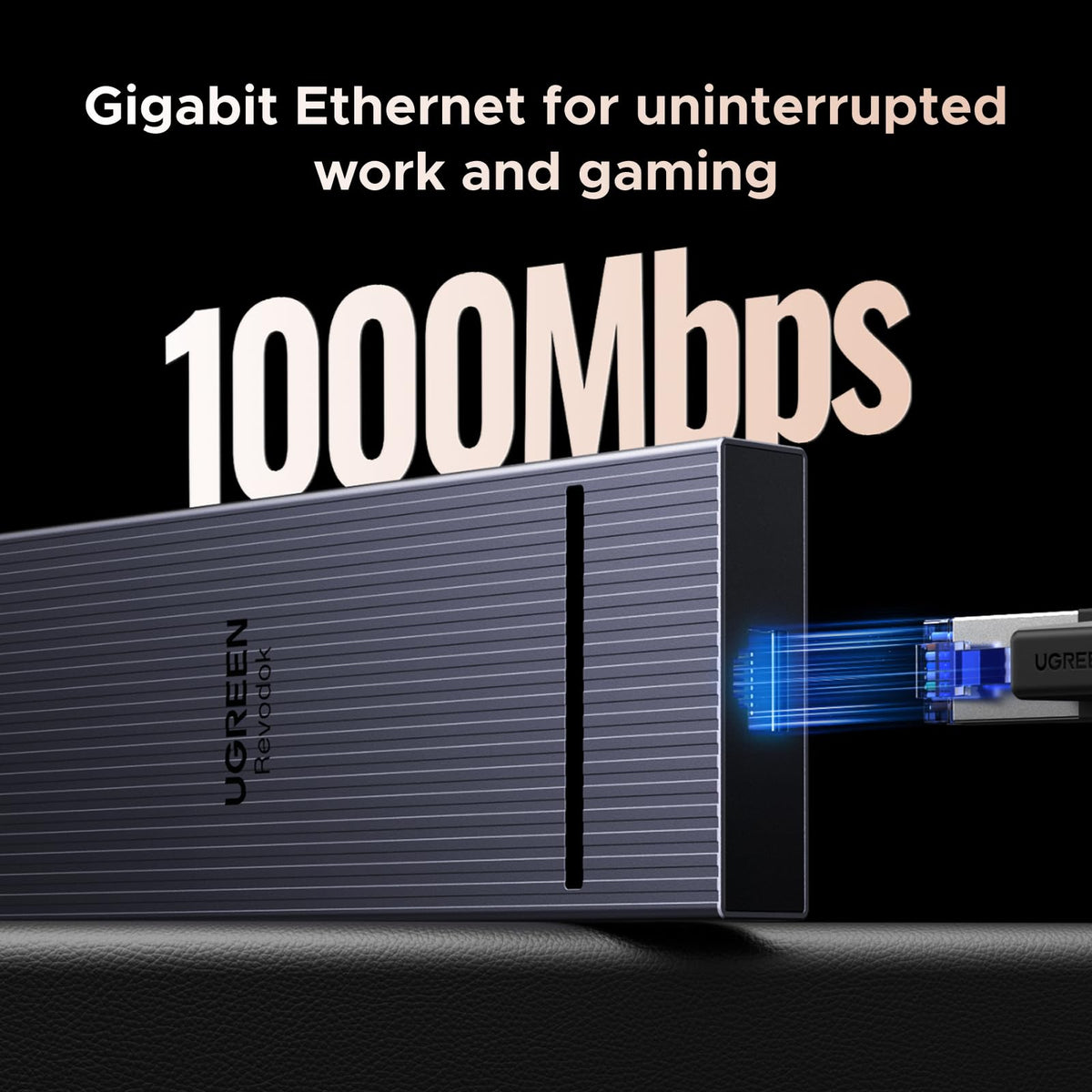

• 1,000Mbps Ethernet with sub-millisecond latency for stable connections
• Aluminum body disperses heat, staying ≤45°C under extended load

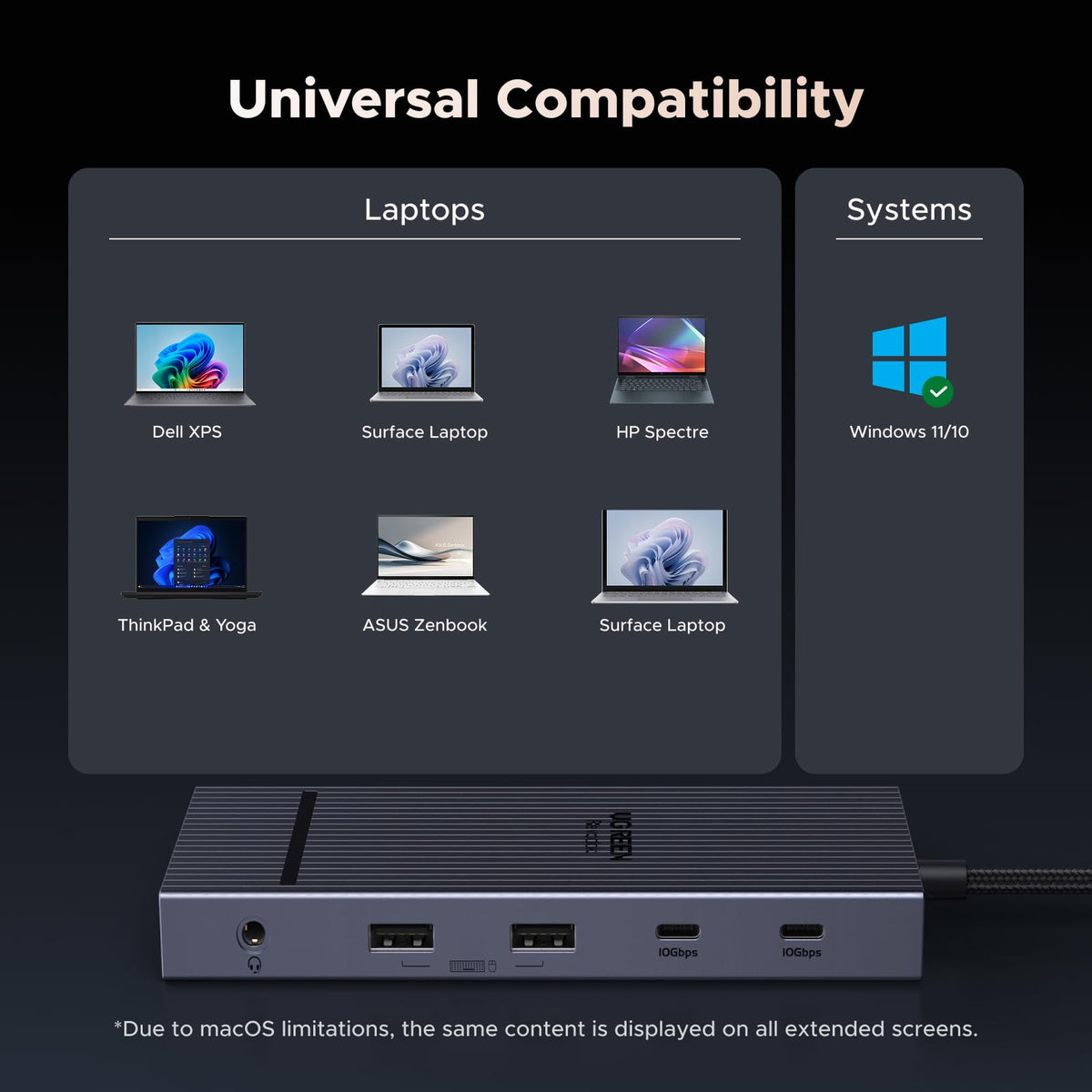

Who is this for? The UGREEN Revodock Pro suits designers, traders, developers and hybrid workers who need multiple high-refresh monitors, dependable wired networking and pro-grade data throughput from a single USB-C connection. It’s also a practical choice for anyone who wants to convert a thin laptop into a full desktop station—supporting major laptop brands and gaming handhelds without extra drivers in most modern OS environments.
