TP-Link 1m 10G SFP+ DAC Twinax Cable SM5220-1M

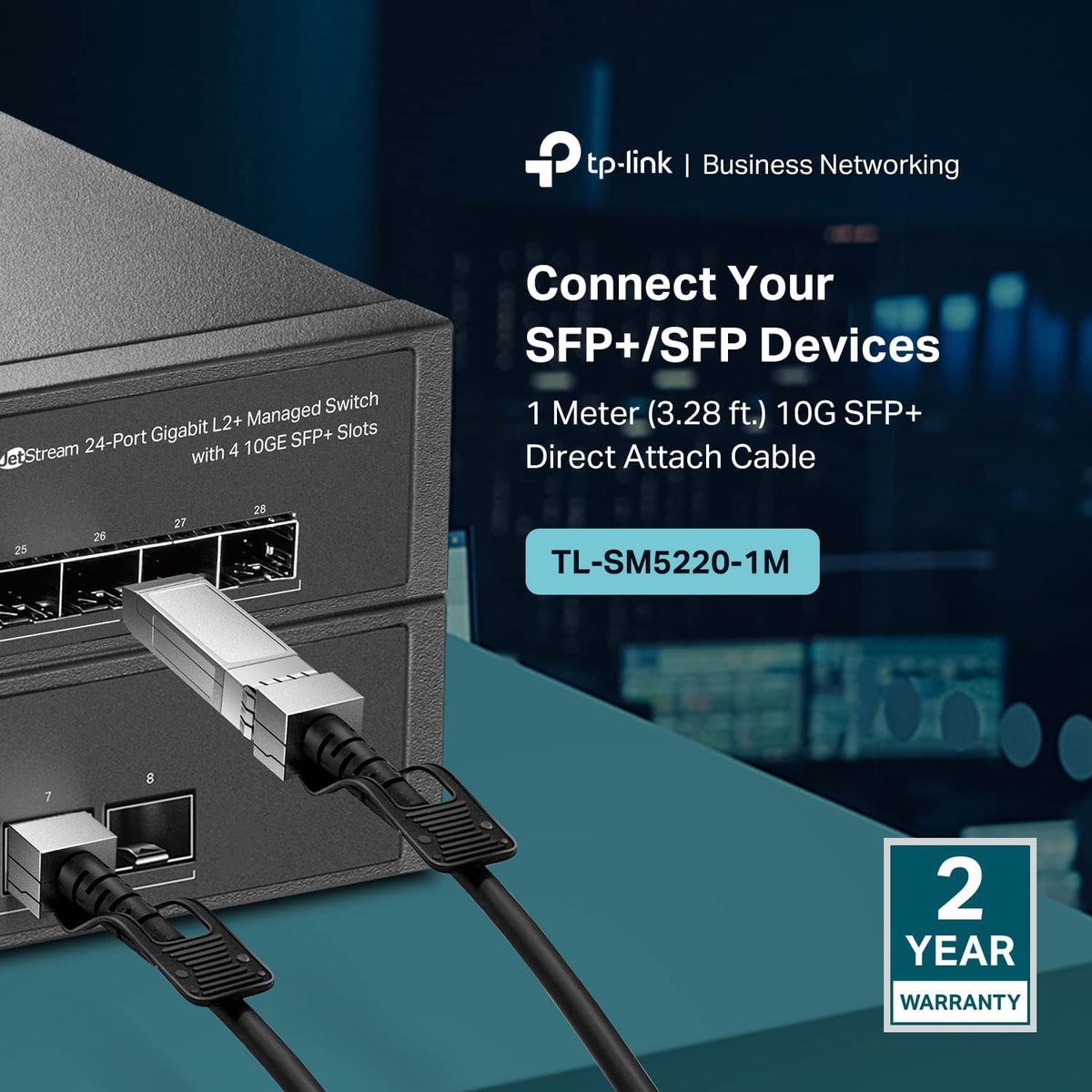

TP-Link Omada SM5220-1M is a 1-meter passive 10G SFP+ direct attach (DAC) twinax cable that delivers low-latency, low-power 10G connectivity between SFP+ ports—plug and play, no transceivers required.

If you need a reliable, short-reach 10 Gigabit link inside racks or between adjacent racks, this 1m SFP+ direct attach cable provides a cost-effective alternative to optical modules and fiber. Designed for SFP+ ports, it minimizes power use and latency while offering a secure mechanical latch and broad interoperability with networking gear that accepts SFP+ copper twinax cables.

How does this cable simplify 10G connections in racks?

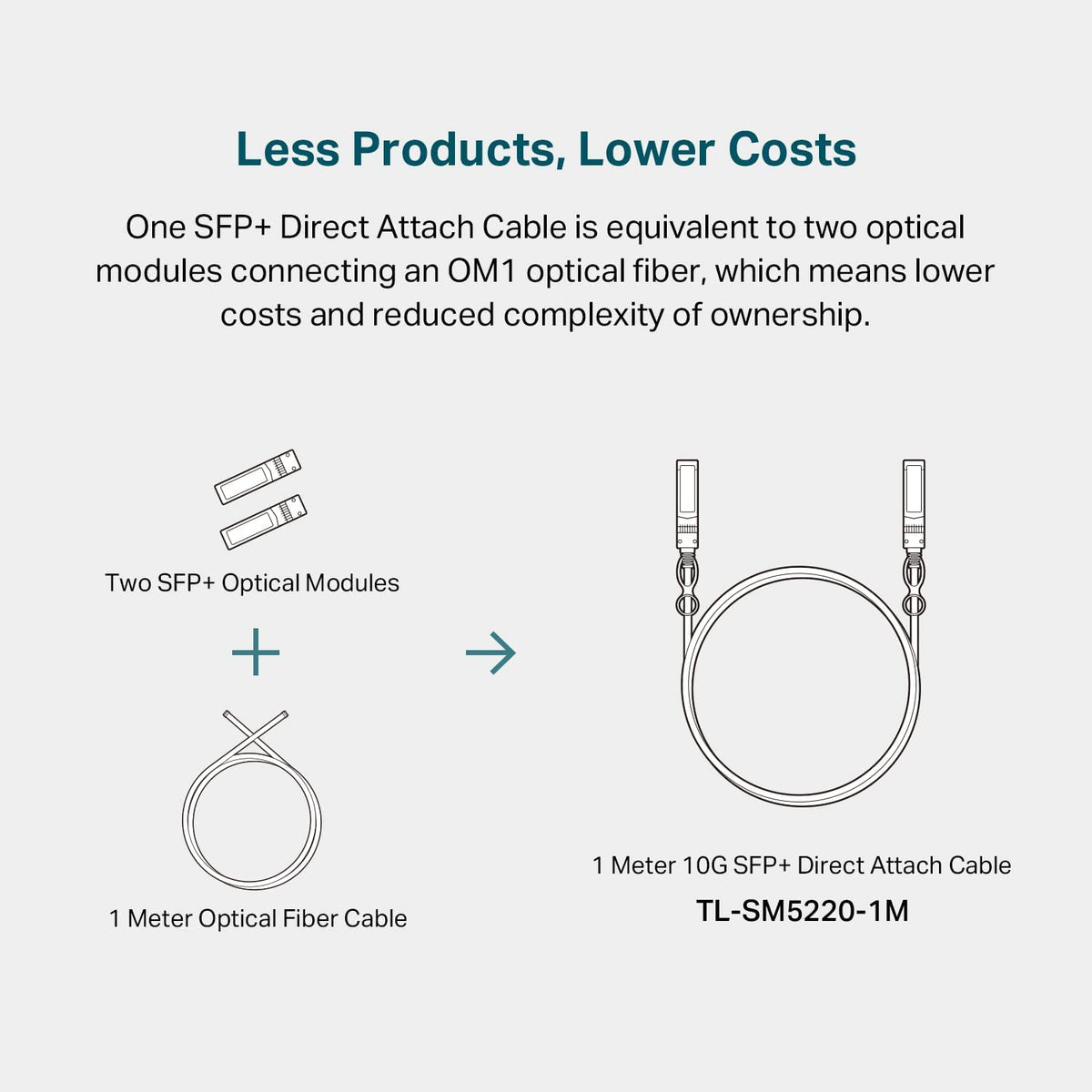

Because the SM5220-1M is a direct attach copper cable, it combines the cable and connectors into one assembly, eliminating separate transceivers and simplifying installation. It’s ideal for short distances where full fiber optics would be unnecessary overhead. The sturdy latch secures the connection and reduces accidental disconnects.

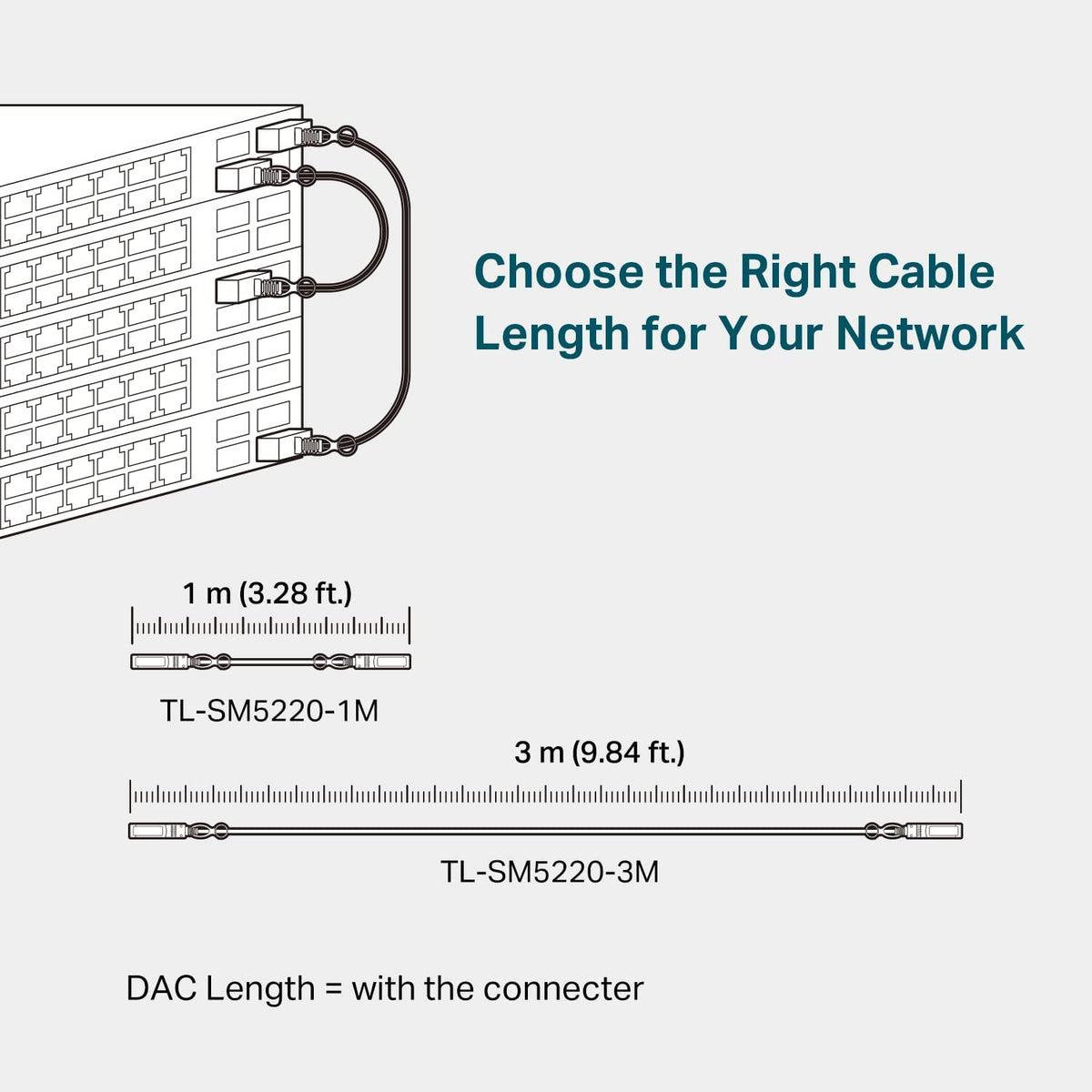

• 1-meter length for intra-rack or adjacent-rack links
• SFP+ to SFP+ integrated connectors—no separate transceivers
• Low power use and minimal latency compared with active modules

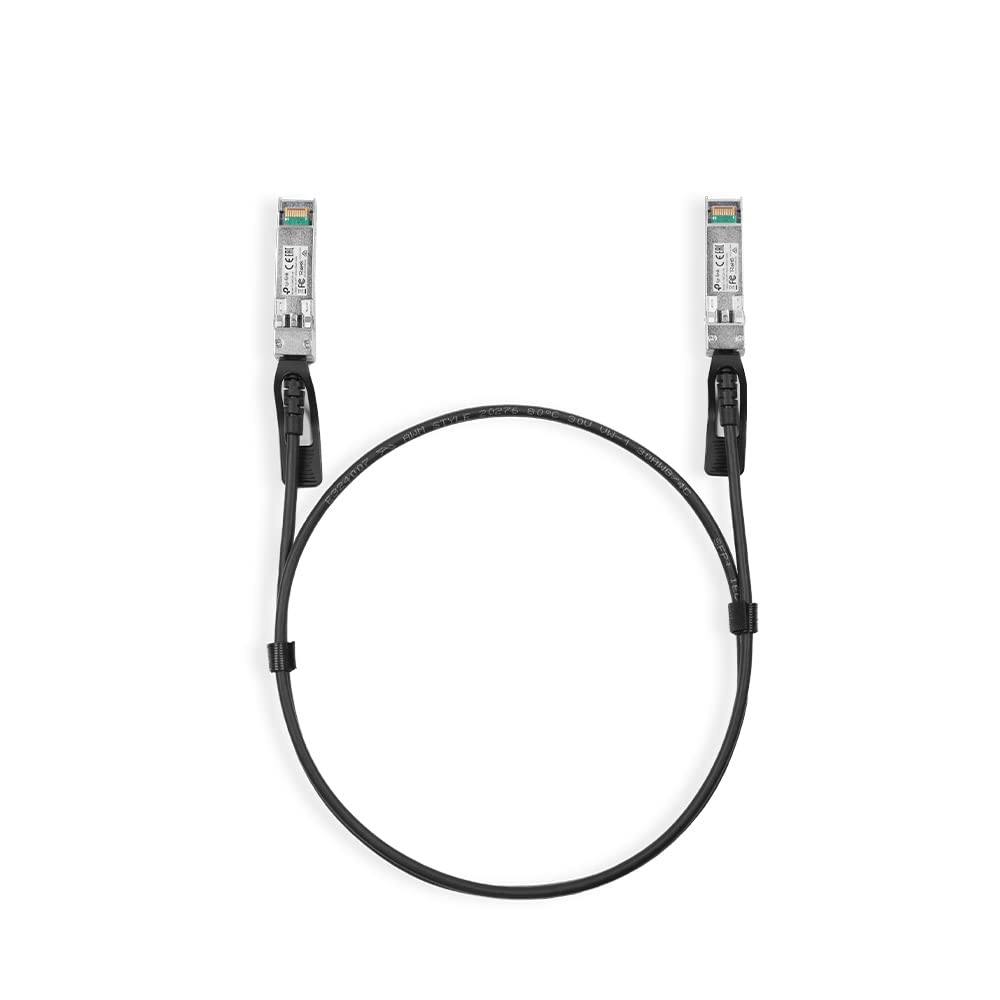

• Quick-release latch for stable, tool-free plugging and unplugging

Will this work with my existing switches, NAS, or media converters?

The SM5220-1M is built to the 10GBASE-CU SFP+ specification and generally interoperates with devices that accept passive SFP+ DACs. Compatibility depends on vendor firmware and platform policies; most mainstream switches, gateways, storage servers, and media converters that expose SFP+ slots accept standard passive twinax cables.

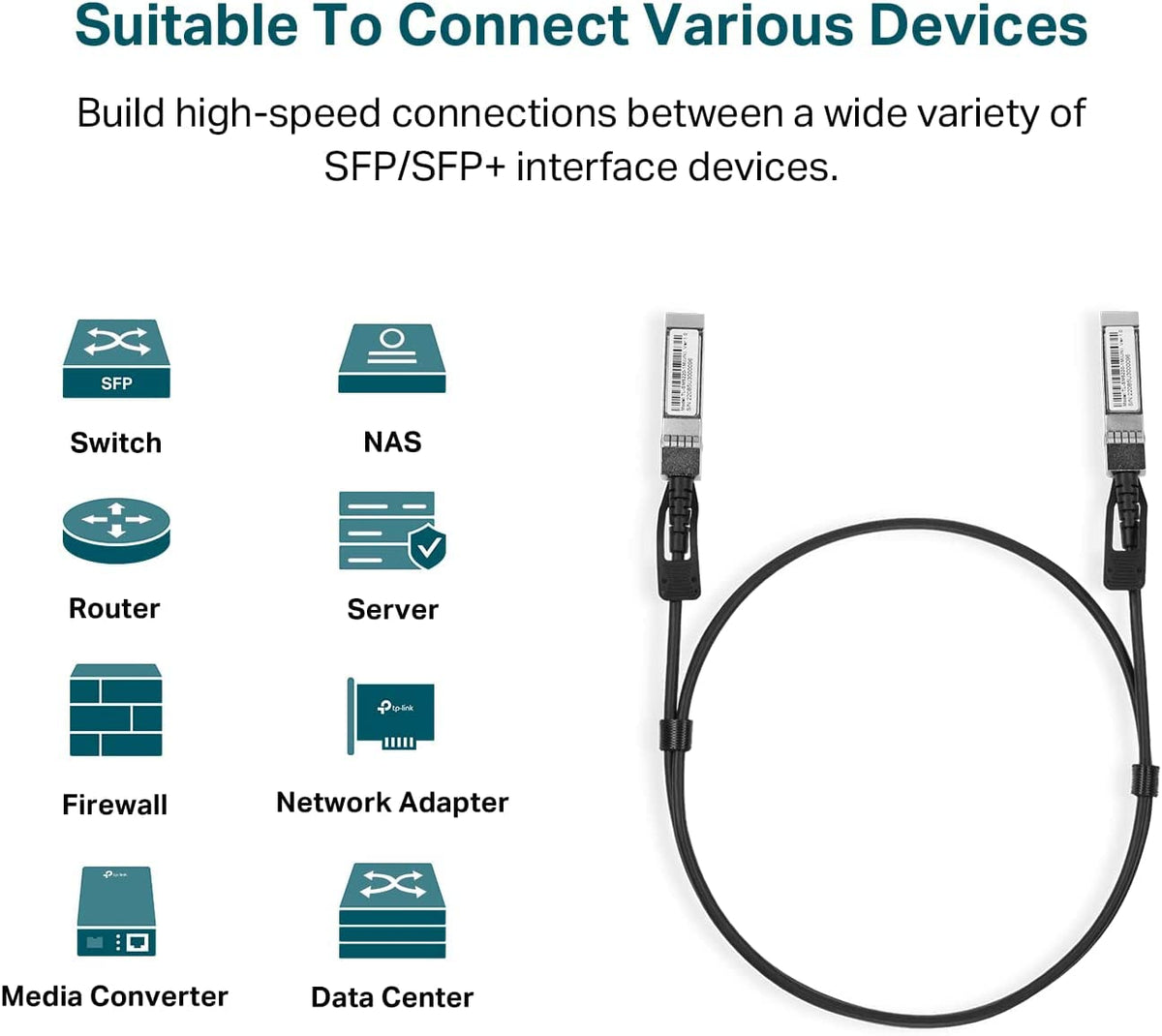

• Works with SFP+ ports on switches, NAS, and media converters
• Meant for short-range links inside data centers or server rooms
• Plug-and-play—no driver or software setup required
• Check device compatibility lists for vendor-specific restrictions

What performance and deployment benefits can I expect?

Passive twinax DACs like this one deliver full 10Gbps throughput over short distances while consuming far less power than optical transceivers plus separate active components. They cut total cost of ownership for dense server-to-switch or switch-to-switch cabling and reduce heat in the rack. Because the interface is enclosed, the cable assembly also improves mechanical stability.

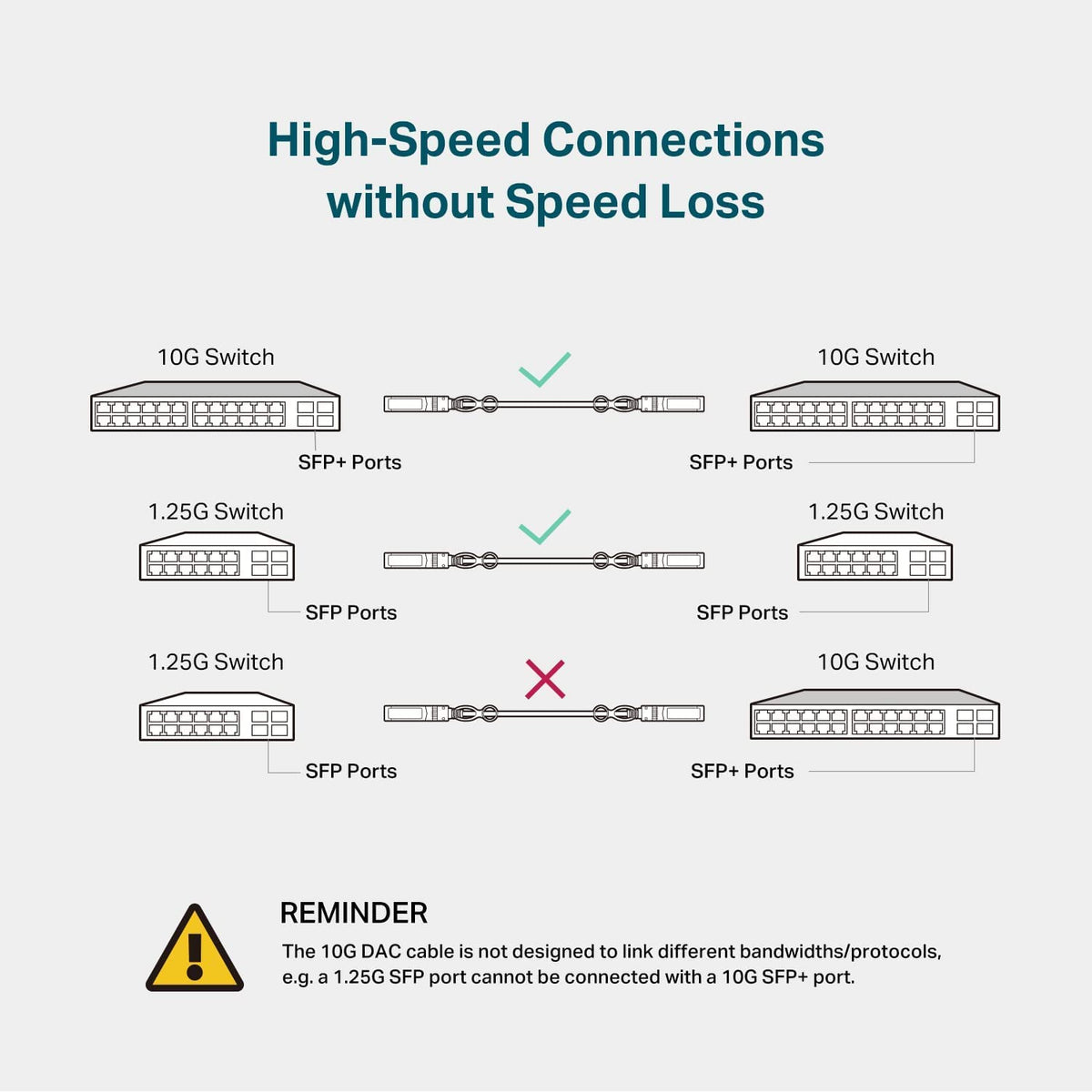

• Full 10G data rate over 1 meter with negligible latency
• Lower power consumption versus active optical transceivers
• Cost-effective for high-density short-link deployments
• Secure connector design reduces accidental port exposure

How straightforward is installation and maintenance?

Installation is simple: insert each SFP+ plug into the device slot until the latch clicks. No configuration, drivers, or firmware changes are required for typical setups. For maintenance, visually inspect the latch and cable for wear and keep connectors free of debris; the integrated design reduces the number of replaceable parts.

• Plug-and-play—no software or drivers needed
• Tool-free insertion and quick-release latch for easy swaps
• Minimal maintenance—inspect and keep clean
• Replace entire cable assembly rather than separate transceivers

Who is this for: network engineers and IT teams who need economical, high-performance 10G links inside racks or between adjacent racks will find the TP-Link Omada SM5220-1M a practical choice. It suits data centers, server rooms, and high-density network environments where short-distance, low-power, low-latency connectivity is required without the extra cost of optical transceivers. If you require longer runs or active optical reach, consider fiber optic SFP+ modules instead.
