Timpano 6.5" Shallow Midrange Speaker Pair TPT-MR6-4 PRO — 4Ω 94dB, 2.2" Mount Depth for Car Doors

Timpano TPT-MR6-4 PRO is a 6.5-inch shallow-mount midrange speaker pair engineered for high-output car audio systems, delivering clear mids and robust SPL from a compact 2.2" mounting depth.

These 6.5" PRO midrange drivers combine a shallow steel basket, a high-temperature voice coil, and a strong ferrite motor to offer powerful mid-frequency reproduction without requiring deep clearance. Built for multi-speaker car installs and 3-way systems, the TPT-MR6-4 handles high peak power and high sensitivity to produce vocal clarity and punch in tight door cavities.

How much power can these midranges handle and what amplifier setup works best?

The Timpano PRO midranges accept up to 500 watts peak and about 150 watts RMS per driver, making them suitable for driven, high-SPL systems. They are 4 ohm drivers with 94 dB sensitivity, so they respond well to moderate to powerful amplification without needing extreme current.

• Max power: 500 watts (peak)
• RMS recommended: 150 watts
• Nominal impedance: 4 ohm — stable for most car amps
• High sensitivity (94 dB) for louder output with less power

What frequency range and crossover settings produce the cleanest sound?

These midrange drivers are voiced to reproduce frequencies roughly between 160 Hz and 9,500 Hz for detailed vocals and upper-mids. For best integration in 3-way systems, use recommended high-pass crossover points to protect the driver and maintain tonal balance.

• Frequency response: 160–9,500 Hz for mid clarity
• Recommended high-pass: 180 Hz with an 18 dB/octave slope when using up to 250 W RMS
• Alternative: 140 Hz with a 12 dB/octave slope under 150 W RMS
• Works well with separate subwoofer and tweeter in a 3-way configuration

Will these fit in my car doors — what are the physical specs and installation tips?

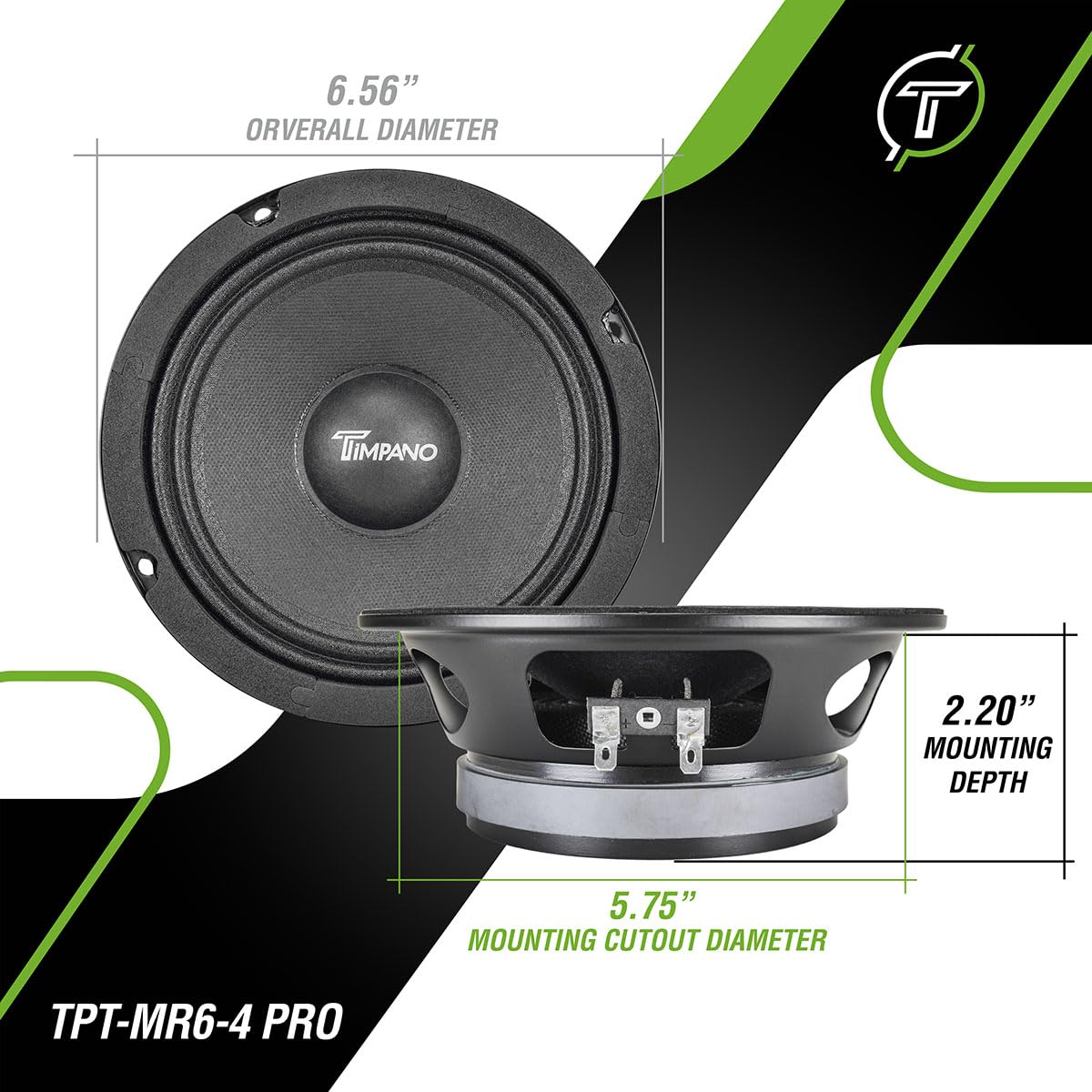

The shallow 2.20" mounting depth and standard 5.75" cutout diameter make these speakers a straightforward fit for many aftermarket installations in doors and custom panels. Their compact steel basket and 6.56" overall diameter let you mount them where deeper drivers would interfere.

• Mounting depth: 2.20" — fits tight door pockets
• Cutout diameter: 5.75" — common 6.5" aftermarket size
• Overall diameter: 6.56" — check grille clearance
• Weight per speaker: 3.40 lbs — solid, durable build

What components and features make the TPT-MR6-4 PRO sound reliable and loud?

Timpano engineered these midranges with a ferrite magnet and a 1.5" high-temp voice coil to sustain thermal load and deliver consistent SPL under heavy use. The result is an efficient driver that produces impactful midrange detail while staying within a practical budget for custom car systems.

• Ferrite motor for strong magnetic flux and reliable excursion
• 1.5" high-temperature voice coil for sustained power handling
• Shallow steel basket for rigidity in confined spaces
• Designed for parallel wiring in multi-speaker systems

Who is this for? The Timpano TPT-MR6-4 PRO midrange pair is ideal for car audio enthusiasts building high-output multi-way systems who need loud, clear mids from a shallow driver. Choose these speakers if you want professional-style midrange performance for door installs, 3-way setups, or custom builds that demand clarity, efficiency, and compact mounting depth.
