Dayton Audio 25mm High-Efficiency Exciter DAEX25FHE-4

The DAEX25FHE-4 is a coin-sized framed exciter designed to turn objects like cabinet doors, windows, toys, and displays into sound-radiating surfaces. Its compact footprint and slim profile make it suitable for installations where space is limited but clean, immersive audio is desired. With a neodymium magnet and a one-inch proprietary voice coil, this transducer is optimized for high sensitivity so it performs well with small Class D amplifiers without demanding large power reserves.

How does this exciter attach to different surfaces?

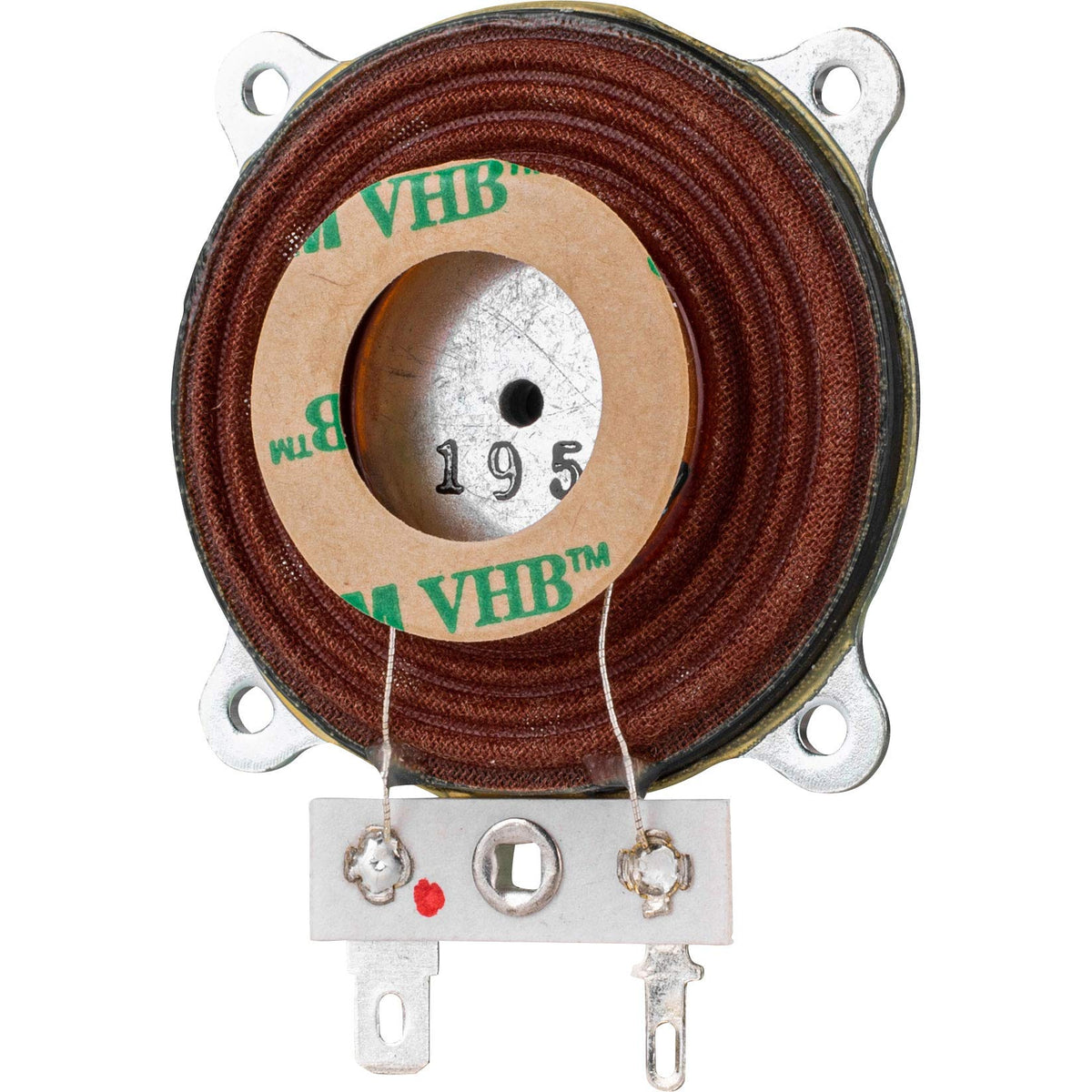

Installation is straightforward thanks to pre-applied 3M VHB adhesive that bonds quickly and securely to many materials; peel-and-stick mounting simplifies prototyping and permanent installs alike. For applications where extra mechanical security is needed—such as inverted mounting or moving panels—four screw tabs provide a reliable backup. Two PCB-style solder pads keep wiring tidy and compact.

• Pre-applied 3M™ VHB™ peel-and-stick for immediate bonding
• Four screw tabs for permanent or inverted mounting
• Two compact solder points for neat electrical connections

What kind of sound can you expect from a 25mm exciter?

Exciter sound character varies with the material it drives: thinner or smaller surfaces favor brighter mid-high output and higher sensitivity, while thicker or larger panels produce fuller-range, lower-frequency response. The DAEX25FHE-4's high-efficiency motor and cooling vents let it accept more power for greater acoustic output without increasing size. Keep in mind that surface selection and placement, plus the number of exciters used, influence overall tonal balance and loudness.

• Thinner panels: louder, mid/tweeter emphasis
• Thicker/large panels: fuller-range but lower overall level
• Multiple exciters: smoother, more even dispersion and bass performance

Which amplifiers and power levels are appropriate?

The DAEX25FHE-4 is rated 24 watts RMS with a 4-ohm impedance, making it compatible with small Class D amplifiers and compact audio boards. Because the transducer is highly sensitive, you won’t need excessive power to drive useful volume levels; choose an amp that handles 4 ohms and offers headroom for transient peaks. Avoid sustained clipping to protect the voice coil and preserve fidelity.

• Nominal impedance: 4 ohms, suitable for compact amps
• Power handling: 24W RMS; use an amp with clean headroom
• High sensitivity reduces required amplifier size and power

What are the physical and technical highlights of the DAEX25FHE-4?

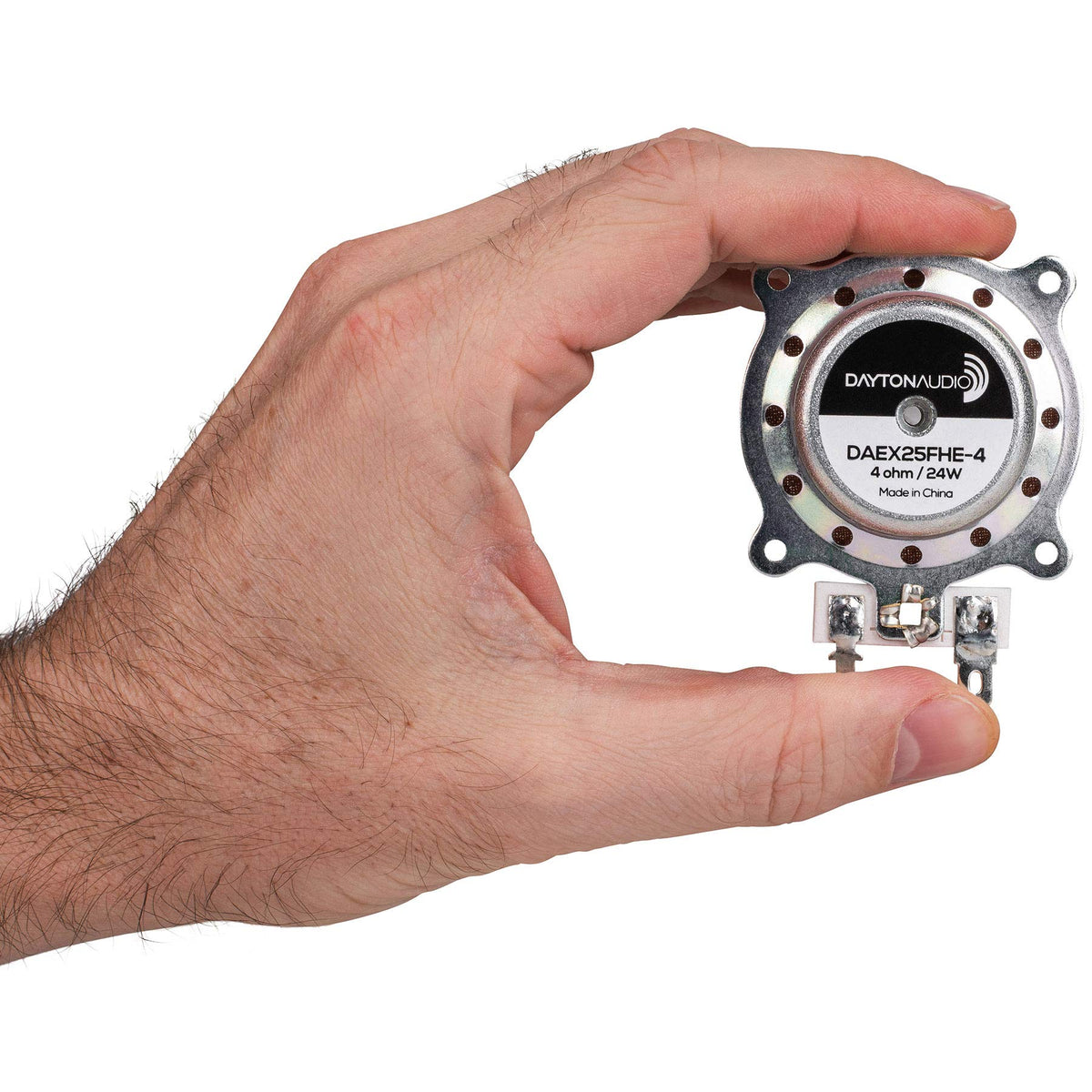

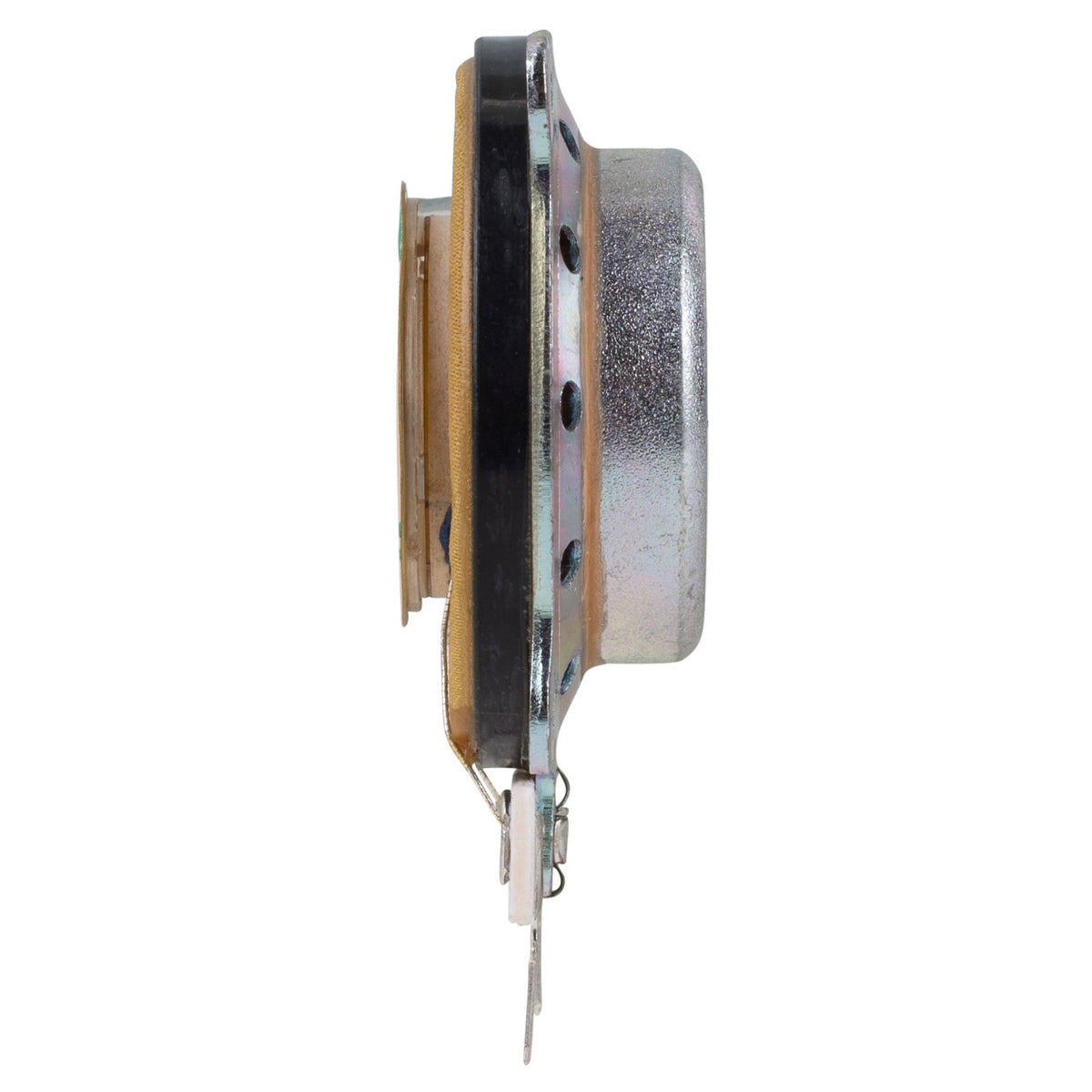

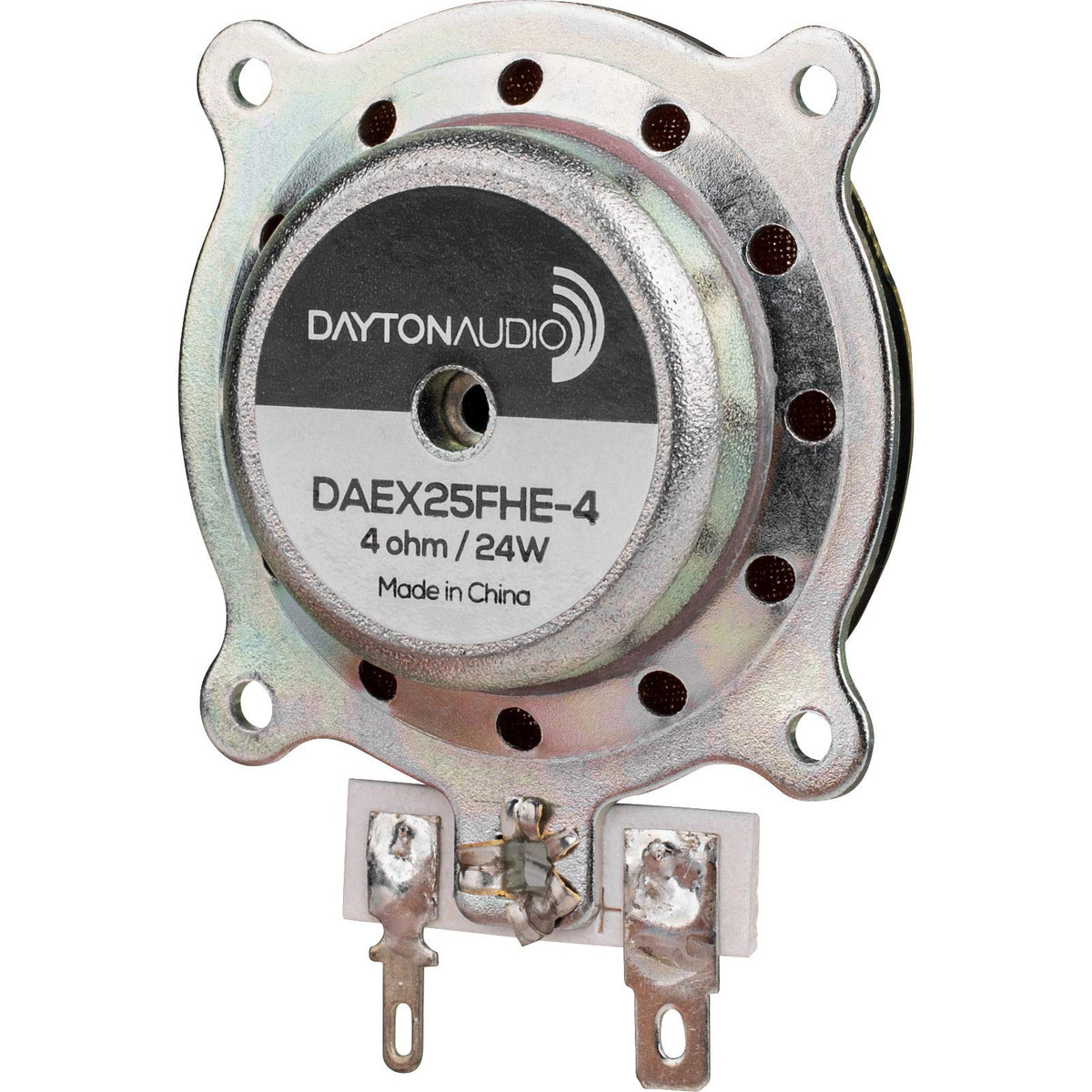

This exciter measures just under 2" (50.5 mm) in diameter and about 7/8" (20.5 mm) deep, with adhesive dimensions tailored for strong coupling to the radiating surface. A rare-earth neodymium magnet concentrates magnetic flux for improved efficiency, while a 25 mm voice coil and cooling vents enable higher input power in a slim package. The unit includes a five-year parts and labor warranty in many regions.

• Overall diameter: 50.5 mm; depth: 20.5 mm for tight installations

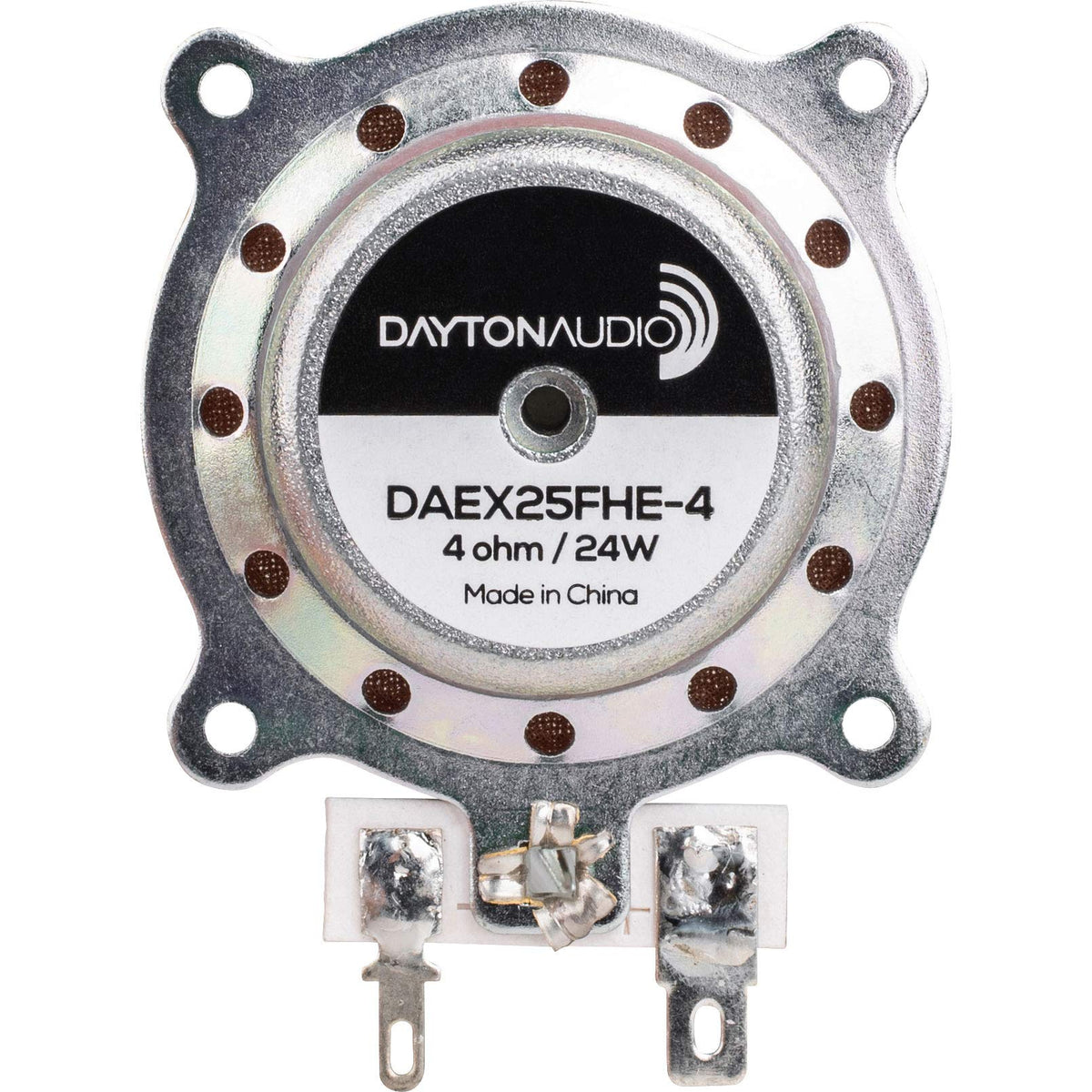

• Neodymium motor and 25 mm voice coil for high sensitivity
• Pre-applied adhesive dimensions: 27.6 mm OD, 21.8 mm ID

Who this is for: The Dayton Audio DAEX25FHE-4 is ideal for designers, hobbyists, and AV integrators who need unobtrusive sound sources for small enclosures, creative audio projects, interactive exhibits, or concealed installations. It’s well suited to anyone converting non-speaker surfaces into sound radiators where space, weight, and appearance matter—especially when paired with compact 4-ohm amplifiers for efficient, high-impact audio.
