DS18 5.25" PRO-FR5NEO Full-Range Neodymium Loudspeaker

This compact loudspeaker is engineered for installations that demand musical clarity, low weight, and a premium finish. With a 5.25" non-pressed paper cone, cloth surround, and a neodymium magnet assembly, the PRO-FR5NEO balances responsiveness and efficiency. It’s built to fit tight mounting depths while handling up to 200 watts RMS and peaking at 400 watts, making it suitable for car audio systems, custom enclosures, and professional on-board installations where both form and function matter.

How does the PRO-FR5NEO perform across the audible range?

The speaker covers midrange and upper frequencies with a stated response from 242 Hz to 13.6 kHz, emphasizing vocal and instrument clarity. Its 94.6 dB sensitivity and 4-ohm impedance make it reactive to typical car or portable amplifiers, translating amplifier power into audible output efficiently.

• Frequency response: 242 Hz–13.6 kHz for clear mids and highs
• Sensitivity: 94.6 dB for efficient loudness with moderate power
• Impedance: 4 ohms for broad amplifier compatibility

What build features improve durability and sound quality?

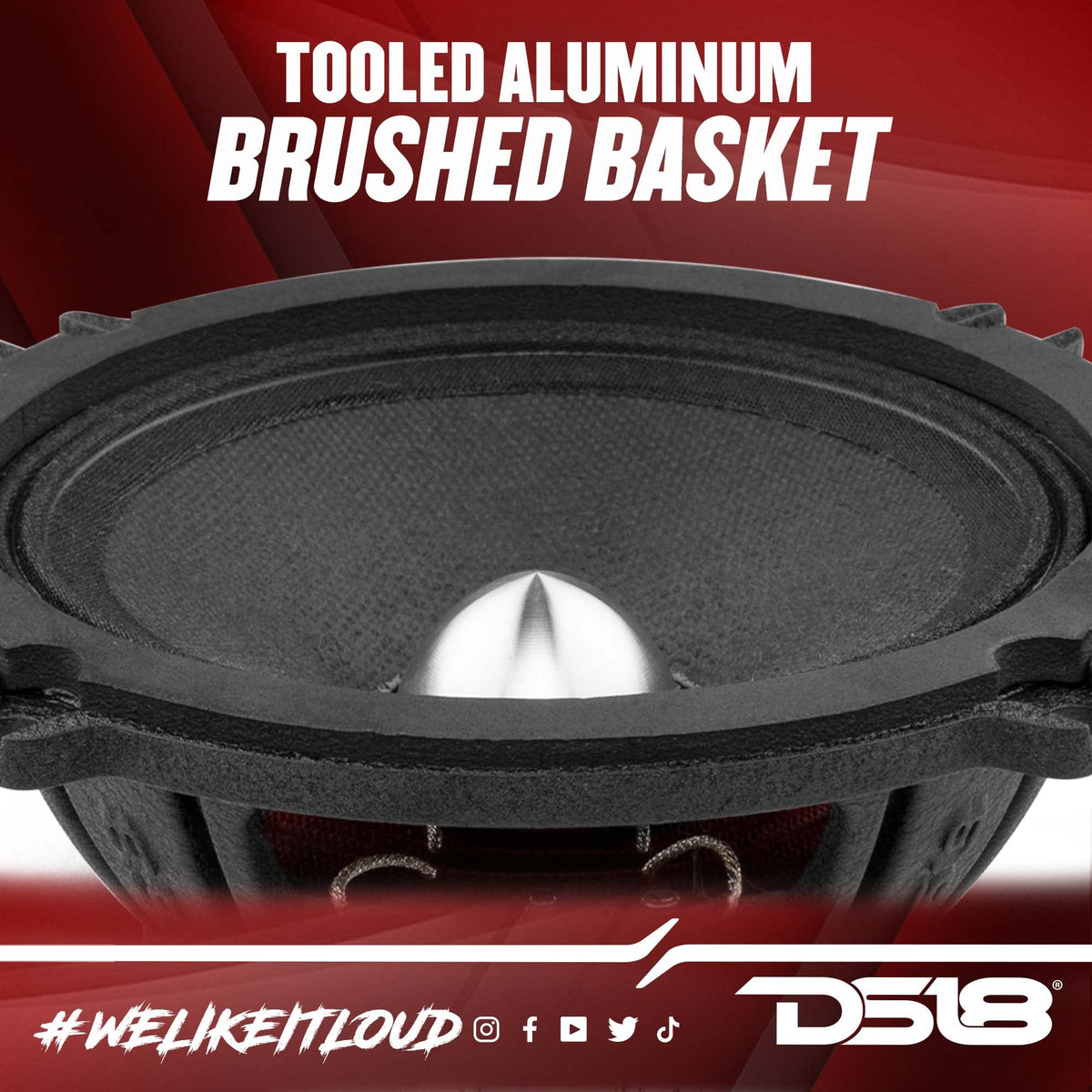

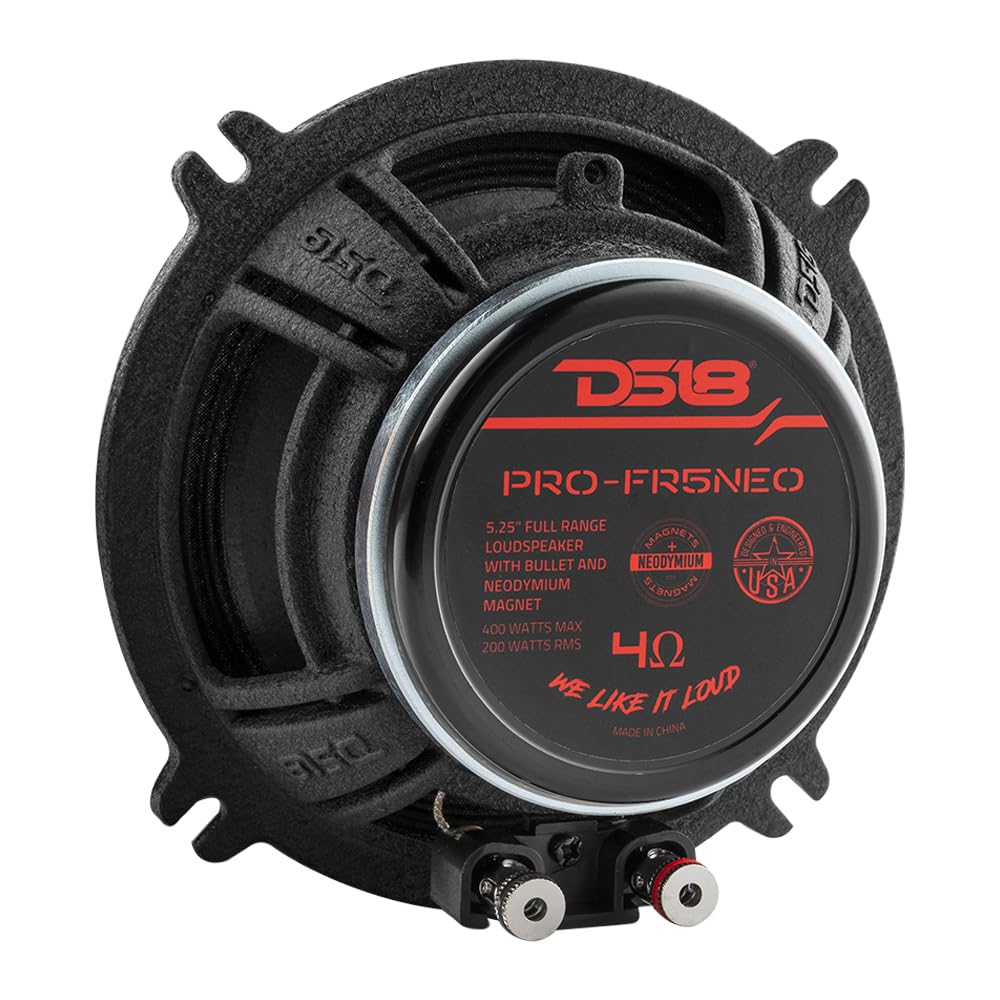

The PRO-FR5NEO combines an aluminum frame with a neodymium motor to reduce weight while maintaining structural rigidity. A cloth edge surround and a non-pressed paper cone deliver natural timbre and controlled breakup, while the KCCAW two-layer voice coil resists overheating under sustained use.

• Aluminum basket for stiffness and reduced resonance
• Neodymium magnet for strong magnetic flux with lower mass
• 1.2" KCCAW two-layer voice coil for thermal stability

What are the installation and sizing considerations?

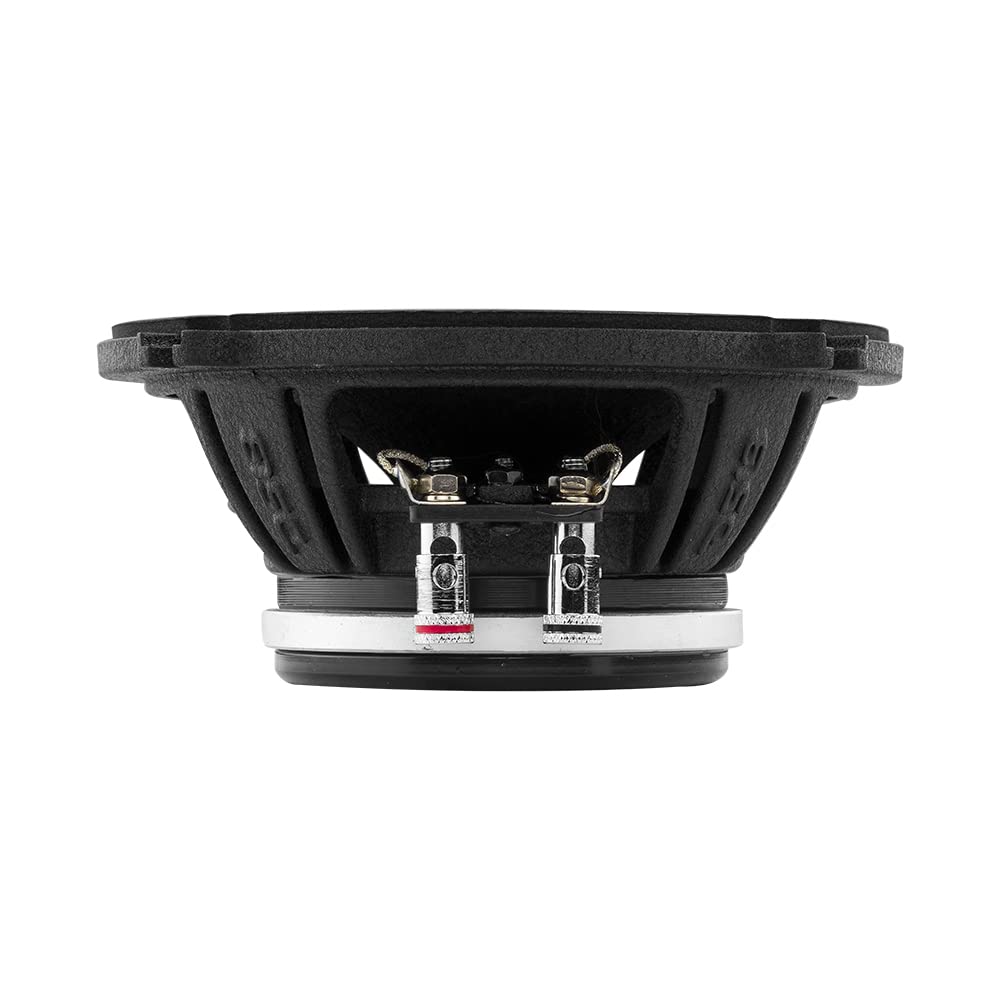

The speaker is engineered to fit many factory and custom locations thanks to its shallow mounting depth and compact cut-out dimension. Installers should check the 1.74" (44 mm) mounting depth and the 4.65" (118 mm) cut-out to confirm compatibility with door panels, pods, or small enclosures.

• Mounting depth: 1.74 inches (44 mm) for tight spaces
• Cut-out diameter: 4.65 inches (118 mm) for template matching
• 5.25" overall size aligns with common midrange mounting holes

Who is this for? The DS18 PRO-FR5NEO is aimed at audiophiles and installers who need a lightweight, high-performance midrange driver for vehicles or compact enclosures. It suits custom car audio builds, professional mobile installs, and anyone replacing factory speakers with a more revealing full-range driver that still fits limited clearance. Choose this model if you value natural midrange presence, efficient sensitivity, and a refined aluminum finish that complements premium interiors.
