TeamProfitcom Dual 6-Pin Female to 8-Pin Male GPU Power

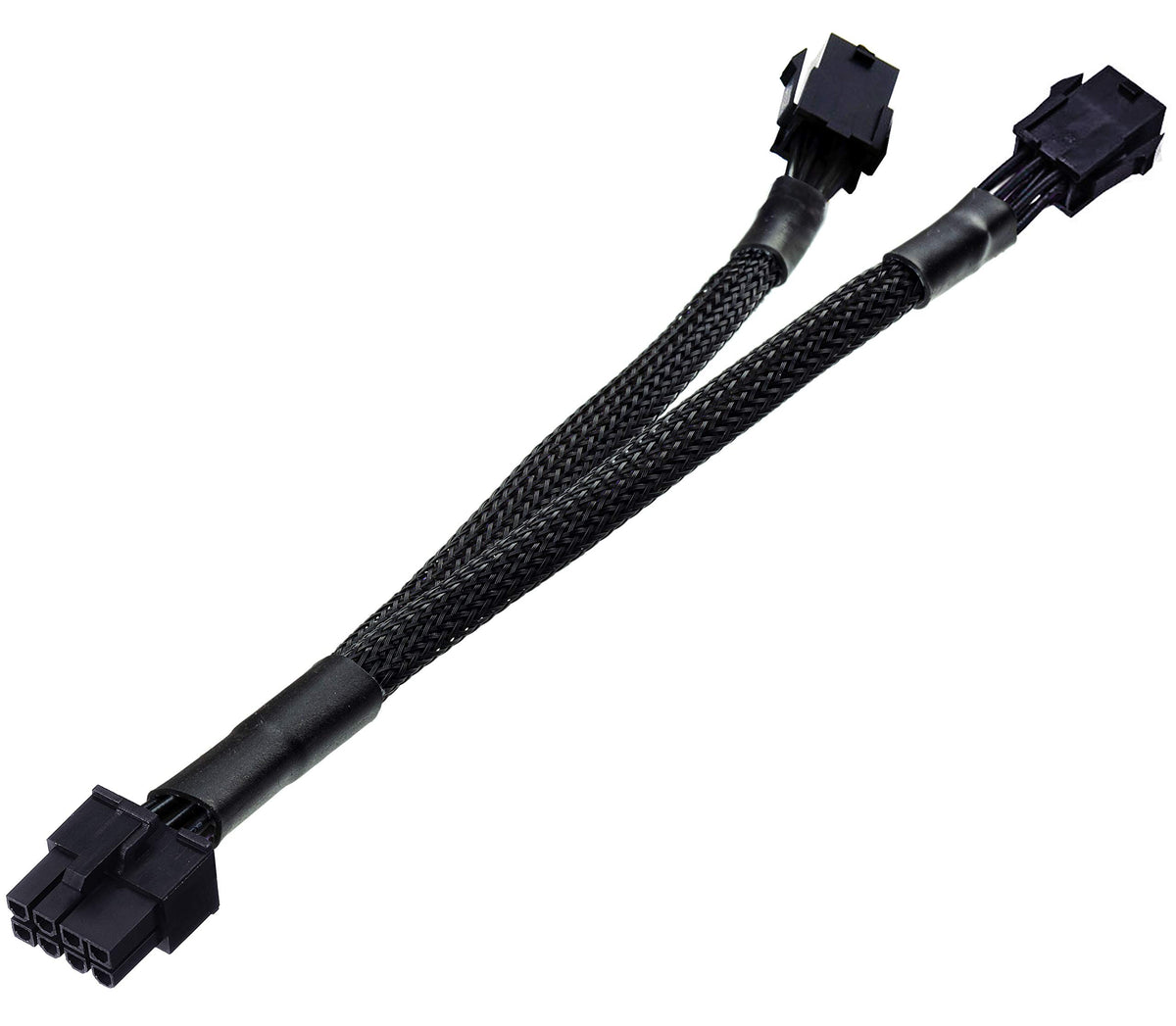

TeamProfitcom's Dual 6-Pin Female to 8-Pin Male GPU power adapter is a 9-inch braided cable that lets you power modern graphics cards from two 6-pin PCIe rails.

This compact adapter gives you a straightforward, cost-effective way to connect a newer 8-pin GPU power input to an older power supply that provides two separate 6-pin PCIe connectors. The cable is sleeved with braided material for cleaner routing and basic abrasion resistance, and it uses standard 18AWG UL1007 wires designed for typical GPU loads where the combined 6-pin outputs are adequate. It’s intended as an adapter solution when replacing the entire power supply isn’t necessary or desired.

How does this adapter let older PSUs run modern GPUs?

The cable converts two standard 6-pin female PCIe connectors into a single 8-pin male PCIe plug required by many newer graphics cards. It merges the power from both 6-pin rails so the GPU can draw the combined current that an 8-pin input expects. This avoids rewiring the PSU and provides a plug-and-play option.

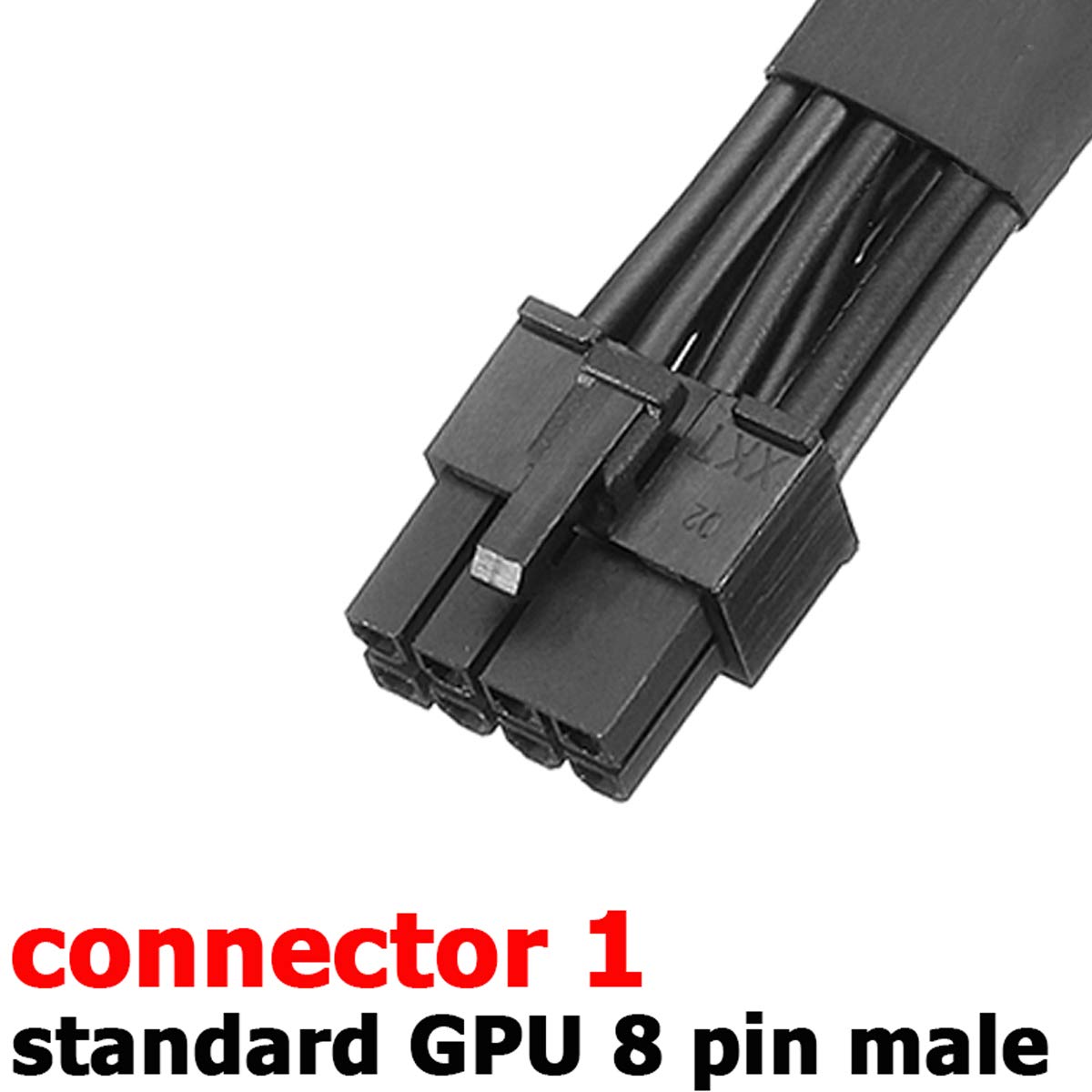

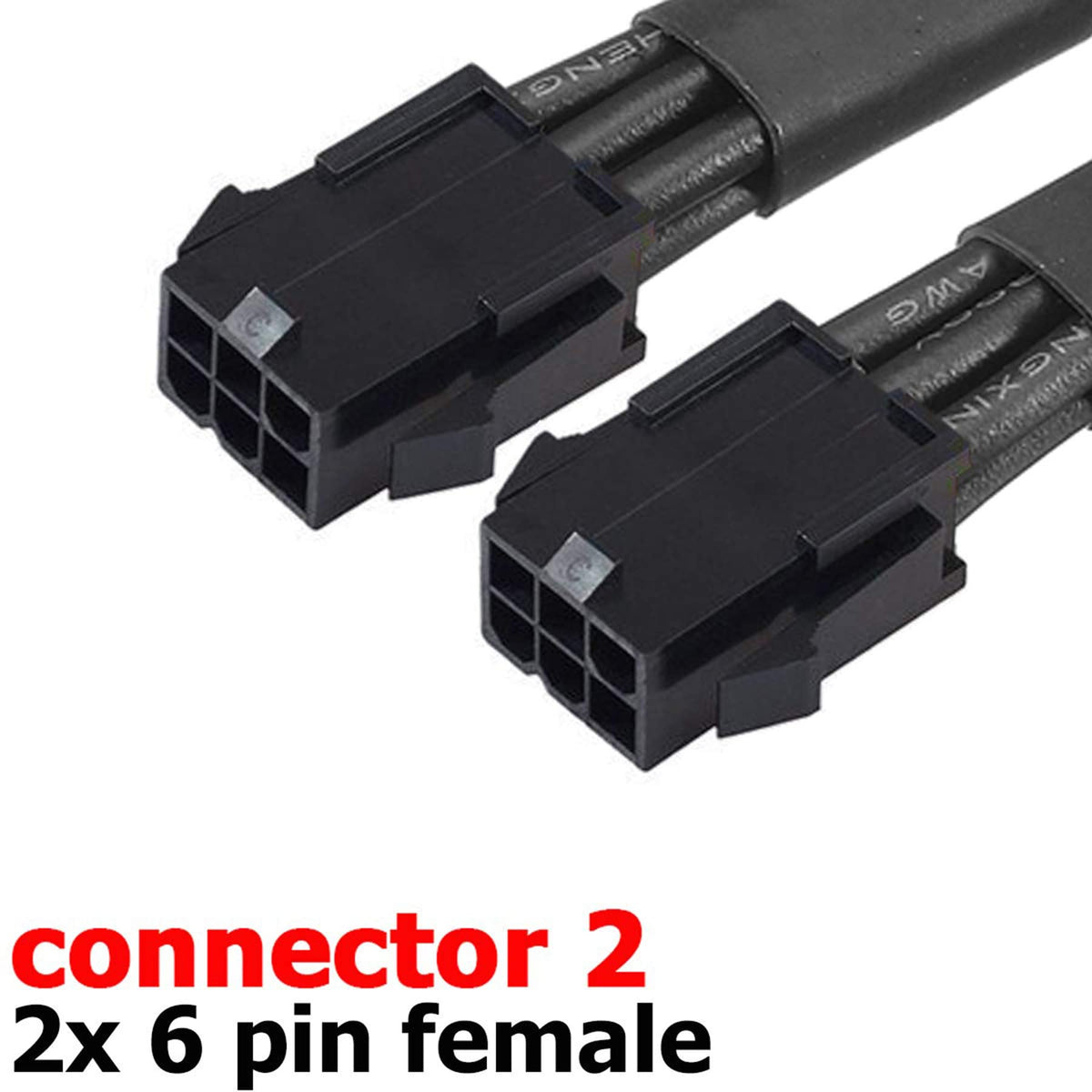

• Connectors: one 8-pin male PCIe plug to two 6-pin female PCIe sockets
• Length: approximately 9 inches including connectors for neat cable routing
• Wire gauge: standard 18AWG (UL1007) suitable for standard GPU accessory power
• Braided sleeve improves cable durability and tidier cable management

Is this adapter safe to use with my system?

When used correctly, the adapter provides a simple connection path but it does not change the power supply’s total capacity or rail design. Ensure your PSU can deliver the GPU’s required wattage and that both 6-pin connectors come from separate rails if recommended by your PSU manufacturer. Avoid using adapters to force a PSU beyond its rated limits.

• Check your PSU’s total wattage and GPU power requirements before use
• Use both 6-pin connectors to share current as intended
• Do not substitute adapters for an underpowered or failing PSU
• Braided sleeve reduces wear at connector junctions for more reliable contacts

Will this affect performance or void warranties?

The adapter itself does not alter GPU performance; it only routes power. However, using adapters in place of a properly rated PSU may be discouraged by manufacturers and could affect warranty coverage if power-related damage occurs. For best practice, match your PSU capacity to system demands.

• No electrical conversion—only connector adaptation
• Performance depends on PSU capacity and stability, not the adapter
• Confirm warranty policies from GPU and PSU makers before using adapters
• Short 9-inch length helps keep neat layouts inside smaller cases

How do I install it and what should I watch for?

Installation is plug-and-play: insert the 8-pin male end into the GPU and attach two 6-pin plugs from your PSU to the female inputs. Make sure connectors seat fully and that cables are not strained or pinched. After installation, test the system under load and monitor voltages and temperatures for peace of mind.

• Power down and unplug system before connecting
• Firmly seat both 6-pin connectors and the 8-pin GPU plug
• Route cable to avoid sharp bends and contact with fans or heatsinks
• Power on and verify stable operation under GPU load

Who is this for: The TeamProfitcom Dual 6-Pin to 8-Pin GPU power adapter is aimed at PC builders and upgraders who want a low-cost, temporary, or space-saving way to power an 8-pin GPU from an older PSU with two 6-pin PCIe outputs. It’s ideal for troubleshooting, temporary upgrades, or systems where the PSU has sufficient headroom and the goal is to avoid immediate power supply replacement. If you need long-term, guaranteed headroom for high-power GPUs, consider a properly rated new PSU instead of relying solely on adapters.
