SofaBaton R1 Infrared Remote Control Extender IR Repeater

The SofaBaton R1 is a dedicated infrared repeater that receives RF from your SofaBaton X2 or U3 and retransmits IR to control hidden or distant devices across your home.

If your TV, set-top box, or AV receiver sits inside a cabinet or in another room, the R1 bridges the gap between your SofaBaton X2/U3 remote and those IR-only devices. Designed specifically for use with SofaBaton X2 and U3 hubs, the R1 accepts RF signals that penetrate walls and converts them into strong, directional infrared blasts from seven internal emitters, plus an optional wired blaster for pinpoint targeting.

How does the R1 reach devices that are hidden or in another room?

The R1 receives RF transmissions from your SofaBaton X2/U3 hub, which travel through walls and obstacles, then outputs IR signals to the target devices. This separates the remote’s line-of-sight limitations from device control.

• RF reception penetrates walls for reliable hub-to-repeater communication.
• Seven internal high-power IR emitters broadcast horizontally and upward to cover multiple devices.

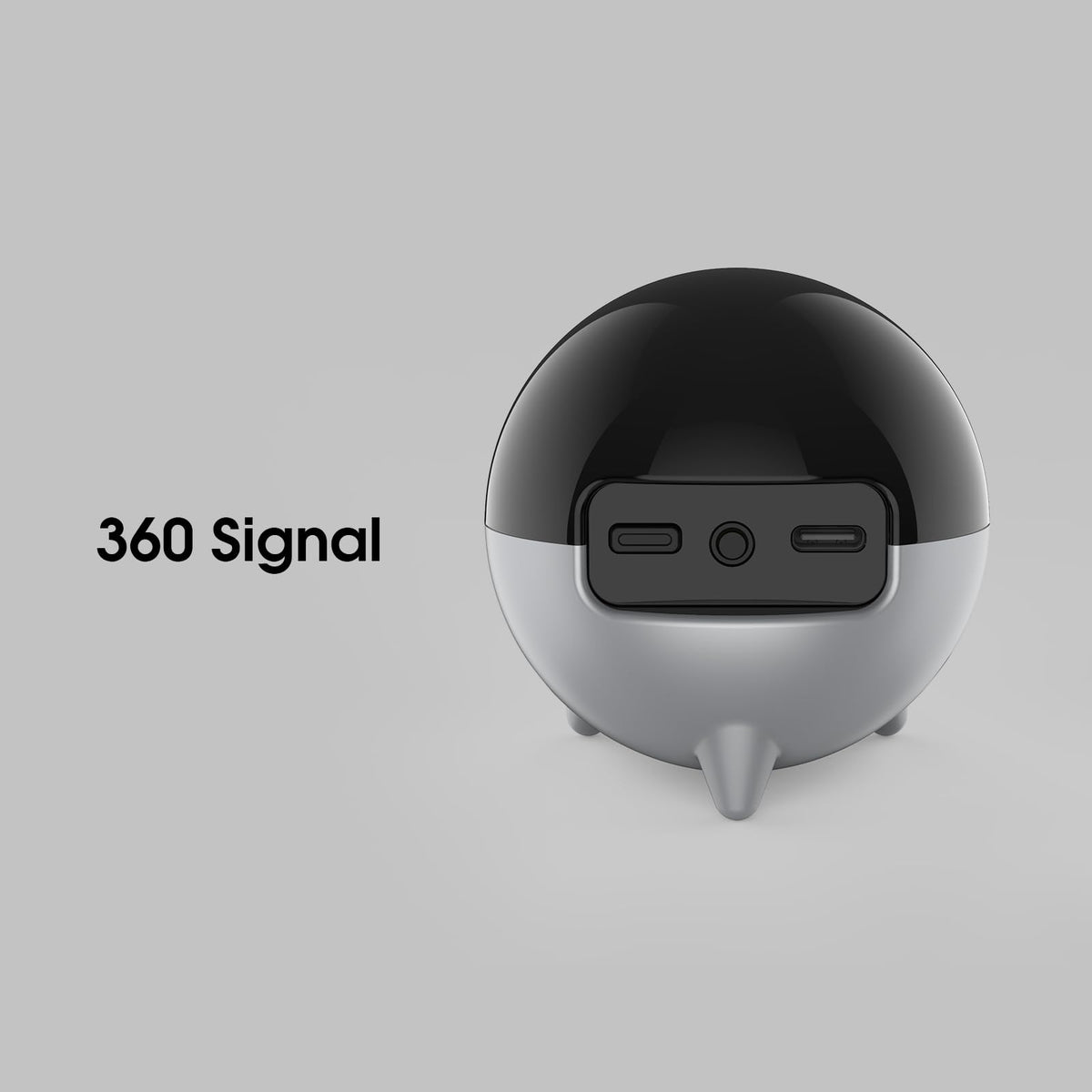

• Included 3 m wired 3.5 mm IR blaster enables precise aiming inside cabinets.
• Use the SofaBaton app to assign the R1 as the 'IR Emitter' for selected devices.

What setup steps and app actions are required?

Setup is simple: power the R1, pair it with your SofaBaton X2 or U3 hub in the SofaBaton app, and assign devices to the R1 as their IR emitter. Pairing replaces any previous association, so reassign if you move the unit.

• Plug in the R1 with the included 5V/1A adapter and USB-C cable.
• Pair the repeater to one X2 or U3 hub via the SofaBaton app — one hub per R1.
• Assign the R1 to devices in-app so commands route through the repeater.
• If re-pairing, note that previous settings are erased automatically.

How much IR coverage and flexibility does the R1 provide?

The R1 is built to blanket an entertainment zone with IR while offering targeted control when needed. Its seven internal emitters provide wide coverage, while the wired blaster reaches into tightly enclosed spaces.

• Seven internal high-power emitters broadcast signals horizontally and upward for broad coverage.
• Wired 3 m IR blaster cable for focused control of a single device or concealed components.
• IR signals are not broadcast downward; position the unit for optimal line-of-emitter exposure.
• IR code storage supports quick control once the R1 is synced and configured.

Can I use the R1 with other remotes or multiple hubs?

The R1 is intentionally limited to SofaBaton X2 and U3 hubs to ensure reliable pairing and app control. Each R1 can be paired with only one hub at a time, and changing hubs will clear prior settings.

• Exclusive compatibility: supports only SofaBaton X2 and U3 hubs.
• One-to-one pairing: an R1 pairs to a single hub; changing the hub erases previous pairing.
• After a new pairing, reassign devices in the SofaBaton app for proper IR routing.

Who this is for: The SofaBaton R1 is ideal for homeowners and AV hobbyists who use a SofaBaton X2 or U3 remote and need to control infrared-only gear that’s out of sight — inside cabinets, behind closed doors, or located in other rooms. It’s also a good fit for multiroom setups where line-of-sight control gaps exist and you want a straightforward, app-driven way to extend control without replacing equipment. Note: buy the R1 only if you own a compatible SofaBaton X2 or U3 hub.
