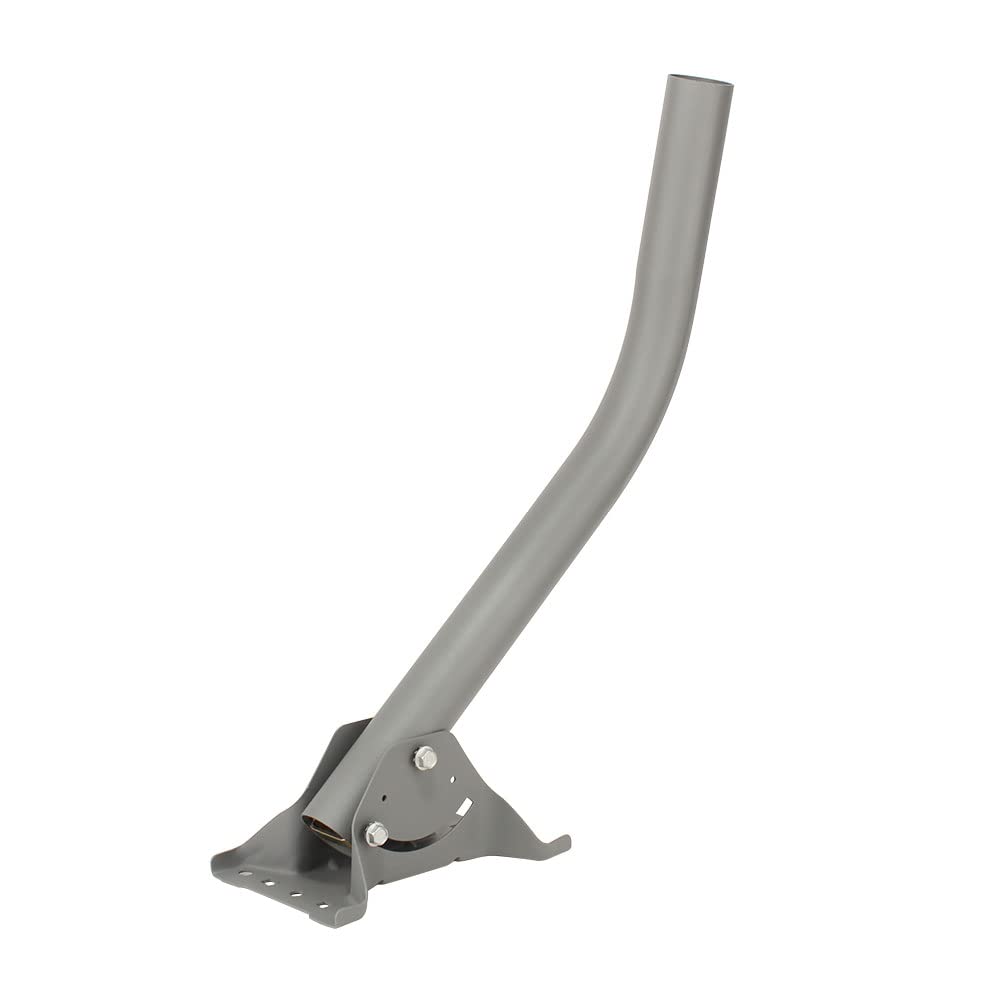

Skywalker 21in J-Pipe Mast 1.66in OD for 18in Dish

Skywalker's 21" J-pipe mast is a powder-coated steel pole engineered to securely mount 18" satellite dishes (1.66" O.D.) on roofs or building sides.

This 21-inch J-pipe mast provides a compact, durable mounting solution for smaller satellite dishes and outdoor over-the-air antennas. Built from powder-coated painted steel with a 0.60" wall thickness, the pole is ready for exterior conditions and ships with a solid mount foot that can be attached to either end for flexible installation. The J-pipe size and diameter match common 18" dish hardware, making it a practical choice when you need a short, robust support without extensive assembly or custom fabrication.

Will this mast fit my 18" satellite dish and standard mounts?

Yes — the Skywalker mast is sized specifically for 18" dishes that use a 1.66" outside diameter receiver or bracket. The pipe matches common satellite hardware dimensions so slip-fit installation is straightforward.

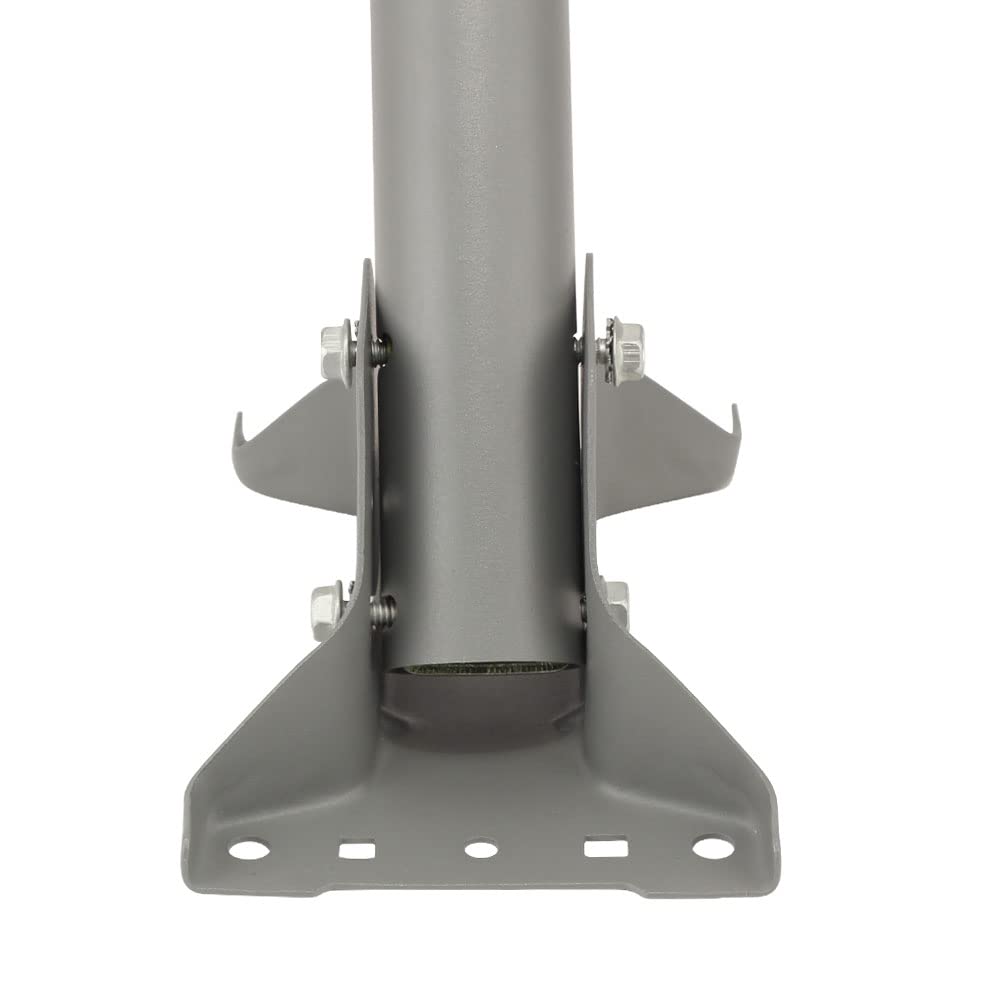

• Outside diameter carefully sized at 1.66" to fit most 18" dish brackets.
• 0.60" wall thickness for strong receiver and dish support.

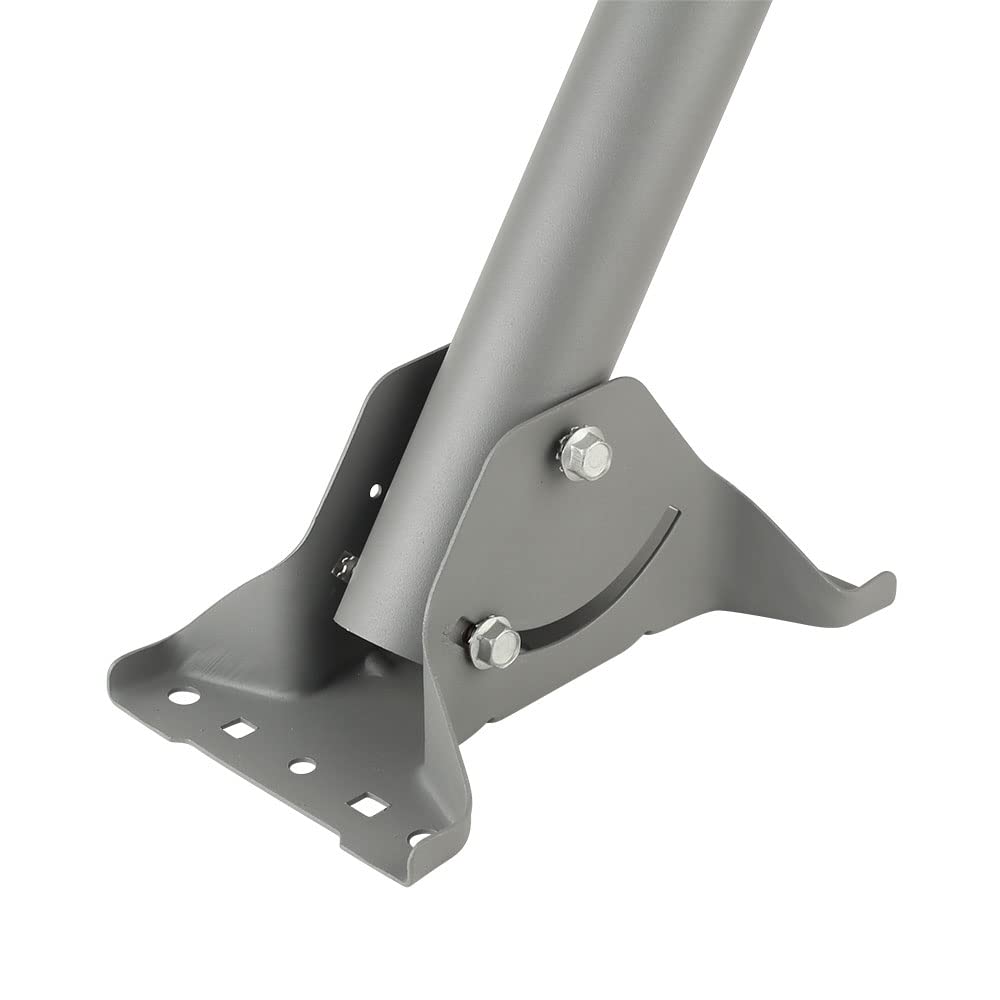

• Includes a mount foot that fits on either end to match your mounting orientation.
• Designed for standard U-bolts and clamp-style dish brackets.

How do I install the 21" mast on my roof or house side?

Installation is simple and intended for homeowners or installers familiar with small dish setups. The mount foot secures the pipe to a flat surface, and its reversible design lets you position the mast for the most convenient routing and alignment.

• Attach mount foot to the chosen surface (roof or side) using appropriate fasteners for your substrate.
• Insert mast into the mount foot and secure with supplied or compatible hardware.
• Mount the satellite dish or antenna to the mast using dish manufacturer brackets and clamps.
• Seal any roof penetrations per roofing best practices to prevent leaks.

Is this mast weather resistant and built to last outdoors?

The Skywalker mast is constructed from powder-coated painted steel to resist corrosion and hold up in exterior environments. While it is robust for standard residential use, follow recommended installation best practices to maximize longevity.

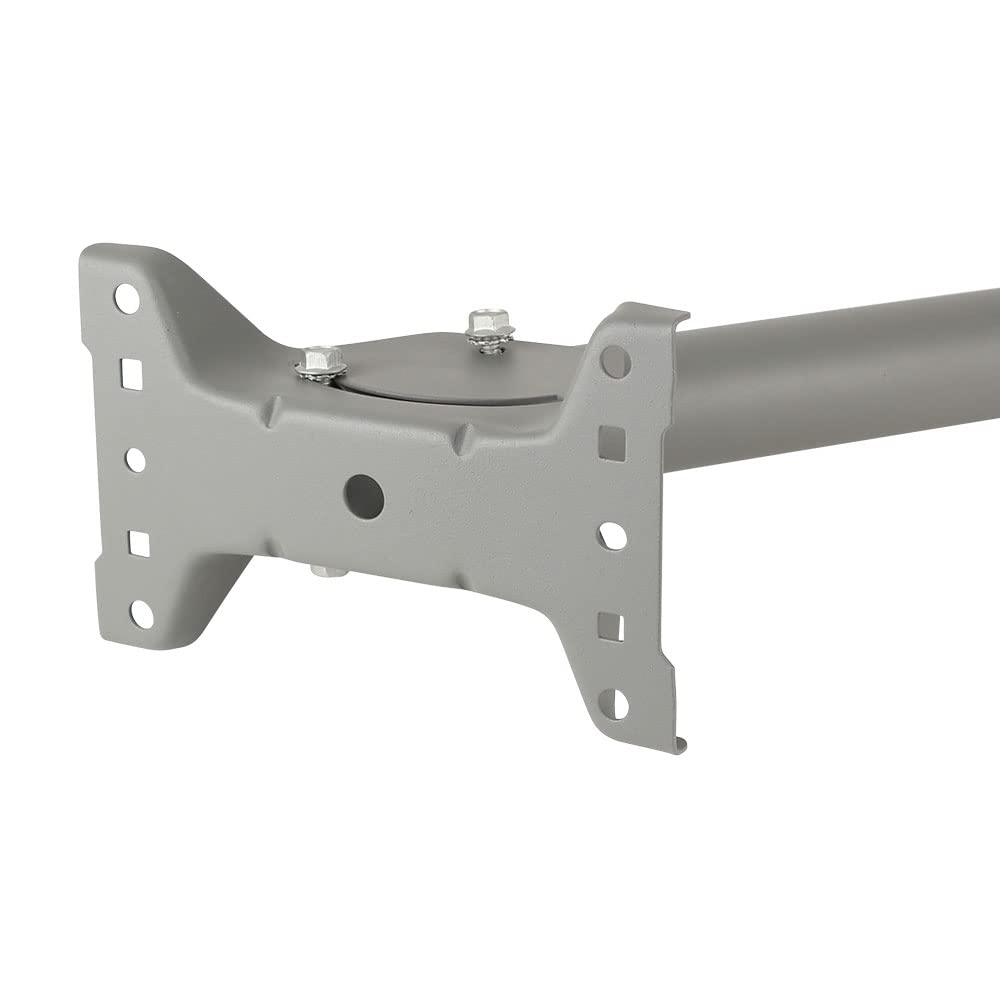

• Powder-coated finish provides corrosion resistance and UV protection.
• 0.60" wall thickness adds rigidity against wind and mounting loads.
• Short 21" length reduces leverage and stress at the mount point.
• Use appropriate sealants and fasteners to protect attachment points from weather.

What size and technical details should I verify before purchasing?

Confirm your dish bracket accepts a 1.66" O.D. mast and that a 21" length meets your clearance and alignment needs. Check roof or wall mounting surface strength and select fasteners rated for exterior use.

• Outside Diameter: 1.66" — must match your dish bracket or slip-fit clamp.
• Wall Thickness: 0.60" — provides sturdy support for 18" dishes and small antennas.
• Length: 21" — compact for low-profile installs or where minimal mast height is required.
• Material: Powder-coated painted steel — durable outdoor material choice.

Who this is for: This Skywalker 21" J-pipe mast is ideal for homeowners, installers, or DIYers mounting 18" satellite dishes or small over-the-air antennas who need a short, rugged mast that fits common 1.66" dish brackets. It suits low-profile rooftop installs, wall-mounted satellite solutions, and situations where a compact, corrosion-resistant support is preferred. If your dish requires a longer mast or an engineered tower, consider larger-length or heavy-duty alternatives; for compact, dependable support matching 18" dish hardware, this Skywalker mast is a practical choice.
