Rockville 10" K9 Series Subwoofer 800W RMS Dual 4Ω

This 10" subwoofer from Rockville's K9 Series combines heavy-duty parts and refined thermal management to reproduce bass across hip-hop, EDM, rock and electronic tracks with authority. Built around a 3" OFC four-layer voice coil and a double-stacked 185 oz magnet, the driver balances excursion, durability and heat control so it keeps performing during extended listening sessions. The cast aluminum basket and reinforced suspension provide the mechanical strength needed for tight, punchy low frequencies while maintaining reliability in mobile environments.

How does this subwoofer handle heat and heavy use?

The W10K9D4 V3 addresses heat with multiple cooling elements to prevent thermal compression during long, bass-heavy playback. Vents and a coil spacer channel airflow, while the inner dustcap lowers temperature buildup around the winding to maintain stable output.

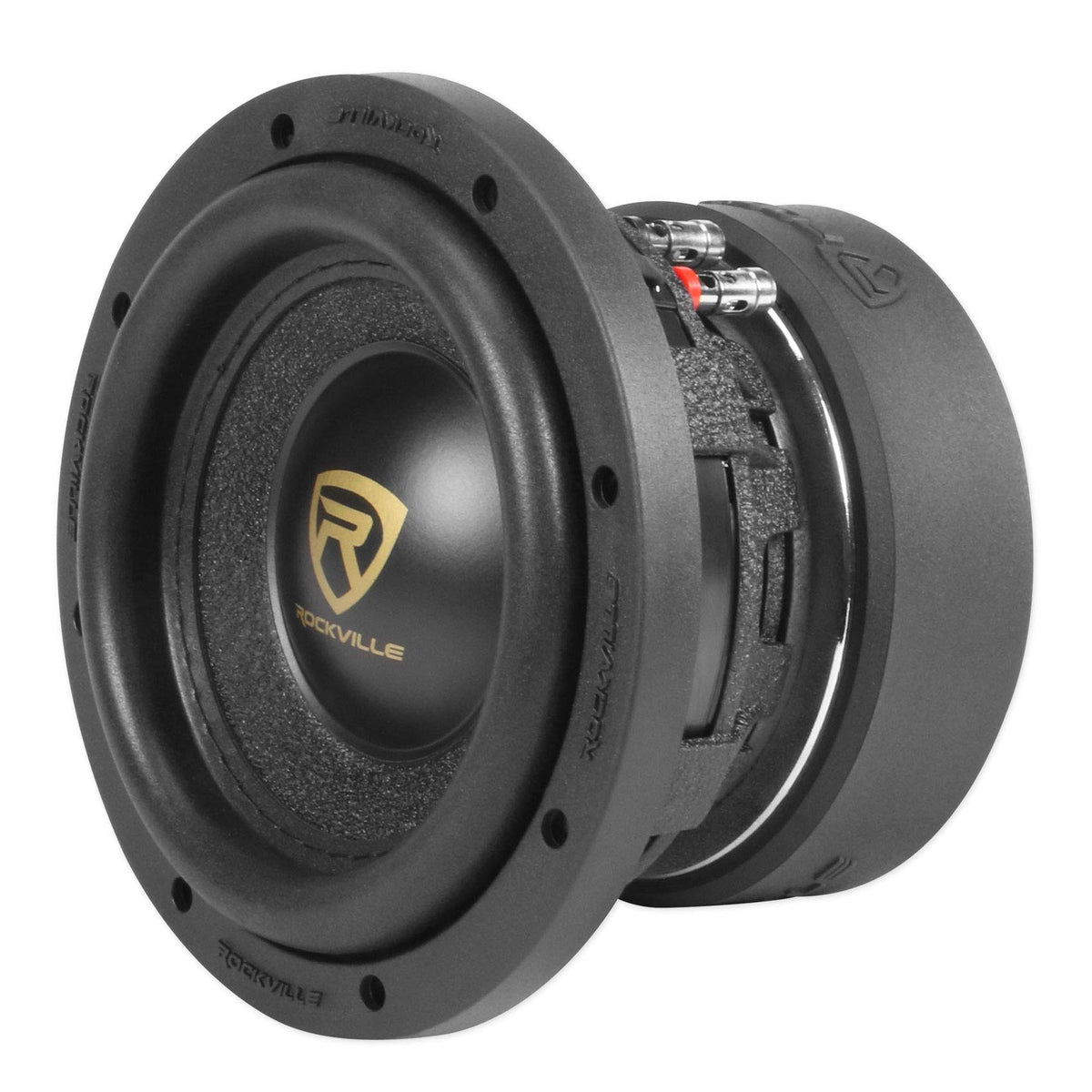

• 3" four-layer aluminum OFC voice coil improves heat tolerance and current handling
• Vented pole piece and coil spacer for active cooling
• Inner dustcap reduces hotspot formation for steady performance

What construction features ensure durability and sound clarity?

Rockville designed the K9 driver with rugged materials that resist deformation and fatigue while minimizing unwanted resonances. The cone and suspension components work together to keep motion linear, translating to clearer bass with reduced distortion at high excursion.

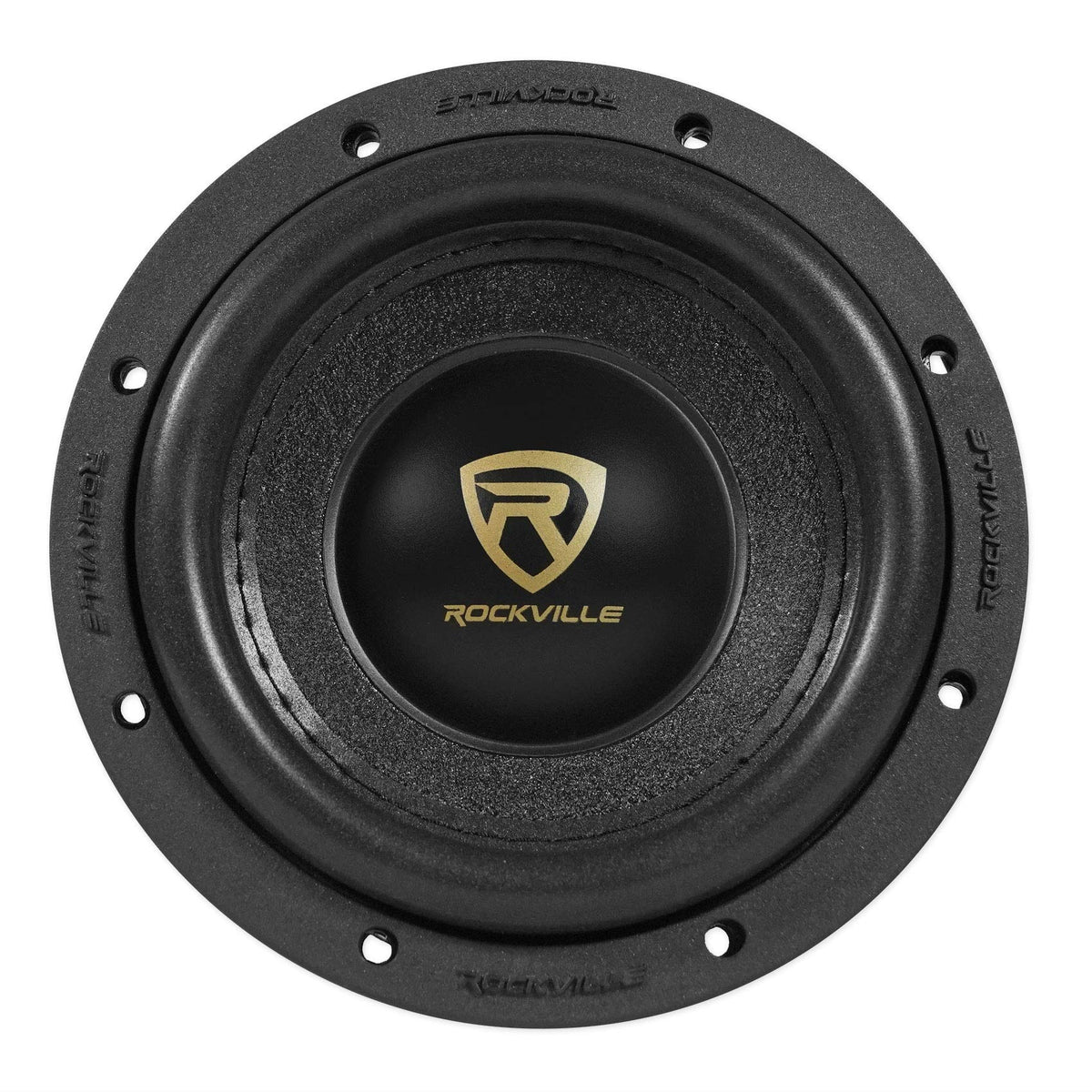

• Ultra-stiff, non-pressed paper cone for controlled breakup characteristics
• Nomex spider and white stitching for long-term suspension stability

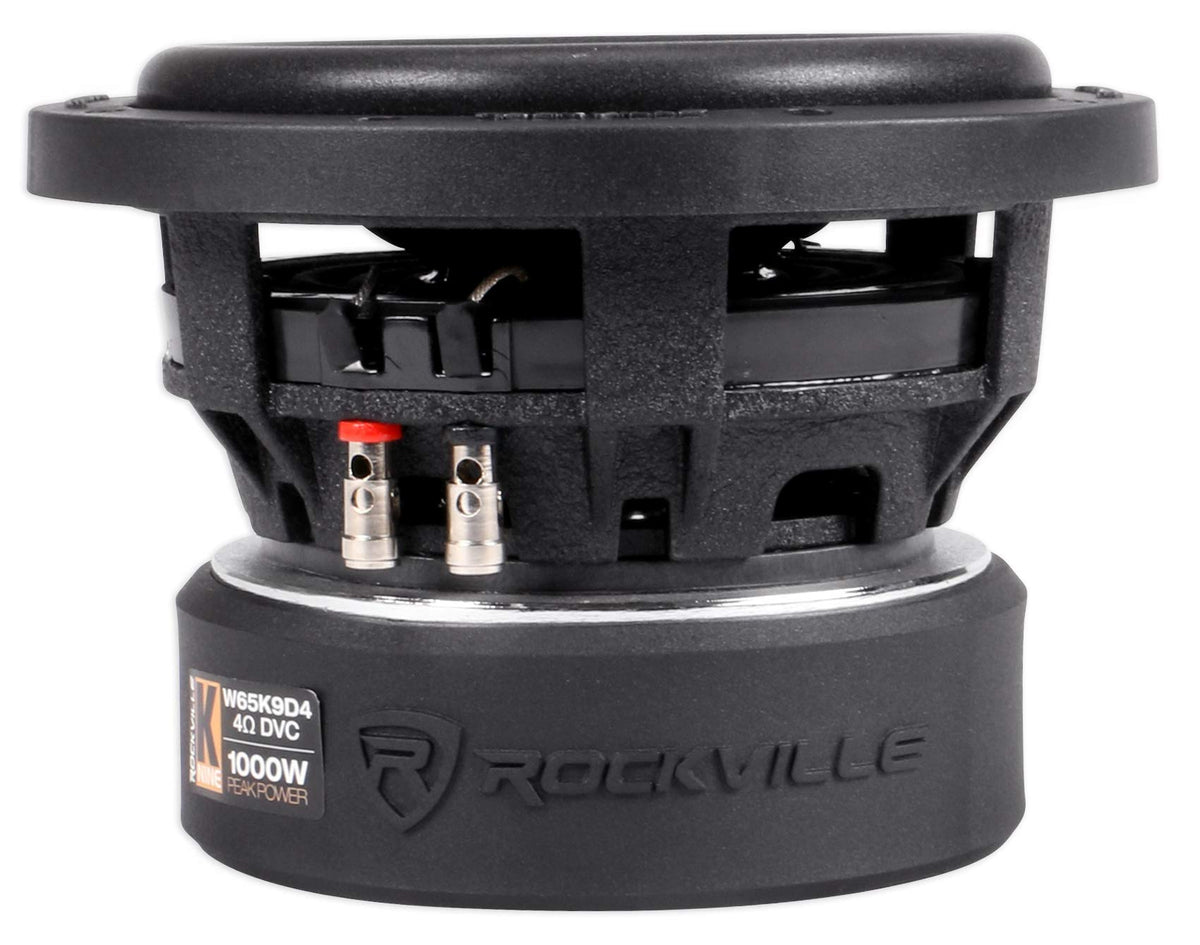

• Punisher series polypropylene dustcap and cast aluminum basket for structural integrity

What installation and system matching details should I know?

The W10K9D4 V3 offers practical dimensions and impedance flexibility to fit common sealed and ported enclosures and to match a variety of amplifiers. Dual 4-ohm coils let you wire for 2Ω or 8Ω final loads depending on amplifier preference; consider enclosure volume and amp power to optimize output.

• Mounting depth: 6.5"; cutout diameter: 9.37" for common 10" enclosures
• Recommended sealed box: 0.55–0.95 cu ft; ported: 1.2–1.8 cu ft
• Sensitivity ~85 dB; wire coils for desired impedance to match amplifier power

How loud and deep can this subwoofer play in a compact system?

With 800W RMS handling, the K9 10" is capable of producing solid, impactful bass in smaller vehicle systems without occupying excessive space. Its 26mm Xmax and heavy magnet structure allow significant cone excursion for low-frequency output while retaining control for accuracy.

• 800W RMS (3200W peak) supports high-volume listening when paired with a properly rated amp
• 26mm Xmax enables greater low-frequency displacement for deeper bass

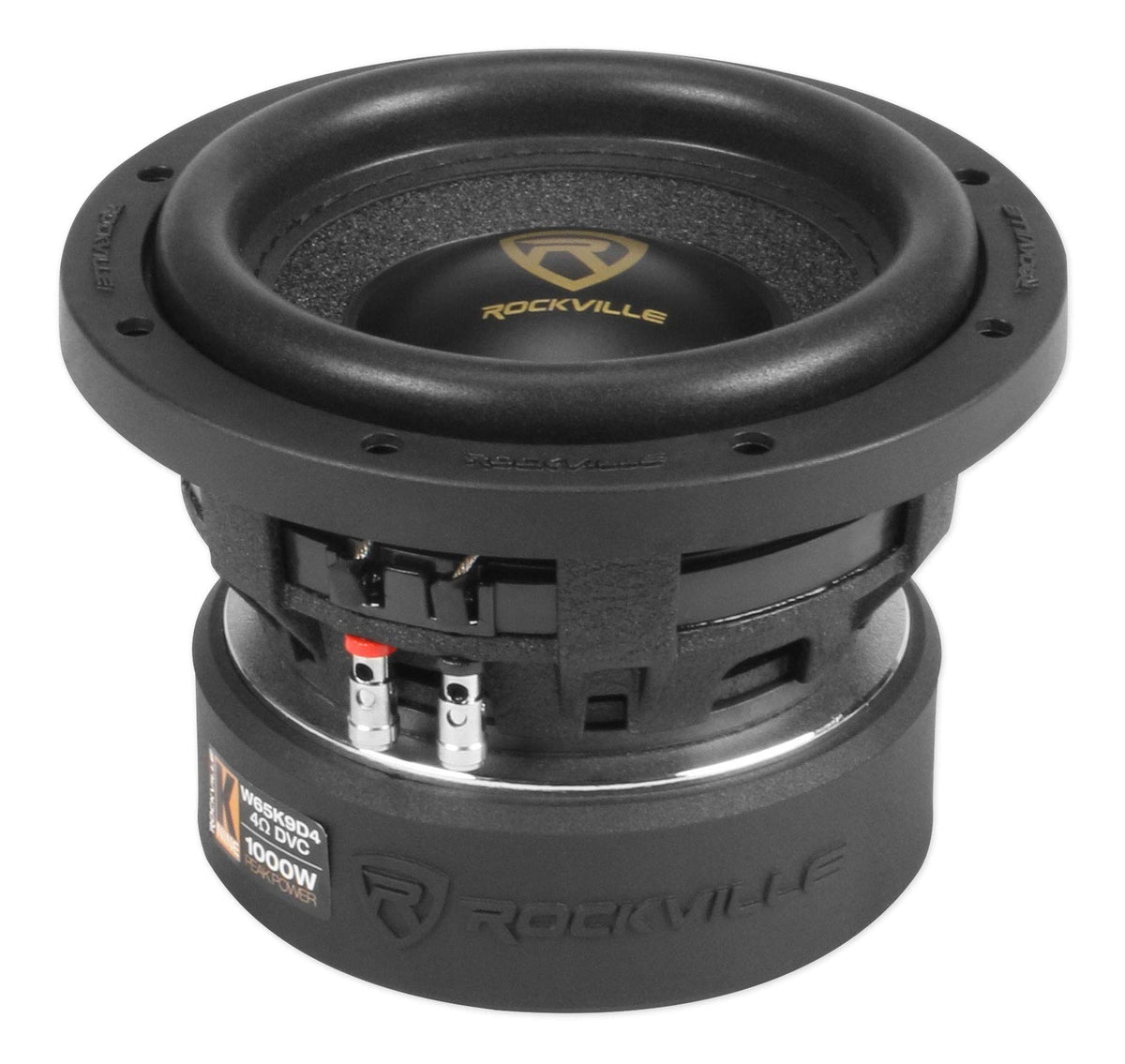

• 185 oz double-stacked magnet provides strong motor force and transient control

Who is this for: The Rockville W10K9D4 V3 K9 Series 10" sub is aimed at car audio enthusiasts who need a robust, compact driver that delivers powerful low-end without sacrificing durability. It's a good choice for builds that demand controlled excursion and thermal stability—compact sealed systems, ported enclosures tuned for punch, or multi-driver setups where wiring flexibility and heat management matter.
