Reborn DisplayPort Splitter 1-in-3 MST Hub 4K@60Hz

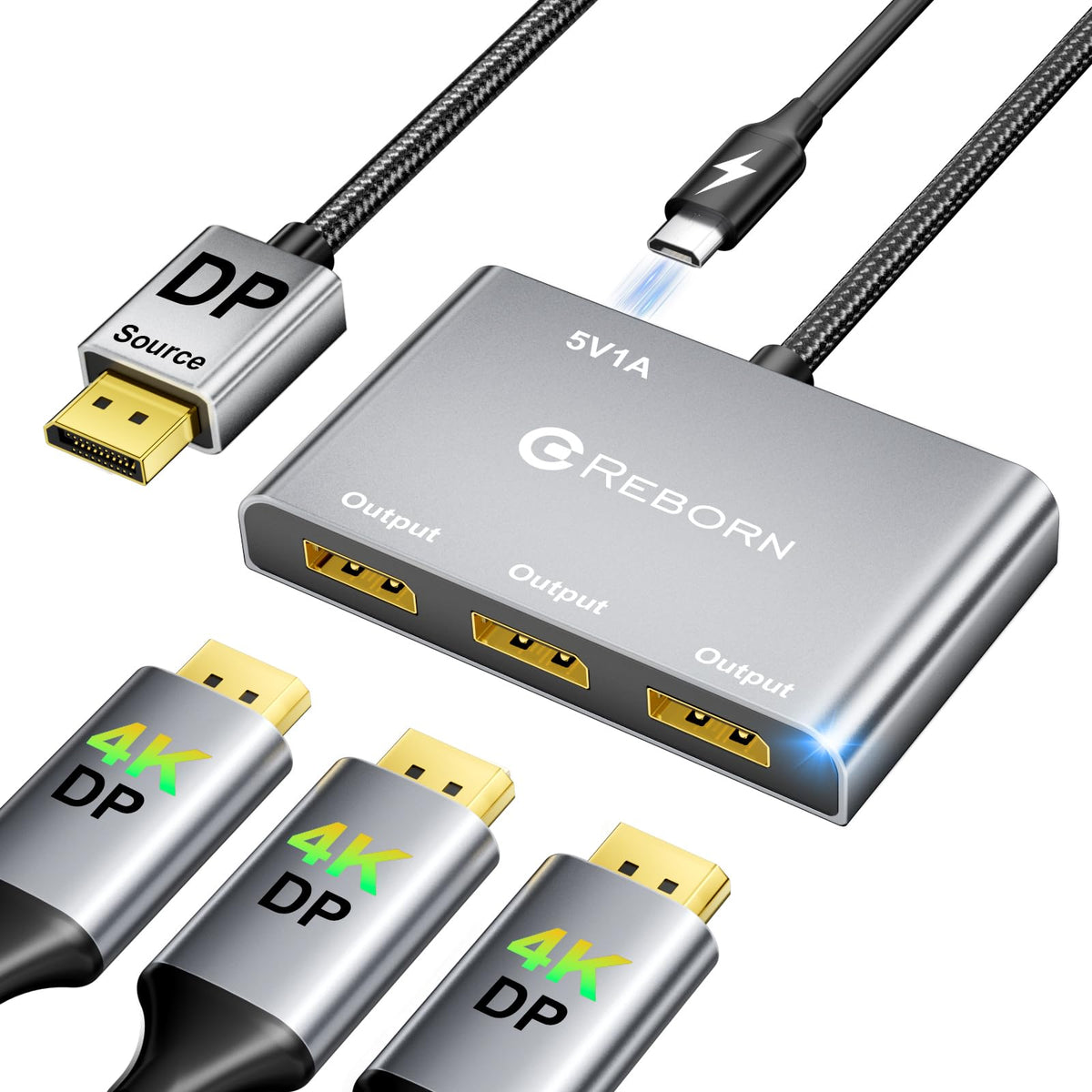

Reborn's DisplayPort 1-in-3 splitter is a plug-and-play MST hub that connects one DP source to up to three DisplayPort monitors, enabling up to 4K@60Hz on compatible setups.

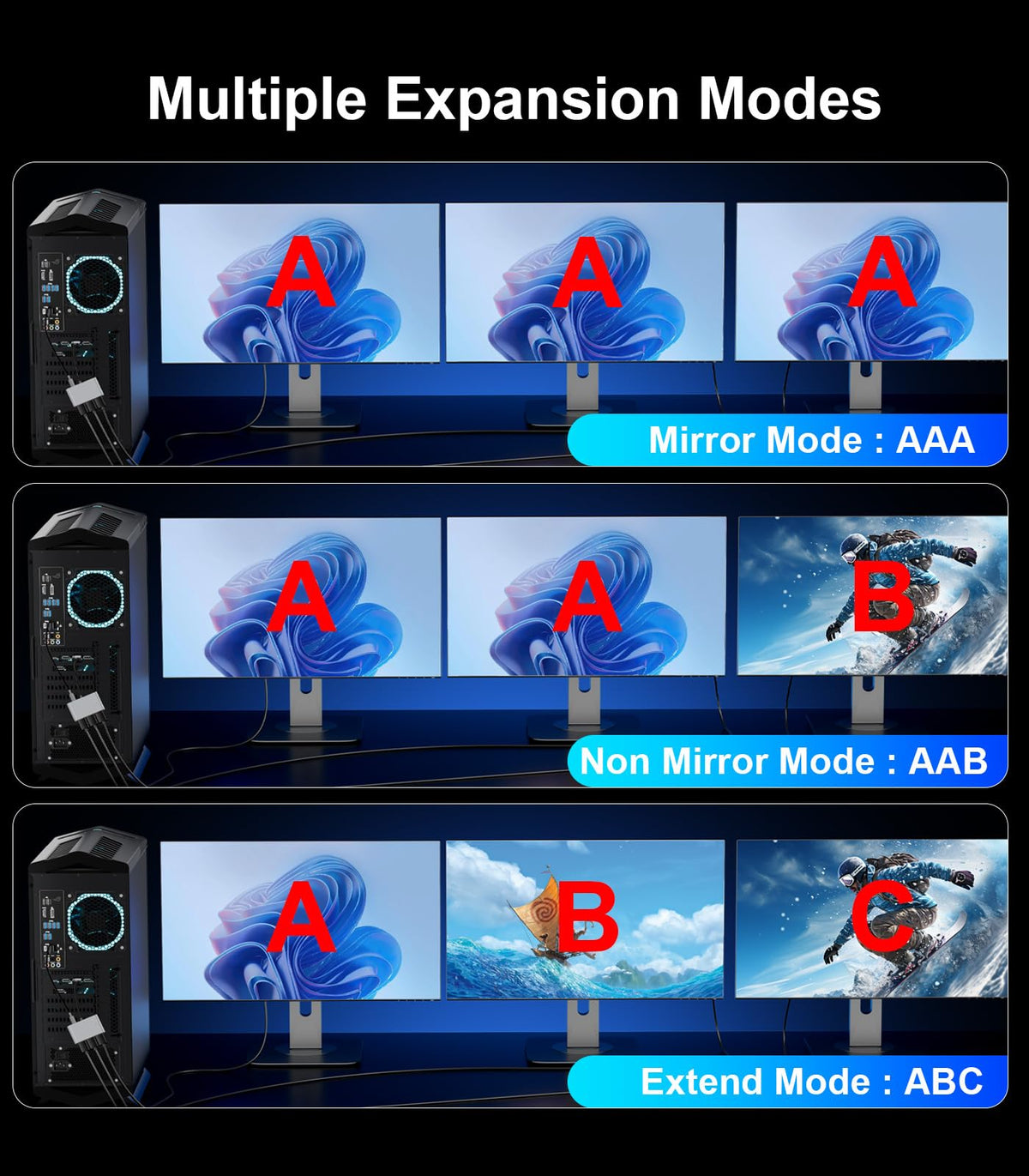

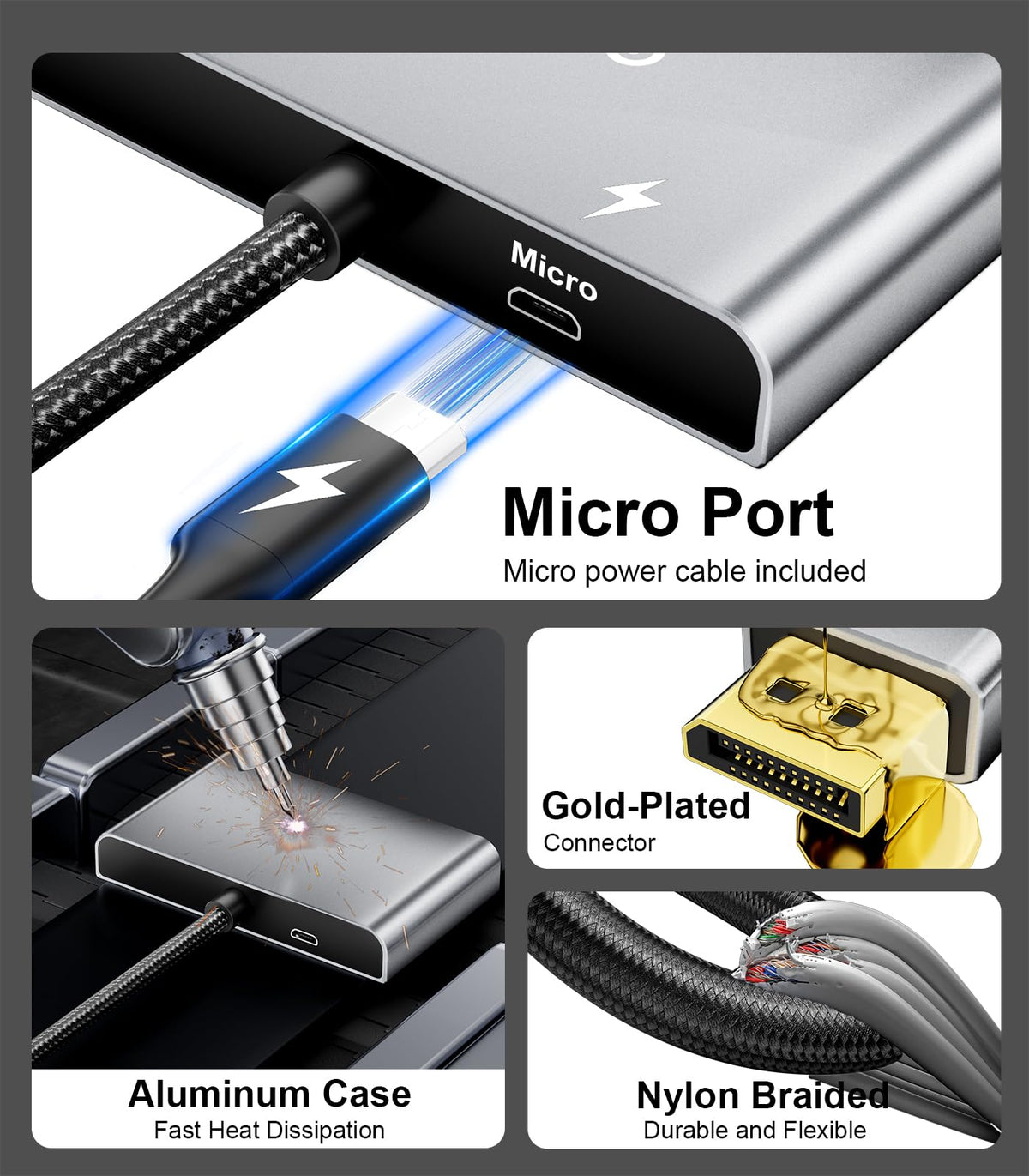

Designed for content creators, traders, and productivity-driven professionals, this compact Reborn adapter expands a single DisplayPort output into three independent DisplayPort outputs. It supports both mirrored (SST) and extended (MST) displays when paired with a graphics card that supplies sufficient bandwidth. Built with gold-plated connectors and an aluminum-alloy housing, the unit emphasizes reliable signal delivery and passive heat dissipation without requiring drivers.

How do I set it up and start using three monitors?

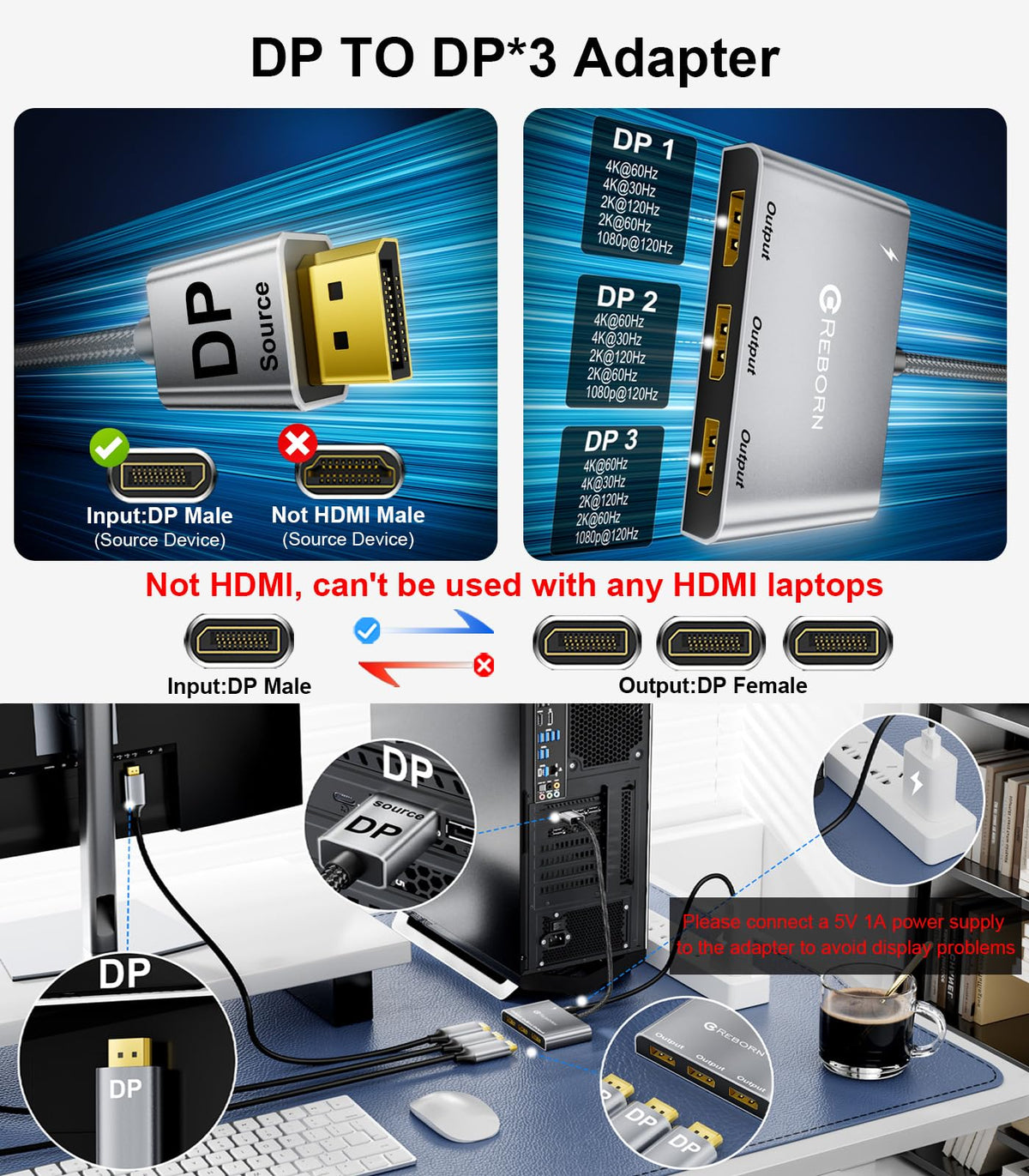

Getting the hub running is straightforward: plug the splitter into your DisplayPort source, connect the three DisplayPort cables to your monitors, and attach the included 5V/1A power cable. No driver installation is required, but use DP cables rated for 4K@60Hz and ensure your GPU supports multi-stream transport and adequate bandwidth for the resolutions you want.

• Plug DP male into PC or graphics card
• Connect 3 DP female outputs to displays with high-quality DP cables
• Attach supplied power cable for stable operation
• Confirm GPU supports MST and required bandwidth (18–36Gbps for multi-4K)

What video resolutions and refresh rates can I expect?

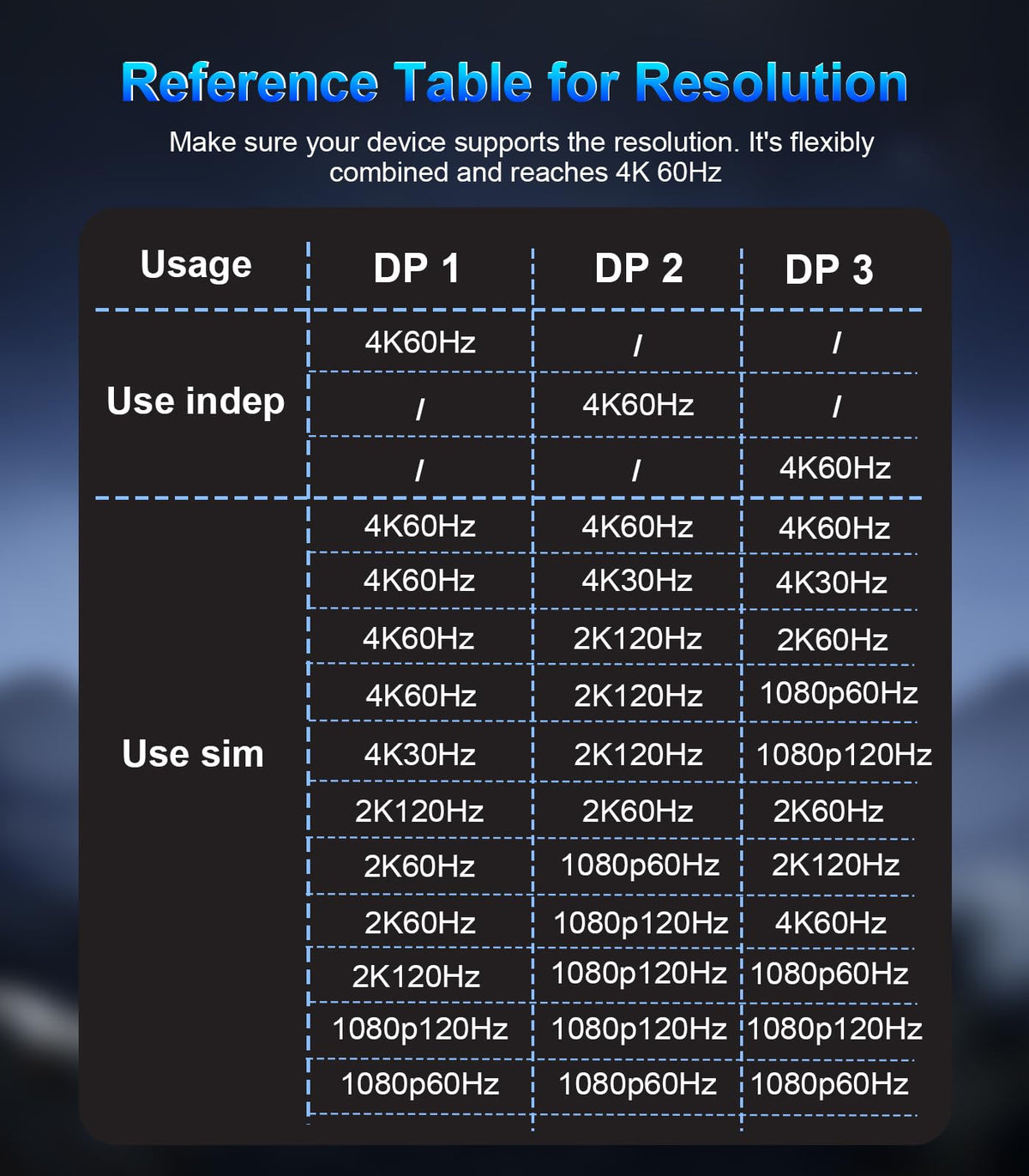

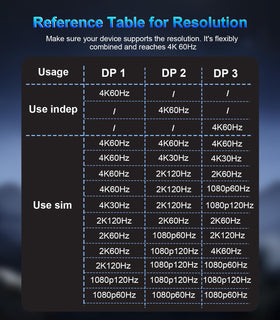

The splitter supports up to 4K (3840×2160) at 60Hz on individual outputs when the source and displays both handle that resolution. A single port can even reach higher limits (up to 8K@30Hz in some configurations), but running two or three displays at 4K@60Hz requires a capable graphics card and sufficient DP bandwidth.

• Single-output peak: up to 8K@30Hz (device-dependent)
• Multi-output: up to 4K@60Hz per monitor with high-end GPU
• Backward compatible with 2K and 1080p refresh modes
• Supports HDCP 2.2 and DP 1.2 standards

Will this work with my laptop, docking station, or KVM switch?

The Reborn splitter is intended to connect directly to a DisplayPort source such as a desktop GPU or a laptop DisplayPort/DP++ port. It’s not recommended to chain the hub after another dock, KVM, or USB hub because intermediate devices can interfere with MST functionality and reduce compatibility.

• Use directly with DP/DP++ ports on PCs or GPUs
• Avoid connecting through docks, KVMs, or hubs to prevent conflicts
• Integrated GPUs may only support mirror mode or limited extension
• For best results, use a discrete GPU with 18–36Gbps bandwidth

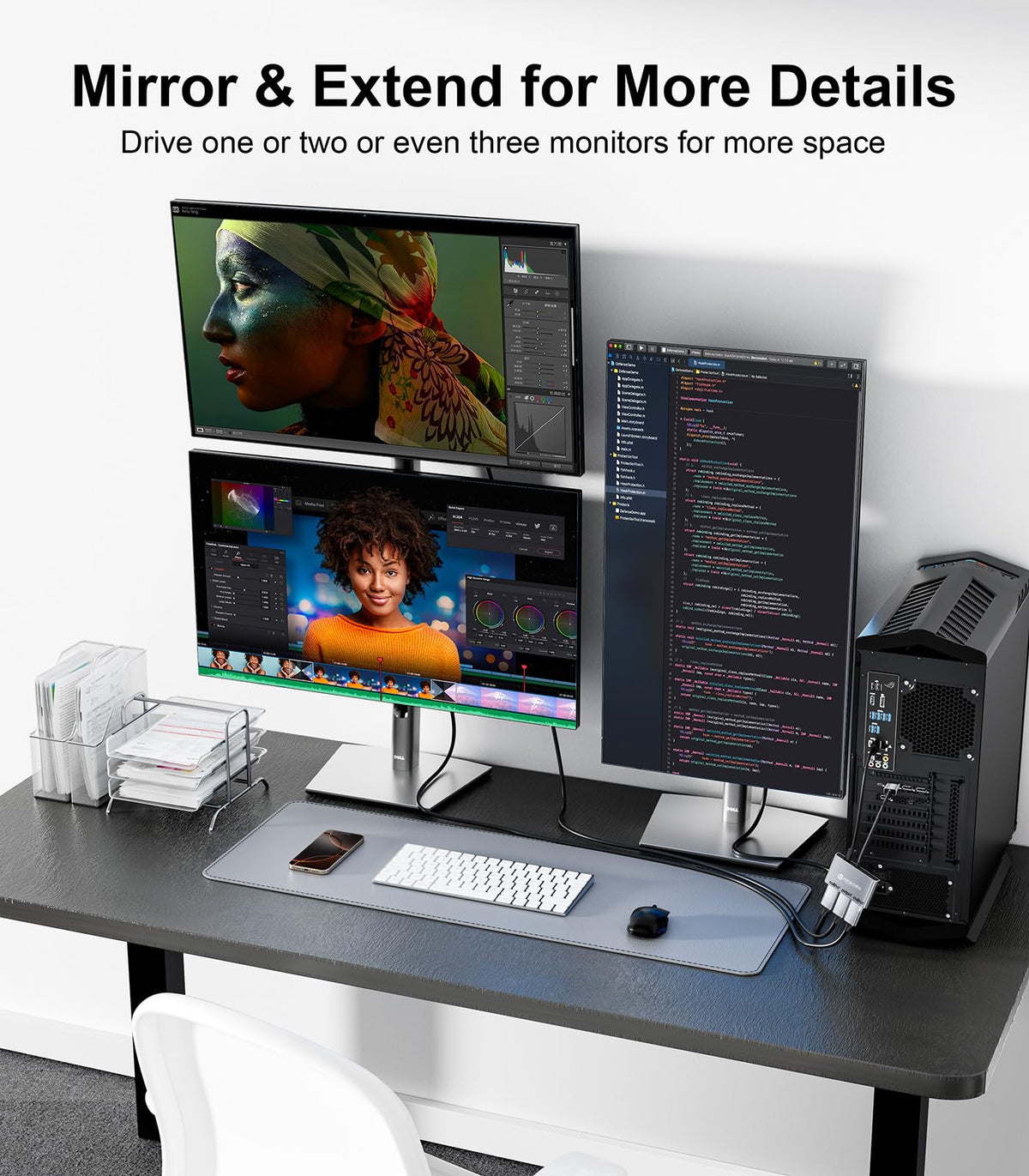

Who is this for? If you need to expand a single DisplayPort output into multiple independent screens for trading desks, editing suites, command centers, or immersive multi-monitor gaming stations, the Reborn DisplayPort 1-in-3 MST hub offers a space-saving, metal-bodied solution that favors stable transmission and straightforward setup. It’s best suited to users with dedicated graphics cards and high-quality DP cables who require reliable multi-display performance without additional drivers or bulky equipment.
