PRV AUDIO 8FR250 8" Full-Range 8Ω 125W RMS Speaker

PRV AUDIO 8FR250 is an 8-inch full-range pro audio driver that delivers clear, wideband sound from 50 Hz to 18 kHz without needing a separate tweeter.

This compact full-range loudspeaker uses a dual-cone layout and a low-distortion motor system to reproduce low, mid and extended high frequencies with notable clarity and dynamics. At 8 ohms and 93.5 dB sensitivity, the 8FR250 balances efficient output with robust handling—125 watts RMS (AES) and 250 watts program—making it suitable for tight enclosure designs and portable PA applications where space and simplicity matter.

How does the 8FR250 reproduce both bass and treble in a single driver?

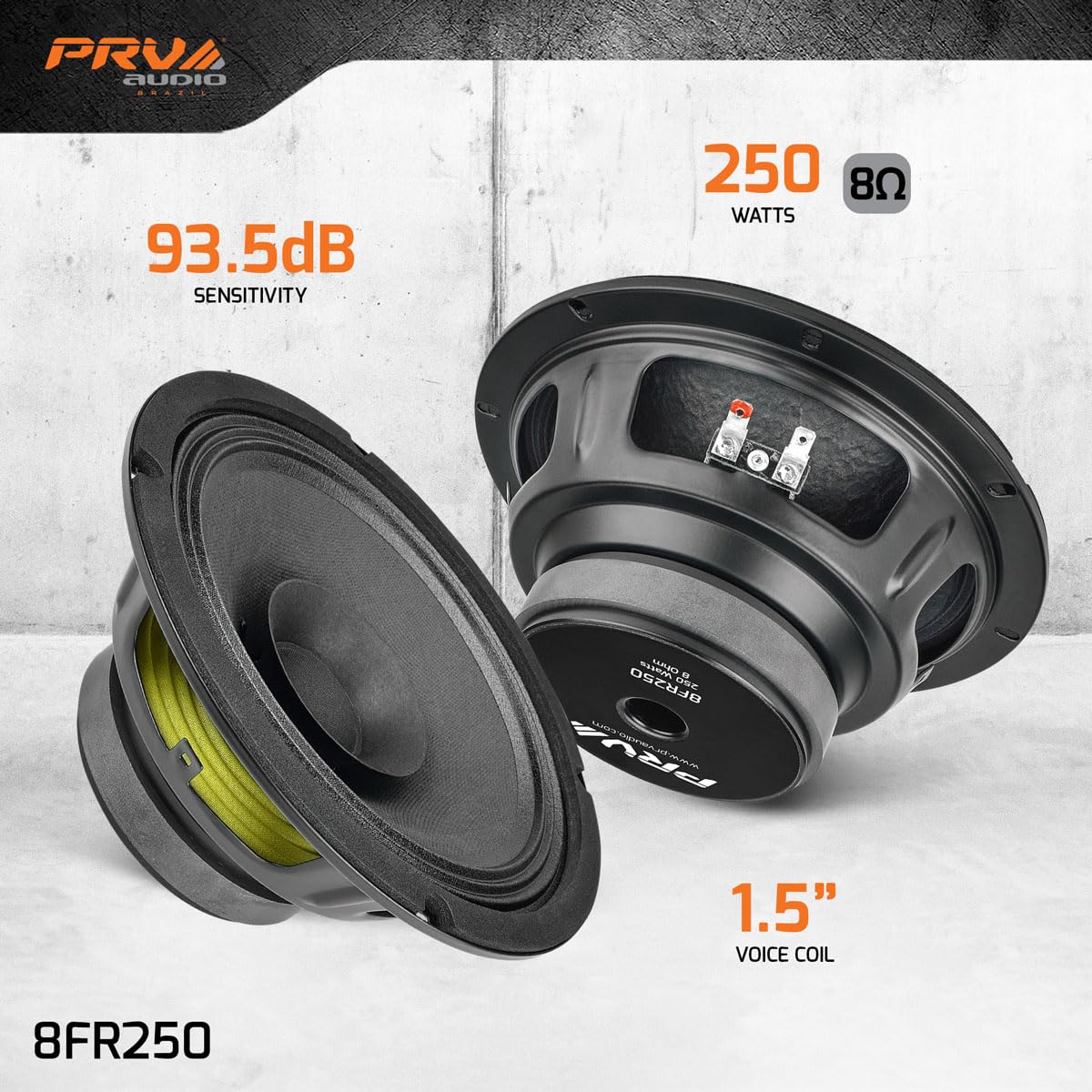

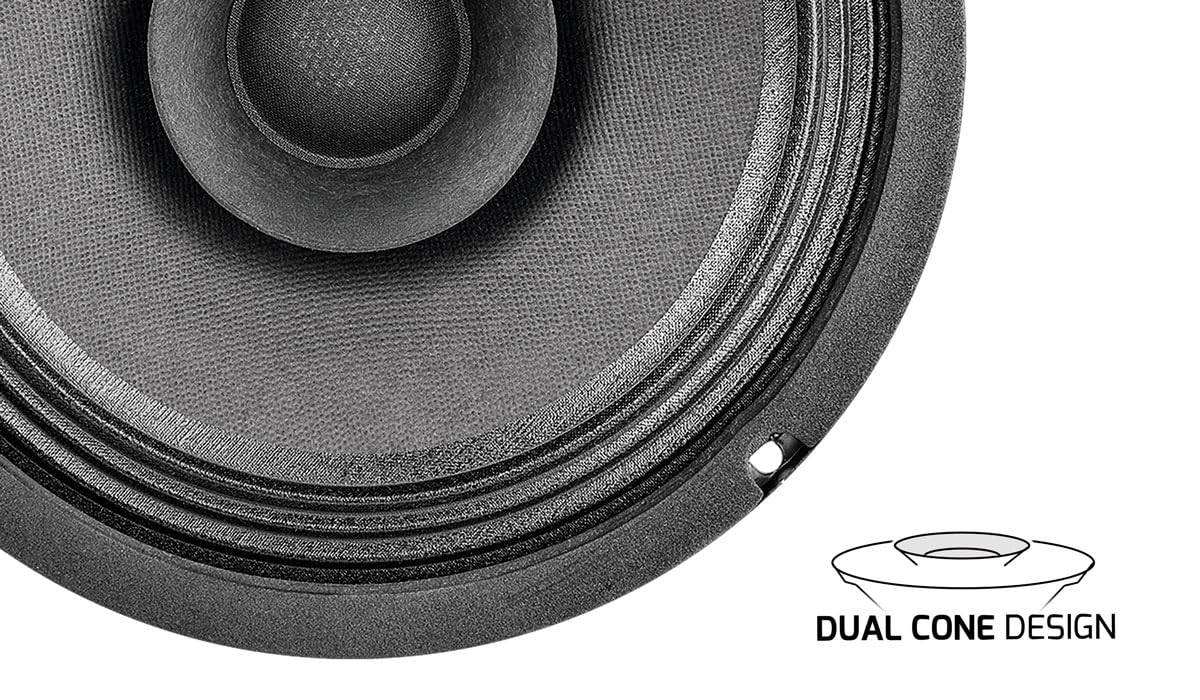

The driver uses a dual-cone configuration: a main cone for low to midrange energy and a secondary, smaller cone that boosts high-frequency response. A copper ring and a woven-cloth dust cap reduce motor distortion and enhance transient detail, producing a more balanced full-range sound.

• Dual-cone arrangement for broad frequency coverage (50 Hz–18 kHz).
• Copper ring in the motor for lower harmonic distortion.
• Woven-cloth dust cap improves high-frequency behavior and clarity.

What power and impedance should I expect for system matching?

The 8FR250 is rated at 8 ohms nominal impedance with 125 W AES (RMS) and 250 W program power, allowing reliable performance in many pro audio systems. Its 93.5 dB sensitivity means it produces good acoustic output from moderate amplifier power, but observe recommended crossover settings for full-power use.

• Nominal impedance: 8 Ω for straightforward amplifier matching.
• Power ratings: 125 W RMS (AES) and 250 W program for headroom.
• Recommended high-pass crossover: 75 Hz (12 dB/octave) to protect low-frequency excursion.

How compact is the 8FR250 and where can it be mounted?

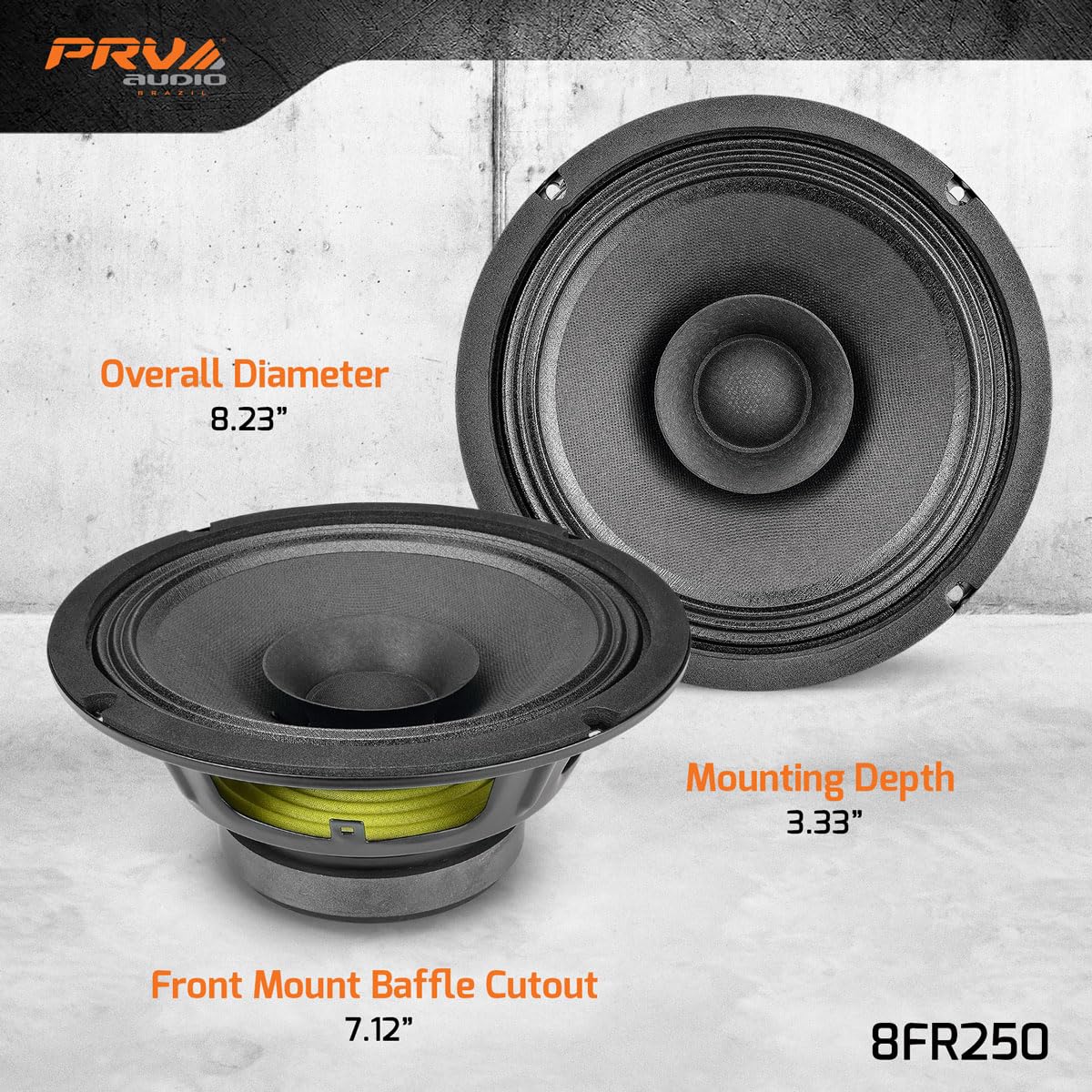

Physically the driver is engineered for shallow installations: overall diameter 209 mm and mounting depth just 84.5 mm. The small footprint lets you use it in slim full-range boxes, stage monitors, compact PA enclosures, or retrofit projects where depth is limited.

• Overall diameter: 8.23" (209 mm) for space-efficient mounting.
• Front mount cutout: 7.12" (181 mm) to fit common 8" baffle openings.
• Mounting depth: 3.33" (84.5 mm) for slim enclosure design.

What materials and design features improve reliability and sound?

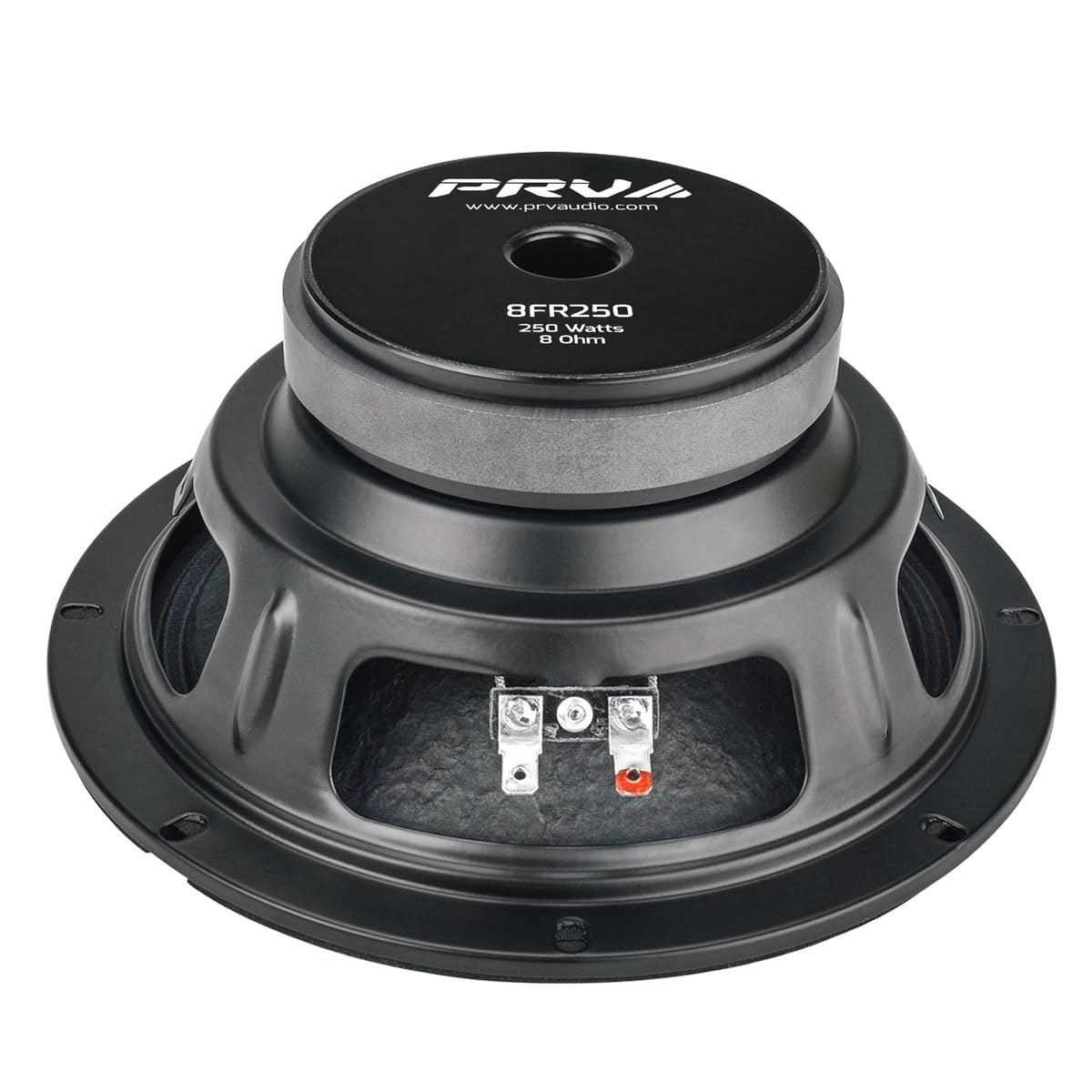

PRV AUDIO built the 8FR250 with components chosen for thermal and mechanical stability: a Kapton former, CCAW voice coil, and stamped steel frame. These elements, together with a 1.5" voice coil and a 6.0 mm magnetic gap depth, provide controlled excursion, consistent cooling, and long-term performance under pro use.

• 1.5" CCAW voice coil on a Kapton former for heat resistance and durability.
• Stamped steel frame that balances strength and weight for mounting.
• 6.0 mm magnetic gap and 10.0 mm winding depth for reliable excursion control.

Who is this for? The PRV AUDIO 8FR250 is aimed at audio professionals, DIY loudspeaker builders, and live-sound technicians who need a single-driver solution that covers a wide frequency range in compact enclosures. If you need a dependable, efficient 8" full-range driver for portable PA cabinets, stage wedges, or multi-purpose install speakers—and you prefer to avoid passive crossovers and tweeters—the 8FR250 is designed to meet those requirements while delivering clear, dynamic output.
