Parts Express HDMI Cable Signal Tester

Parts Express HDMI Cable Signal Tester is a compact diagnostic device that verifies every HDMI signal element so you can pinpoint faults like color shift, sparkles, or no picture.

If you work with home theater setups, displays, AV racks, or installation projects, basic continuity checks aren’t enough to isolate many HDMI problems. This tester inspects the full digital transmission chain — including TMDS channels, clock, EDID/HDCP signaling and connector integrity — so you can determine whether the cable, source, or display is responsible for a fault.

How does the tester reveal where a video problem originates?

The Parts Express unit runs signal-level checks rather than just continuity. It reports the status of individual HDMI components and reveals failures that produce color shifts, sparkles, or missing frames. Use it at either the source or display end to compare results and isolate the faulty segment.

• Displays pass/fail status for TMDS data channels and clock
• Indicates EDID and HDCP handshake presence or failure

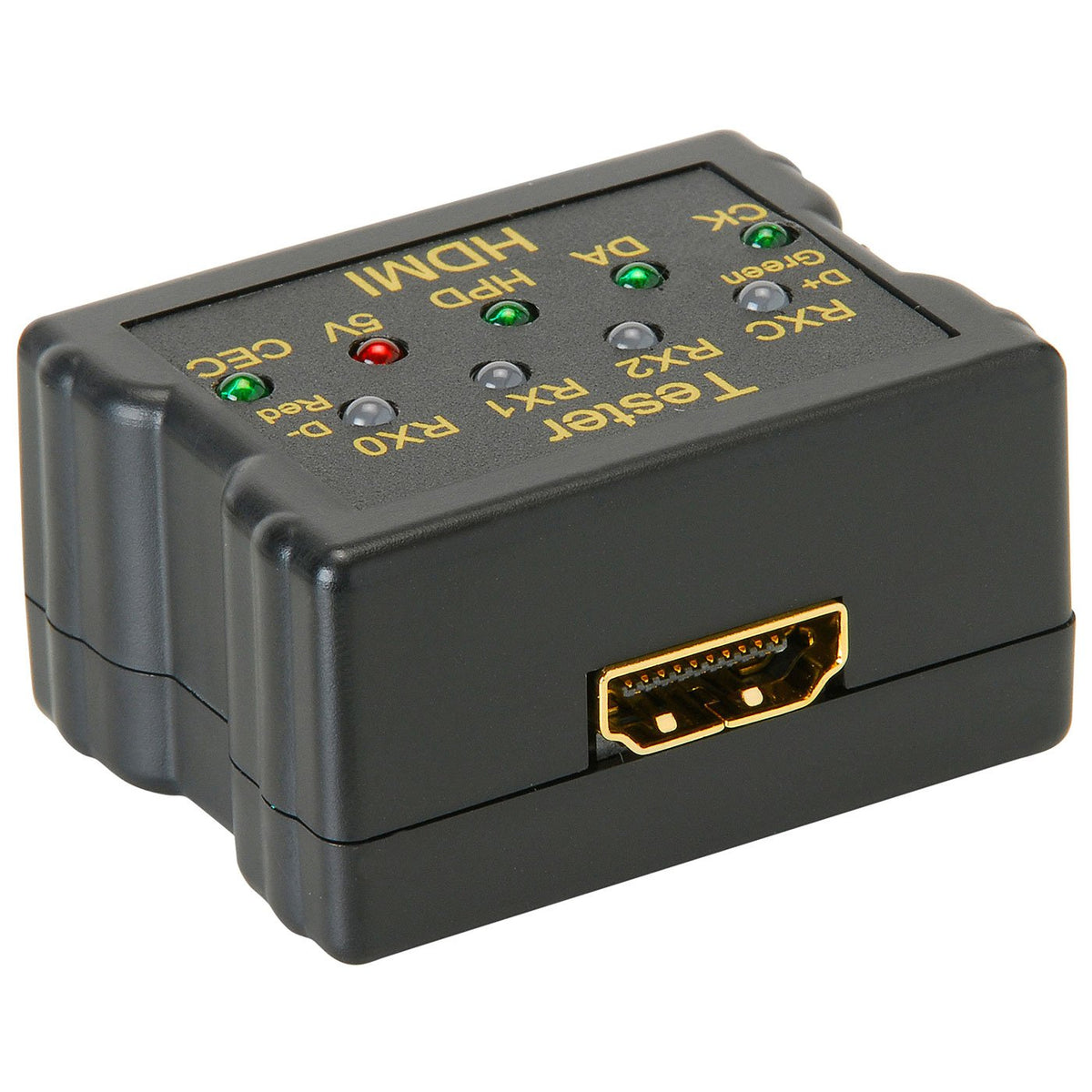

• Works with both HDMI-F and DVI-F connections for flexible testing
• Portable design lets you test at source or display locations

What exactly will it diagnose on my HDMI cable or connection?

Instead of only checking if wires are continuous, the tester examines digital signal elements that determine picture integrity. It identifies faults that cause specific visual artifacts and tells you which signal component is failing so repairs or replacements are targeted and efficient.

• Detects missing or corrupted TMDS channels that cause color errors
• Flags clock issues that lead to image instability
• Checks for HDCP/EDID handshake problems preventing display sync
• Reports connector faults that produce intermittent or noisy images

How simple is it to use in the field or at home?

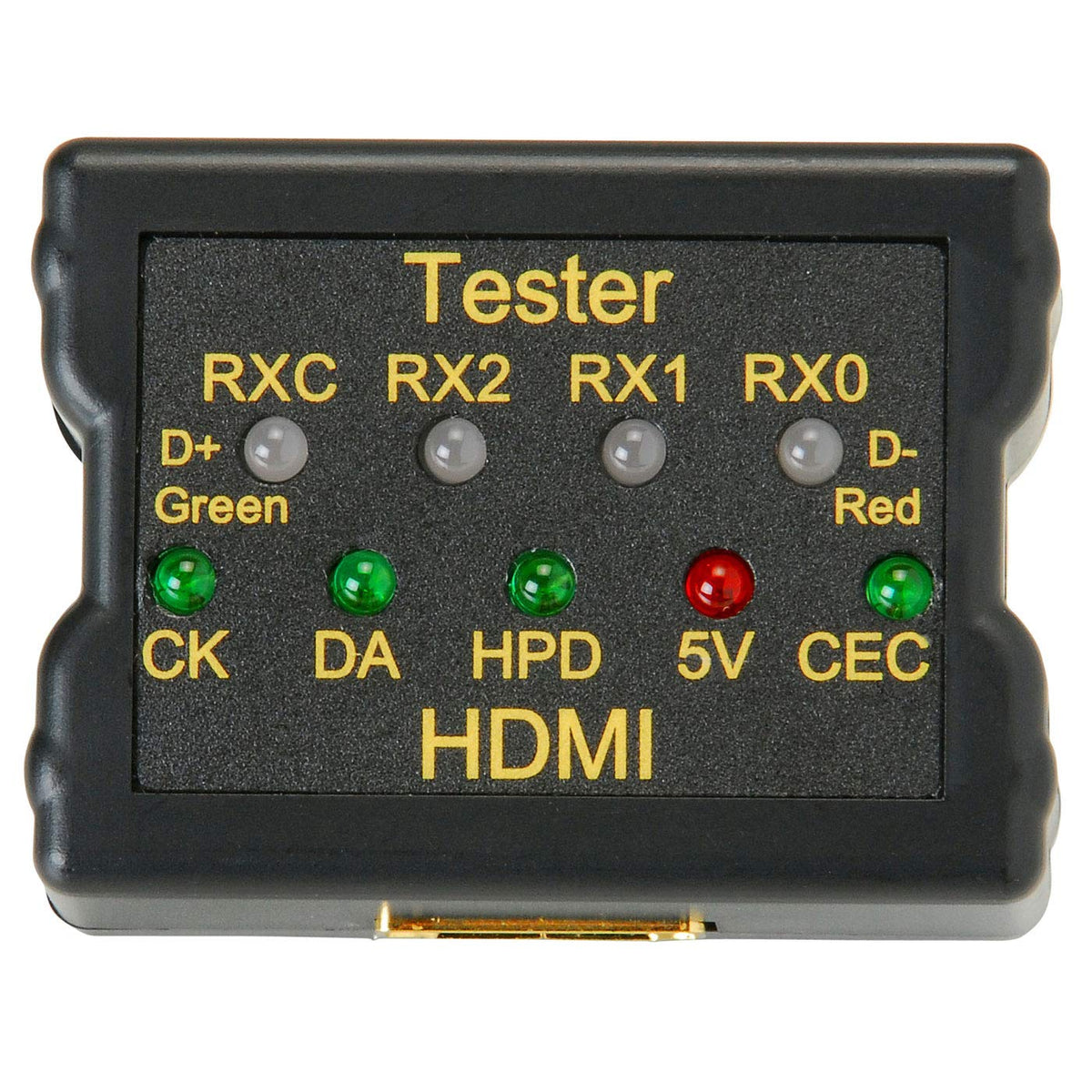

Designed for technicians and DIYers alike, the tester requires no special setup: plug the cable into the appropriate HDMI or DVI jack and read the indicator results. Its compact footprint and clear status indicators make it practical to carry in a toolbox or travel bag for on-site troubleshooting.

• Plug-and-play operation with HDMI-F and DVI-F connectors
• Small, portable housing fits into tool kits or racks

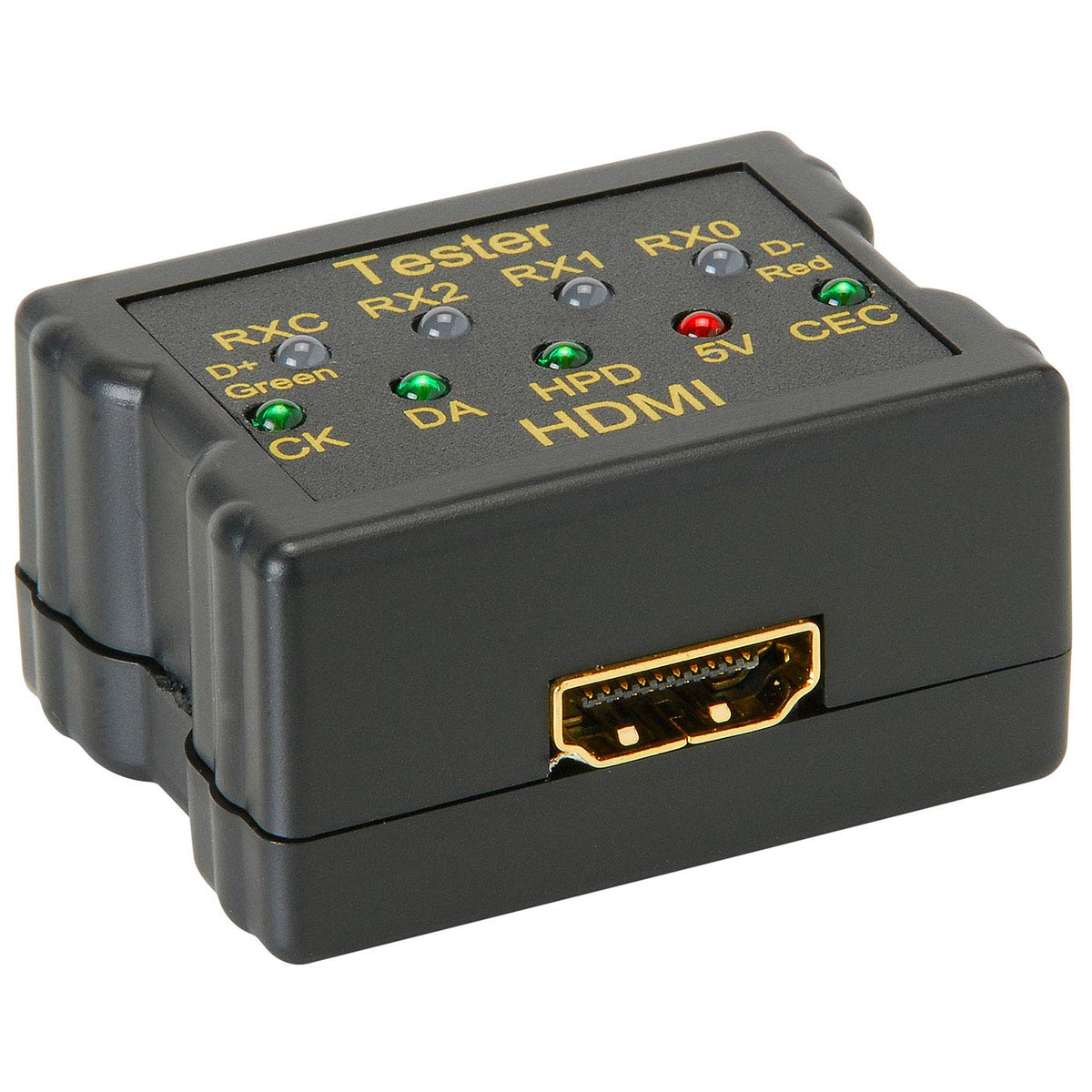

• Readable indicators make quick go/no-go decisions possible
• Can be used at either end of the cable run to localize the fault

Will this replace a full diagnostic oscilloscope or signal analyzer?

While not a substitute for lab-grade instrumentation, the tester fills the practical gap between simple wire checkers and complex analyzers. It provides actionable information for installers and AV technicians to decide whether a cable, connector, or component needs replacement.

• Gives precise pass/fail status of HDMI signal components
• Faster and more portable than bench test equipment
• Useful for on-site troubleshooting before deploying advanced analysis
• Helps avoid unnecessary parts swaps and time-consuming diagnostics

Who is this for: AV installers, home theater enthusiasts, IT support staff, and electronics technicians who need a reliable, portable way to diagnose HDMI signal problems. If you install displays, manage AV systems, or troubleshoot connection issues, the Parts Express HDMI Cable Signal Tester helps you quickly identify whether a cable, source, or display is at fault so you can fix problems faster and reduce downtime.
