NEWCARE HDMI Splitter 1x3 4K@60Hz HDMI 2.0

NEWCARE HDMI Splitter 1 in 3 duplicates one HDMI source to three displays with 4K@60Hz quality and synchronized audio/video for mirrored setups.

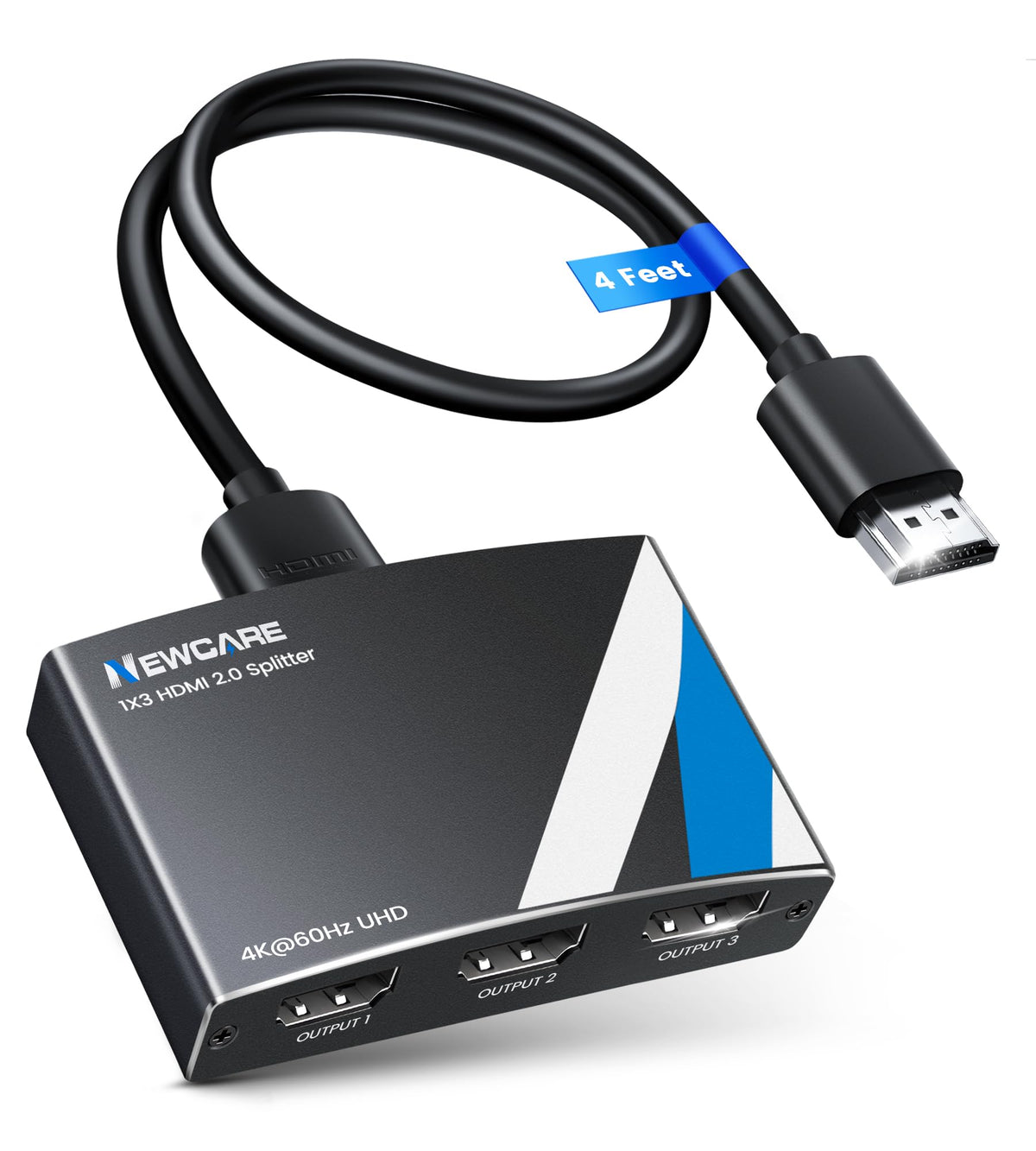

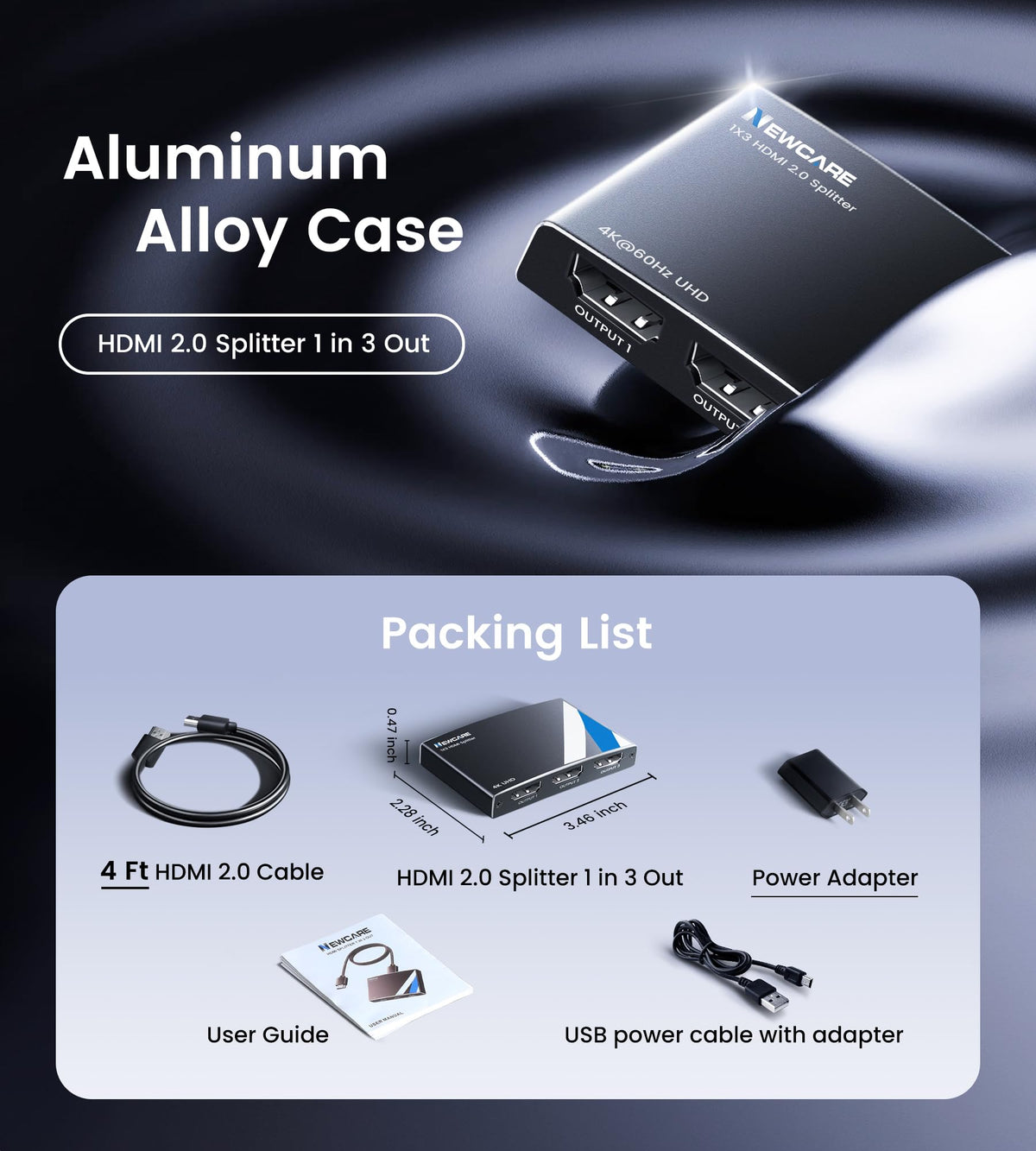

If you need the same high-resolution video and audio shown on multiple TVs, monitors, or projectors without switching cables, the NEWCARE 1x3 HDMI 2.0 splitter sends a single input to three outputs simultaneously. It supports UHD 4K@60Hz video, HDR formats including Dolby Vision, Dolby Atmos audio passthrough, and HDCP 2.2, while offering an auto downscaler so mixed-resolution displays can show the same content at a stable refresh rate. This unit is plug-and-play and ships with a 4 ft HDMI cable and a USB power adapter for quick setup.

How do I set it up so all three screens show the same picture?

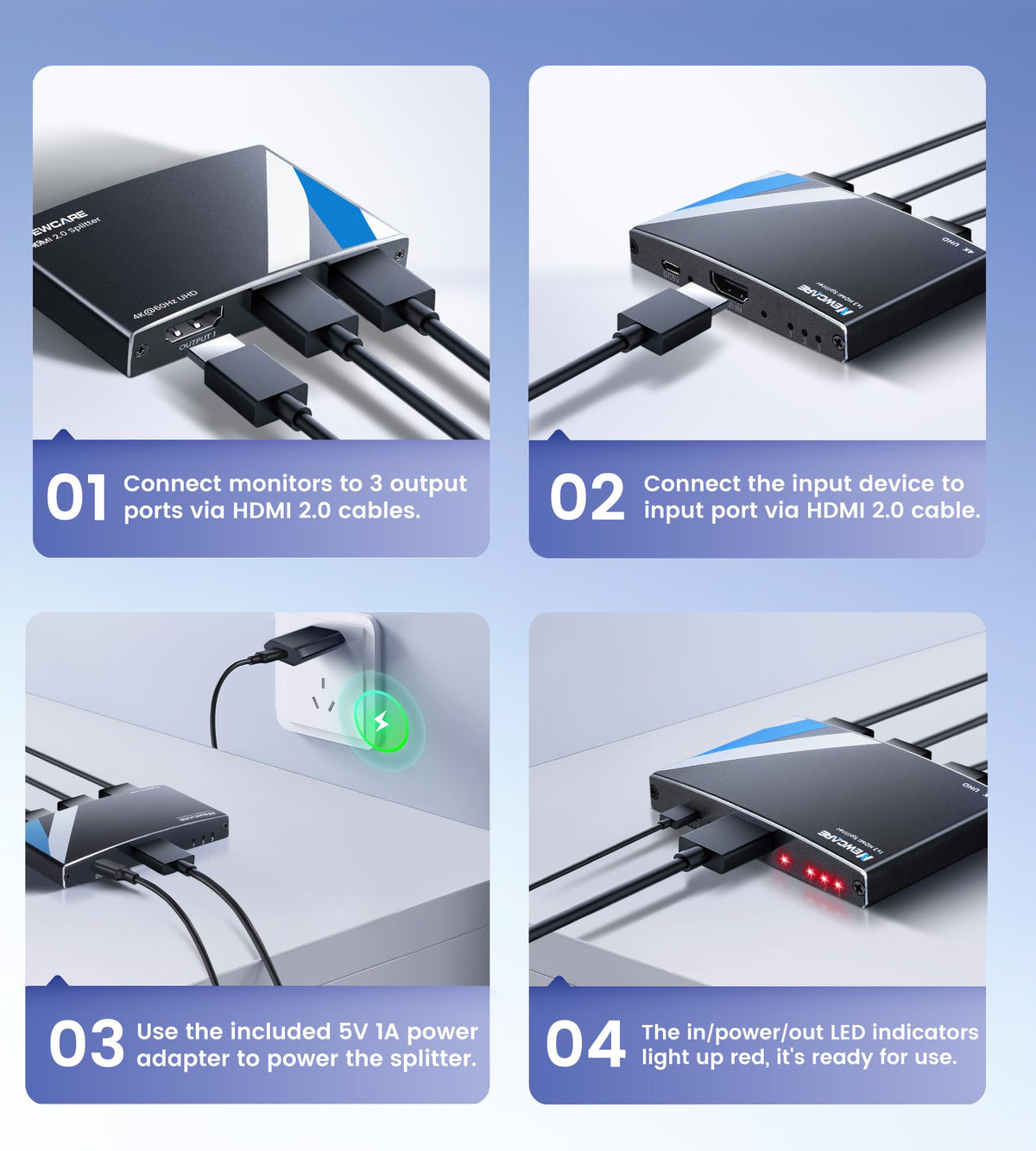

Setup is straightforward: connect each display to the splitter outputs, plug the source (like streaming box or game console) into the input, then power the splitter. For reliable results, attach displays first, then the source, and finally the 5V/1A power adapter to avoid flicker or signal loss.

• Connect three HDMI cables from outputs to TVs/monitors/projector.
• Plug your source into the single HDMI input (PC, console, Blu-ray, etc.).
• Attach USB power cable and adapter; power on displays and source.

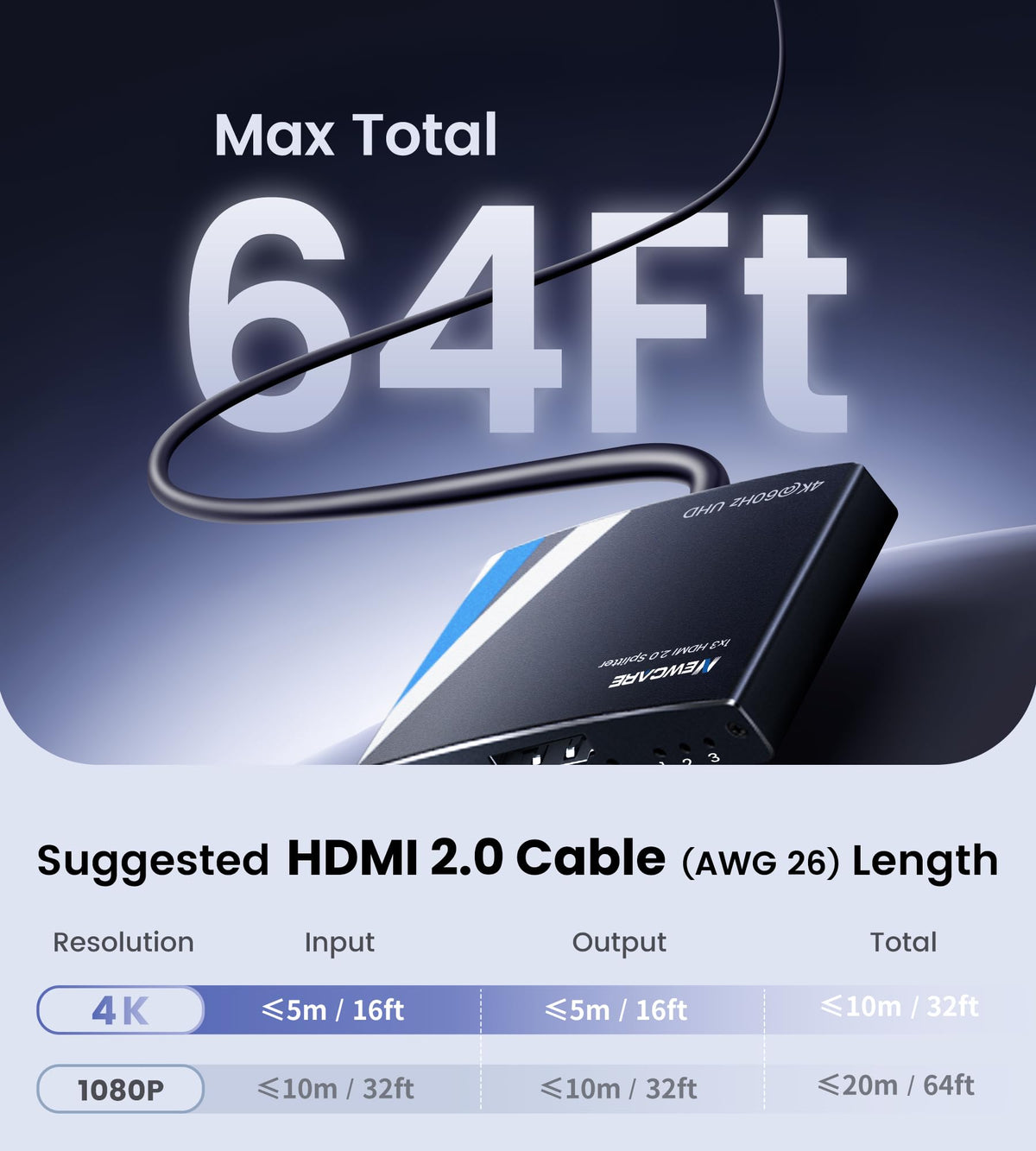

• Use AWG26 HDMI 2.0 cables; keep 4K runs ≤16 ft and 1080p runs ≤32.8 ft.

What video and audio formats does the splitter support?

The NEWCARE splitter handles modern video and multichannel audio formats up to HDMI 2.0 bandwidth (18.5 Gbps). It supports 4K@60Hz, HDR10, 3D, and is compatible with Dolby Vision and Dolby Atmos passthrough when the source and displays support those formats.

• Video: 4K@60Hz, 1080p, 3D, HDR10, auto downscaler for mixed displays.
• Audio: DTS, DTS-HD, Dolby TrueHD, Dolby AC3, DSD and other common formats.
• Copy protection: HDCP 2.2 compatible for protected content playback.
• Bandwidth: up to 18.5 Gbps via HDMI 2.0 specification.

Are there limitations I should be aware of before buying?

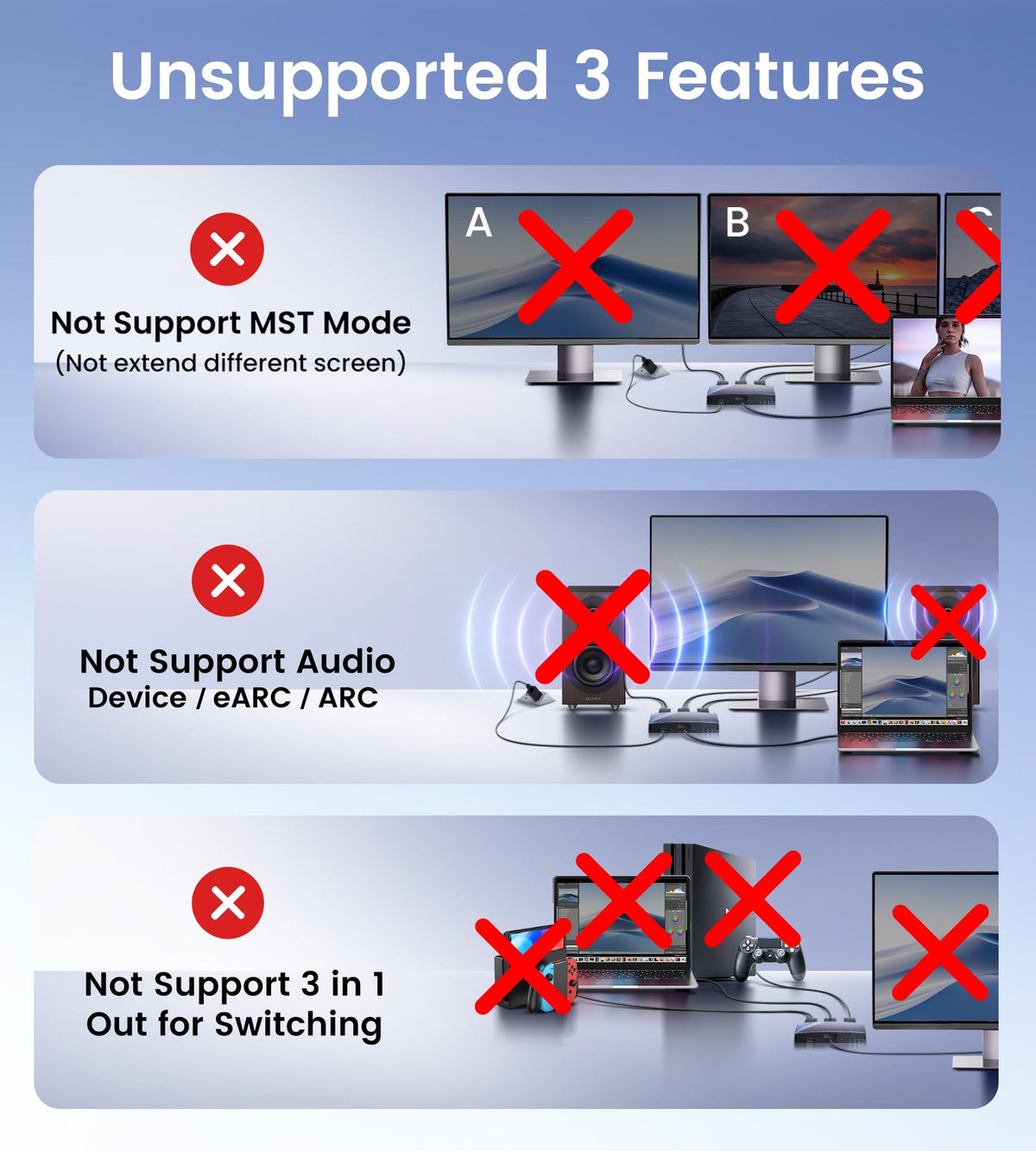

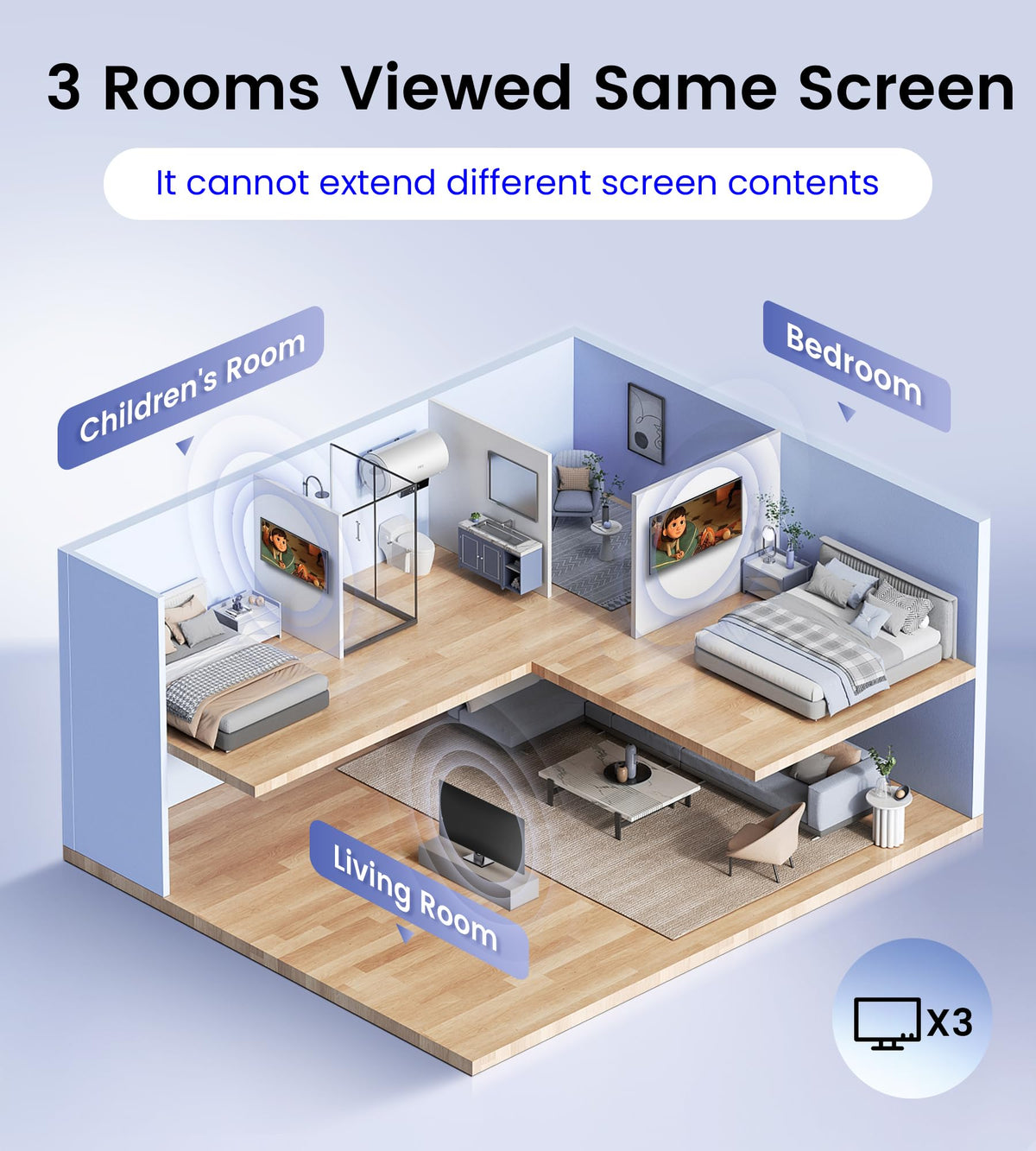

This device mirrors one HDMI input across three outputs and does not create independent extended desktops or accept multiple inputs. It also cannot connect directly to USB or separate speaker devices for audio extraction.

• Only mirror (duplicate) mode — no extended/independent displays supported.
• Single HDMI input only; no input switching among multiple sources.
• Not an audio extractor — external speakers must receive audio from displays or AV receiver.
• Recommended cable lengths for stable 4K and 1080p performance apply.

Will this work with my game console, streaming stick, or projector?

Yes — as long as the device uses HDMI output and the resolution/HDCP requirements match, the splitter will pass the signal to all three screens. For best results use HDMI 2.0-compatible cables and ensure displays accept the same resolution or allow the splitter's auto downscaler to normalize mixed resolutions.

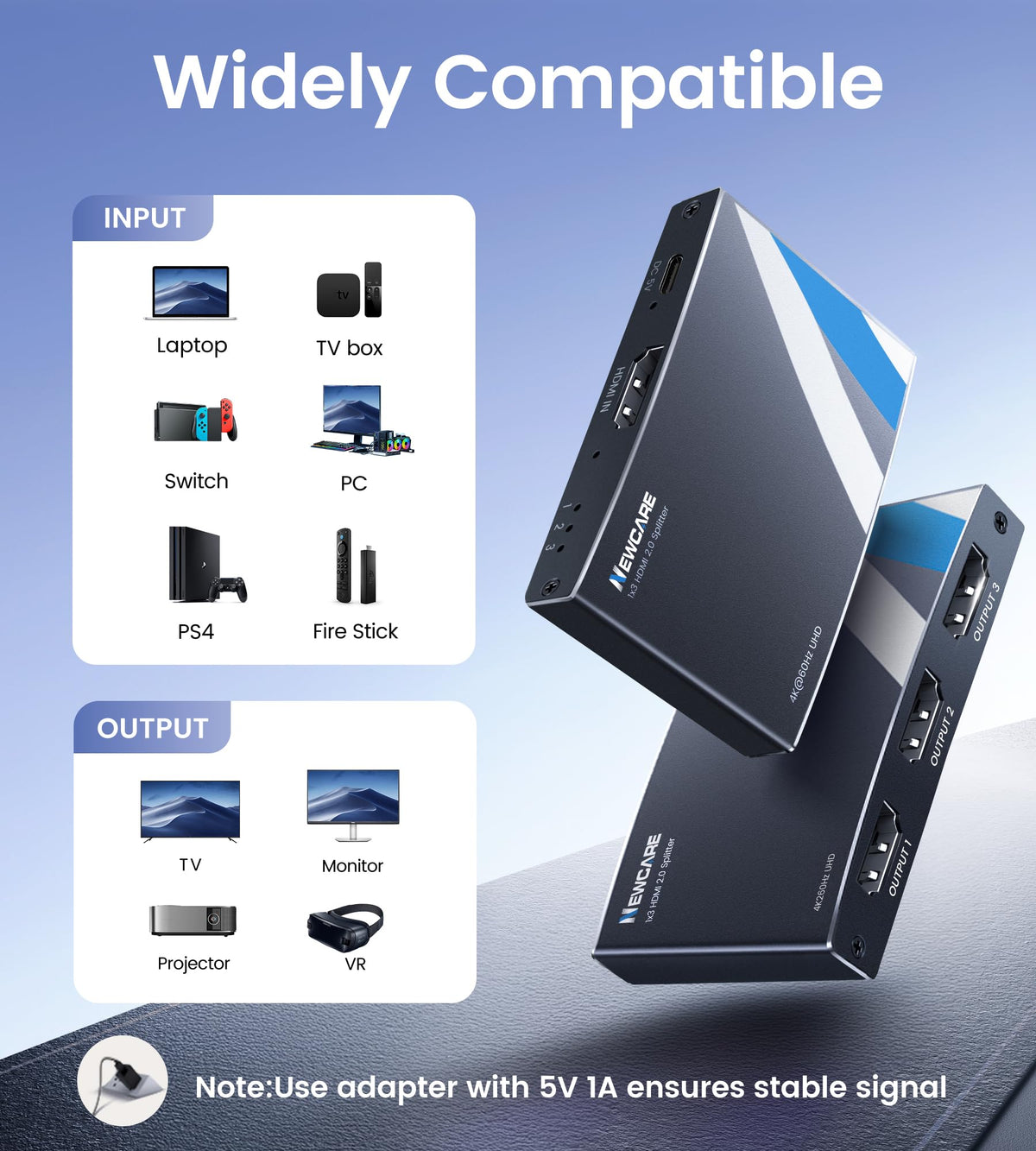

• Compatible with PS5/PS4/PS3, Xbox, Fire TV, Apple TV, Blu-ray players, and PCs.
• Works with TVs, monitors, and projectors supporting HDMI input.
• Ensure displays and source support HDCP 2.2 for protected content.
• Plug-and-play — no drivers or software required.

Who is this for: The NEWCARE 1x3 HDMI Splitter is aimed at homeowners, presenters, retailers, educators, and installers who need to show identical high-quality video on multiple screens—such as retail displays, classrooms, trade-show booths, or multi-room entertainment setups. It’s ideal when one source must be visible in several locations at once and when users want a simple, powered splitter that supports modern HDR and multichannel audio formats. If you need independent screens with different content, audio extraction to separate speakers, or input switching between several sources, consider a different AV product tailored to those needs.
