Networx 24-Port F-Type Coaxial Patch Panel — 1U Rack, Fully Loaded, Powder-Coated Steel

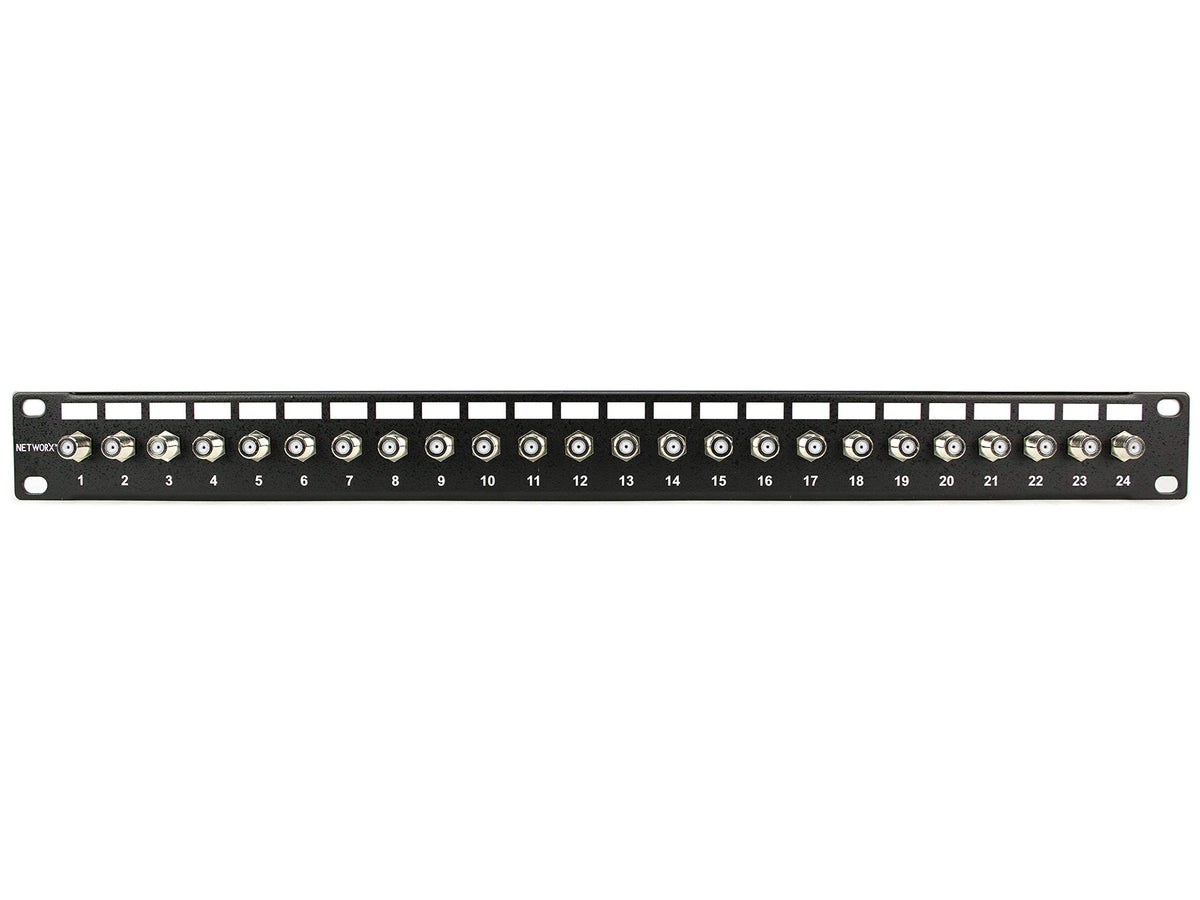

The Networx 24-Port F-Type Coaxial Patch Panel is a 1U, fully loaded rack panel that centralizes and routes up to 24 coaxial video connections with labeled F-type ports for quick identification.

Designed for video distribution systems in restaurants, bars, offices, and AV racks, this powder-coated steel patch panel organizes multiple coax runs into a single rack-mounted unit. Each panel arrives fully loaded with 24 F connectors, so you can mount it and start linking sources and displays without assembling connectors on site. The durable finish and clear port labeling reduce installation time and help maintain signal integrity across a distribution cabinet.

How does this patch panel simplify a multi-display setup?

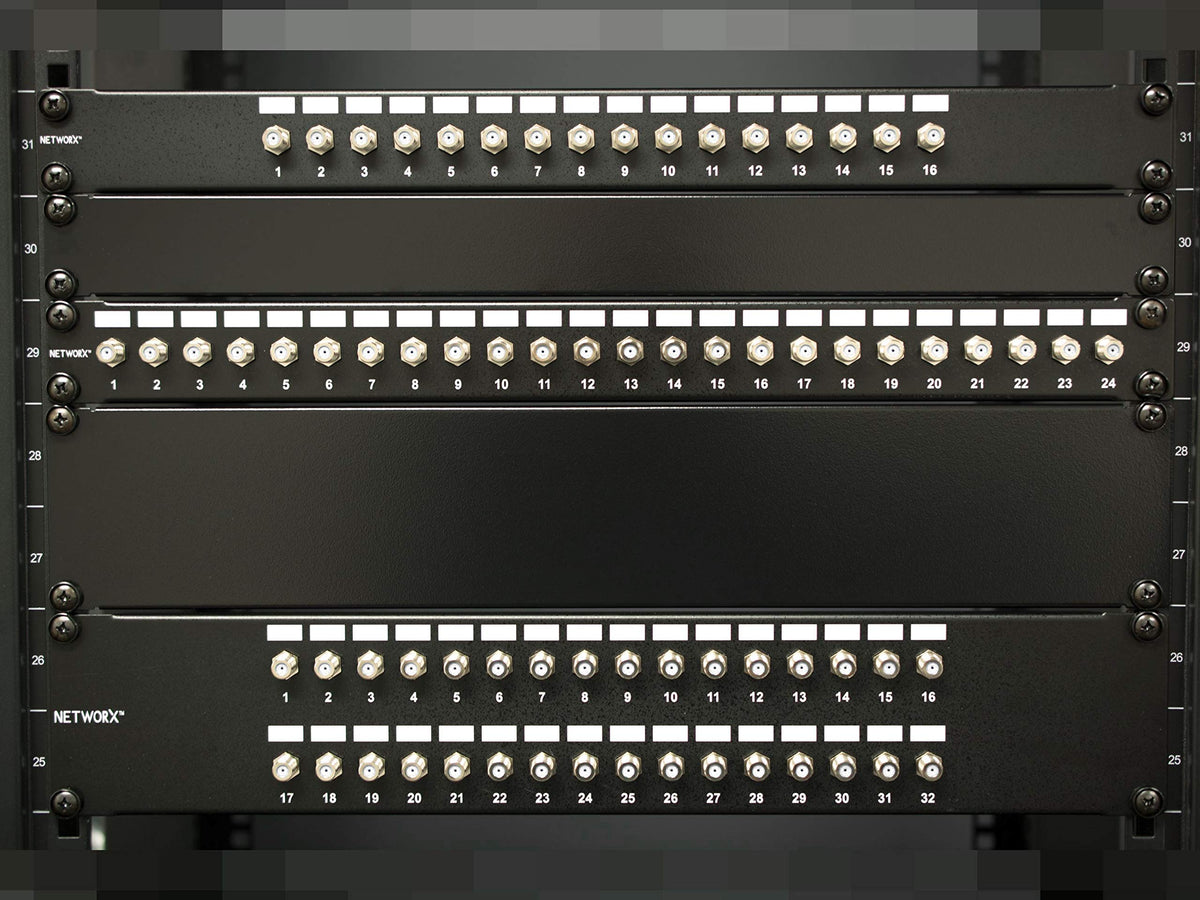

By grouping 24 coaxial terminations into a single 1U rack unit, the panel removes the clutter of individual cables and adapters. Installers can route source feeds into the back and distribute outputs from the front, making signal tracing and maintenance faster.

• 24 factory-installed F-type connectors for immediate use
• 1U rack height fits standard distribution cabinets
• Front-facing labels for quick port identification
• Powder-coated steel chassis for durable rack mounting

What kinds of venues and systems benefit from this product?

This panel is ideal where multiple video feeds need centralized management: restaurants, sports bars, digital signage, multi-room AV, and small headends. Any installation that uses coaxial video sources—set-top boxes, modulators, tuners, or cameras—can use the panel to tidy connections and simplify switching.

• Restaurants and hospitality AV deployments
• Retail and digital signage networks
• Small broadcast or headend racks
• Commercial AV closets and multi-room installations

How does the Networx panel help with maintenance and troubleshooting?

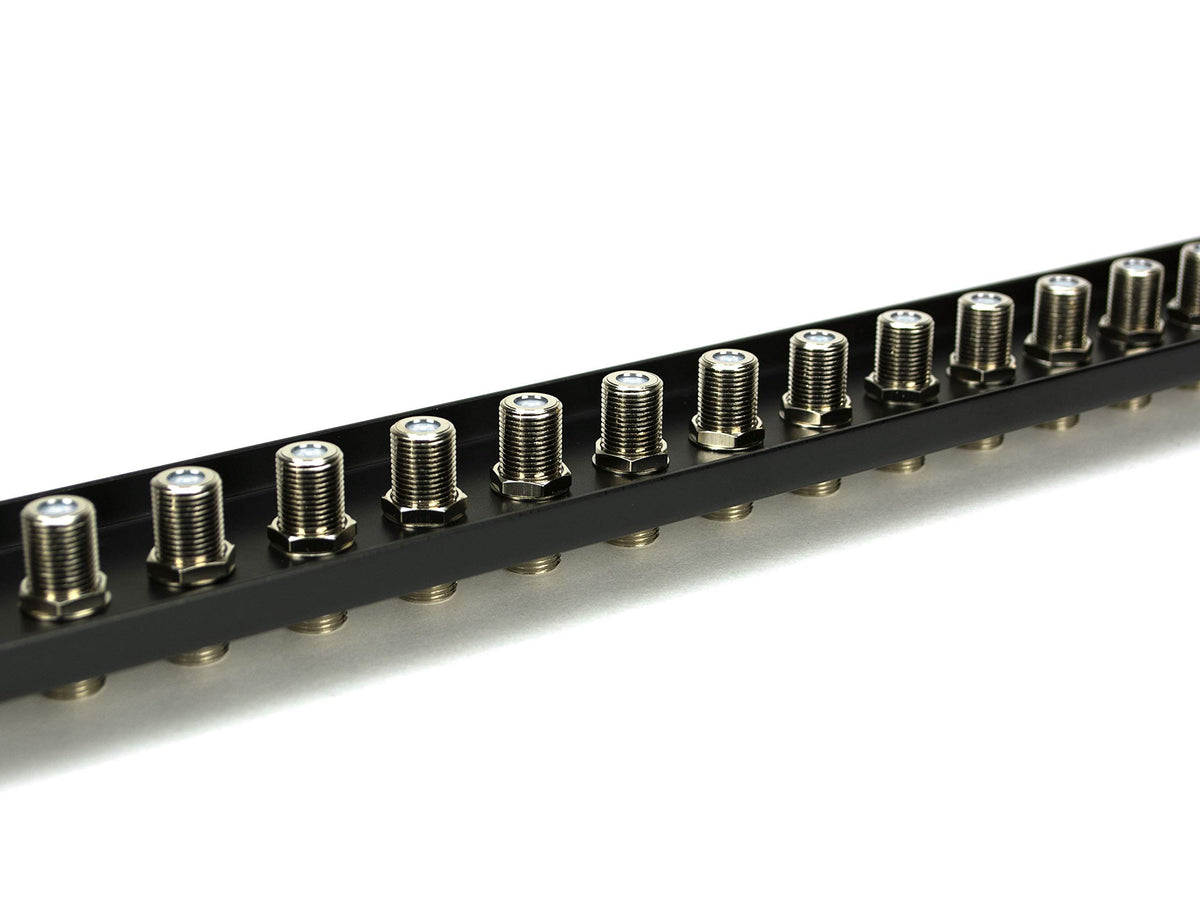

Clear front labels above each F connector let technicians identify and isolate problem ports quickly without probing every cable. Having all coax terminations in one location reduces cabling runs and makes swaps or upgrades less disruptive.

• Port-by-port labels speed troubleshooting
• Centralized terminations reduce cable tracing time
• Rack-mounted layout keeps distribution organized and accessible
• Robust metal construction resists wear from repeated connections

What installation considerations should be kept in mind?

Because the panel is fully loaded, plan rack space and cable routing before mounting to ensure clean rear and front access. Use compression or properly crimped F connectors on cable ends for the best signal performance and avoid finger-tight connections on long runs.

• Requires 1U of standard 19" rack space
• Best used with crimped or compression F connectors for reliable seals
• Allow clearance for rear cable bend radius and strain relief
• Compatible with common coax cable types used in video distribution

Who is this for: Installers, AV integrators, IT technicians, and business owners who need a tidy, ready-to-mount coax distribution solution will find the Networx 24-Port F-Type Coaxial Patch Panel valuable. It’s aimed at projects that require centralized routing of multiple coax video signals, reliable labeling for quick maintenance, and a durable rack-mounted enclosure that arrives fully equipped and ready for immediate deployment.
