Natika 720P Metal Backup/Rear View Camera 135° Starlight

The NATIKA 720P metal backup/front/side camera is a durable, low‑distortion vehicle camera with starlight low‑light performance and selectable CVBS/AHD/TVI outputs for flush or surface installation.

This compact reverse camera combines a wide 135° field of view, a six‑element large‑aperture optical system and IP69K‑grade waterproofing to deliver a realistic, low‑distortion image for parking, reversing and blind‑spot monitoring. It supports default composite (CVBS) and switchable 720P AHD or TVI signals for compatible aftermarket head units, plus multi‑wire controls to toggle mirror/guidelines and front/rear orientation.

How clear is the image and how does it perform at night?

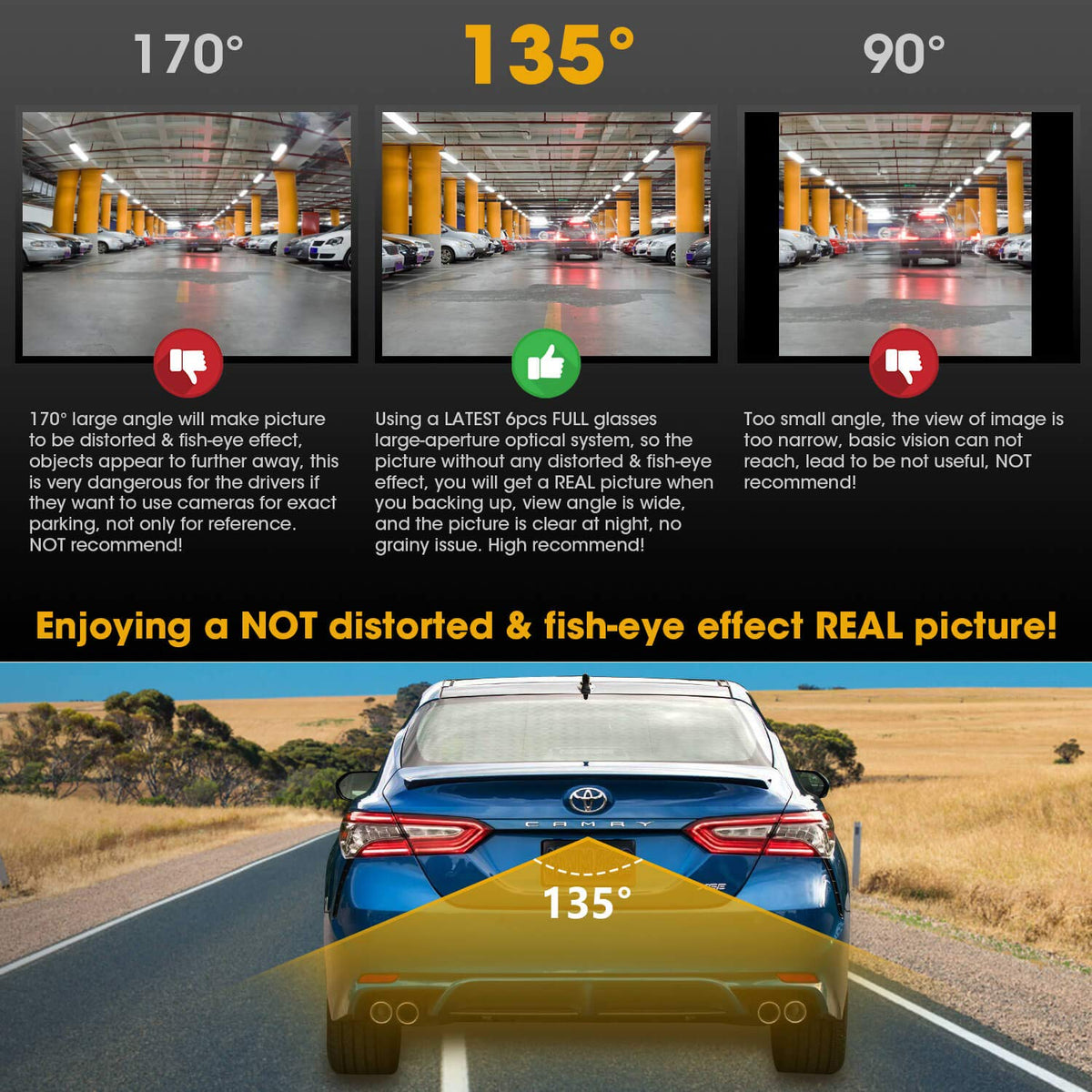

The camera uses a six‑glass full‑aperture lens arrangement that reduces distortion and renders a near‑true perspective so objects appear natural while reversing. A starlight‑level sensor (0.005 Lux) improves low‑light sensitivity, giving usable detail in dim parking lots and garages without relying on exaggerated digital enhancement.

• Optical system: 6 full‑glass large‑aperture elements for low distortion
• Field of view: 135° horizontal for wide blind‑spot coverage
• Night sensitivity: 0.005 Lux starlight performance for low‑light visibility
• Resolution options: default CVBS or switchable 720P AHD/TVI (30 fps)

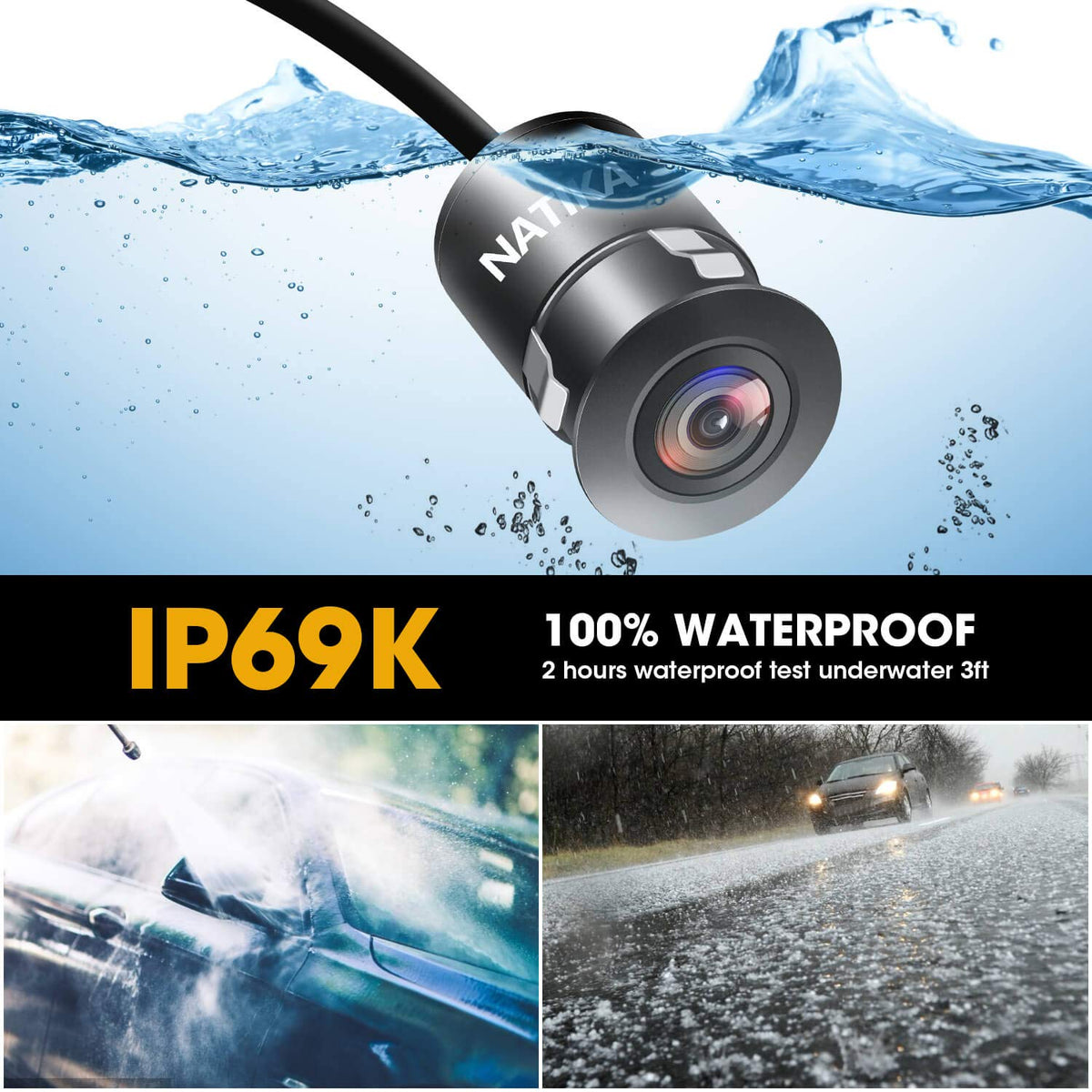

Will the camera survive harsh weather and road conditions?

Yes — the NATIKA camera is designed for heavy outdoor use. It implements four waterproofing measures at the electronics and housing level and a rugged metal case, delivering high ingress protection suitable for exposed mounting on trucks, SUVs, vans and RVs.

• Waterproofing: PCB coating, sealing adhesive, potting compound and waterproof housing

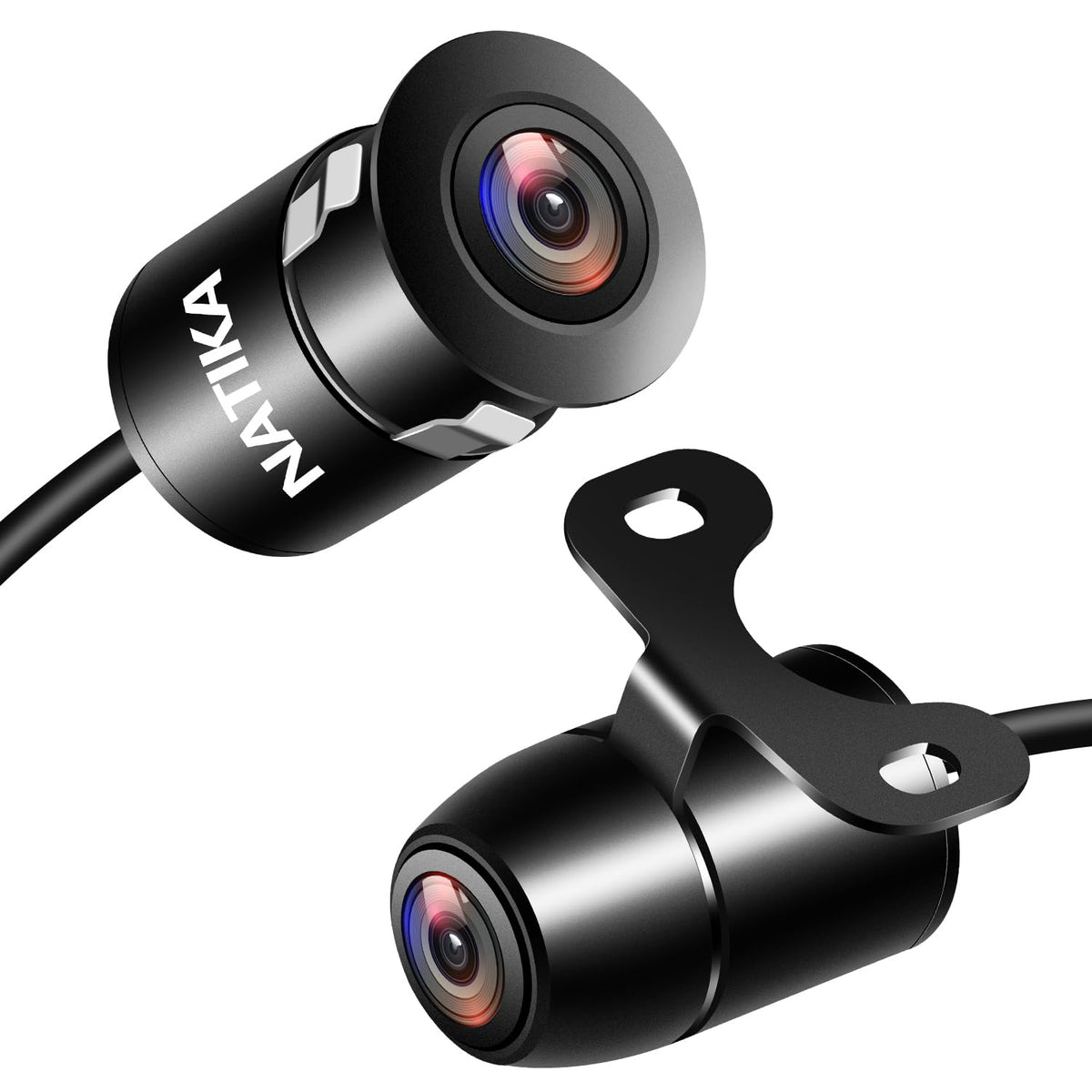

• Housing: stamped metal body for impact and corrosion resistance
• IP rating: engineered to meet very high water‑ingress resistance (IP69K level)

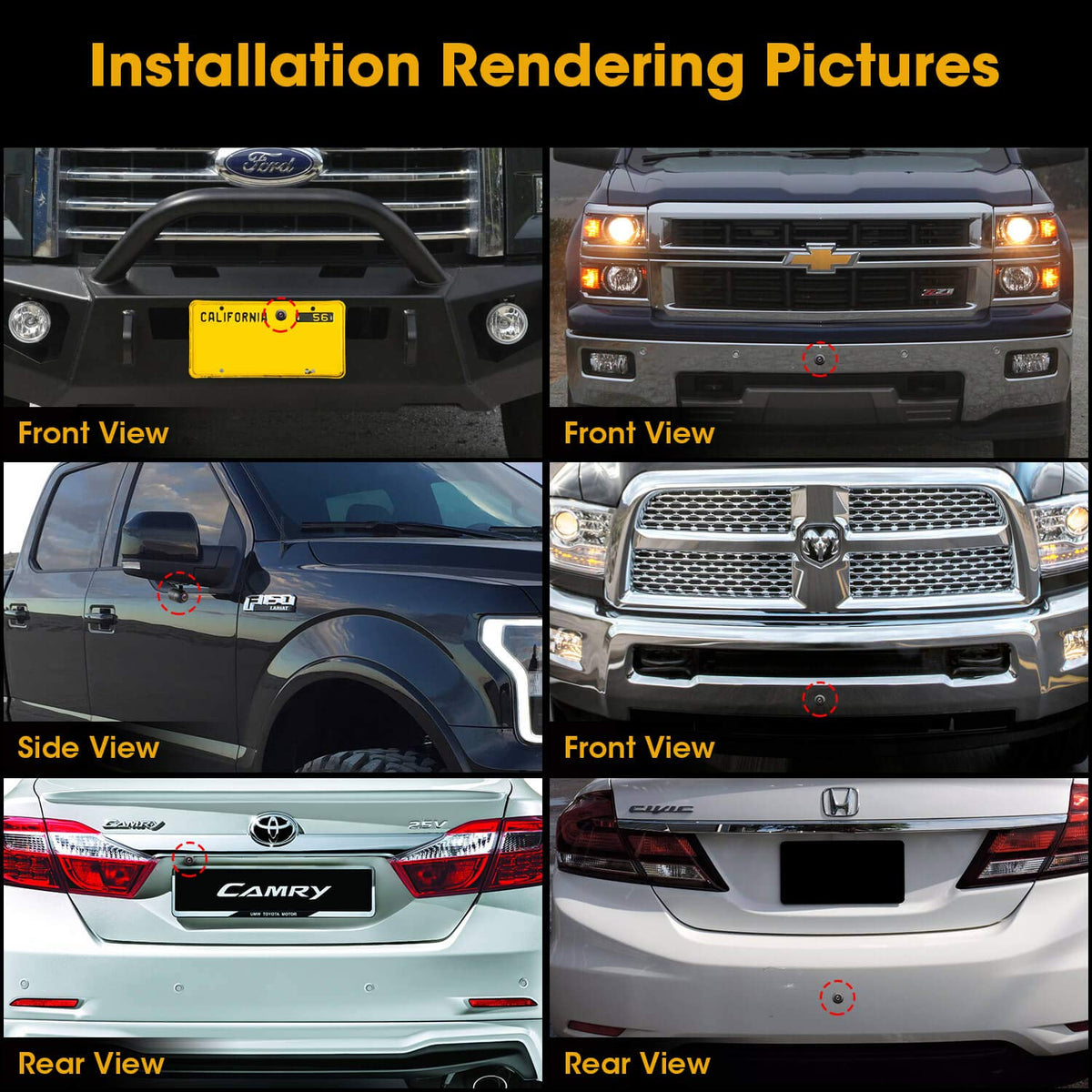

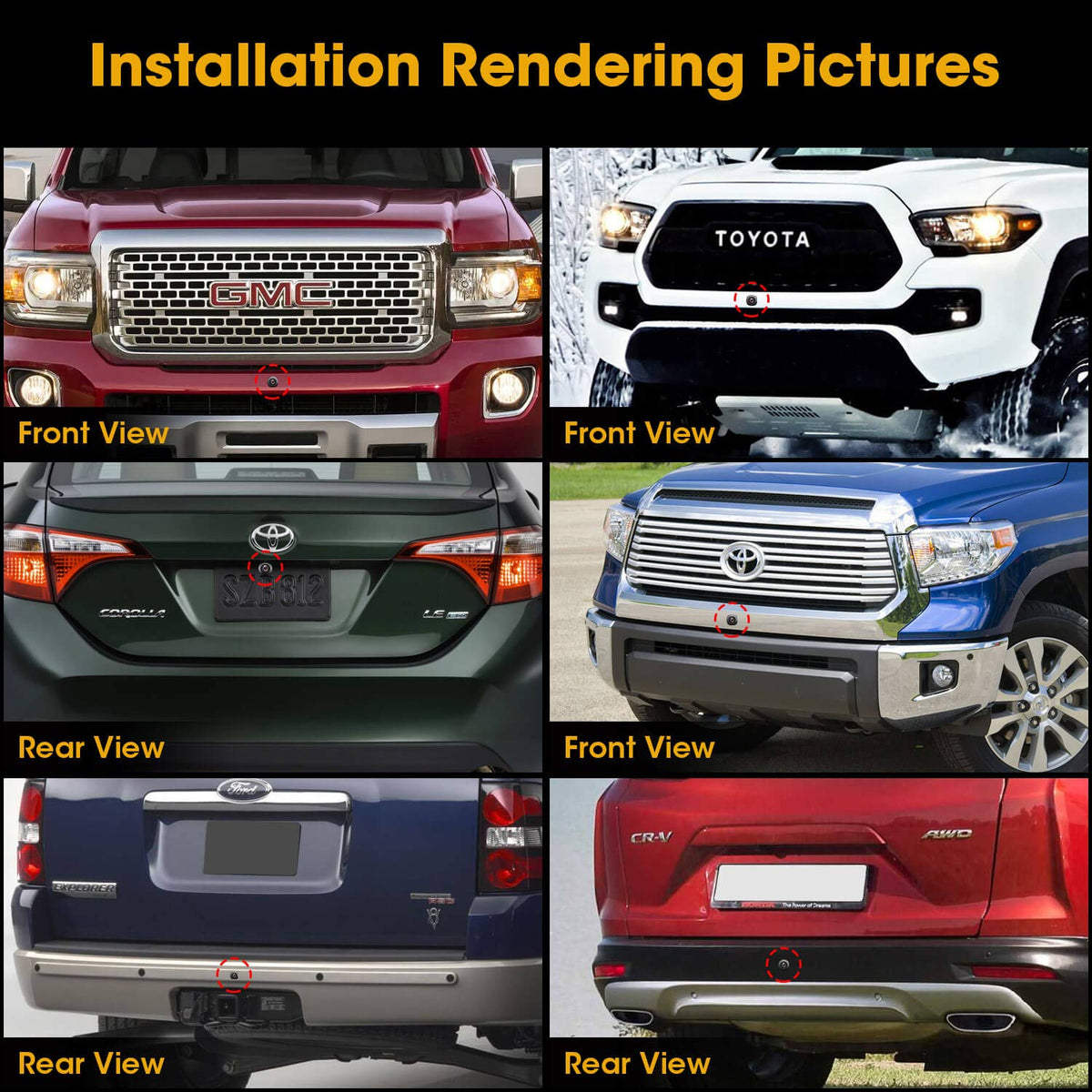

• Mounting options: surface or flush install for flexible placement

Which video formats and integrations does it support?

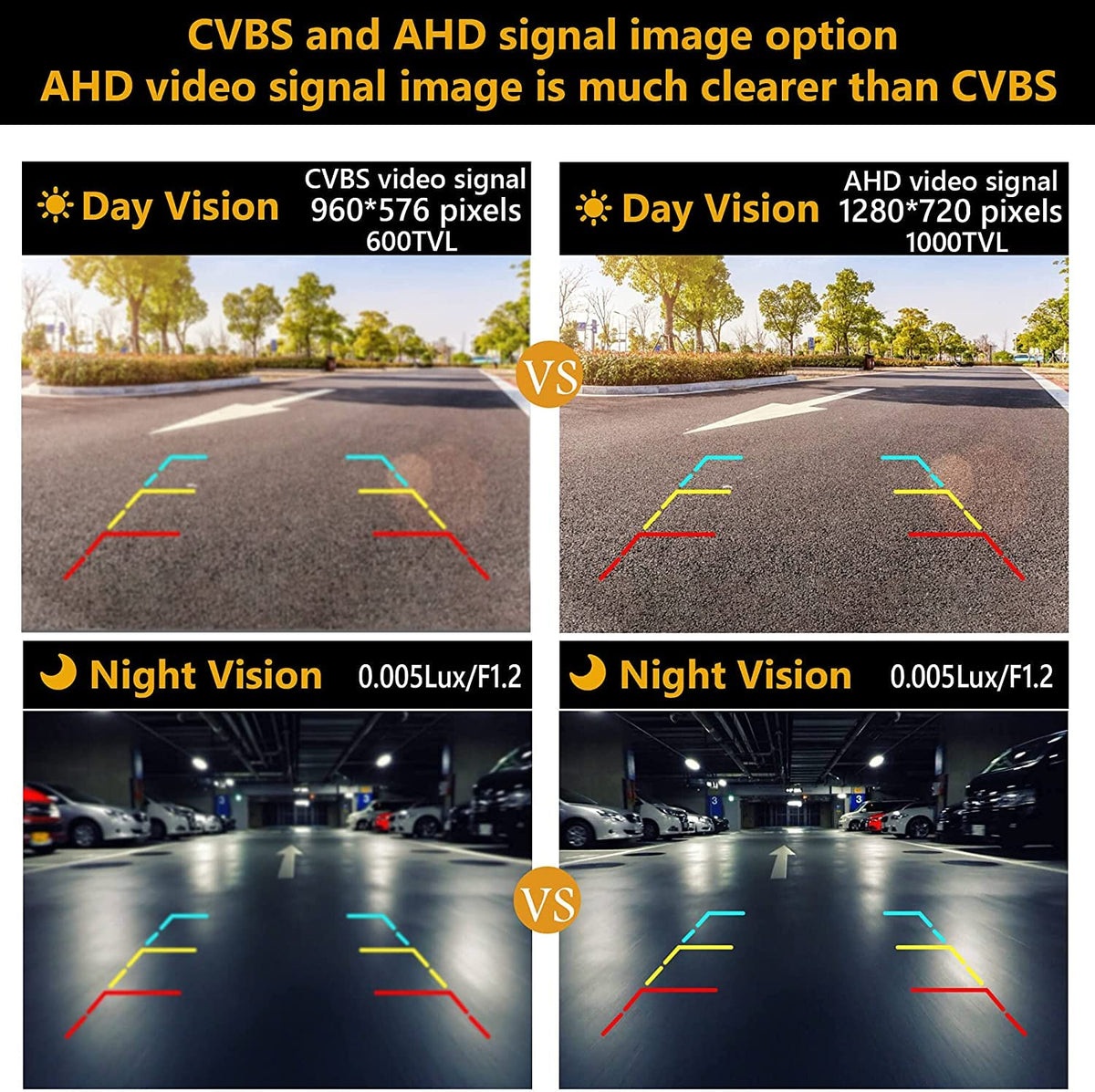

The camera outputs standard composite (CVBS) by default and can be configured to AHD or TVI 720P by cutting specific wire loops, making it compatible with many aftermarket Android stereos and selected premium receivers. Note: some older or budget stereos advertise HD input but lack the necessary hardware, so CVBS remains the universal fallback.

• Default output: CVBS composite for broad compatibility

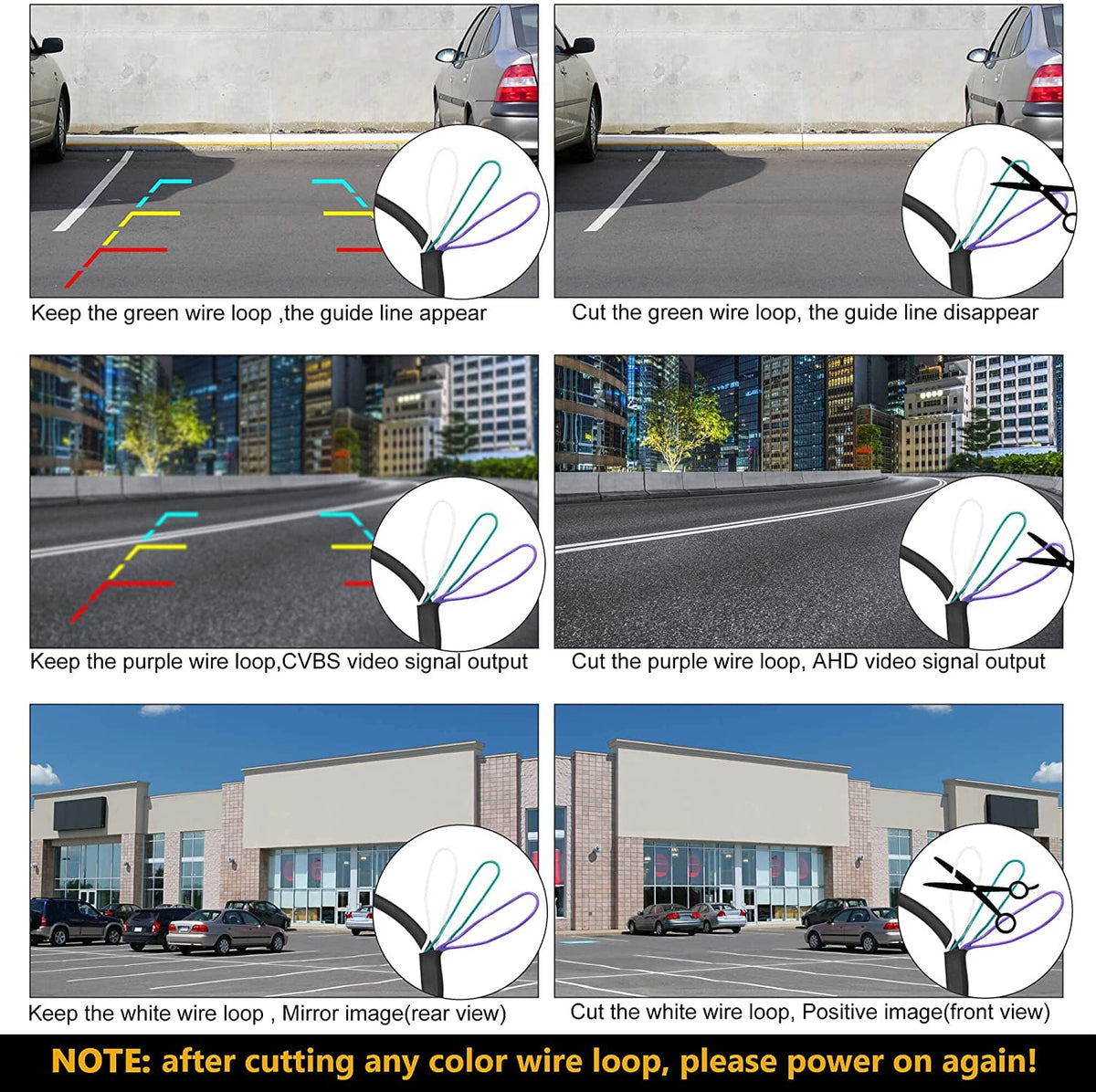

• Switch to AHD (720P/30fps): cut the purple wire loop
• Switch to TVI (720P/30fps): cut the blue wire loop
• Additional wires: white = front view, green = remove guidelines

How easy is installation and what wiring should I check?

Installation offers two physical mounting methods (flush or surface) and several functional wire loops to choose signal type and behavior. If you’re connecting to a factory radio or unusual head unit, you may need an extra harness or RCA‑to‑2.5mm adapter; verify connector types before installation to avoid compatibility issues.

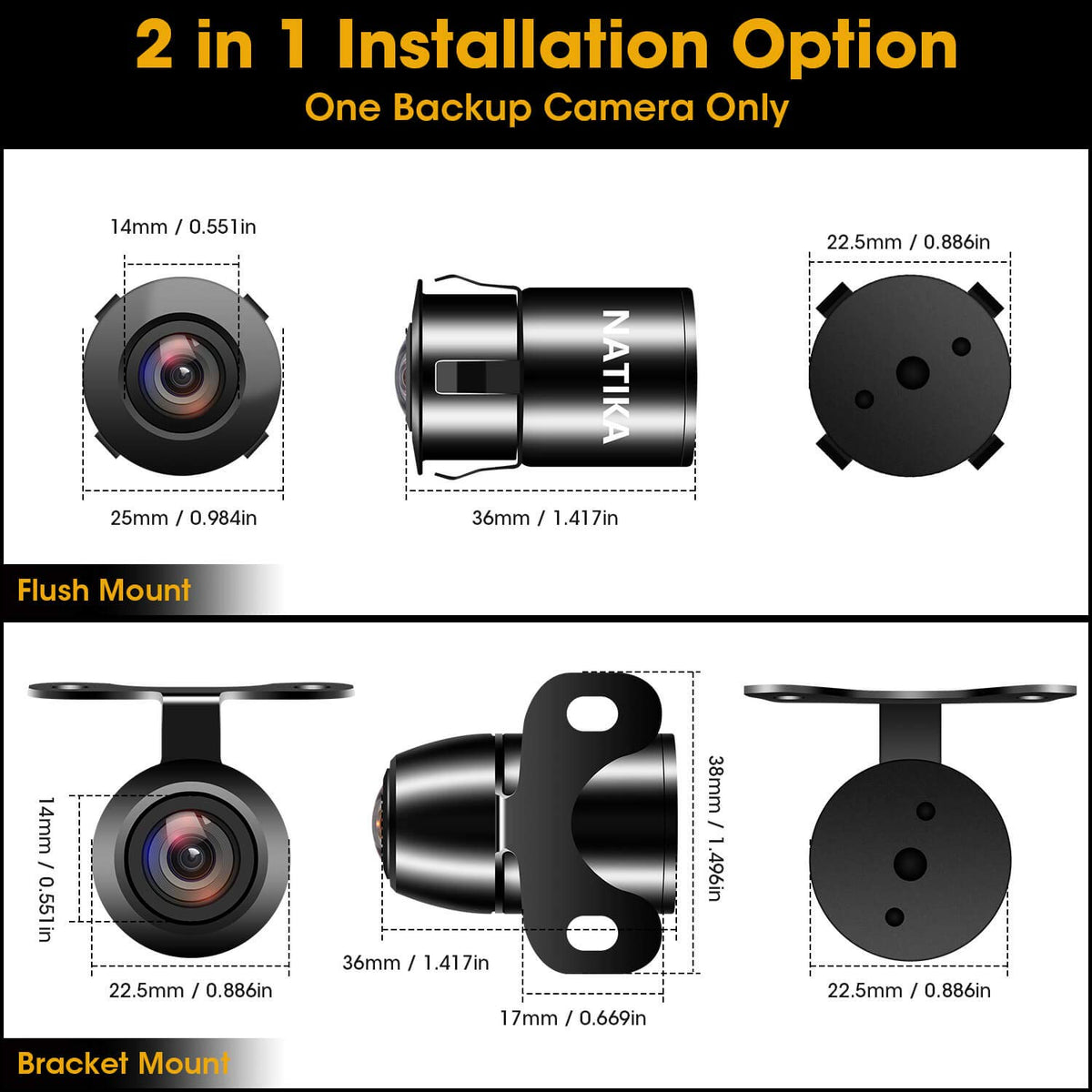

• Mount types: 2‑in‑1 design for flush or surface attachment
• Connector notes: standard RCA output; some devices require adapters
• Compatibility tips: do not cut format wires unless your stereo supports AHD/TVI

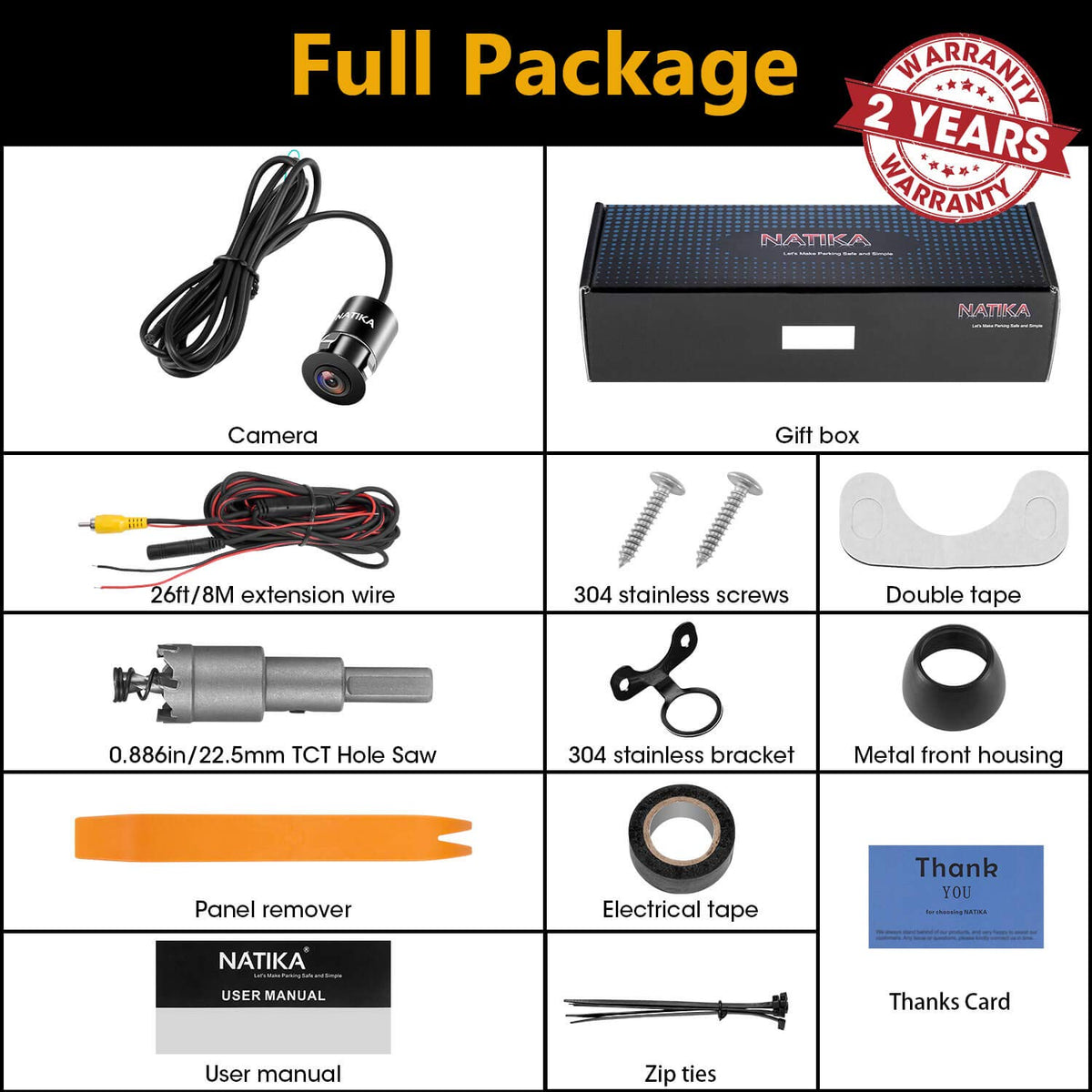

• Accessory reminder: order harness or adapter separately for factory radios

Who is this for? Drivers, fleet owners and installers who want a rugged, low‑distortion backup camera with flexible mounting and selectable video formats. It’s well suited for pickup trucks, SUVs, RVs, vans and passenger cars when you need reliable low‑light performance and a metal housing built for outdoor exposure. Choose this unit when you require an upgrade from basic composite cameras and expect to pair the camera with aftermarket stereos that accept CVBS, AHD or TVI inputs.
