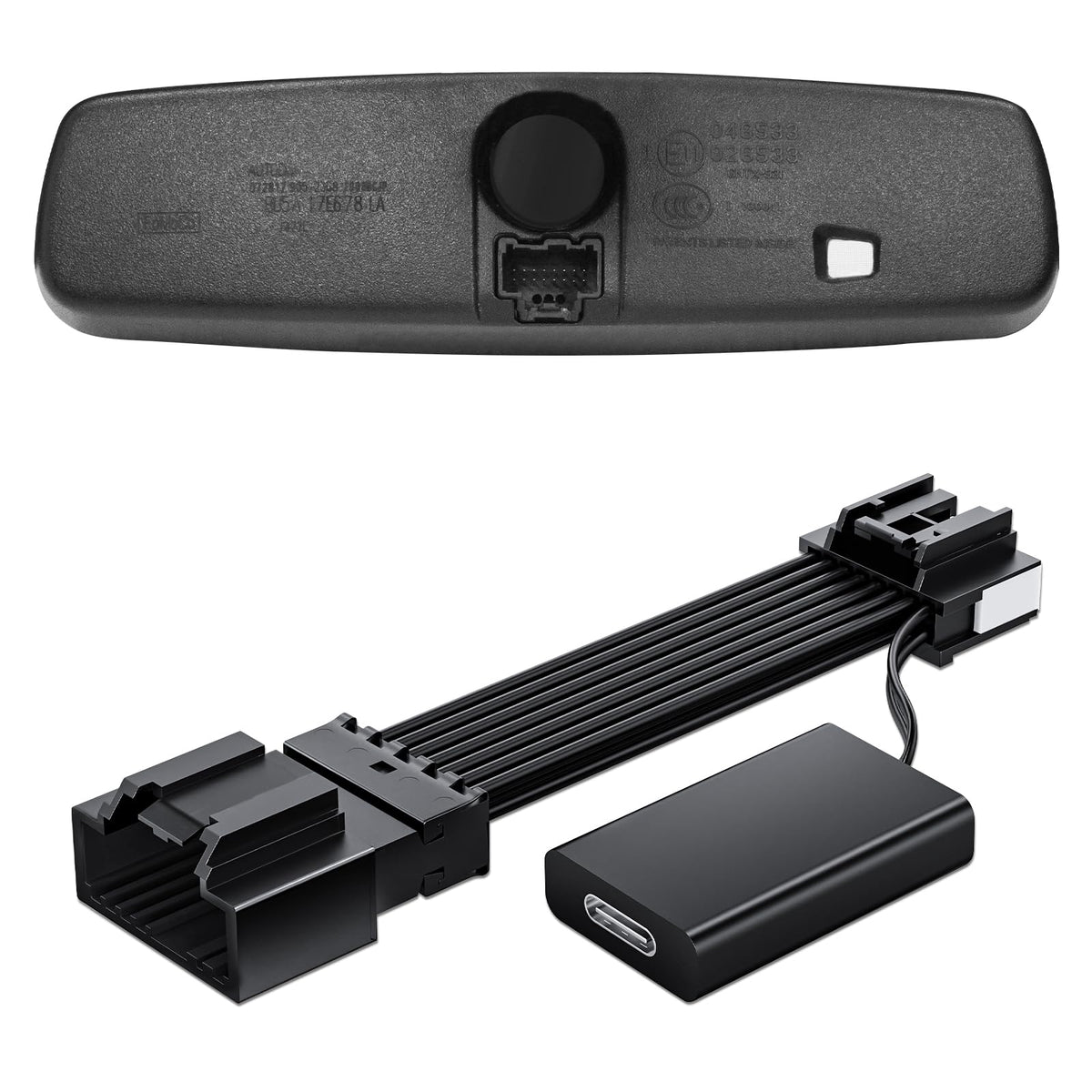

mangoal Ford 16-Pin Dashcam Power Adapter Model A

mangoal’s Dashcam Power Adapter (Model A) plugs into Ford 16‑pin auto‑dimming mirror ports to power a 5V dash camera while concealing wiring behind the headliner.

This adapter converts the factory 16‑pin connector on compatible Ford and Lincoln rearview mirrors into a neat, vehicle‑integrated power source for dashcams and mirror cameras. It delivers regulated 5V/2A power through three interchangeable leads (Mini‑USB, USB‑C, Micro‑USB), powers devices only with the ignition on, and keeps cables hidden for a factory appearance. Before ordering, confirm your vehicle’s rearview mirror has a 16‑pin auto‑dimming plug and that your camera accepts a 5V input via one of the included connector types.

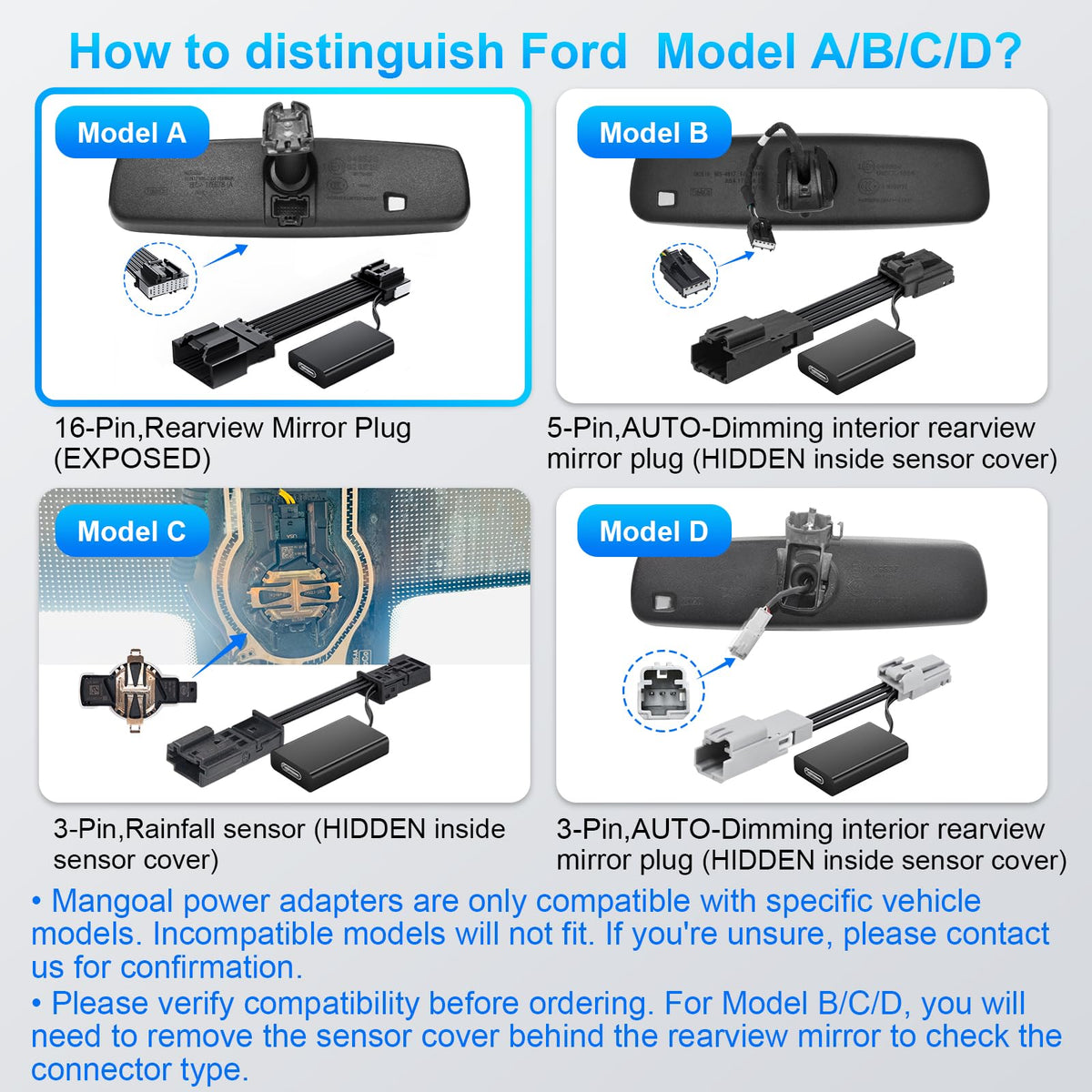

How do I verify my car uses the 16‑pin auto‑dimming mirror port?

Locate the plug where your rearview mirror mounts to the windshield bracket and compare it to the product images that show a 16‑pin rectangular connector. Not all trims use the auto‑dimming mirror or a 16‑pin plug, so checking before purchase prevents compatibility issues.

• Remove trim around the mirror or visually inspect the connector behind the mirror bracket.
• Confirm you see a 16‑pin rectangular plug (not 3‑pin or 5‑pin styles).
• Use the product image gallery as a reference for the correct port shape.

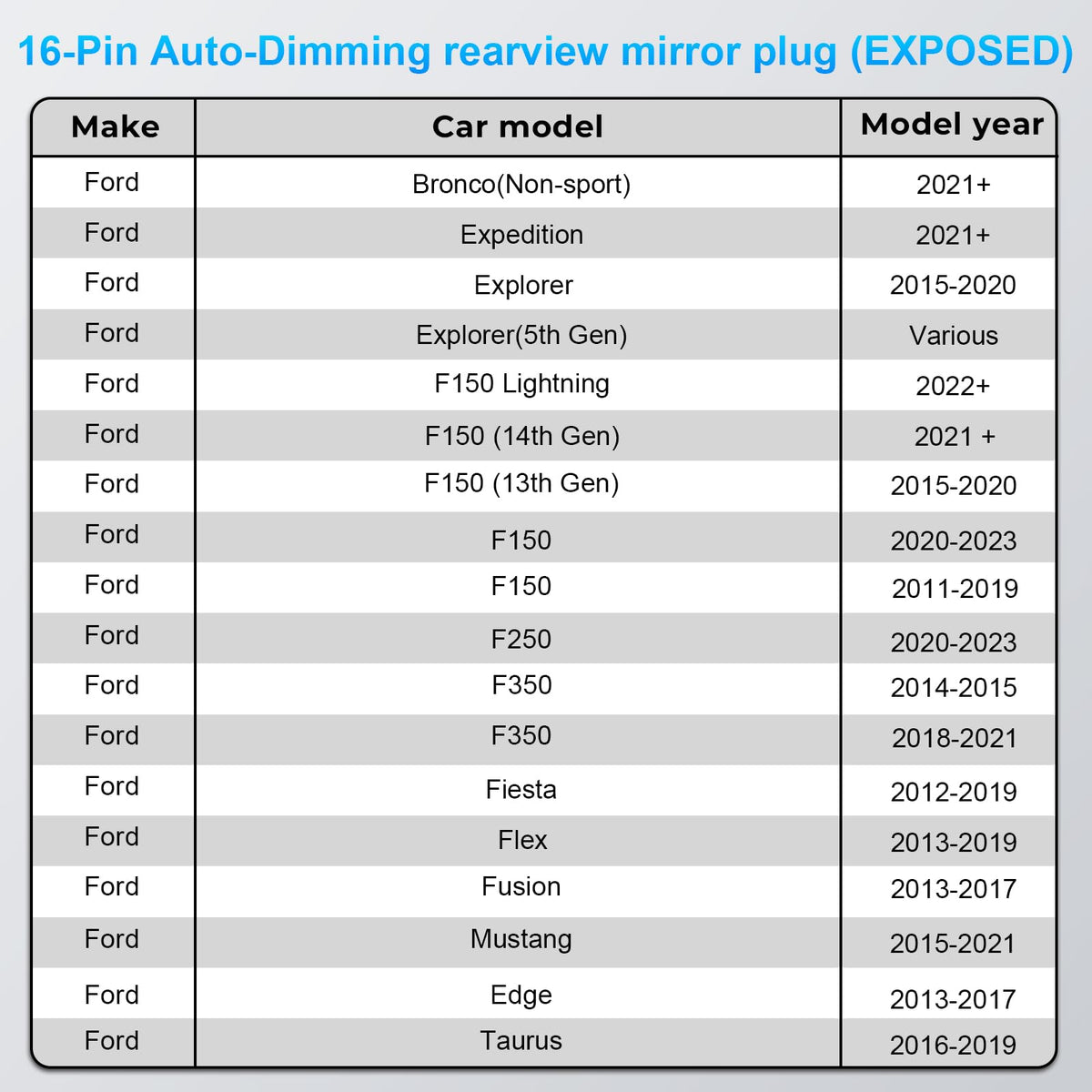

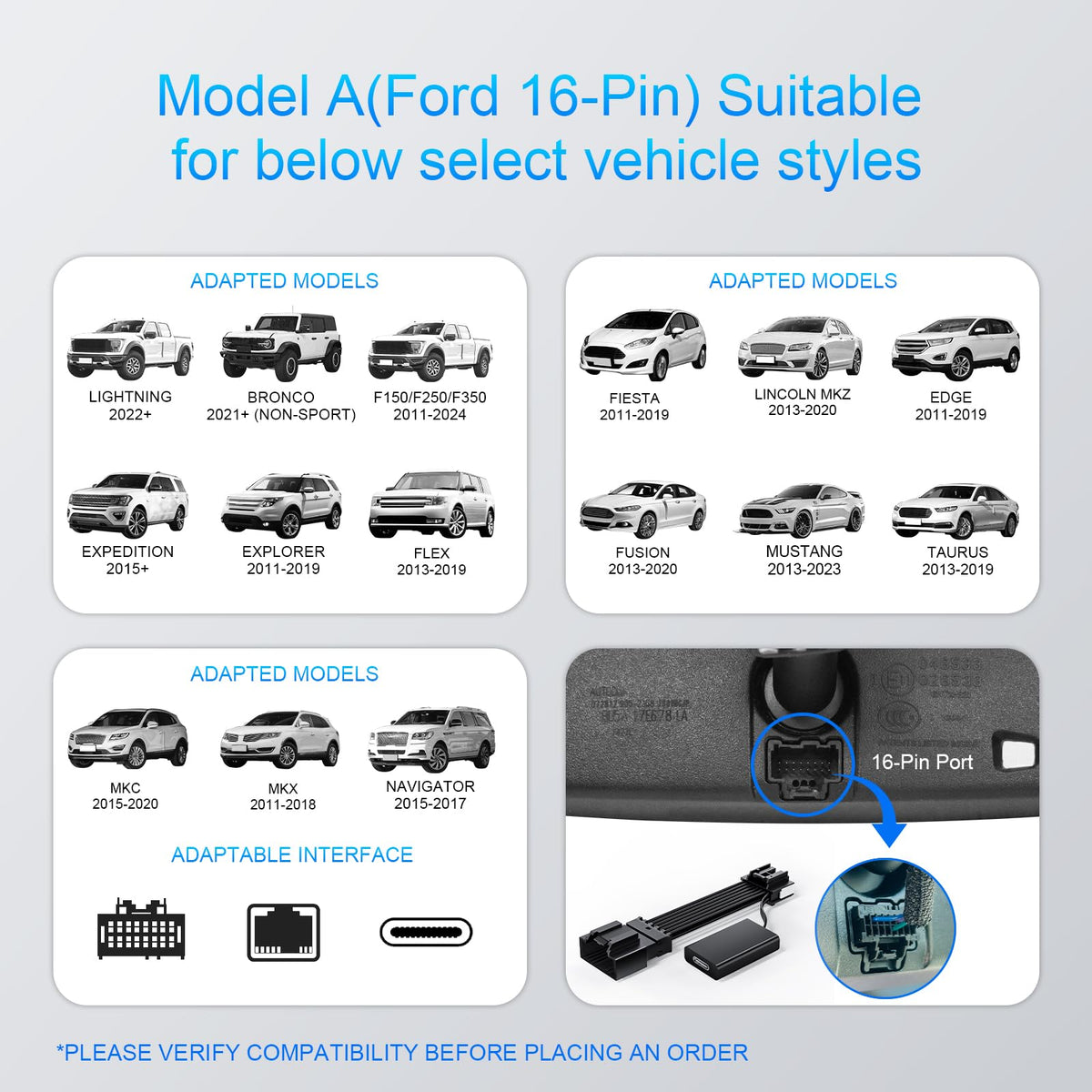

Which Ford and Lincoln models are compatible with this adapter?

This Model A adapter fits many Ford and Lincoln vehicles equipped with a 16‑pin auto‑dimming rearview mirror. Compatibility spans popular trucks, SUVs, and sedans across various years; however, trim differences mean not every listed year automatically qualifies.

• Commonly fits F‑150/F‑250/F‑350 (2011–2024) and F‑150 Lightning (2022+).
• Works with Bronco (2021+ non‑Sport), Explorer (2011–2019), Expedition (2015+), and more.
• Also compatible with Lincoln MKZ, MKC, MKX models when fitted with 16‑pin auto‑dimming mirrors.

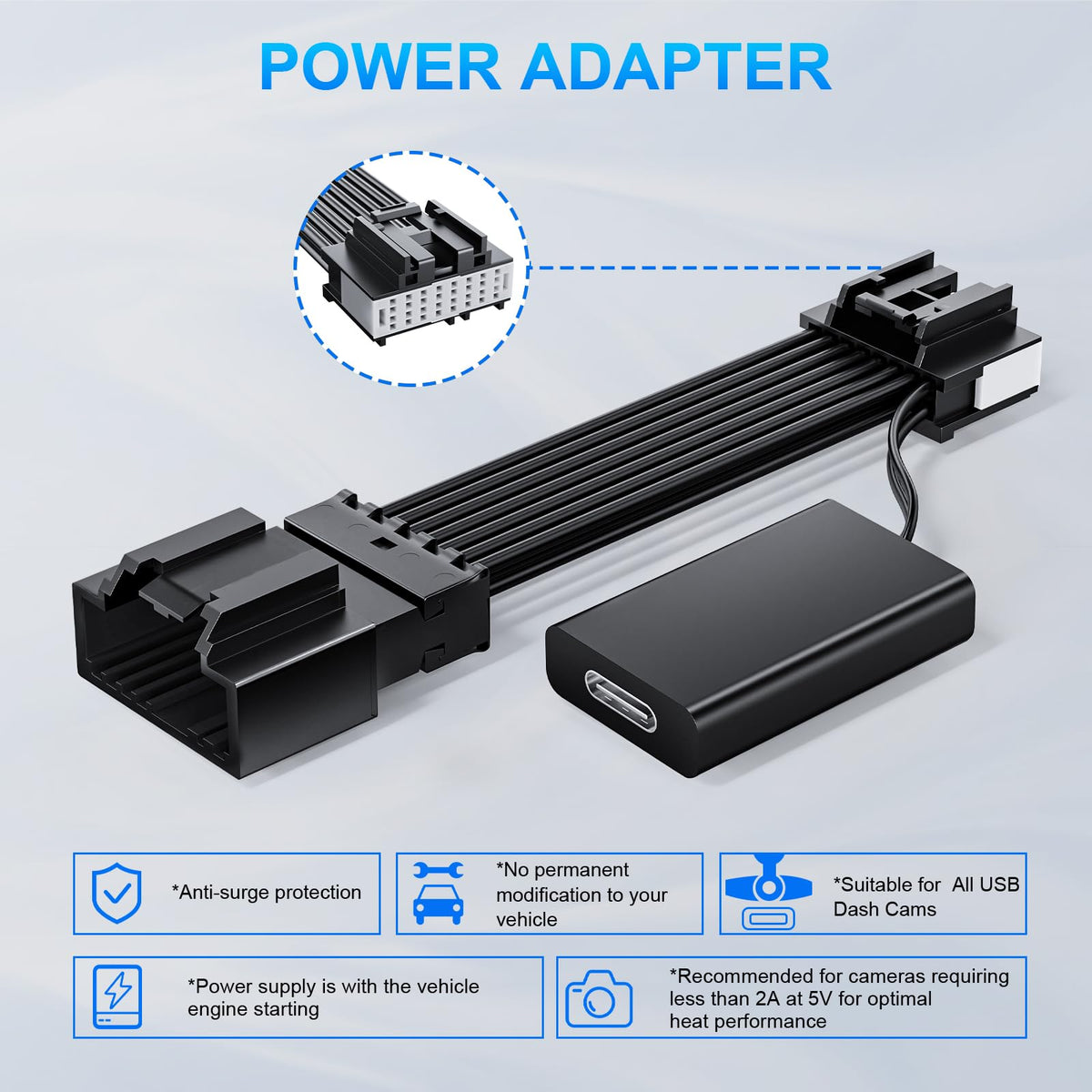

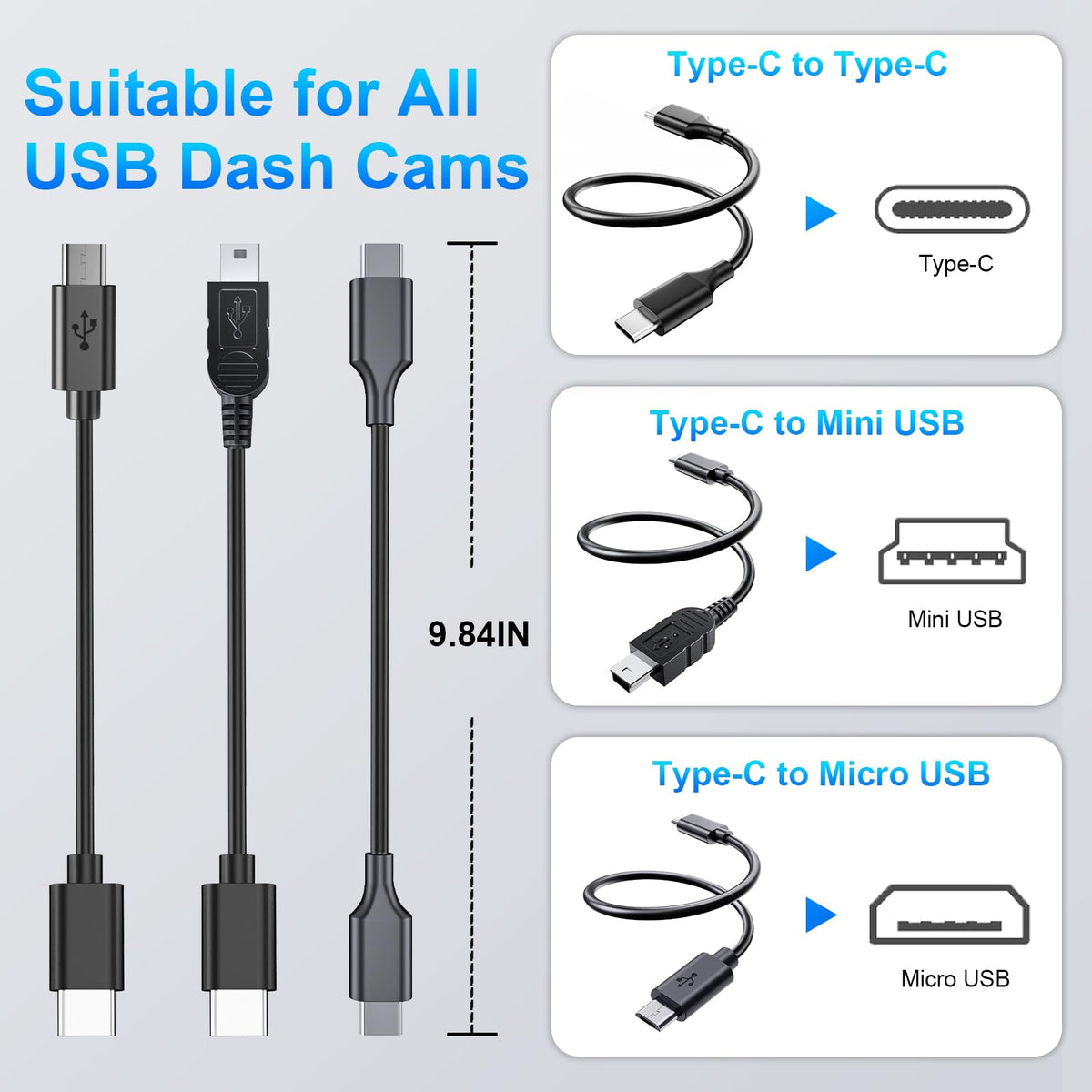

What power outputs and connector types are included, and what should I check?

The kit includes three 5V/2A output cables: Mini‑USB, USB‑C, and Micro‑USB. These cover most dash cameras that accept a USB power input, but the adapter does not supply barrel jack or RJ11 connectors—so verify your camera’s plug and current draw before installing.

• Three outputs: Mini‑USB, Type‑C, Micro‑USB — each at 5V/2A.
• Not compatible with barrel‑style or RJ11 dash cams; check connector type first.
• Devices must accept 5V input and draw under 2A to avoid overheating or instability.

Will this adapter support parking mode or power when the car is off?

No — this adapter is keyed to the vehicle ignition and supplies power only while the engine or accessory power is on. It is intended for standard driving use and does not provide a continuous 12V feed required for many parking‑monitoring setups.

• Powers dashcams automatically with the vehicle’s ignition on.
• Stops supplying power when the car is turned off—no parking‑mode support.
• Use a dedicated hardwire kit or external battery pack for 24/7 recording needs.

Who is this for? Installers, DIY vehicle owners, and anyone wanting a clean, factory‑style dashcam power solution for compatible Ford and Lincoln vehicles will benefit from mangoal’s 16‑pin adapter. It’s ideal if you want to hide wires, avoid aftermarket fuse tapping, and power a 5V USB‑based dashcam that only needs power while driving. Before buying, double‑check your mirror port type and your camera’s connector and current requirements to ensure safe, reliable operation.
