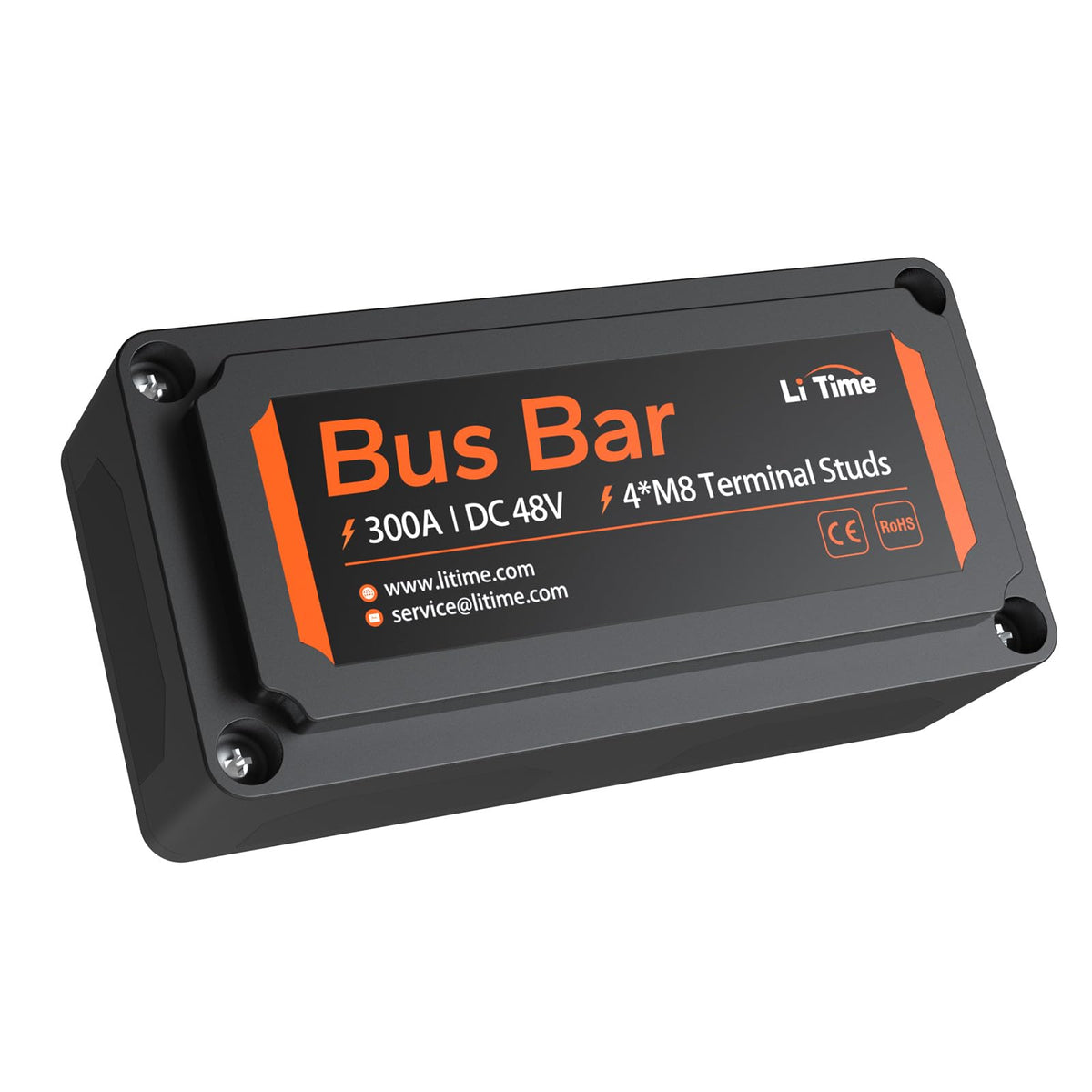

Litime 300A Power Distribution Block 4×M8 Bus Bar

Litime 300A Power Distribution Block is a compact copper bus bar with four M8 terminal posts designed to split a single DC input into four high-current outputs up to 48V and 300A.

This heavy-duty distribution block organizes and protects main power feeds in vehicles, RVs, off-grid solar setups, and other 12–48V electrical systems. Made from conductive copper with a durable black housing, it provides a neat, low-resistance junction point for batteries, inverters, fuse links or shunt installations. The unit focuses on reliable electrical routing rather than waterproofing—install it in dry, protected locations.

How does this bus bar simplify wiring in an RV or car?

The Litime bus bar centralizes a primary positive or negative connection so multiple circuits can be run from one strong feed without messy custom splices. Its four M8 studs accept ring terminals or heavy-gauge lugs and let you attach battery, inverter, charger, and accessory feeds cleanly. Using a dedicated distribution block reduces voltage drop and clarifies troubleshooting points for maintenance.

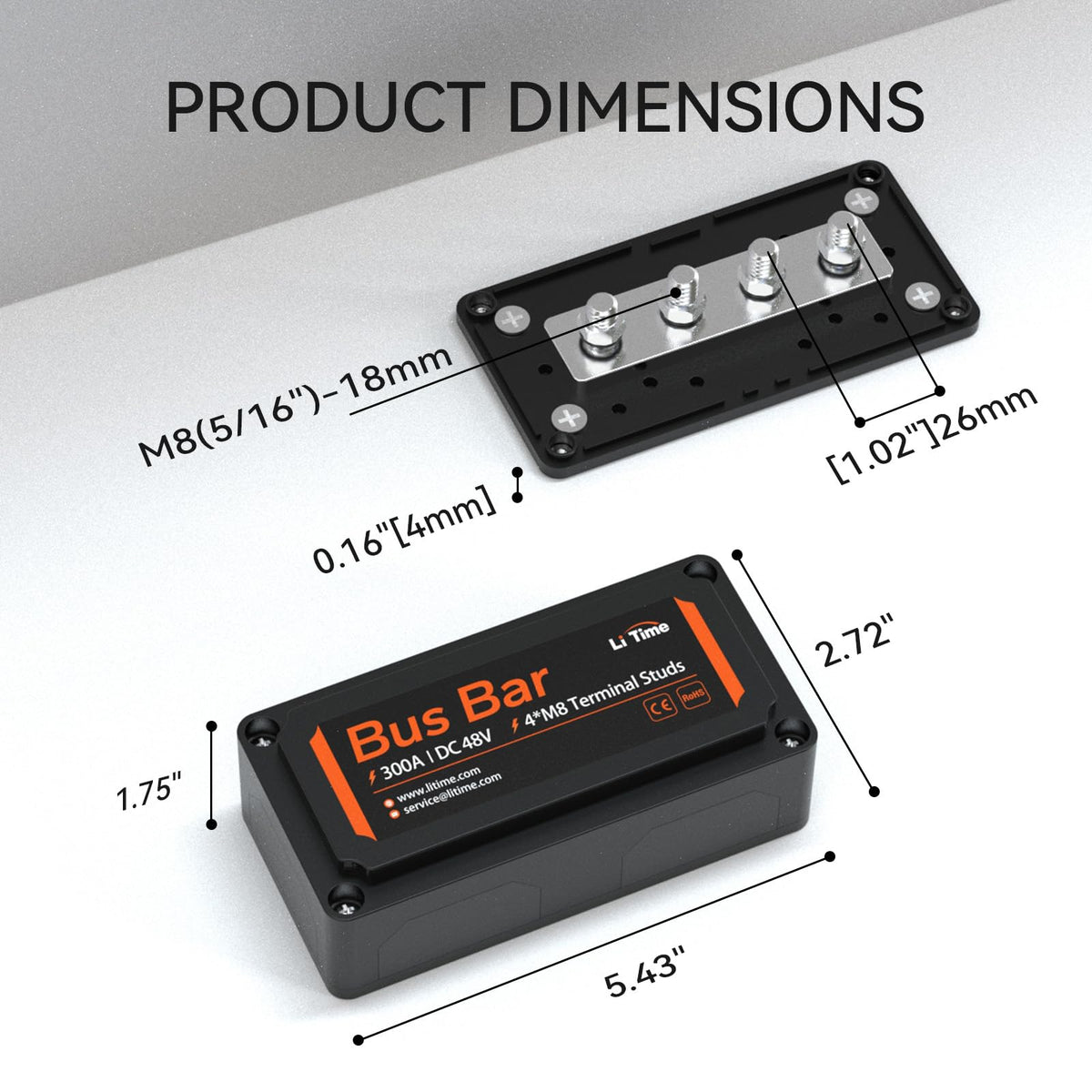

• Four M8 terminal posts for multiple heavy-gauge connections
• Copper conductor for low resistance and steady current flow
• Works with 12–48V systems, up to 300A continuous
• Neat mounting reduces bundle clutter and simplifies servicing

Is this suitable for solar battery banks or inverters?

Yes—the block supports DC systems up to 48V and 300A, making it compatible with many off-grid inverters, charge controllers and LiFePO4 battery banks. It provides a simple junction for parallel or combinational connections when you need a centralized positive or negative distribution point. However, it is not designed as a weatherproof or marine-grade component, so use it inside an enclosure or a dry compartment.

• Rated for DC 48V and continuous 300A load handling
• Ideal as a distribution point for battery bank or inverter feeds
• Mount indoors or inside a weatherproof electrical box
• Not water-resistant—avoid exposed marine installations

What are the installation and safety considerations?

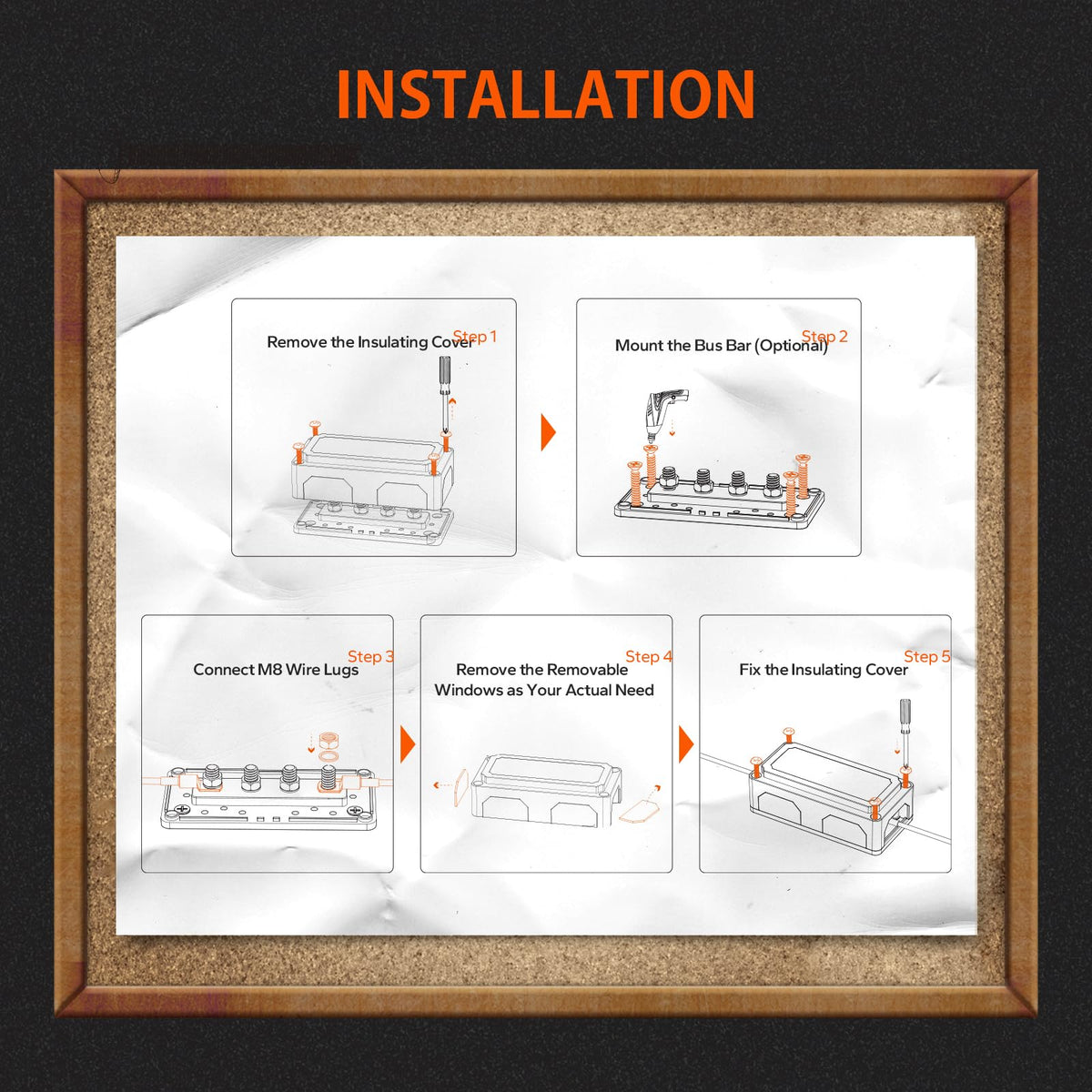

Install on a stable, non-conductive surface and secure the block with the provided mounting holes to prevent vibration loosening. Use appropriately sized ring terminals and torque M8 nuts to the manufacturer’s recommended specifications to ensure solid connections. Add fuses or circuit breakers on each outgoing feed to protect wiring and downstream equipment; the block itself does not include integrated fusing.

• Torque M8 connections to proper specs and use lock washers if needed
• Place inside protected enclosures to prevent moisture exposure
• Combine with fuses or breakers for circuit-level protection
• Check polarity and label terminals to avoid wiring mistakes

How does this compare to buying custom bus bars or fuse panels?

The Litime distribution block is a lower-cost, compact solution when you need a simple junction without integrated fuses or meters. Custom bus bars and full fuse panels add features like individual breakers, monitoring, and waterproof ratings at higher prices and larger footprints. Choose this block when space is limited and you only require a rugged, high-current splitting point that you can combine with external protection and monitoring components.

• Smaller footprint and lower cost than full fuse panels
• Better conductivity than many stamped or plated alternatives
• Requires separate protective devices and enclosures for full system safety
• Flexible placement when paired with a suitable housing

Who is this for: The Litime 300A Power Distribution Block suits DIYers, installers and technicians wiring cars, RVs, off-grid solar systems, and small commercial electrical setups that need a dependable central power junction. Pick this product when you require a high-current copper bus bar with multiple heavy-gauge posts, and plan to mount it in a dry, protected enclosure with separate fusing and monitoring for a complete, safe system.
