LIEBMAYA Trunk Handle Backup Camera for BMW E Series

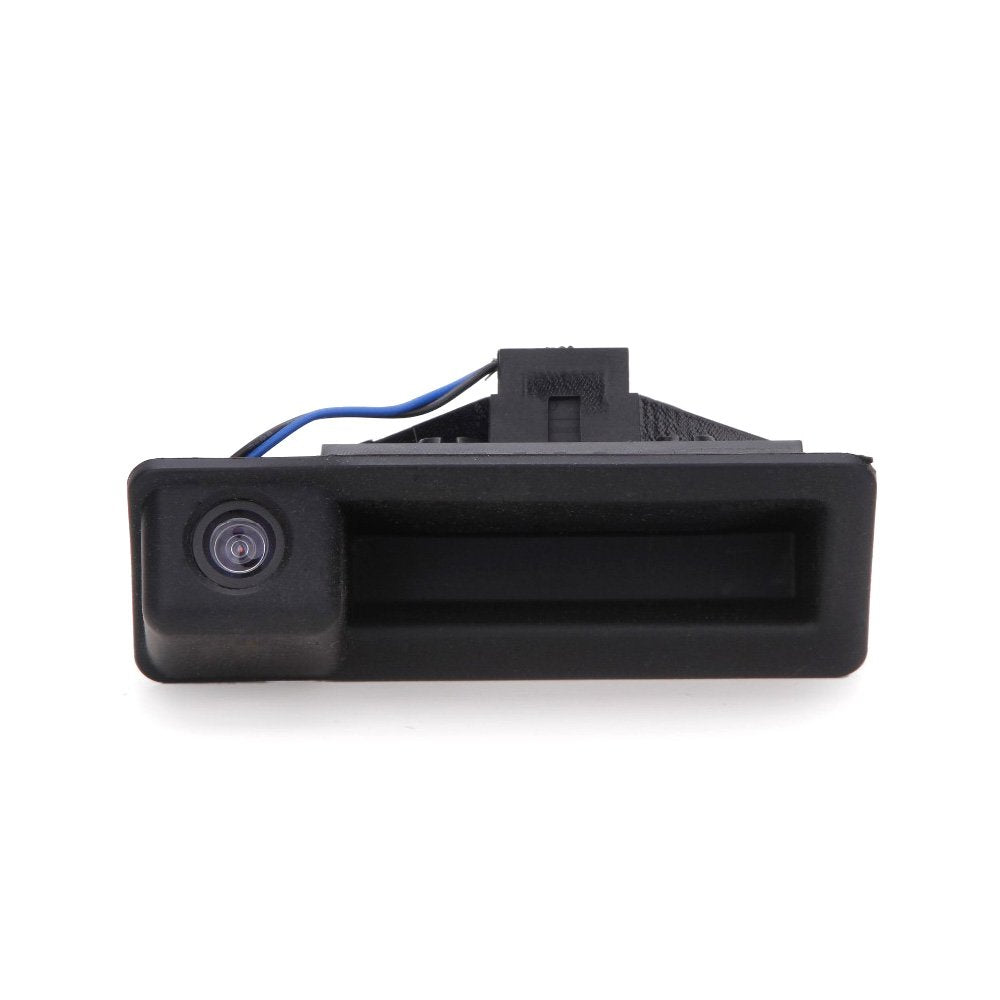

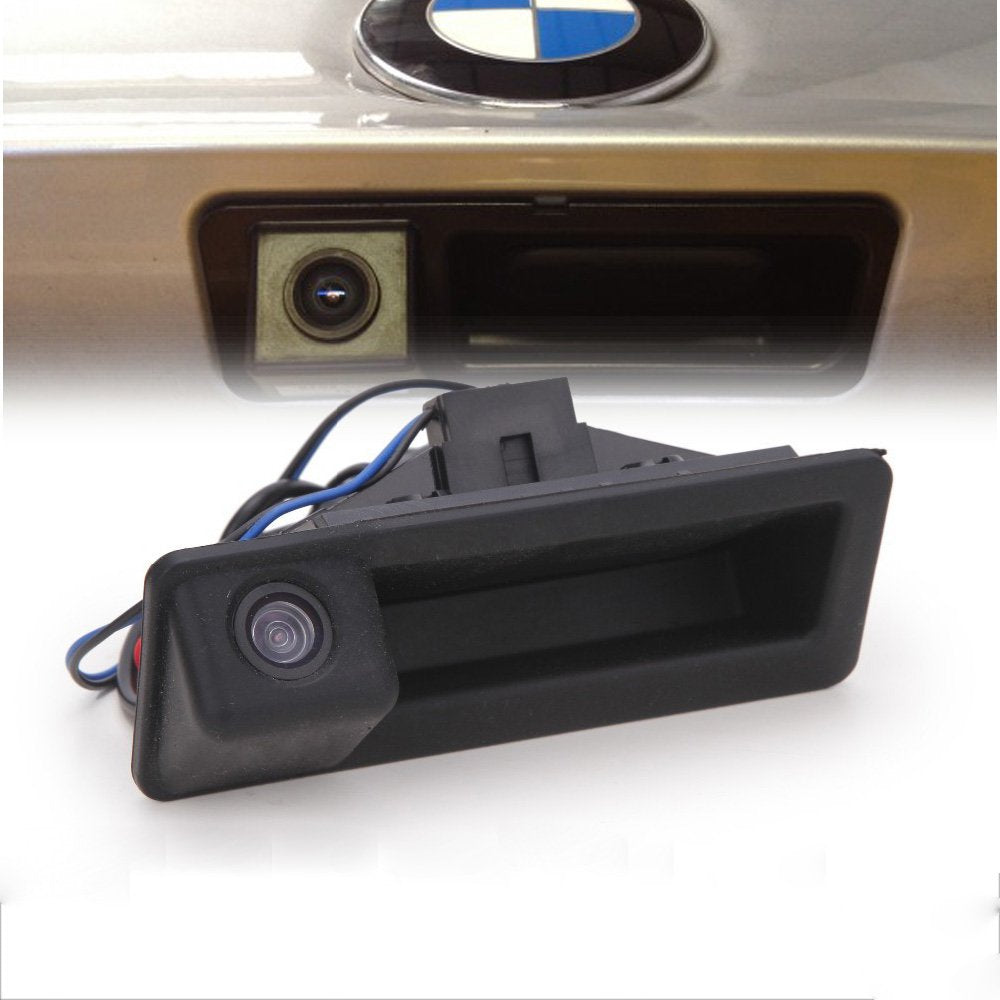

LIEBMAYA’s trunk-handle backup camera is a plug-and-play replacement handle with a 170° HD CMOS camera designed to restore rearview video and parking guidance for compatible BMW models.

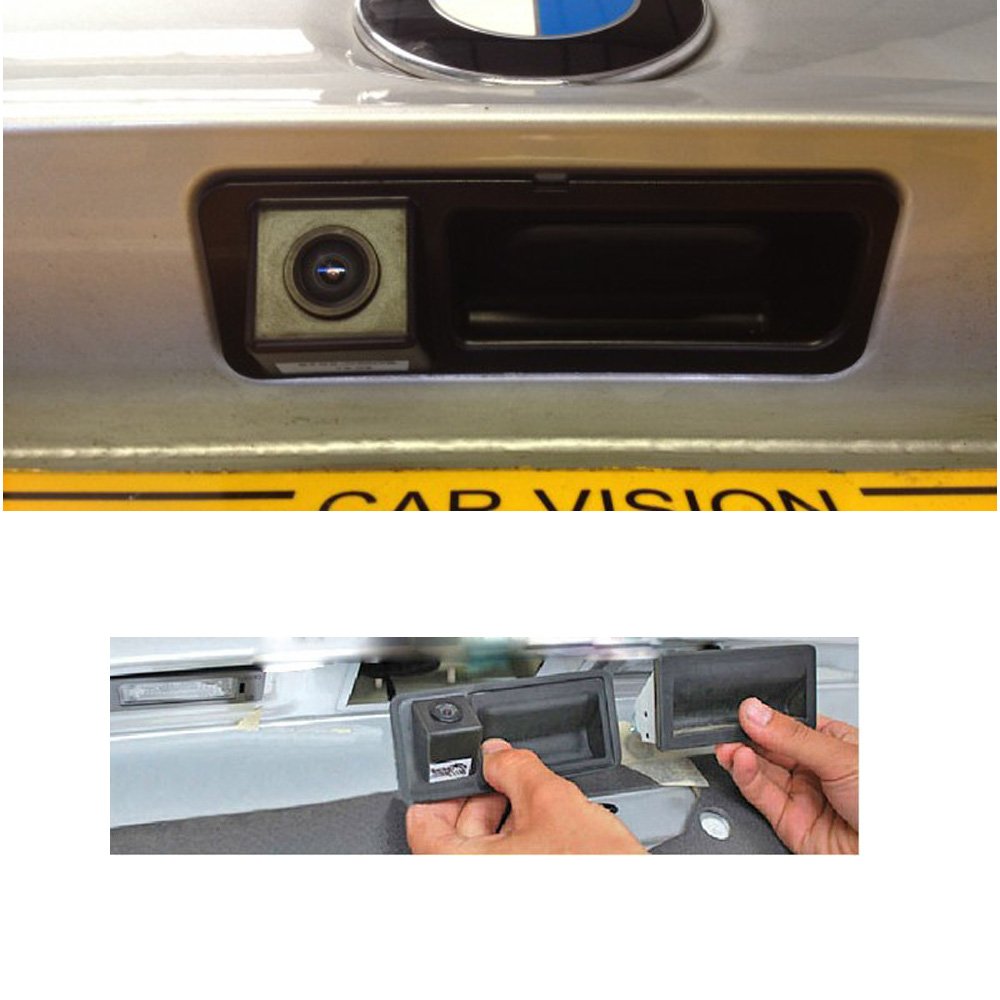

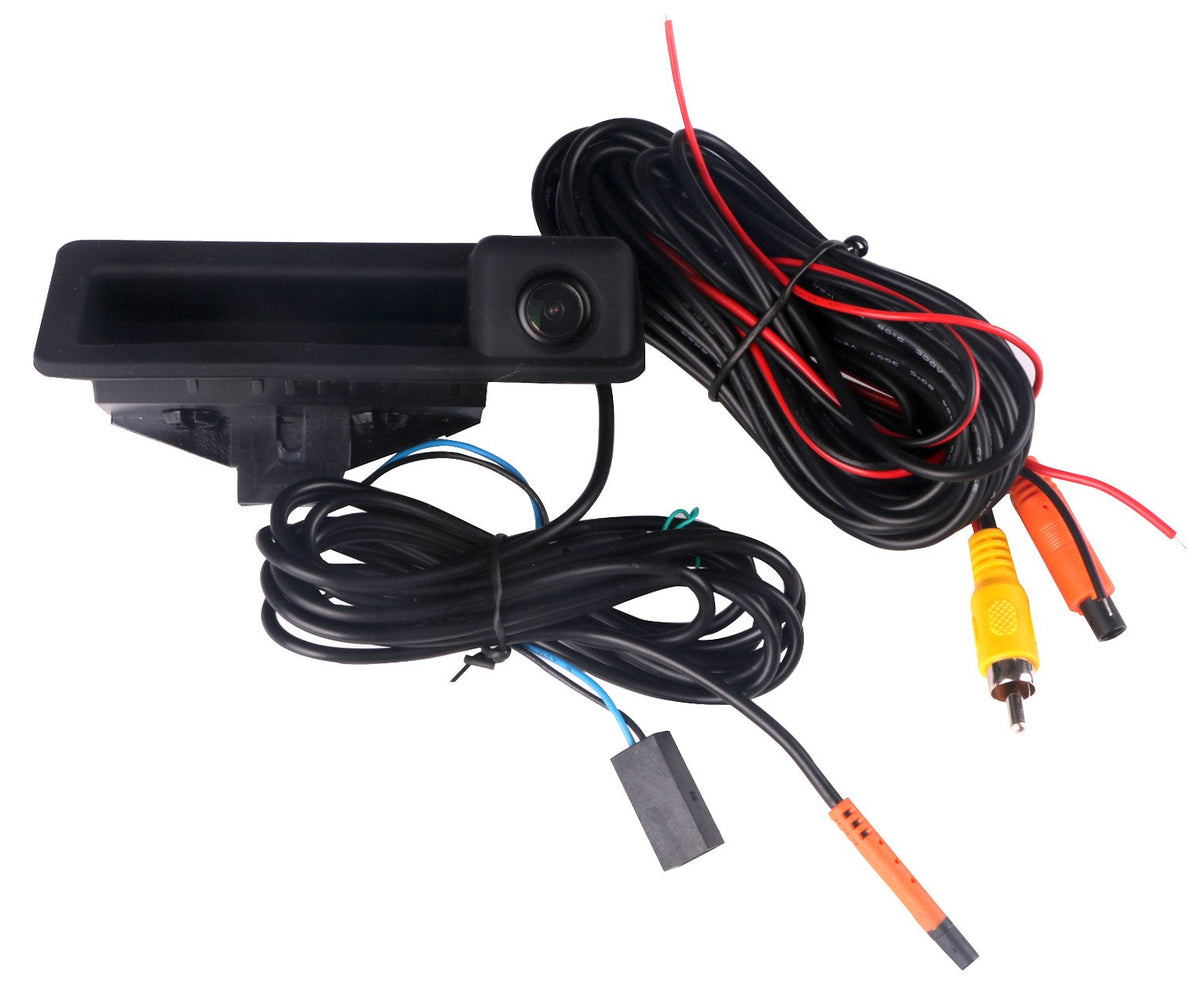

If your BMW’s factory handle-camera is missing, damaged or your aftermarket screen accepts RCA input, this LIEBMAYA unit replaces the trunk handle and provides a wide-angle NTSC video feed, night-capable imaging and IP67 weather protection. The assembly includes a 6 m cable, distance guideline wiring and a physical handle sized to match many BMW 1, 3, 5 and X-series trunk handles. It’s a practical way to add or repair a rear view camera without altering the original trunk appearance.

Will this camera fit my BMW trunk handle?

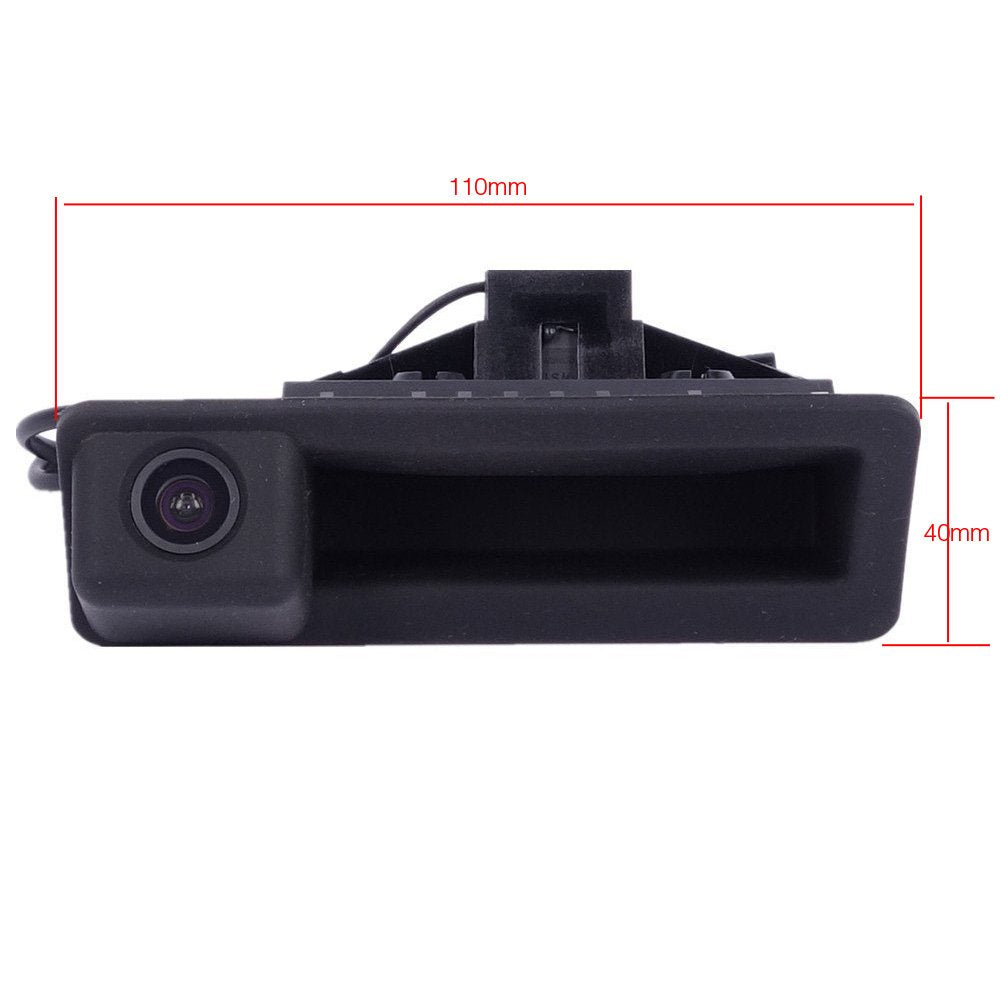

Measure the existing handle area first: the LIEBMAYA handle camera measures approximately 110 mm x 40 mm. It’s model-specific and fits many BMW E60/E61, E90–E93, E70/E71/E72, E82/E88 and E84 variants, but will not fit vehicles with certain factory navigation modules (CIC/CCC) that lack an RCA camera input.

• Physical size: 110 mm x 40 mm — confirm with a ruler before ordering.
• Compatible models: 1, 3, 5 Series and X1/X5/X6 ranges listed in the product details.
• Not compatible with CIC/CCC BMW factory nav systems without RCA input.
• Designed as a direct handle replacement for matching trunk handle cutouts.

How do I connect the camera to my car’s system?

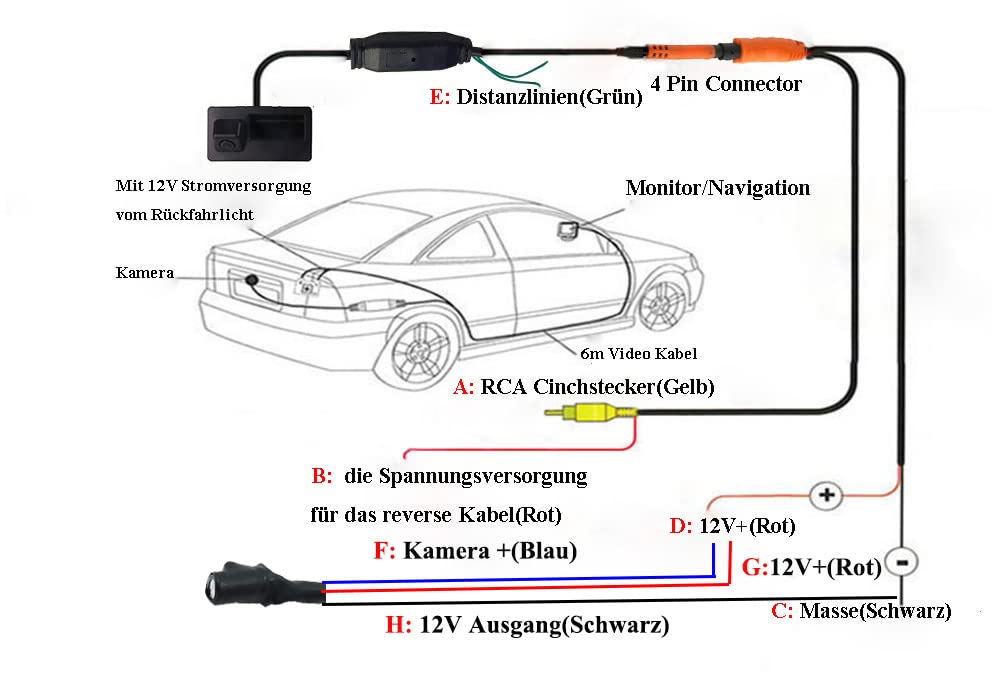

Connection uses a standard yellow RCA video plug for the screen and a set of colored wires for power, ground and optional features. If your radio or display has an RCA "Camera In" socket the camera will work; some factory systems require an additional reverse trigger wire to switch the display automatically.

• Yellow RCA: video output to monitor or head unit.
• Red/black: power and ground connections; black to chassis ground.
• Small red with RCA: reverse trigger for radios without CAN detection.
• Green wire: toggle the distance guide lines on or off by cutting or switching.

What image quality and features does the camera deliver?

The camera uses a CMOS sensor producing 728x512 effective pixels and approximately 480 TVL resolution in NTSC format, offering a wide horizontal view for clearer behind-the-car coverage. It’s rated IP67 for water resistance and has low-light sensitivity to assist during dusk or night-time reversing.

• Sensor: CMOS with night / low-light capability (0.5 lux at F1.2).
• Resolution: 728×512 pixels, 480 TV lines, NTSC system only.
• Field of view: 120°–170° (horizontal ~135°), adjustable mounting angle.
• Weatherproof: IP67 rated for outdoor use and anti-fog resilience.

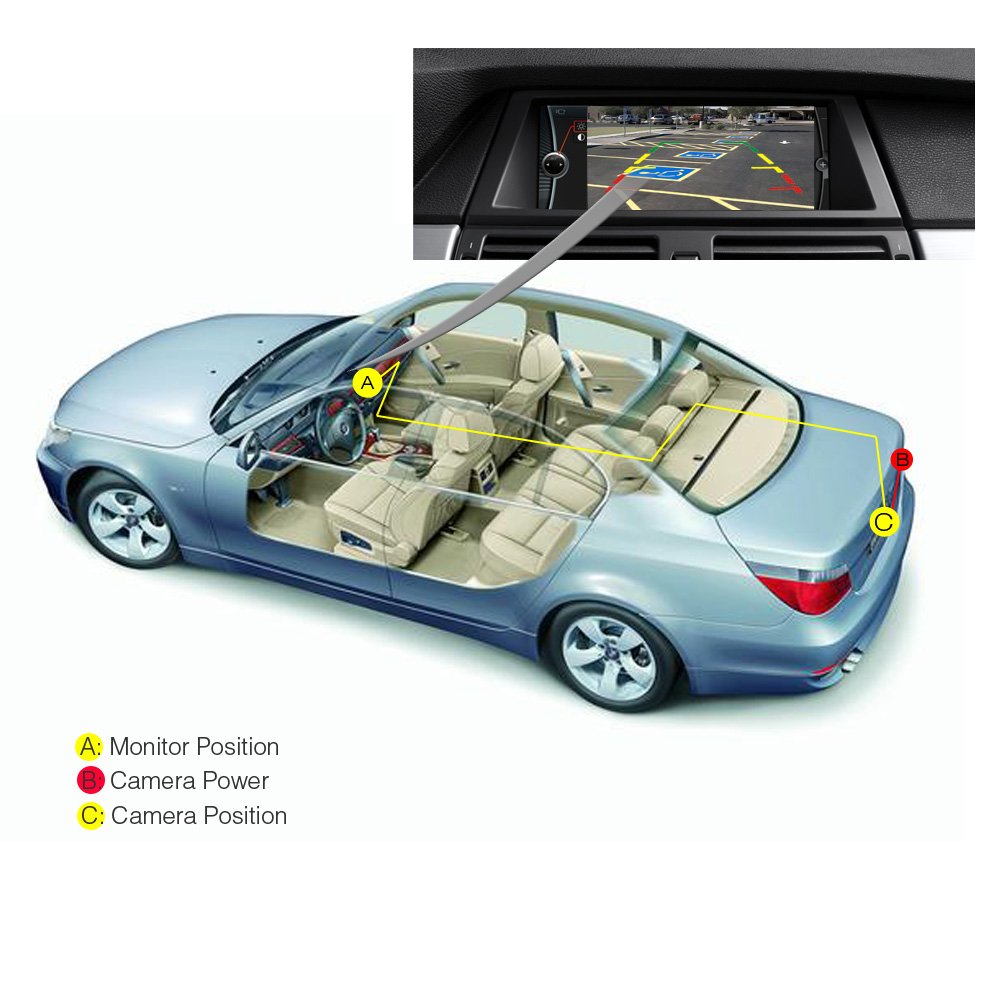

Can I keep or remove the distance guide lines?

Yes — the camera is shipped with distance scale lines enabled by default. If you prefer a raw video feed without the overlay, the green wires provided allow you to disable the guidelines easily.

• Default: distance lines visible when installed as supplied.
• To remove: cut the green cable to disable the guide lines.
• Switch option: some installs include a connector to toggle guides or trunk-lid switch behavior.
• Guides are simple overlays and do not replace careful visual checks.

Who is this for: This LIEBMAYA trunk-handle backup camera is intended for BMW owners who need a direct replacement handle with an integrated camera or want to add a wired RCA rear camera to an aftermarket monitor. It suits DIY installers and professional fitters who can verify trunk handle dimensions, have access to a 12V reverse trigger or CAN detection, and whose display accepts NTSC RCA input. Avoid purchase for vehicles using CIC/CCC factory navigation systems that lack a compatible camera input or when exact handle dimensions differ from the stated size.
