Kymate 30A 6‑Pin 12AWG DC Power Cable for Mobile Radios

Kymate's 30A 6-pin DC power cable delivers a safe, high-current connection for mobile and base transceivers from ICOM, Yaesu, Kenwood and Alinco.

This heavy-duty power cord is built with 12AWG conductors and high-temperature fluororesin (FEP) insulation to support continuous currents up to 30 amps while remaining flexible and flame-resistant. At about 100 cm long, the assembly includes an inline 30A fuse and a molded 6-pin radio plug designed to match a wide range of popular amateur and commercial transceivers. The cable balances low loss, mechanical durability and safety features so you can power radios confidently in mobile, field or station setups.

Which radios are compatible with this Kymate 6-pin power cord?

The cord fits many legacy and current radios from ICOM, Yaesu, Kenwood and Alinco that accept the 6-pin DC plug standard. Check your radio’s manual or the factory connector shape to confirm fit before ordering.

• ICOM models: IC-706 series, IC-718, IC-725A, IC-730/737/738, IC-740/745/751, IC-746/756 and similar OPC-025D compatible units.
• Yaesu: FT-710, FT-840, FT-847, FT-857D, FT-890, FT-891, FT-897D, FT-920 and some FT-series transceivers.
• KENWOOD: TS-50s, TS-60s, TS-120/130, TS-140s and many TS-series portables and base units (PG-2Z compatible).
• Alinco: DX-70, DX-77 and comparable mobile transceivers accepting the same 6-pin interface.

How does the cable protect equipment during faults or overloads?

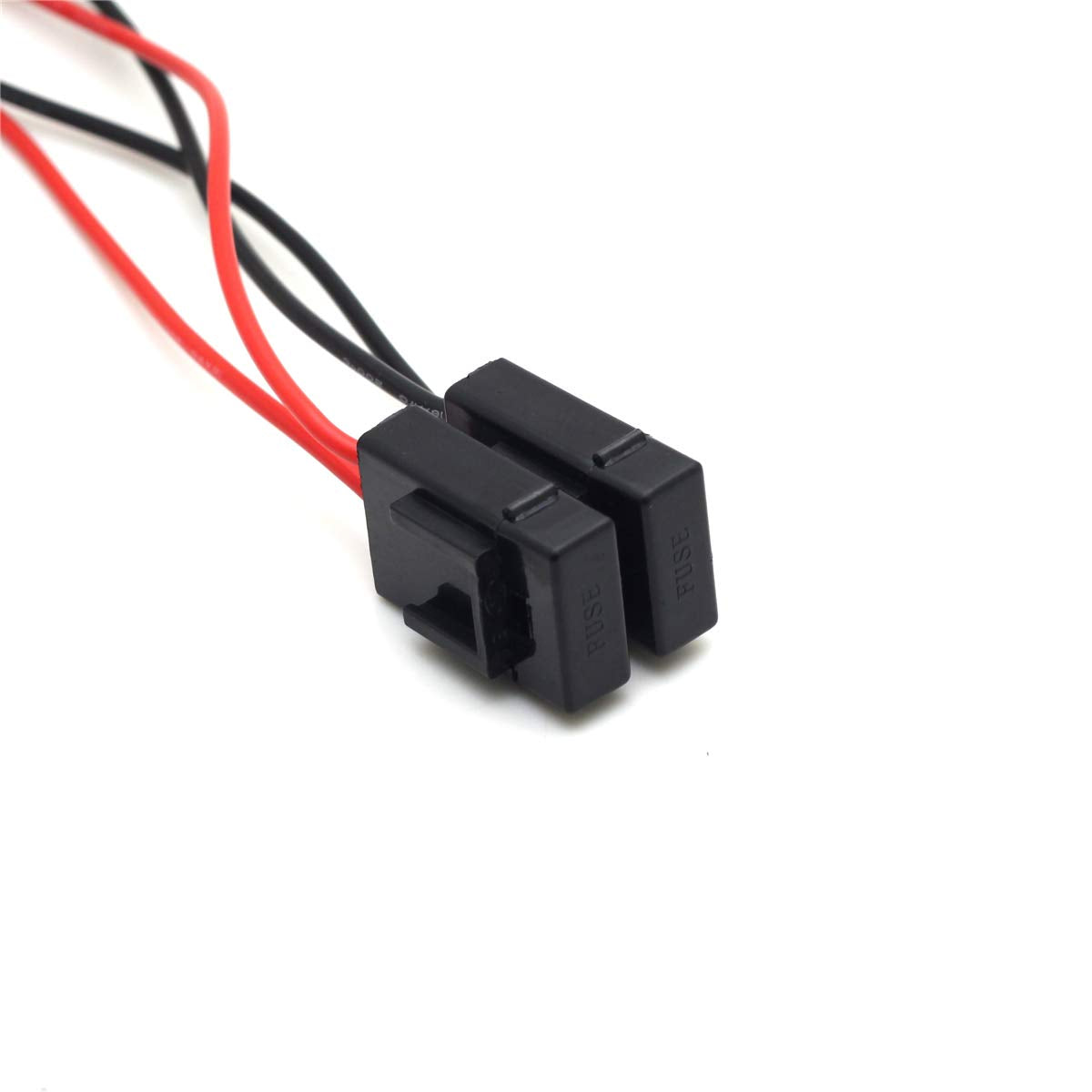

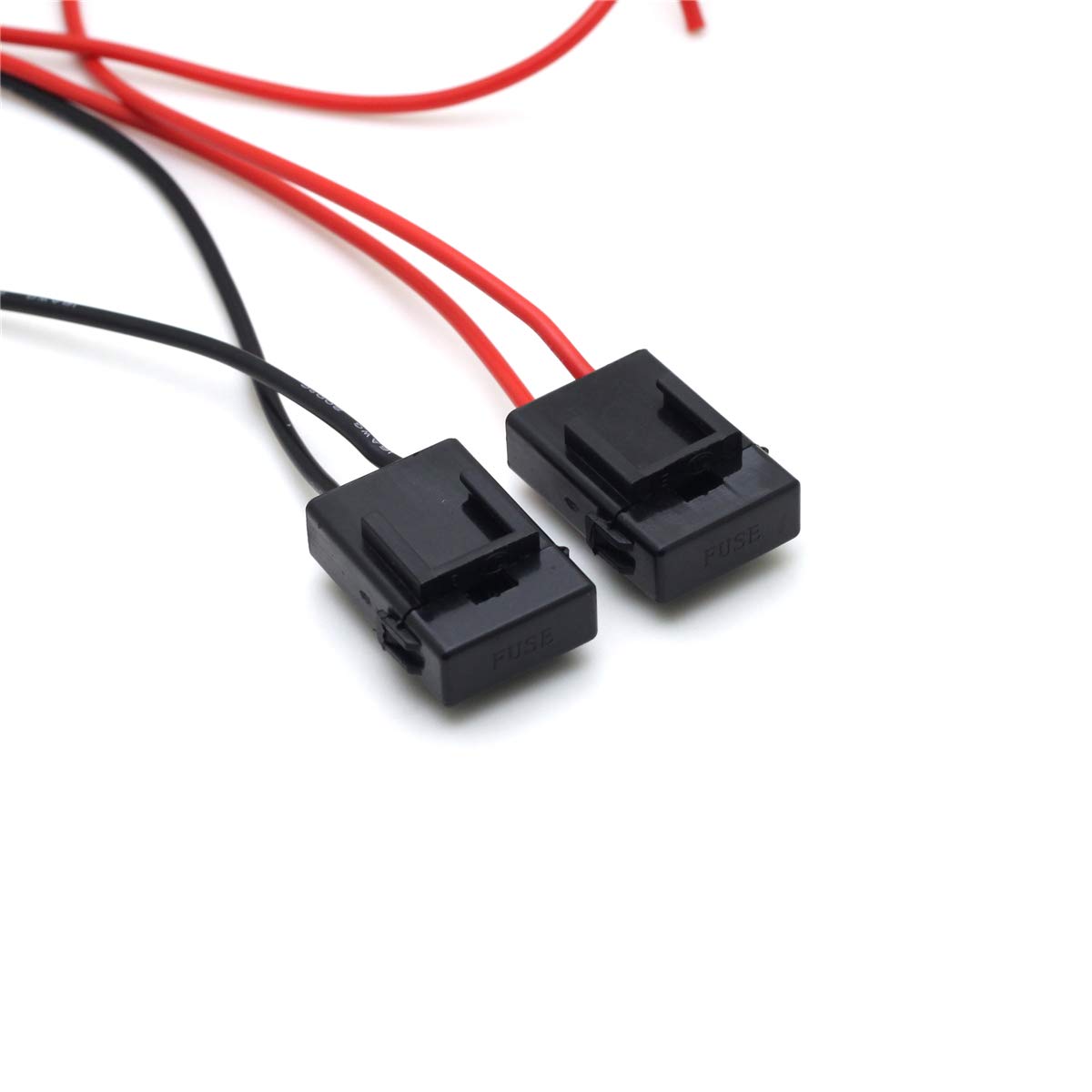

The in-line 30A fuse interrupts excessive currents that could otherwise damage your radio or wiring. The fuse sits inside a molded holder so replacement is straightforward without altering the main assembly.

• 30A fuse interrupts overcurrent events to protect radio electronics and vehicle wiring.

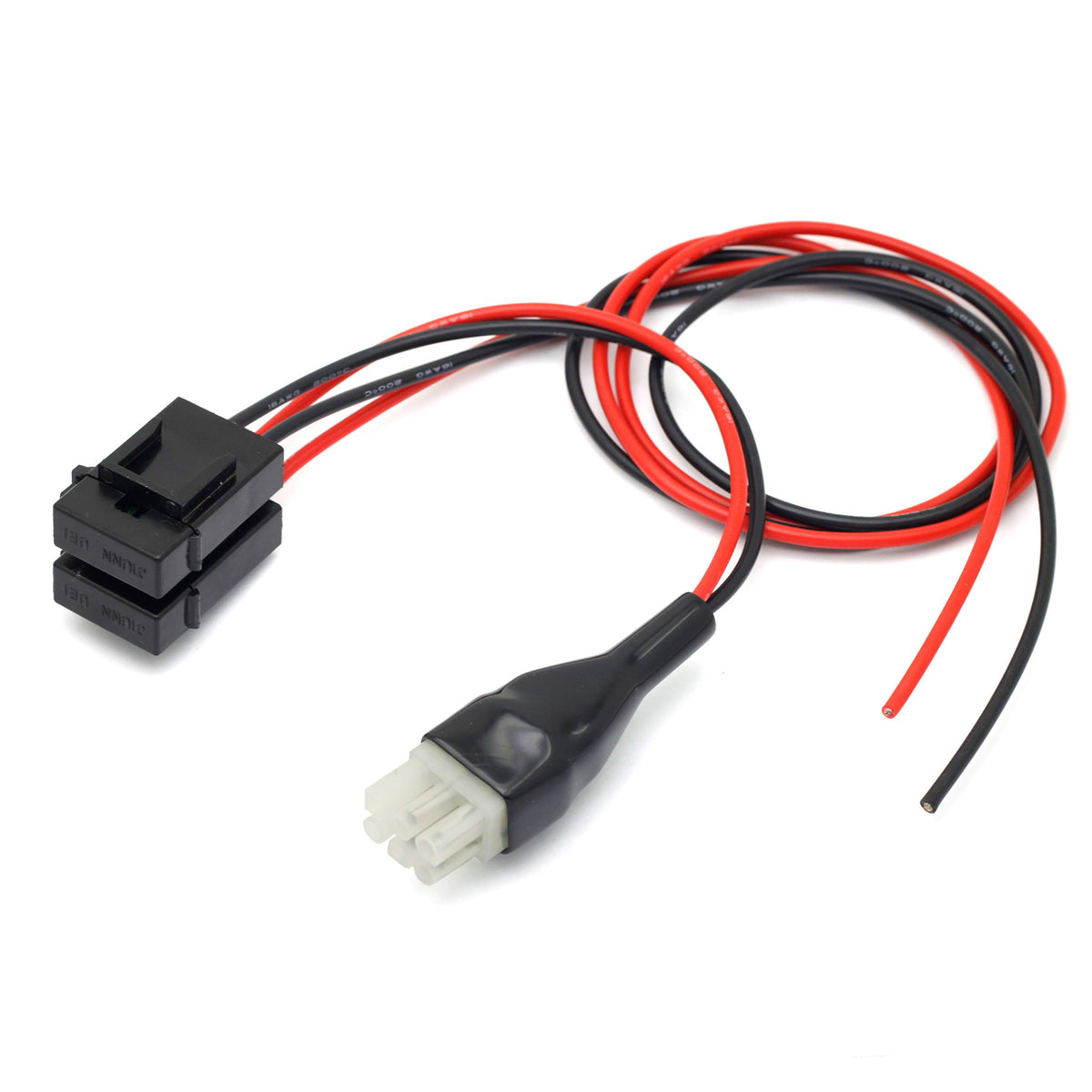

• Molded fuse holder for secure contact and easy fuse replacement.
• High-temperature FEP insulation resists heat and reduces fire risk in fault conditions.
• Heavy 12AWG copper conductors minimize voltage drop under load.

What are the build materials and electrical specs I should know?

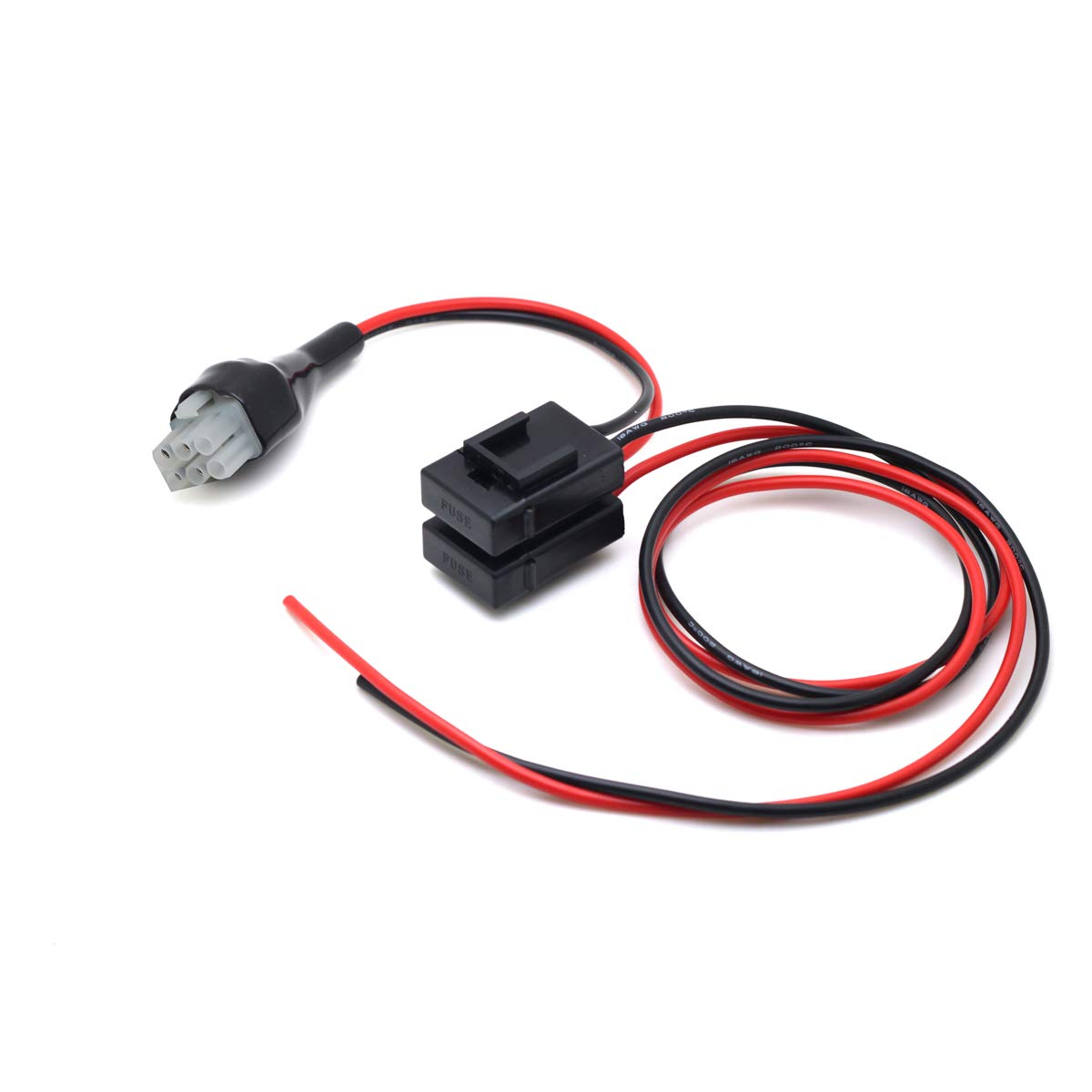

The cable uses 12AWG stranded copper conductors with FEP (fluororesin) insulation that provides excellent heat and flame resistance. The overall length is approximately 100 cm, and the assembly is engineered to carry up to 30 amps continuously when paired with the supplied inline fuse.

• Conductor gauge: 12AWG stranded copper for low resistance and flexibility.
• Insulation: FEP (fluororesin) for high temperature tolerance and flame resistance.
• Fuse rating: 30A inline fuse included; replaceable in molded holder.

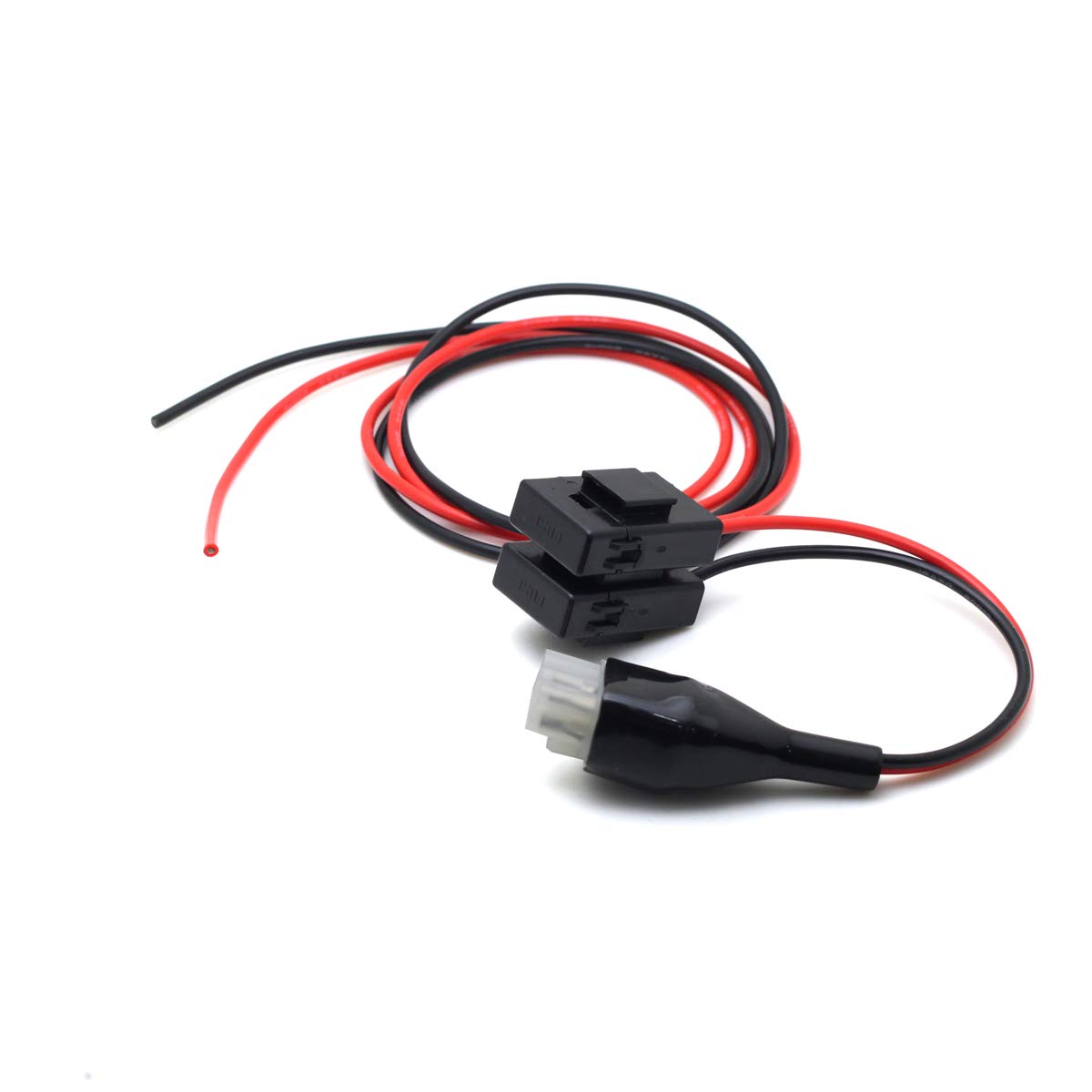

• Length: roughly 100 cm (one meter) for typical mobile and desktop placement.

Will this cable be easy to install in a mobile or base setup?

Yes — the molded 6-pin plug is designed for direct connection to compatible radio DC ports, and the cable’s flexibility makes routing around dashboards or racks straightforward. The included fuse simplifies integration with vehicle power or bench power supplies by providing immediate protection.

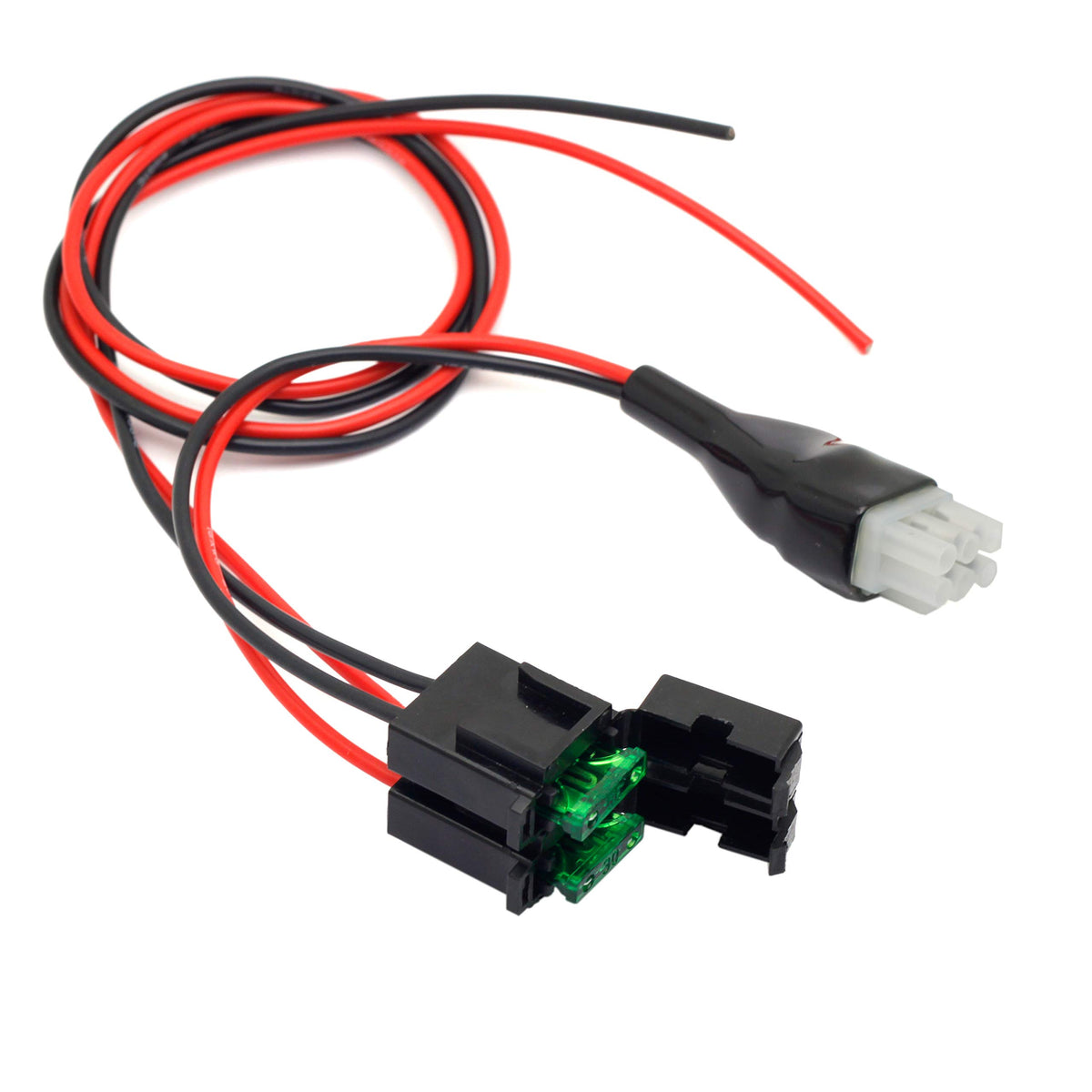

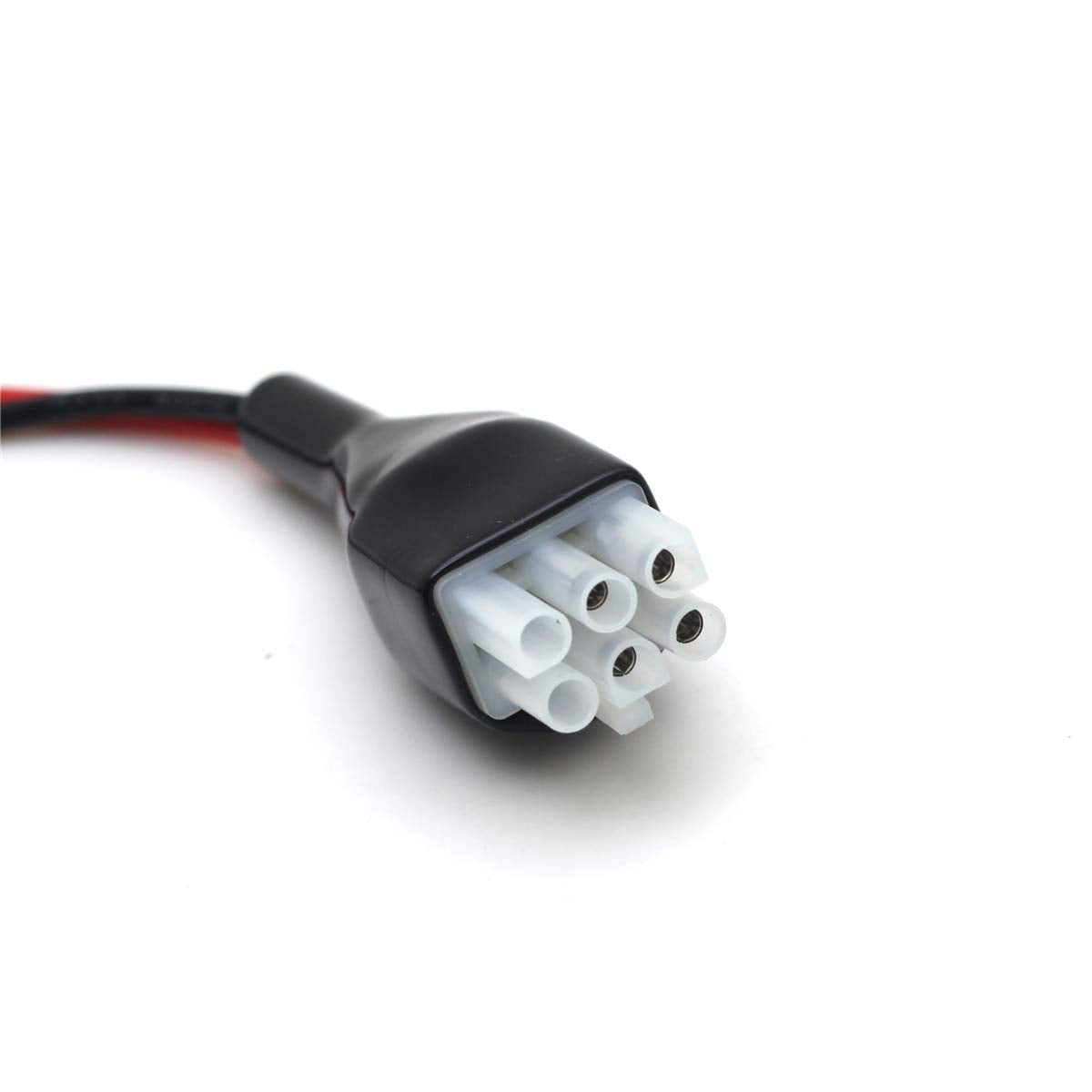

• Molded connector reduces accidental disconnects and ensures correct pin alignment.
• Soft silicone-like FEP jacket eases bends and routing in tight spaces.
• Standard pinout matches many factory radio power sockets for plug-and-play use.
• One-piece cable reduces the number of separate crimps and failure points.

Who this is for: Operators who need a reliable, high-current power lead for mobile or base transceivers — especially hams, club stations or installers using ICOM, Yaesu, Kenwood or Alinco radios — will appreciate the robust 12AWG conductors, thermal-resistant insulation and a replaceable 30A fuse. If you require a meter-long, plug-ready power cord that minimizes voltage drop and adds overcurrent protection, this Kymate cable is a practical, cost-effective choice.
