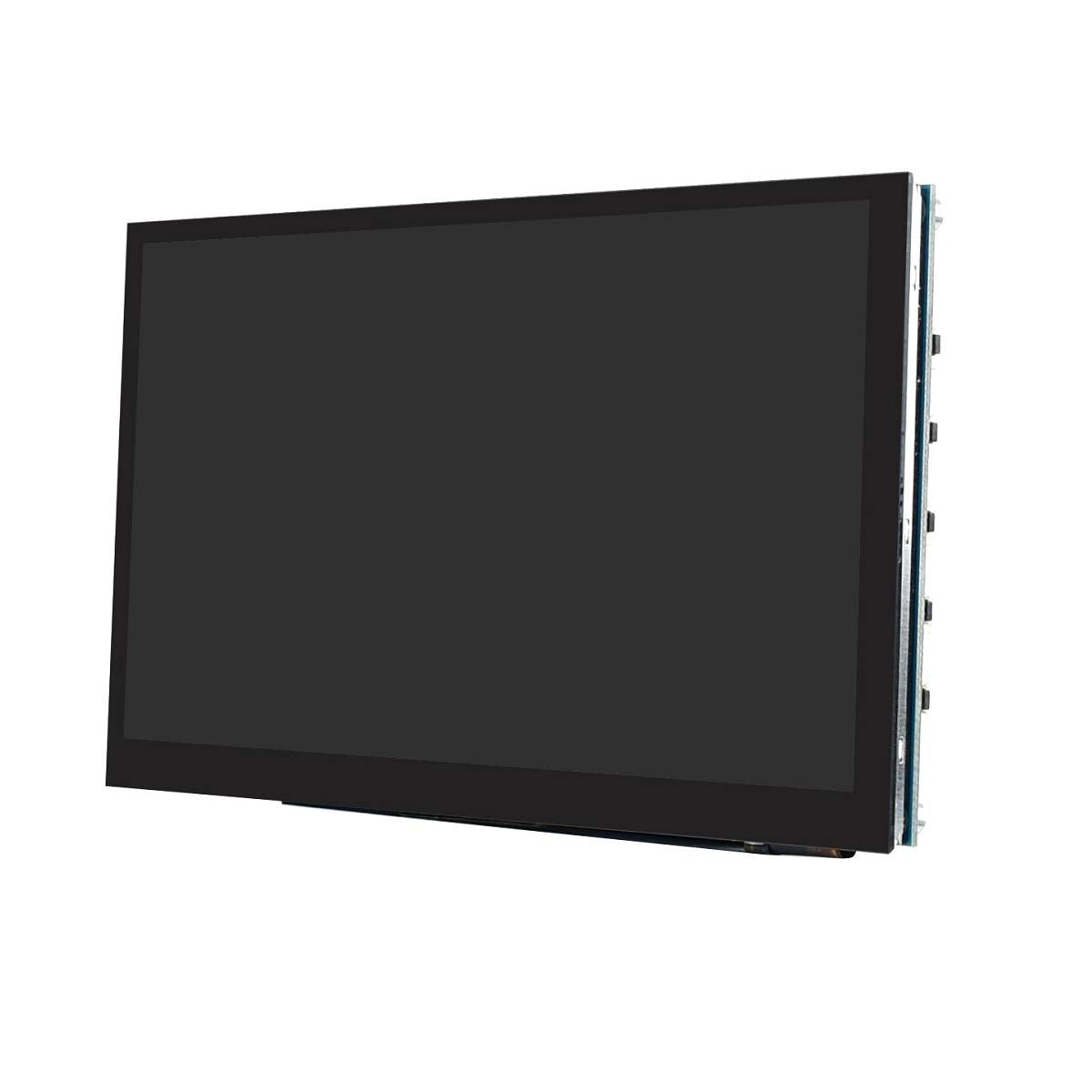

Ingcool 7-inch HDMI Capacitive Touch IPS Display 1024x600

The Ingcool 7-inch HDMI IPS capacitive touch display is a compact, driver-free monitor that delivers 1024×600 hardware resolution with up to five-point touch and wide compatibility with Raspberry Pi, Jetson Nano, and Windows PCs.

This slim HDMI screen combines an IPS panel, capacitive multi-touch, and an on-screen menu for brightness, contrast and audio controls. Designed as a secondary monitor or a compact primary display for projects, it supports common single-board computers and desktop PCs with minimal setup. The module includes HDMI and USB cabling plus a bracket so you can mount or position it quickly.

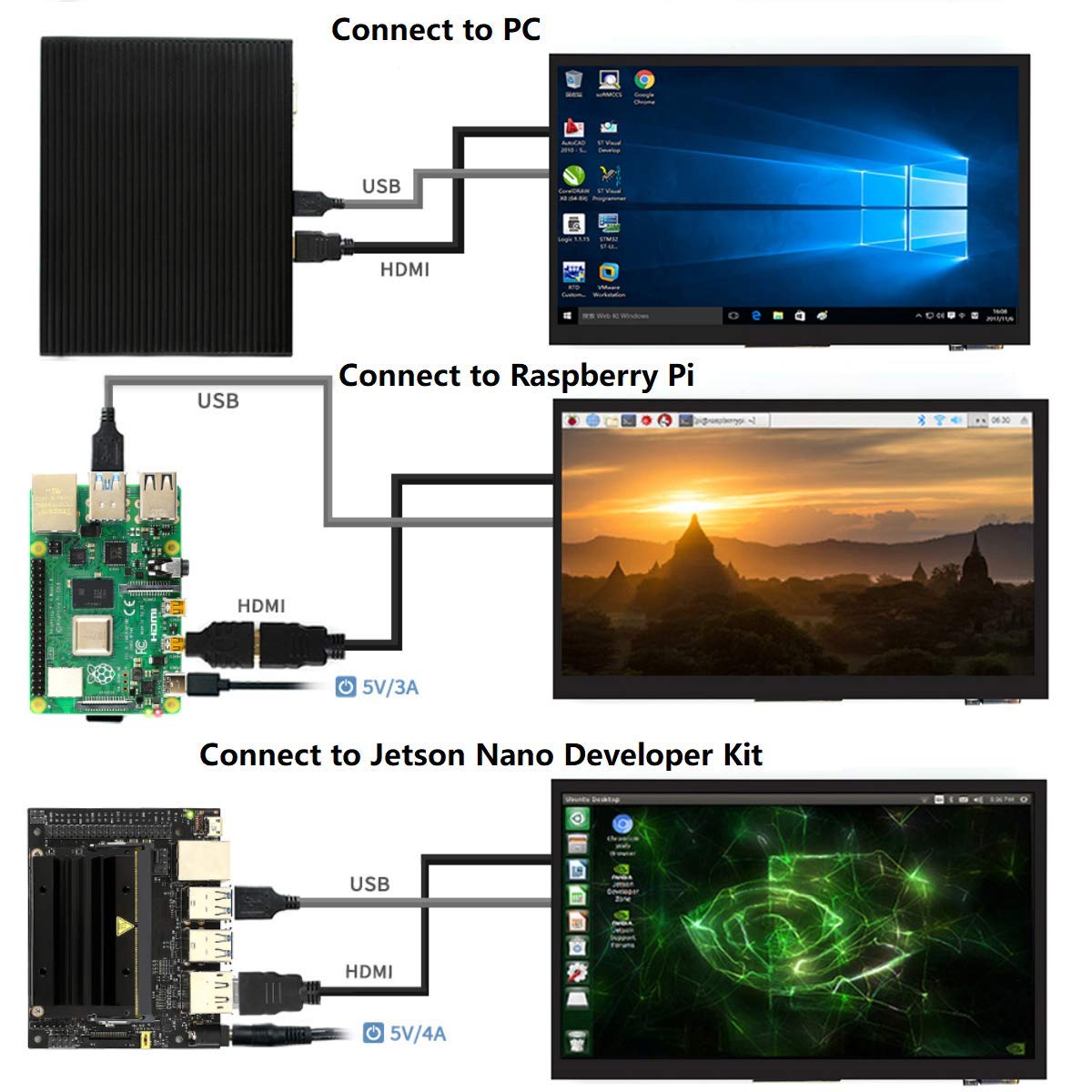

How easy is it to connect this display to a Windows PC?

Very straightforward — the display works driver-free on Windows 7/8/8.1/10 and supports five-point capacitive touch without additional drivers. Plug the HDMI for video and the USB for touch and power; in some PCs you may need to set the Ingcool display as the main monitor if multiple screens are attached.

• Driver-free plug-and-play for Windows 7/8/8.1/10
• HDMI for video, USB for touch (and optional 5V power)
• Set as main display if multiple monitors are present
• Use external 5V adapter if USB port cannot supply enough power

Can I use this screen with Raspberry Pi or other mini PCs?

The Ingcool display is built for single-board computers including Raspberry Pi series and supports Raspbian, Ubuntu, Kali, RetroPie and Windows 10 IoT. Most Pi operating systems provide single-point touch by default; some apps or systems may unlock multi-touch functionality.

• Compatible with Raspberry Pi 4/3/2/1 B, B+, A+
• Supports Raspbian, Ubuntu, Kali, RetroPie, WIN10 IoT
• Manual resolution configuration may be required on Raspberry Pi
• Up to 5-point touch supported by some OS/software

What features help image and audio control on this module?

The panel uses an IPS matrix for wide viewing angles and accurate colors at a 1024×600 native resolution, while software can scale to higher resolutions up to 1920×1080. An on-screen display (OSD) adjusts brightness, contrast and volume, and a 3.5mm jack supports HDMI audio output.

• 7" IPS panel for consistent color and viewing angles
• Hardware resolution 1024×600; software scaling up to 1920×1080
• OSD menu for brightness, contrast, volume adjustments
• 3.5mm headphone jack for HDMI audio passthrough

What comes in the box and how is the screen powered?

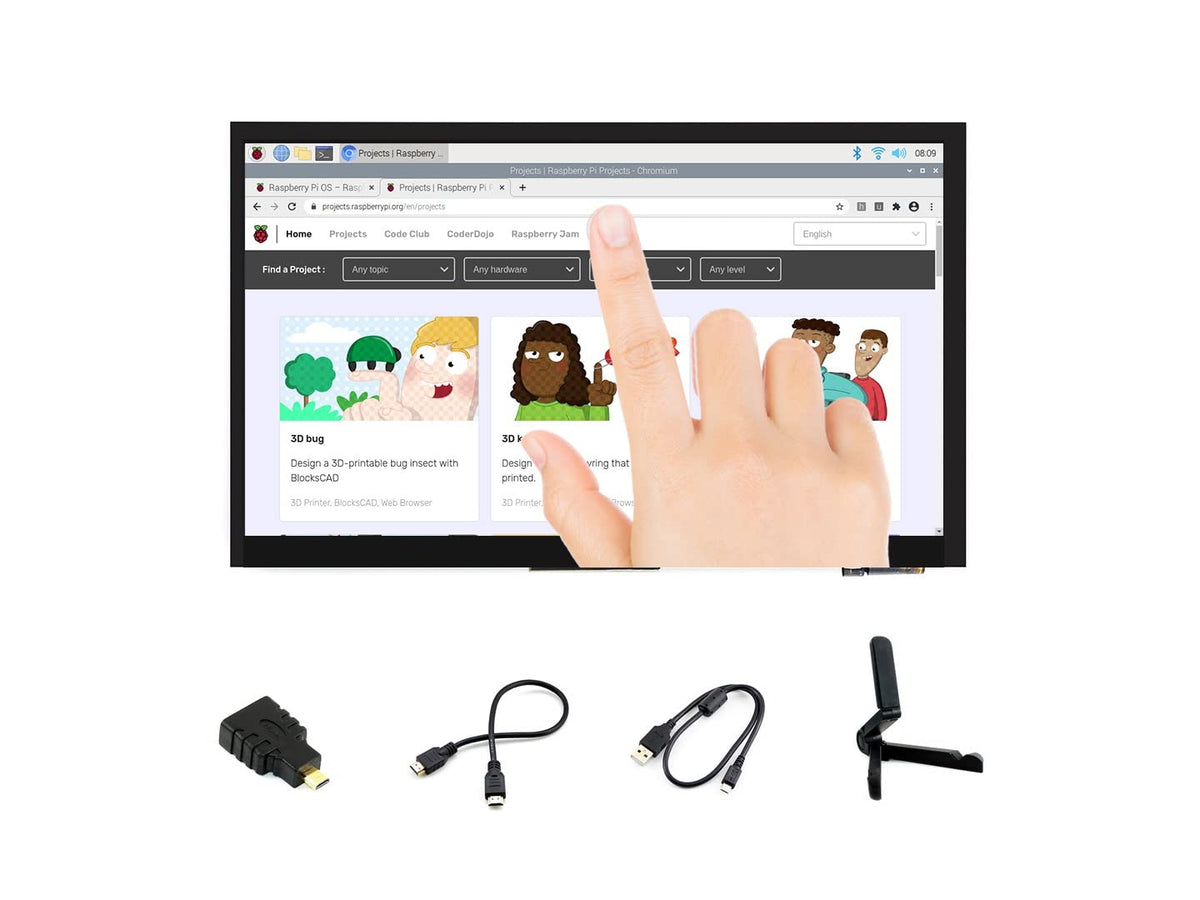

The package includes the Ingcool 7IP-CAPLCD screen, HDMI cable, HDMI-to-micro-HDMI adapter, USB A-to-micro-B cable, and a triangle bracket for desktop mounting. The display draws video from HDMI and touch/power from USB; if your USB port supplies insufficient current, use an external 5V adapter to prevent flicker.

• Included: HDMI cable, micro-HDMI adapter, USB A→micro-B cable, bracket
• Primary power via USB; optional external 5V adapter recommended for low-power USB ports
• Works plug-and-play with Jetson Nano and many mini PCs
• Check cable seating and restart host if display is not detected

Who is this for: Makers, developers and compact-PC users who need a portable, touch-enabled monitor for projects, kiosks, retro gaming fronts, or desktop companion displays. It suits Raspberry Pi hobbyists, Jetson Nano developers, and anyone wanting a small, driver-free touchscreen with flexible mounting and HDMI audio support.
