IMAYCC 12V 600W DC Converter 50A Power Supply

IMAYCC 600W AC-to-DC converter: a compact 110/220V to 12V power supply delivering up to 50A peak and reliable protection for diesel heaters, pumps, and 12V accessories.

This IMAYCC 600W 12V power supply converts household AC (110V/220V) to stable 12V DC, suited for powering diesel air heaters, car stereos, pumps, and many 12V devices. Built with a metal housing, copper-plated terminals, a cooling fan, and multiple safety cutoffs, it’s designed to give steady output for resistive loads and many motorized appliances when sized correctly.

How much power can this converter reliably deliver?

The unit produces continuous 12V output scaled by current ratings: typical use up to 35A (420W) continuous is recommended, with a peak current capability of 50A (600W) for short bursts. For safety and longevity, size the supply above your device's running power.

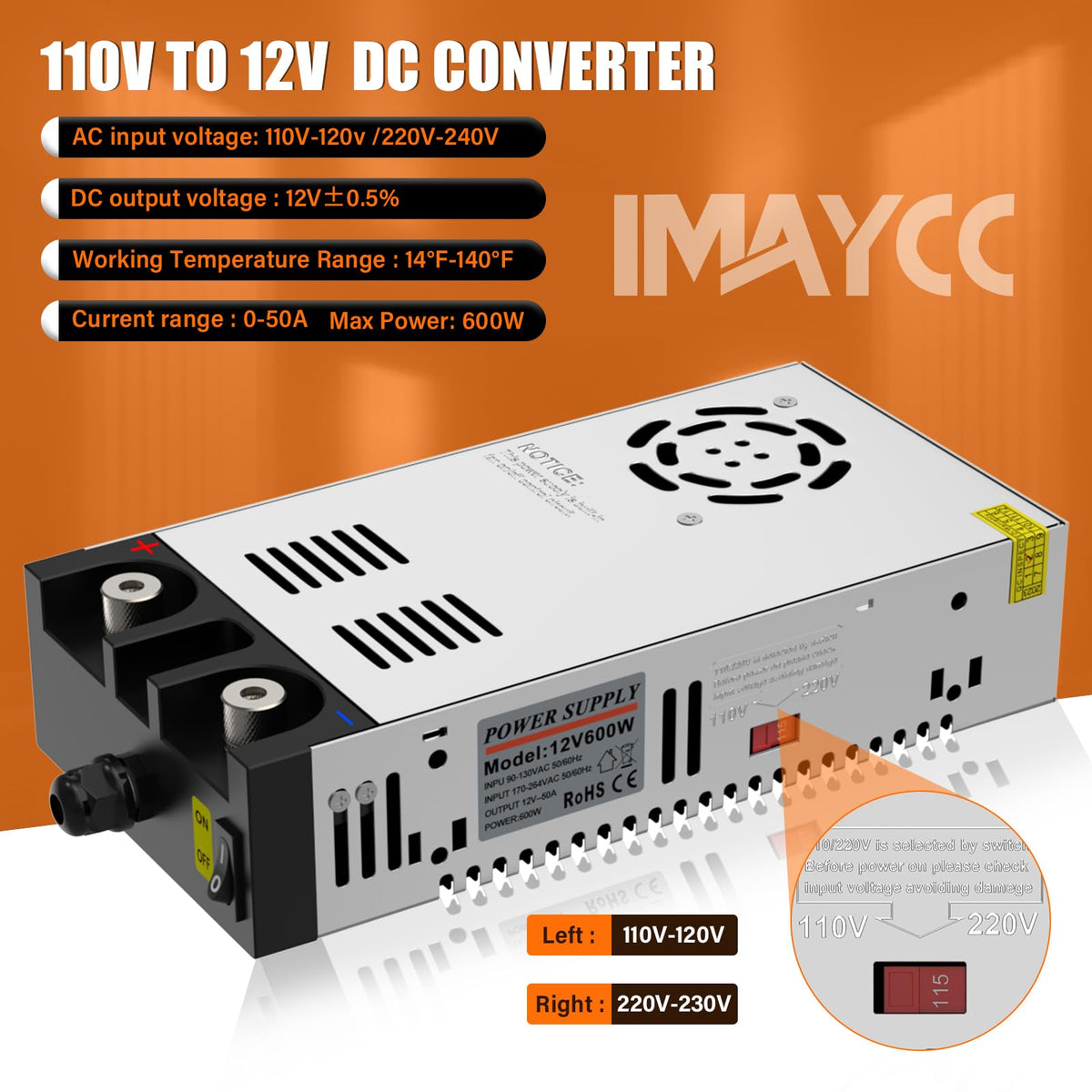

• Input ranges: AC 85–145V or 185–265V (auto-selectable 110V/220V).
• Typical continuous outputs: 10A (120W), 20A (240W), 35A (420W).
• Peak output: 50A (600W) for brief periods.
• Recommended for devices under 40A (480W) continuous.

What protections and safety features are built in?

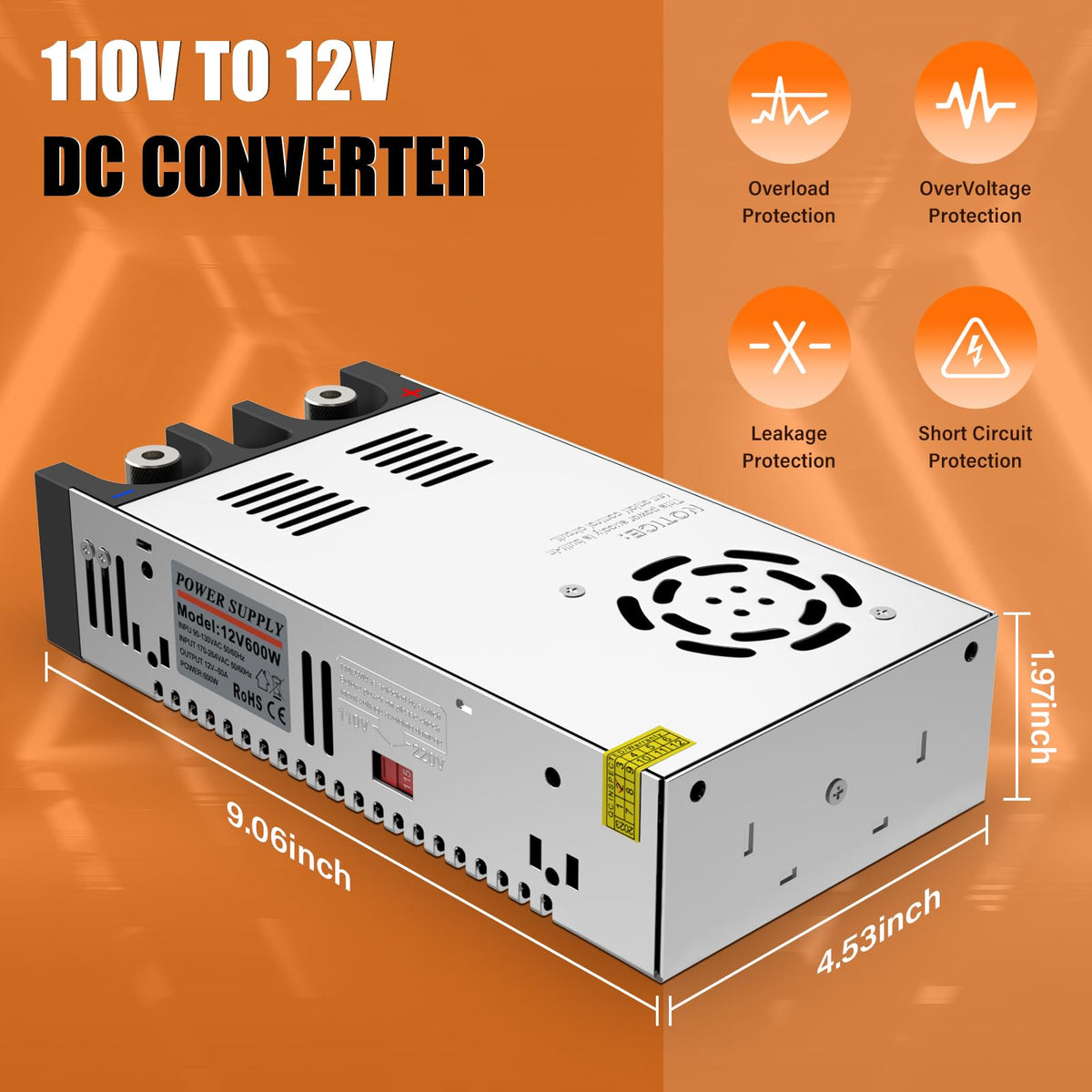

This converter includes multiple electronic safeguards and a cooling fan to keep components within safe operating temperatures. It will automatically cut out for overloads, over-voltage conditions, excessive temperature, and short circuits to protect both the supply and connected equipment.

• Automatic overload and over-voltage cut-off mechanisms.

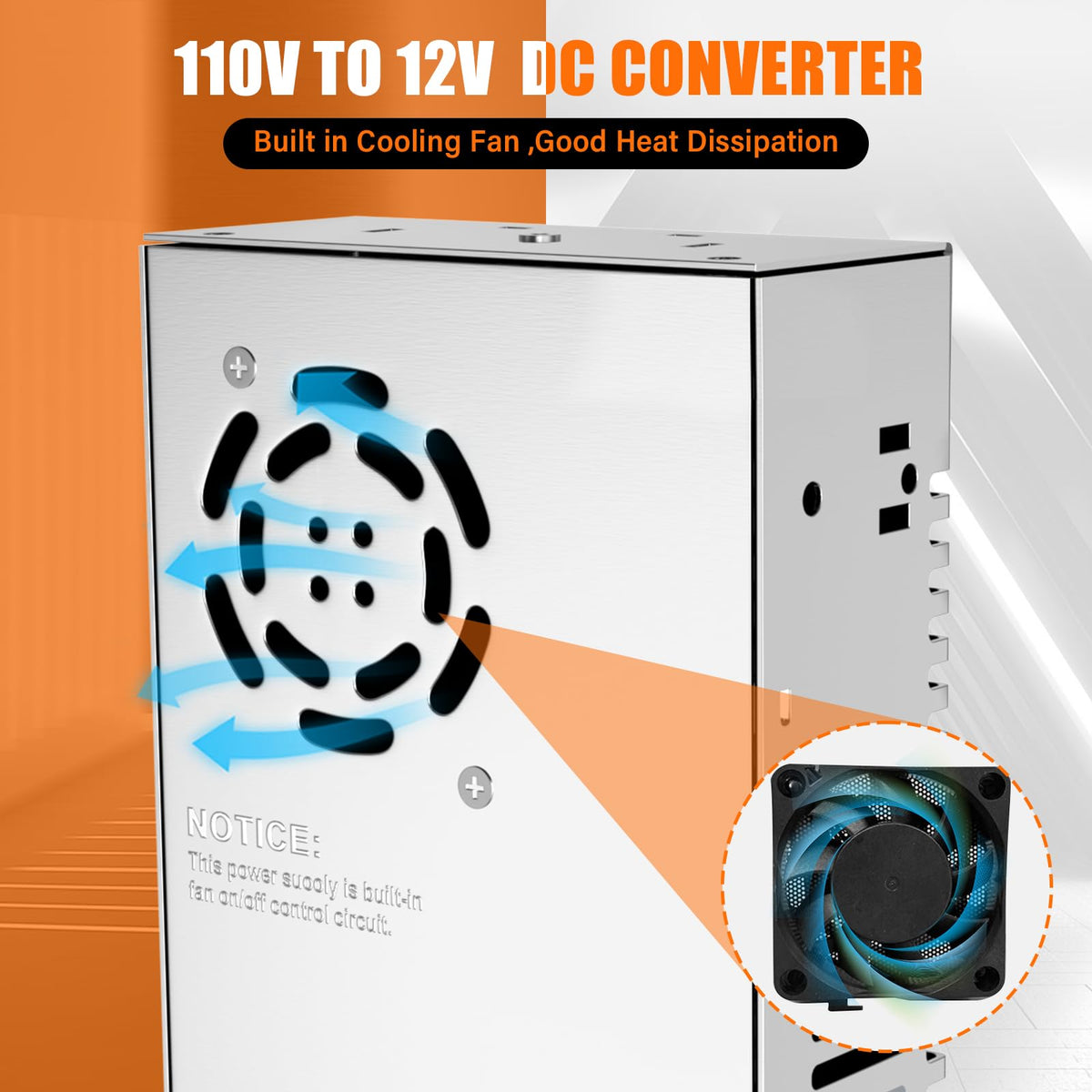

• Thermal shutdown and active cooling fan for continuous operation.
• Short-circuit protection to prevent damage from faults.
• UL, CE and RoHS certified cord and plug for safety compliance.

How do you connect and use it with 12V equipment?

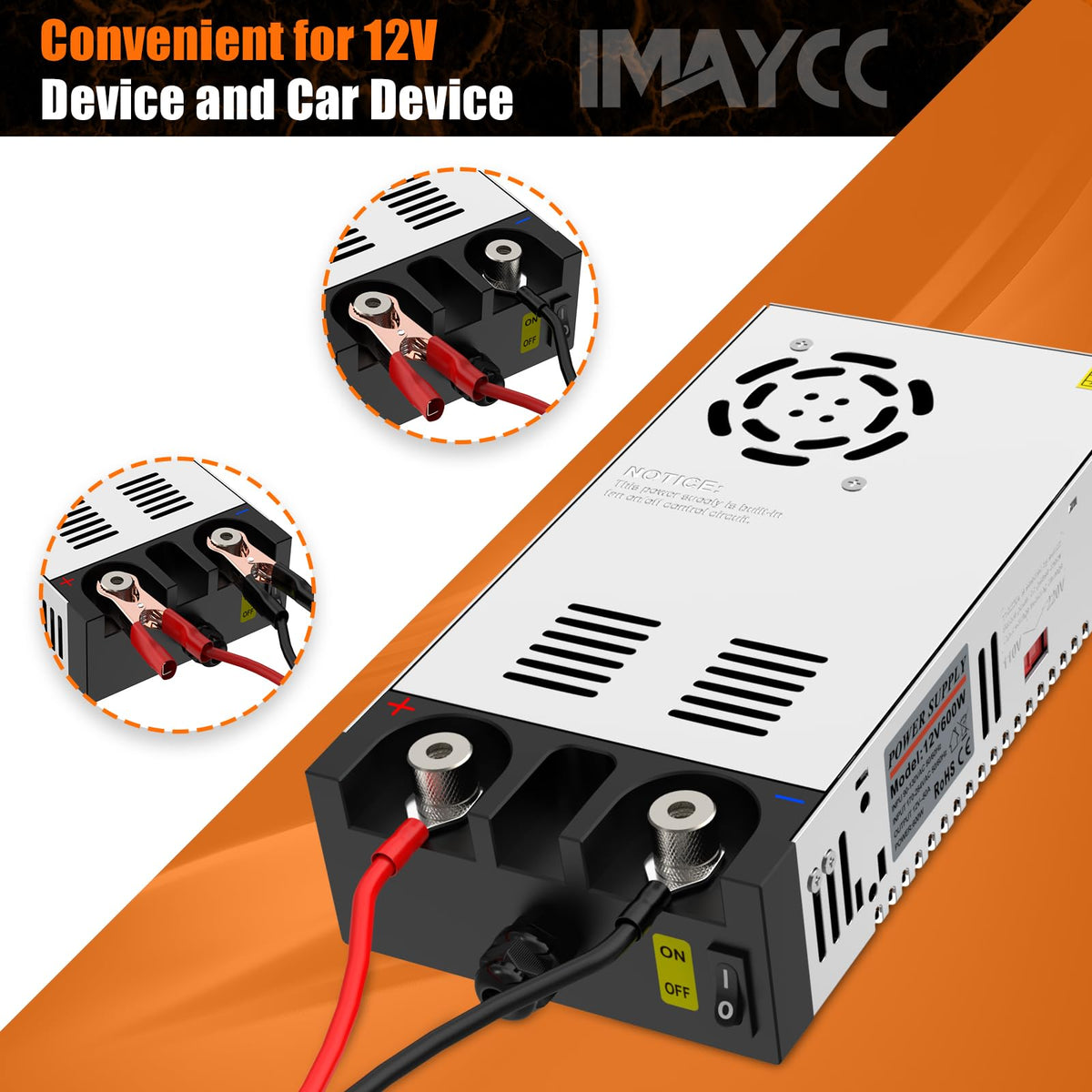

The converter ships with two copper clamps and connecting wires for fast hookups to battery terminals, heater leads or accessory inputs. An on/off switch on the housing lets you start and stop power without unplugging, and mounting holes plus anti-slip pads simplify secure installation.

• Includes two copper-clamp leads for quick battery or terminal connections.
• On/off switch for safe, convenient power control.
• Aluminium-alloy case with mounting holes and rubber feet for stable installation.
• Copper nickel-plated terminals improve conductivity and efficiency.

Which devices are appropriate to run from this supply?

Use this IMAYCC converter with resistive loads, many electronics and some motor-driven appliances when you size the supply correctly. For resistive devices, choose a supply with at least 1.25× the device power; motors and compressors generally require a higher peak margin (about 2×) for startup currents.

• Good for 12V diesel heaters, LED lighting, radios, stereos, and pumps.
• Can power winches, compressors, vacuums or motors if peak needs are met.
• Suitable for hobby electronics, servos and automation projects.
• Not recommended if startup current exceeds the converter’s peak capability.

Who is this for? The IMAYCC 600W 12V converter is aimed at DIY mechanics, van-lifers, workshop owners and installers who need a compact, robust AC-to-DC solution for powering 12V heaters and accessories from mains power. Choose this unit when you want a metal-cased, fan-cooled supply with multiple protections and convenient clamp-style connections — just ensure the continuous and peak power ratings match your equipment before use.
