Yaheeda 12V DC Converter 600W 50A Power Supply

Yaheeda's New Version Converter turns standard 110V/220V AC into regulated 12V DC power up to 600W with a 50A peak output for appliances, pumps, LED strips and automotive projects.

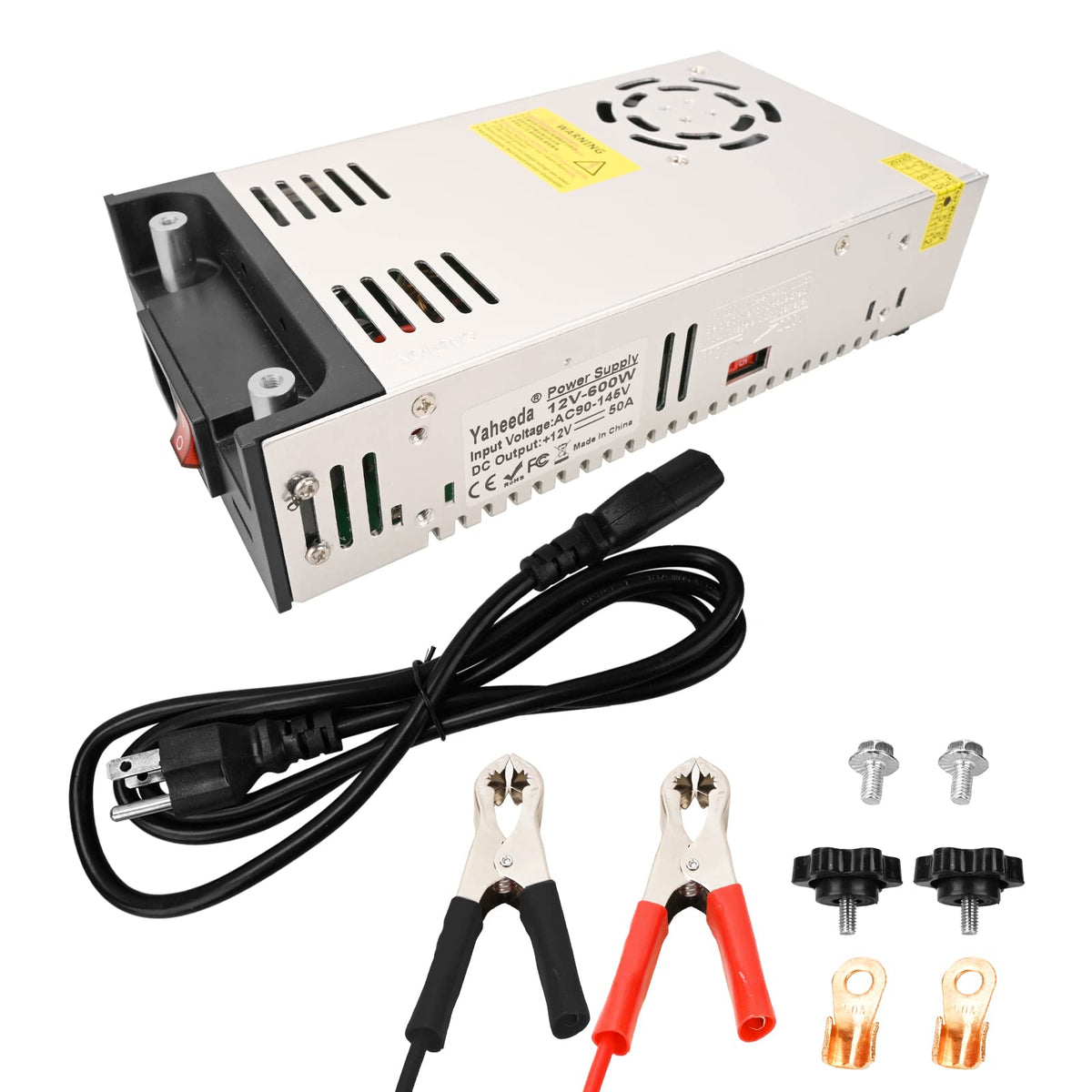

This compact DC switch transformer is built to feed 12V devices from household or RV outlets. It accepts wide AC input ranges (85–145V or 185–265V), provides selectable output current levels, and includes safety cutoffs and an aluminum-alloy housing for heat dissipation. The unit ships with a power cord, copper wires, wire lugs and mounting hardware so you can install and test quickly.

How much power can this converter reliably deliver?

The converter is rated for continuous 12V outputs at several current settings and can handle brief peaks up to 50A (600W). For steady use, follow the recommended continuous limits to avoid tripping protections: use devices under 40A (480W) for sustained loads.

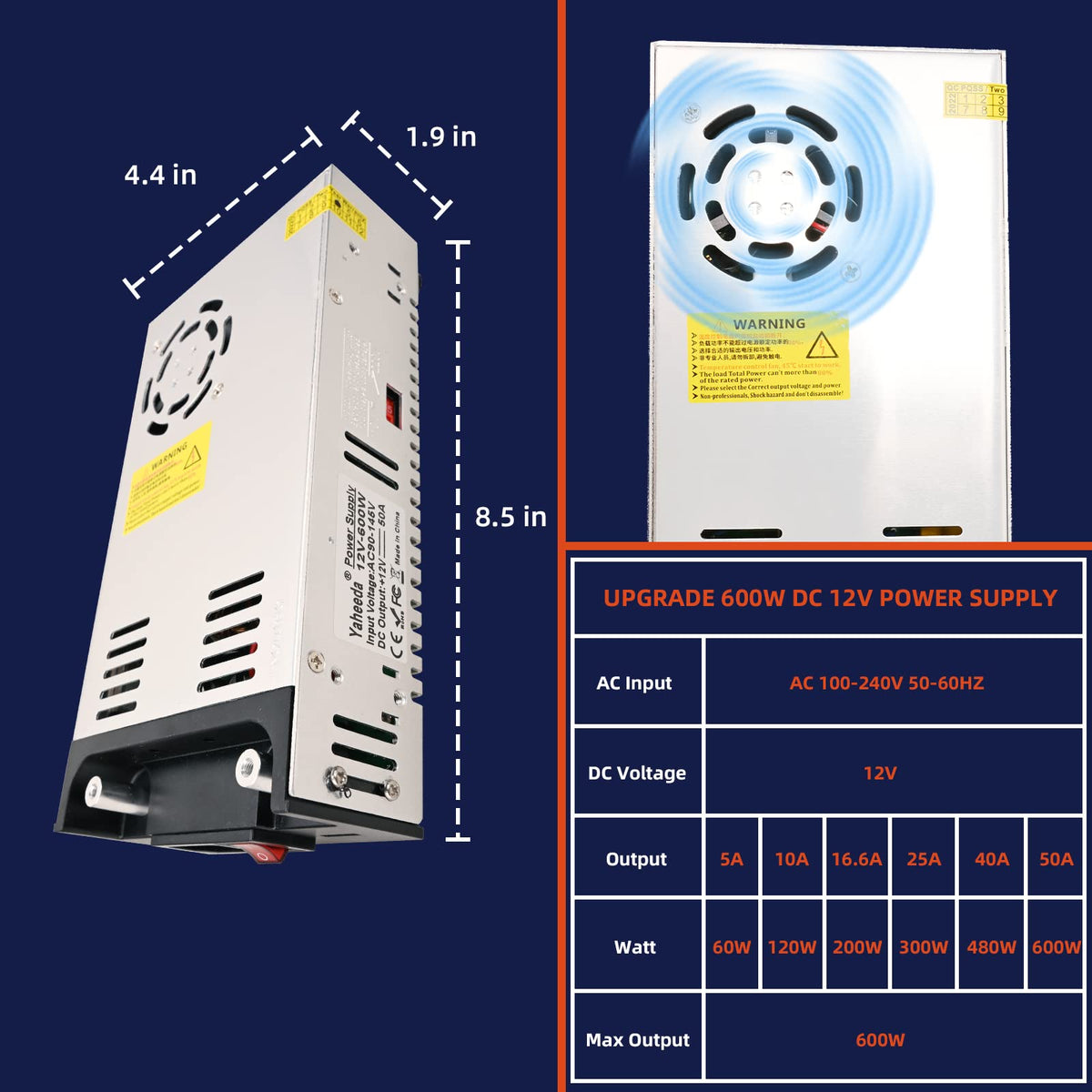

• Continuous outputs: 12V at selectable currents (for example 10A/20A/35A depending on model/dial).
• Peak capability: 50A transient (600W) for short bursts.
• Recommended steady load: keep below 40A (480W) for reliable long-term operation.
• Match supply type: resistive loads need SMPS peak ≥ 1.25× device power; motors may require >2× device power.

What safety protections are included and how do they help?

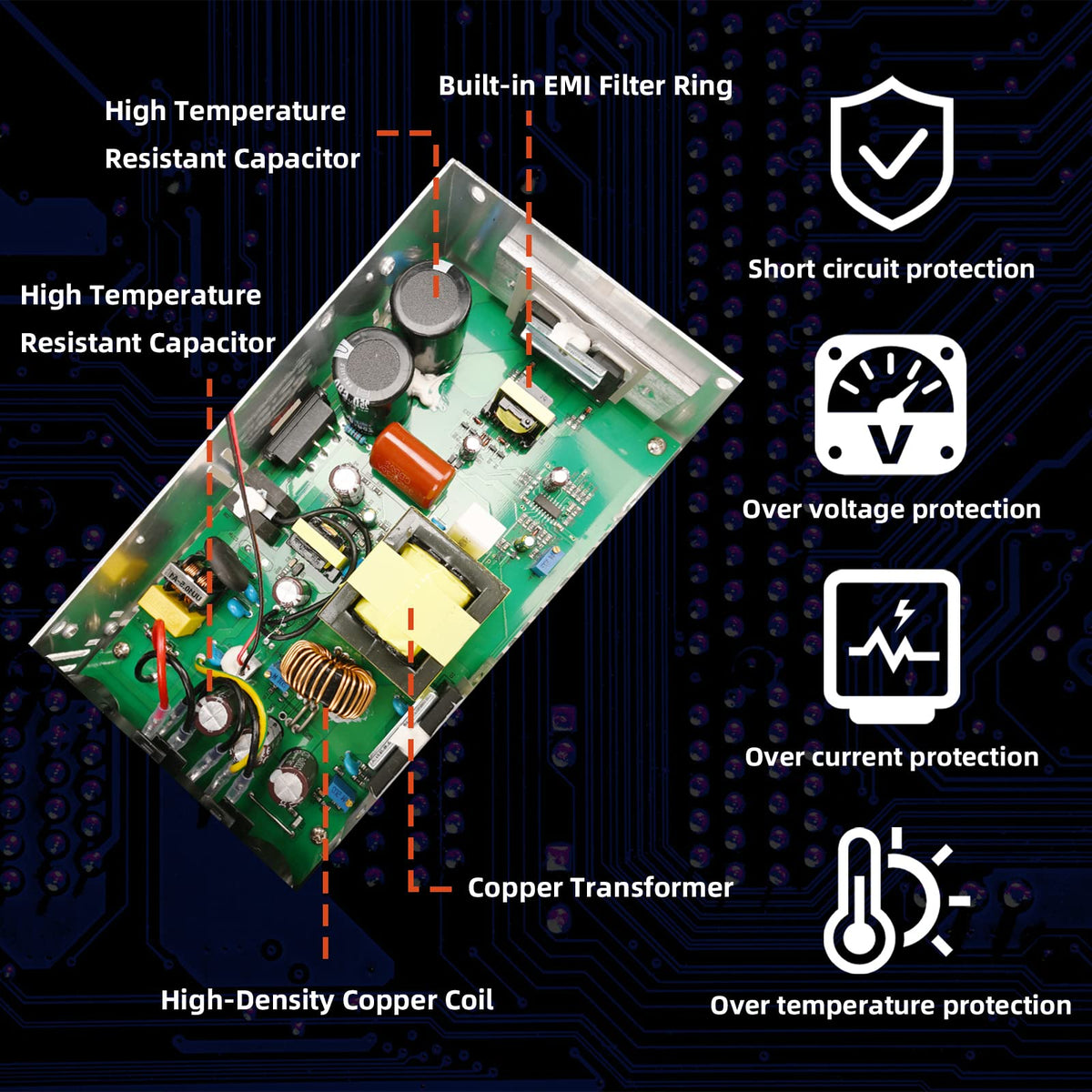

Multiple built-in safeguards reduce risk of damage to both the converter and connected devices. The unit features automatic overload and over-voltage cutoffs, thermal shutdown, short-circuit protection, and an EMI filter to limit interference.

• Automatic overload and over-voltage cutoff to stop unsafe currents.
• Thermal protection prevents overheating during heavy use.
• Short-circuit protection helps avoid catastrophic failures and sparks.
• EMI filter lowers electrical noise for sensitive electronics and audio equipment.

How do I install and operate the converter safely?

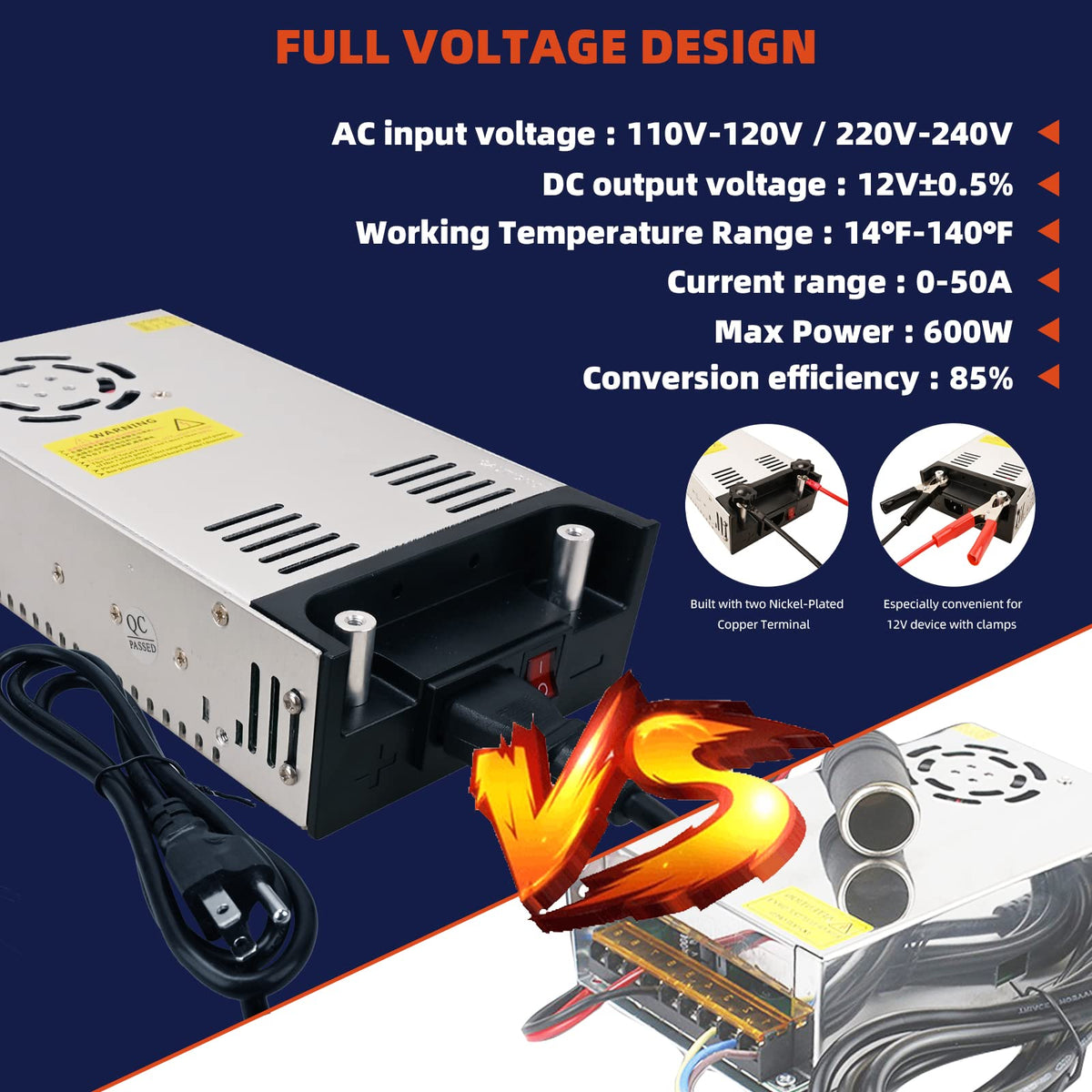

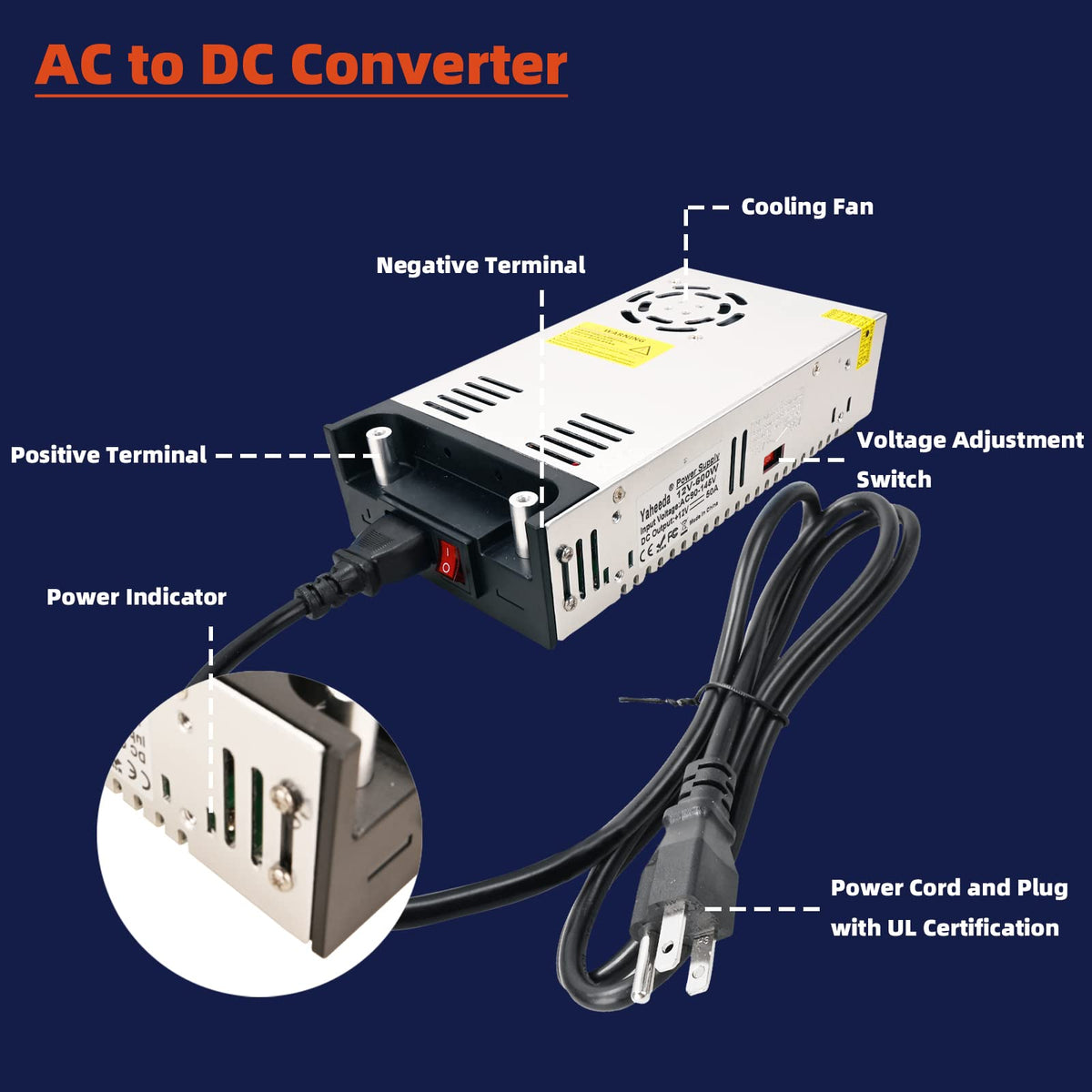

Installation is straightforward but requires attention to wiring and ventilation. The case includes a red one-key on/off switch for convenient power control; follow the dial positions, secure the included lugs and clips, and always cut power before making or changing connections.

• Use the supplied UL power cord, copper wires, wire lugs and screws for secure connections.
• Mount the aluminum-alloy enclosure where airflow is available to reduce temperature rise.
• Turn off power with the red switch before disassembling or rewiring.
• Set the output dial to the appropriate current rating for your device prior to powering up.

Which devices are appropriate to run from this supply?

This converter supports a wide variety of 12V appliances and DIY projects but is unsuitable for some motor controllers and dimmable lighting. Typical compatible loads include pumps, compressors, LED strips, monitors and audio gear; avoid use with programmable motor drives, PWM-controlled motors, dimming circuits or plant grow light controllers.

• Good for: 12V pumps, PCP air compressors, winches, LED strips, car stereos, amplifiers and servos.
• Not for: adjustable-speed (PWM) motor controllers, dimmable light drivers, or DC power controllers requiring specialized regulation.
• Ideal for: bench power, batteryless operation in RVs, and automation or electronics hobby projects.

Who is this for? Installers, RV owners, hobbyists and small-shop technicians who need a robust, mid-power 12V DC source from household AC will find this Yaheeda converter practical. Choose it when you require selectable current ranges, built-in protections, and a compact aluminum chassis with included wiring accessories — but select a higher-rated supply if your motor or surge needs exceed the recommended continuous limits.
