Hosyond 7" IPS Capacitive Touchscreen for Raspberry Pi

Hosyond's 7-inch IPS capacitive touchscreen is a plug-and-play MIPI DSI display built to work directly with Raspberry Pi 5/4/3 models, delivering 800x480 clarity and multi-touch responsiveness without extra drivers.

This compact 7" panel pairs a wide-angle IPS panel with a capacitive glass touch layer and a single MIPI DSI connector so you can attach it to supported Raspberry Pi boards with minimal setup. The screen is engineered for makers, embedded projects, kiosks, and educational builds where board-level integration, low profile, and accurate touch are priorities. It supports common Raspberry Pi operating systems with multi-touch on Raspbian (older zoom features) and single-touch on Ubuntu/Kali/Windows IoT, plus adjustable backlight control for varied lighting conditions.

How will this screen connect to my Raspberry Pi and what do I need?

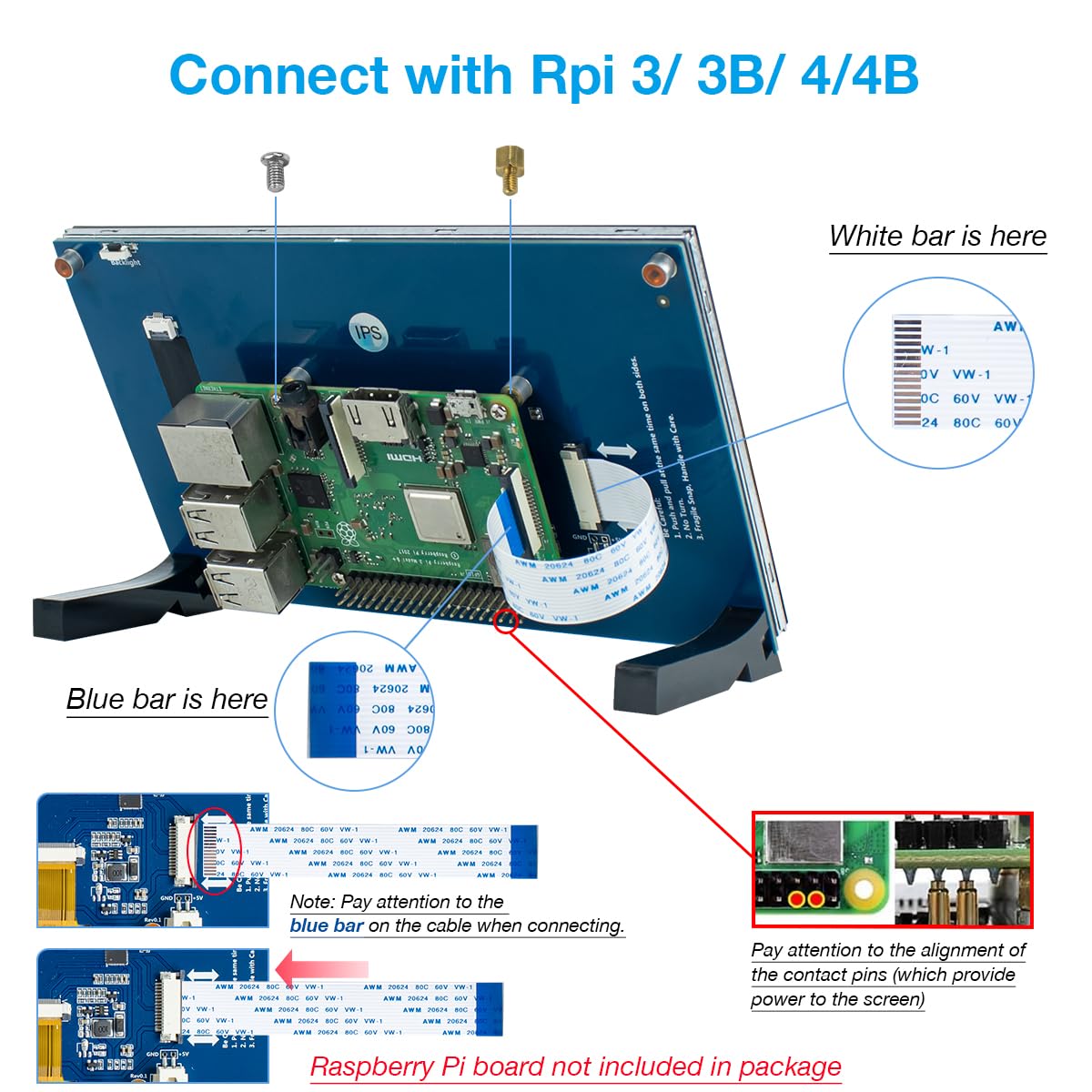

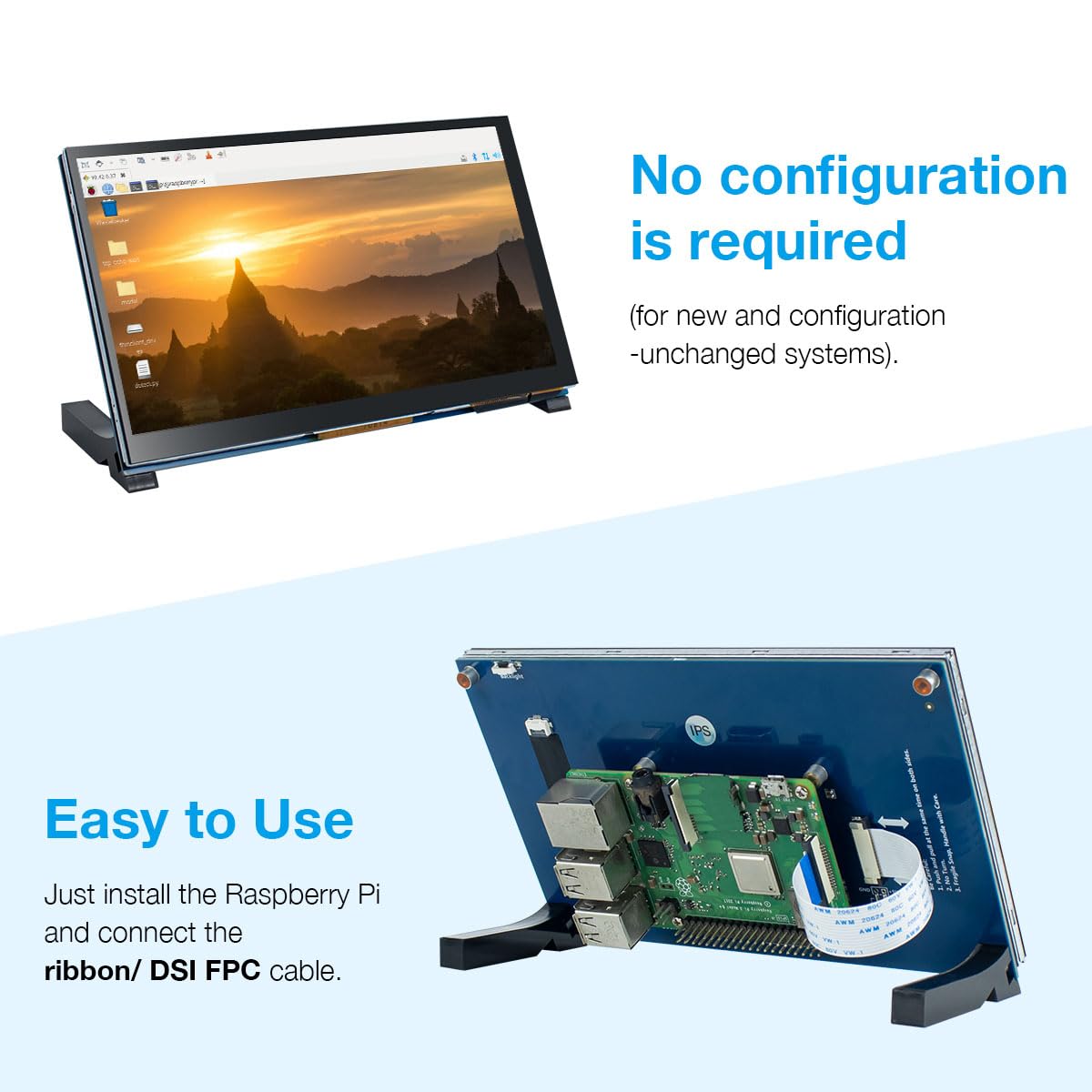

Connection is handled by the Raspberry Pi's MIPI DSI connector — one ribbon cable links the display directly to the board, eliminating the need for HDMI adapters or extra power leads. The display is driver-free for standard, unmodified Raspberry Pi images, so most users simply attach the cable and power the Pi as usual.

• Uses the Raspberry Pi MIPI DSI port; no HDMI required
• Single ribbon cable connection — fewer cables and cleaner installs
• Works out of the box with default Raspbian/ Raspberry Pi OS builds
• Instructions included for straightforward setup and backlight adjustment

What touch and display capabilities can I expect during use?

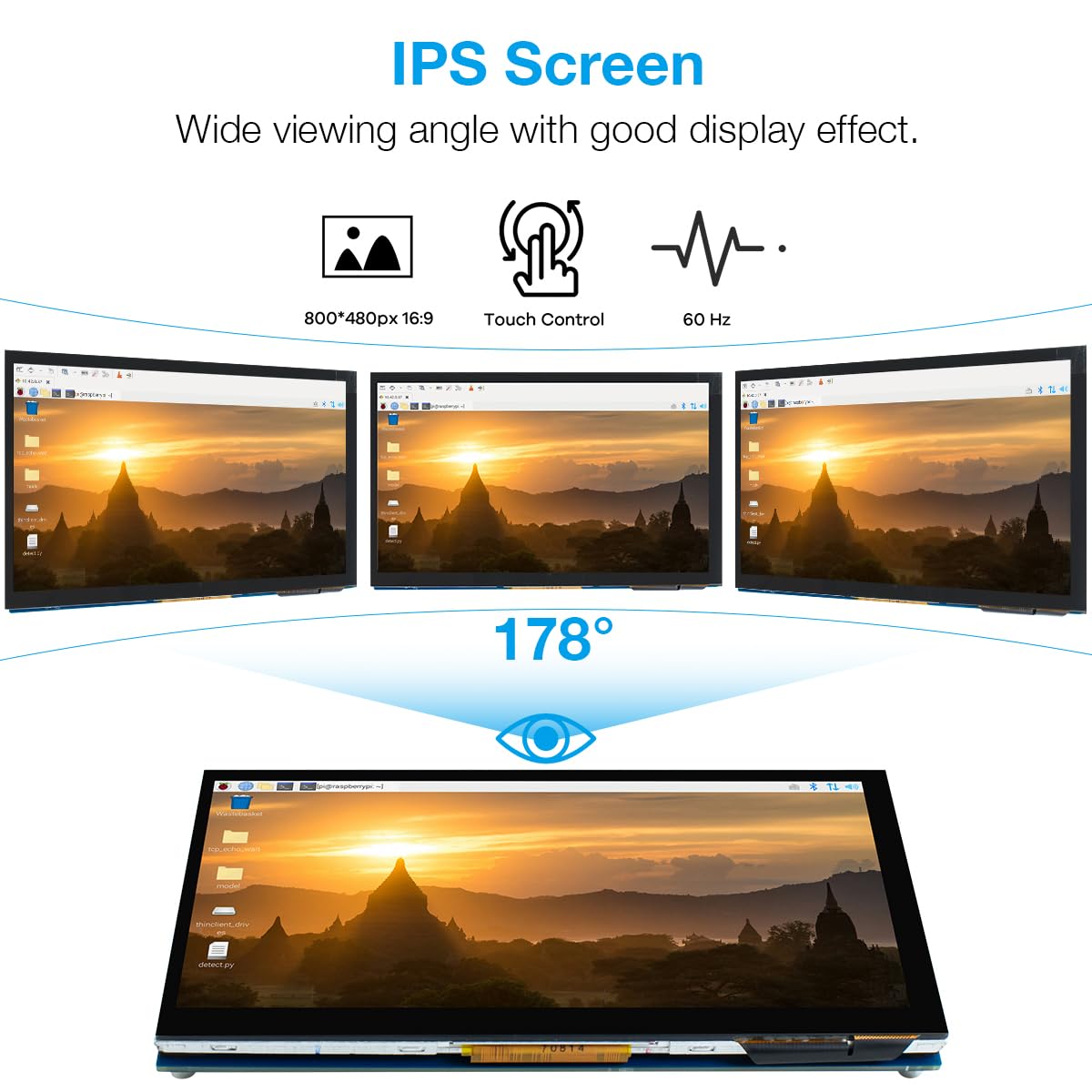

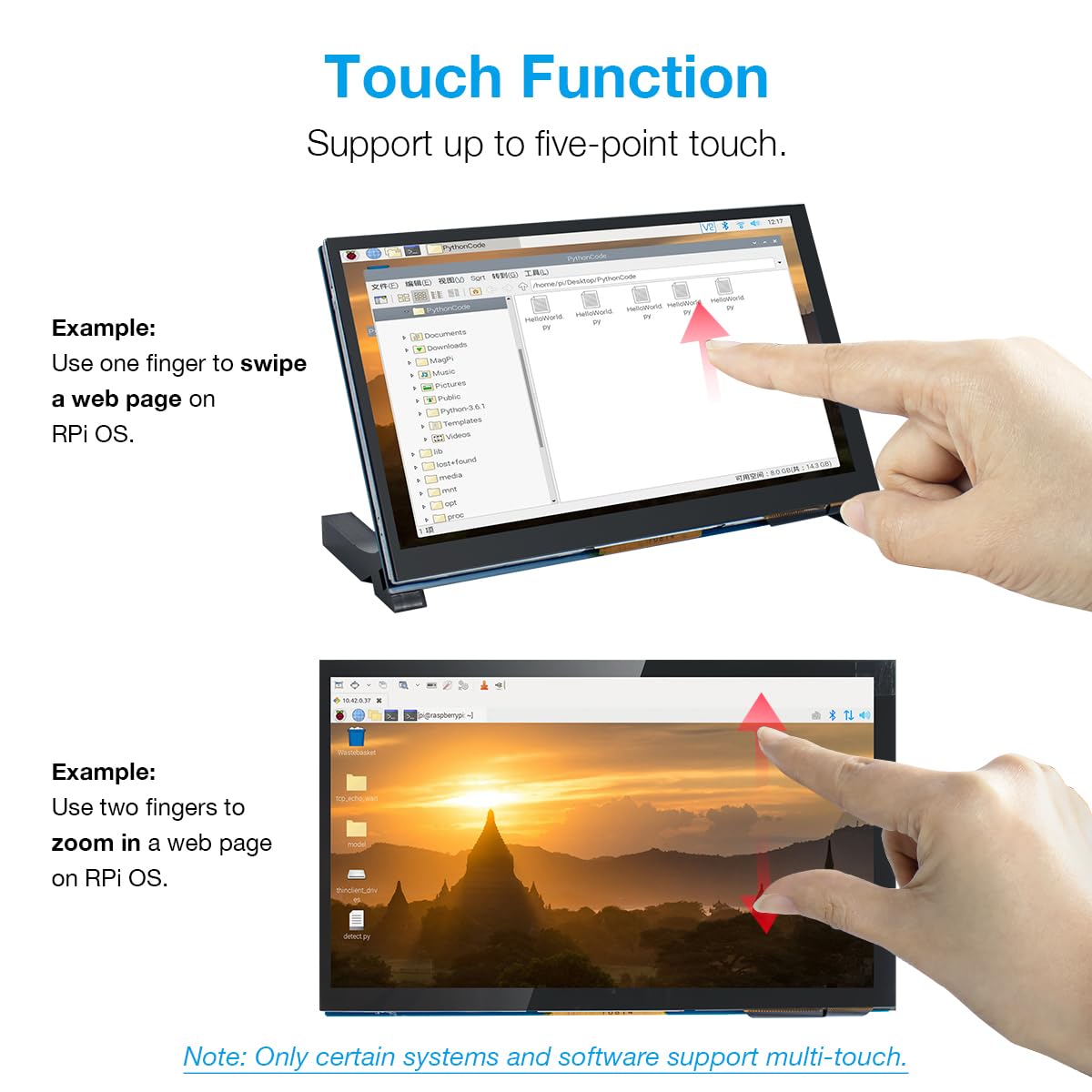

The panel is an IPS-type 800 x 480 display with a capacitive glass layer that supports smooth touch response and clear viewing from off-angles. On supported OS versions you get two-point gestures for basic zooming and precise taps for UI control; Ubuntu/Kali/Win10 IoT typically provide single-touch operation.

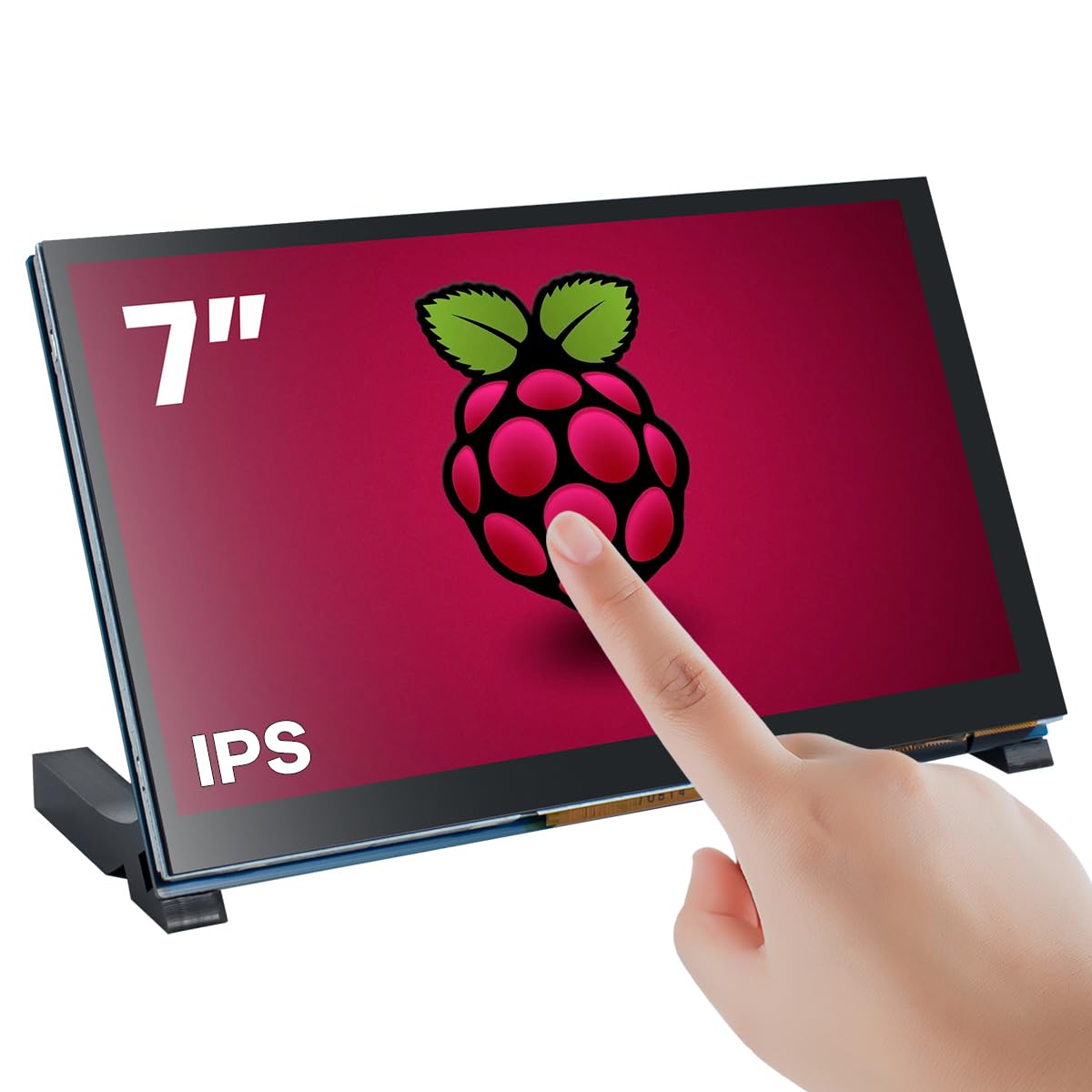

• 7" IPS panel for consistent colors and wide viewing angles
• 800 x 480 pixel density optimized for control panels and GUIs
• Capacitive multitouch: two-point zoom on Raspbian (older behaviour)
• Backlight brightness control to tune visibility and power use

Which Raspberry Pi models and software are supported?

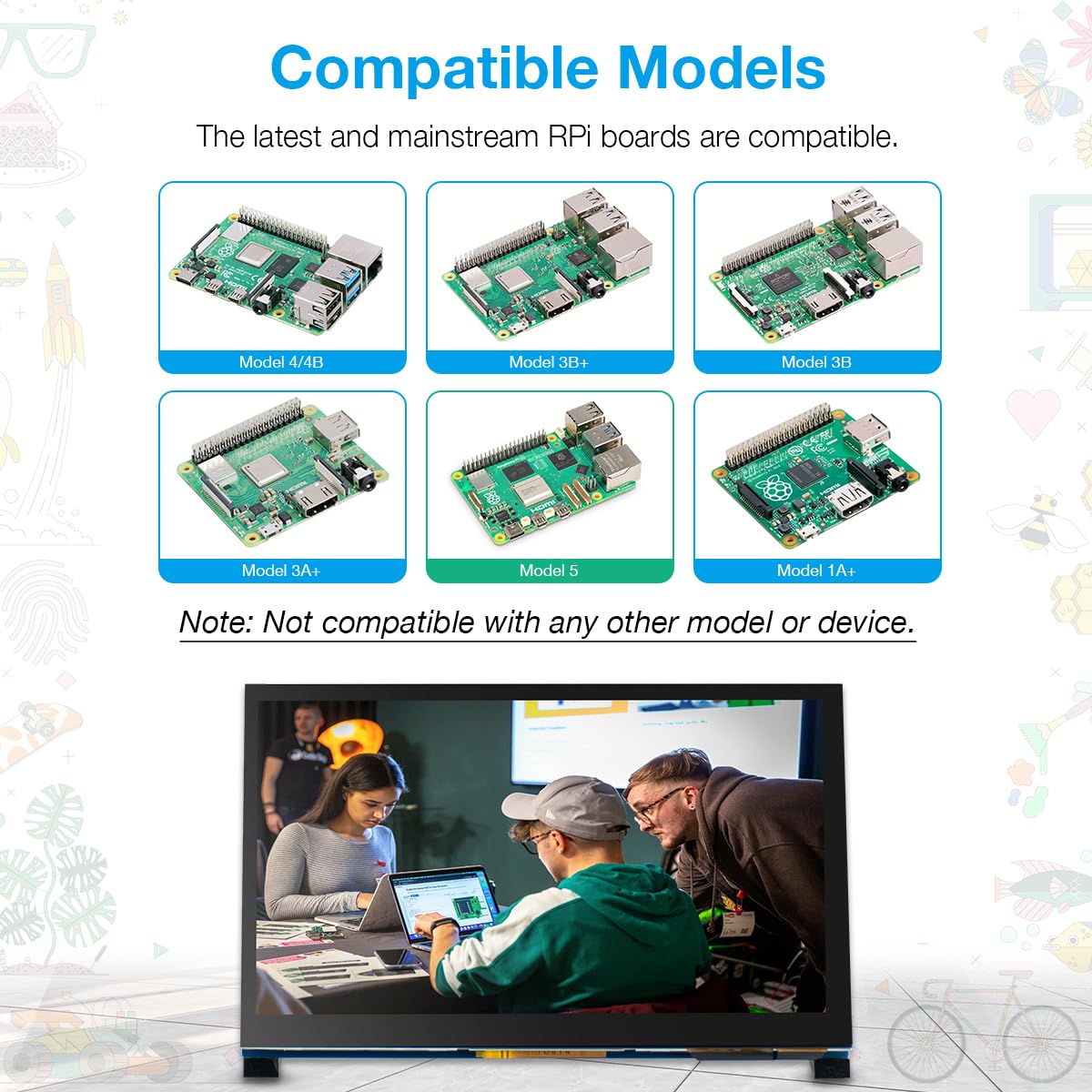

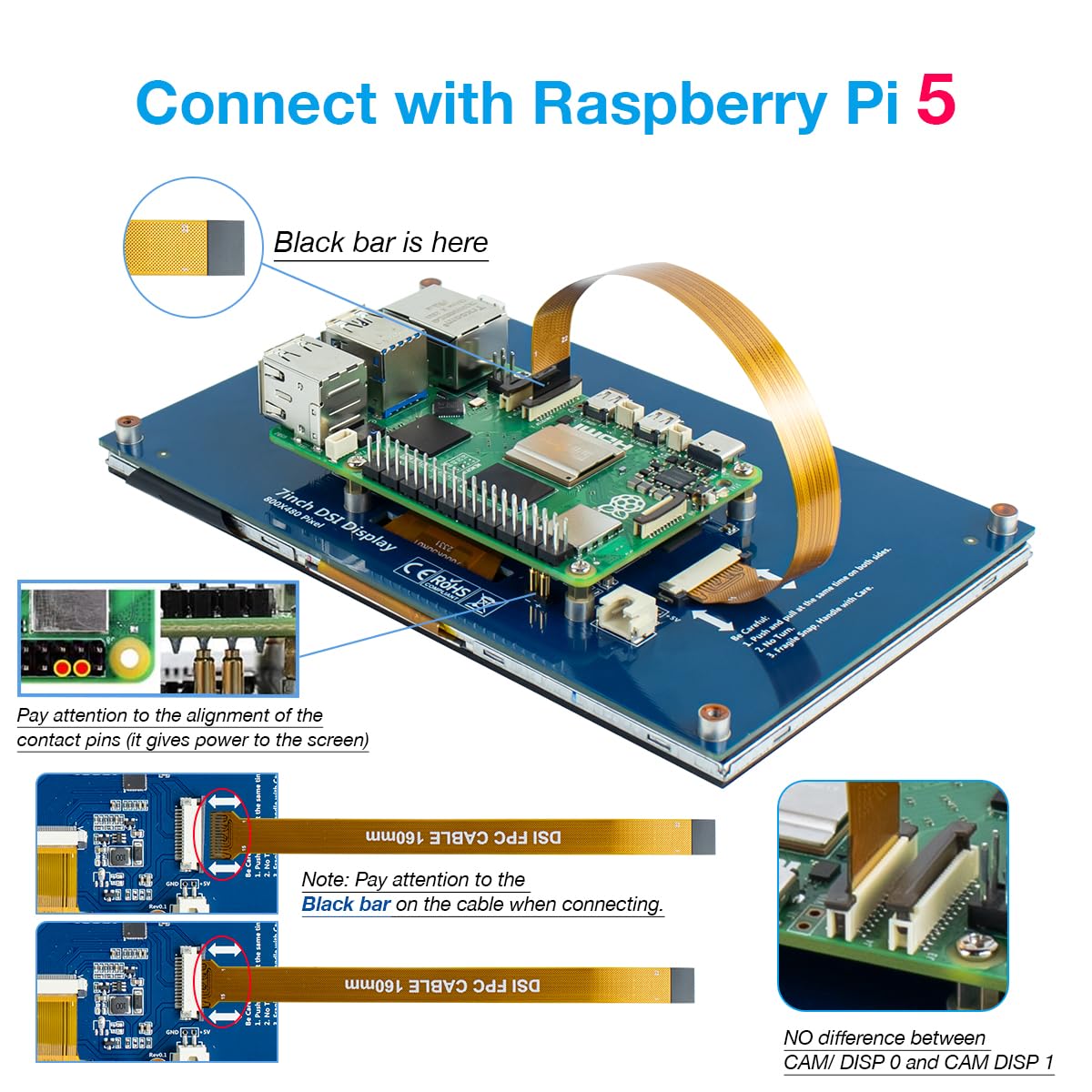

This display is explicitly designed to be compatible with Raspberry Pi 5, 4B, 3B+, 3B, 3A+, and 2B boards using their MIPI DSI connector. It is not an HDMI monitor and will not function with non-Pi devices or boards that lack the DSI header. Software support varies by operating system: full multi-touch features on some Raspberry Pi OS builds, single-touch on other OS images.

• Compatible: Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B
• Not compatible with HDMI-only devices or non-Pi hardware
• Raspbian/Raspberry Pi OS supports two-point zoom in certain versions
• Ubuntu, Kali, Windows IoT normally provide single-touch behavior

What installation tips help avoid common issues?

Because the display relies on the DSI interface and default Pi configurations, keep your Raspberry Pi OS image unmodified during first connection to ensure driver-free detection. Secure the ribbon cable gently, confirm the backlight setting if the screen is dim, and reference the included instructions for any model-specific notes.

• Use an unchanged Raspberry Pi OS image for easiest plug-and-play setup
• Seat the ribbon connector carefully to avoid display flicker
• Adjust the backlight if the image appears dim or washed out
• Follow the bundled guide for OS-specific touch behavior notes

Who is this for? Makers, hobbyists, educators, and embedded developers who need a compact, integrated touchscreen for Raspberry Pi projects will benefit most from this Hosyond display. It suits control panels, portable Pi builds, prototypes, learning kits, and light-duty kiosks where a low-profile MIPI DSI connection, accurate touch, and wide viewing angles are required. If you need an HDMI monitor or want to use the screen with non-Pi hardware, consider other display options designed for HDMI or universal inputs.
