Hosyond 5-inch USB-C Mini Monitor 1024x600

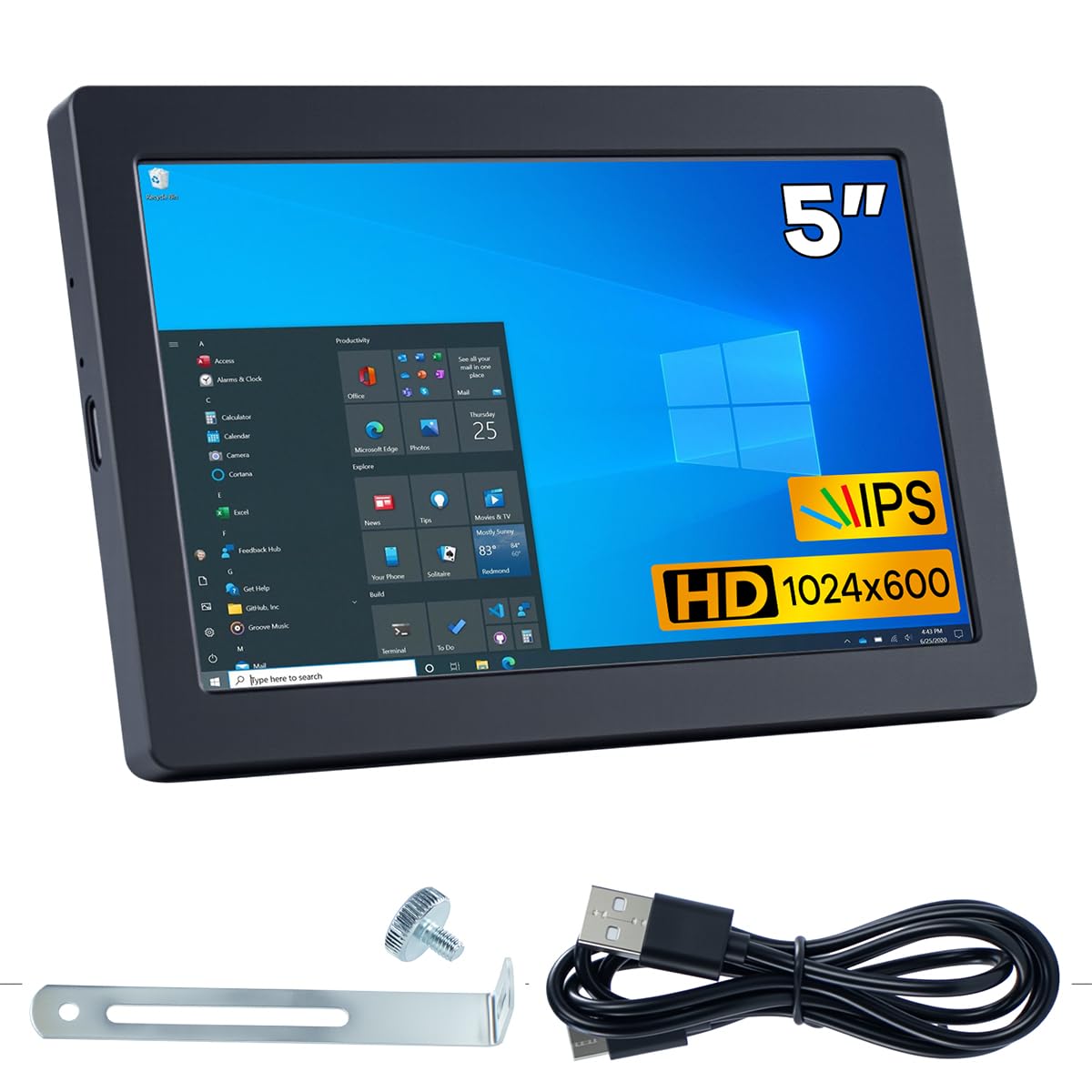

Hosyond's 5-inch USB-C mini monitor is a compact Windows-only secondary display with a 1024×600 IPS panel, single-cable USB Type-C power/data and an aluminum CNC body for durable, low-power portable use.

This miniature monitor is built for people who need extra screen space without bulk: developers watching logs, engineers monitoring sensors, content creators checking scopes, or anyone who wants a tiny, reliable extension of their Windows laptop or desktop. It connects via a single USB-C cable (driver required on first use) and offers an IPS panel with adjustable brightness, efficient 2.1W power draw, and a robust aluminum chassis sized to fit in small workstations or mobile rigs.

How do I connect the Hosyond 5-inch monitor to my Windows PC?

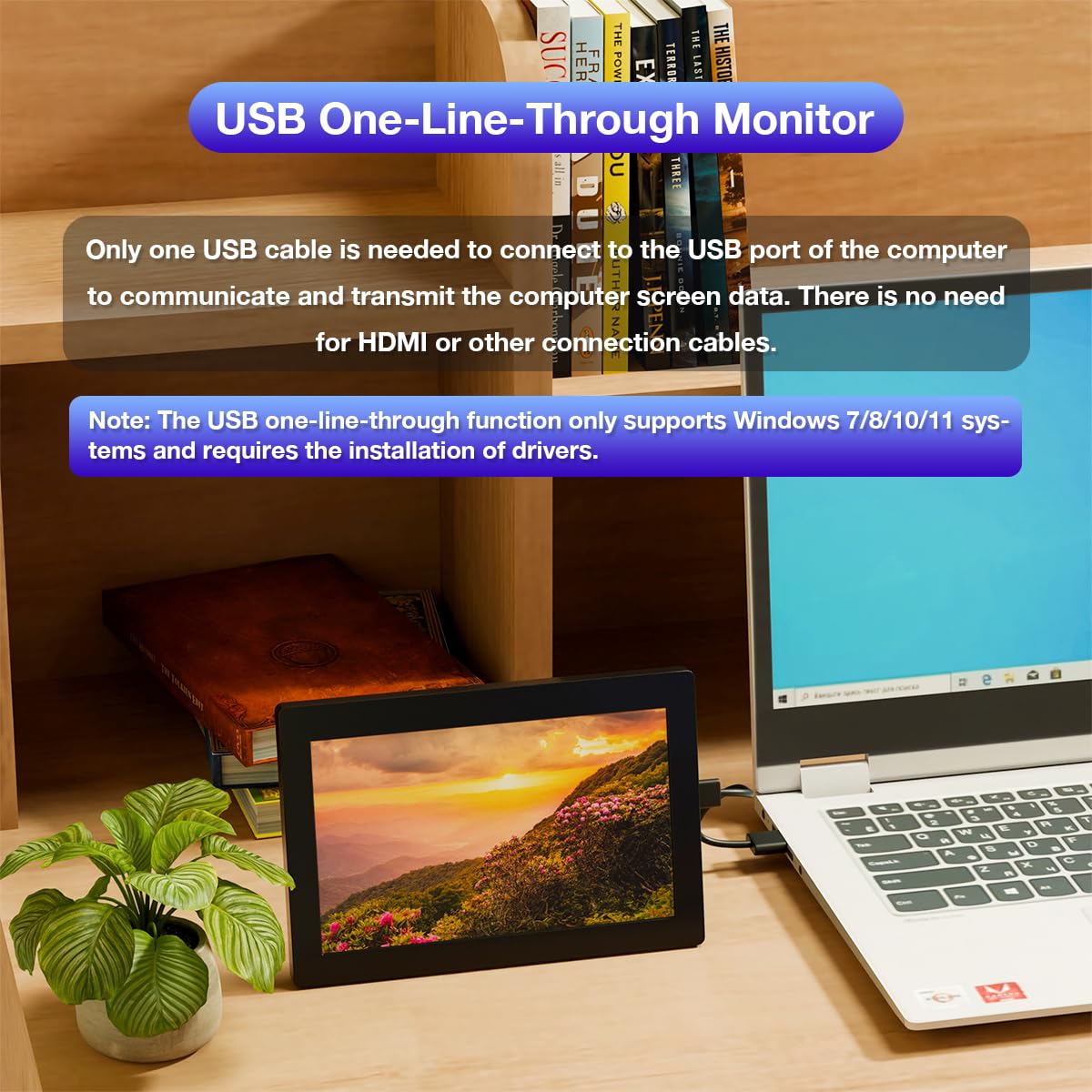

Connection is simple but requires the Windows driver install on first use. Plug the included USB-C cable into a compatible USB-C port on a Windows 10/11 computer, install the driver when prompted, and the monitor will provide power and video over the same cable.

• Single Type-C cable for power and video (Windows 10/11 only).
• Driver installation required on initial setup.
• If not detected, try a different USB-C port or cable.

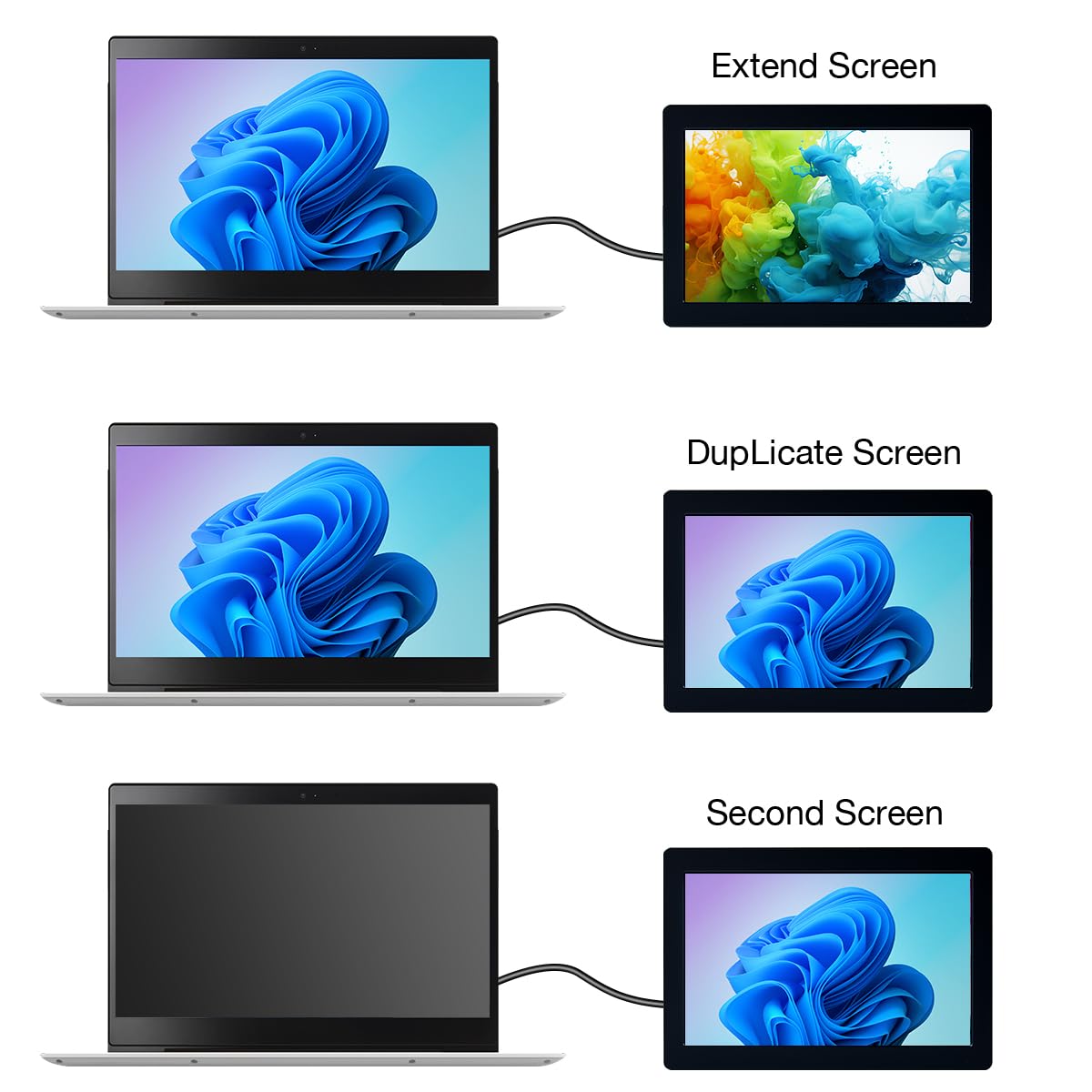

• Works as extended or mirrored display after configuration.

What image quality and display controls does this mini screen offer?

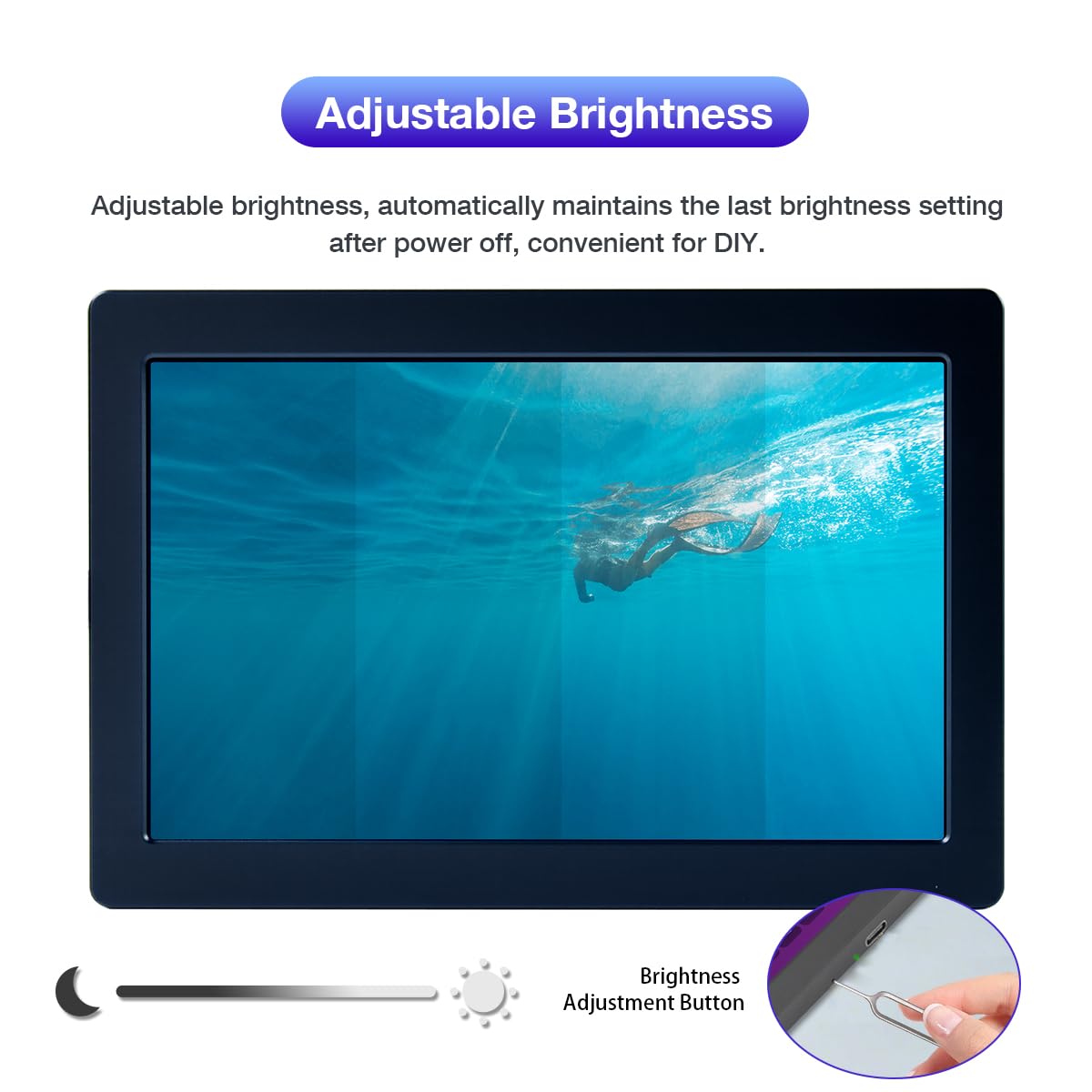

The display uses a 5-inch IPS panel at 1024×600 for clear text and accurate colors in a small footprint. Brightness can be adjusted with the onboard button and the screen retains the last brightness level after power-off, making it quick to return to your preferred setting.

• IPS technology for wider viewing angles and better color fidelity.
• 1024×600 resolution ideal for UI panels, monitoring tools, and status readouts.

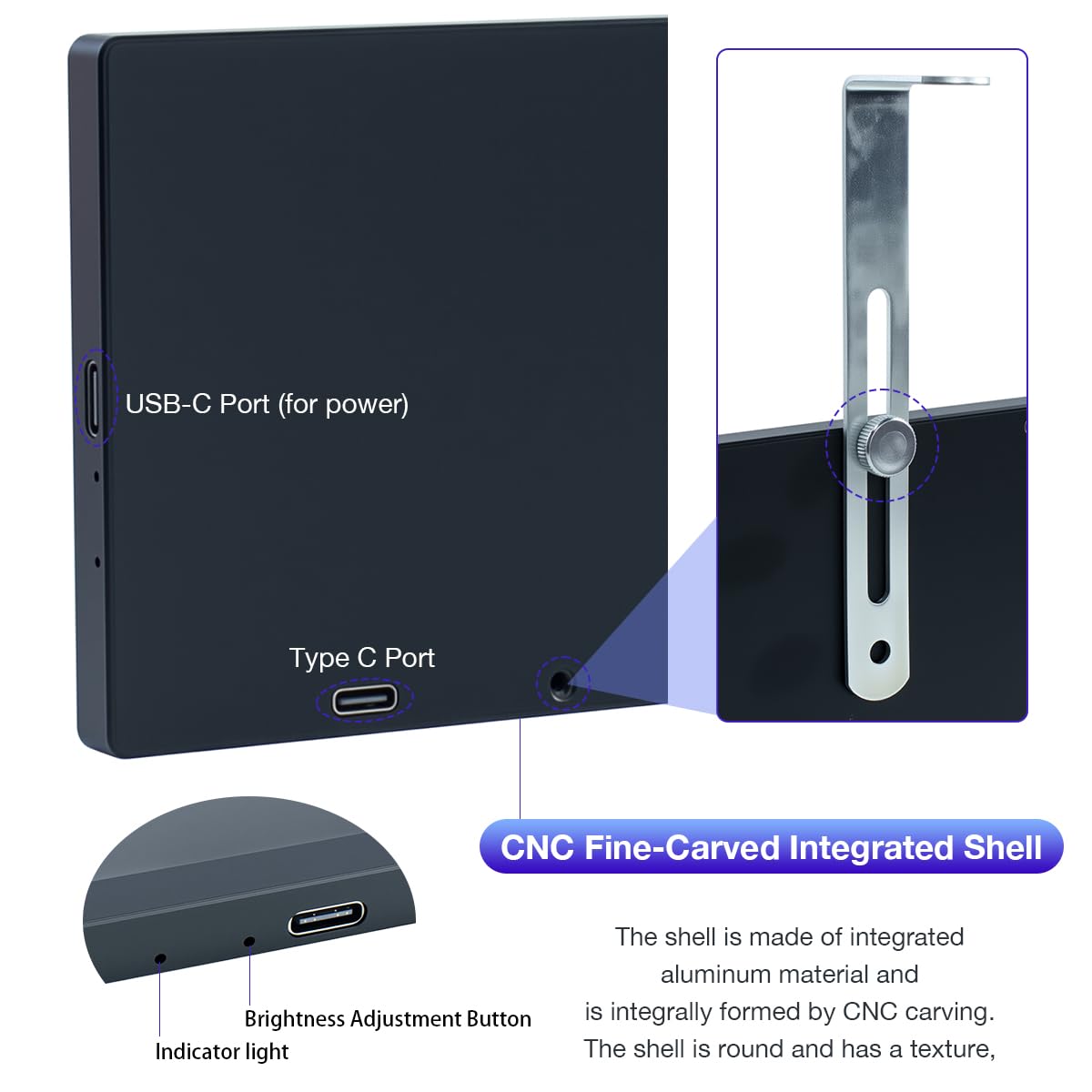

• Adjustable backlight via a button (use a SIM ejector tool to access).
• 500 nits brightness for visibility in varied lighting conditions.

What should I do if the display shows a black screen or strange artifacts?

Common display issues usually stem from connection or configuration; they are often fixed with simple checks. Follow the troubleshooting steps to identify cable, port, or Windows display-mode problems before assuming hardware failure.

• Confirm the monitor's backlight is on; swap the USB-C cable or port if it’s dark.
• Open Windows display settings and ensure the monitor is detected and not in copy-only mode.
• Stop the MS USB Display process in Task Manager and restart it if needed.
• Verify configuration files (config.int) have not been replaced or corrupted.

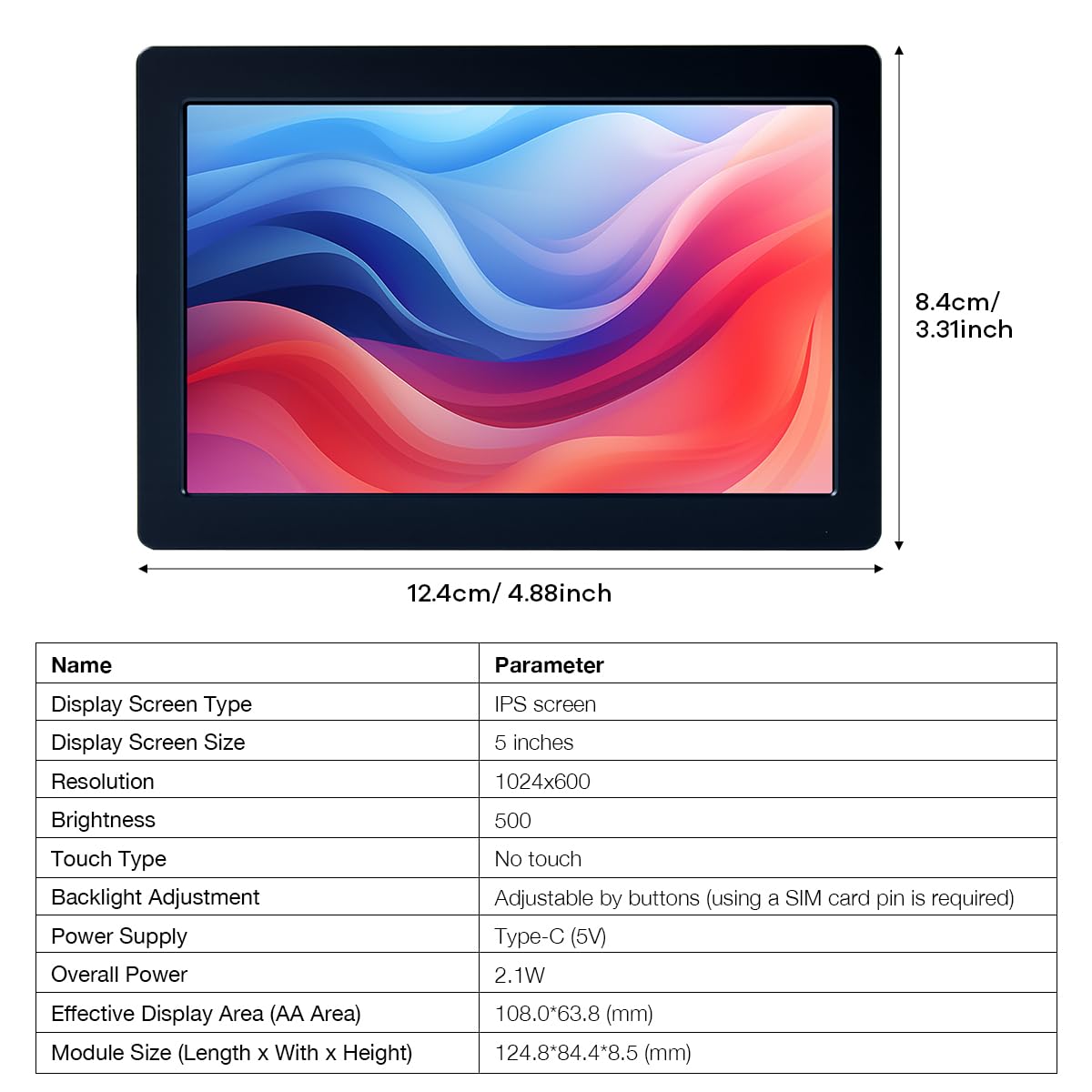

What physical size, build, and power characteristics should I expect?

The monitor is compact and lightweight, CNC-machined from a single aluminum block for a sleek look and improved heat dispersion. It draws just 2.1W and measures roughly 124.8 × 84.4 × 8.5 mm, making it easy to fit into small desks, server racks, or portable setups.

• Module dimensions: 124.8 × 84.4 × 8.5 mm — pocketable footprint.
• Product weight with packaging: ~208 g for minimal transport weight.
• CNC aluminum alloy body for durability and premium finish.
• Low power consumption (2.1W) powered over Type-C (5V).

Who is this for: This Hosyond 5-inch USB-C mini monitor is aimed at Windows users who need an unobtrusive secondary screen—IT technicians, hardware tinkerers, developers monitoring telemetry, hobbyists building compact workstations, or creators who want a small preview display. It’s not a touchscreen and only supports Windows platforms, so it’s best when used as a dedicated extension or monitoring display where small size, solid build, and easy single-cable setup matter most.
