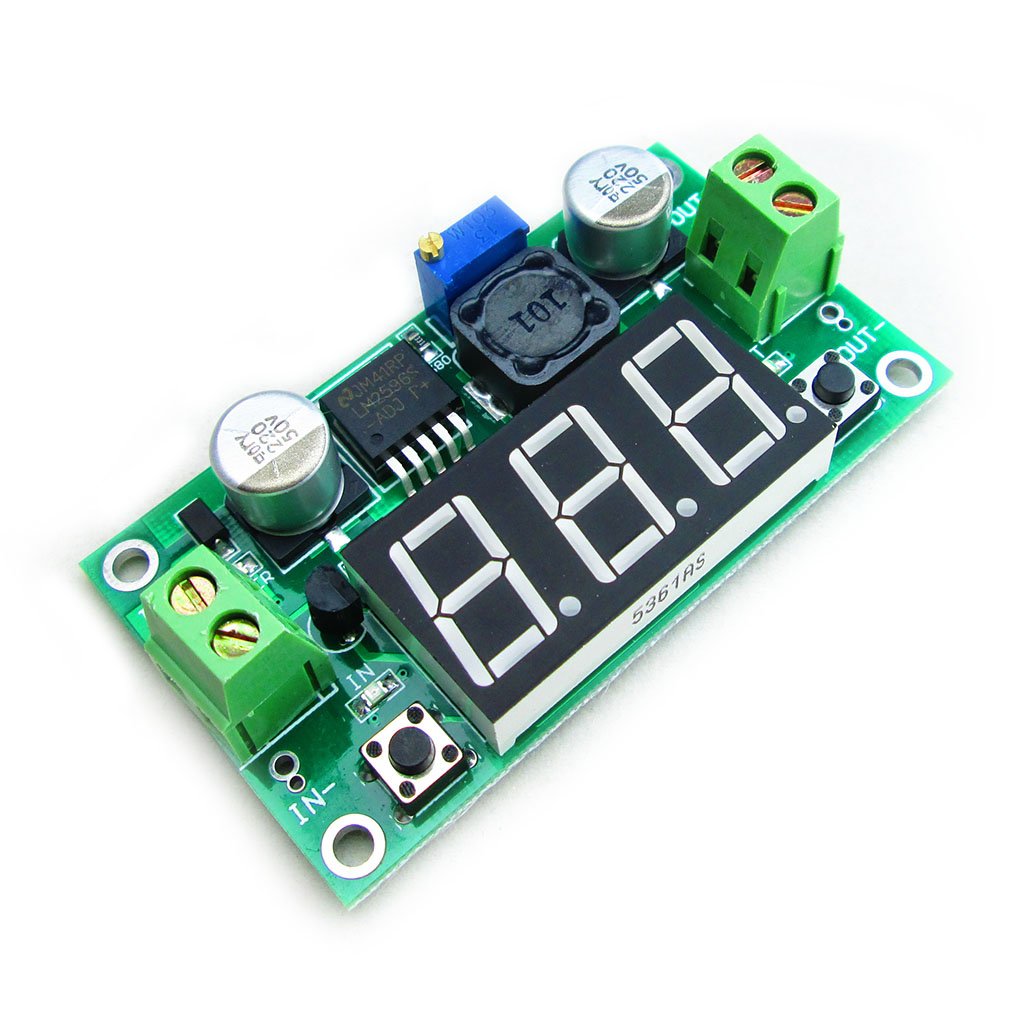

HiLetgo LM2596 Adjustable DC-DC Buck Converter with LED

HiLetgo LM2596 is an adjustable DC‑DC step‑down (buck) converter module with a built‑in LED voltmeter that accepts 4–40V input and provides 1.25–37V output at up to 3A.

This compact electronics module combines a proven LM2596 switching regulator, a readable LED meter, and simple screw‑terminal wiring to let makers, technicians, and tinkerers create stable, adjustable DC power supplies. The module's internal 150kHz switching and protection features focus on efficiency and durability, while front buttons let you toggle between input and output voltage readouts and disable the display when not needed.

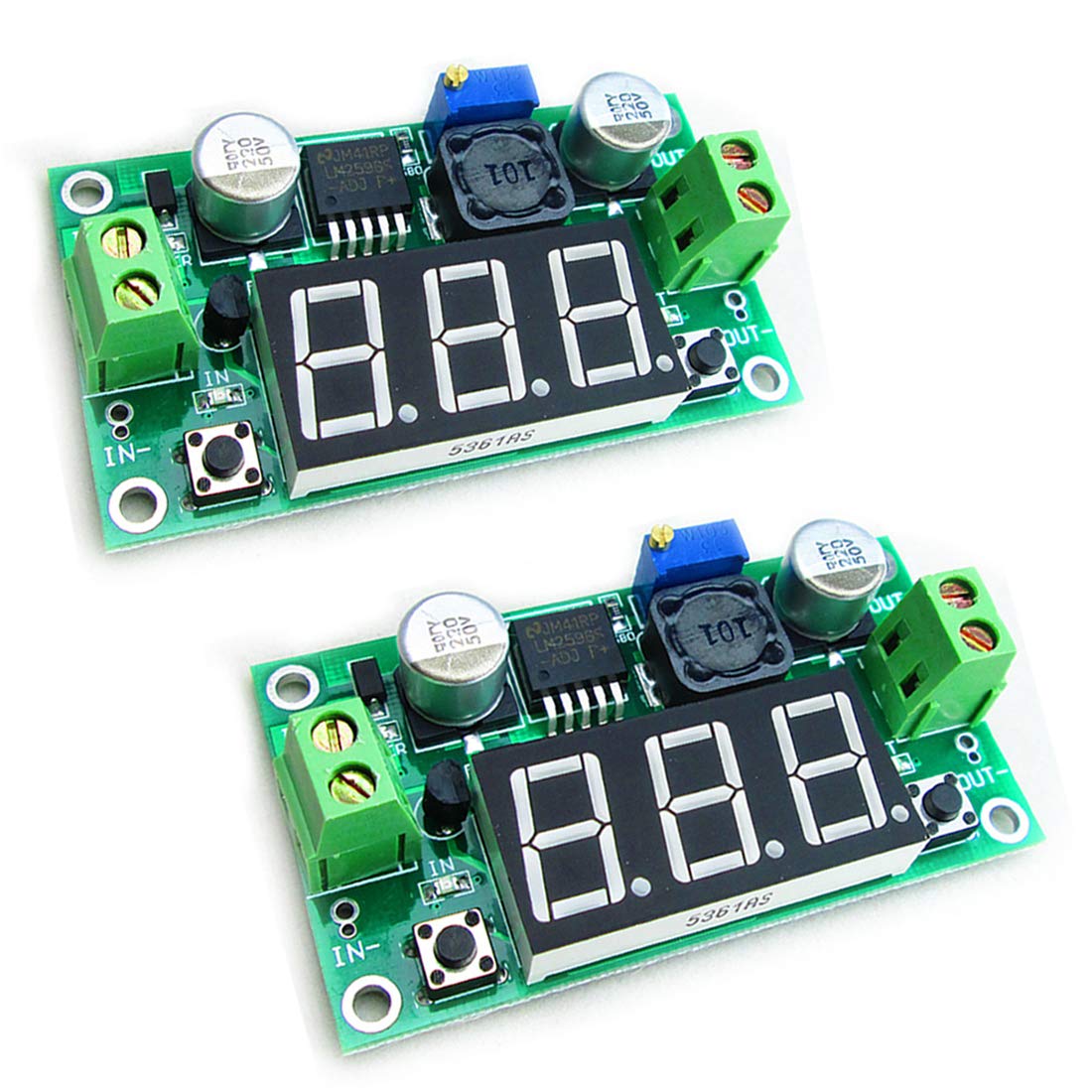

How accurate and visible is the LED voltmeter?

The integrated LED voltmeter uses a microcontroller to show voltages across a 0–40V range; for reliable readings the input should be at least about 4V above the measured output. The meter can display either input or output voltage and stores the last selected mode, and you can switch or turn off the display with the front buttons.

• Readable 0–40V LED display
• Toggle between input and output measurement
• Display can be disabled to save power or reduce brightness
• Stores display mode after power cycling

What output performance and limits should I expect?

This buck converter can be adjusted continuously from about 1.25V up to 37V, provided the input voltage stays higher than the selected output. Peak output current can reach 3A for short bursts, while stable continuous current is best kept at or below 2A to prevent thermal buildup.

• Adjustable output: ~1.25V to 37V
• Input acceptance: 4.0V to 40V (ensure sufficient headroom)
• Continuous recommended current: up to 2A
• Short-term peak capability: up to 3A with proper cooling

What protection and safety features are included?

The module incorporates short‑circuit and overheat protection to reduce the chance of damage during misuse or heavy load conditions. It also includes a power indicator LED and retention terminal blocks so you can connect wires reliably without soldering when building prototypes or test rigs.

• Thermal/overheat protection
• Short‑circuit protection
• Power indicator LED for quick status checks
• Screw terminals for secure, solder‑free connections

How do I integrate this module into projects safely?

Mount the module on a nonconductive surface, provide adequate airflow or a heat sink for sustained loads, and verify voltage settings with a multimeter before connecting sensitive electronics. Use the meter's input/output toggle to confirm correct wiring and ensure the input voltage remains sufficiently above the desired output for accurate regulation.

• Place on insulated mounting or PCB stand‑offs
• Allow airflow or add a small heatsink for >2A use
• Confirm voltages with a separate meter before final hookup
• Use correct polarity and avoid transient high input voltages

Who is this for: The HiLetgo LM2596 module suits hobbyists, bench technicians, embedded developers, and students who need a compact, adjustable DC supply for prototyping, battery-powered projects, LED drivers, motor controllers, or DIY electronics. It is particularly useful when a readable voltage display, screw‑terminal convenience, and basic protection features are needed in a low‑cost, easy‑to‑integrate package.
