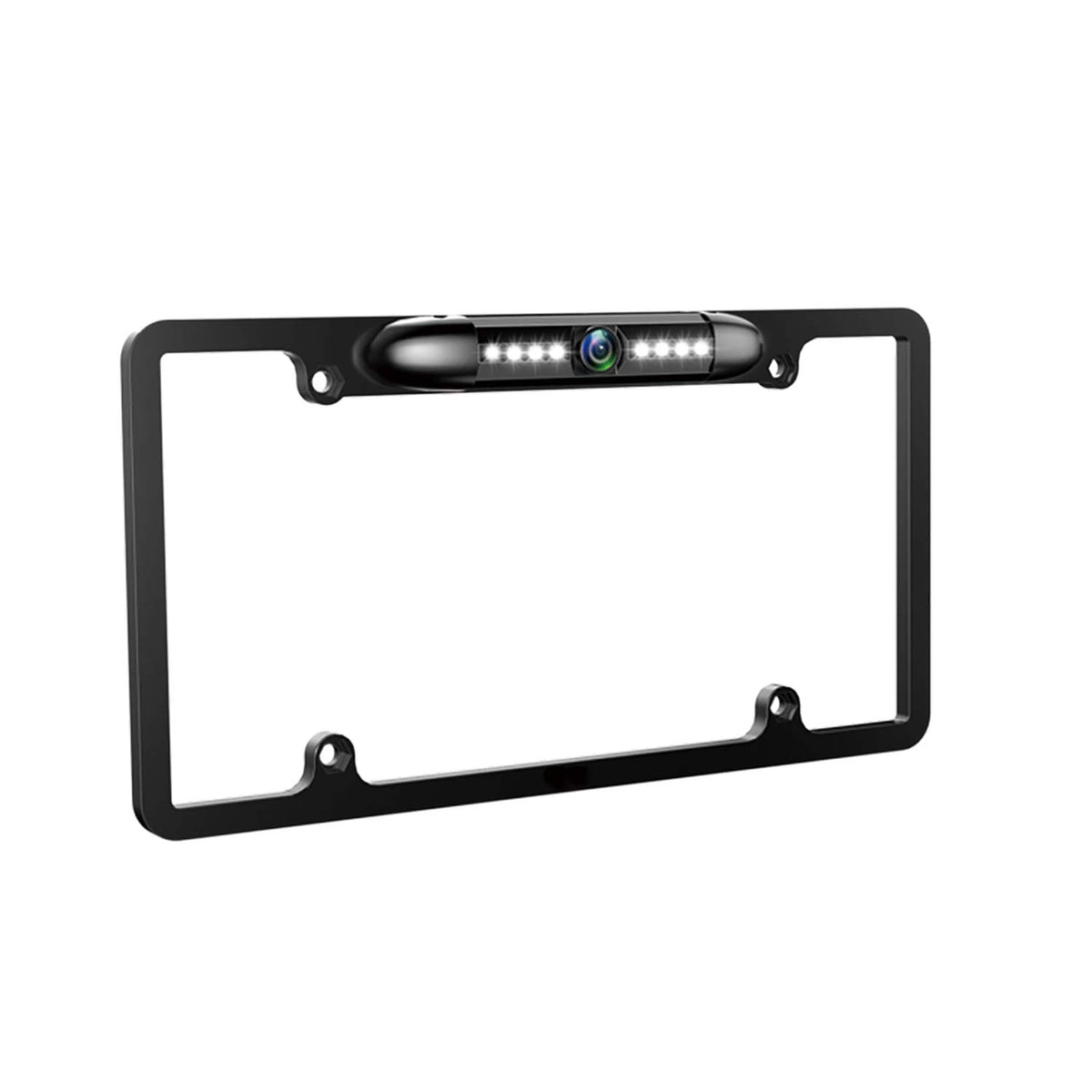

GLK License Plate Backup Camera HD 170° Night Vision

This rugged backup camera mounts like a standard US license plate frame to deliver a broad rear view that helps when reversing or parking. Built from aluminum-zinc alloy and sealed to IP67 standards, it resists dust, shock, and heavy rain. The camera uses a high-sensitivity color CMOS sensor with adjustable lens angle and 8 white LEDs to provide true-color nighttime images rather than the purple-tinted view some infrared cameras produce. It outputs a standard CVBS signal in NTSC mode and is compatible with most in-dash monitors and aftermarket head units (monitor not included).

How clear is the image during day and night?

The GLK camera provides HD-resolution color imaging in daylight and LED-illuminated color visibility after dark. Eight built-in LEDs boost scene brightness without switching to infrared, so colors remain natural at night. Adjust the camera’s tilt to reduce glare or capture lower obstacles.

• High-sensitivity color CMOS sensor for crisp daytime detail.
• 8 white LEDs for consistent, true-color night visibility.

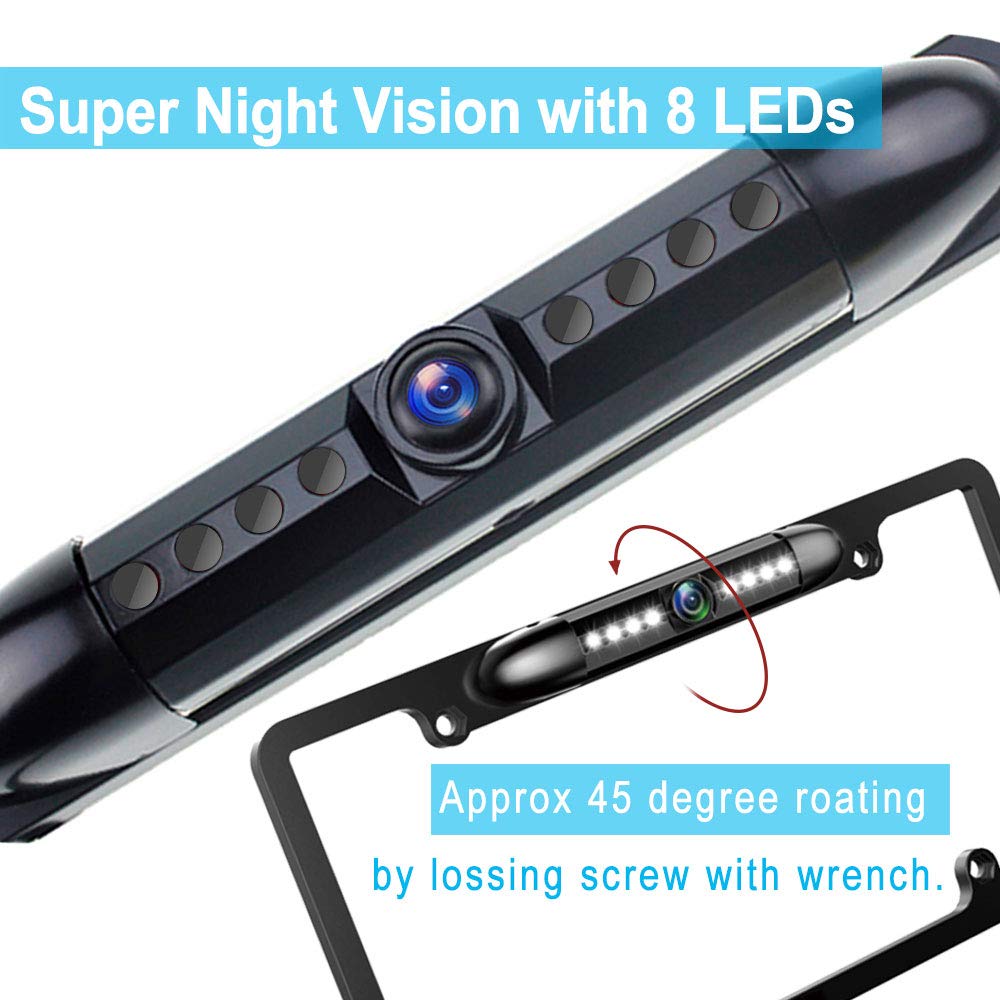

• Lens tilt ±45° for customized framing and reduced reflections.
• CVBS composite output (NTSC) for wide monitor compatibility.

Will this frame fit my vehicle and how is it installed?

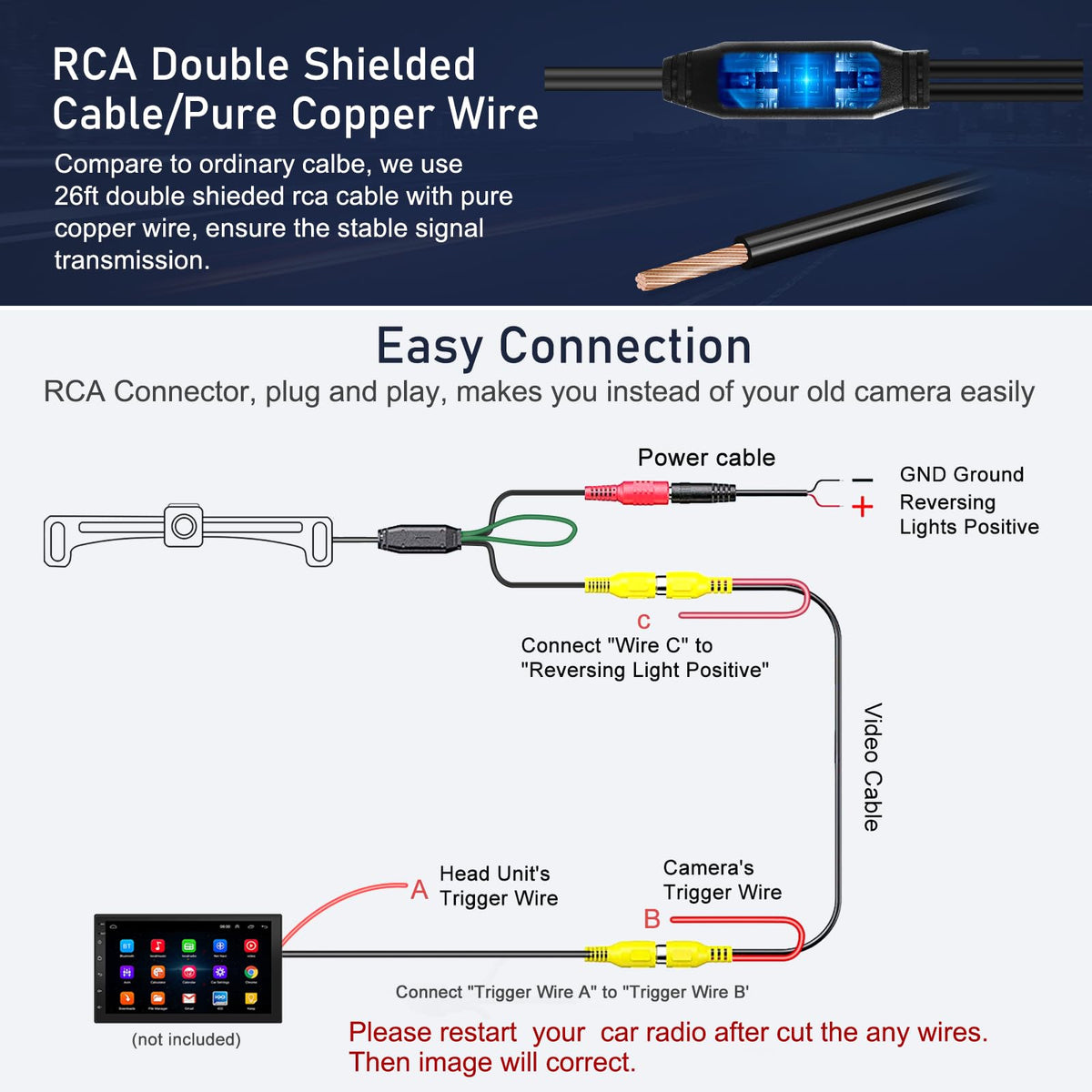

The camera installs in place of a standard US license plate using the same mounting holes, so it fits most vehicles that accept that plate size. The aluminum-zinc frame secures the plate without obscuring registration information. Installation requires routing a video cable to your monitor and connecting power and (if used) the reverse trigger wire on your head unit.

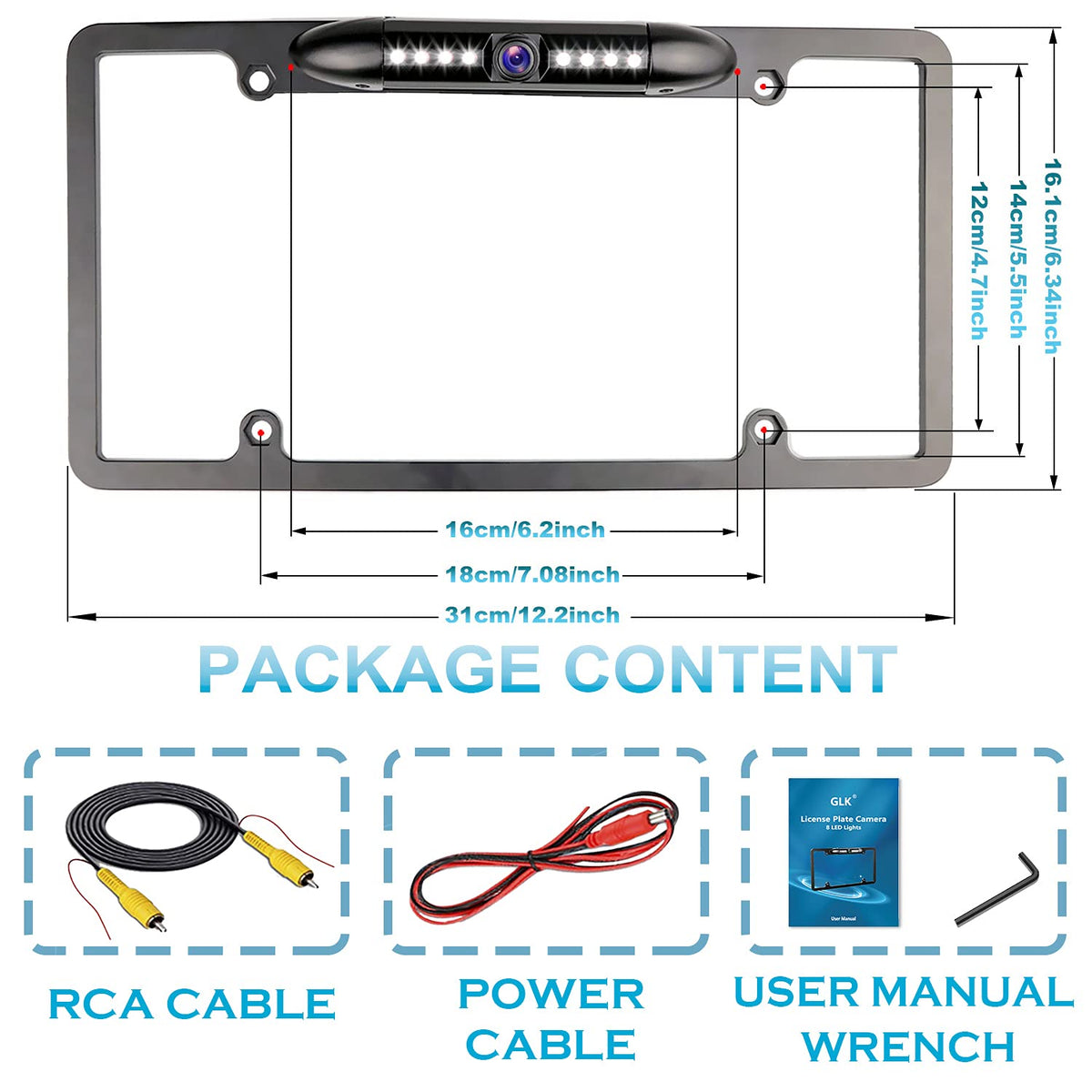

• Standard U.S. license plate frame dimensions — check your plate size before purchase.
• Replace existing plate frame; screws hold both plate and camera frame.
• Video connects via composite (RCA) to monitor; camera power to reverse 12V with optional trigger wire.
• NTSC mode; ensure monitor supports NTSC CVBS input for proper image.

How durable is the camera in bad weather and rough conditions?

Constructed from corrosion-resistant aluminum-zinc alloy and sealed to IP67, the camera resists water ingress, dust, and shock for dependable outdoor use. The sealed optics prevent fogging, and the housing tolerates heavy rain and road spray. It’s designed for everyday automotive exposure rather than immersion for extended periods.

• IP67 rating: dust-tight and protected against temporary immersion.
• Aluminum-zinc alloy housing improves corrosion resistance and strength.
• Sealed optics prevent internal fogging or moisture buildup.
• Shock-resistant mounting for typical driving vibrations and impacts.

What compatibility or setup issues should I anticipate?

The camera outputs composite CVBS in NTSC format; choose a compatible monitor or set the monitor to NTSC if necessary. If your image appears reversed or guide lines remain, adjust your monitor’s mirror and overlay settings. The camera has a removable guide-line function by cutting the green wire, and a reverse-trigger wire should be connected when integrating with many head units.

• NTSC CVBS output — verify monitor supports NTSC composite input.
• Guide lines can be disabled by cutting the green wire or via monitor settings.
• Use reverse trigger wire for automatic activation with reverse gear on compatible radios/players.
• If image is mirrored or black/white, recheck monitor mode and mirror settings.

Who is this for: The GLK License Plate Backup Camera suits drivers who want a discreet, robust rear-view upgrade without altering bumpers or trim — ideal for sedans, SUVs, trucks and vans using a standard US plate. It’s a good fit for DIY installers, fleet vehicles that need weatherproof monitoring, and anyone seeking true-color nighttime visibility and a wide 170° field of view. Note: monitor or display is not included; confirm NTSC/CVBS compatibility and license plate dimensions before ordering.
