Generic K9DP QRP BCI AM Broadcast Interference Filter BNC

The K9DP QRP BCI Filter (male/female BNC) is an inline HF filter that reduces unwanted AM broadcast interference for low-power transceivers and SDRs while remaining compact enough for portable operations.

If your QRP station struggles with overload or desense from strong AM broadcast stations, the K9DP BCI filter offers a lightweight, easy-to-install solution. Built for hobbyist HF radios and SDR receivers, this filter is compatible with popular Xiegu models and other 50Ω equipment. It’s purpose-built for operators who need cleaner receive signals and fewer spurious peaks without adding bulk to their kit.

How does this filter fit into my QRP setup?

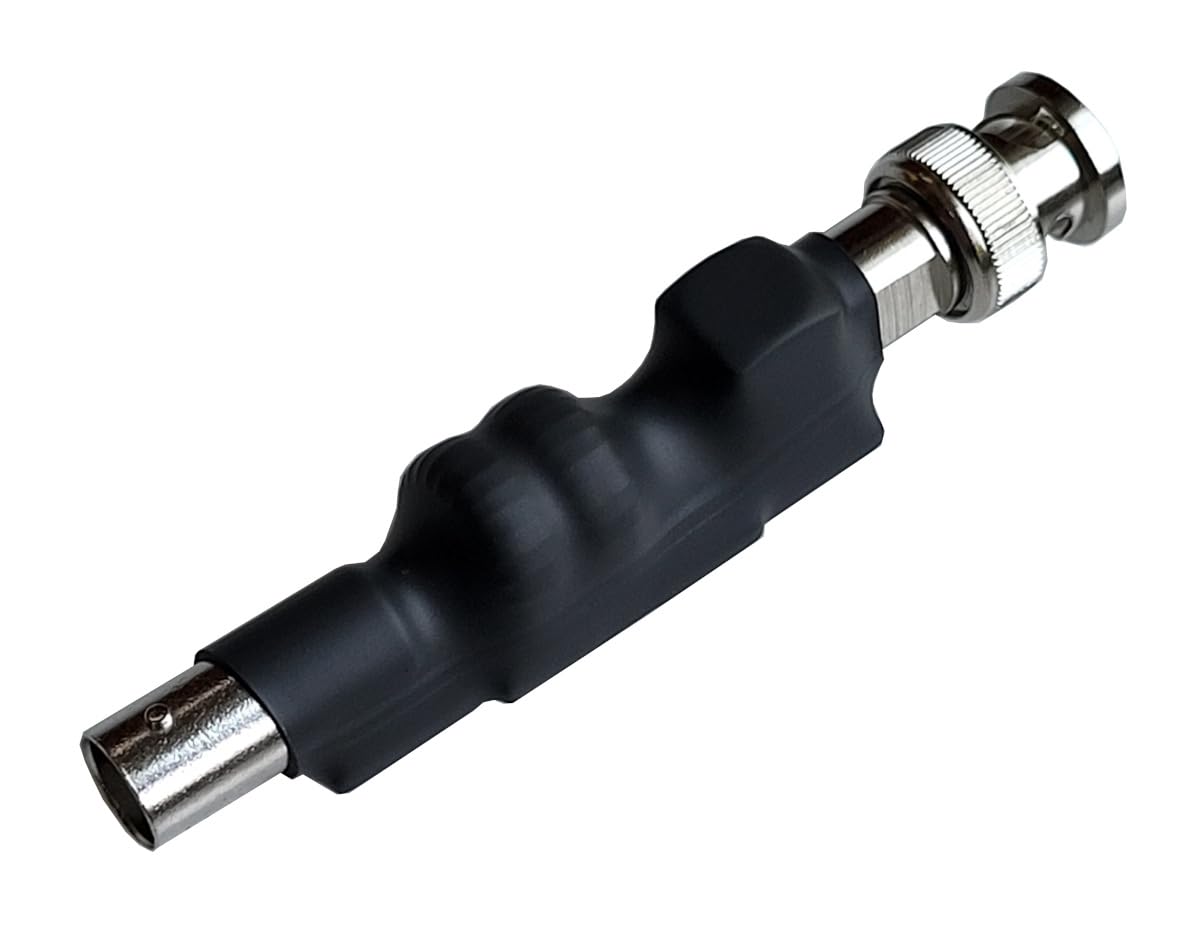

The filter installs inline between your transceiver and any external tuner or directly into the radio if no tuner is used. Because it is symmetric and 50Ω, either connector can be used as input or output, simplifying hookup in the field. It is the male/female BNC version, so it connects directly to many portable radios without adapters.

• Connects inline between transceiver and tuner, not between tuner and antenna.
• Symmetrical 50Ω design — orientation doesn’t matter.
• Male/Female BNC connectors for direct compatibility with many QRP radios.
• Compact 86mm length fits in portable radio bags and packs.

Will the filter handle my operating modes and power?

This K9DP filter has been proven in low-power amateur use and accepts typical QRP power levels up to 20 watts across voice, CW, and digital modes. It’s intended for receive protection and for reducing front-end overload rather than for high-power duty cycles. Always ensure a good antenna match to avoid excessive SWR through the filter.

• Tested to 20 W with SSB, CW, and digital modes like FT8.
• Not designed for continuous high-power transmission beyond its test limits.
• Use with resonant or matched antennas if your radio has an internal tuner.
• Monitor SWR; high mismatch can damage the filter.

What components and construction make this effective?

The filter uses quality C0G (NP0) capacitors and Micrometals toroids to create a stable, repeatable response against strong AM broadcast signals. Each unit is fully assembled and bench-tested in the USA to confirm performance before shipping. The small metal housing delivers durability without adding significant weight to your portable station.

• High-stability C0G (NP0) capacitors for consistent filtering characteristics.
• Micrometals toroids for reliable inductance and low loss.
• Assembled and tested in the USA for quality control.
• Rugged compact housing balances durability and portability.

How should I use the filter in portable activities like POTA or SOTA?

Because of its low mass and short length, the filter is ideal for portable activations where reducing local broadcast overload improves receive clarity. Clip it into your feedline or radio bag and use it whenever nearby AM stations are causing receiver desensitization or audible interference. Keep it inline before any external tuner, and pair it with resonant antenna designs whenever possible.

• Fits easily into POTA, SOTA, and Field Day kits at 30 grams weight.
• Use inline with radios during activations to reduce desense from strong stations.
• Pair with resonant or matched antennas for best protection.
• Store in a small pouch to prevent connector damage in the field.

Who is this for? The K9DP QRP BCI filter is aimed at low-power amateur radio operators and SDR users who face front-end overload or broadcast-band splatter that degrades receive performance. It’s especially useful for portable operators, contesters running QRP, and anyone using Xiegu X6100, X5105, G90, G106 or similar radios who wants a simple, tested inline filter that won’t add bulk. If you need a compact hardware fix to cut down on AM broadcast interference without complex setup, this filter is a practical addition to your kit.
