FREEXAR Dash Cam Hardwire Kit USB-C (12–30V) — 5V/2.5A Output, 24H Parking Mode & Low-Voltage Protection

The FREEXAR Multi-Size Dash Cam Hardwire Kit provides continuous USB-C power from your vehicle fuse box so your dash camera can record while driving and during 24/7 parked monitoring.

Hardwiring a dash cam removes reliance on the cigarette lighter and enables always-on recording. This FREEXAR kit converts a wide range of vehicle voltages (12–30V) to a stable 5V/2.5A USB-C output, includes multiple fuse tap adapters and a circuit tester for broad compatibility, and adds low-voltage cut-off to prevent battery drain. It’s built to work with many single- and dual-channel dash cameras that accept USB power and supports automatic switching into parking mode when the ignition is off.

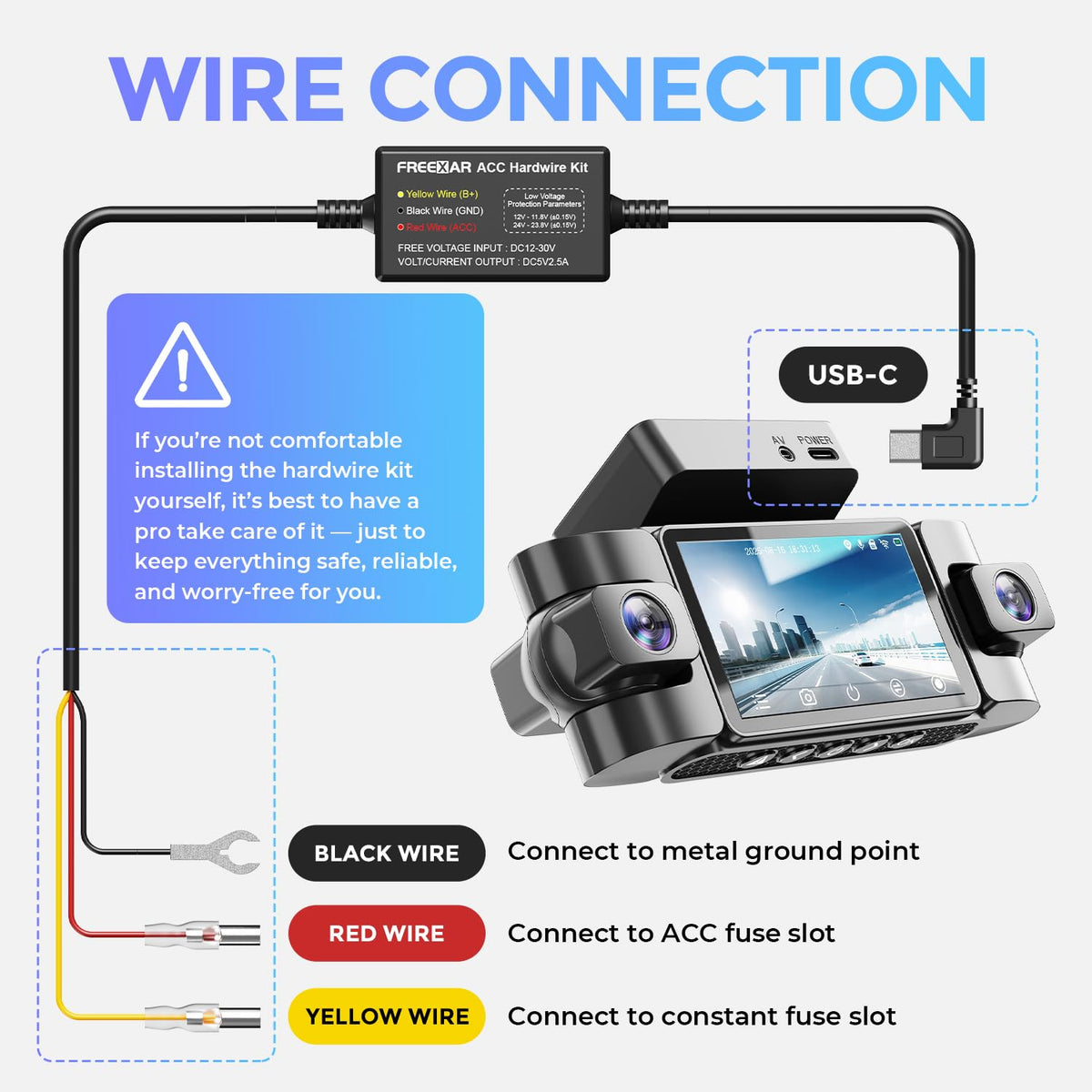

How does this kit keep a dash cam recording while my car is parked?

The kit taps into your vehicle’s fuse box and supplies continuous 5V power even when the engine is off. Smart ACC detection signals the camera to switch to parking mode automatically and the kit monitors battery voltage to cut power if needed.

• Direct connection to fuse box for uninterrupted power.
• Automatic ACC detection switches between driving and parking modes.
• 24/7 monitoring capability for collision or motion events while parked.
• Low-voltage protection prevents draining the vehicle battery.

Will this hardwire kit work with my car and dash cam?

The FREEXAR kit accepts 12–30V inputs, covering most personal and commercial vehicles from cars to light trucks. It outputs a regulated 5V/2.5A USB-C feed compatible with dash cams that use USB power, and includes multiple fuse tap adapters to match different fuse box types.

• Input range: 12–30V — fits 12V and 24V systems.
• Output: 5V/2.5A via USB-C for stable camera power.

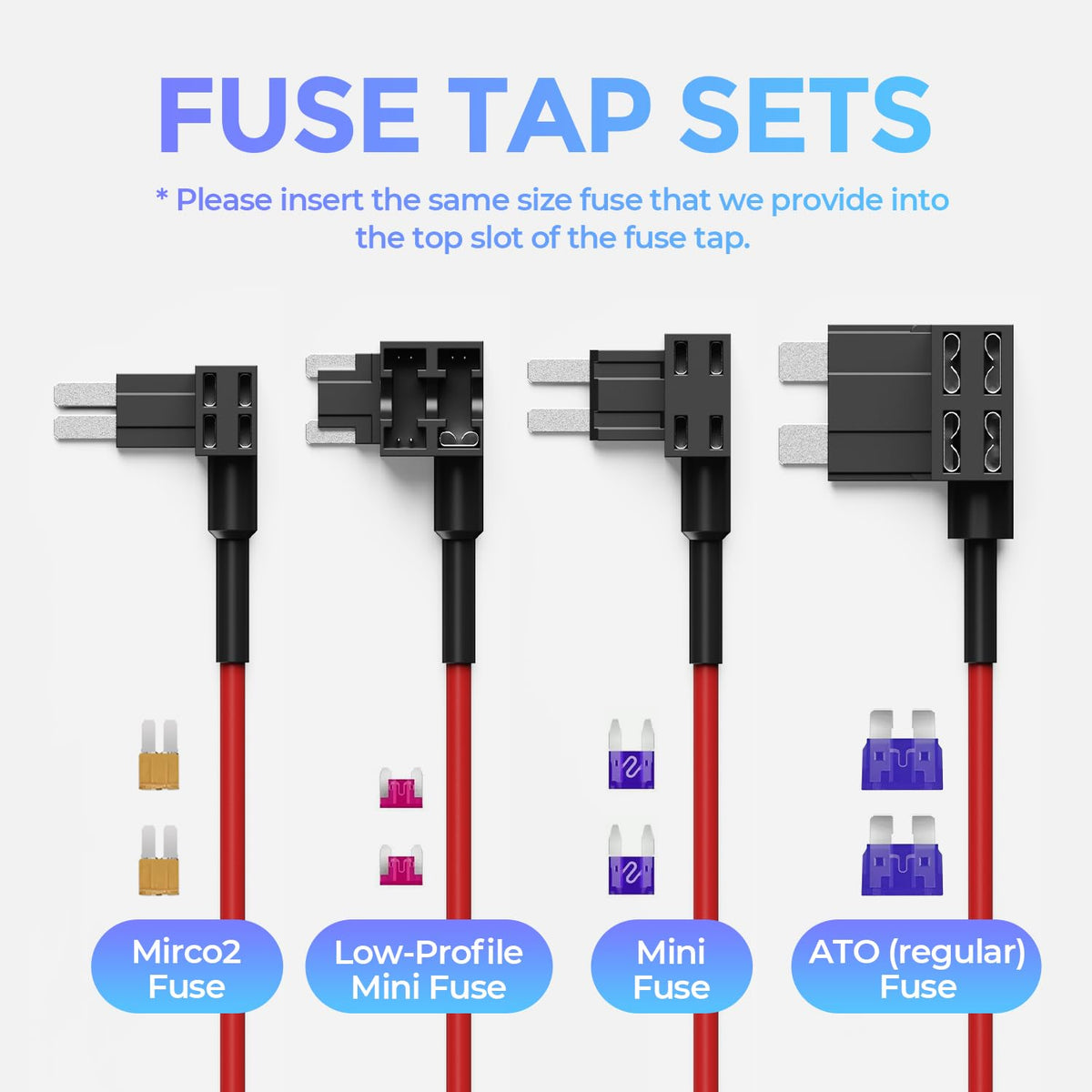

• Four fuse adapter styles included: Standard ATO/ATC, Mini ATM, Micro2, Low-Profile Mini.
• Works with most dash cam brands that accept USB power.

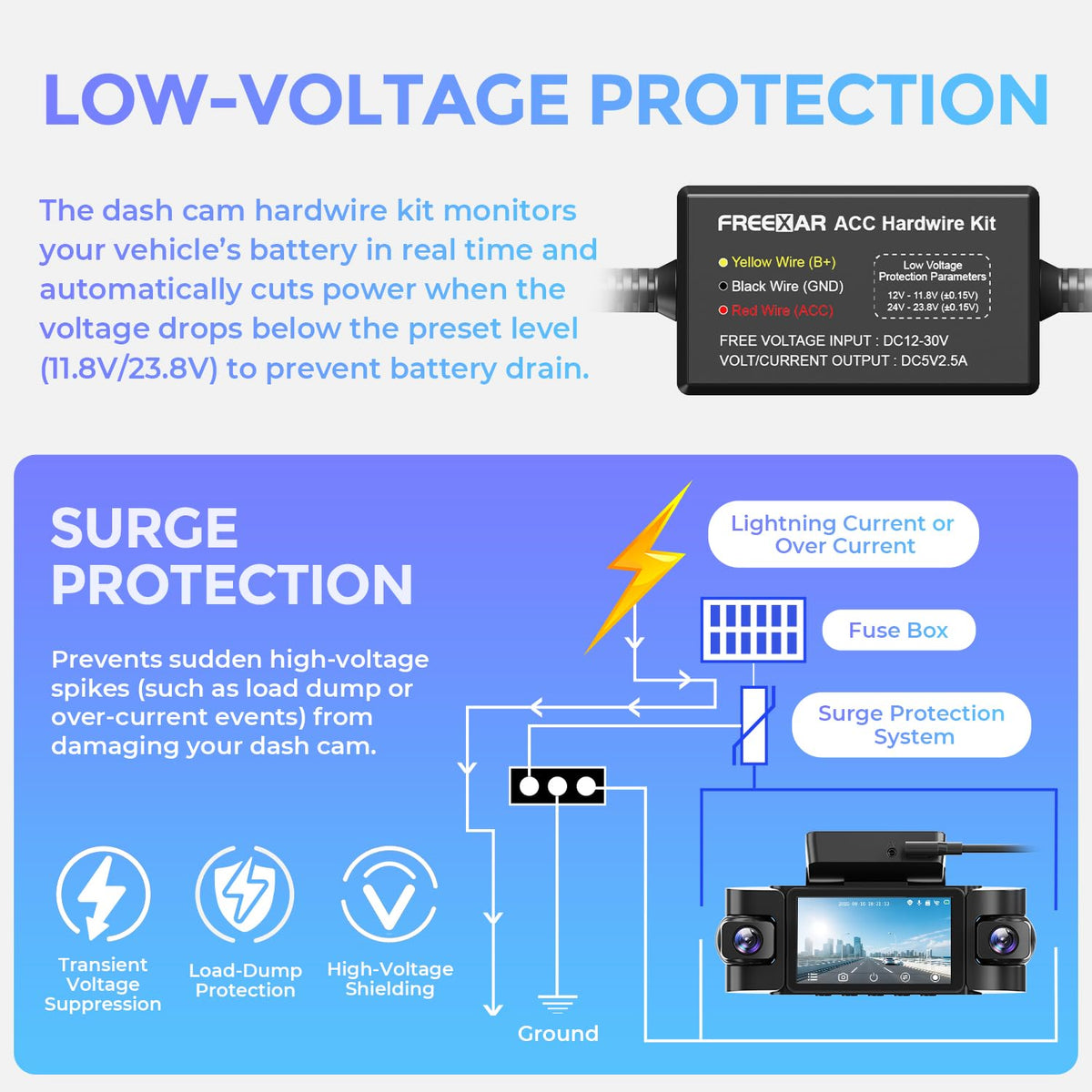

How does the low-voltage protection and safety testing work?

The kit continuously monitors the vehicle’s battery voltage and will cut power when voltage drops below predefined thresholds, preventing an exhausted battery after long parking periods. A fuse tap adapter and included circuit tester make safe installation easier and faster.

• Low-voltage cut-off thresholds: about 11.8V for 12V systems, 23.8V for 24V systems.
• Built-in monitoring prevents deep discharge during extended parking.
• Circuit tester helps identify the correct fuse and verifies power before finalizing installation.
• Multiple fuse types reduce the need for extra parts or adaptors.

How difficult is installation and what’s included?

Installation is designed for vehicle owners comfortable working in a fuse box; the kit ships with everything needed for a neat hidden install and includes clear instructions and videos. If you prefer, a professional installer can complete the wiring quickly and safely.

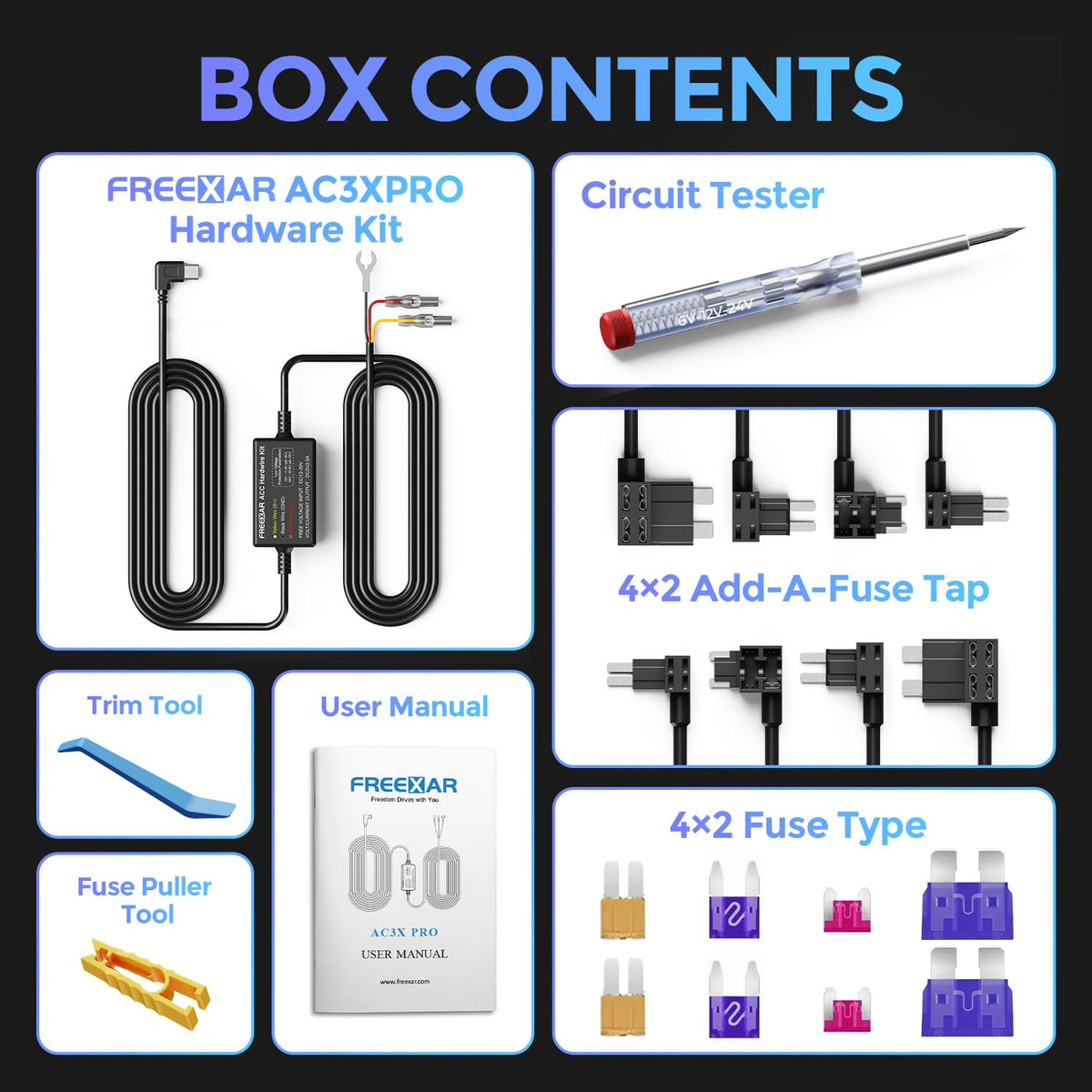

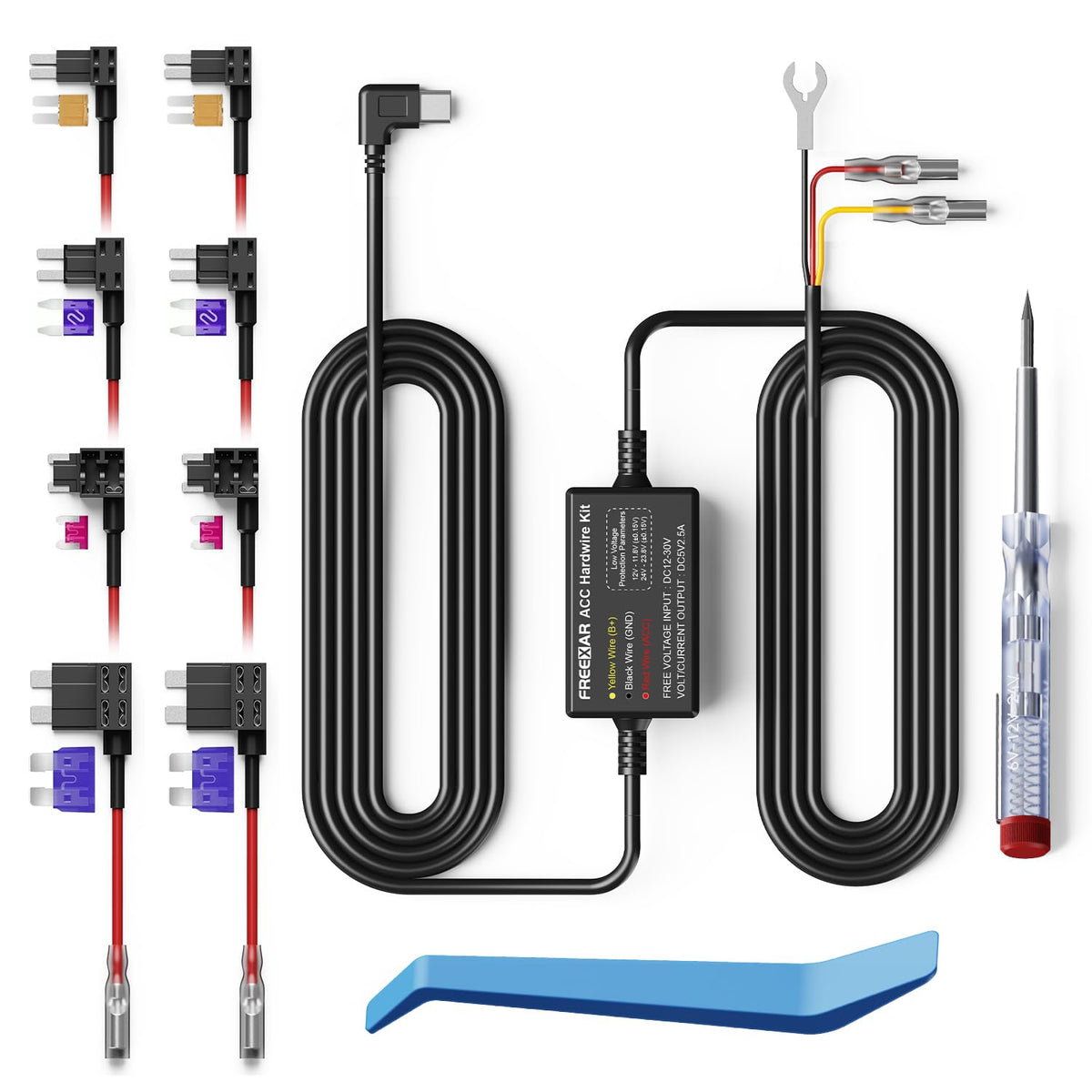

• Included: multi-size fuse taps, USB-C power cable, circuit tester, wiring clips, and instructions.
• Hidden wiring avoids cigarette lighter sockets for a cleaner interior look.
• Step-by-step video and manual simplify the process for DIYers.
• Recommendation: seek professional installation if you’re not confident working with vehicle electrics.

Who is this for? The FREEXAR Multi-Size Dash Cam Hardwire Kit is aimed at drivers who want reliable, continuous dash-cam recording without using the cigarette lighter — commuters, rideshare drivers, fleet vehicles, and anyone who needs 24/7 parking monitoring. It’s especially useful for owners of dash cameras that require a USB-C power source and for vehicles with varied fuse types or 12V/24V electrical systems. If you prefer plug-and-play simplicity or lack experience with automotive fuse boxes, consider professional installation to ensure a safe and tidy setup.
