FitDVR Dash Camera Power Adapter for Mazda (Sunroof 10-Pin)

FitDVR Dash Camera Power Adapter (10-Pin) for Mazda provides a sunroof-compatible, plug-and-play power solution with LED voltage/readout and multiple output cables for dash cams.

This compact power adapter is designed specifically for Mazda vehicles equipped with a sun roof, delivering both 12V and 5V outputs to run a wide range of dash cameras without tapping the cigarette lighter. The unit includes a visible LED display that shows current and voltage, six output cable types to match most camera inputs, and a wiring harness intended for a simple, warranty-safe installation. FitDVR engineers these adapters with in-house development and offers customer support if you need help selecting or installing the right model.

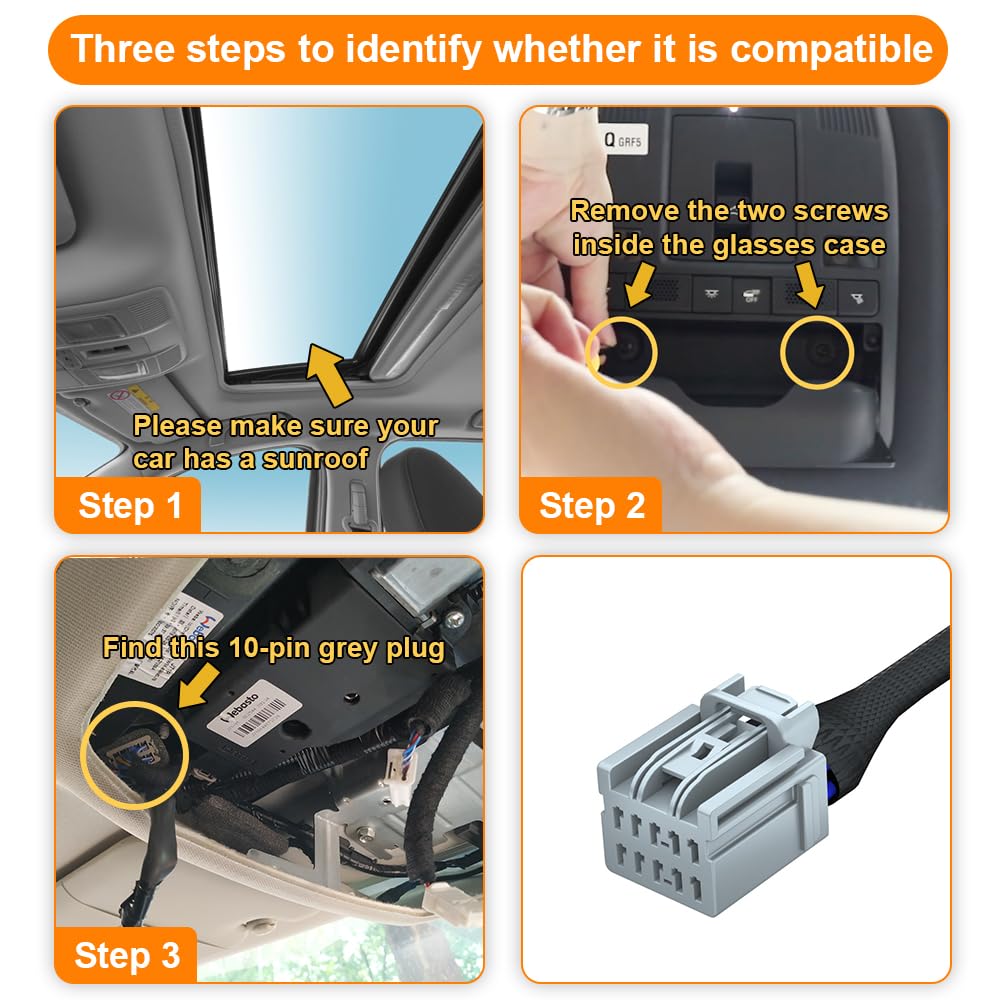

Will this FitDVR adapter work in my Mazda with a sunroof?

Yes — the adapter is built for Mazda models that have a sun roof connection point. It requires that specific vehicle configuration; cars without a sunroof are not compatible with this harness type.

• Model-specific fit: intended for Mazda vehicles with OEM sunroof harness access.
• Plug-and-play wiring harness reduces installation complexity.
• No permanent cutting or splicing required, preserving vehicle warranty.

What power outputs and cable options are included?

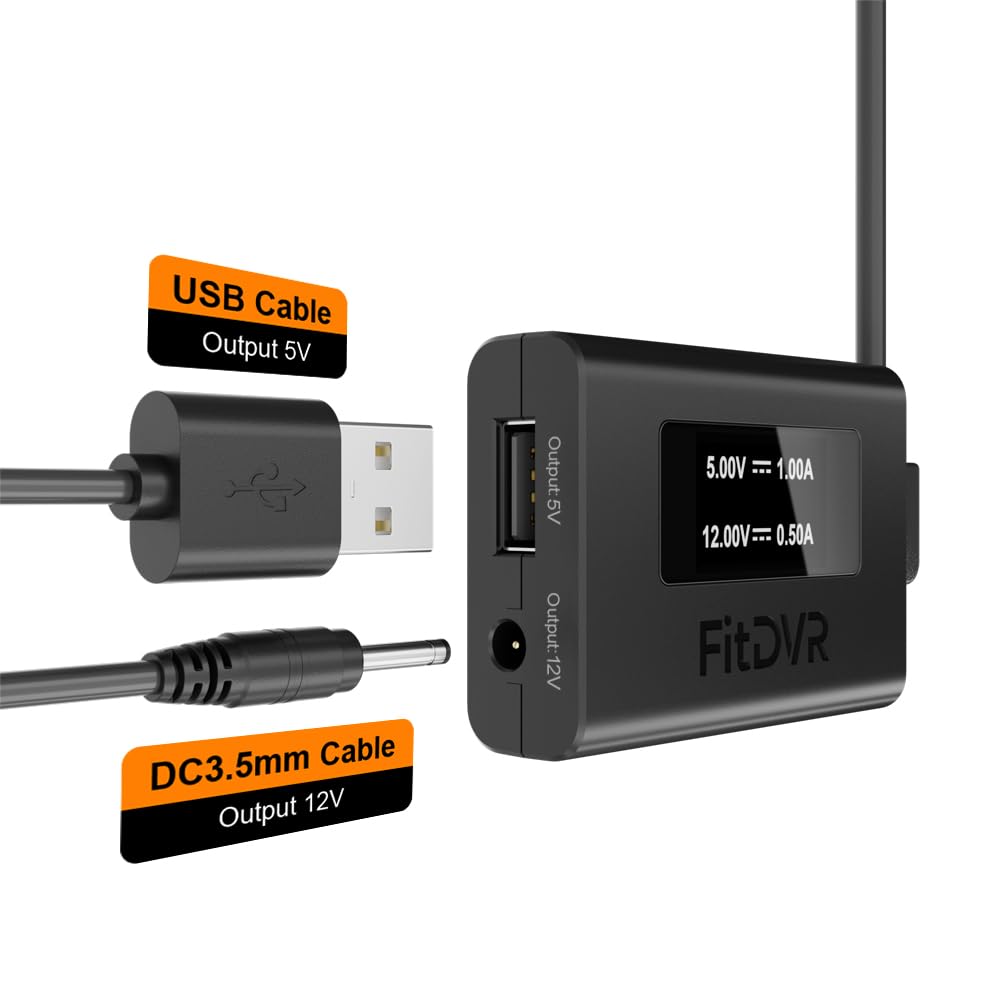

The FitDVR adapter accepts 12V vehicle input and provides selectable 12V and 5V outputs so it can power traditional 12V dash cams or USB-powered cameras. Six output cables are bundled to meet most dash camera input types.

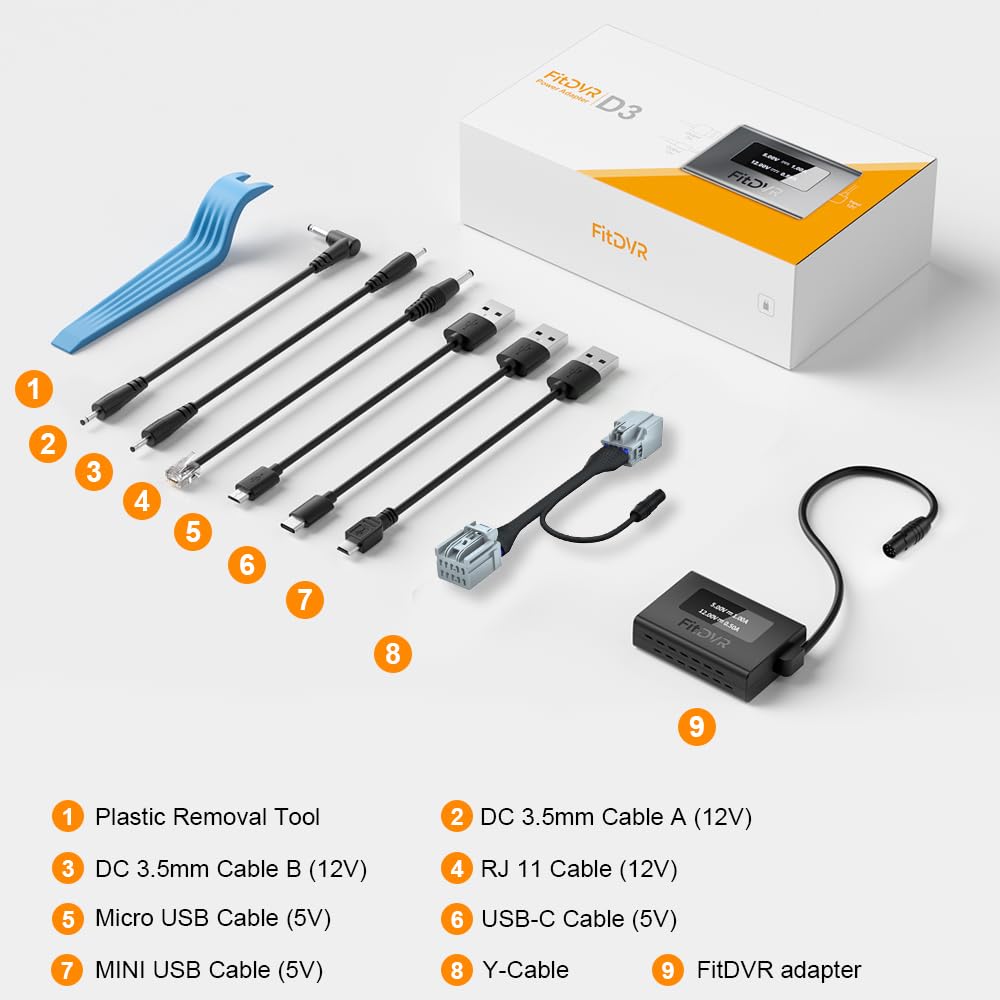

• 12V outputs via two DC 3.5mm cables (Cable A and Cable B) and an RJ11 cable.
• 5V USB outputs include Micro USB, USB-C, and Mini USB cables.
• Built-in USB power source supports cameras that require a steady 5V supply.

How does the LED display help during installation and use?

The integrated LED screen shows live voltage and current readings so you can verify the adapter and camera are receiving correct power. That visual feedback makes troubleshooting easier and helps confirm the adapter is functioning as expected while driving or at rest.

• Real-time voltage readout helps detect under- or over-voltage situations.
• Quick verification of power delivery during install without extra tools.
• Visible diagnostics reduce guesswork when pairing with different cameras.

Is installation difficult and will it affect my vehicle warranty?

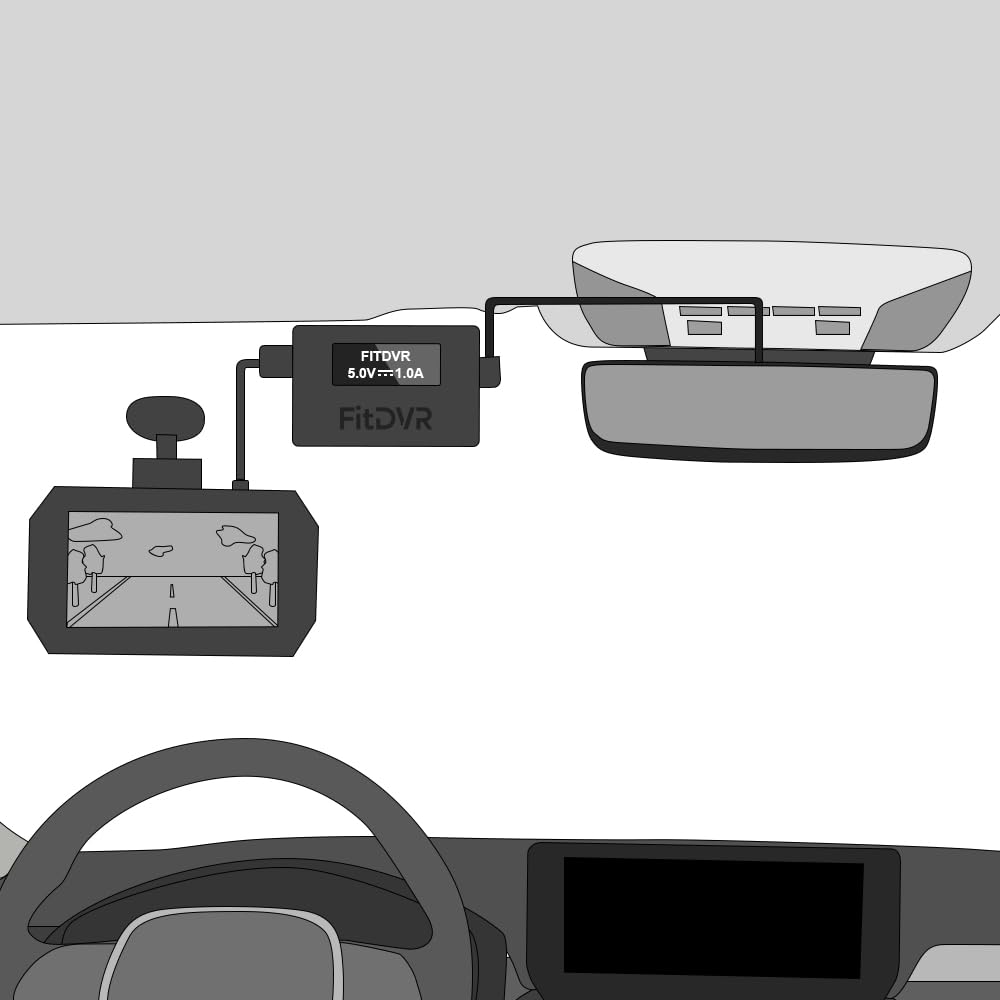

Installation is intended to be straightforward: a special wiring harness enables plug-and-play connection to the sunroof harness, avoiding invasive splicing. Because it uses the vehicle’s OEM-style connection, it’s designed not to void factory warranties when installed properly.

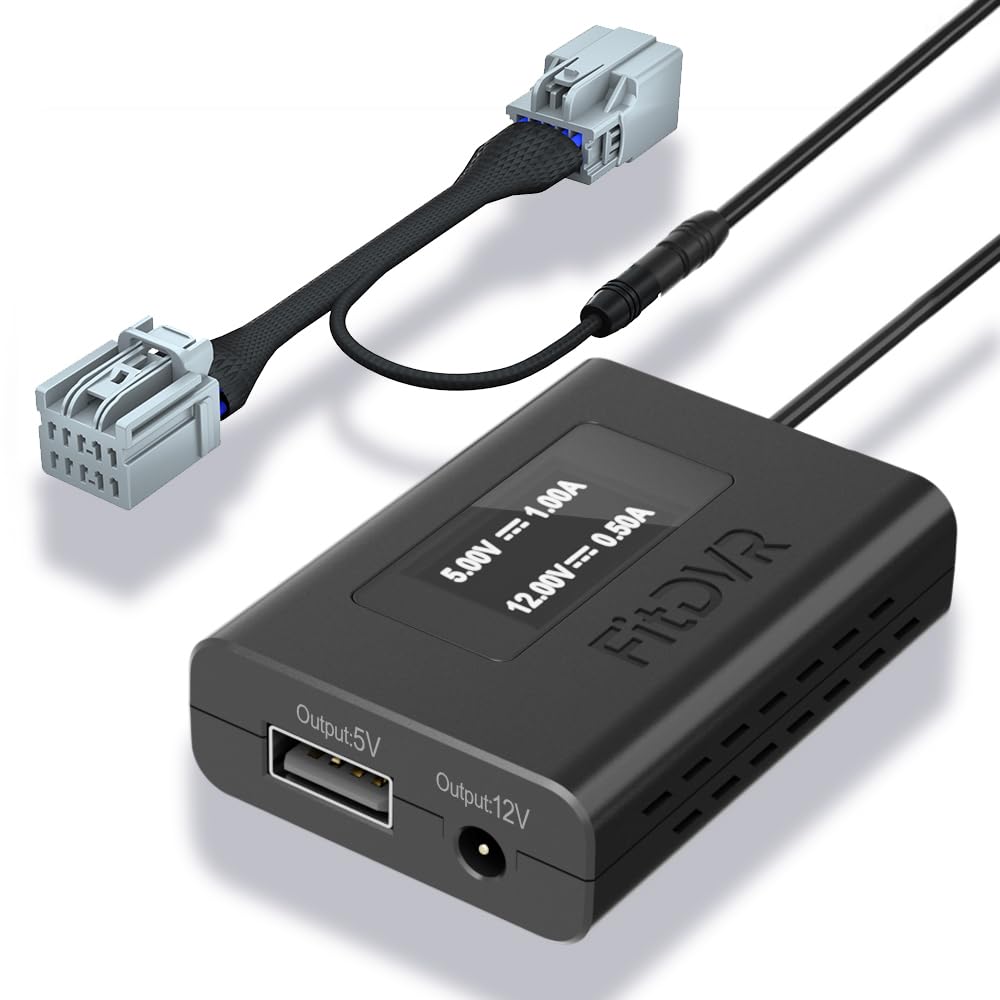

• Special harness fits into the sunroof connector for a secure link.
• No cutting or soldering required for standard installations.
• FitDVR offers 24/7 support if you need installation guidance or replacement parts.

Who is this for? The FitDVR Dash Camera Power Adapter (10-Pin) is aimed at Mazda owners with a factory sunroof who want a tidy, reliable power source for a dash camera. It suits drivers replacing a cigarette-lighter power supply with a hardwired solution, installers who value a visible voltage readout, and anyone who needs multiple connector types to support different camera models. If your Mazda lacks a sunroof or your camera needs an uncommon connector not listed, check FitDVR support for an alternative adapter.
