FitDVR 10-Pin Dash Cam Power Adapter for Dodge/Jeep

FitDVR D3-012 is a 10-pin dash cam power adapter that delivers both 5V USB and 12V DC outputs, plugs into the rearview mirror bracket, and features an LED readout plus fused protection for select Dodge, Jeep, Ram and Chrysler models.

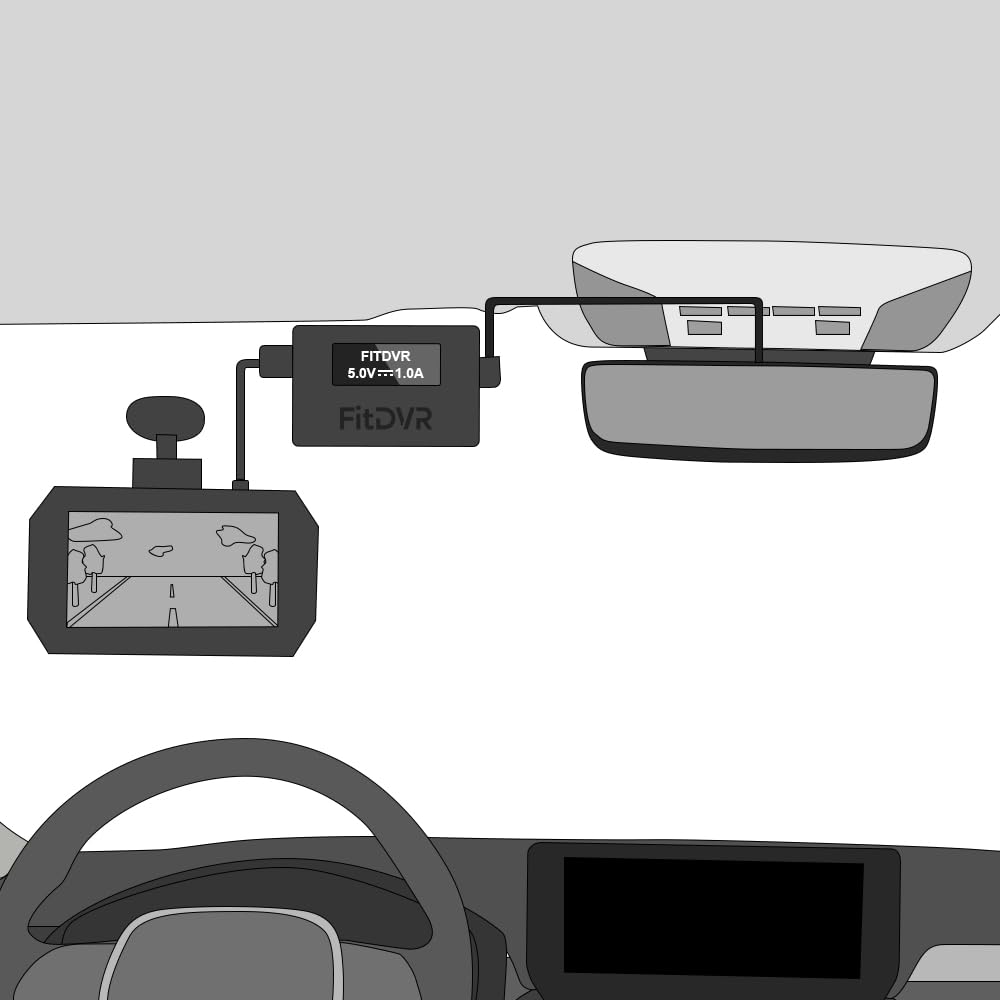

This compact wiring harness is built to feed a dash camera or mirror-mounted device directly from your vehicle’s mirror bracket without tapping into the cigarette lighter. It converts the car’s 12V feed into a selectable 5V USB supply and a 12V DC line, shows voltage/current on a front LED, and includes multiple cable tips so it fits a variety of recorder inputs. The plug-and-play design preserves factory wiring and is intended for specific models that use a 10-pin connector behind the mirror.

Which vehicles and mirror connections is this adapter compatible with?

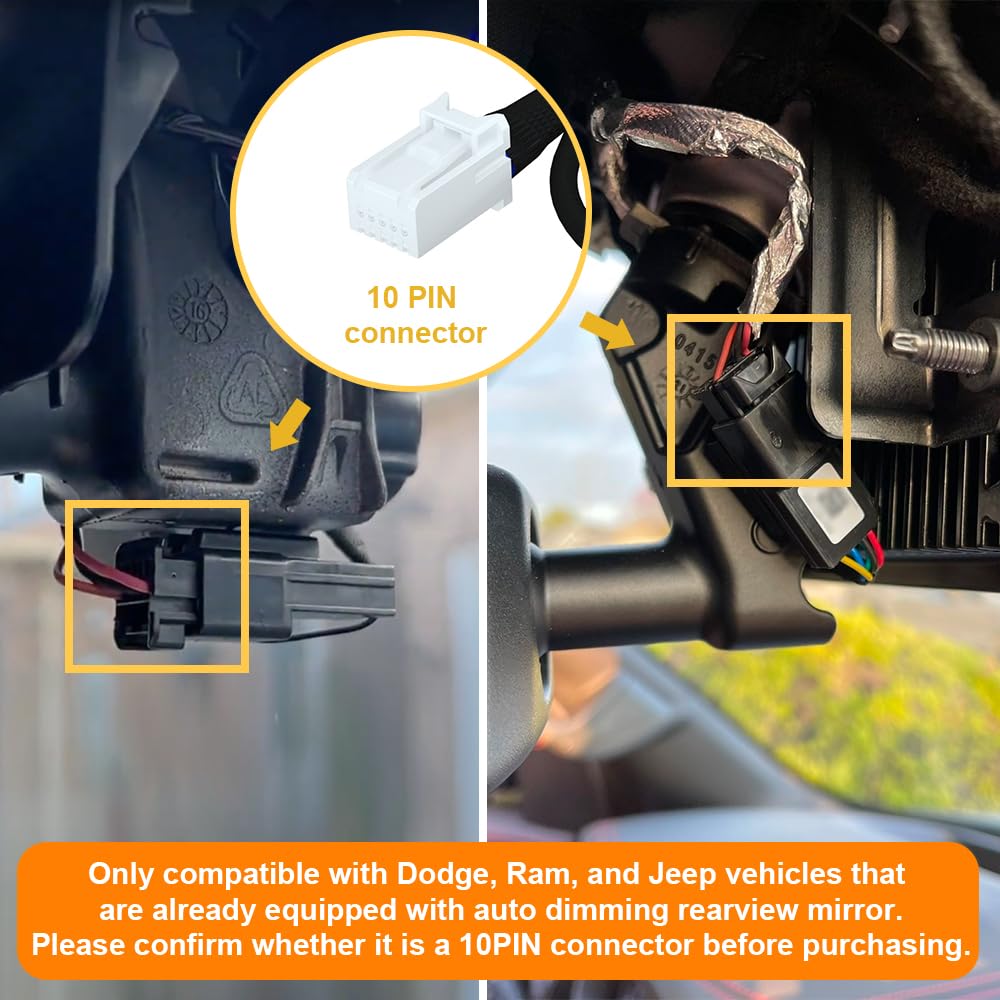

Confirm your rearview mirror bracket has a 10-pin connector like the example images before ordering. The FitDVR D3-012 is compatible with many later-model Dodge, Jeep, Ram and Chrysler vehicles that use that mirror harness pinout.

• Common matches: Ram 1500/2500/3500 (2013+), Jeep Cherokee/Grand Cherokee (2014+), Compass (2017+)
• Also fits: Wagoneer (2022+), Charger (2015+), Durango (2014+), Challenger (2014+)
• Chrysler models: 200, 300 (2017+), Pacifica (2017+), Dart (2013+)

How does the adapter power different dash cams and devices?

The unit accepts a 12V input from the vehicle and provides both 5V and 12V output lines so you can power USB-based cameras and devices that require higher DC voltage. Included tip options cover common connector types so you can connect the majority of dashcams without extra adapters.

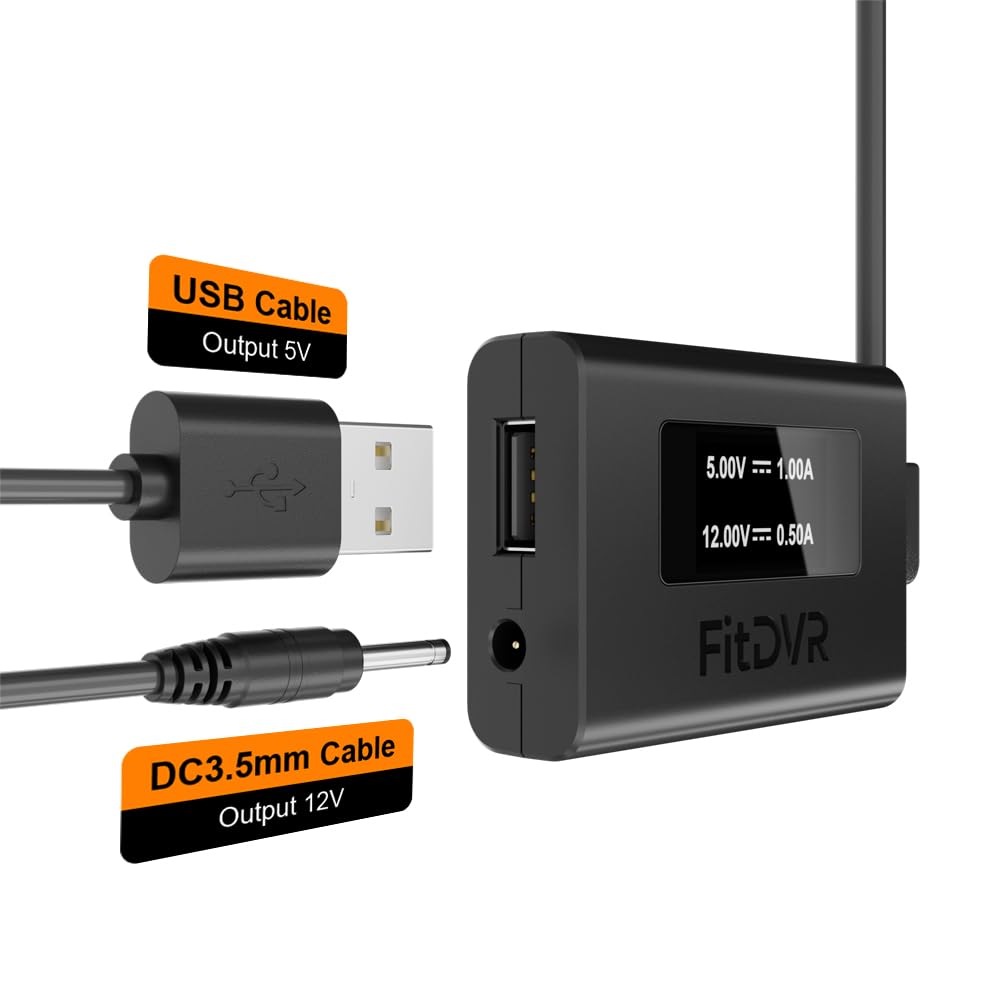

• Outputs: regulated 5V via USB ports and 12V via DC 3.5mm and RJ11 leads

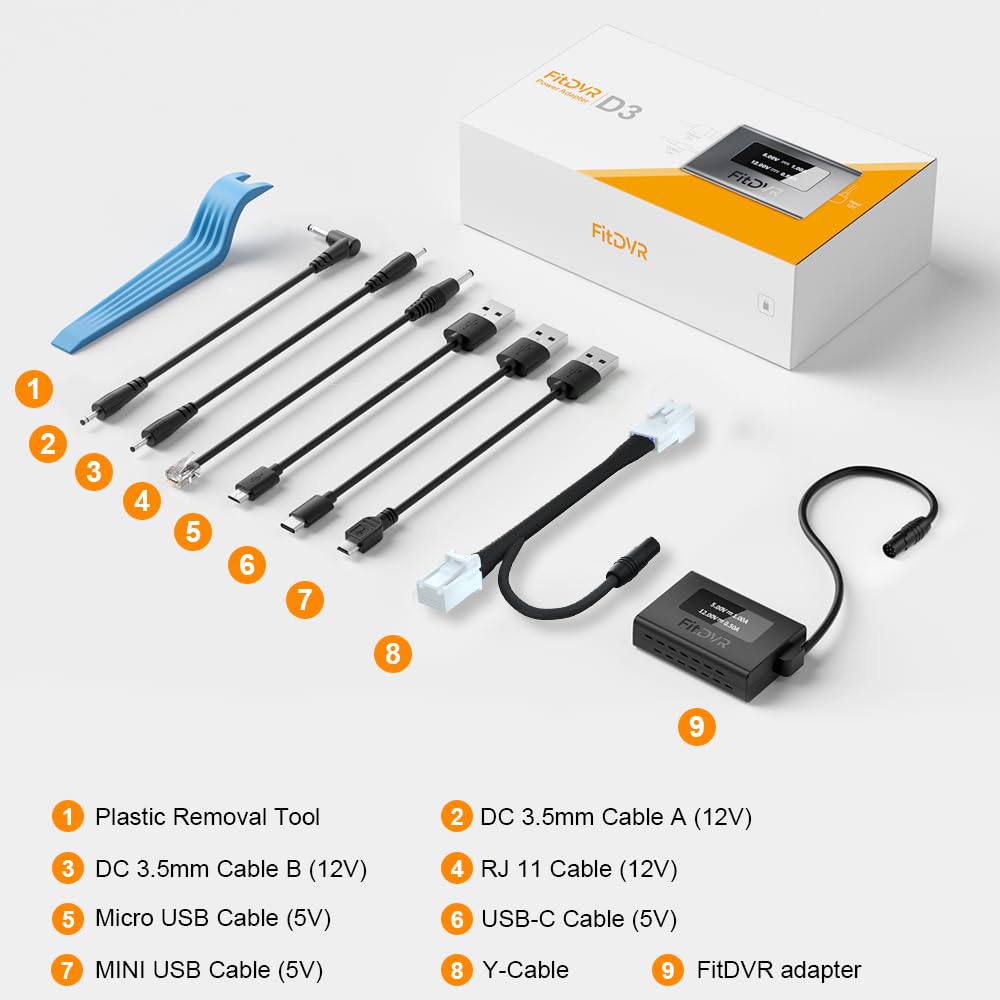

• Included leads: Mini USB, Micro USB, USB-C, RJ11, and two DC 3.5mm cables

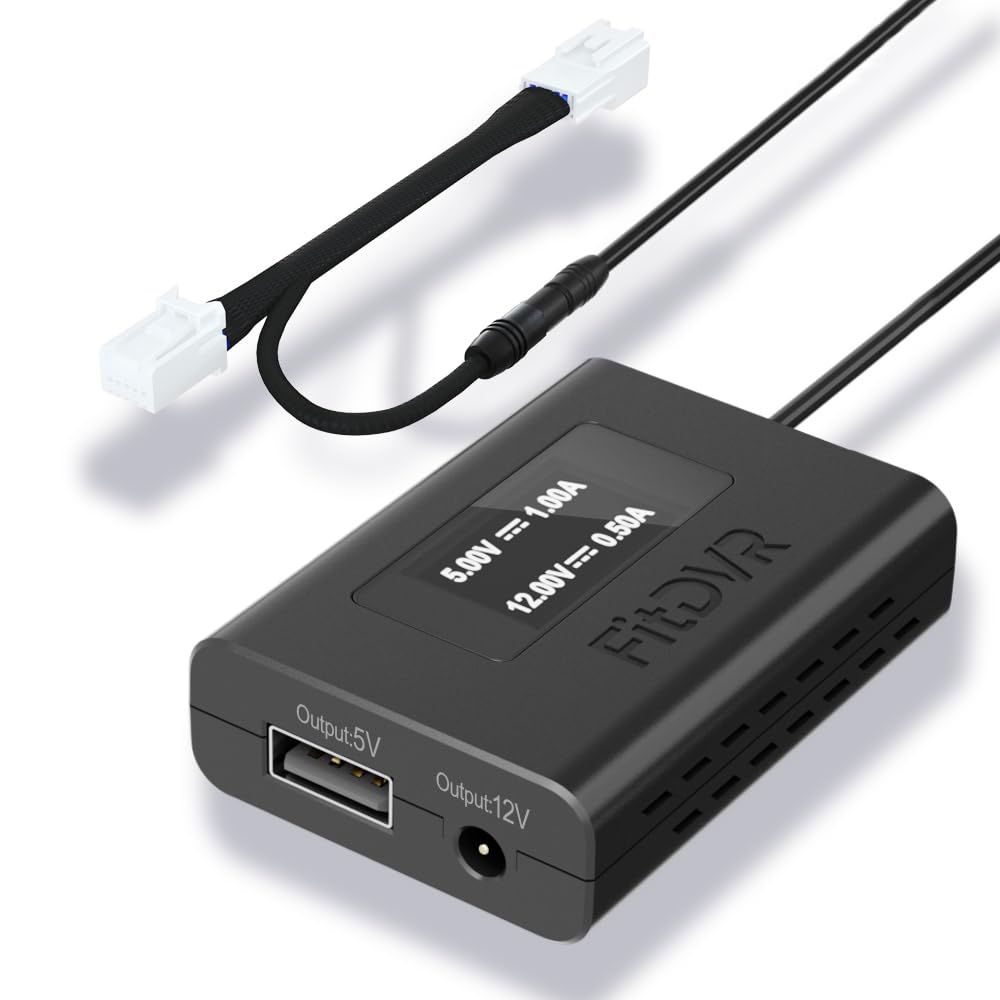

• LED screen shows real-time voltage and current for monitoring

Is installation difficult and will it affect my vehicle warranty?

Installation is designed to be simple: the harness plugs into the factory mirror connector, avoiding splicing into factory wiring. Because it uses the original connector and a purpose-built harness, it should not interfere with factory systems or void the vehicle warranty when installed properly.

• Plug-and-play harness fits the 10-pin mirror connector
• No permanent wire cutting or complex routing required
• Fuse protection built into the adapter for safety

What makes the FitDVR adapter different from generic power supplies?

Beyond the multi-tip cable bundle, FitDVR includes an illuminated display and tailored outputs suited to mirror-mounted electronics. The company focuses on dash cam power solutions, so the product emphasizes compatibility, monitoring, and convenience for in-dash installations.

• Bright LED display provides voltage/current feedback while driving
• Multiple 5V and 12V outputs eliminate need for extra converters
• Designed, produced, and supported by a dash-cam-focused manufacturer

Who this is for: If you own a late-model Dodge, Jeep, Ram or Chrysler vehicle that has a 10-pin rearview mirror connector and you want a tidy, hardwired power solution for a dash camera or mirror-mounted recorder, the FitDVR D3-012 provides a monitored, multi-output harness with several connector tips. It's aimed at drivers who prefer a clean installation without tapping into the cigarette lighter, and at installers seeking a dedicated adapter with fuse protection and an LED status readout. For fitment questions or technical support, FitDVR offers around-the-clock customer assistance to help match your vehicle and dash cam setup.
