FirstLCD 11.6" LCD Screen Replacement 1366x768

FIRSTLCD's 11.6" LCD display assembly is a direct-fit, non-touch replacement for Dell Chromebook 11 models with a 30-pin connector and 1366×768 WXGA resolution.

If your Dell Chromebook 11 series device shows a cracked, dim, or blank screen, this complete LED LCD assembly (non-touch) restores the laptop’s original display performance without replacing other components. The panel is a standard TN (non-IPS) type, sized 11.6 inches with a 30‑pin video connector, and ships with both left and right mounting brackets for straightforward installation. It matches factory part numbers such as B116XTN02.3 and is compatible with Dell model numbers including 3100, 3120, 3162, 3164, 3180, I3180, 3181, C3181, 5190, and P26T (P/N FGF20 0FGF20).

Will this screen physically fit my Dell Chromebook 11?

The assembly is built to replace 11.6" Chromebook 11 displays that use a 30‑pin connector and the 1366×768 resolution. It includes both left and right mounting brackets to match factory mounting points and aligns with the standard bezel cutouts.

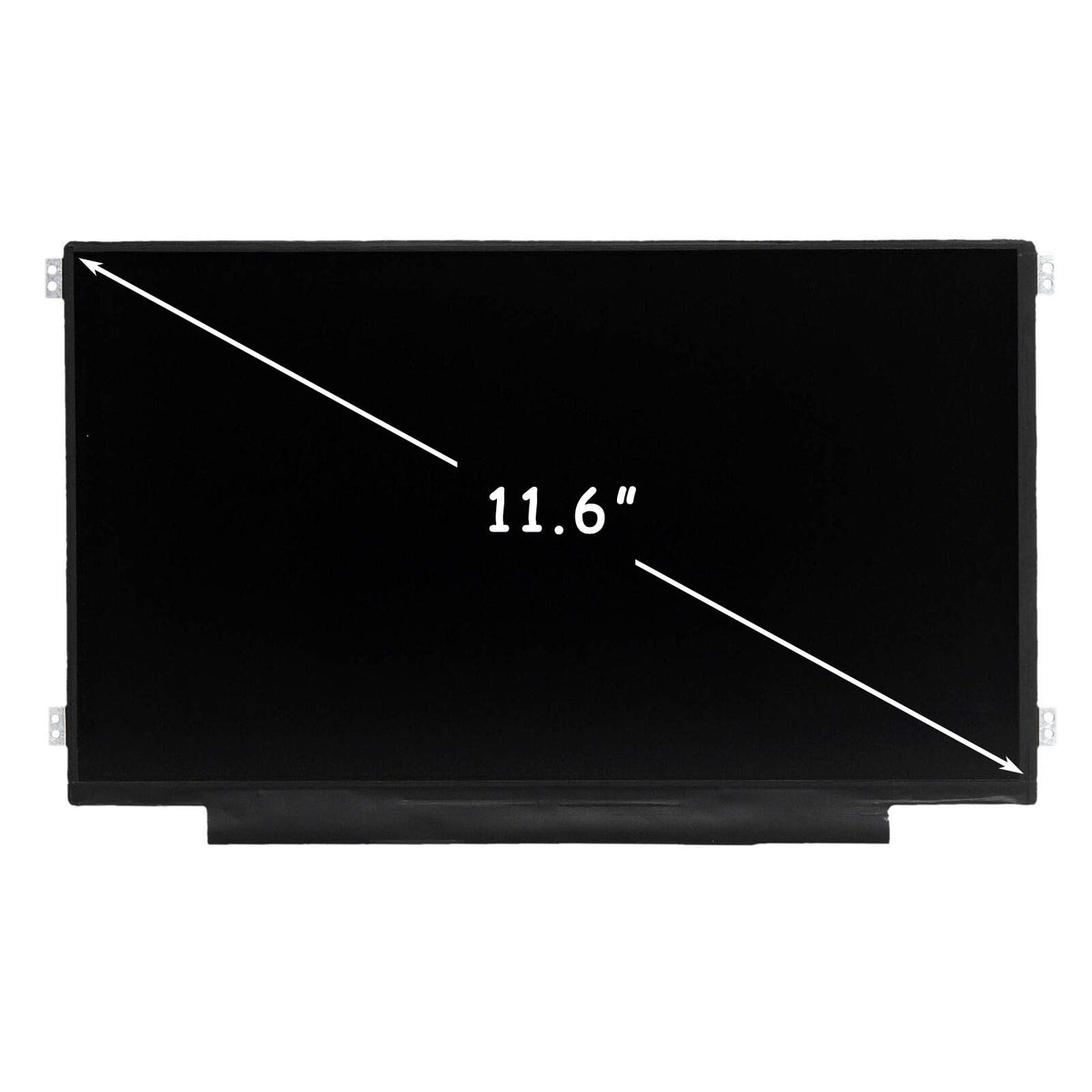

• Screen size: 11.6 inches, WXGA 1366×768 resolution.

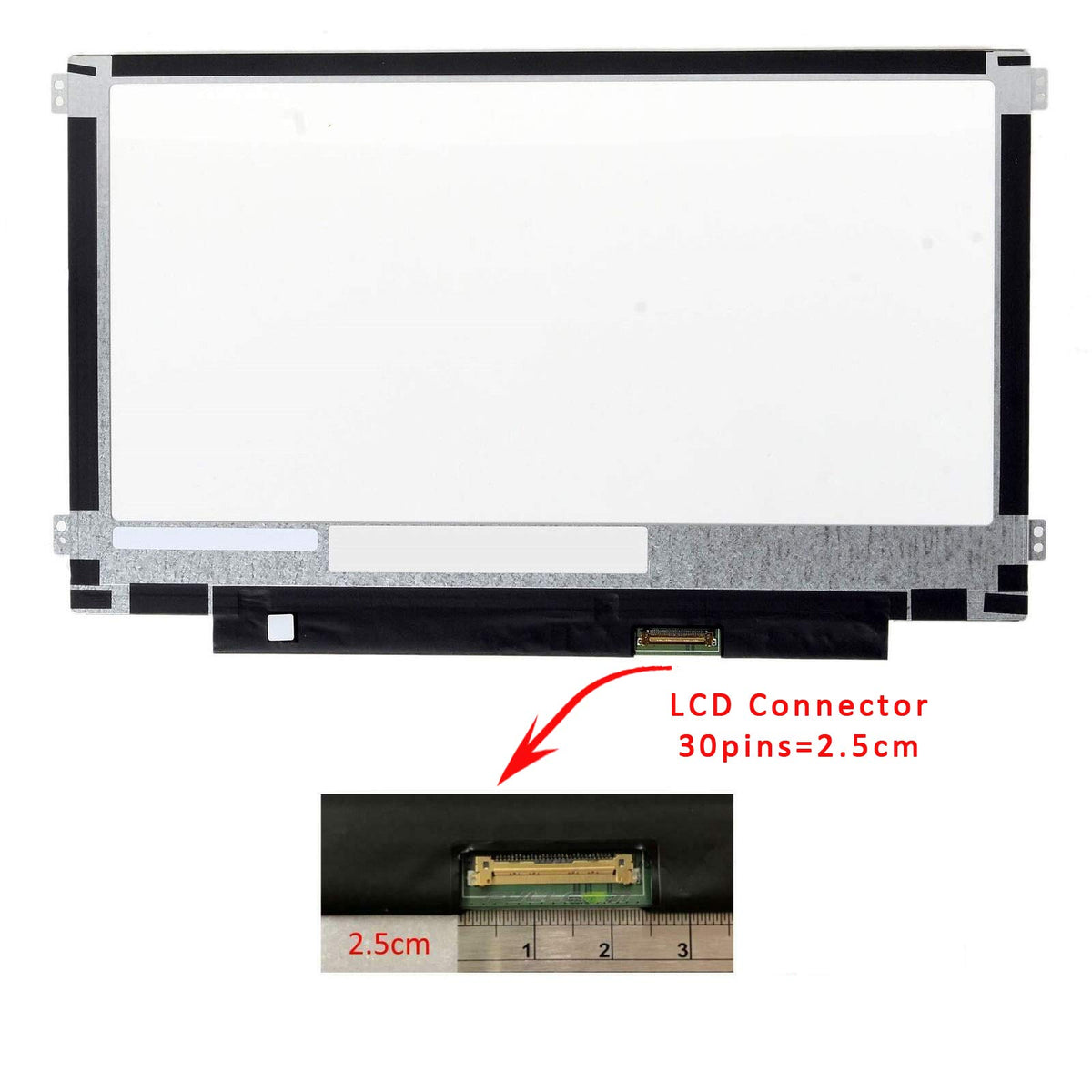

• Connector: 30‑pin LVDS interface compatible with listed models.
• Mounting: includes both left and right brackets for secure attachment.
• Panel match: commonly labeled B116XTN02.3 or equivalent.

How different is this panel from a touch or IPS screen?

This replacement is a non-touch TN (twisted nematic) panel, so it does not support touchscreen input or the wider viewing angles and color depth associated with IPS panels. It provides a cost-effective, factory-style visual match for Chromebooks originally shipped without touch functionality.

• Non-touch: not compatible with touch digitizers or touch-specific bezels.
• Panel type: TN — typical contrast and viewing angles for standard Chromebook displays.
• Ideal when original model shipped without touch or IPS.

What should I check before buying to ensure compatibility?

Confirm your existing screen’s part number, connector type, and physical mounting. Removing the bezel or checking service documentation will show whether your unit uses a 30‑pin connector and the specific panel P/N that this assembly replaces.

• Verify your Chromebook model: 3100, 3120, 3162, 3164, 3180, I3180, 3181, C3181, 5190, P26T.
• Check the LCD panel label for B116XTN02.3 or a compatible model number.
• Confirm the connector is 30 pins and the screen is non-touch.

Are there known quality or warranty notes I should be aware of?

The panel is manufactured to industry standards where a small number (1–5) of dead pixels can occur and still be considered within acceptable quality ranges. The listing includes the LCD assembly only; installation typically requires basic disassembly and a static‑safe workspace.

• Dead pixels: up to 1–5 may appear under ISO guidelines and are not always considered defects.
• Package: single LCD screen assembly, no touchscreen or additional parts included.
• Installation: recommended for users comfortable with laptop disassembly or professional repair services.

Who this is for: This FIRSTLCD assembly is aimed at technicians, refurbishers, and Chromebook owners who need a budget‑friendly, like‑for‑like screen replacement for Dell Chromebook 11 models originally shipped without touch. Choose this part if you require original size and resolution, a 30‑pin connector, and left/right mounting brackets for a straightforward swap. If your device uses an IPS panel or has touchscreen hardware, please confirm alternate parts before purchasing.
