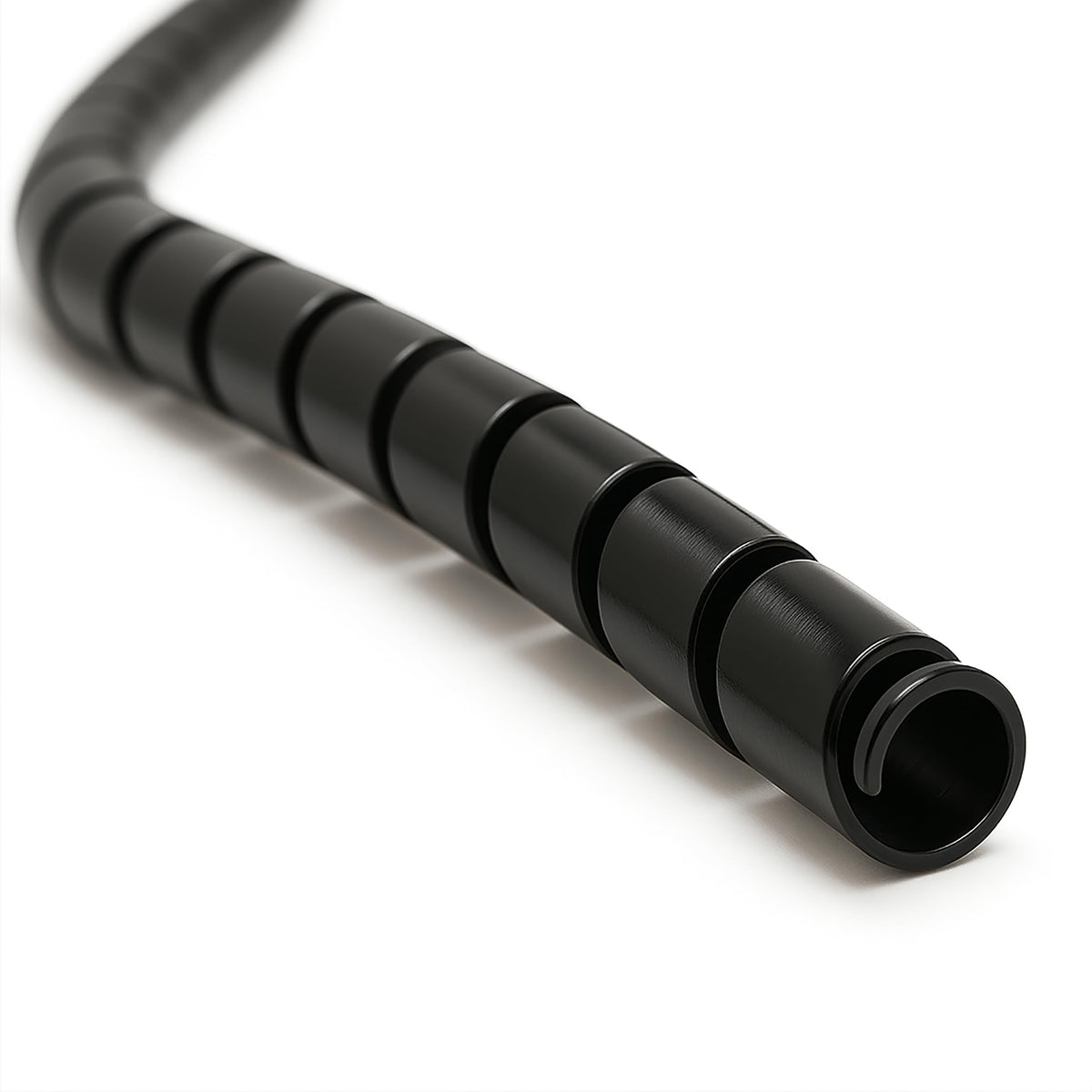

Electriduct 1 in Spiral Cable Wrap 10ft HDPE Sleeve

Electriduct's 1-inch heavy-duty spiral wrap is a 10-foot HDPE cable sleeve engineered to bundle, shield and organize wires and hoses without disconnecting connectors.

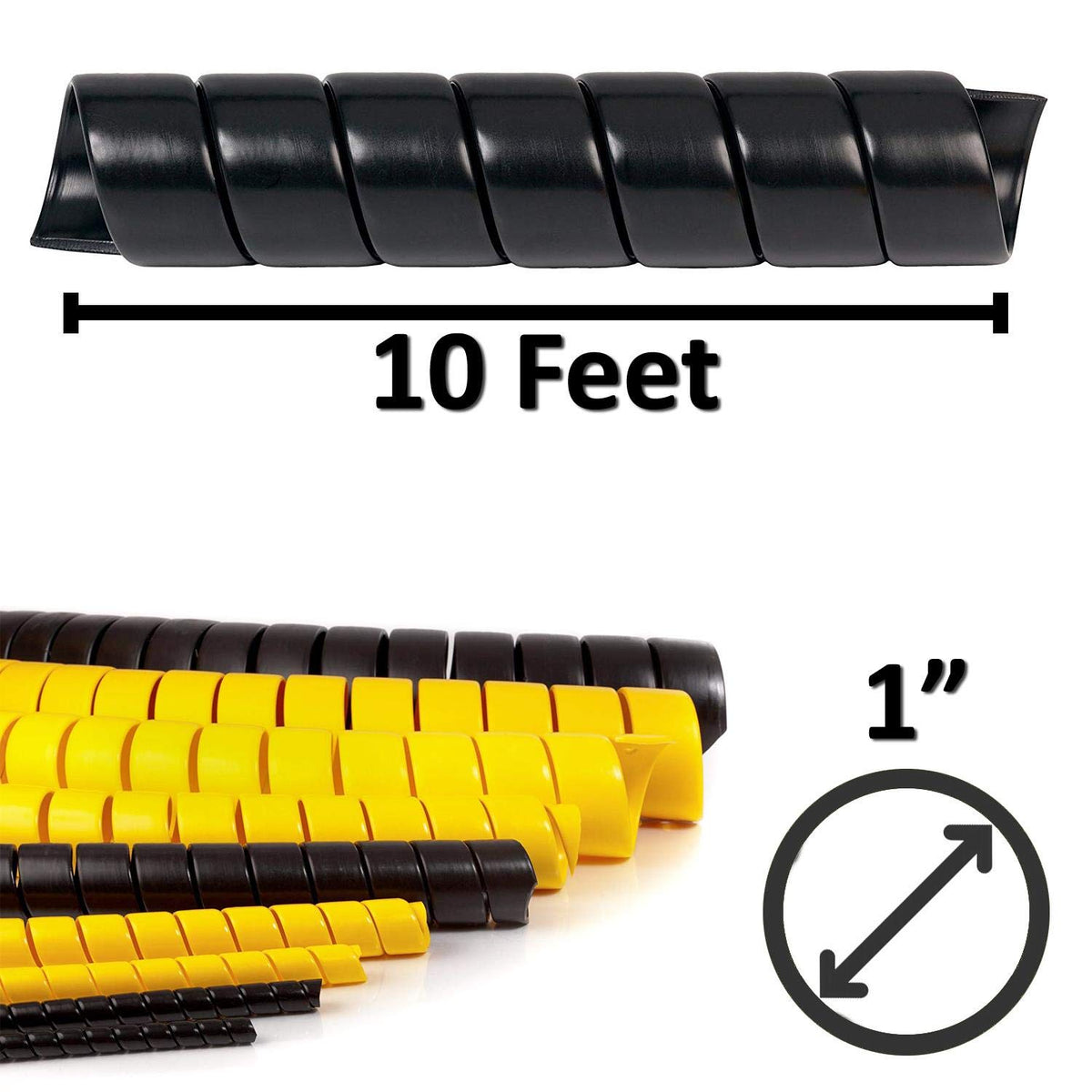

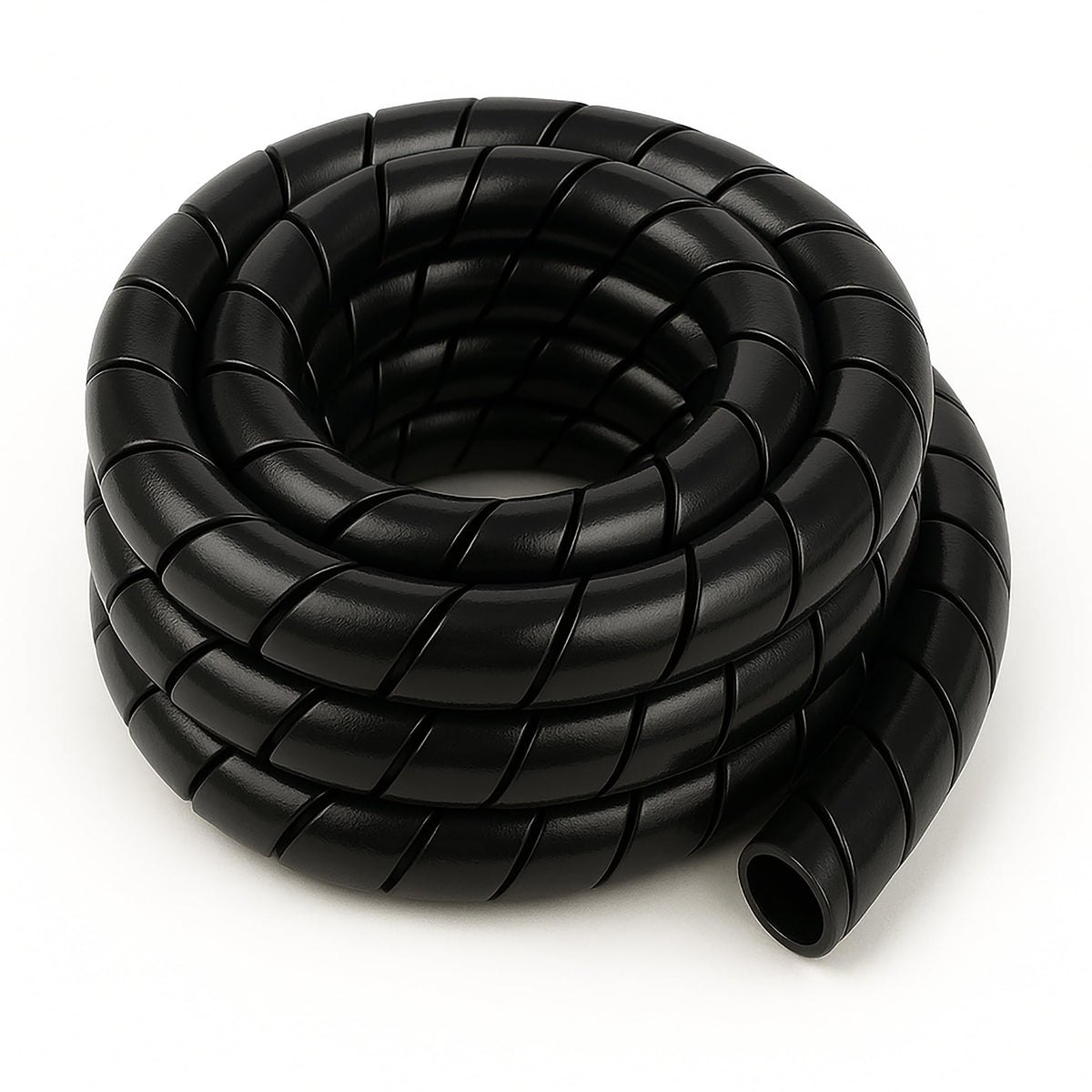

Keep power cords, hydraulic hoses and data cables neat and protected with a flexible spiral sleeve built for demanding environments. This Electriduct spiral wrap uses high-density polyethylene (HDPE) to combine abrasion, oil, UV and chemical resistance with a design that snaps around cables so you don't have to remove ends. With a nominal 1-inch size and a 10-foot length, it fits many industrial, automotive, marine, and farm uses while operating from -40°C to +80°C.

How does the spiral design simplify cable management?

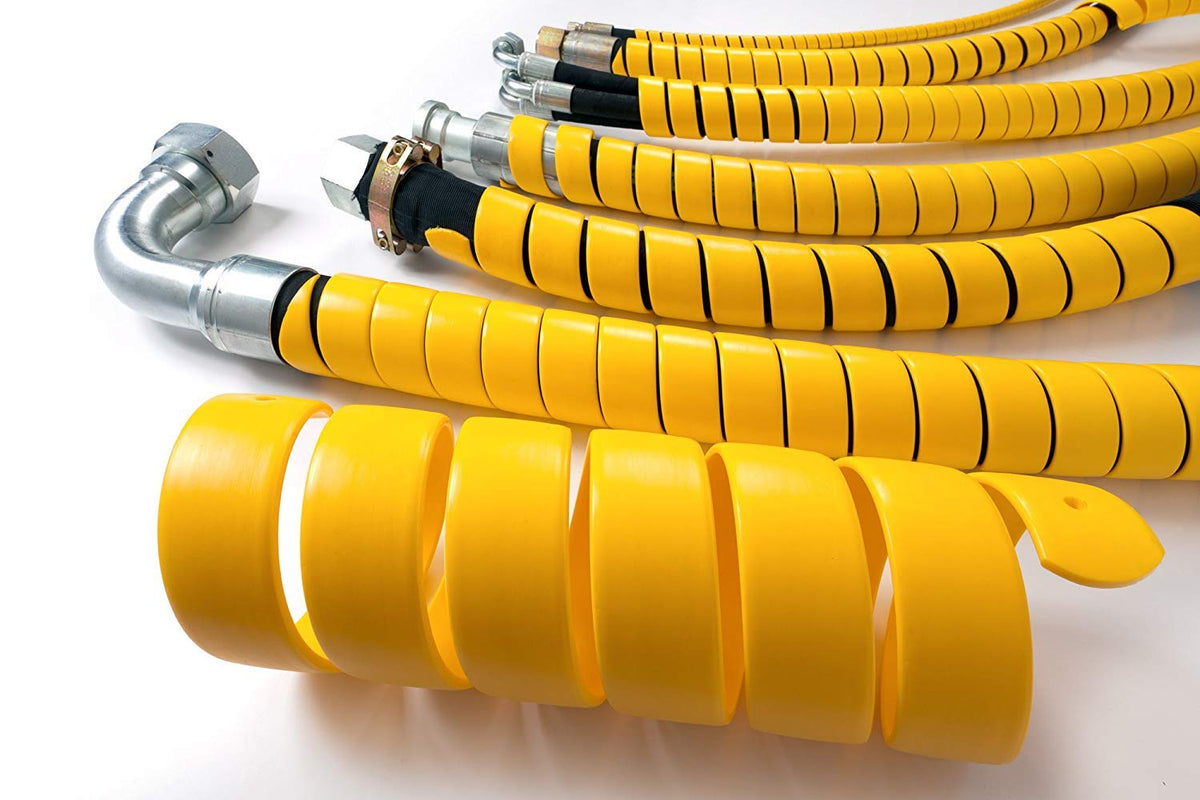

The spiral pattern allows you to wrap the sleeving around existing cabling runs quickly, avoiding the need to disconnect plugs or fittings. Its open helix profile provides flexibility for branching cables and rolling movement while keeping bundles aligned.

• Installs over assembled cables — no end disconnection required
• Accommodates branching and entry points without splicing
• Maintains flexibility for moving machinery or steering components

What protection does the HDPE material provide?

Electriduct uses heavy-duty HDPE to resist oils, many chemicals, UV exposure and abrasion that commonly degrade ordinary sleeves. The material is designed to endure outdoor and industrial conditions while remaining lightweight and flexible.

• Oil- and chemical-resistant for workshop and vehicle environments
• UV-stable for long-term outdoor installations
• Flame-retardant and abrasion-resistant for increased durability

Which cable sizes and operating conditions are compatible?

The wrap is sized to manage cables, hoses and bundles that total roughly 0.75" to 1.06" in outside diameter, matching many hose and bundle profiles. It performs across a wide temperature span and has tensile properties suitable for regular routing and protective use.

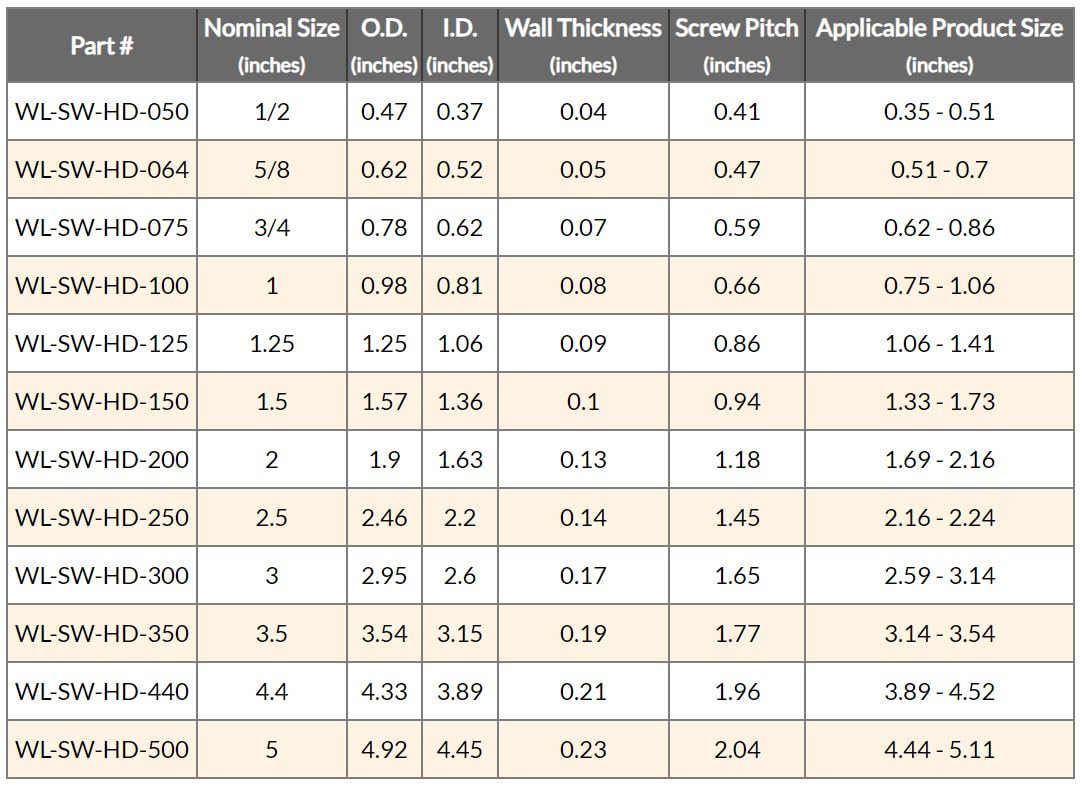

• Nominal size: 1" with 0.81" inside diameter and 0.98" outside diameter
• Useful product range: 0.75" to 1.06" bundle diameters
• Operating temperature range: -40°C to +80°C; tensile strength ~25 MPa

How is this product used in real-world applications?

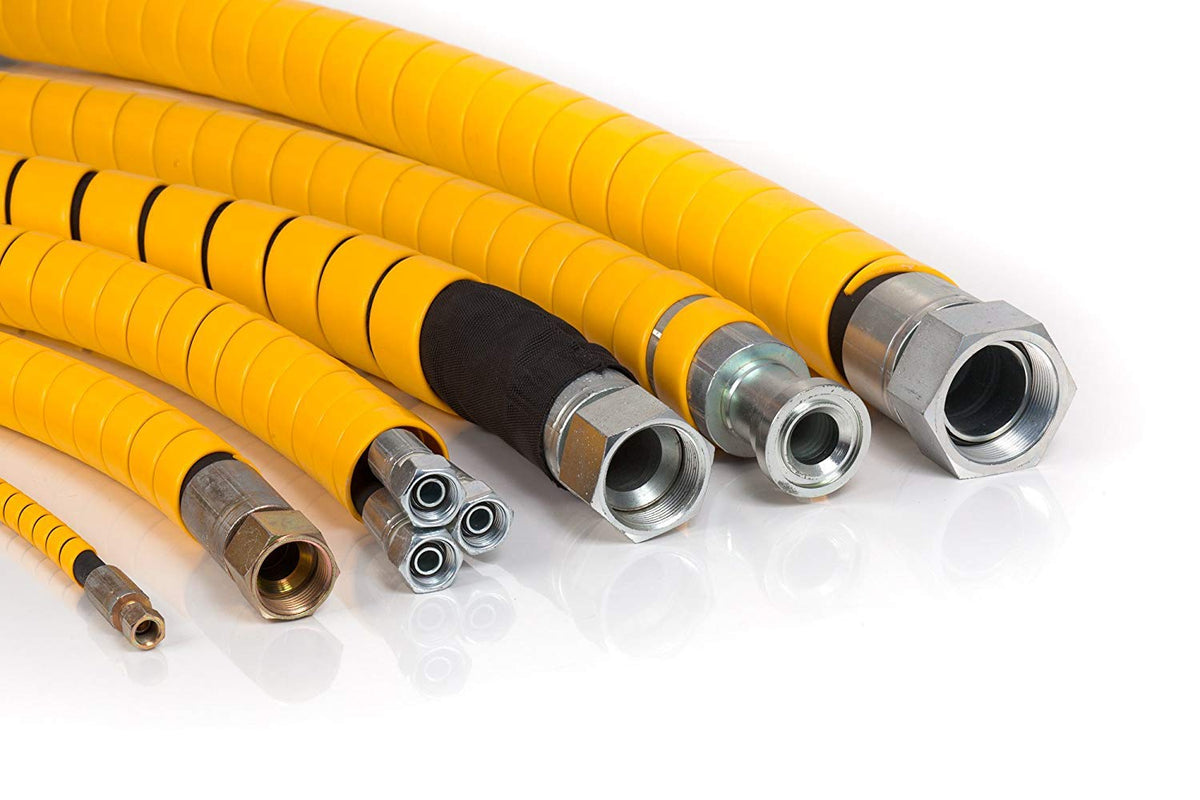

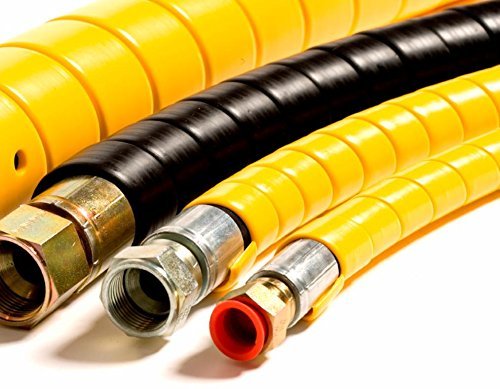

The Electriduct spiral sleeve is commonly deployed in settings that demand robust cable routing: industrial machinery, agricultural equipment, mining gear, automotive harnesses and marine installations. Its easy application and protective properties make it a go-to solution wherever cables need organization and guarding.

• Industrial wiring runs and factory equipment harnesses

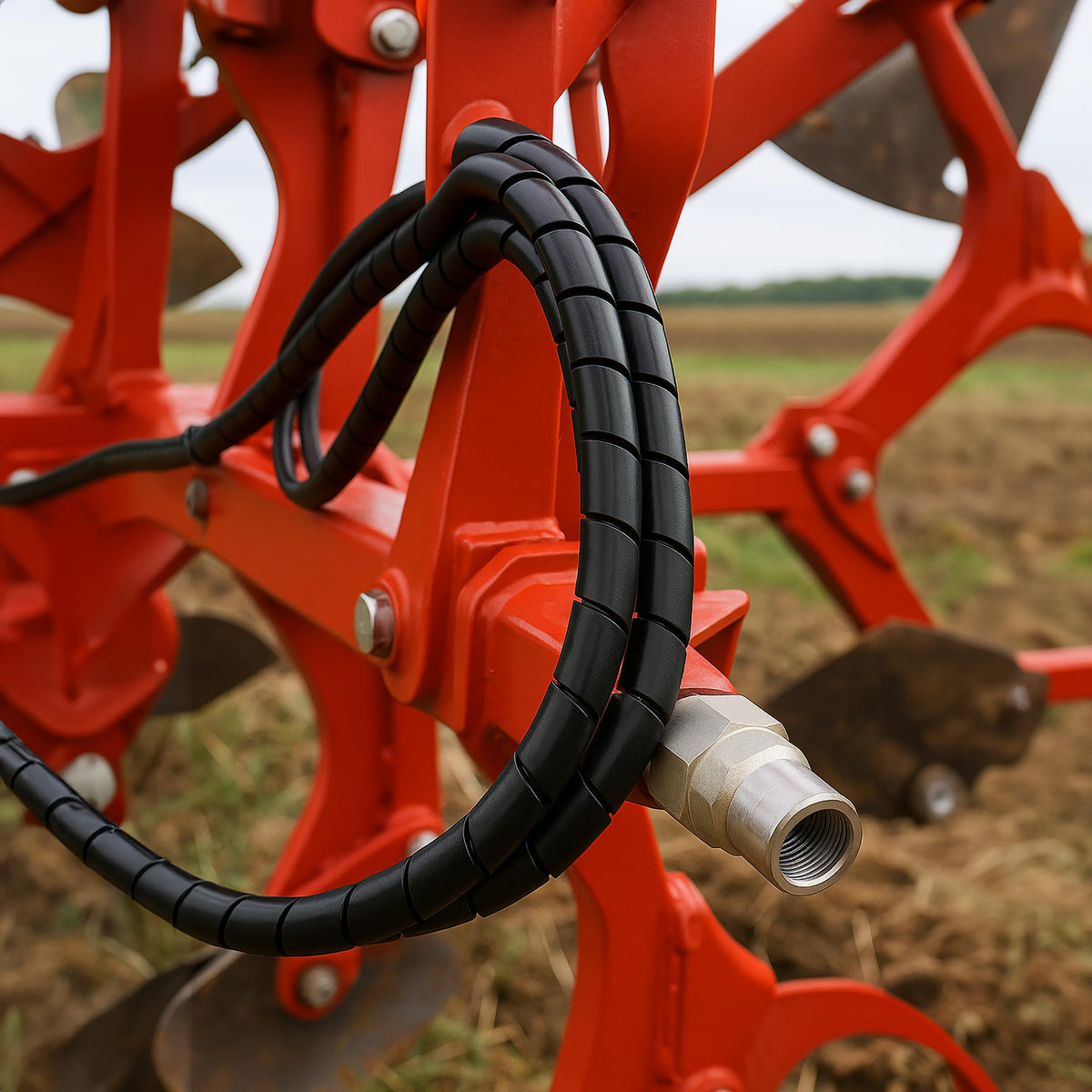

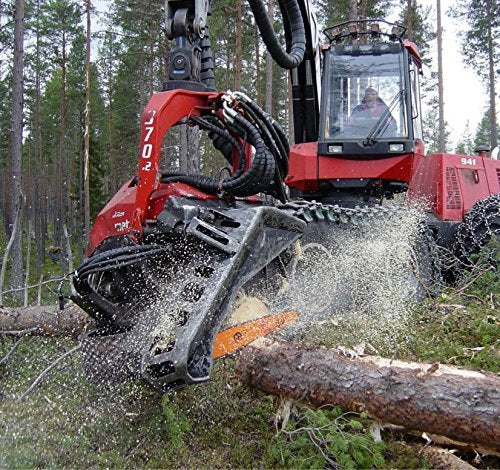

• Agricultural and mining vehicle hoses and electrical lines
• Automotive engine bays and marine bilges where abrasion and fluids are present

Who is this for: Technicians, fleet operators, maintenance teams and DIY installers who need a reliable, reusable method to tidy and protect cable bundles in harsh environments. If you require a flexible sleeve that installs without disconnecting ends, withstands oils, sun and abrasion, and fits medium-diameter bundles, the Electriduct 1" heavy-duty spiral wrap offers a practical, long-lasting solution.
