Eaton BRPSURGE Breaker Surge Protector 120/240V 2P

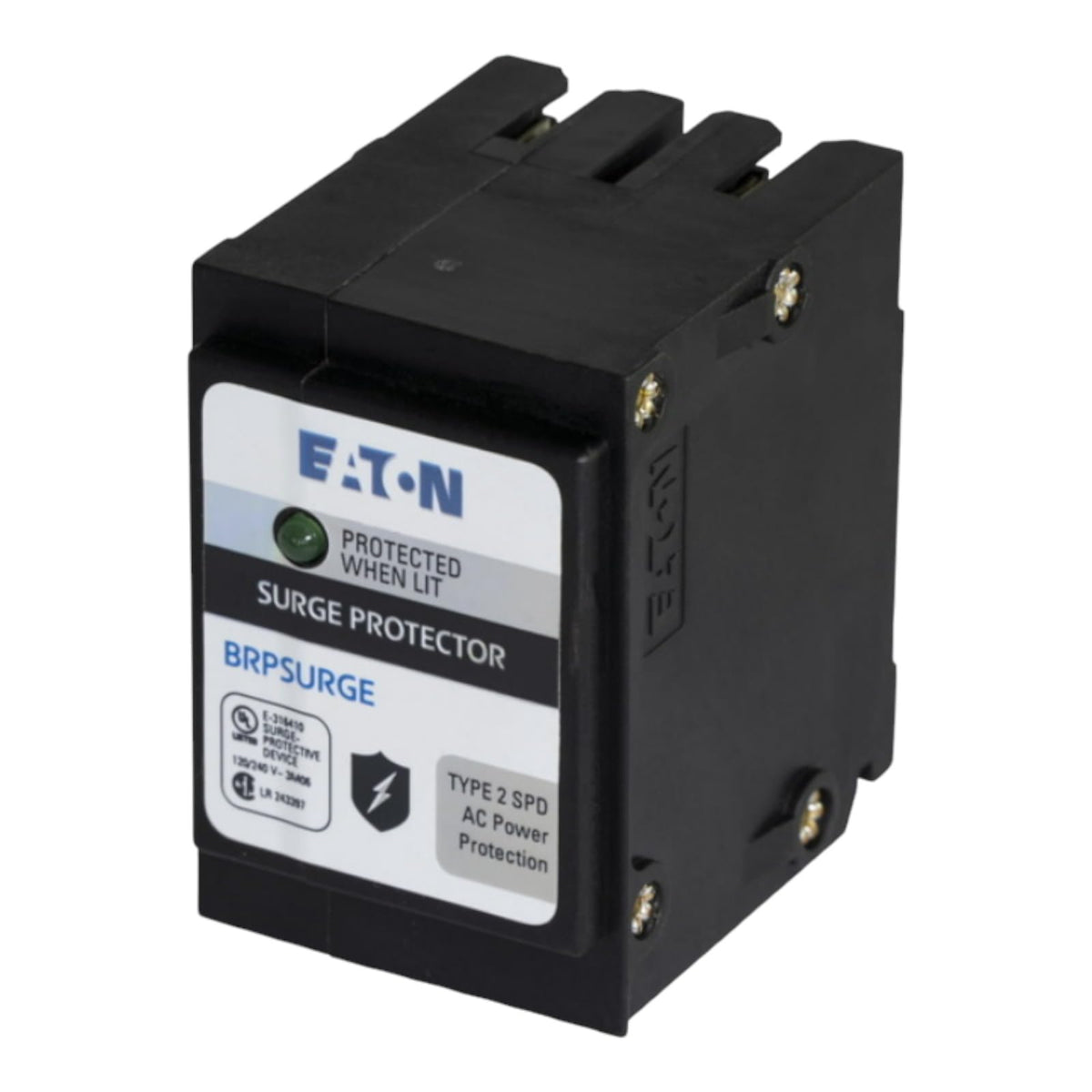

The Eaton BRPSURGE is a Type 2, plug‑on neutral surge protective breaker that installs in BR panels to protect a whole downstream 120/240V, 1‑phase electrical system.

This two‑pole BR surge device combines a circuit breaker form factor with UL 1449‑listed Type 2 surge suppression to give residential and light‑commercial panels coordinated overvoltage protection. It snaps into a standard Eaton BR bus and uses the panel neutral for a compact, code‑conscious connection while an LED status indicator shows operational readiness. The unit is designed to be installed on the load side of the main service overcurrent device and protect everything fed from the breaker.

How does the BRPSURGE protect my home’s electrical equipment?

The BRPSURGE diverts transient voltage spikes away from sensitive downstream circuits, reducing the risk of damage to appliances and electronics. As a Type 2 SPD, it handles common utility and switching surges at the service or distribution point and works continuously once installed.

• Type 2 SPD rated for 120/240 VAC, 1‑phase systems
• Two‑pole design protects both hot legs simultaneously
• Plug‑on neutral connection keeps wiring compact and straightforward
• LED indicator provides visible operational status

Where in the electrical system should I install this breaker surge device?

Install the Eaton BRPSURGE on the load side of the main overcurrent protective device, inside a compatible BR panel. That placement lets it protect all downstream branch circuits fed by that panel without requiring separate point‑of‑use units at each outlet.

• Fits BR‑type Eaton panels and standard BR breaker spaces
• Mounted as a two‑pole breaker for full panel coverage
• Permanent connection avoids removable plug adapters
• Recommended downstream placement per Type 2 SPD guidance

What features help me verify and maintain the device?

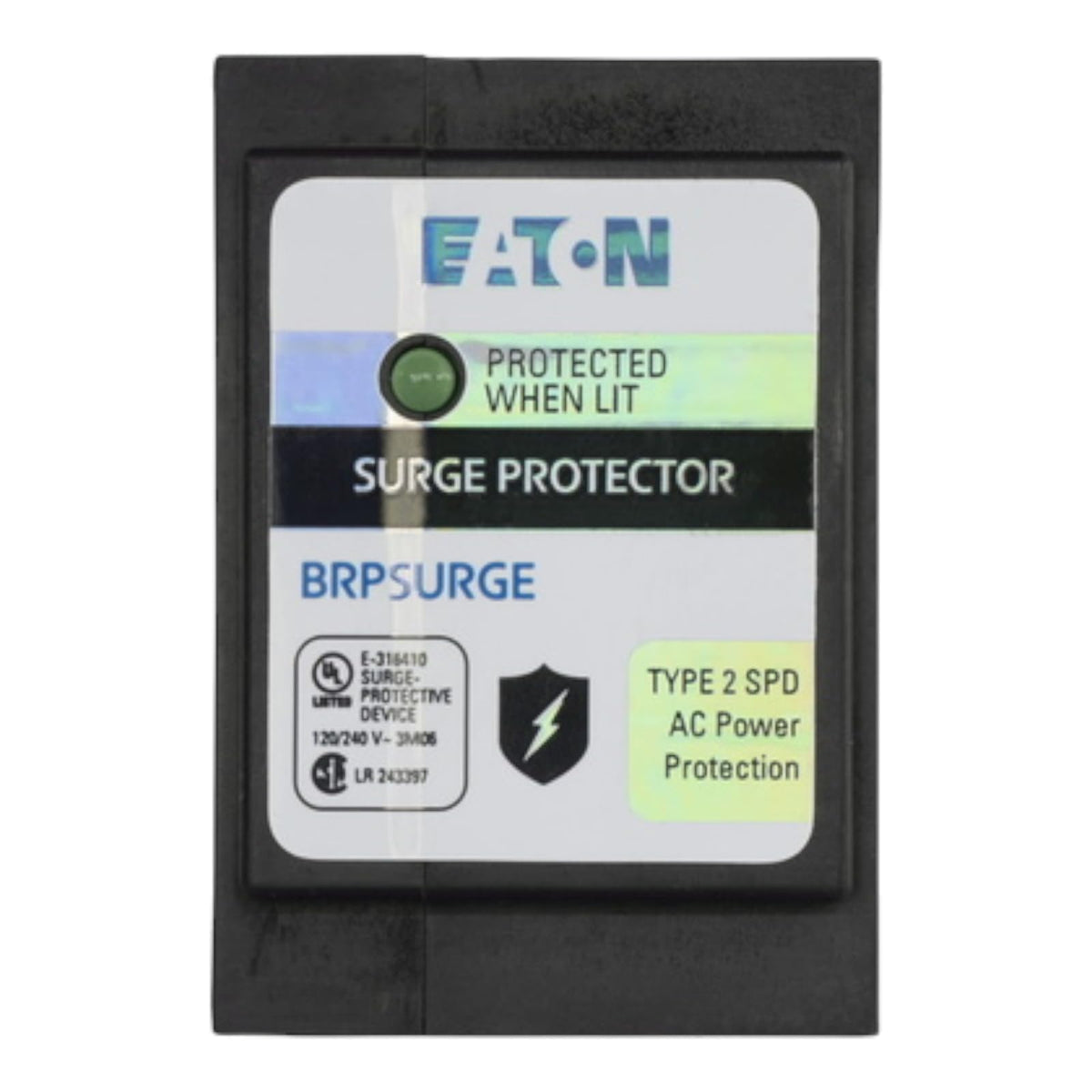

The unit includes an LED indicator that shows whether the surge module remains operational; it provides simple visual verification during routine panel checks. Eaton’s UL 1449 3rd Edition listing assures documented performance and safety standards for Type 2 surge protectors.

• Front‑facing LED for quick status confirmation
• UL 1449 3rd Edition listed for Type 2 SPDs
• Breaker form factor allows standard panel access for inspection
• Designed for permanent, maintenance‑free service under normal conditions

Will the BRPSURGE work with my electrical panel and service rating?

The BRPSURGE is designed for 120/240V, single‑phase systems and installs where BR breakers fit. Confirm panel compatibility (BR bus and space), service type, and local electrical code requirements before purchase and installation.

• Rated for 120/240 VAC single‑phase residential or light commercial services
• Requires a BR‑type breaker slot and neutral bus compatible with plug‑on neutral
• Two‑pole configuration matches common split‑phase panels
• Installation by a qualified electrician is recommended for compliance

Who this product is for: electricians, electrical contractors, and homeowners seeking whole‑panel surge protection with minimal wiring changes will find the Eaton BRPSURGE appealing. It is best suited for those with BR‑type panels and split‑phase 120/240V service who want a UL‑listed Type 2 SPD integrated into a breaker footprint. If you need point‑of‑use protection or a different breaker family, choose a product that matches your panel type and installation preferences.
