DS18 8" Shallow Hybrid Midrange Car Speaker PRO-HY8.4MSL — 200W RMS, 4Ω, Built-in HF Driver & Grille

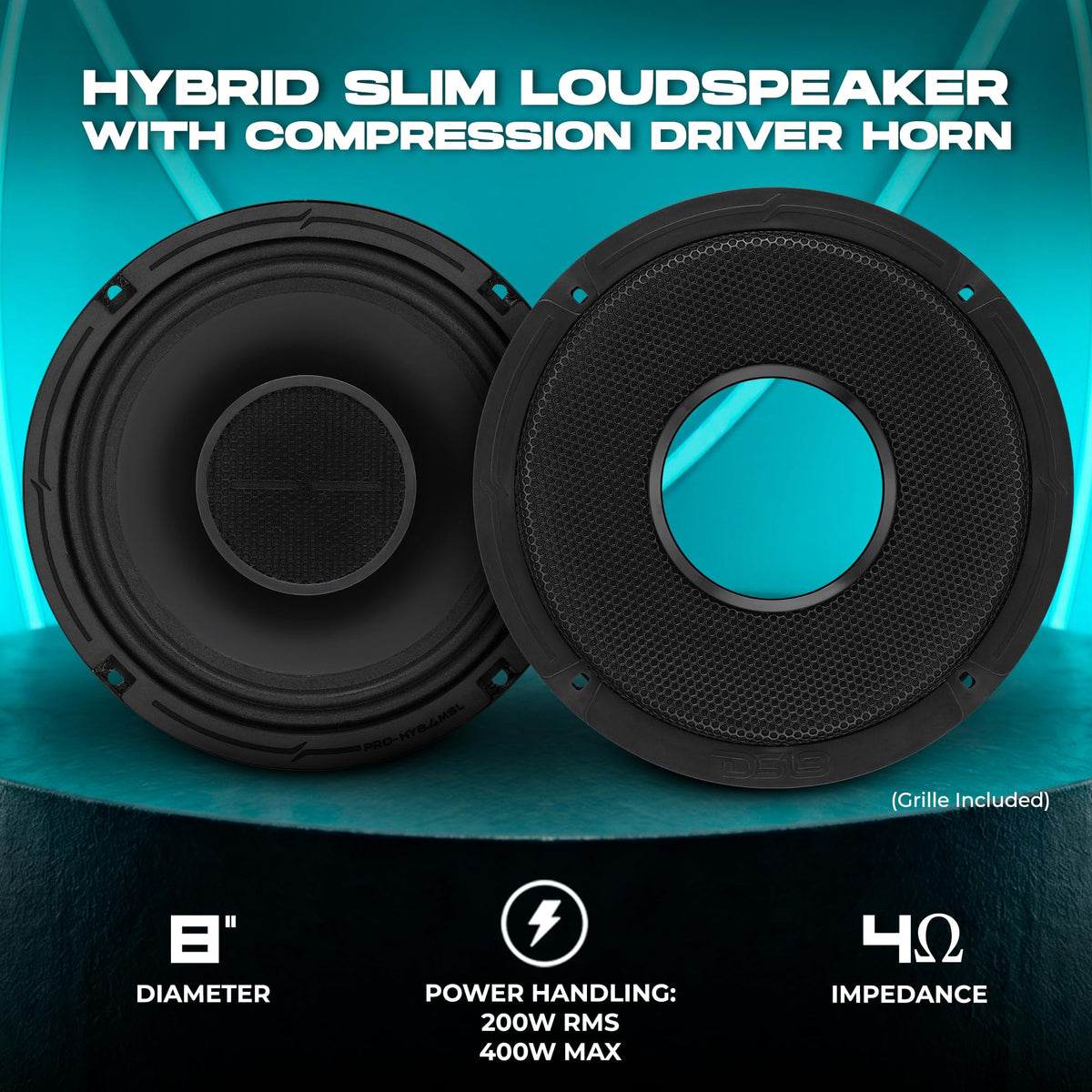

The DS18 PRO-HY8.4MSL is an 8-inch shallow hybrid mid-range car loudspeaker that pairs a high-output midrange cone with a built-in high-frequency driver for punchy, clear sound up to 200W RMS (400W peak) with a grille included.

Designed for compact installations where depth is limited, the PRO-HY8.4MSL blends a paper-cone midrange and a titanium diaphragm driver in a slim, high-strength steel basket. Its 4-ohm impedance, 94 dB sensitivity, and wide 100 Hz–20 kHz response let it deliver present mids and crisply extended highs while tolerating high volume levels. The unit ships as a single speaker with a protective grille and is optimized for use with a recommended high-pass crossover near 120 Hz.

How does this speaker manage loudness without distortion?

The hybrid architecture separates mid-frequency reproduction from the high-frequency compression driver, reducing strain on each component at high SPLs. A robust ferrite motor for the woofer and a neodymium motor for the driver maintain control and transient response under heavy load.

• 200W RMS / 400W peak handling for sustained power delivery
• 94 dB sensitivity for efficient output with less amplifier power
• Separate 1.5" woofer voice coil and 1" driver voice coil materials (CCAW/Kapton) for heat tolerance
• Recommended 120 Hz high-pass crossover to protect the midrange

What size and depth constraints does this model solve for car installs?

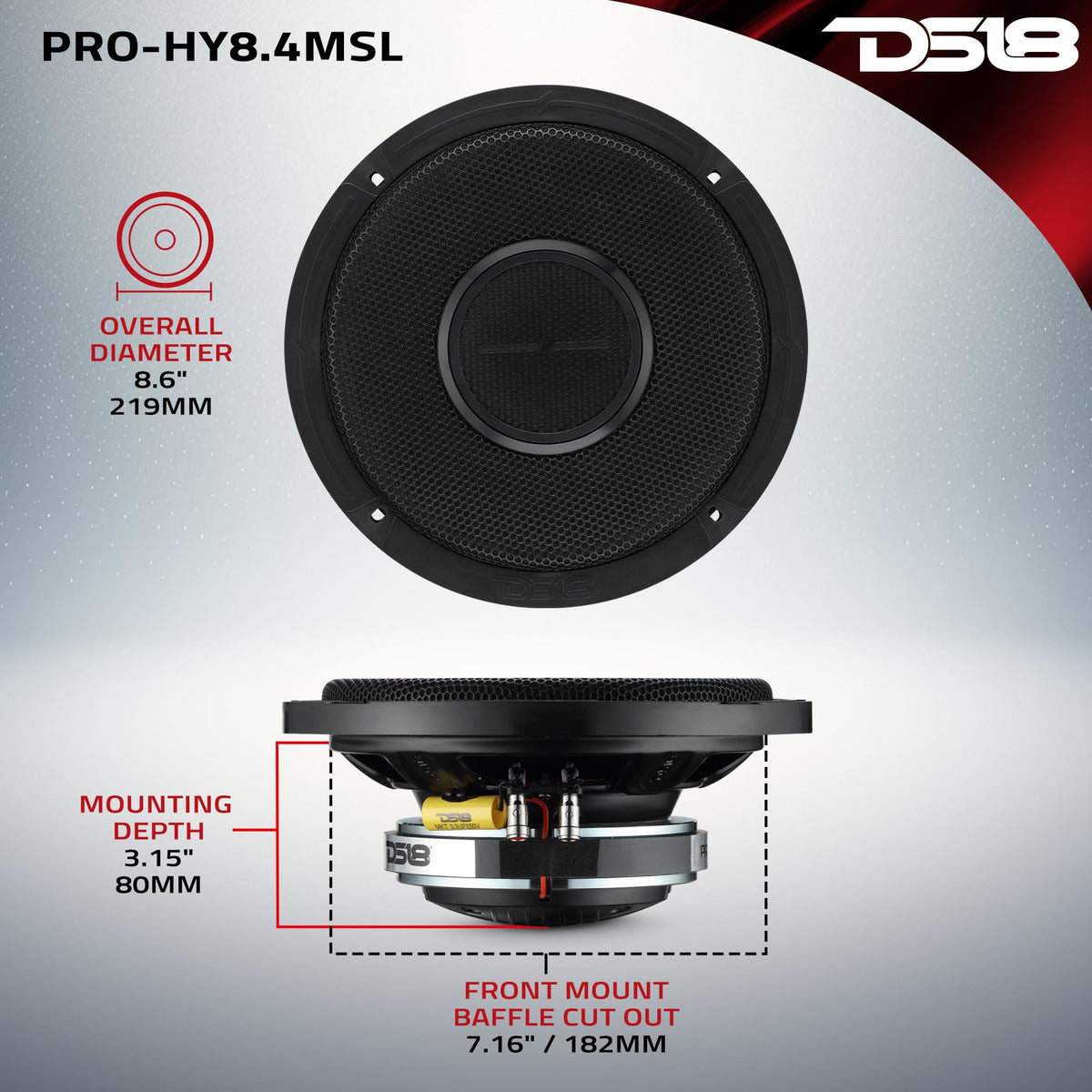

The PRO-HY8.4MSL is engineered as a shallow-mount speaker so it fits where deeper components won't. Overall depth is just 4" with a mounting depth of 3.11", making it suitable for many factory door locations and custom shallow enclosures.

• Overall diameter: 8.62" (219 mm) — fits 8" mounting locations
• Front cutout: 7.12" (181 mm) for standard baffle openings

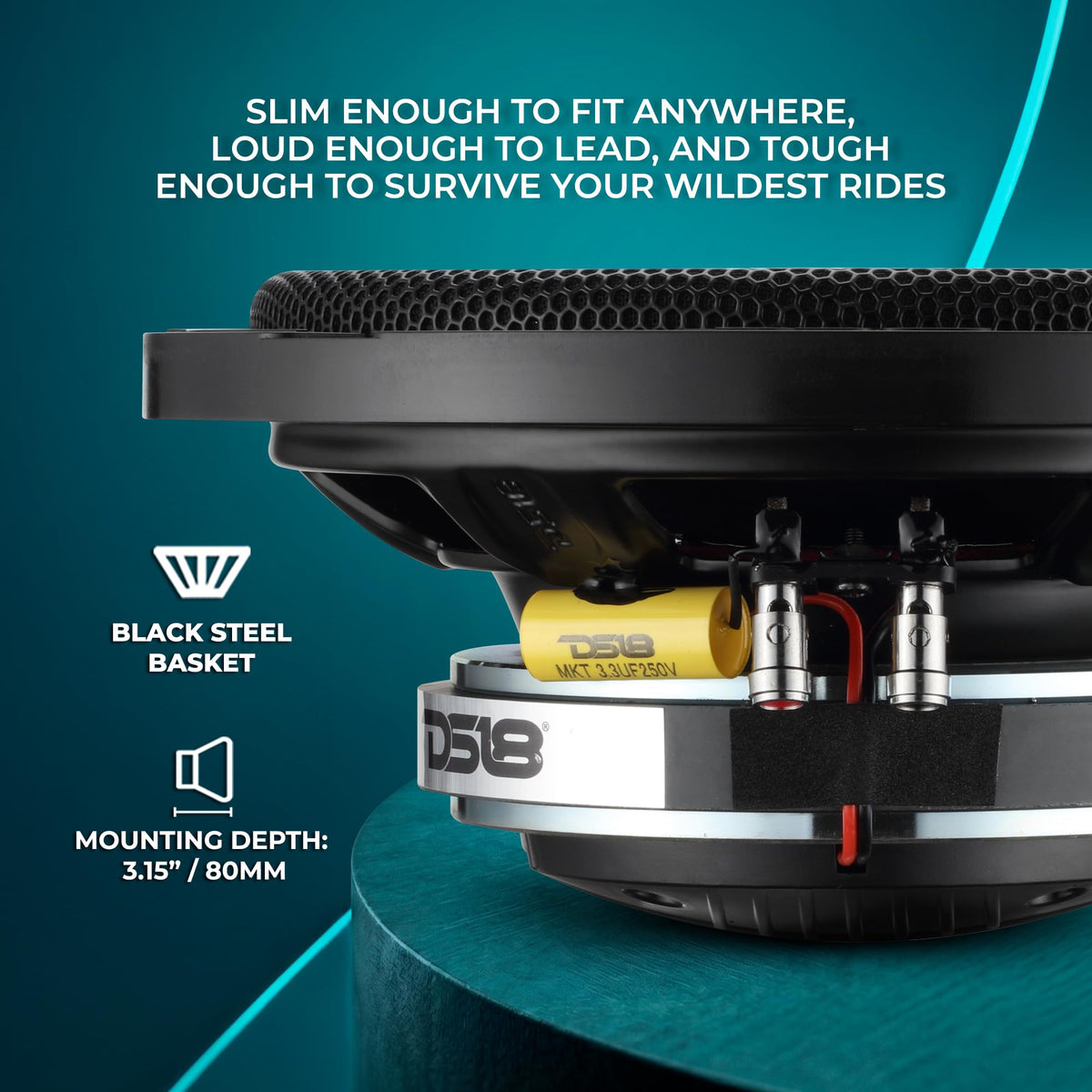

• Shallow overall depth 4" and 3.11" mounting depth for tight spaces
• Steel basket with glossy red finish adds durability and visual appeal

Which materials and components contribute to clarity and longevity?

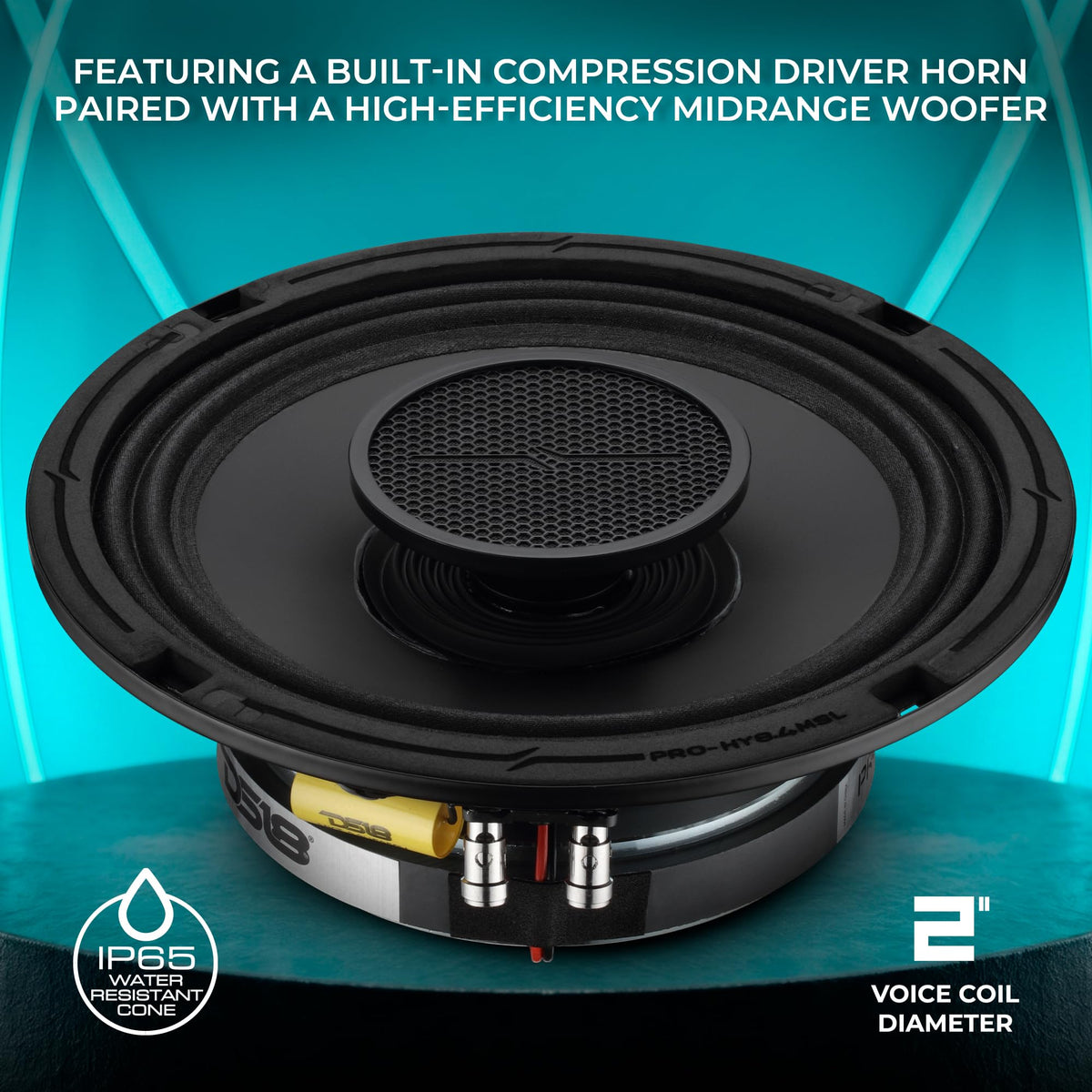

DS18 used a mix of proven materials—paper cone, cloth surround, titanium diaphragm, and strong motor assemblies—to balance sonic character with durability. The driver employs a neodymium magnet and titanium diaphragm for precise high-frequency articulation, while the woofer's ferrite magnet and CCAW winding provide robust low-mid control.

• Paper cone with cloth surround for natural midrange timbre
• Titanium diaphragm driver for clean, detailed highs
• 1.5" woofer and 1" driver voice coils for power handling and heat management

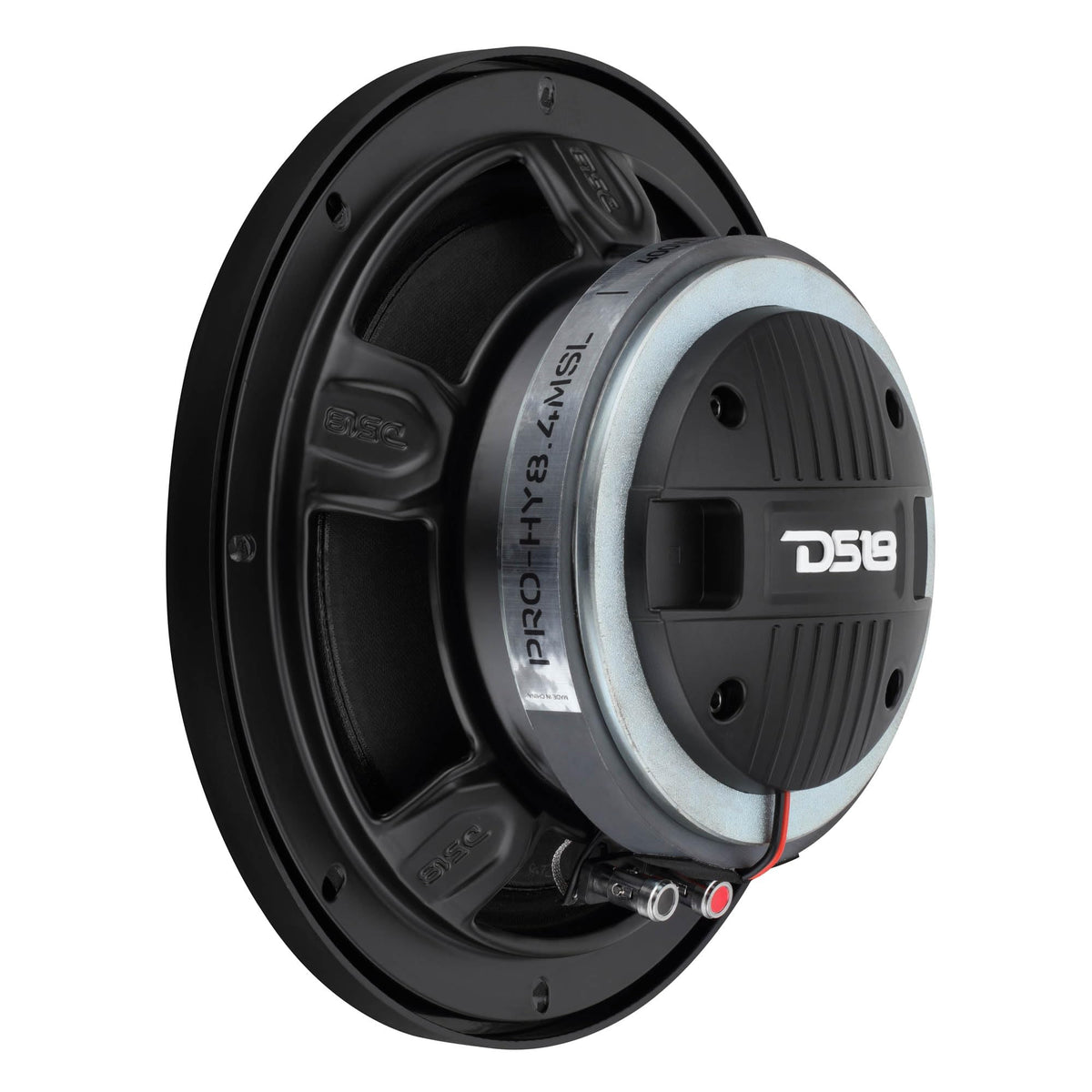

• Ferrite and neodymium magnets engineered for long-term performance

How should I integrate the PRO-HY8.4MSL into my system?

Use a quality amplifier that can deliver clean power near the speaker’s RMS rating and apply a high-pass filter around 120 Hz to keep bass duties to a woofer or sub. The speaker pairs well with component systems or as part of custom multi-way arrays where compact mid/high coverage is needed.

• Match amp power to 150–250W RMS per speaker for optimal results
• High-pass at ~120 Hz to protect midrange and improve clarity
• Ideal for door installs, custom pods, or small enclosures

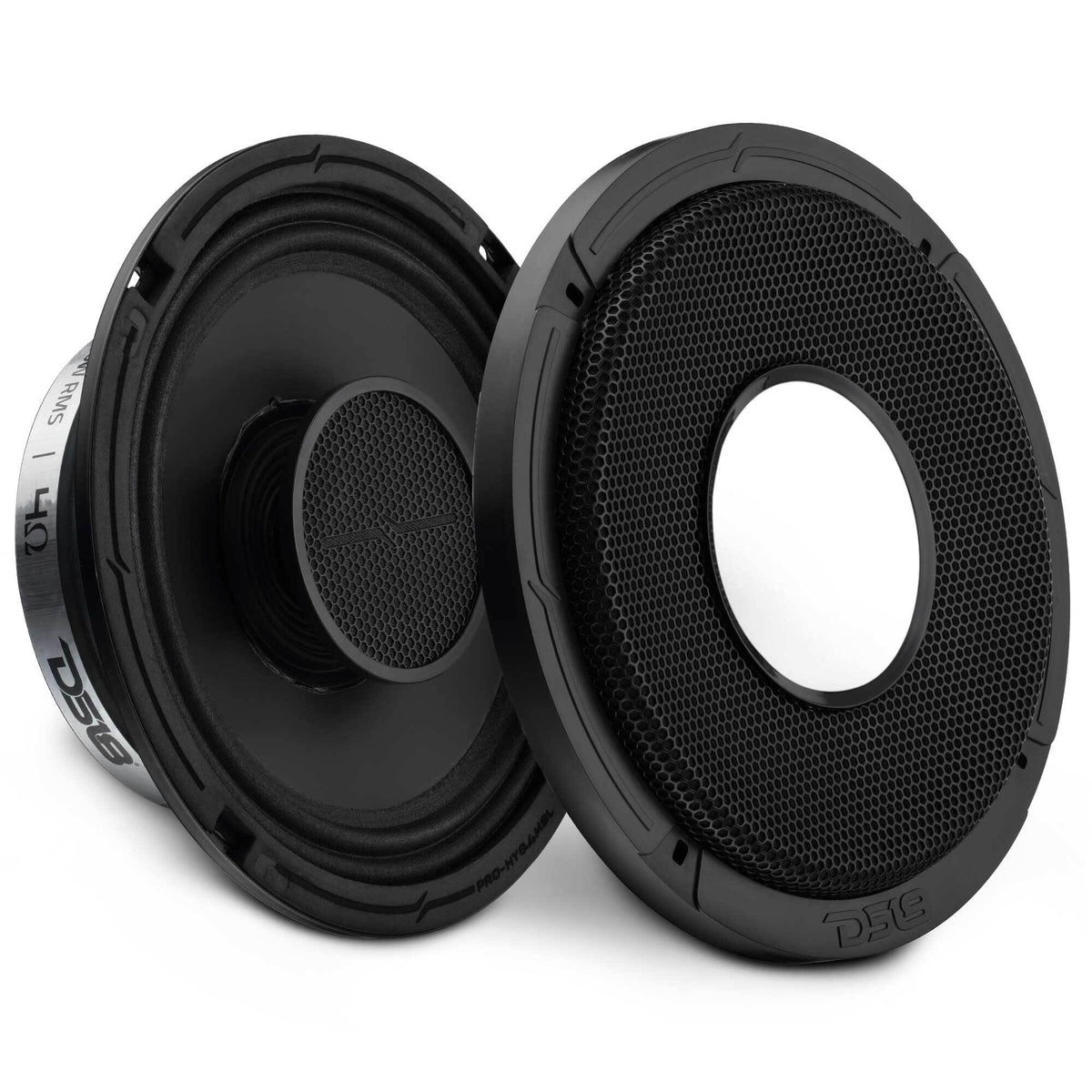

• Grille included for protection in exposed installations

Who is this for: The DS18 PRO-HY8.4MSL suits car audio enthusiasts and installers who need a high-output, shallow-mount mid/high solution for tight installation spaces. It’s a good choice for systems that demand audible midrange presence and crisp highs at high volume levels—ideal for custom car builds, show cars, or anyone upgrading factory speakers without major door modifications.
