DS18 8" Midrange Loudspeaker PRO-GM8B — Red Aluminum Bullet, 190W RMS, 95dB Sensitivity

DS18 PRO-GM8B is an 8-inch midrange loudspeaker built for clear vocal and instrumental reproduction with 190W RMS power and a protective red aluminum bullet.

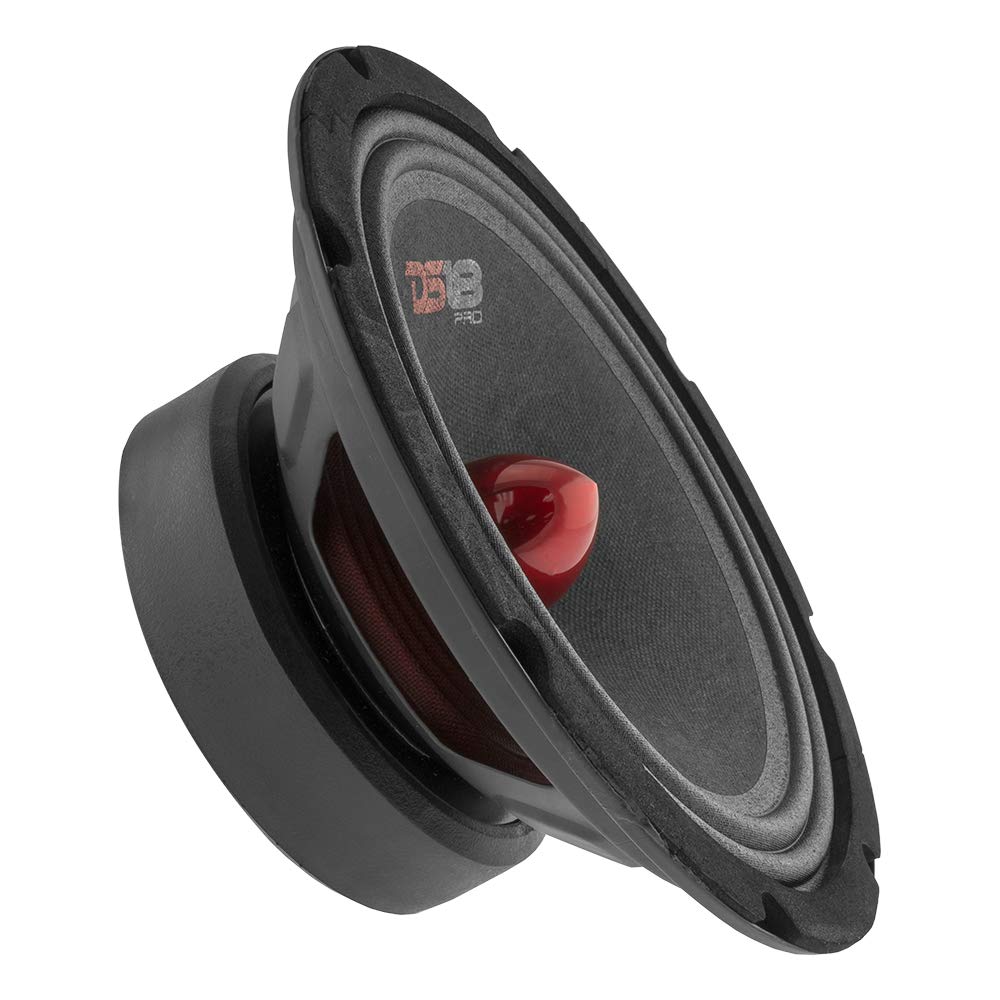

The PRO-GM8B from DS18 is a dedicated midrange driver engineered to upgrade car or truck audio systems by filling the crucial middle of the frequency spectrum. With a stiff black paper cone, cloth surround, and a temperature-resistant 1.5" Kapton voice coil, it balances high sensitivity with durable components. The driver’s ferrite magnet and stamped steel basket deliver consistent performance, while the red aluminum bullet dust cap both protects the voice coil and shapes the midrange dispersion for focused sound.

How does this speaker improve vocals and instruments?

The PRO-GM8B targets the 125 Hz–12 kHz range where most vocals and many instruments live. Its high sensitivity (95 dB) and midrange-focused design allow clearer presence and articulation without relying solely on a subwoofer or tweeter. You’ll hear more definition in lead vocals and acoustic instruments, and band mixes will sound more natural.

• Frequency response tuned for vocal clarity and instrumental detail (125 Hz–12 kHz).
• 95 dB sensitivity for efficient output from typical car amps.
• Red aluminum bullet protects the voice coil and improves midrange dispersion.

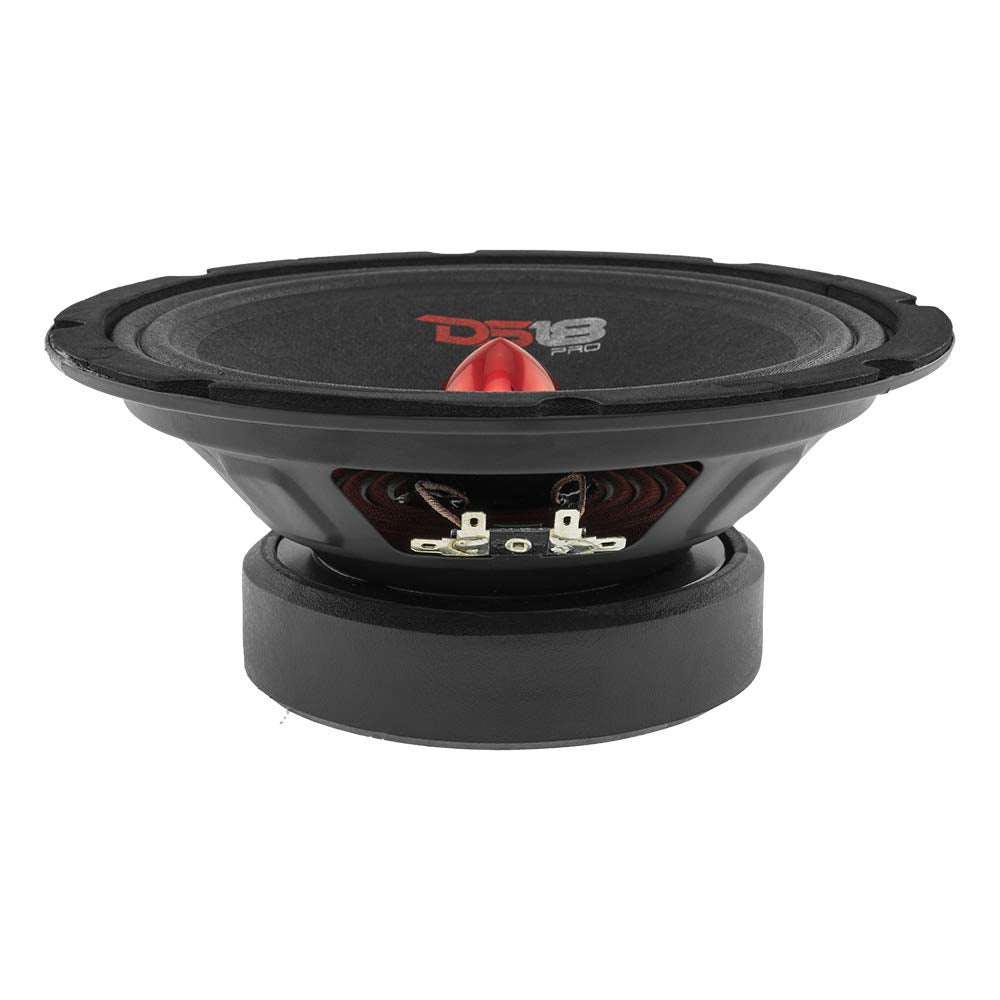

• Black paper cone for natural tonal balance and transient response.

What power and electrical specs should I match with my amplifier?

Plan for an amplifier that can cleanly deliver up to the speaker’s RMS rating—190W at 8 ohms—to avoid distortion and clipping. The PRO-GM8B handles peaks up to 580W, but sustained output should remain near RMS. Its 8-ohm impedance suits many factory and aftermarket car amps, but confirm your amp’s stability at 8 ohms before bridging or parallel wiring.

• Nominal impedance: 8 ohms—compatible with common car amplifiers.
• RMS power handling: 190W for continuous listening levels.
• Peak power: 580W for transient headroom during dynamic passages.
• High sensitivity means less amplifier power needed for loud, clear sound.

How durable is the DS18 PRO-GM8B for vehicle environments?

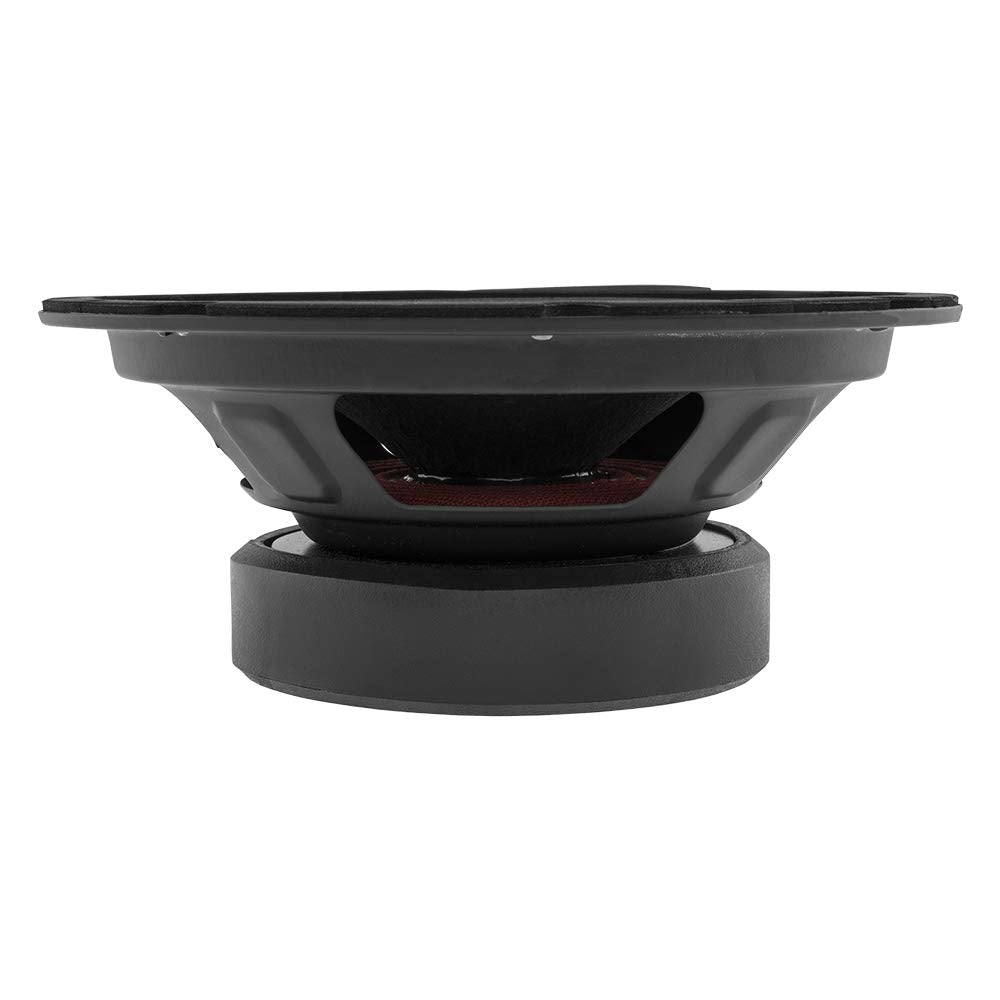

This driver uses a 30 oz ferrite magnet and a stamped steel basket for mechanical stability inside vehicles. The Kapton-wound voice coil tolerates high temperatures, reducing thermal damage during demanding use. The cloth surround and robust cone materials resist fatigue, extending useful life under typical automotive conditions.

• 1.5" Kapton voice coil resists heat and preserves performance.
• 30 oz ferrite magnet provides steady magnetic flux over time.
• Cloth surround and steel basket for impact resistance and longevity.
• Mounting depth 3.38" and cut-out 7.16" fit common 8" locations.

What installation dimensions and mechanical details do I need to know?

The PRO-GM8B is sized for standard 8" cutouts with a 7.16" mounting hole and 3.38" mounting depth, so it fits many factory speaker locations with minimal modification. The stamped steel basket and bolt pattern align with conventional mounts, while the red bullet and black finish provide a clean visual upgrade behind grilles or open mounts.

• Speaker diameter: 8" — designed for common 8-inch openings.
• Cut-out dimension: 7.16" (182 mm) for template or replacement fit.
• Mounting depth: 3.38" (86 mm) for clearance planning.
• Voice coil diameter 1.5" and 30 oz magnet for balanced performance.

Who is this for? DS18 PRO-GM8B suits car or truck owners and installers seeking a robust midrange driver to elevate vocals and midband instruments. It’s ideal for audio enthusiasts replacing worn factory speakers, builders creating multi-way systems who need a reliable midrange, and anyone who wants a durable, high-sensitivity speaker capable of handling serious power in mobile audio setups.
