DS18 6.5" Shallow Hybrid Mid-Range Speaker PRO-HY6.4MSL — 6.5in, 150W RMS, Titanium Driver, Red Grill

The DS18 PRO-HY6.4MSL is a 6.5-inch shallow hybrid mid-range car loudspeaker that pairs a high-output woofer with a built-in high-frequency driver for loud, clear sound in tight mounting spaces.

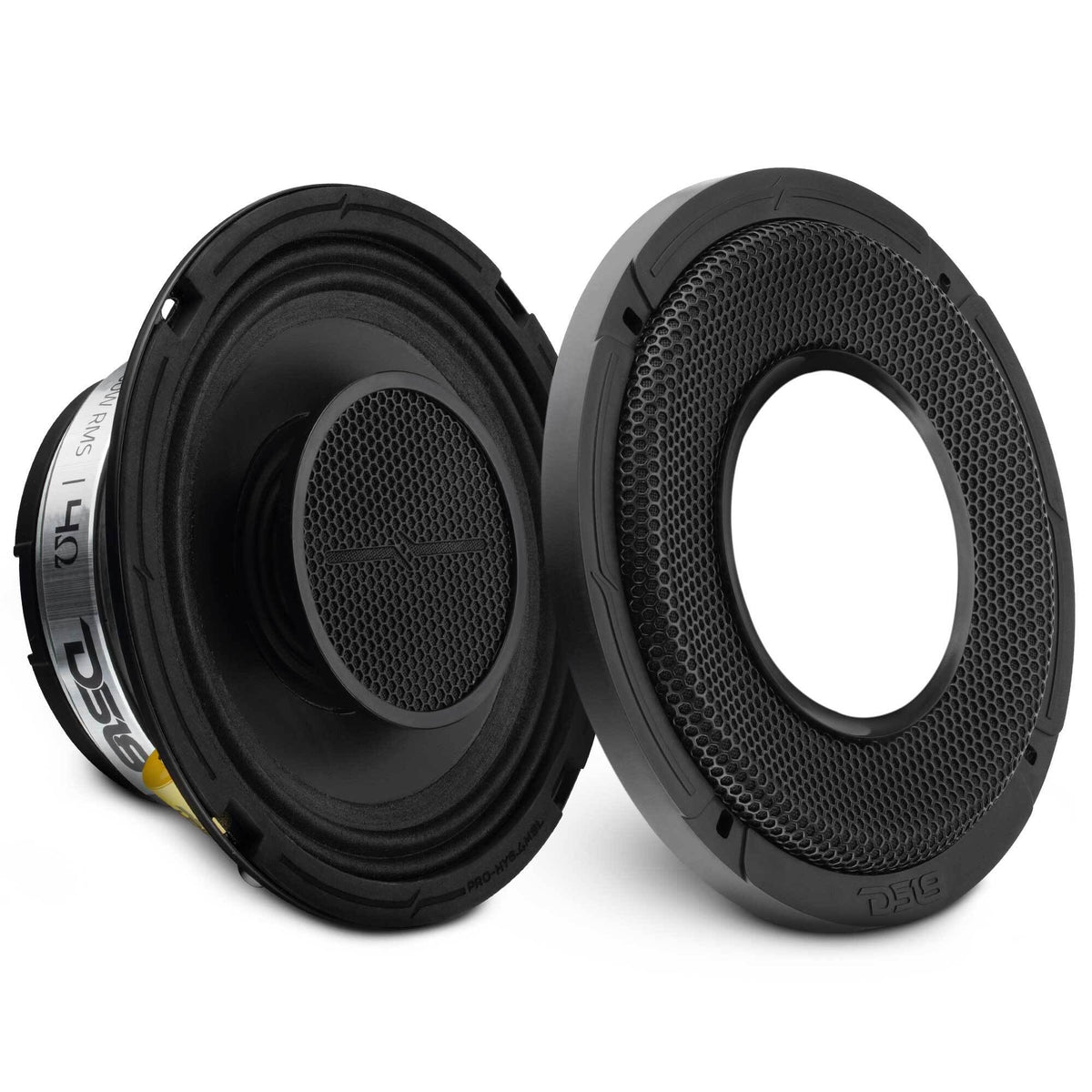

The PRO-HY6.4MSL blends a compact 6.5" woofer with an integrated titanium driver and included grill to deliver powerful mid-range and detailed highs without a deep mounting depth. Designed for installations where space is limited—doors, kick panels, or custom enclosures—this single 4-ohm speaker handles up to 150W RMS (300W peak) and aims to reproduce vocals and mid-band instruments with clarity even at higher volumes.

How does this speaker fit when space is tight?

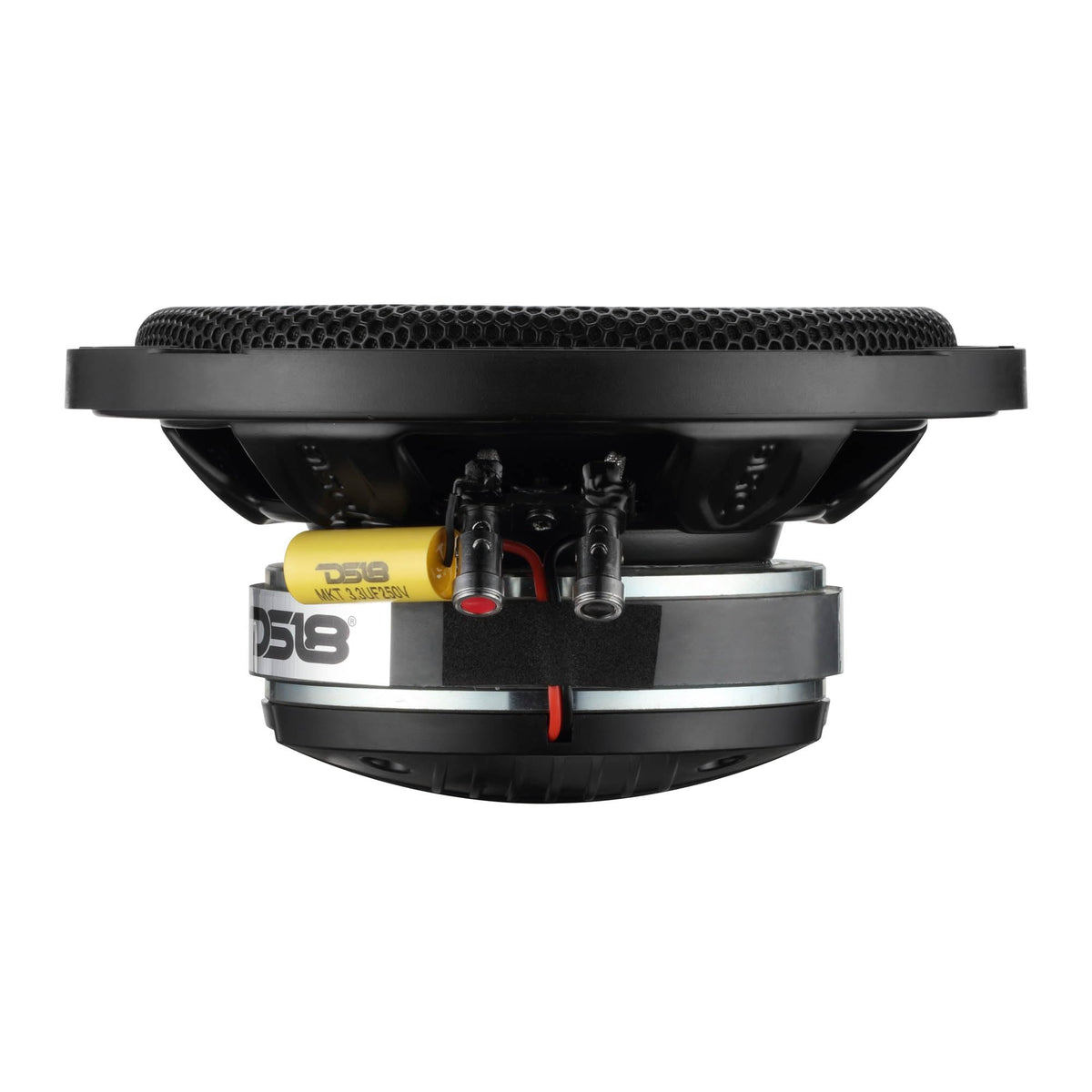

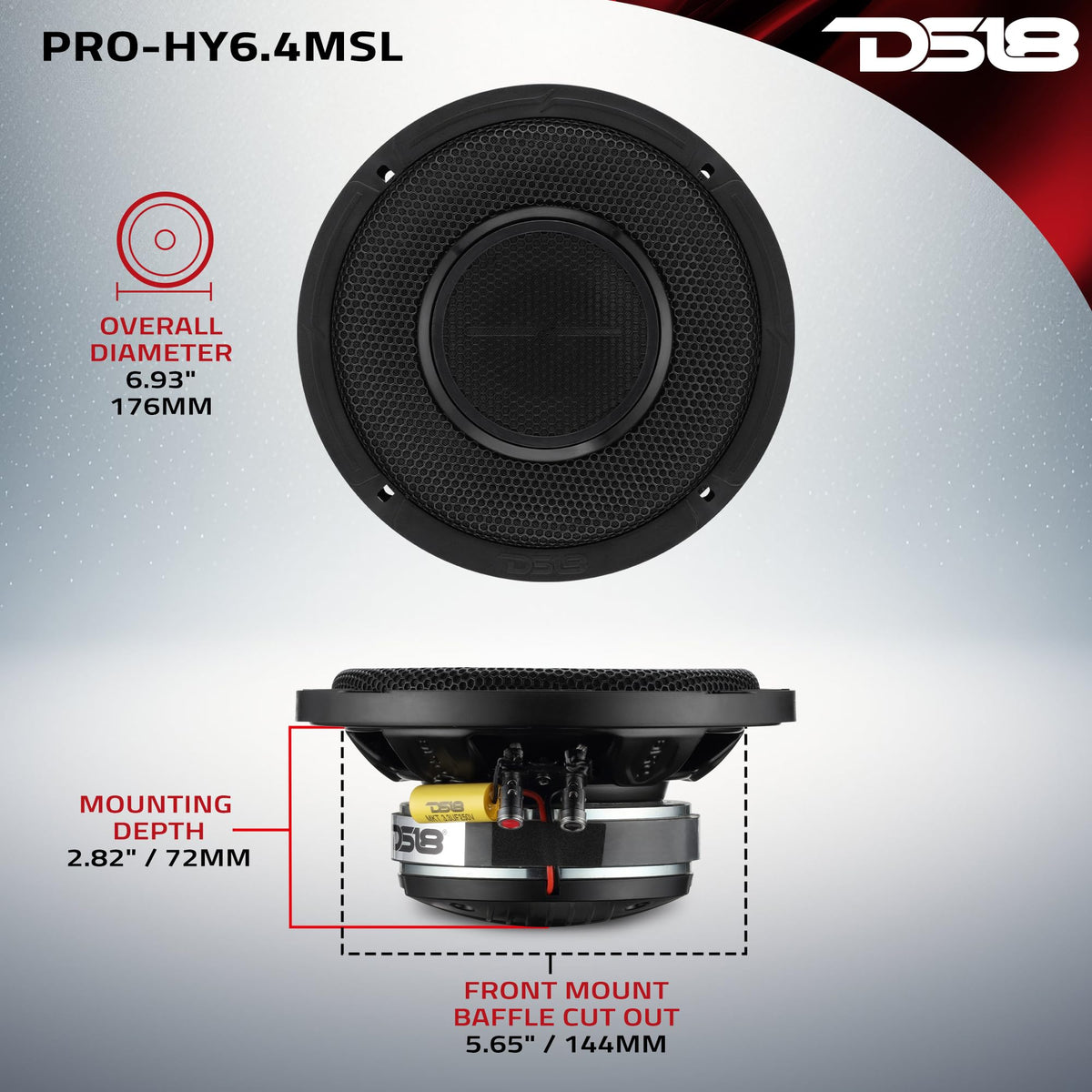

The PRO-HY6.4MSL is engineered as a shallow-mount solution so you can add a professional mid-range system without reshaping panels. Overall depth is 3.52" with a mounting depth of 2.77", letting it install where standard 6.5" speakers won’t.

• Overall depth: 3.52" (89.5 mm) for low-profile mounting

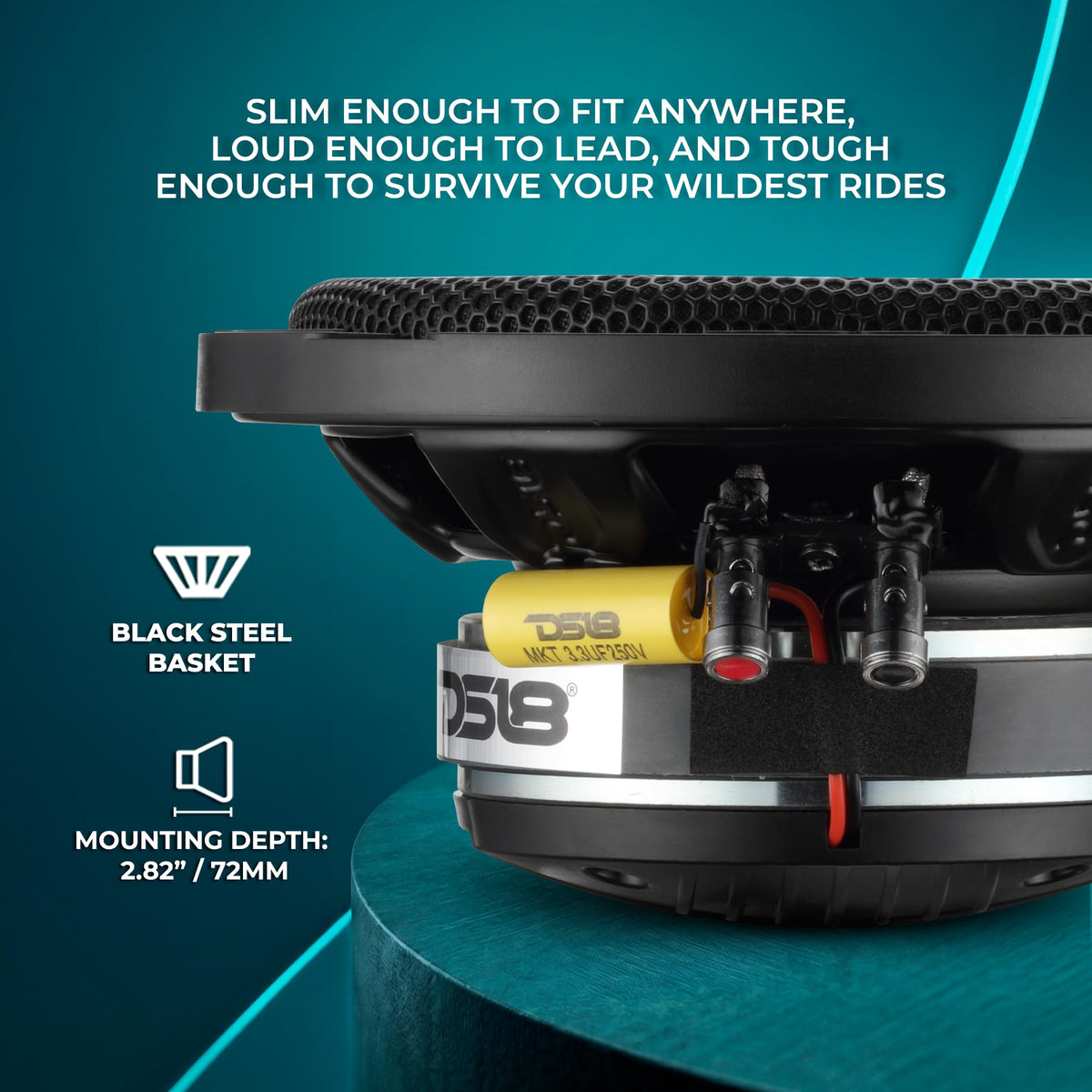

• Mounting depth: 2.77" (70.5 mm) fits behind door cards and in tight enclosures
• Front mount baffle cutout: 5.6" (142 mm) matches many 6.5" openings

What sound character and power handling should I expect?

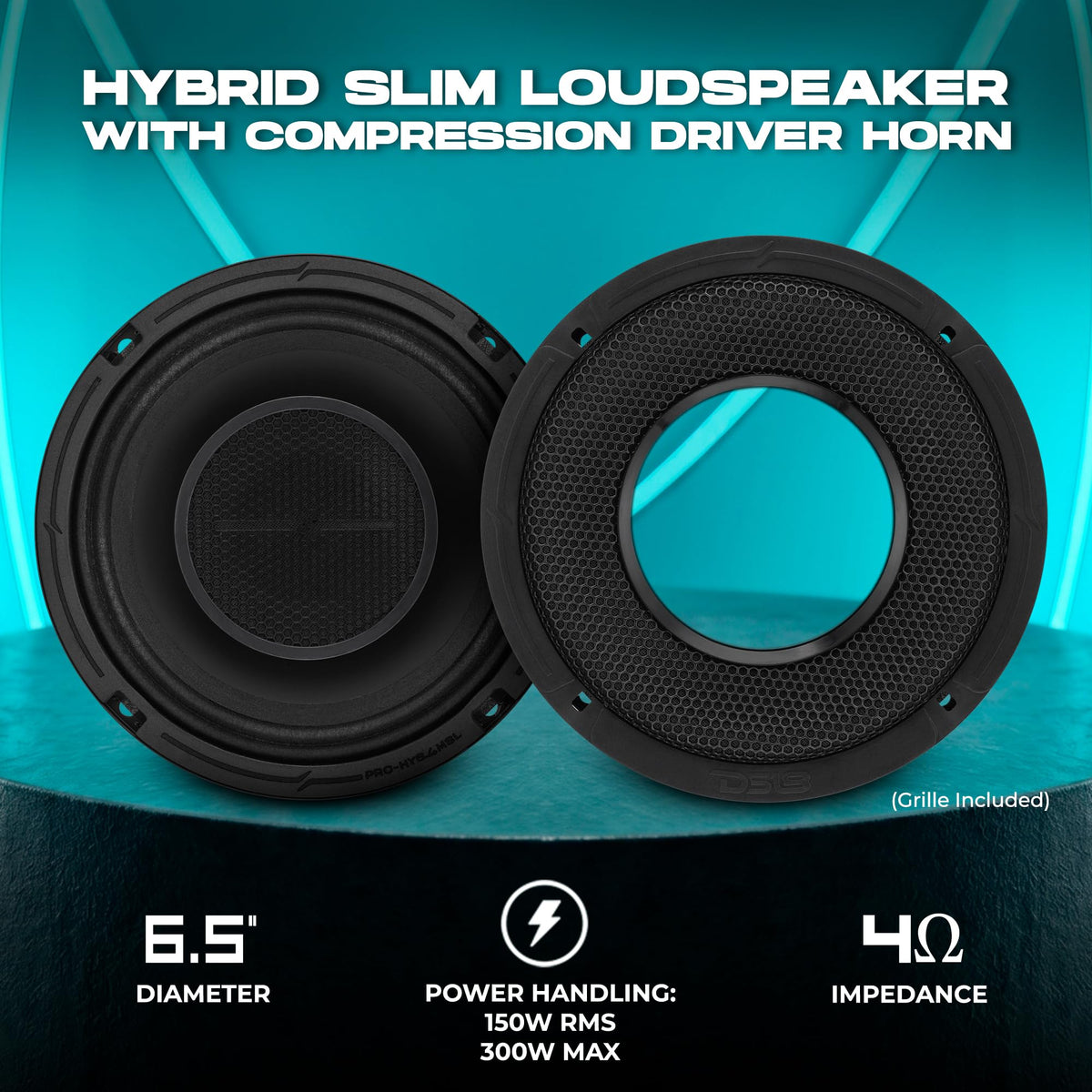

This hybrid loudspeaker emphasizes mid-range punch with a high-intensity titanium driver for crisp highs. It is rated at 150W RMS and 300W peak into 4 ohms, with a sensitivity of 93 dB, allowing it to reach strong volumes with moderate amplifier power.

• RMS power: 150W, Max: 300W for dynamic headroom
• Sensitivity: 93 dB (1W/1m) for efficient output
• Frequency response: 120 Hz–20 kHz, recommended high-pass crossover at 140 Hz

Which materials and components create its sound and durability?

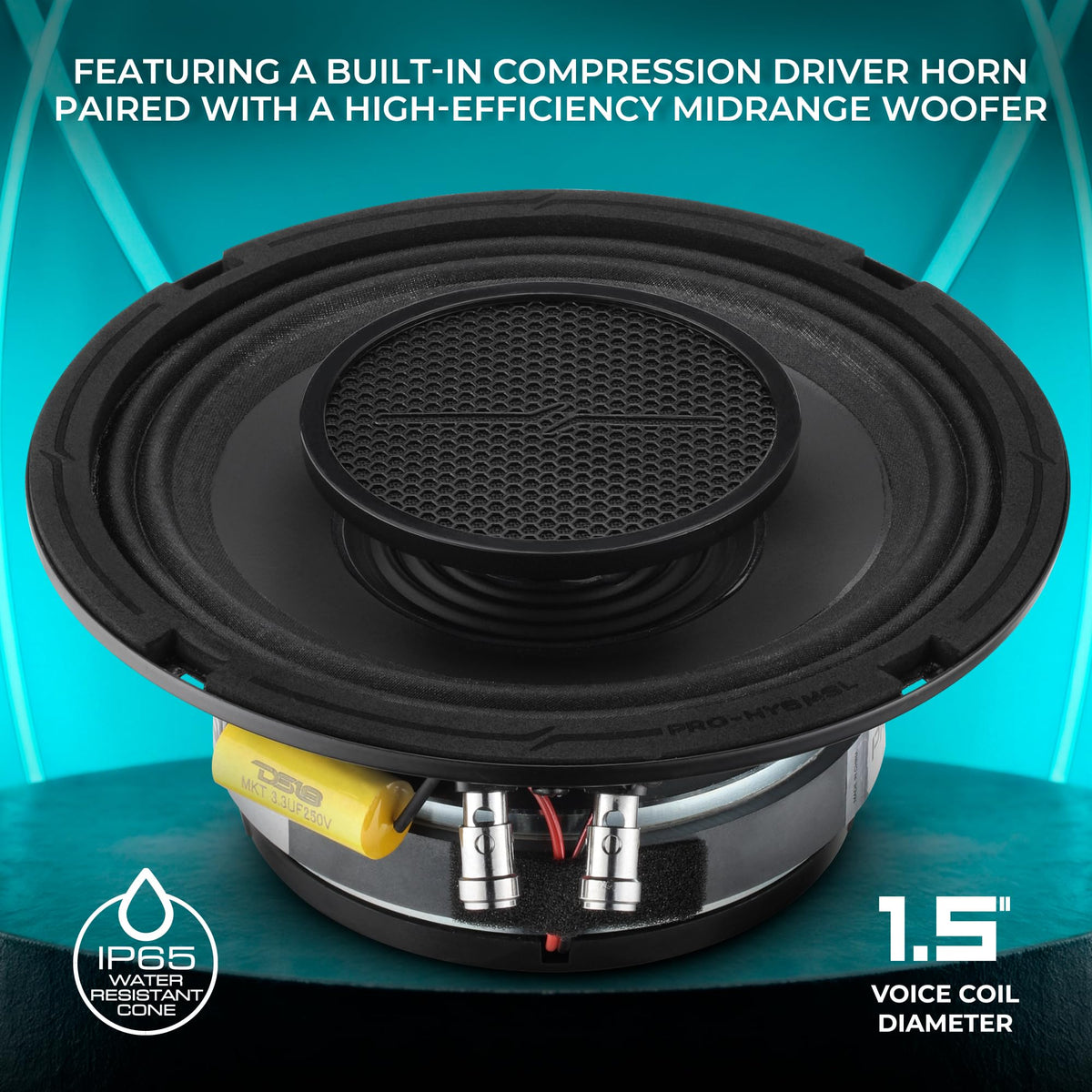

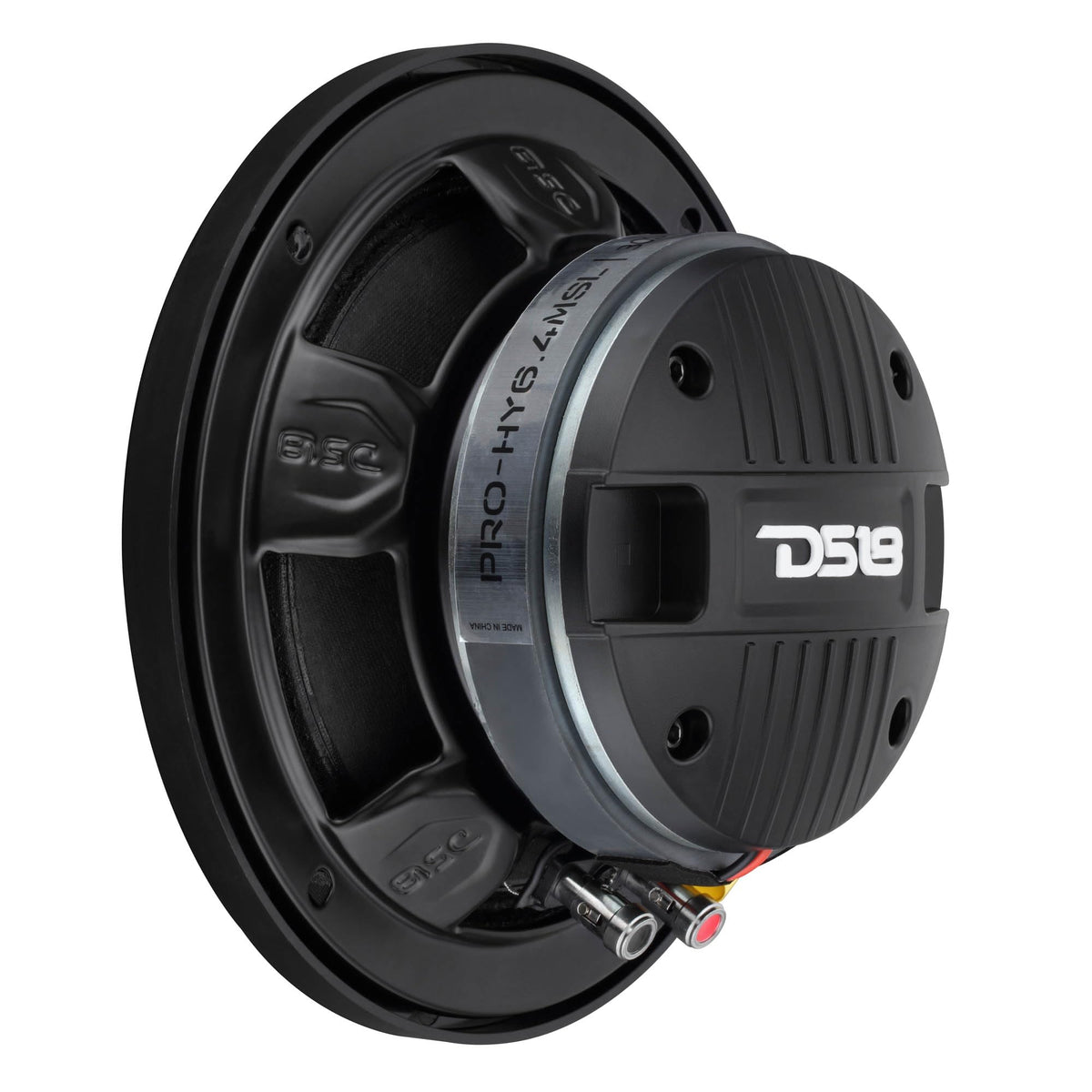

The speaker combines a paper woofer cone, cloth surround, and a high-performance driver constructed with a titanium diaphragm and Kapton voice coil former. Heavy-duty materials like ferrite and neodymium magnets and a steel basket with a glossy red finish improve durability and thermal handling.

• Woofer: paper cone with cloth surround for natural mid-range tone
• Driver: titanium diaphragm and CCAW winding for extended high-frequency detail
• Motor: ferrite magnet and neodymium driver magnet for controlled output

Can this speaker be driven by a standard car amp or head unit?

The PRO-HY6.4MSL works well with aftermarket two-channel or multichannel amplifiers and can be used with a factory head unit when paired with sufficient power or an external amp. Its 4-ohm nominal impedance and 93 dB sensitivity make it compatible with a broad range of car audio systems.

• Nominal impedance: 4 ohms — standard for car audio amplifiers
• Recommended: use a high-pass filter at ~140 Hz to protect the driver
• Ideal with a dedicated amp for best clarity and control

Who this is for: The DS18 PRO-HY6.4MSL suits car audio enthusiasts, installers, and DIYers who need strong mid-range performance in constrained spaces. Choose this speaker if you want a loud, clear midrange with an integrated high-frequency driver, compact mounting depth for tricky installations, and a bold visual finish for custom builds.
