DS18 6.5" PRO-HY6MSL Shallow Hybrid Midrange Speaker — 150W RMS, 93 dB Sensitivity, Red Steel Basket

The DS18 PRO-HY6MSL is a 6.5" shallow hybrid mid-range car loudspeaker that pairs a pro-audio midwoofer with a high-intensity driver for clear, powerful sound in tight installations.

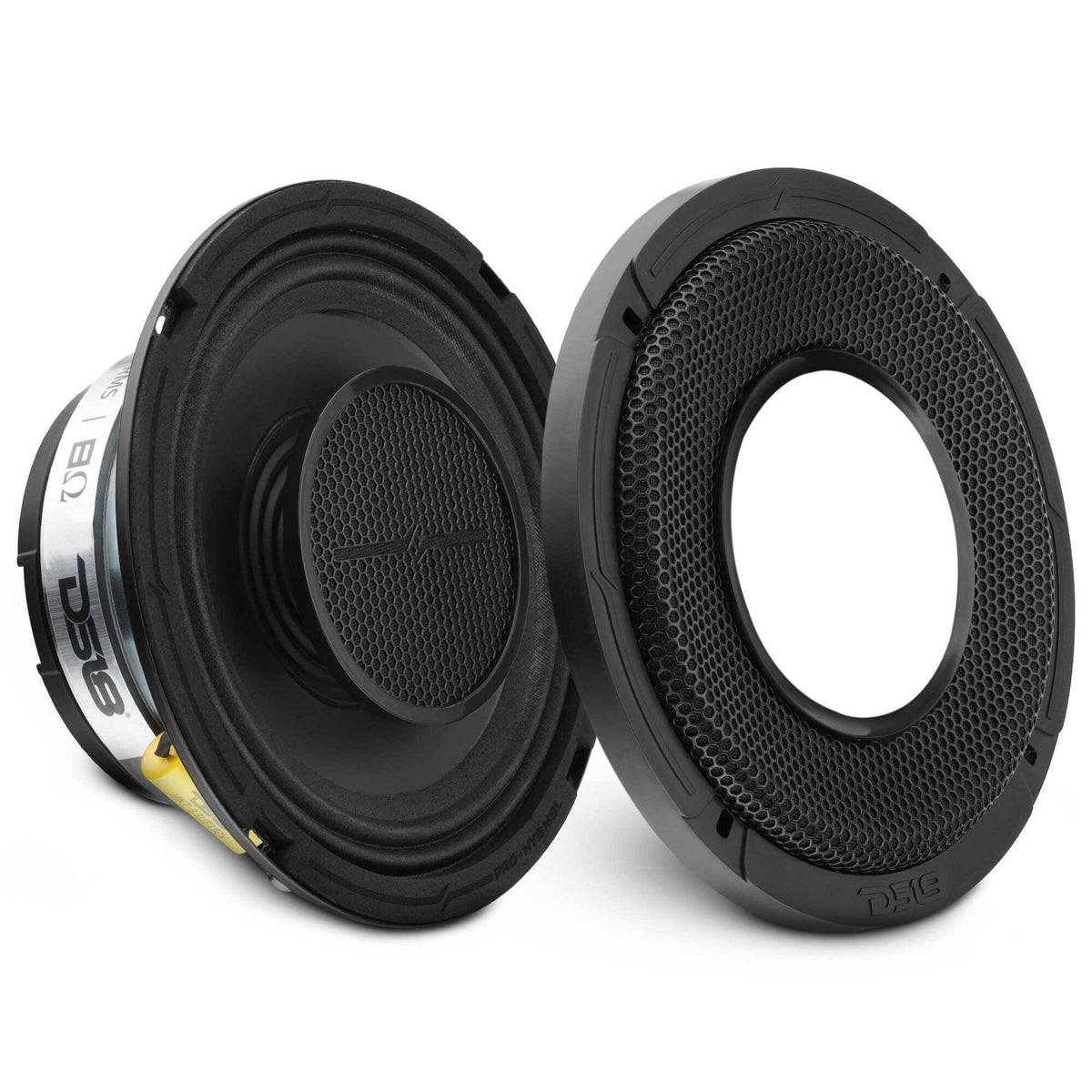

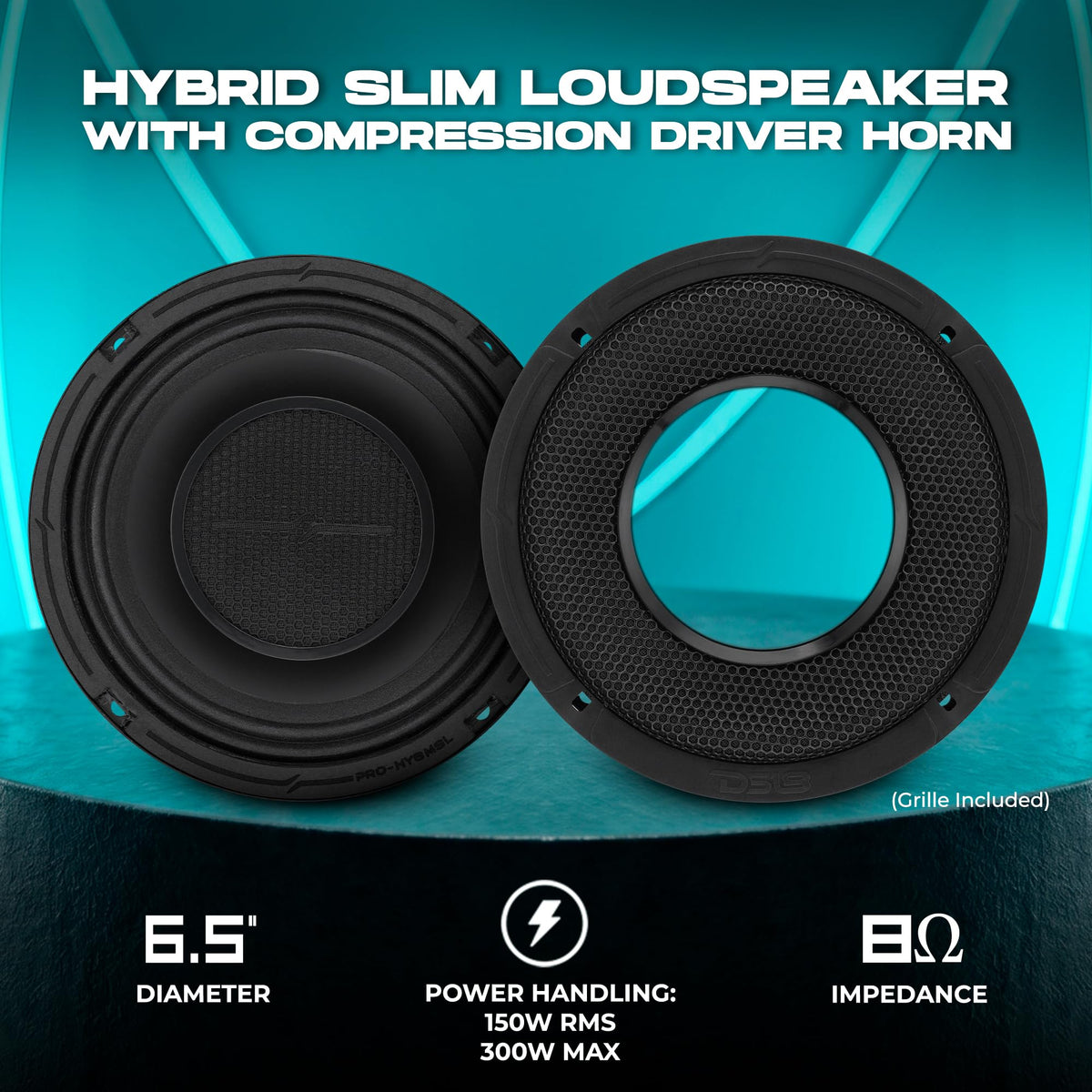

Compact but built for serious output, this DS18 hybrid loudspeaker merges a robust midrange cone and a dedicated high-frequency driver into a slim assembly that fits where conventional speakers cannot. Designed for automotive and confined-space audio projects, it offers 150W RMS (300W peak) at 8 ohms, a sensitivity of 93 dB, and a frequency span that extends from the upper bass into detailed highs. The speaker ships with a protective grill and a glossy red steel basket for a durable, visible installation.

How does the hybrid design improve sound in a shallow speaker?

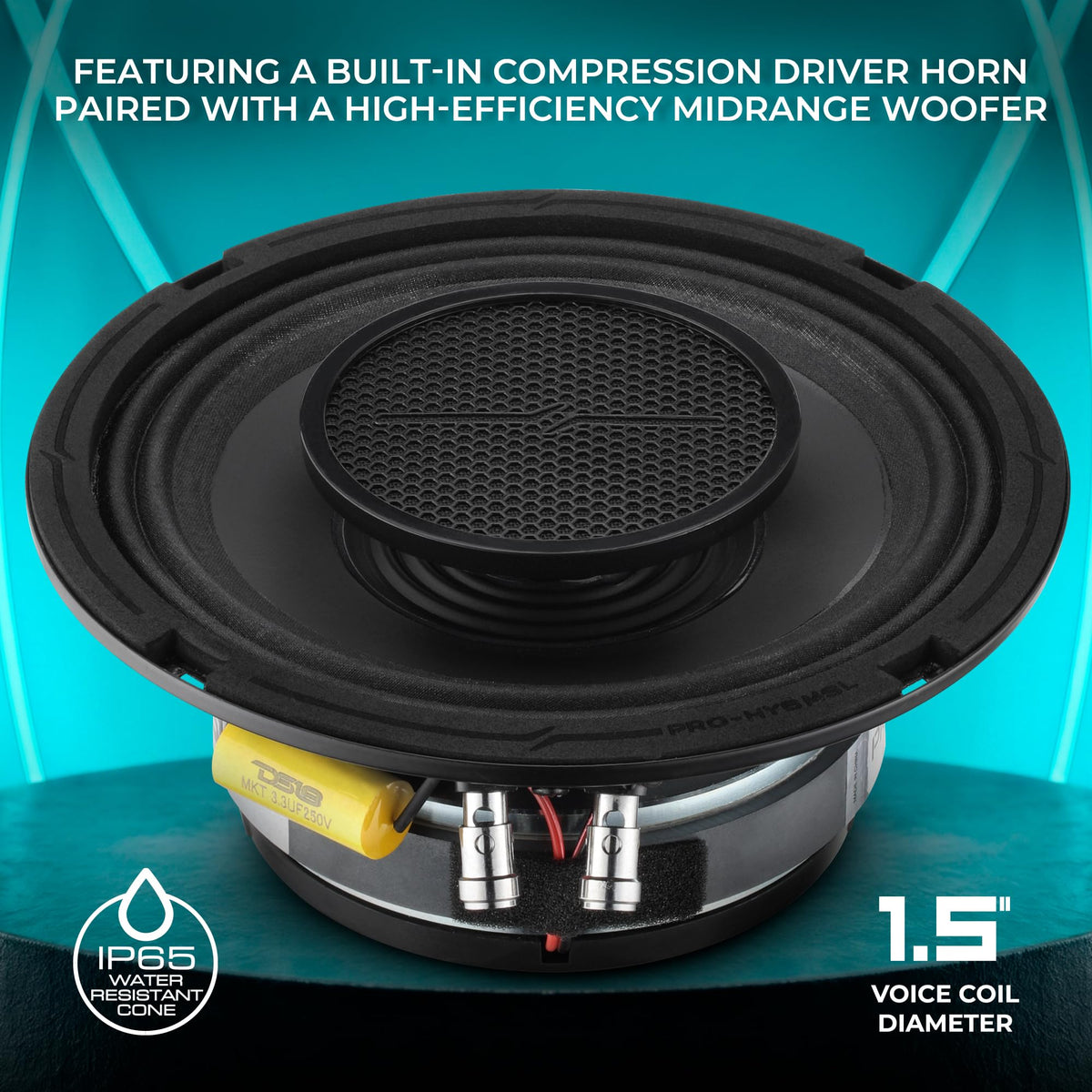

By integrating a dedicated midrange cone with a concentrated high-frequency driver, the PRO-HY6MSL reproduces mids and highs with more definition than a single-cone shallow driver. The separate components let each part operate within its optimal range, reducing distortion at high volumes.

• Two-way arrangement: distinct midwoofer and horn-loaded titanium driver
• Recommended high-pass crossover at 140Hz for clean mid reproduction
• High sensitivity (93 dB) for louder output with less amplifier power
• Shallow mounting depth (2.77" / 70.5 mm) for tight spaces

Will this speaker handle high power and loud listening sessions?

The PRO-HY6MSL is built for demanding use, rated at 150W RMS and a 300W peak, so it tolerates sustained high-volume playback when matched with appropriate amplification. Robust materials and a high-intensity driver help the speaker maintain clarity during dynamic passages.

• 150W RMS power handling for continuous performance
• 300W peak capacity for transient headroom

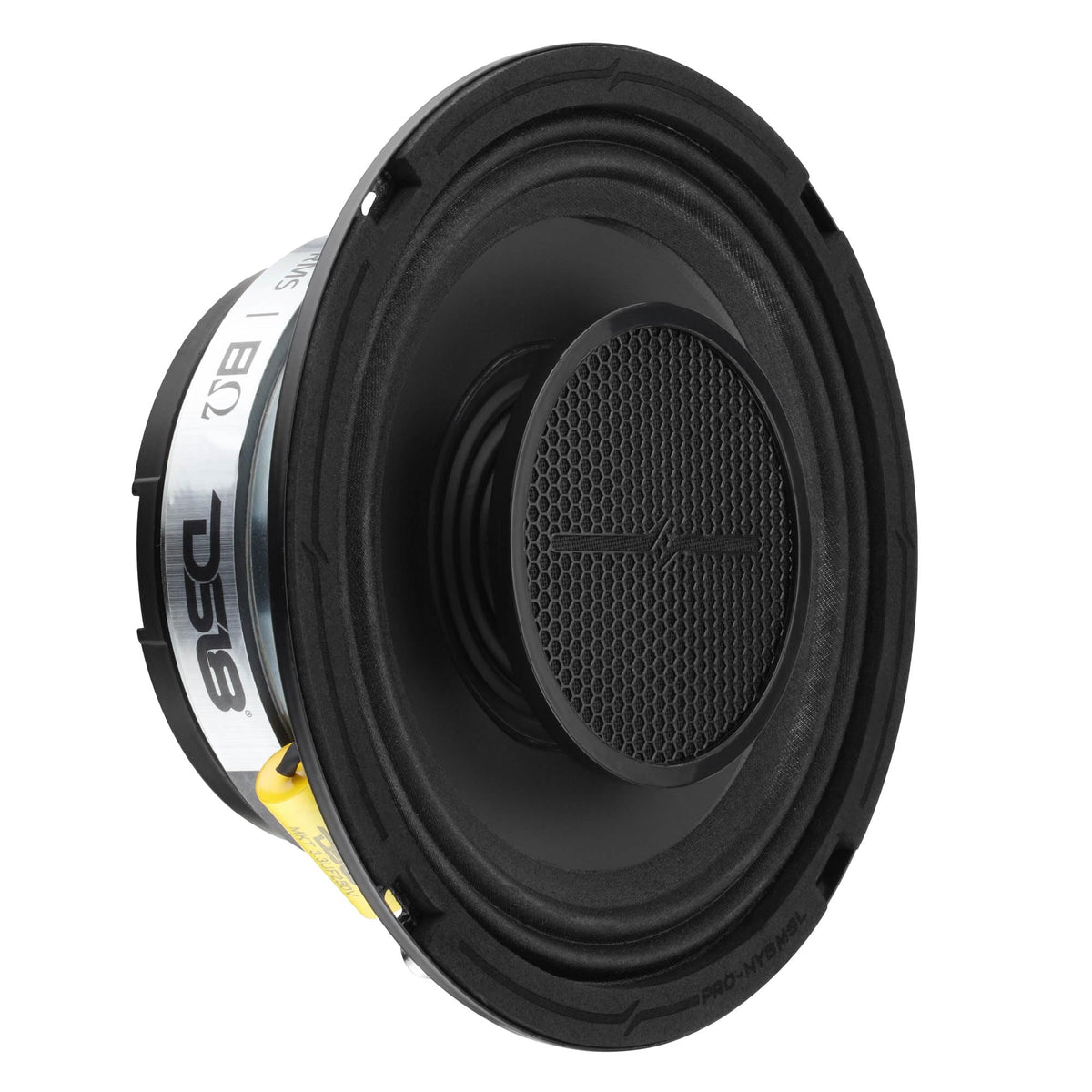

• Ferrite magnet midwoofer and neodymium horn driver for reliability
• Durable paper cone, Kapton former, and CCAW windings for heat resistance

What are the installation specs and practical fit considerations?

The assembly is purposely shallow to fit door panels, dash spaces, and compact enclosures while keeping a professional motor structure. Double-check the front mount cutout and mounting depth before purchasing to ensure compatibility with your vehicle or enclosure.

• Overall diameter: 6.92" (176 mm)
• Front mount baffle cutout: 5.6" (142 mm)
• Mounting depth: 2.77" (70.5 mm); overall depth: 3.52" (89.5 mm)
• 8-ohm nominal impedance for common car audio amps

What materials and build features add to longevity and sound quality?

DS18 paired high-quality components and materials to balance longevity with high output. A mix of metal, specialty polymers, and precise coil materials reduce thermal strain and mechanical failure points under heavy use.

• Titanium diaphragm in the driver for crisp high-frequency response
• Neodymium magnet on the horn driver for focused output and lighter weight
• Ferrite midwoofer magnet and steel basket finished in glossy red
• Cloth surround and paper cone tuned for midrange clarity

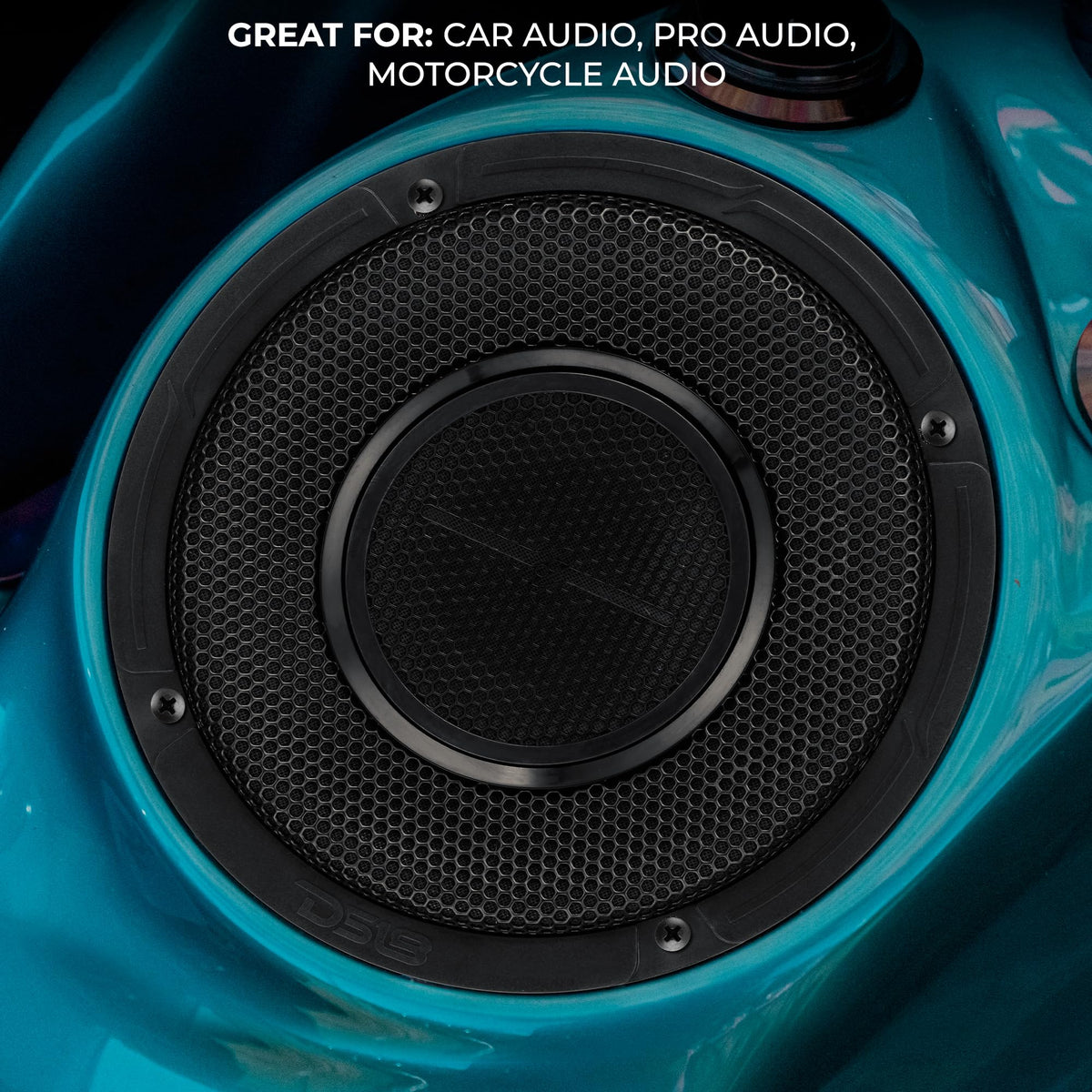

Who is this for? The DS18 PRO-HY6MSL suits car audio enthusiasts, installers, and anyone who needs high-output midrange and extended highs in tight spaces—doors, custom panels, or compact speaker enclosures. It's ideal for systems where loud, clear midrange presence is required without deep mounting depth. Pair it with a proper high-pass crossover and an amplifier that matches the speaker's 8-ohm nominal impedance to unlock the intended performance.
