DS18 6.5" PRO-GM6.4B Midrange Car Speaker — Red Aluminum Bullet, 140W RMS, 94dB

DS18 PRO-GM6.4B is a 6.5" midrange car loudspeaker built to deliver clear vocals and instrument detail with a durable red aluminum bullet and 140W RMS power handling.

This single DS18 PRO-GM6.4B midrange speaker is engineered to upgrade a car or truck stereo by focusing on the critical middle of the audible spectrum. With a cloth surround, paper cone, kapton voice coil, and a 23 oz ferrite magnet, it is designed for reliable performance under real-world driving conditions. The speaker’s 4-ohm impedance and 94 dB sensitivity make it an efficient choice for both factory and aftermarket amplifiers.

How does the PRO-GM6.4B improve vocal clarity and instruments?

The PRO-GM6.4B concentrates on midrange frequencies from 160 Hz to 10 kHz, where much of the human voice and many instruments sit. Its paper cone and bullet dust cover reduce breakup and protect the voice coil, resulting in more natural-sounding mids and tighter presence.

• Frequency response: 160 Hz–10 kHz for focused midrange detail
• 94 dB sensitivity for efficient output with modest power

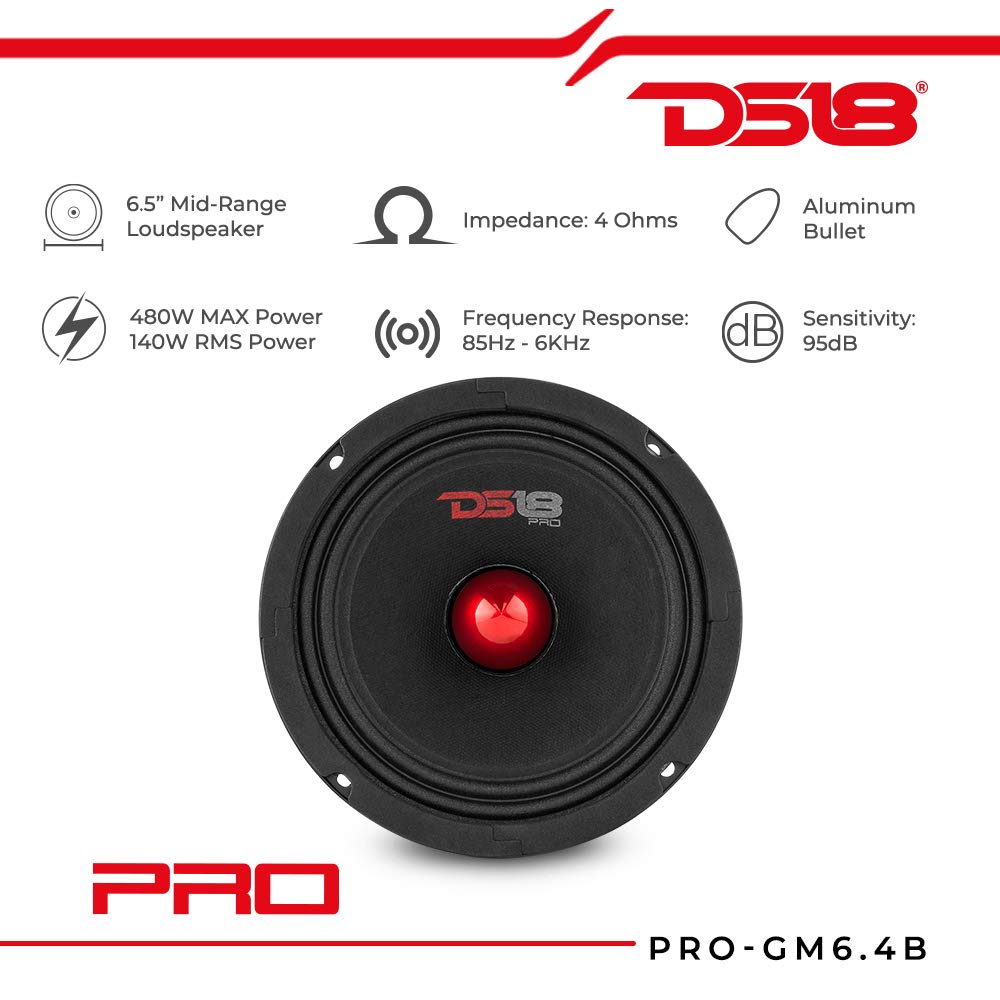

• Bullet dust cover improves dispersion and coil protection

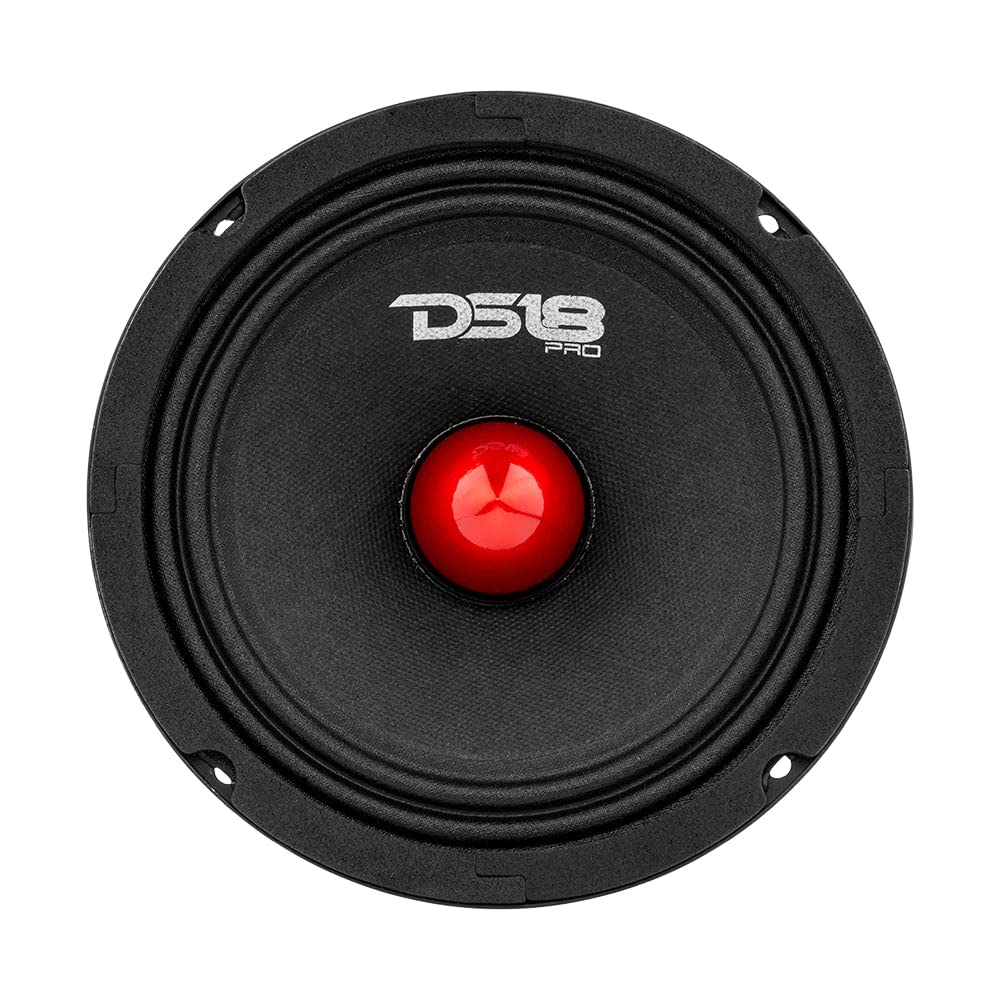

• Cloth surround for controlled cone movement and smoother mids

What power and load should I use with this speaker?

The speaker is rated at 140W RMS and 480W max at 4 ohms; match it to an amplifier or head unit that delivers clean power in that RMS range to avoid distortion and overheating. Because the PRO-GM6.4B has a 4-ohm impedance and a 1.5" kapton voice coil, it handles heat well but benefits from a stable, properly tuned amplifier.

• Nominal impedance: 4 ohms — compatible with most car amps
• RMS handling: 140W — target amplifier RMS close to this for best results
• Max power: 480W — short-term peaks only, not continuous use
• High-temp kapton coil reduces failure risk under heavy use

What are the mechanical and installation dimensions I need to know?

The PRO-GM6.4B mounts like a typical 6.5" speaker but requires attention to depth and cut-out dimensions to fit correctly. Its mounting depth and cut-out diameter suit many door and custom dash applications, but confirm clearance before installation.

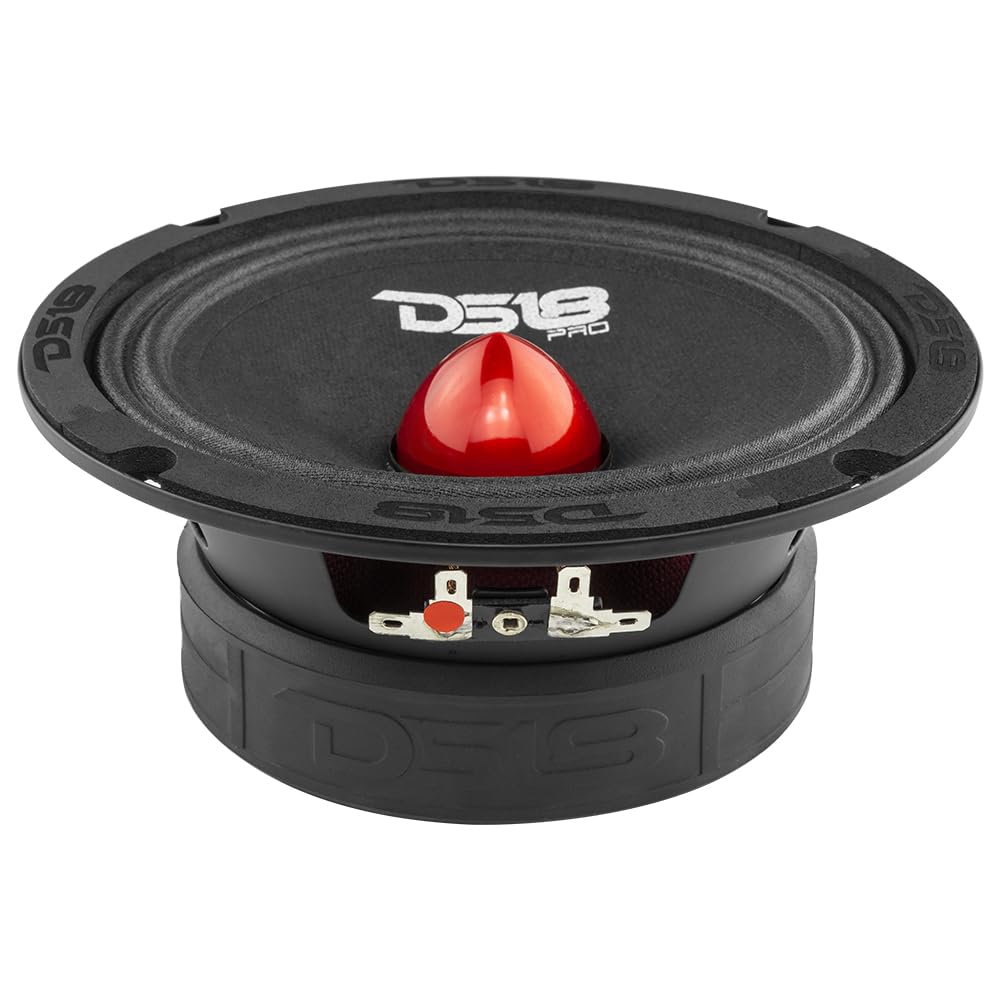

• Mounting depth: 2.72" (69 mm) — check door panel clearance
• Cut-out diameter: 5.7" (145 mm) — standard 6.5" opening fit
• Basket: stamped black steel for straightforward screw mounting

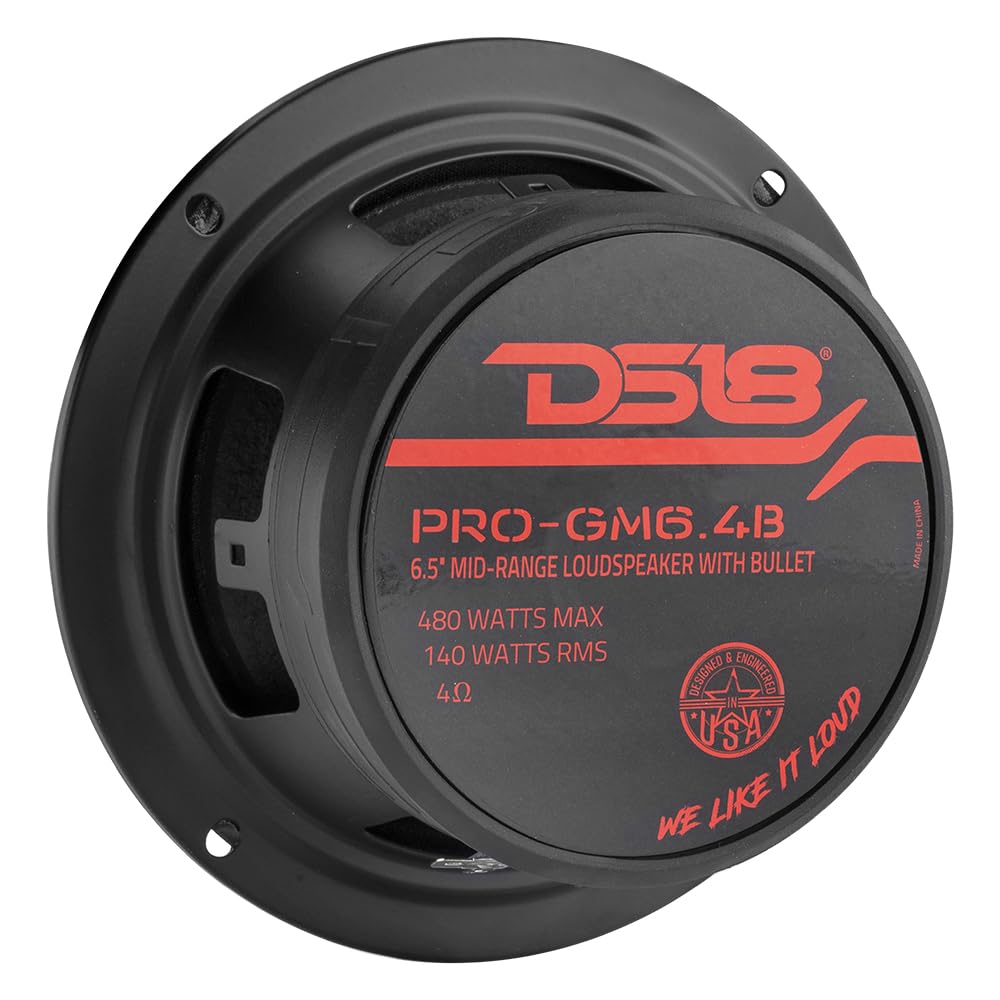

• Magnet diameter: 23 oz ferrite — typical automotive magnet size

How durable and long-lasting is the PRO-GM6.4B?

The speaker pairs a robust ferrite magnet and a high-temperature kapton voice coil with a cloth surround that resists fatigue. These components are chosen to withstand the heat and vibration common in vehicle environments while maintaining consistent sonic performance.

• Kapton voice coil tolerates higher operating temperatures
• Cloth surround resists dry-rot and mechanical wear
• Ferrite magnet provides stable magnetic structure over time
• Stamped steel basket offers rigid mounting and structural support

Who this speaker is for: The DS18 PRO-GM6.4B is intended for drivers and installers seeking a reliable midrange upgrade for car or truck audio systems. It suits users who want improved vocals and instrument definition without large subs or full component systems — ideal for replacing worn stock speakers or enhancing a 2-way system with focused midrange performance.
