DS18 5.25" PRO-X5M Midrange Speaker 150W RMS

The DS18 PRO-X5M is a 5.25-inch midrange loudspeaker built for clear vocals and instrument detail, supplying up to 150W RMS (300W peak) for car or truck stereo systems.

The PRO-X5M midrange from DS18 combines focused midband reproduction with durable components to upgrade a factory audio system or as part of a custom car audio build. Its red steel basket and non-pressed paper cone are designed to deliver transparent mids and natural timbre across the essential 245 Hz–13.5 kHz range. With an 8 Ω impedance, 90.4 dB sensitivity, and a compact 2.6" mounting depth, this speaker fits many door and dash applications while offering robust power handling and reliable thermal performance.

How does the PRO-X5M improve vocals and instruments in my car?

The DS18 PRO-X5M is tuned to emphasize the midrange where vocals and most instruments sit, producing clearer speech and more defined guitar, piano, and brass. The non-pressed paper cone provides a natural, warm character while the cloth surround controls cone motion for tighter transient response.

• Frequency response: 245 Hz–13.5 kHz captures the core mid frequencies.
• 90.4 dB sensitivity for efficient sound output with moderate power.
• Paper cone plus cloth surround for organic tone and controlled resonance.
• Red steel basket adds rigidity, reducing unwanted flex and coloration.

What power and impedance should I match with this speaker?

The PRO-X5M accepts up to 150W RMS and 300W peak at 4 ohms nominal in marketing but is specified with 8 ohm impedance, so check your amplifier’s compatibility. It performs well with small to medium amplifiers and factory head units when used with an appropriate crossover to protect it from low-frequency content.

• RMS rating: 150W ensures consistent continuous performance.
• Max power: 300W peak for short, dynamic transients.
• Impedance: check amplifier channels — speaker is listed at 8 Ω for system matching.
• Use a midrange or bandpass crossover to prevent low-bass overloads.

Will this speaker fit my door or custom enclosure space?

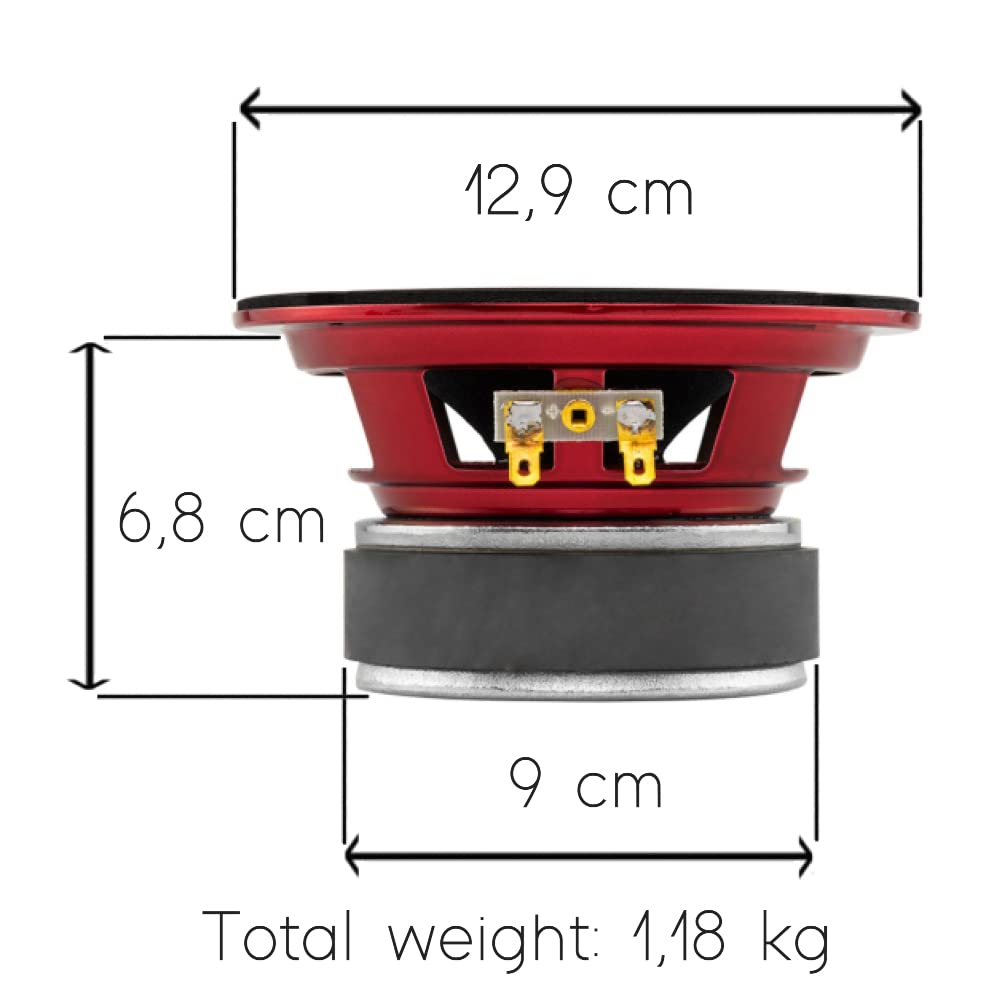

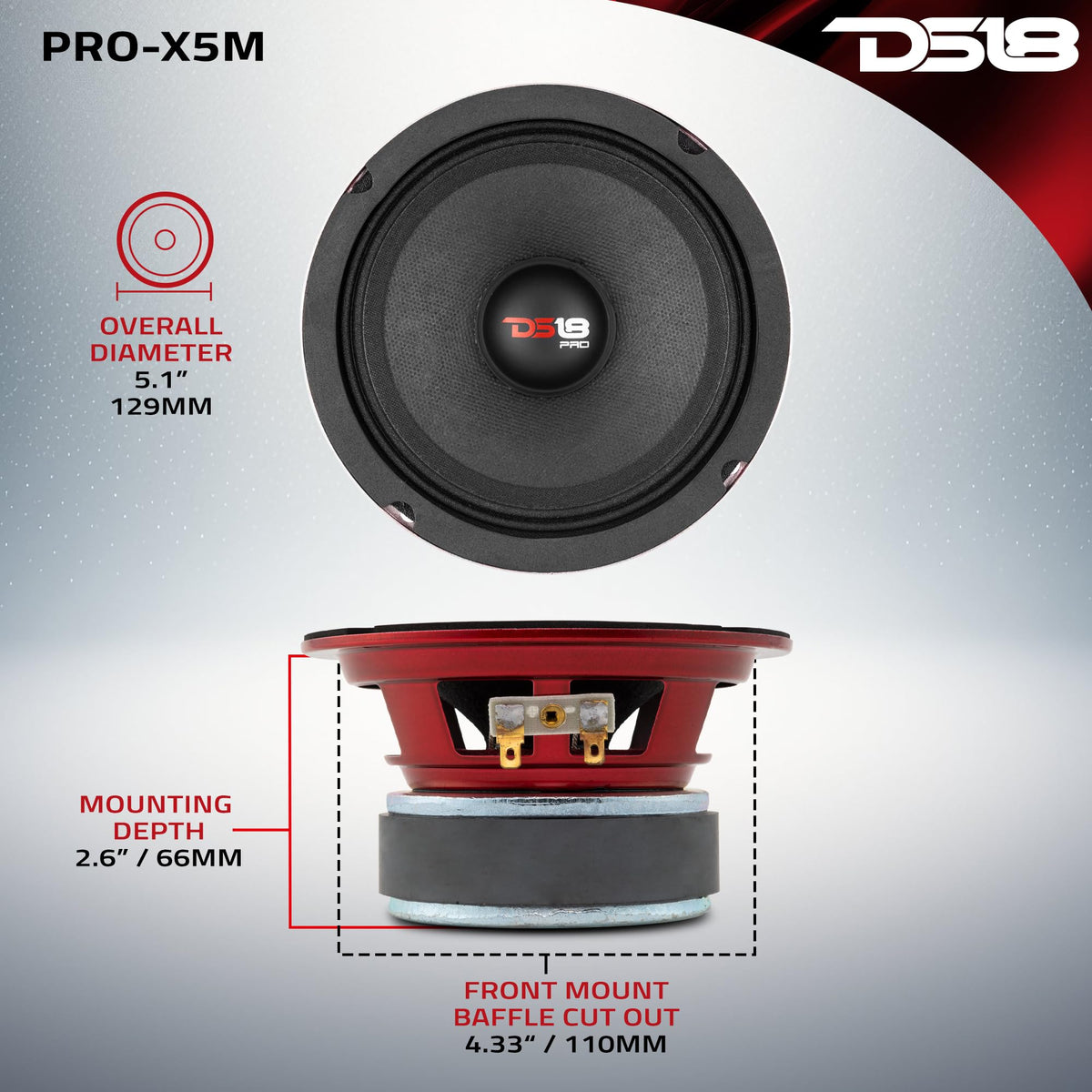

The PRO-X5M’s compact frame and specified cut-out make it suitable where space is limited. With a 4.33" (110 mm) cut-out and 2.6" (66 mm) mounting depth, it installs in many factory door locations or small custom pods without extensive modification.

• Mounting depth: 2.6" (66 mm) for tight installation spaces.
• Cut-out diameter: 4.33" (110 mm) matches many 5.25" openings.
• Frame construction: red steel basket for secure mounting and durability.
• 1.2" voice coil diameter with 18.5 oz ferrite magnet for stable driver control.

How durable is the PRO-X5M for everyday use?

DS18 built the PRO-X5M with longevity in mind: a high-temperature CCAW voice coil resists thermal breakdown and a robust ferrite magnet keeps motor strength consistent under heavy use. The cloth surround and steel basket reduce wear and maintain alignment over time, making it suitable for daily driving conditions.

• High-temp CCAW voice coil resists heat and maintains performance.
• Ferrite magnet (18.5 oz) provides steady motor force and reliability.
• Cloth surround reduces tearing and helps with long-term stability.
• Steel basket improves structural integrity in vehicle installations.

Who this speaker is for: The DS18 PRO-X5M is aimed at enthusiasts upgrading factory door speakers, installers building compact two-way systems, and anyone wanting clearer midrange detail without large enclosures. It suits drivers who need a compact 5.25" midrange that balances efficient output, natural tonal character, and rugged construction for daily automotive use.
