DS18 5.25" PRO-X5.4BM Midrange Loudspeaker — Red Steel Basket, 150W RMS Clear Vocals

The DS18 PRO-X5.4BM is a 5.25-inch midrange loudspeaker built to deliver clear vocals and instrument detail with up to 150W RMS power for car and truck stereo systems.

Engineered as a focused midrange driver, the PRO-X5.4BM brings the critical mids—where most vocals and many instruments live—into sharper focus than typical full-range factory speakers. Its combination of a treated paper cone, cloth surround, ventilated ferrite magnet, and a high-temperature CCAW voice coil produces a lively, articulate sound that slots well into component or coaxial upgrades. Compact mounting depth and a bold red steel basket make it an easy, attractive upgrade for door or kick-panel installations in cars and trucks.

How will this midrange improve my daily listening?

The PRO-X5.4BM tightens vocal clarity and brings out instrumental texture that many stock speakers wash over. You’ll hear more definition in guitars, snare, and midrange-driven passages without pushing the rest of your system into distortion.

• Designed frequency range of 215 Hz–13.4 kHz to focus on the middle of the audible band
• 92.7 dB sensitivity for efficient output with factory or aftermarket amps
• Cloth surround and non-pressed paper cone for natural, detailed midtones

What power and impedance does this speaker require?

The speaker is rated at 150W RMS and 300W peak at a nominal 4 ohms, matching standard head units and most small to mid-sized amplifiers. That RMS rating represents continuous power handling—choose an amplifier that delivers clean power close to this value for best results.

• 150W continuous (RMS) power handling
• 300W maximum peak power handling
• Nominal impedance: 4 Ω for compatibility with a wide range of car audio systems

Will it fit my vehicle and how easy is installation?

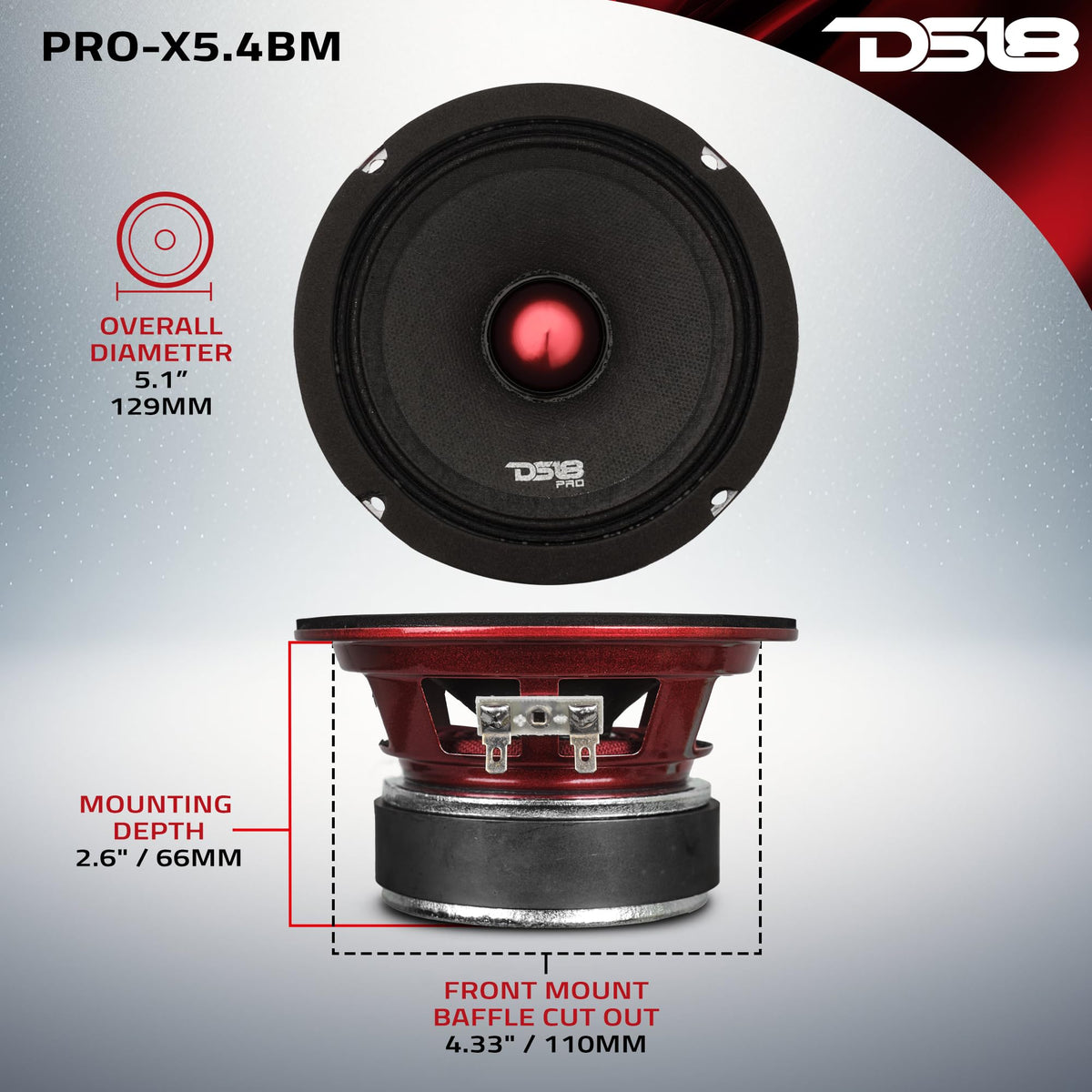

The PRO-X5.4BM has a compact mounting depth and a common 4.33" (110 mm) cut-out making it suitable for many OEM door openings and custom pods. The 2.6" (66 mm) mounting depth allows installation in confined spaces, while the red steel basket and bullet dust cap simplify alignment and protect the voice coil.

• Cut-out dimension: 4.33" (110 mm) for common speaker locations
• Mounting depth: 2.6" (66 mm) fits most door and kick-panel cavities
• Bullet dust cover protects the voice coil and refines midrange dispersion

What materials and design features affect sound and durability?

Materials and construction choices target a balance of musicality and longevity. A ferrite magnet pair provides stable magnetic force, while the CCAW (copper-clad aluminum) voice coil resists heat buildup during driven listening sessions.

• Non-pressed paper cone for accurate tonal character
• Cloth edge surround for controlled excursion and long life
• Ferrite magnet with an 18.5 oz magnetic assembly and ventilated design
• High-temp CCAW voice coil (approx. 1.5") for thermal stability

Who is this for? The DS18 PRO-X5.4BM is aimed at enthusiasts upgrading from factory speakers who want clearer vocals and instrument detail without a large component set. It suits DIY installers and professional shops fitting a single midrange in car or truck doors, and listeners who pair a focused midrange with a separate woofer and tweeter for a full, balanced system. If you need a compact, powerful midrange with distinct styling and reliable thermal performance, this DS18 model is built to deliver.
