DROK 24V 20A DC Power Supply Adjustable 0-24V 480W

DROK's 24V buck converter is a compact, adjustable DC power supply that converts AC 110/220V to a regulated DC output from 0 to 24V at up to 20A (480W).

This compact switching power adapter is built for bench work, LED systems, CCTV, small appliances and electronics testing. It combines a precise adjustable output, thermal management and multiple protections so you can safely power devices that require 5V, 9V, 12V, 24V or intermediate voltages. The unit ships ready to use—just set the input voltage to match your mains and connect your load.

How do I set the right voltage and use the DROK converter?

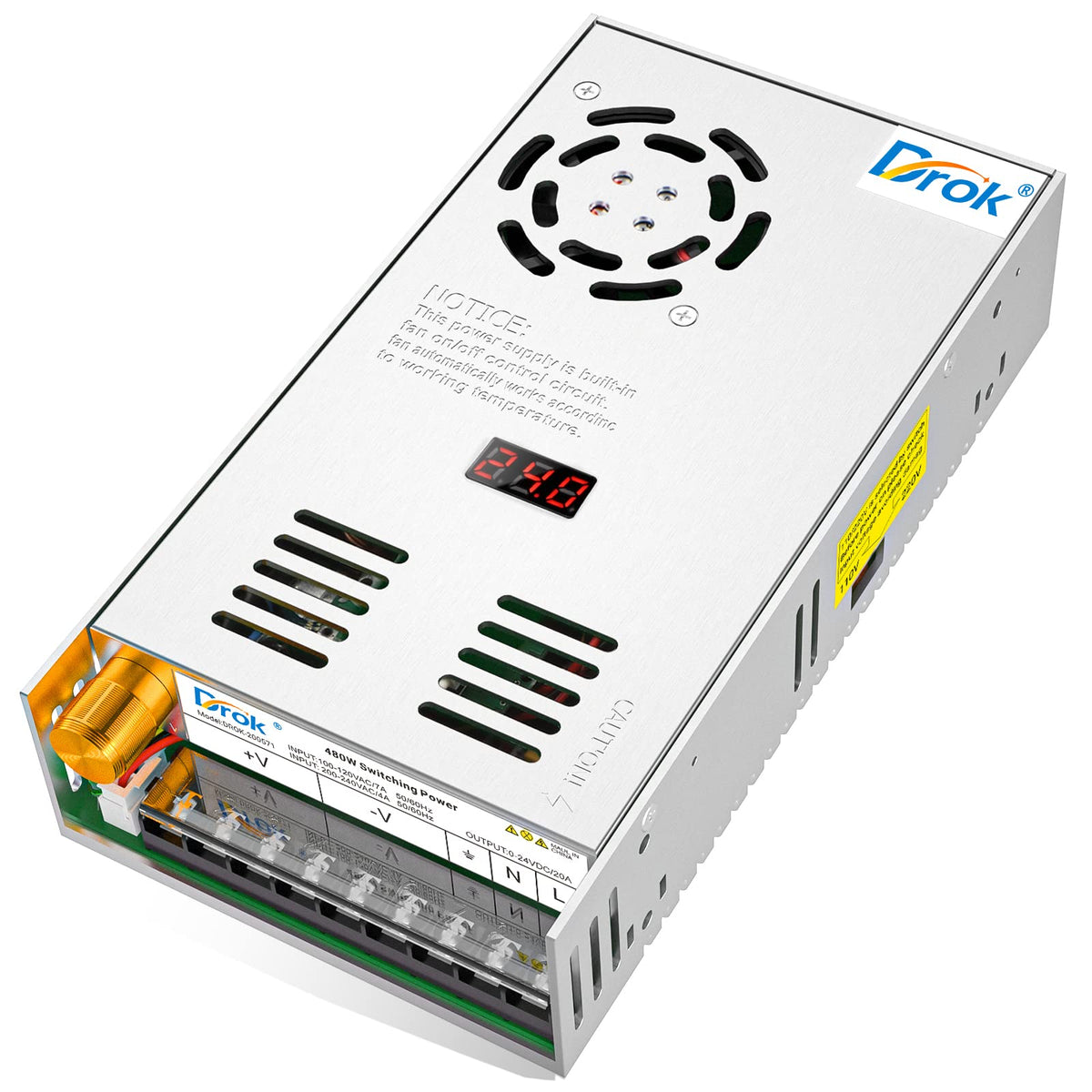

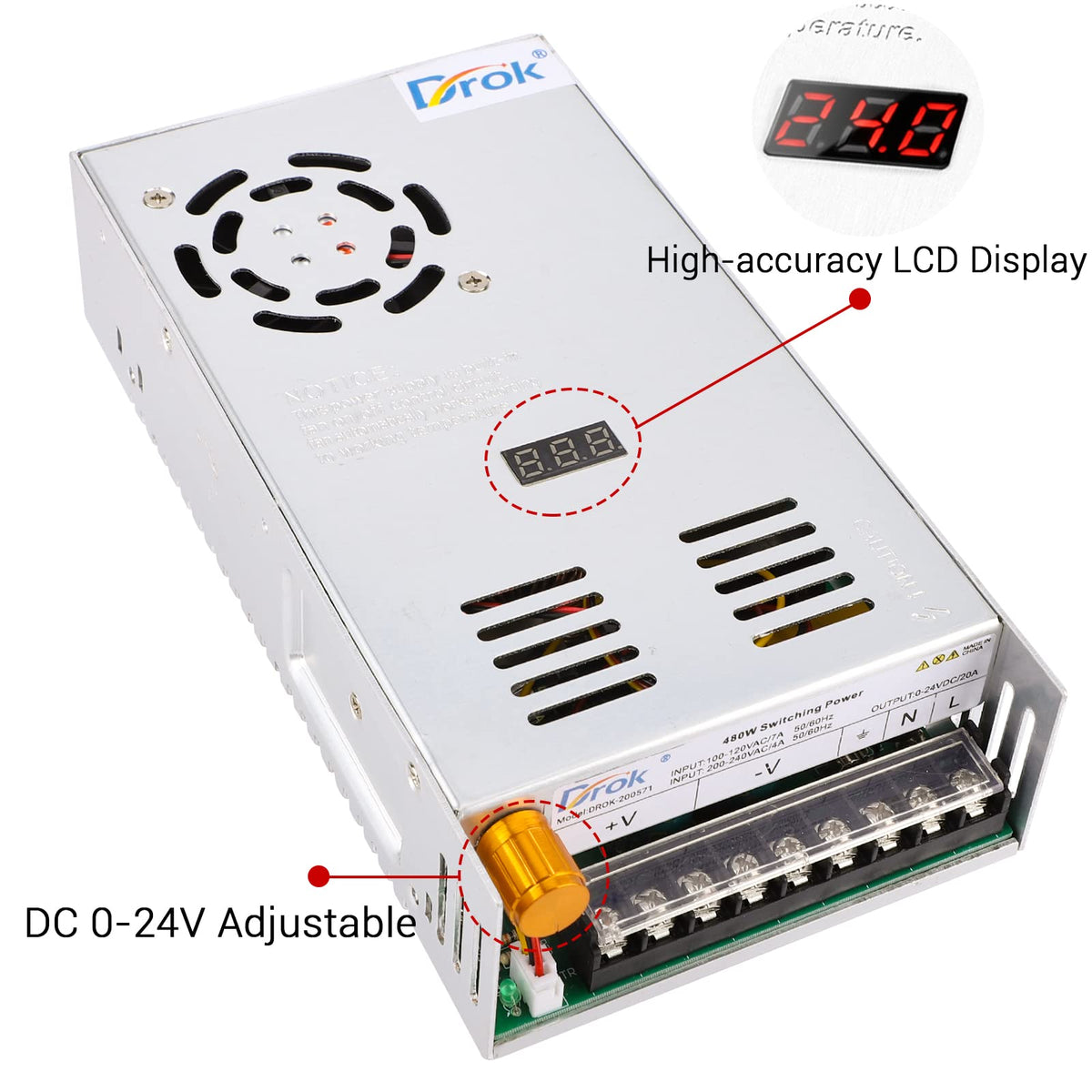

Adjusting the output is done with the built-in potentiometer while monitoring the digital LED display. The device accepts 110V or 220V AC mains (switchable) and provides a continuously variable DC output between 0 and 24V with 0.1V resolution for accurate tuning.

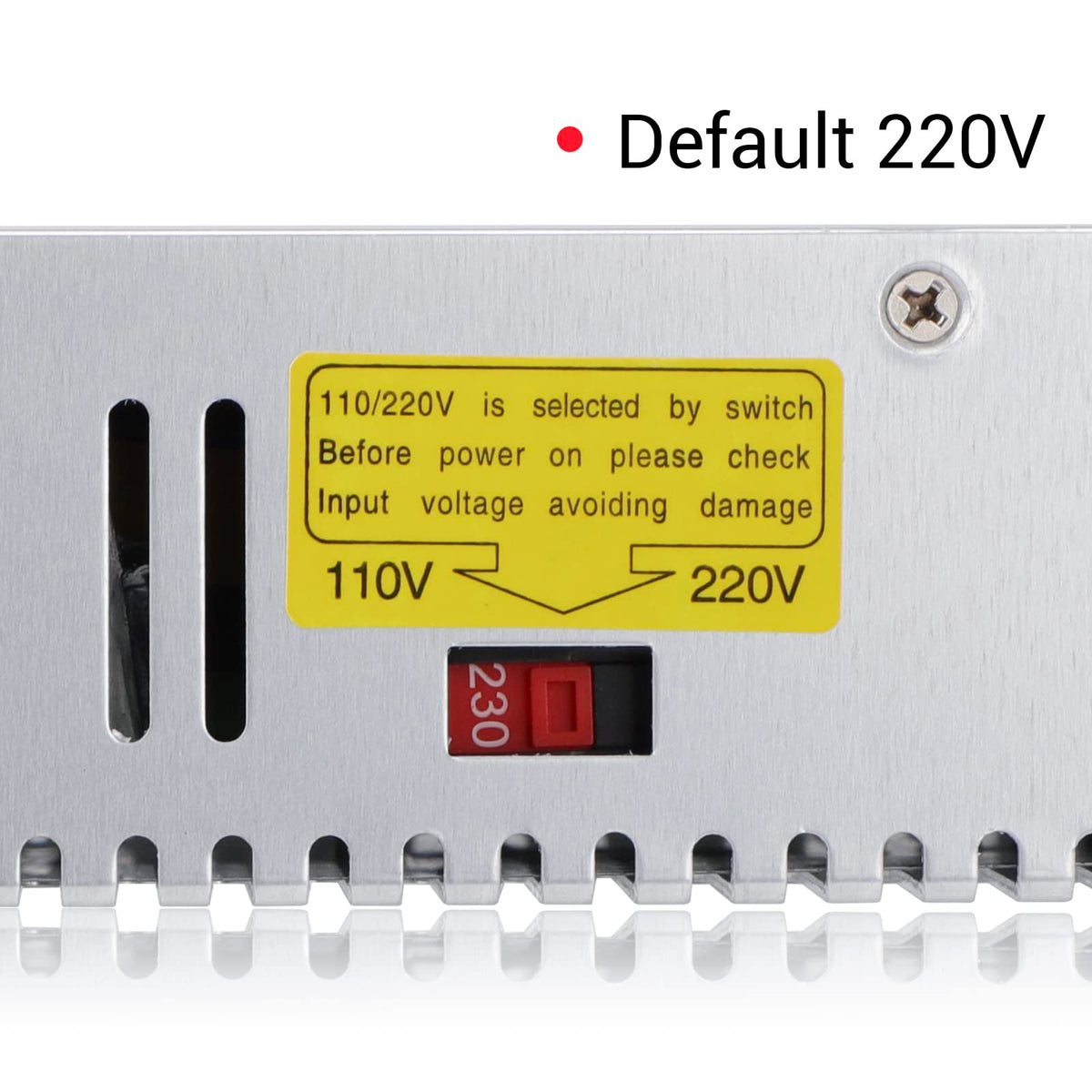

• Switch input selector to match your local mains (110V or 220V).

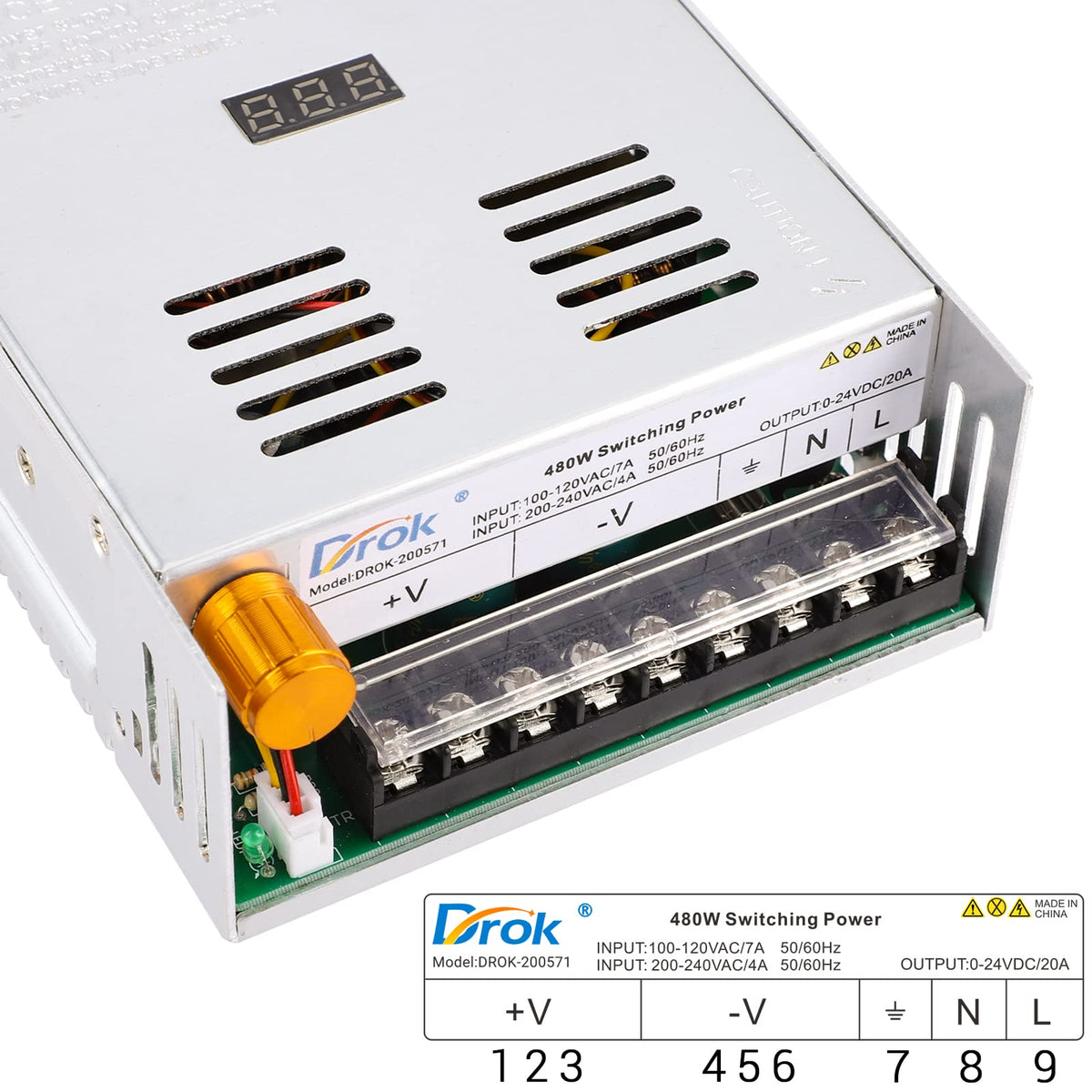

• Wire the AC input and DC output per the labeled terminals—observe polarity.
• Rotate the embedded potentiometer to reach target voltage while watching the LED readout.
• Ensure your load current does not exceed 20A; the current limit is defined by the connected device.

What safety features protect my equipment and the power supply?

The DROK unit integrates standard electrical protections and active cooling to preserve both the supply and connected devices. Protections include overload, short-circuit and over-voltage safeguards that act automatically to prevent damage during fault conditions.

• Overload protection cuts output when current demand is excessive.
• Short-circuit protection responds instantly to accidental shorts.
• Over-voltage protection helps maintain safe output levels for sensitive electronics.

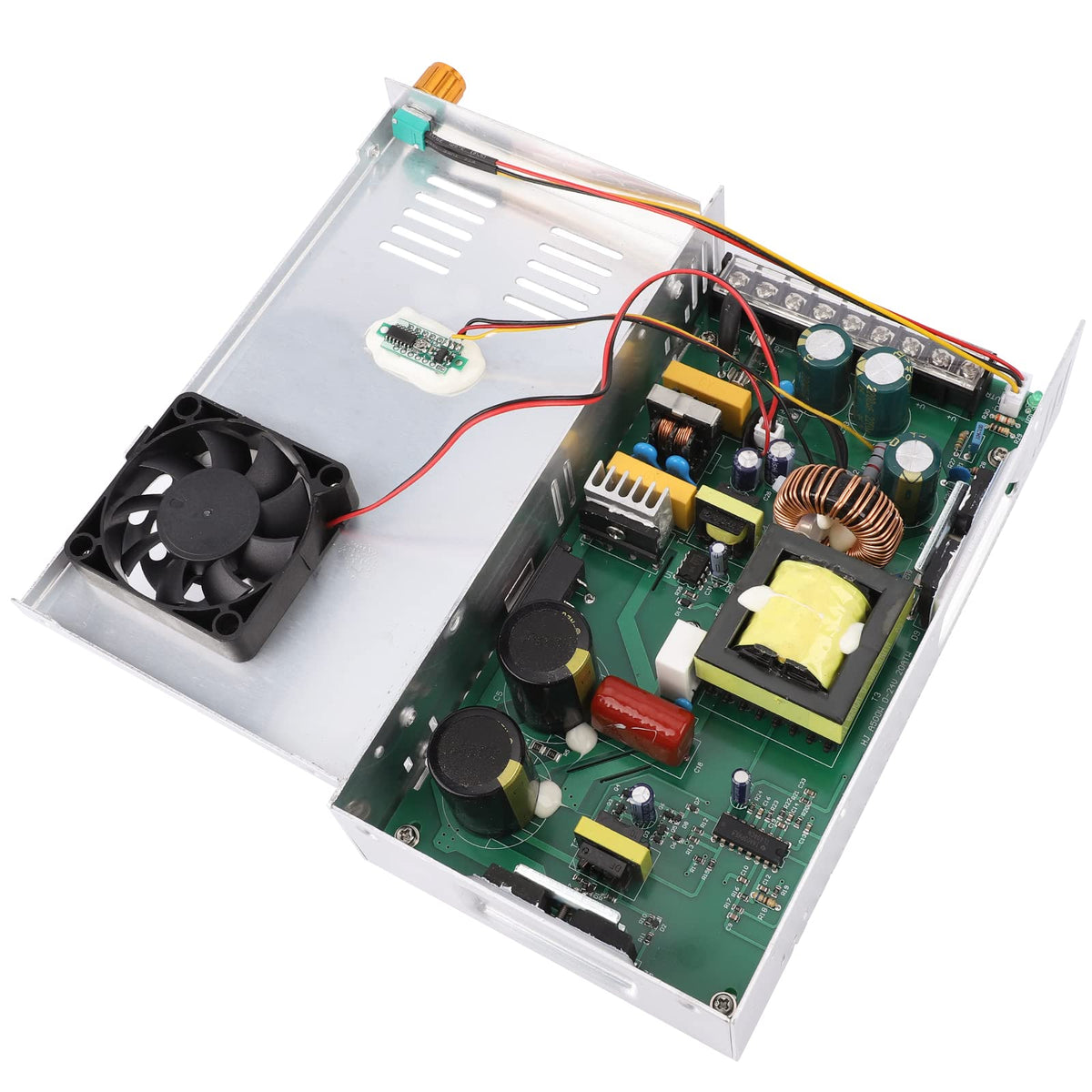

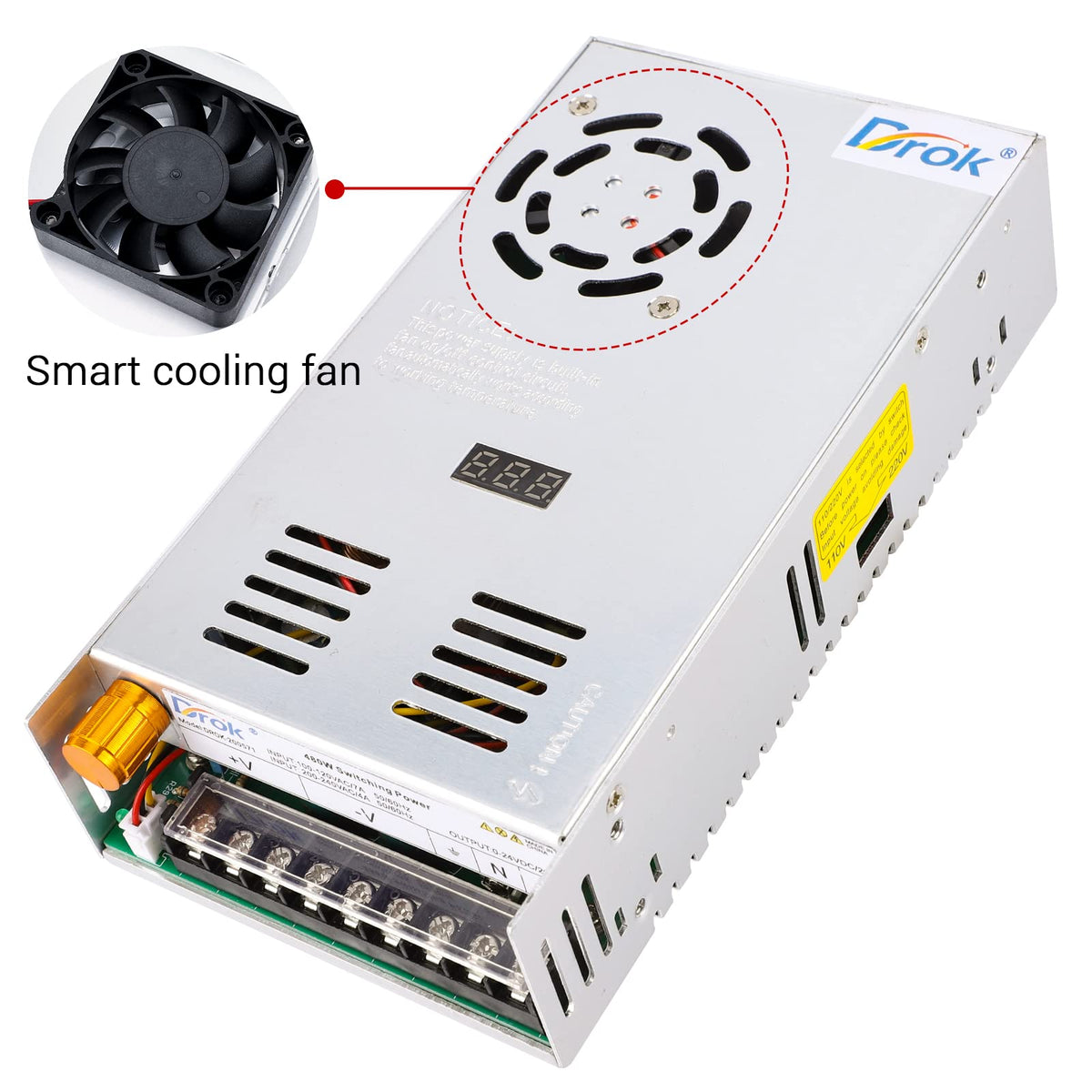

• Heat sink and a temperature-controlled fan stabilize internal temperatures under heavy load.

How much current and power can this adapter handle in real use?

The supply is rated for a maximum DC output of 20A and a peak power of roughly 480W at higher voltages. Actual current delivered depends entirely on the device you connect; the converter will provide up to 20A but does not step the load current down from that number.

• Maximum continuous output: 20A (ensure connected devices draw less than this).
• Maximum power: approximately 480W when voltage and current demands align.
• Voltage precision: 0.1V increments on the digital display for fine adjustments.
• Suitable for devices rated 2A–20A including LED arrays, CCTV, hobby electronics, and lab projects.

What setup or maintenance should I be aware of?

Installation is straightforward—no internal assembly required—however correct wiring and input-voltage selection are essential before first use. Periodic checks of terminal connections and ensuring the intake/exhaust around the fan and heat sink remain unobstructed will prolong service life.

• Set the input voltage switch to your region before powering the unit.
• Confirm solid screw-terminal connections and correct polarity on DC outputs.
• Keep ventilation clear so the fan and heat sink can dissipate heat effectively.
• Inspect for dust and tighten terminals if used in workshop or automotive settings.

Who this is for: Engineers, makers, technicians and hobbyists who need a flexible, bench-ready DC power source for testing, prototyping, LED installations or powering devices that require precise intermediate voltages. It fits users who want a high-current, adjustable supply with built-in display, cooling and protective features, and who will ensure loads do not exceed 20A.
