Drizzlen Type BR Whole-Panel Surge Protective Device — 1-Pack, 18 kA Two-Pole Panel-Mount

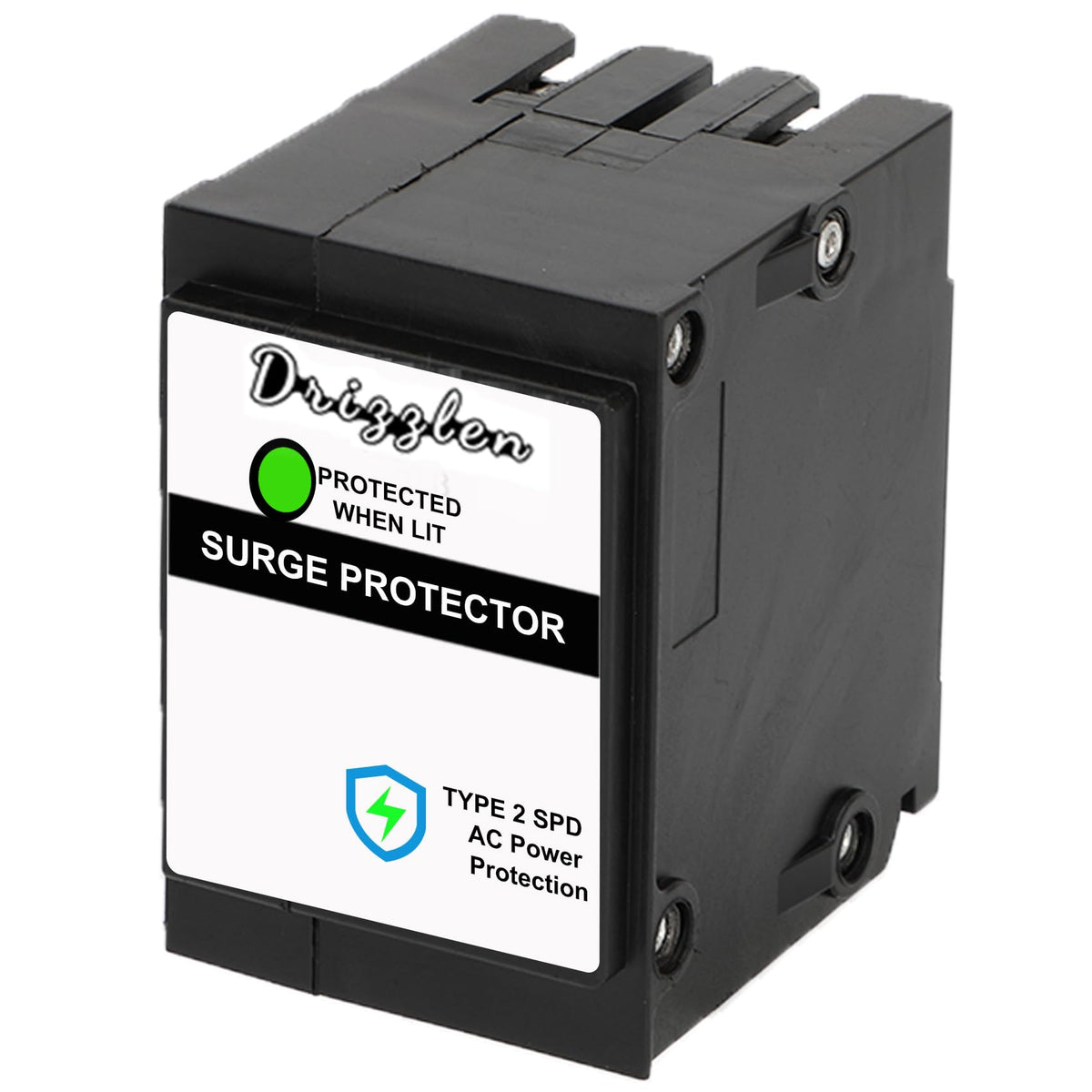

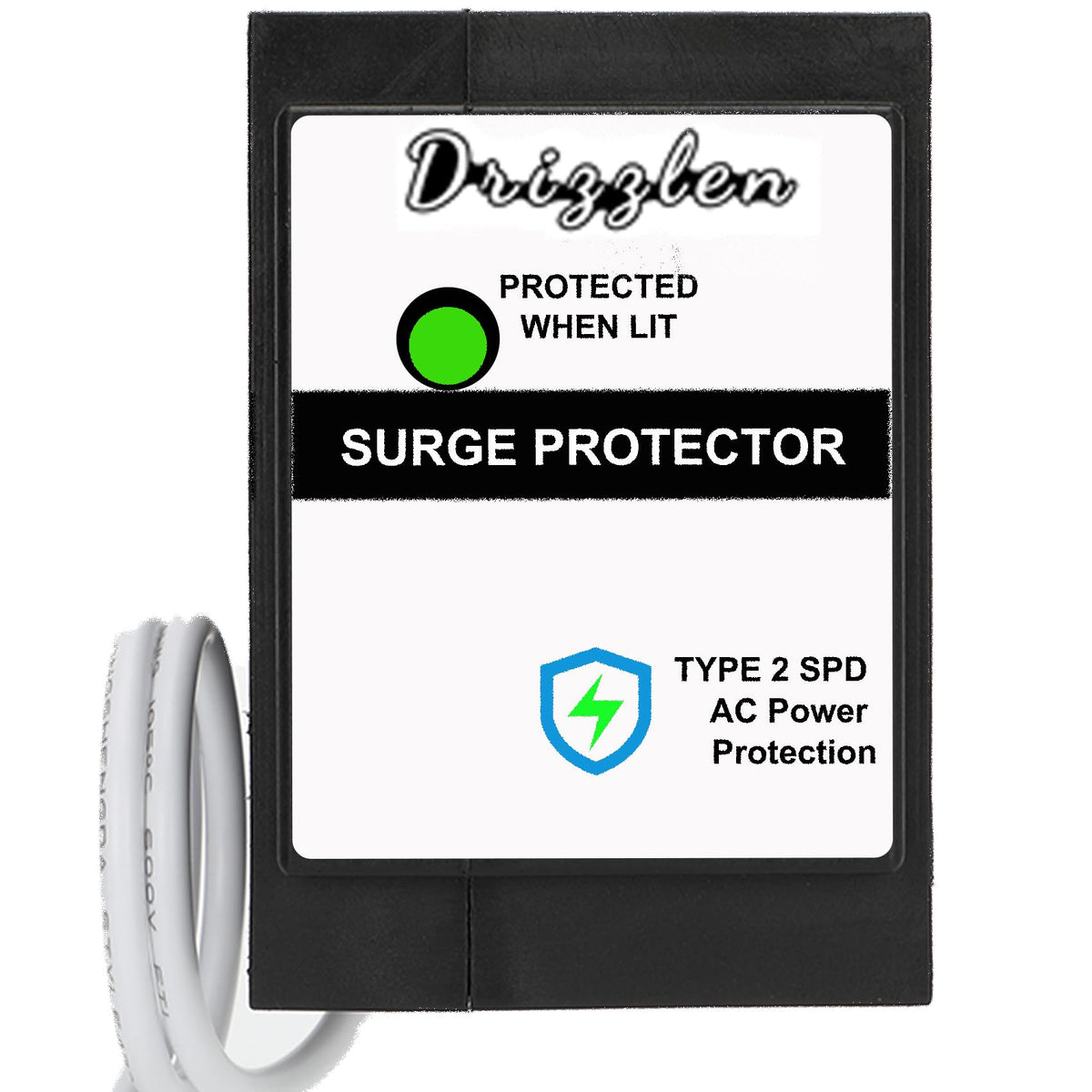

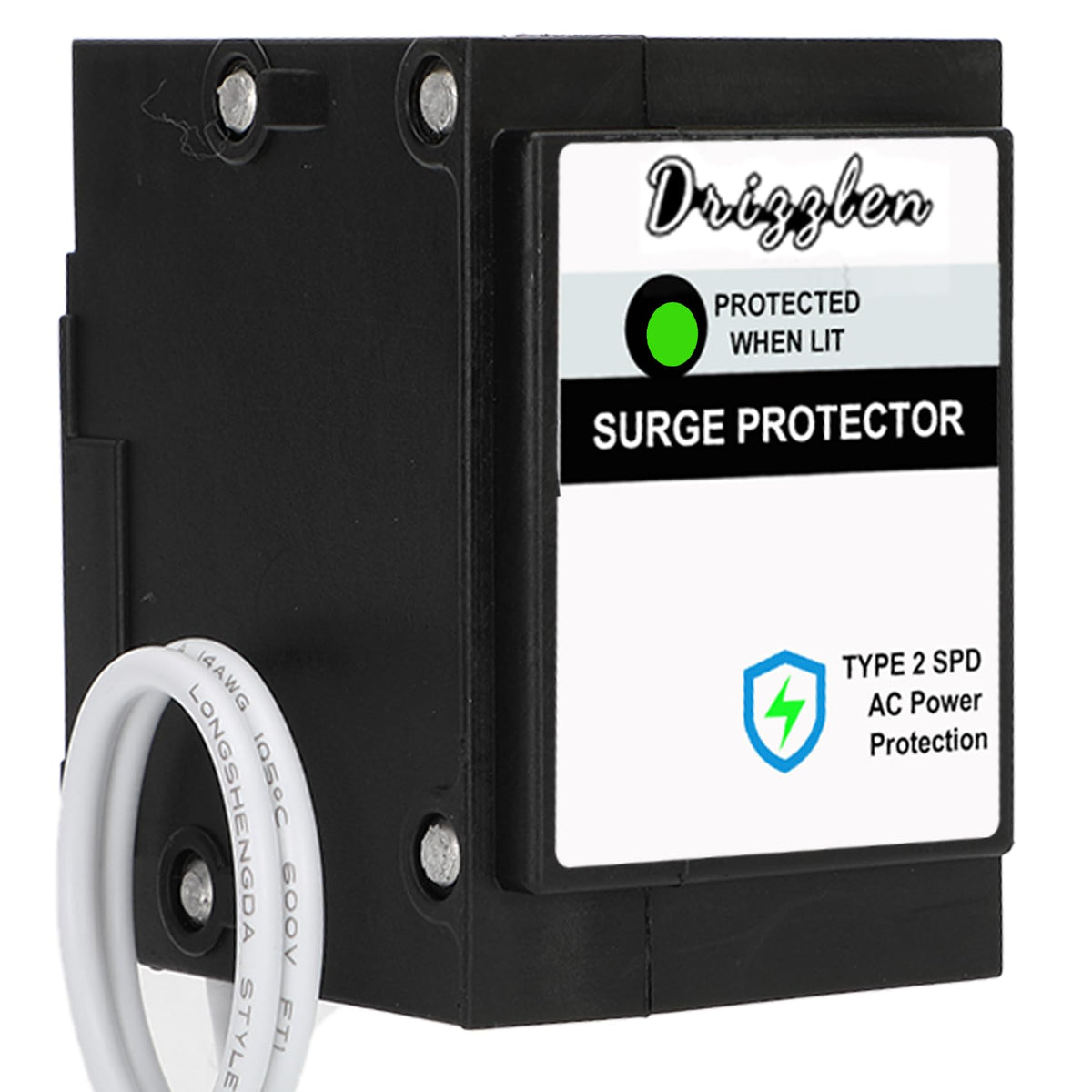

This compact, panel-mounted SPD is designed to fit Type BR load centers and protect downstream equipment from damaging voltage spikes produced by lightning, switching events or utility disturbances. It connects directly at the breaker panel to provide whole-panel transient suppression while occupying two breaker spaces. The unit’s form factor and terminal layout match common residential and light-commercial installations, making it a practical option for adding coordinated surge protection without rewiring outlets.

How does this surge protective device install in a typical panel?

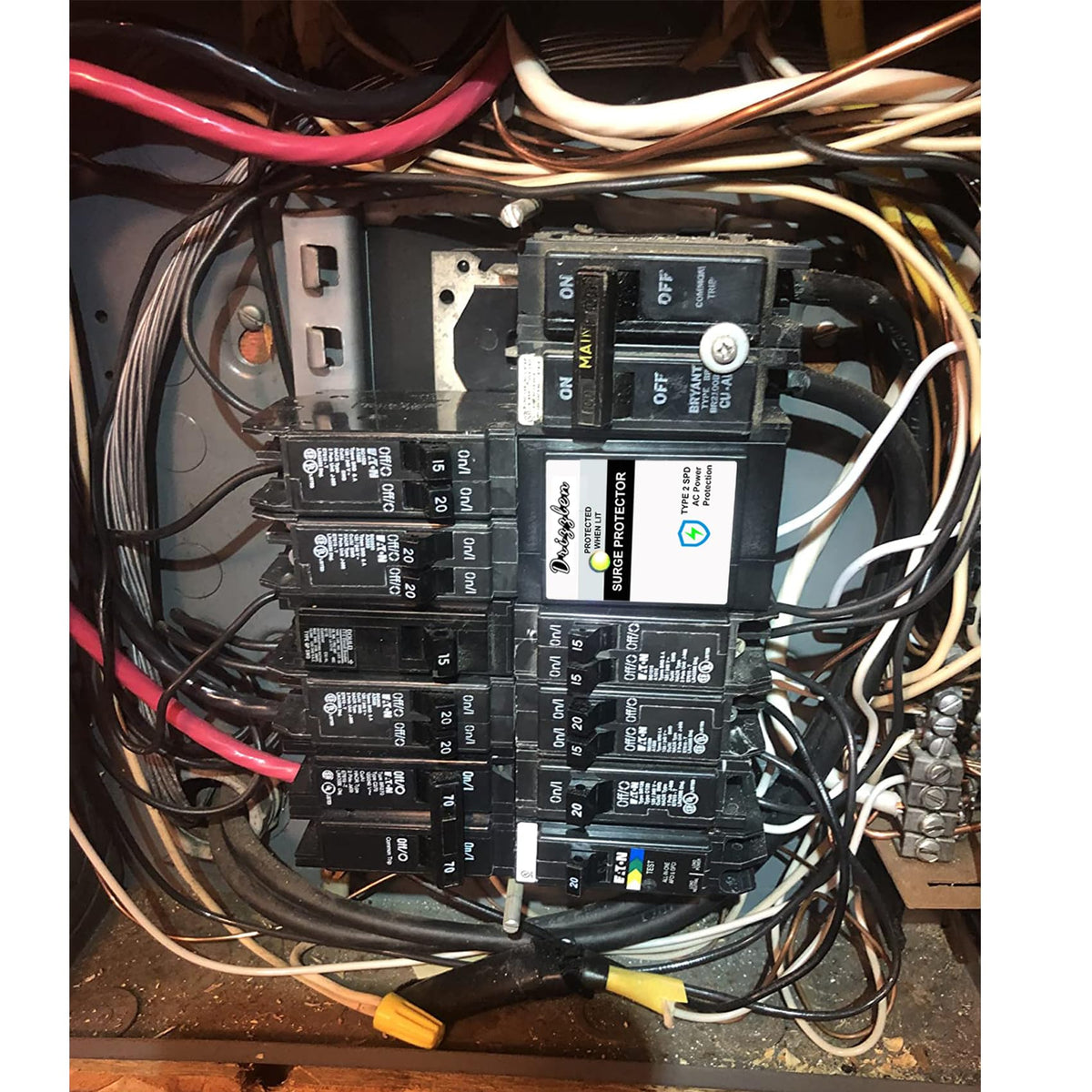

Installation involves snapping the device into two adjacent circuit breaker slots in a compatible Type BR load center and securing its connection to the bus. A qualified electrician should perform the installation to follow local code and ensure proper bonding and grounding. The compact two-pole design simplifies placement near the service entrance for effective whole-panel protection.

• Fits two adjacent Type BR breaker spaces for direct bus connection
• Two-pole wiring supports multi-wire branch circuits and 240 V systems
• Requires proper grounding and bonding at the panel for safe operation

What level of protection does the device provide and what does 18 kA mean?

The rating of 18 kA indicates the device’s maximum single-event surge current capacity under standard test conditions. It limits the energy reaching connected equipment by diverting surge current to ground, reducing the risk of component damage. This rating is a useful indicator of capability but not an absolute guarantee against all surge scenarios.

• 18 kA surge current rating for single-event energy diversion
• Two-pole suppression suits both 120/240 V split-phase systems
• Panel-mounted placement protects all downstream branch circuits

Will this device work with my existing electrical system and appliances?

Yes, when installed in a compatible Type BR panel the unit provides transient suppression for downstream appliances, electronics and lighting. It is intended to complement point-of-use protection for sensitive electronics but not replace proper grounding, wiring, or dedicated surge protectors where required. Confirm panel compatibility and breaker spacing before purchase.

• Compatible with Type BR load centers that accept two adjacent breaker spaces
• Protects downstream circuits including HVAC, appliances, and electronics
• Works best alongside good grounding and selective point-of-use protectors

How do I know when the surge protector needs replacing?

Many panel SPDs include visual or electrical indicators that change state after large surge events or at end-of-life, but procedures vary by model. Check the device for any status lights or diagnostic markings and follow the manufacturer’s replacement recommendations. If an indicator signals failure or the unit has absorbed multiple large surges, replace it to restore full protection.

• Look for status LEDs or indicator flags on the device panel
• Replace after a major surge event or when indicator shows end-of-life
• Routine electrician inspections ensure ongoing protection integrity

Who is this for: The Drizzlen Type BR Whole-Panel Surge Protective Device is intended for homeowners, electricians, and light-commercial property managers who want a straightforward, panel-mounted surge suppression solution for Type BR load centers. It’s a practical choice when you need whole-panel protection installed at the service distribution point, particularly for split-phase 120/240 V systems that require a two-pole device. For highly sensitive equipment or critical systems, pair this panel SPD with additional point-of-use protection and consult a licensed electrician for best results.
