Digirig Xiegu G90 X5105 Mobile Digital Mode Cables

Digirig mobile cable set provides ready-to-use, RF-choked audio and CAT connections tailored for Xiegu G90 and Xiegu X5105 radios.

These purpose-built transceiver-side cables pair a serial CAT lead with an audio/PTT line so you can connect a Digirig interface to Xiegu portable radios without soldering or splicing. The set is manufactured with shielding, ferrite chokes and a space-saving coiled jacket to keep the wiring tidy in vehicle or field installations. Cables ship configured for Digirig revision 1.6 and later (TRRS); contact us if you need TRS wiring for older interfaces.

How will these cables fit my Xiegu G90 or X5105?

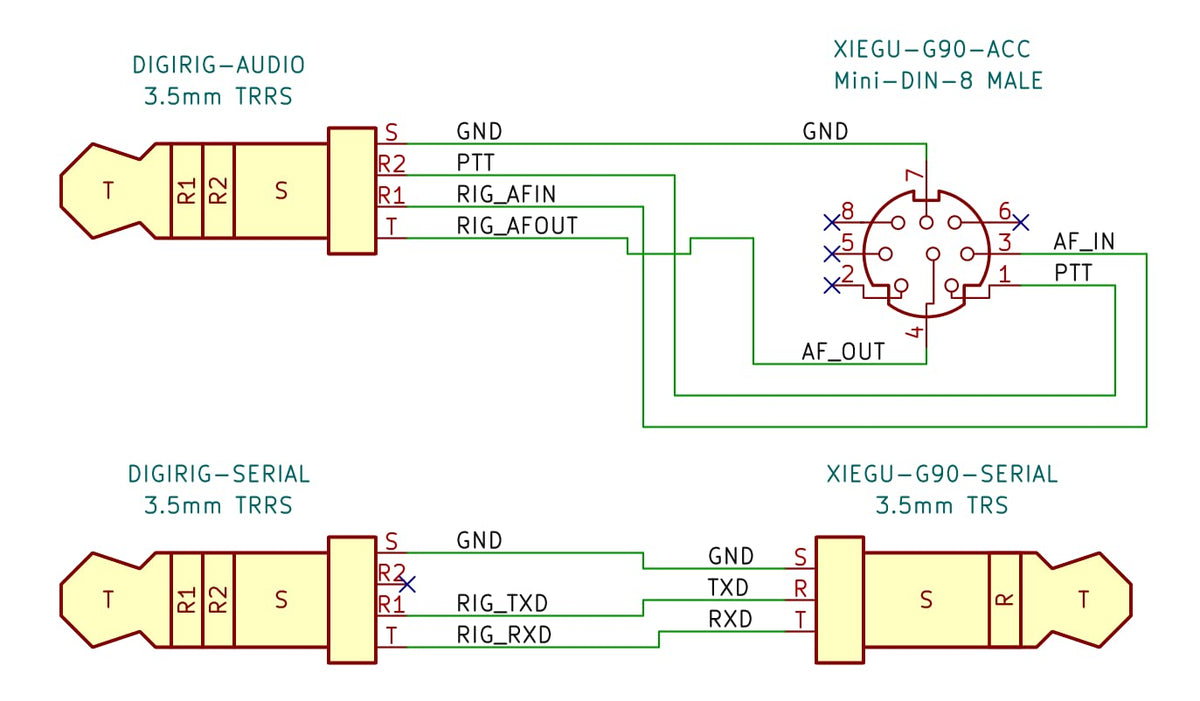

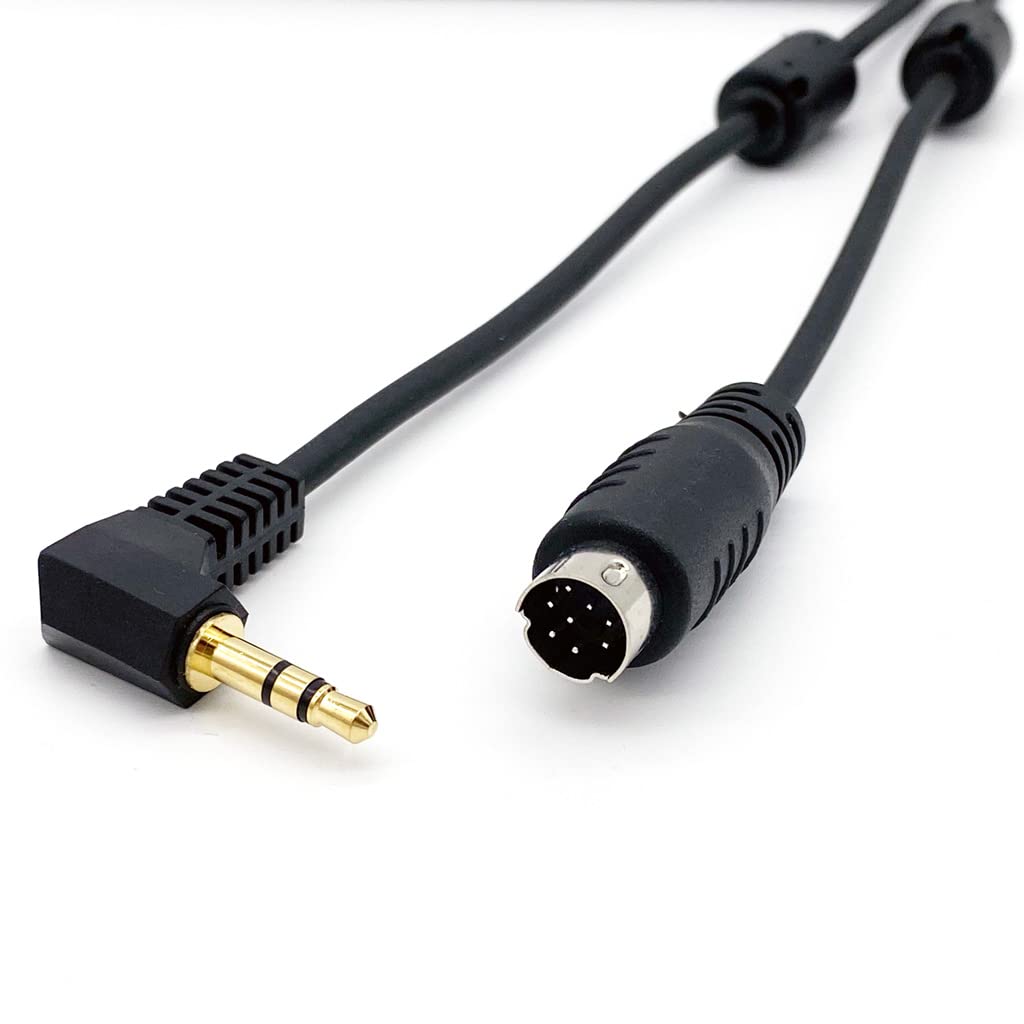

The connectors match the transceiver-side jacks used on both the G90 and X5105. One cable carries serial CAT control on a 3.5mm TRS plug; the other carries audio and PTT signals via a Mini DIN-8. No modifications are required to plug them into the radios.

• One 3.5mm TRS serial CAT cable for rig control
• One Mini DIN-8 audio + PTT cable for transmit/receive audio
• Pre-wired for Xiegu pinouts — ready to connect

Will these cables resist interference and physical wear?

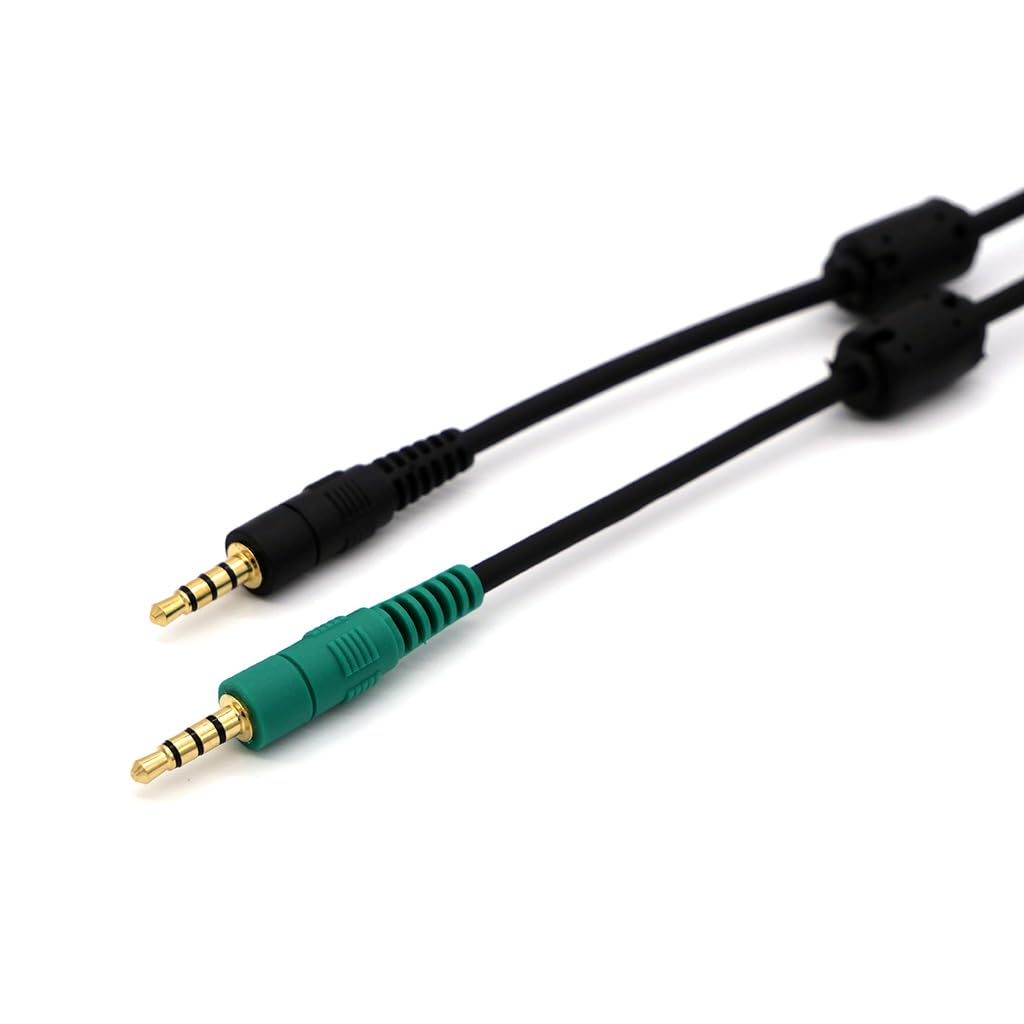

Yes — the wiring uses braided shielding and ferrite beads on each end to block radio-frequency interference that can upset digital audio and CAT signals. The coiled outer design limits tangles and reduces strain on solder joints when the setup moves.

• Shielded conductors reduce pickup of stray RF
• Ferrite chokes at both ends for improved RFI suppression
• Coiled construction prevents knots and improves longevity

What are the cable length and handling characteristics?

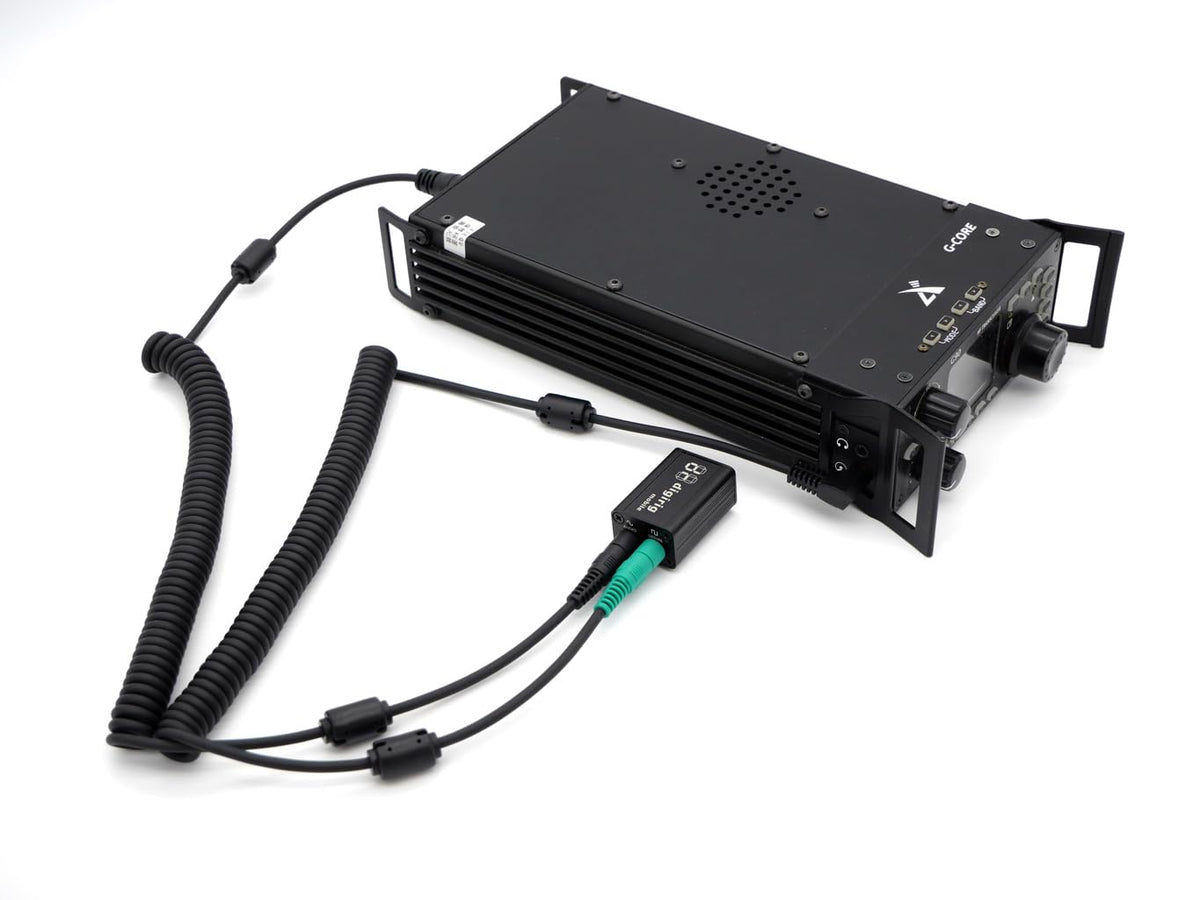

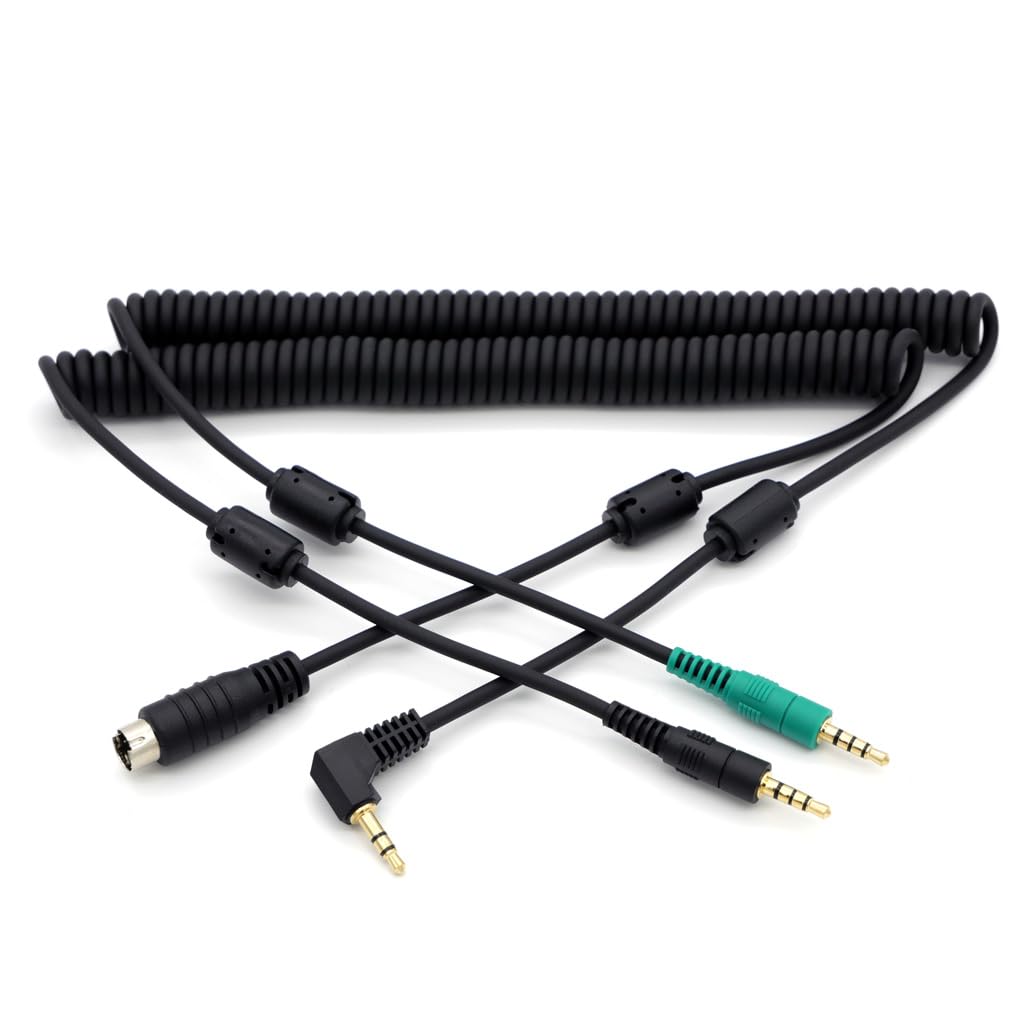

Each coiled cable measures about 24 inches relaxed and can extend up to approximately 72 inches when pulled. That stretch range gives flexibility between a compact installation and a longer reach for mobile or field use while automatically retracting when not under tension.

• 24" relaxed length for neat installs
• ~72" fully stretched for longer reach
• Coil returns to compact form to reduce clutter

Are these cables compatible with different Digirig revisions?

These assemblies use TRRS wiring intended for Digirig revision 1.6 and newer. If you own an older Digirig interface requiring TRS pinout, contact us — a TRS variant can be provided or custom-ordered to match legacy units.

• Standard: TRRS pinout for Digirig rev 1.6+
• Legacy: TRS available upon request for older interfaces
• DIY wiring guidance available on the Digirig website

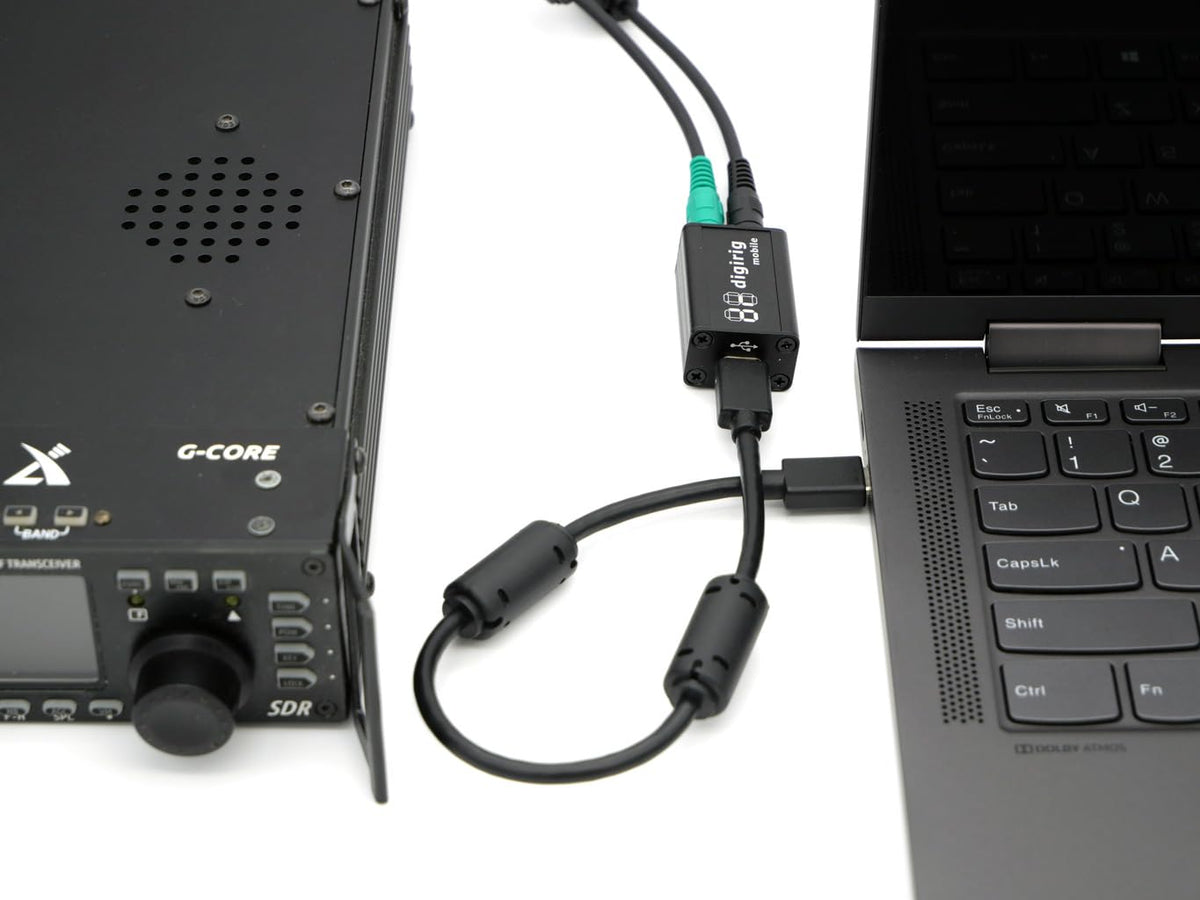

Who is this for: Operators who want a plug-and-play transceiver-side cable set for Xiegu G90 or X5105 radios, especially mobile and portable amateurs who value compact routing, RFI suppression and robust connectors. These cables are ideal for users integrating a Digirig interface into a vehicle, go-kit, or field station and who prefer finished, tested wiring instead of building their own leads.
