Digirig Mobile cables for Baofeng HTs — data & programming

Digirig Mobile cables are purpose-built K1 (3.5mm/2.5mm TRS) audio and programming leads that connect Baofeng and many other HTs to a Digirig Mobile interface for digital modes and radio programming.

These two coiled cables — a black data lead for digital audio + PTT and a green Chirp programming lead for serial control — let you run packet, Winlink, VaraFM, FT8, SSTV, APRS and other modes from a Digirig Mobile (revision 1.6 or later). Shielding, RF chokes and quality terminations minimize interference while the spring-coiled design keeps the cabling compact when stowed and long when needed.

Which radios and modes will these Digirig Mobile cables support?

The Digirig Mobile cables are designed for HTs with a K1-style combined 3.5mm/2.5mm TRS accessory jack. They reliably enable audio and PTT for digital voice, data and many amateur protocols, and the programming cable provides serial access for CHIRP-style programming when the Digirig CAT port is set correctly.

• Compatible with many Baofeng models and other brands that use K1 jacks
• Digital and packet-friendly: Winlink, VaraFM, VaraHF, Darewolf, FT8, FT4, SSTV, APRS
• Satellite-friendly for APRS and SSTV uplinks/receives
• Programming with CHIRP when Digirig CAT port is set to appropriate logic levels or TX-500

How do the two cables differ and which one do I need?

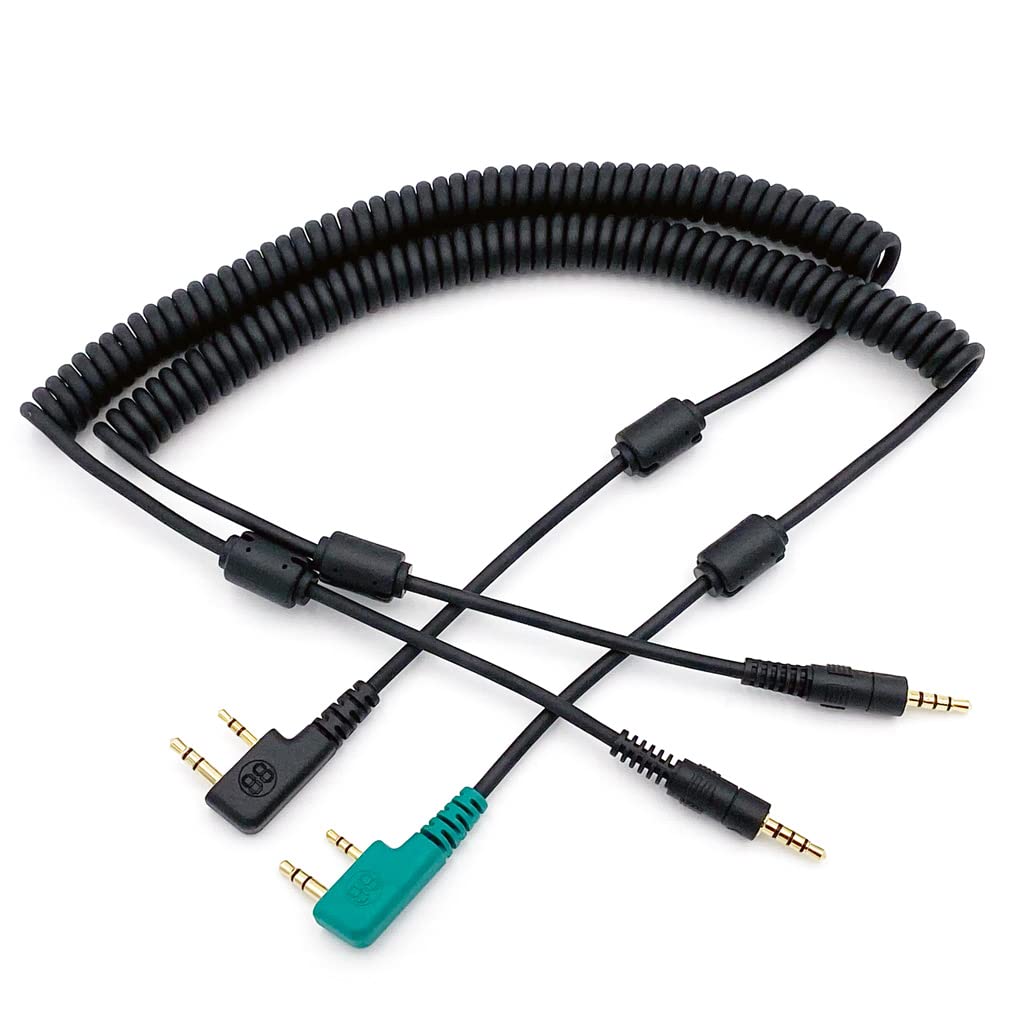

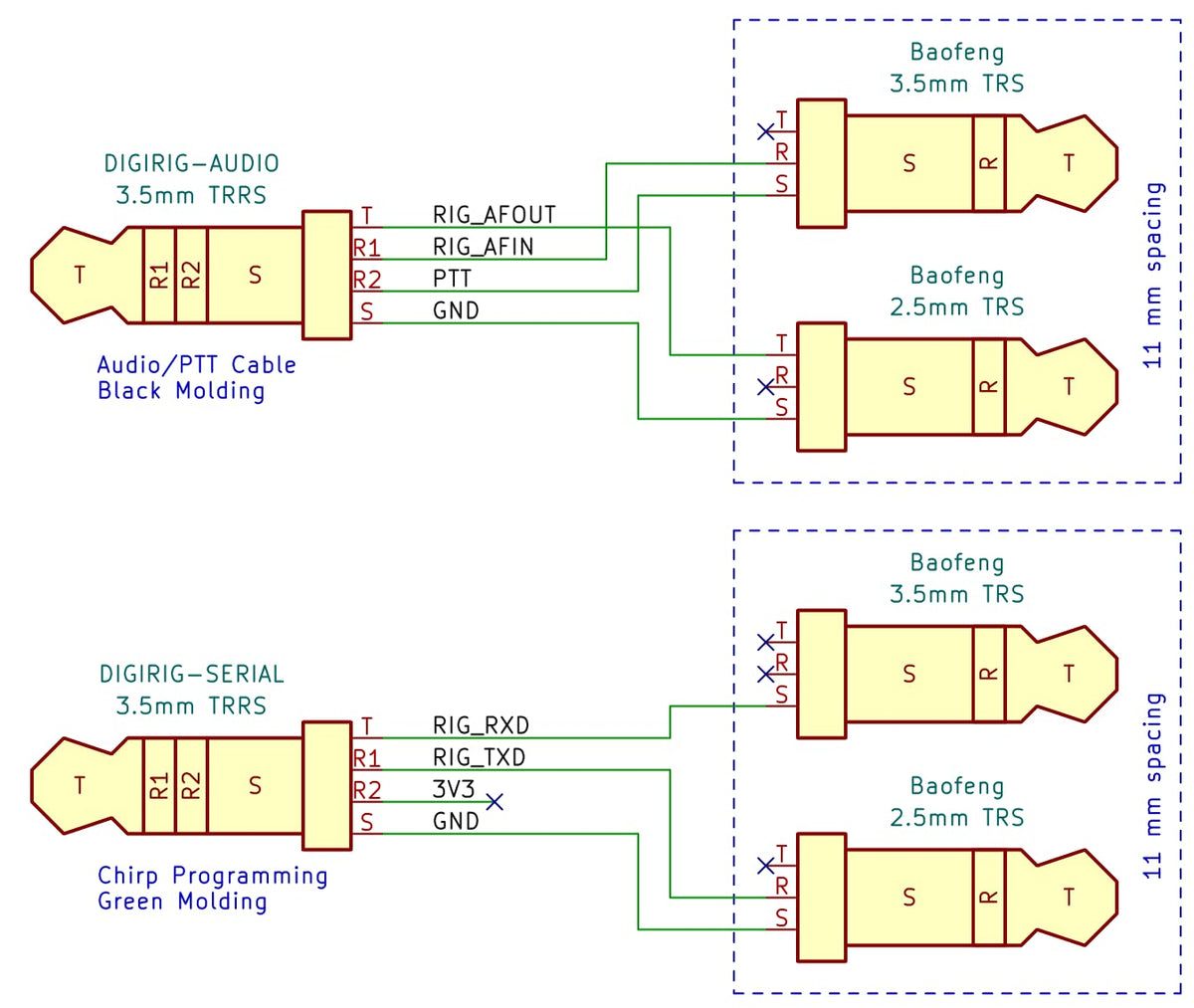

The black data cable routes audio and provides PTT control (RTS) through Digirig's audio socket so you can operate digital modes and voice networks. The green cable is dedicated to programming and plugs into the Digirig serial socket for channel uploads with CHIRP or other software. Many users keep both: one for on-air digital operations, the other for storage and programming tasks.

• Black data cable: audio + PTT, for digital modes and packet radio
• Green programming cable: serial/CHIRP programming into the radio
• Both cables are coiled to reduce tangling and stress on connectors
• Ensure Digirig Mobile firmware/config (1.6+ for audio cable; CAT settings for programming) is correct

Will these cables prevent radio interference and survive regular use?

Yes — each lead is shielded and fitted with ferrite beads at both ends to reduce radio-frequency interference that can ruin digital reception. The robust terminations and premium materials are chosen for repeated plug cycles and field conditions, and the coiled construction reduces strain to extend service life.

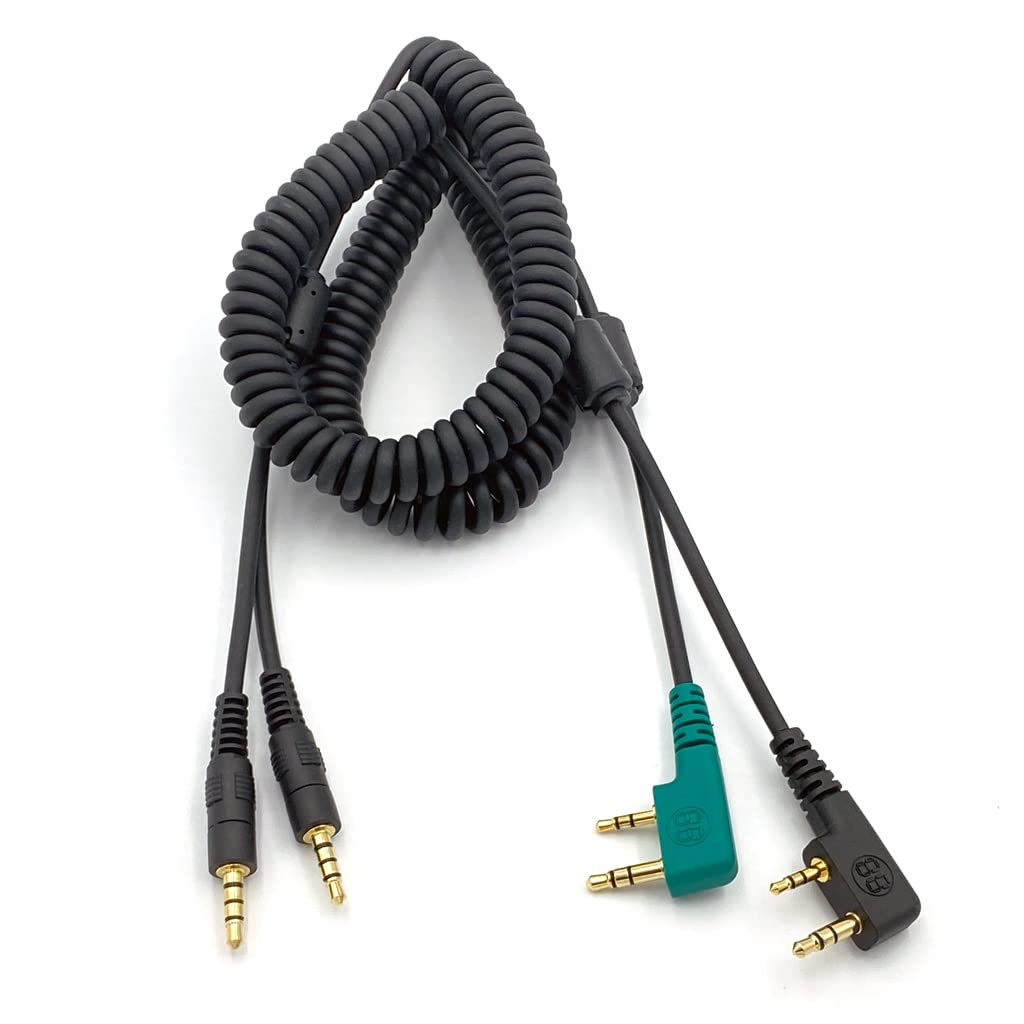

• Double-ended ferrite chokes to reduce RFI on sensitive digital signals
• Shielded conductors for clean audio and reliable data throughput

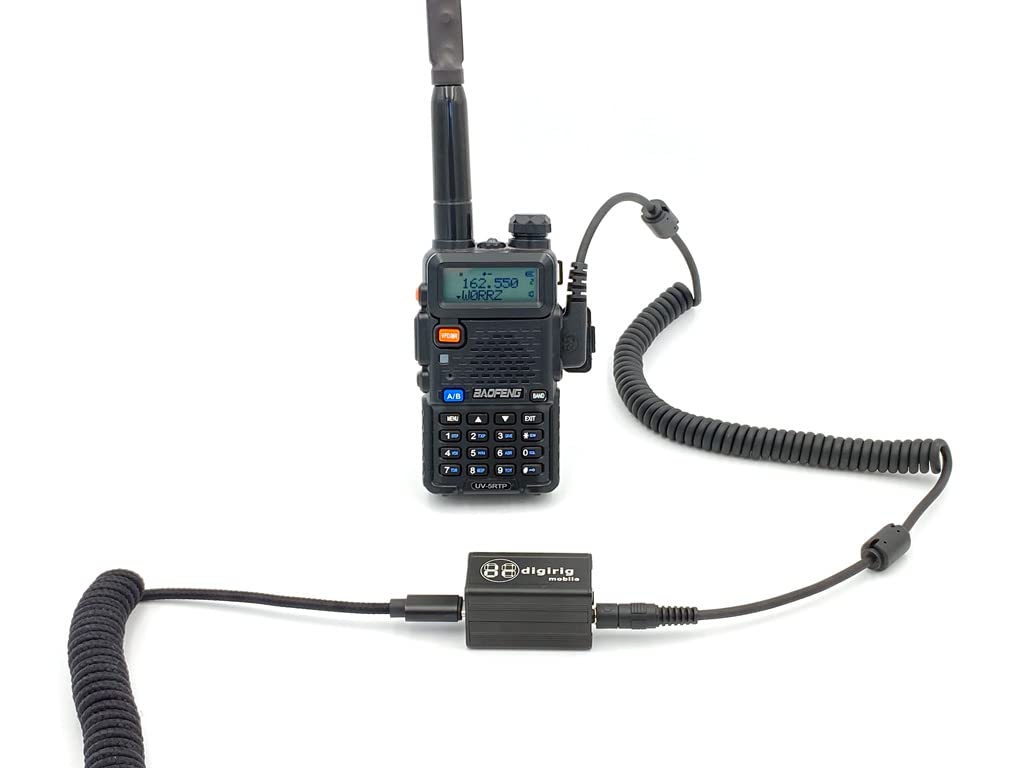

• Coiled form factor provides ~24" relaxed and ~72" fully stretched reach
• Premium connectors and craftsmanship for frequent field use

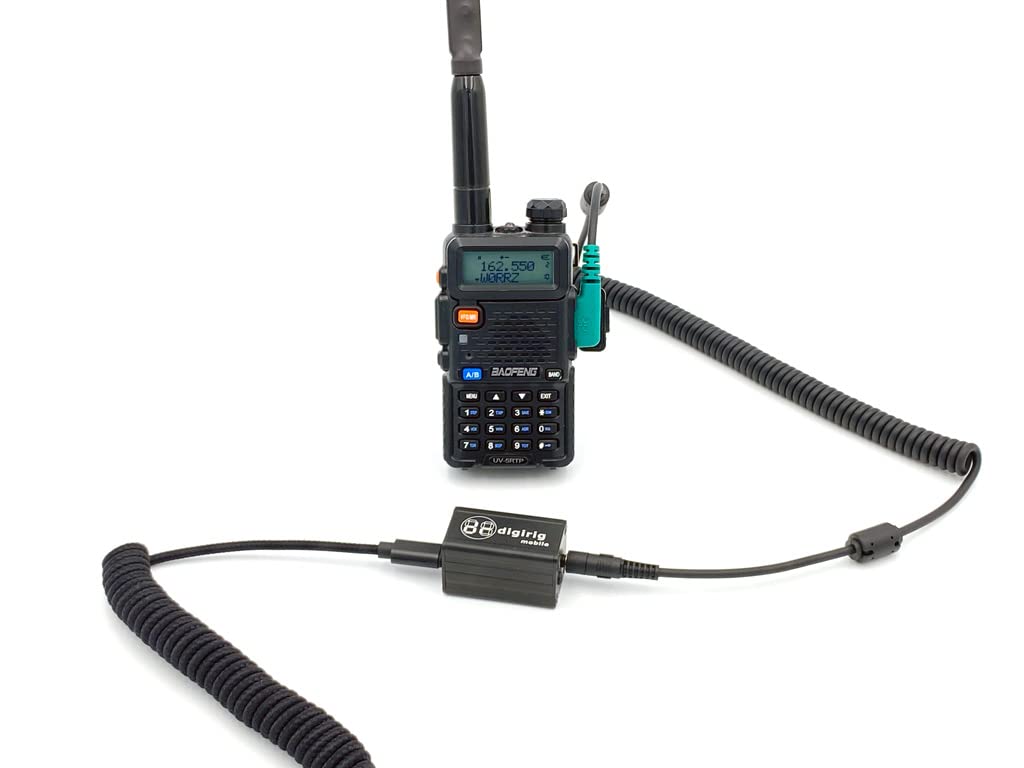

Who is this for: These Digirig Mobile K1 cables are built for radio hobbyists, emergency-communications operators, and portable station builders who need dependable audio/PTT and programming links between a Digirig Mobile interface and handy-talkies that use the K1 3.5/2.5mm TRS accessory jack. If you run digital modes, APRS, SSTV, Winlink or program radios with CHIRP, these cables give you the physical interface, interference protection, and flexible reach required for vehicle, field or home use.

Note: The audio data cable requires Digirig Mobile firmware revision 1.6 or later. The programming cable requires the Digirig CAT port to be configured for logic-level serial or TX-500 mode. A non-exhaustive list of compatible radios includes many Baofeng, AnyTone, Wouxun, Kenwood, BridgeCom, Puxing, Quansheng, Linton and similar handheld models; programming results may vary by model.
